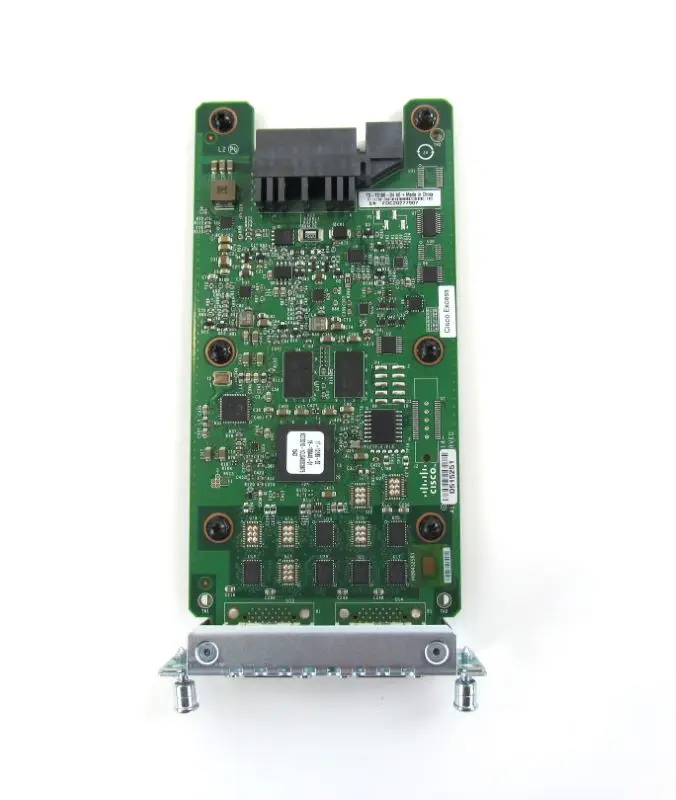

NIM 2T Router High Speed WAN Interface card 2 Port Serial WAN Interface card

Product

NIM-2T

Synchronous support

Yes

Synchronous maximum speed (per port)

8 Mbps

Serial protocols

EIA-232, EIA-449, EIA-530, EIA-530A, V.35, and X.21

Telecomm post, telephone, and telegraph (PTT)

• TBR1 and 2

• JATE digital

Safety

• UL 60950-1 (United States)

• CAN/CSA 22.2, 60950-1 (Canada)

• AS/NZS 60950-1 (Australia/New Zealand)

• EN60950-1 (Europe)

• IEC 60950-1 (International)

Immunity

• EN300386

• CISPR24

• EN55024

• EN50082-1

• 61000-4-2/3/4/5/6/8/11

Emissions

• FCC Part 15 Class A

• ICES-003 Class A

• EN55022 Class A

• CISPR22 Class A

• AS/NZSCISPR22 Class A

• VCCI Class A

• EN 300386

• EN61000-3-2/3

• CNS13438

Physical specifications

• Singlewide NI, no slot restrictions

• Dimensions (H x W x D) 1.25 x 3.50 x 7.24 in. (3.18 x 8.89 x 18.39 cm)

Environmental specifications

• Operating temperature: 32 to 104°F (0 to 40°C)

• Storage temperature: -4 to 149°F (-20 to 65°C)

• Relative humidity: 10 to 90%, noncondensing
