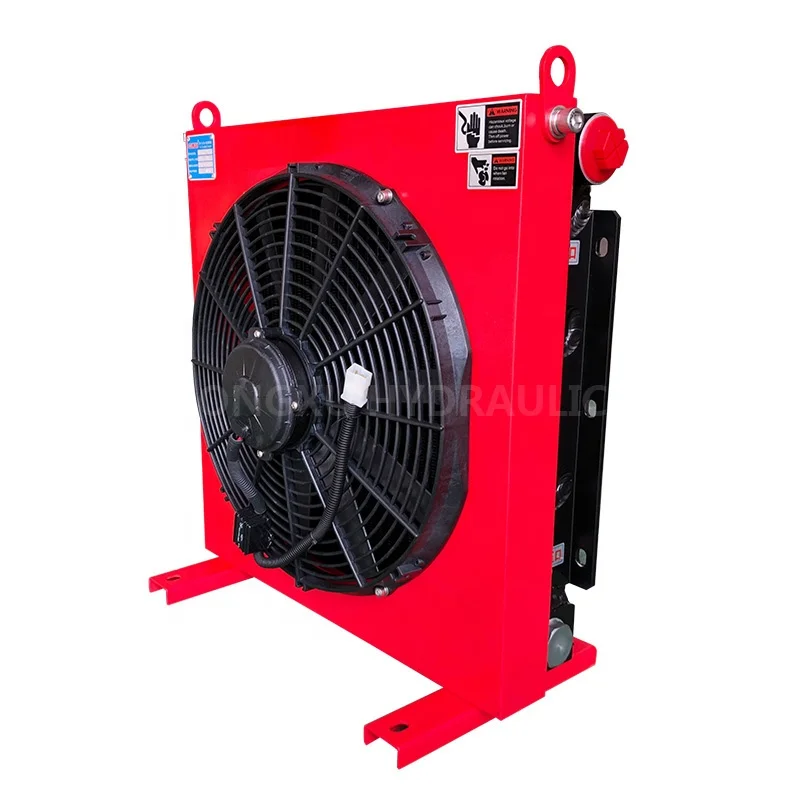

Factory Outlets for DXD DC 12/48V Condensing Fan Fluid Heat Exchanger for Cooling Automation Working Machinery

Product Overview

Description

Factory Outlets for

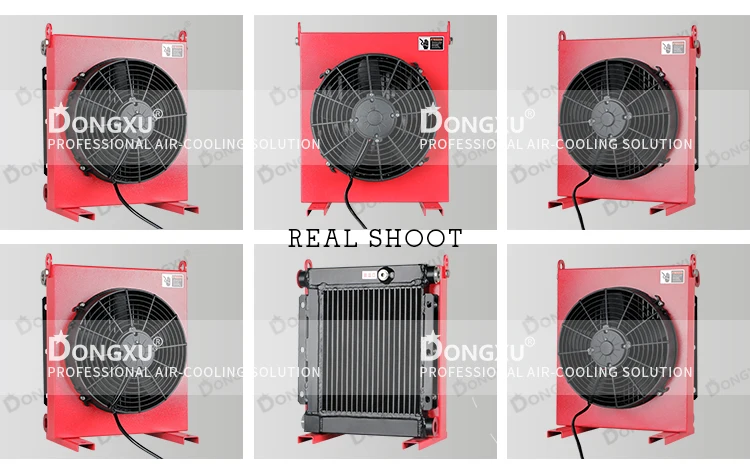

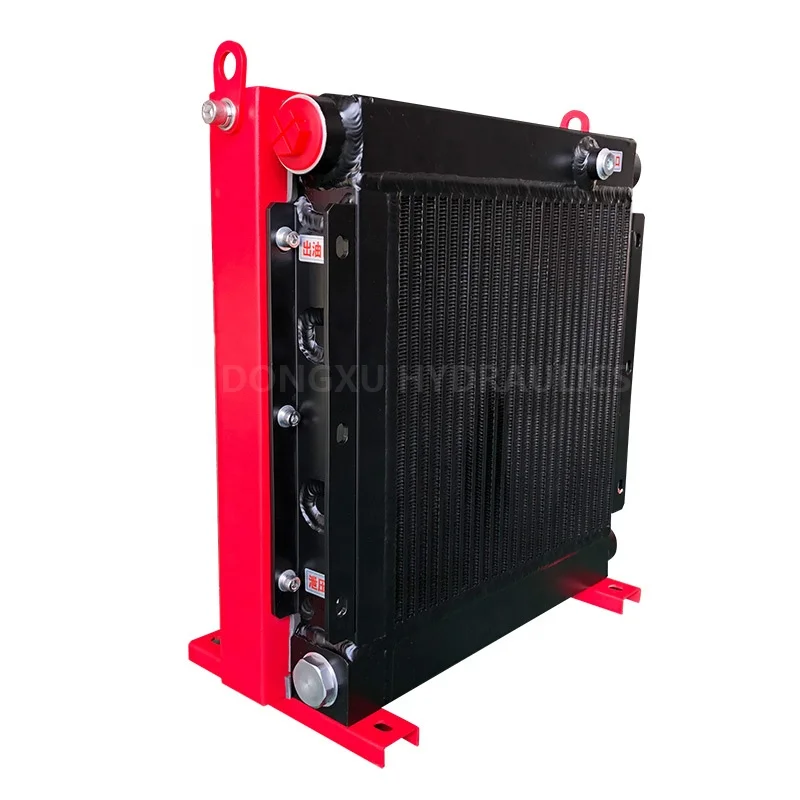

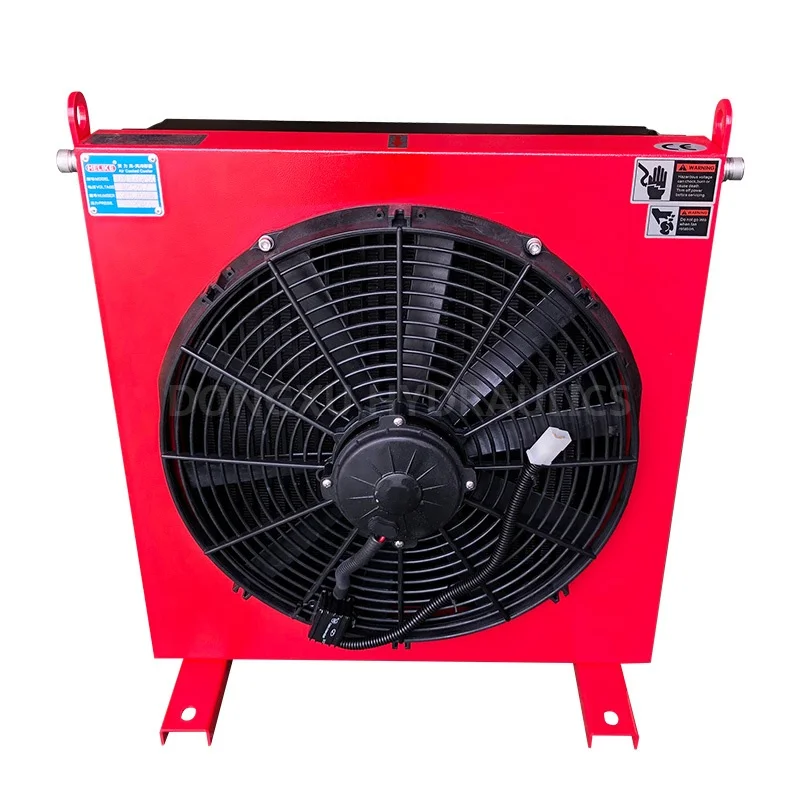

DXD DC 12/48V Condensing Fan Fluid Heat Exchanger

for Cooling Automation Working Machinery





---Description---

1. The air cooler is a kind of heat exchanger, which is characterized by using air as the cooling medium, and using the heat of the internal medium of the fan to forcibly take away.

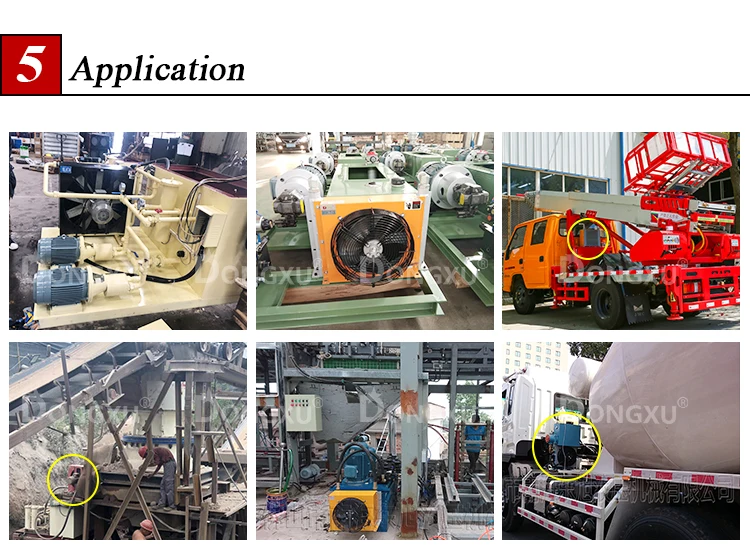

2. Because it is often used for cooling hydraulic oil, it is also often called an air-cooled oil cooler.

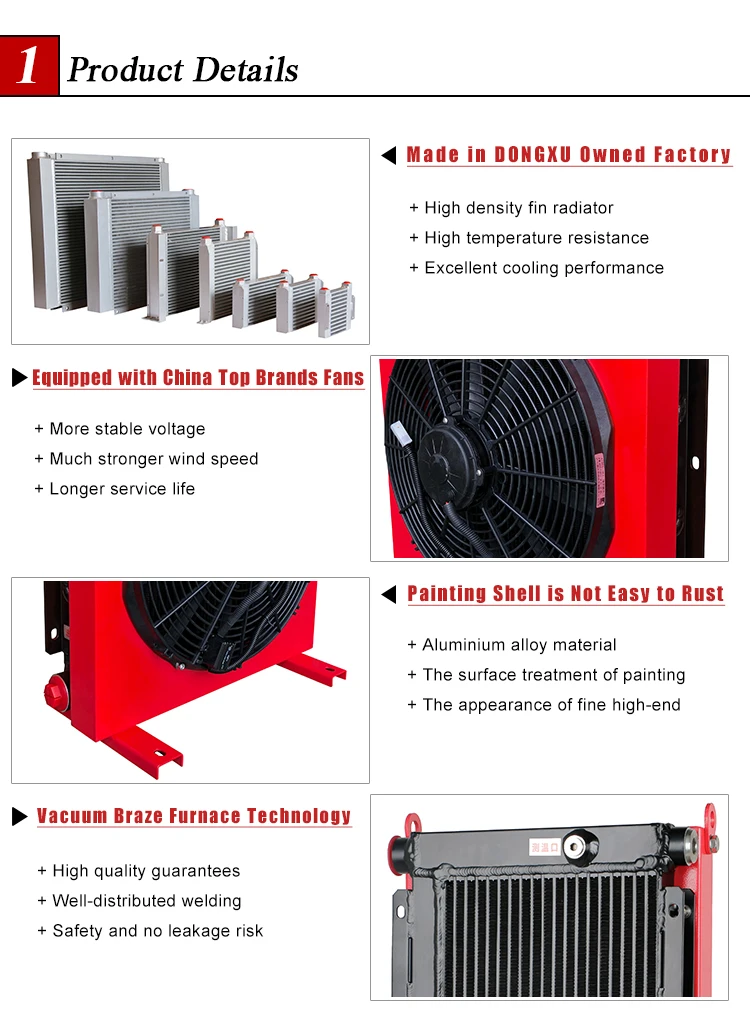

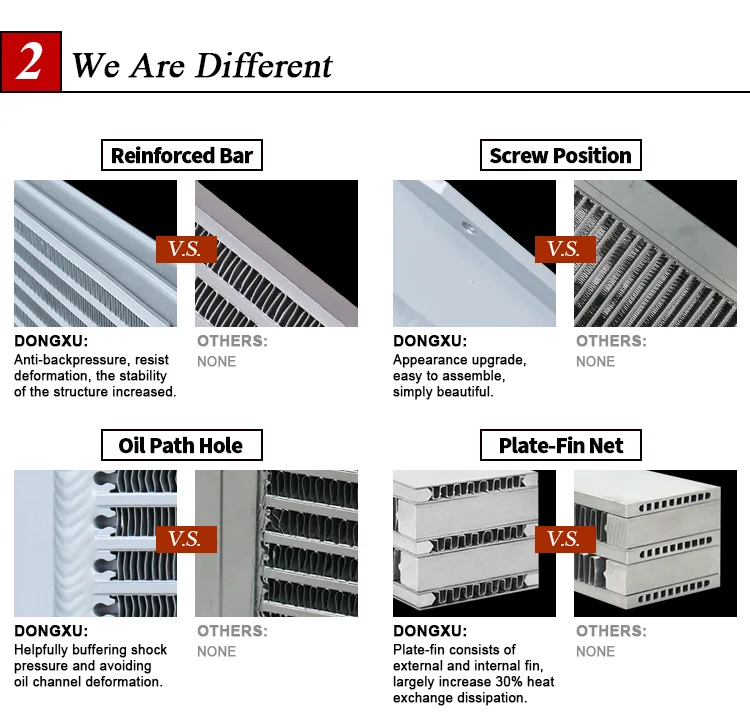

3. Aluminum alloy high-density heat sink, precision manufacturing, quality assurance.


4. Thickened mounting feet, safe and reliable quality, more durable.


5. Equipped with two or four fans, more air volume and better cooling effect.


6. Stable performance fan, overall anti-leakage design, beautiful and durable, better heat dissipation

 ---Features---

Through the vacuum brazing process, the cooler is driven by an integrated axial fan, which can run for a long time and achieve stable cooling effect.

1. The temperature controller can be installed.


2. Various forms of pressure protection are available.

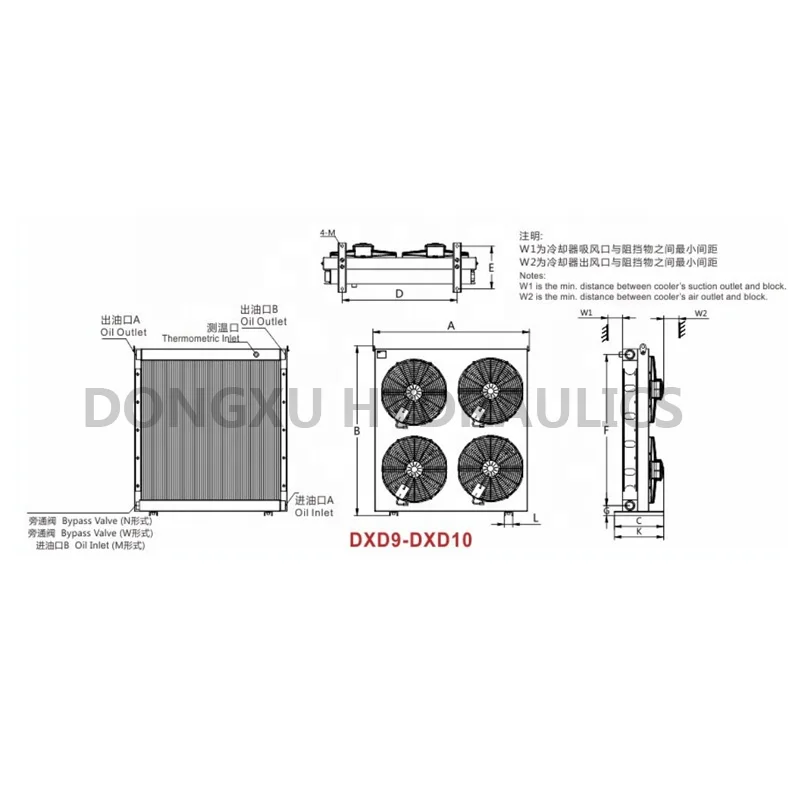

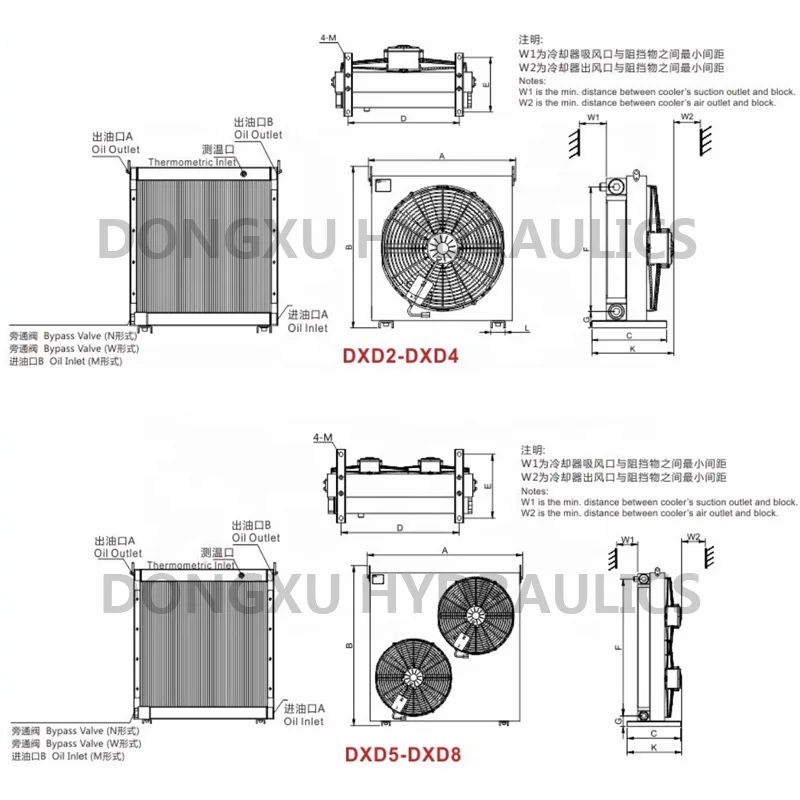

3. The oil inlet and outlet of the cooler are standard G thread, and SAE flanges can also be customized or connected according to requirements.

 Quality Assurance, Easy Installation, One Year Warranty

Description Of Model Label
DXD	8	A2	N	C	X	O	O
Cooler Type: Integral DC Condenser Fan Series	Plate Size:2/3/4/5/6/7/8/9/10	Voltage: A2=DC24V(Standard) A1=DC12V	Bypass Valve: N=Build-in(Standard) W=External M=Without Bypass Valve	Oil Hole Direction: C=Side in side out(Standard) S=Up in up out	Wind Direction: X=Suction(Standard) C=Blowing	Temp. Controller: O=Without controller(Standard) T=Temp. Switches--Action Temp.:     T50=50℃,T60=60℃,T70=70℃ C=Temp. Transmitter--     C1=Compact,C2=Digital	Heatsink Protection: O=Without protection(Standard) S=Anti-Stone net
