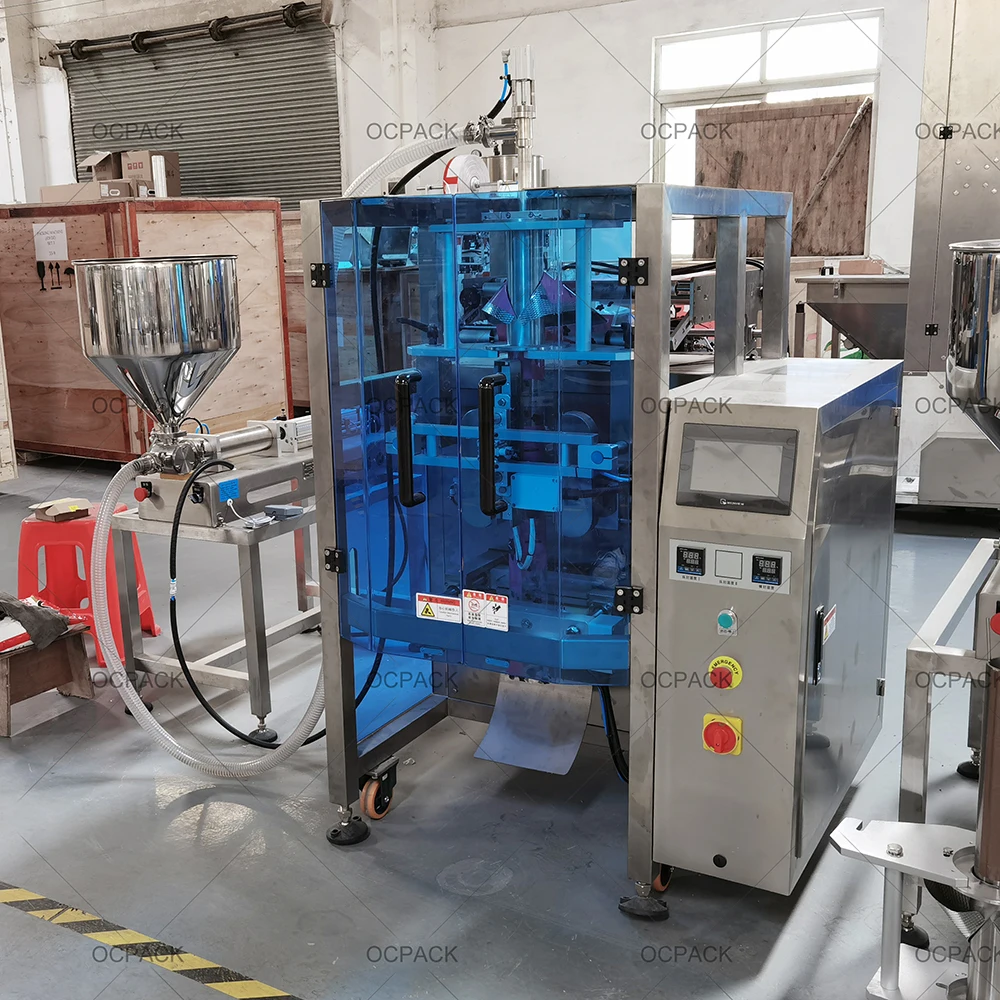

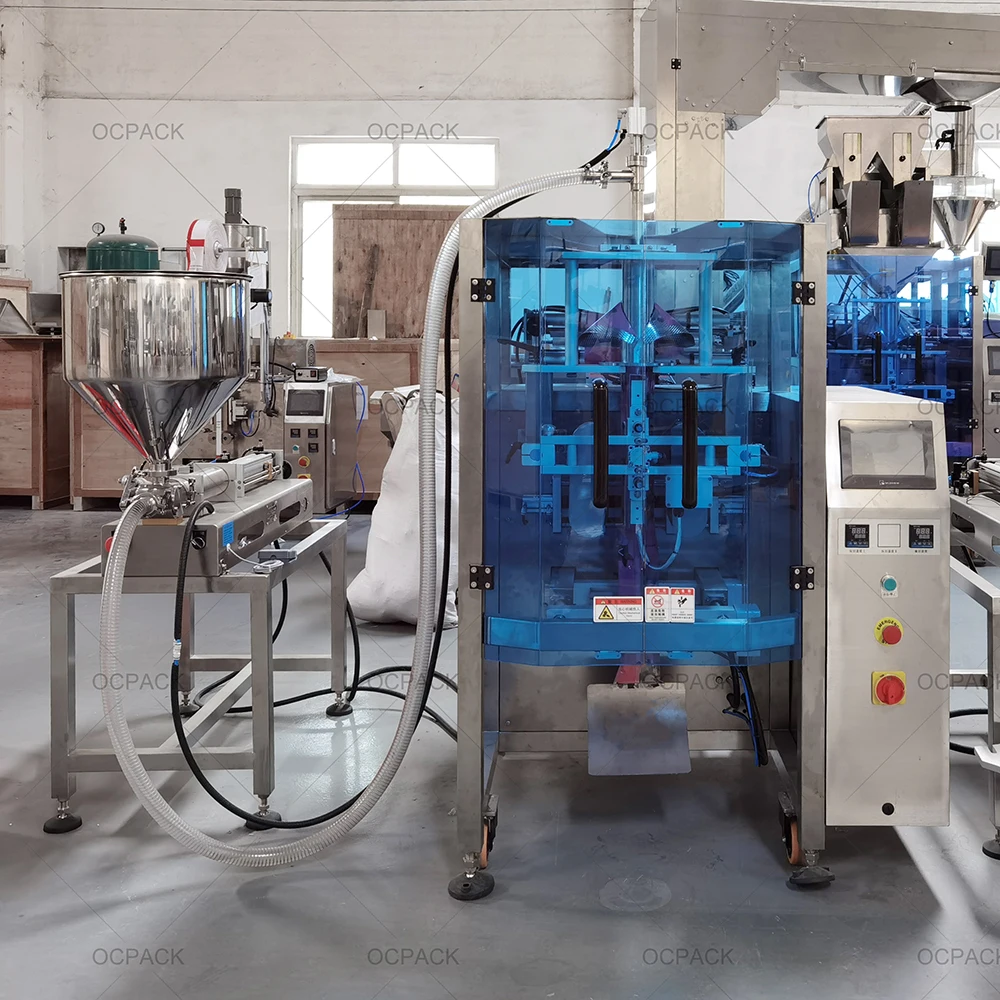

Automatic sunflower seed pouch oil filling machine cooking oil plastic bag packing machine
- Category: >>>
- Supplier: Foshan Ocpack Packaging Machinery Co. Ltd.
Share on (11000008101016):
Product Overview
Description
Product Description
Technical specifications | ||||||||
Type | OC-420LY | OC-520LY | OC-720LY | |||||
Film width | Max.420mm | Max.520mm | Max.720mm | |||||
Bag length | 80~300mm | 80~350mm | 100~450mm | |||||
Bag width | 60~200mm | 80~250mm | 100~350mm | |||||
Product height | Max.40mm | Max.45mm | Max.80mm | |||||
Measuring range | 150~1500ml | 150~2000ml | 150~4000ml | |||||
Packing rate | 5~60bags/min | 10~50bags/min | 10~40bags/min | |||||
Machine weight | 650KG | 750KG | 900KG | |||||
Application
>What do you want to pack?
Widely applied for food,Medicine,chemical liquid products such as Ketchup, flavoring, Sauce ,Pasty, Shampoo, cream, body wash liquid and so on.
Optional Devices
It can be equipped with date coding device, nitrogen gas filling device, easy tear device, punching device, gusset device, etc.
Machine display
Smart screen
Brand: Weinview or customized according to your needs
Language: You can choose seven languages, For example: English, Russian,Spanish, French,etc. You can also customize the language
as needed.
Function: You can set and change the weight of the packaging material and the length of the bag.
as needed.
Function: You can set and change the weight of the packaging material and the length of the bag.

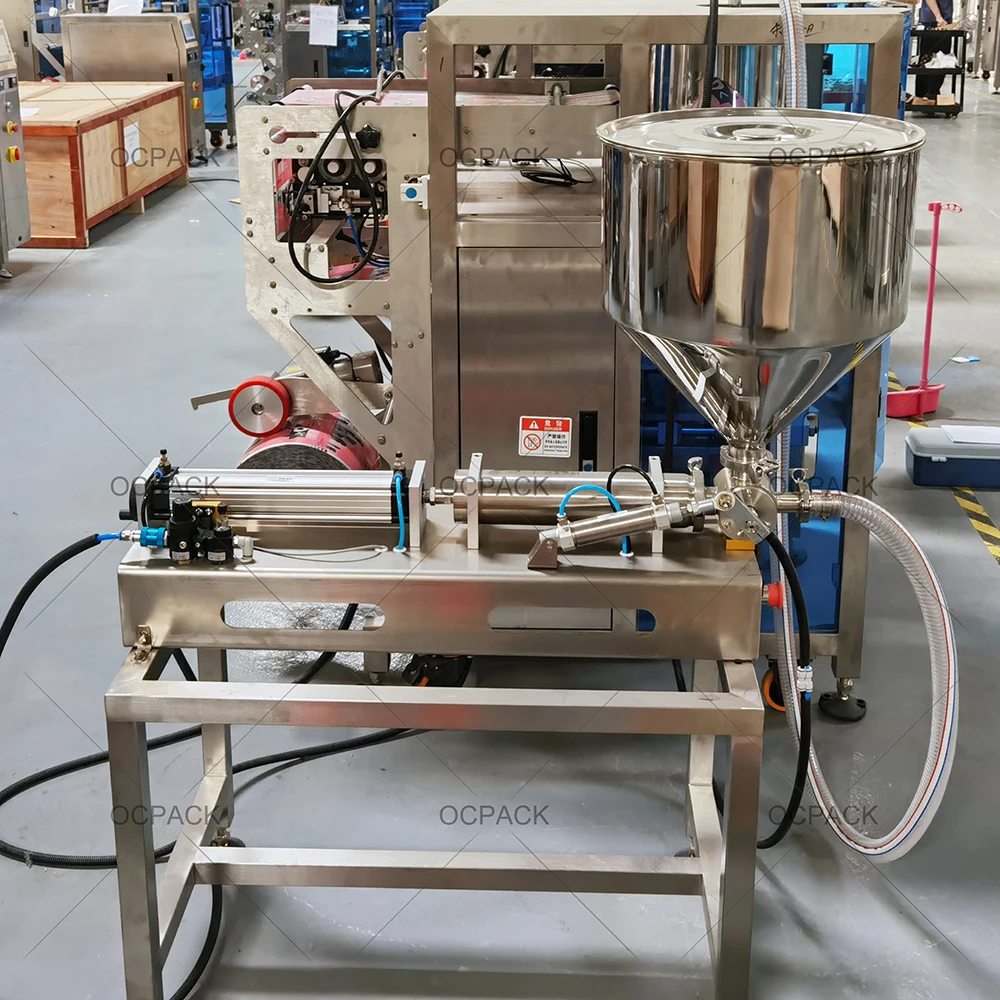

Measuring Type
Name: Metering Pump Device
Material: Food Grade 304 Stainless Steel.
Feature: 1.the machine uses compressed air to control the drive, it is particularly suitable for use in explosion-proof requirements and humid environment, a high degree of safety. 2.The use of screw, counter, filling volume adjustment so precise, in
digital form and can be directly reflected;
3.filling fast,filling back and forth 30 times per minute, with 500ml of water, for example, filling accuracy is ± 1%
Feature: 1.the machine uses compressed air to control the drive, it is particularly suitable for use in explosion-proof requirements and humid environment, a high degree of safety. 2.The use of screw, counter, filling volume adjustment so precise, in
digital form and can be directly reflected;
3.filling fast,filling back and forth 30 times per minute, with 500ml of water, for example, filling accuracy is ± 1%

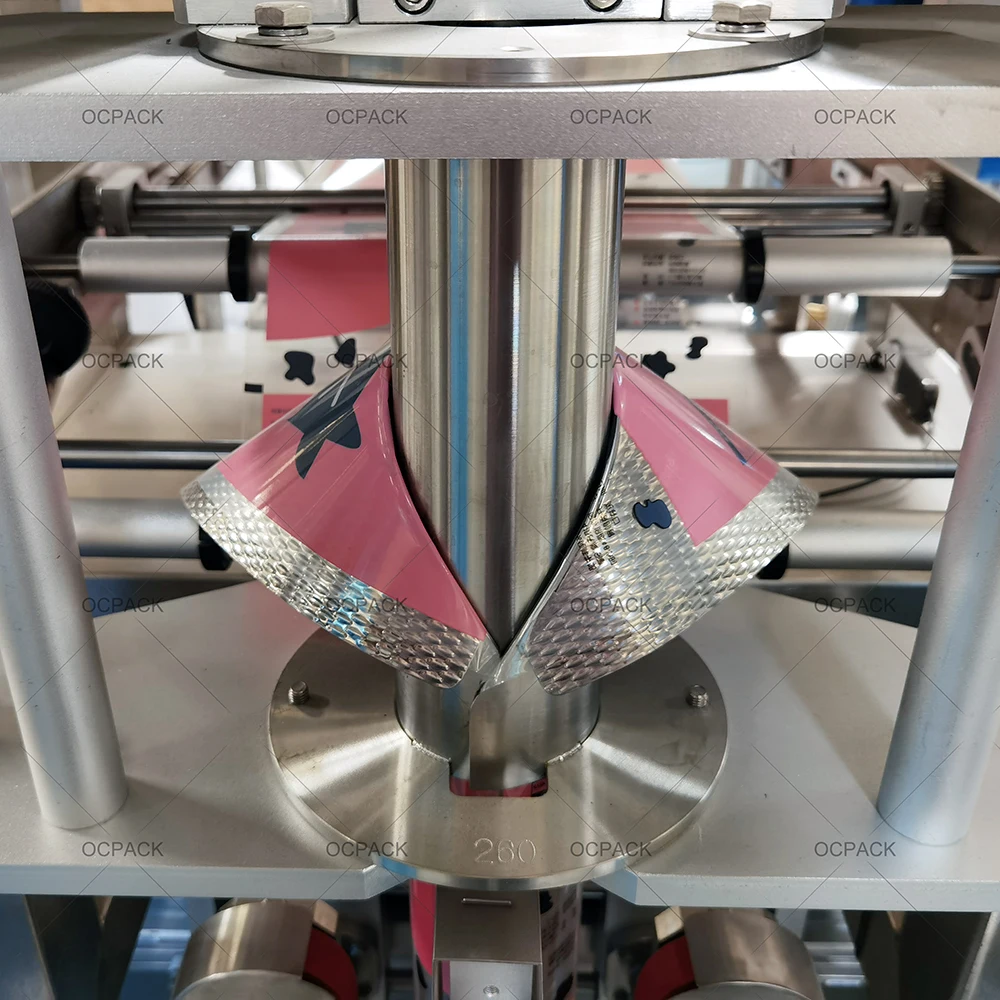

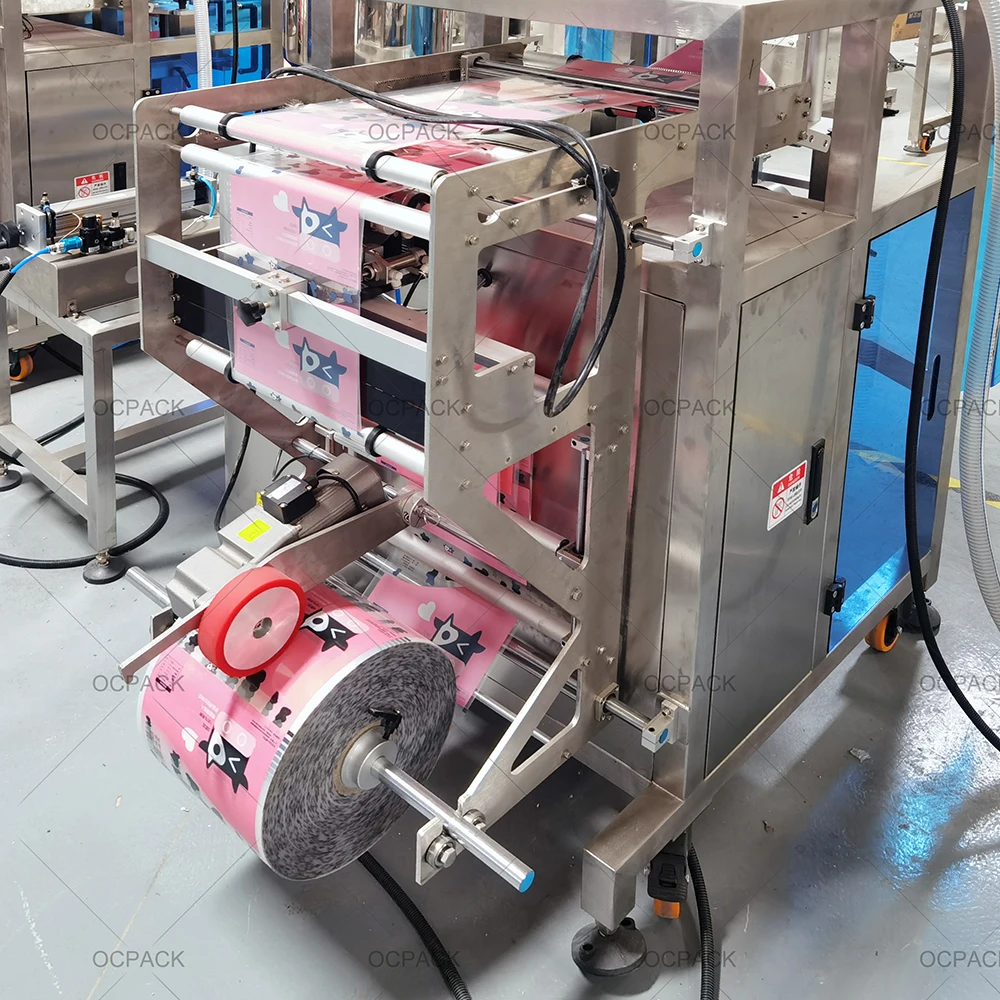

Bag maker
*The bag making machine is made of 304 stainless steel and driven by a servo.
*The packaging film ispulled into the bag making machine by friction.
*The packaging is simple and beautiful, with a humanized design. Different bag making equipment can be replaced according to different bag widths. One machine can pack bags of various
*The packaging is simple and beautiful, with a humanized design. Different bag making equipment can be replaced according to different bag widths. One machine can pack bags of various
Cutting & sealing parts
*It is Stainless steel of material to making it will than the iron will be strong more, he life can using more then 2 years.
*Customized sealing patterns and notch or automatic punching device. Back seal: adopt servo motor double belt to pull film Port sealing: The end face sealing cutting machine adopts servo-controlled opening and closing movement and independent temperature
control.
*Customized sealing patterns and notch or automatic punching device. Back seal: adopt servo motor double belt to pull film Port sealing: The end face sealing cutting machine adopts servo-controlled opening and closing movement and independent temperature
control.
Tell us your requirements, tell us your product information,
we will have a professional staff to provide you with a most suitable packaging solution!
You can also send us samples, we can provide free trial packaging service!
Related Products
Company Profile
Transaction customer
Why Choose Us
1. Professional and Strong Team
Ocpack has a professional team that can provide customers with various packaging solutions. After fully understanding the customer's needs, we provide the most suitable packaging solution to the customer.
Then start the production of the machine. We have a strong production and processing capacity, from the customized processing of accessories to the assembly and debugging of the machine. Finally, it is packaged and shipped, and it only takes a week to complete.
Then start the production of the machine. We have a strong production and processing capacity, from the customized processing of accessories to the assembly and debugging of the machine. Finally, it is packaged and shipped, and it only takes a week to complete.
2. Excellent transportation service
According to the needs of customers, we can provide sea transportation, air transportation, and land transportation services, so that you can get the machine as soon as possible. Provide door-to-door transportation services.
3. Timely and effective after-sales service
Choosing us is not only buying a machine, but also our professional and timely service.
1. When the machine is delivered, we will attach a video of the installation and operation of the machine, so that you can use the machine quickly.
2. All electrical appliances of our machines have a one-year warranty, and we will replace them if they fail.
3. When your machine fails, we will have professional engineers to provide professional online after-sales service to help you solve the problem.
4. If the problem cannot be solved online, we will arrange an engineer to repair it on site within a week.
1. When the machine is delivered, we will attach a video of the installation and operation of the machine, so that you can use the machine quickly.
2. All electrical appliances of our machines have a one-year warranty, and we will replace them if they fail.
3. When your machine fails, we will have professional engineers to provide professional online after-sales service to help you solve the problem.
4. If the problem cannot be solved online, we will arrange an engineer to repair it on site within a week.
FAQ
1: How to find a Packing machine suitable for my product?
Tell me about your product details. 1. What kind of product you have. 2. The size of your product( the length, width, and height).
2: Is an engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
3. Are you a factory or trading company?
We are the factory, and especially R&D, manufacture and sell various packing euipments. We have engaged in the packing R&D and production for over 10 years. Automatic liquid packing machine
4. What's your payment way?
T/T by our bank account directly, or by Alibaba trade assurance service, or by West Union, or in cash.
5. How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
6. We are afraid you won't send us the machine after we send you the money?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
7. Why we should choose your company?
We are professional in packing machines for over 10 years, and we provide better after-sales service. You guarantee no risk for our deal.
Tell me about your product details. 1. What kind of product you have. 2. The size of your product( the length, width, and height).
2: Is an engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
3. Are you a factory or trading company?
We are the factory, and especially R&D, manufacture and sell various packing euipments. We have engaged in the packing R&D and production for over 10 years. Automatic liquid packing machine
4. What's your payment way?
T/T by our bank account directly, or by Alibaba trade assurance service, or by West Union, or in cash.
5. How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
6. We are afraid you won't send us the machine after we send you the money?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
7. Why we should choose your company?
We are professional in packing machines for over 10 years, and we provide better after-sales service. You guarantee no risk for our deal.
