B W Germany BWU2759 ASi Digital I/O Module, IP20, 4I/4O for industrial automation
- Category: >>>
- Supplier: Shanghai Thinkfon Trading Co. Ltd.
Share on (11000008120830):
Product Overview
Description
Bihl+Wiedemann is a mid-size owner-operated company founded in 1992 by Jochen Bihl and Bernhard Wiedemann in Mannheim, Germany. We develop and manufacture complete automation solutions for functional safety and for data communication in machines and plants. Our products are in use worldwide across diverse sectors, by leading manufacturers of consumer and capital goods. Primarily, we want to be an innovative partner for our customers: using our development expertise to meet individual requirements.
Description

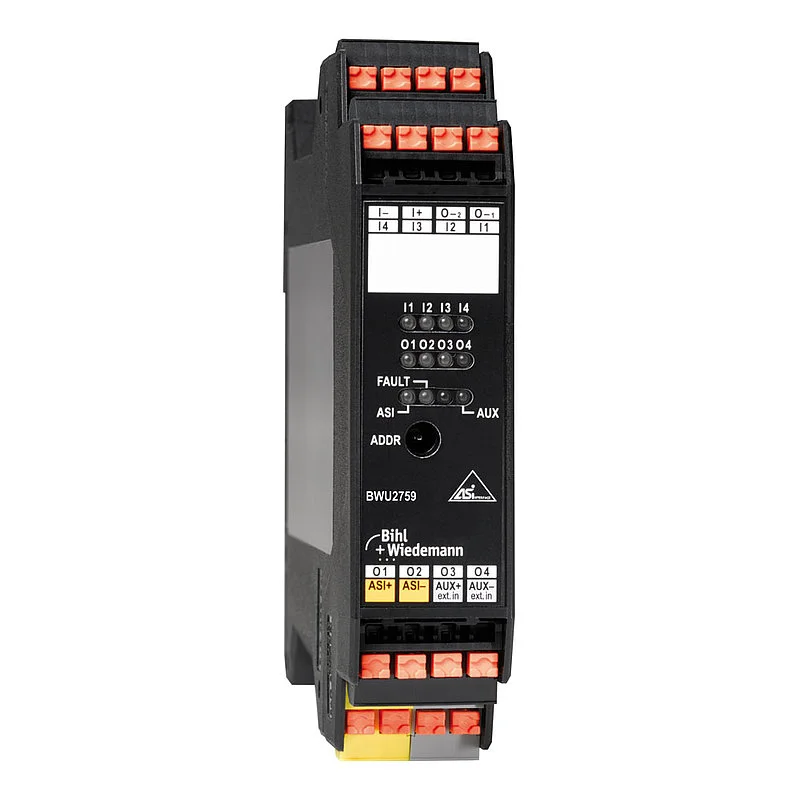

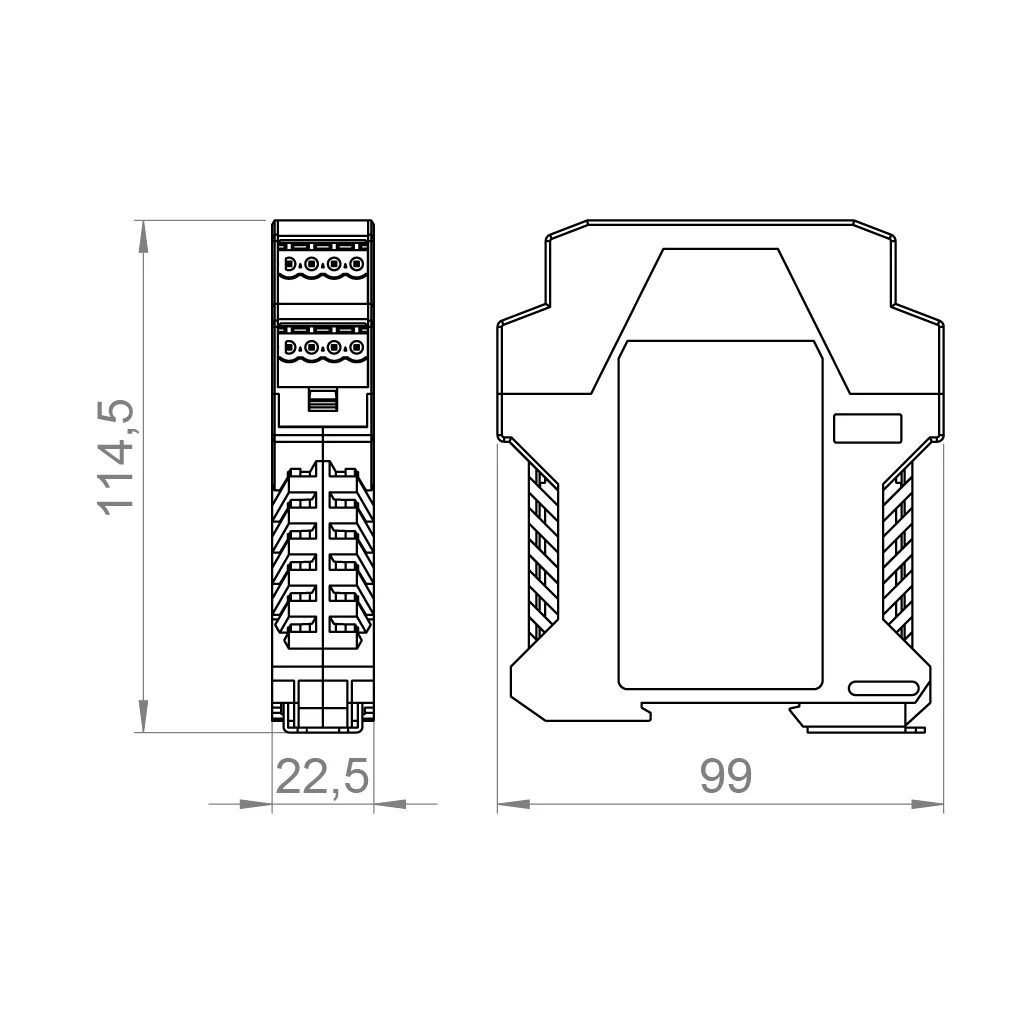

ASi Digital I/O Module in IP20, 22,5 mm x 114 mm, with 4 x COMBICON connections, 4 digital inputs, 4 digital outputs, input
voltage/sensor supply out of AUX, output voltage/actuator supply out of AUX, periphery connection via clamps, ASi connection via clamps, 1 single address, optimal application in the main control cabinet
voltage/sensor supply out of AUX, output voltage/actuator supply out of AUX, periphery connection via clamps, ASi connection via clamps, 1 single address, optimal application in the main control cabinet
Field of application
More and more companies across different sectors are now choosing ASi solutions from Bihl+Wiedemann to automate their plants and systems. The open bus system is particularly widespread in factory and industrial automation, conveyor applications, building
automation and mechanical engineering.
automation and mechanical engineering.
Advantages of AS-Interface
1.Cost-effective commissioning
Safe and error-free assembly of components is possible without training. The installation effort is significantly reduced. With AS-Interface, there are hardly any cabling or assembly costs. Insert the cable, screw it tight, done.
Safe and error-free assembly of components is possible without training. The installation effort is significantly reduced. With AS-Interface, there are hardly any cabling or assembly costs. Insert the cable, screw it tight, done.
2.Just one cable for data and power
In contrast to parallel wiring, no complex cable harnesses are required. This considerably reduces material and assembly costs. The geometry of the profile cable also prevents reverse polarity.
In contrast to parallel wiring, no complex cable harnesses are required. This considerably reduces material and assembly costs. The geometry of the profile cable also prevents reverse polarity.
3.Free choice of topology
The AS-Interface network topology (physical structure of a fieldbus network) is freely selectable and every ASi module can be installed at any position. For example, it is possible to configure star, ring or linear structures.
The AS-Interface network topology (physical structure of a fieldbus network) is freely selectable and every ASi module can be installed at any position. For example, it is possible to configure star, ring or linear structures.
4.Independent of system and manufacturer
The ASi technology is compatible with almost all common fieldbus systems. It does not matter whether PROFIBUS, PROFINET, CC-Link, EtherNet/IP etc. are used at the higher levels.
The ASi technology is compatible with almost all common fieldbus systems. It does not matter whether PROFIBUS, PROFINET, CC-Link, EtherNet/IP etc. are used at the higher levels.
BWU2759ID | BWU2759 |

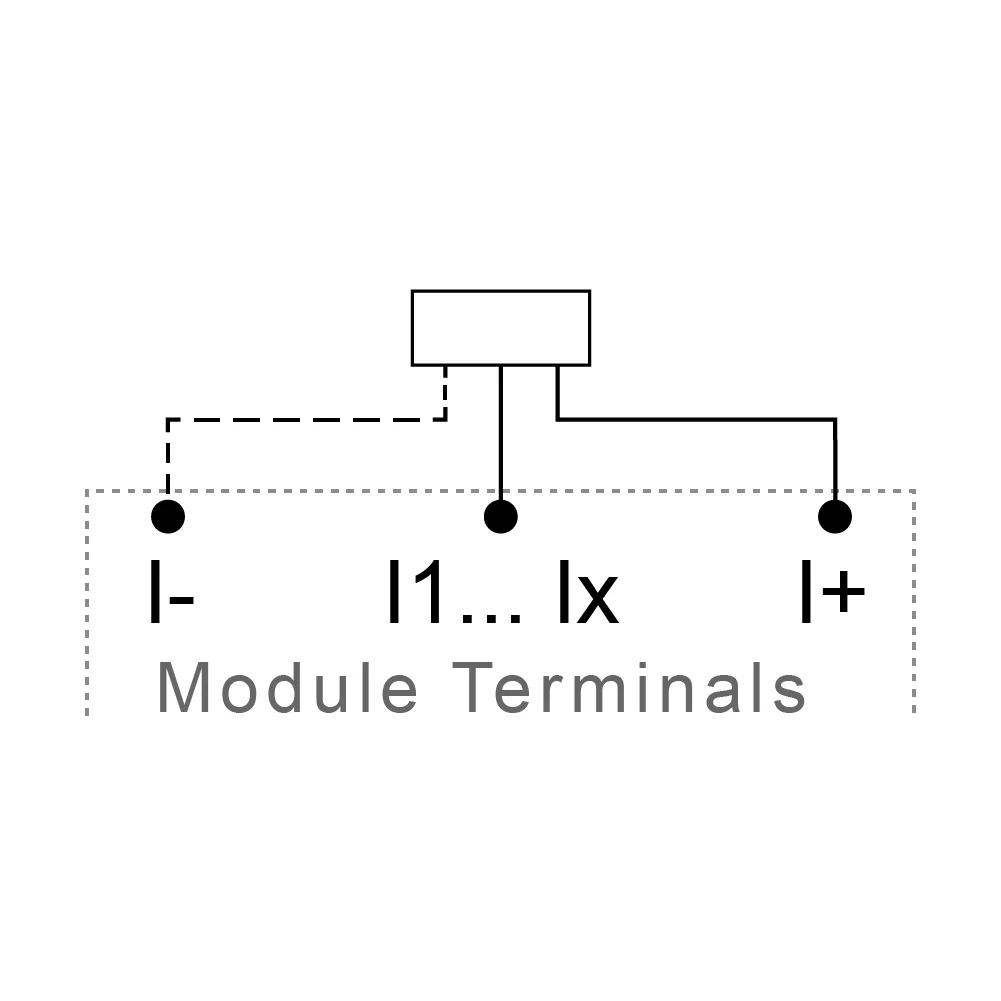

Inputs digital | 4 |

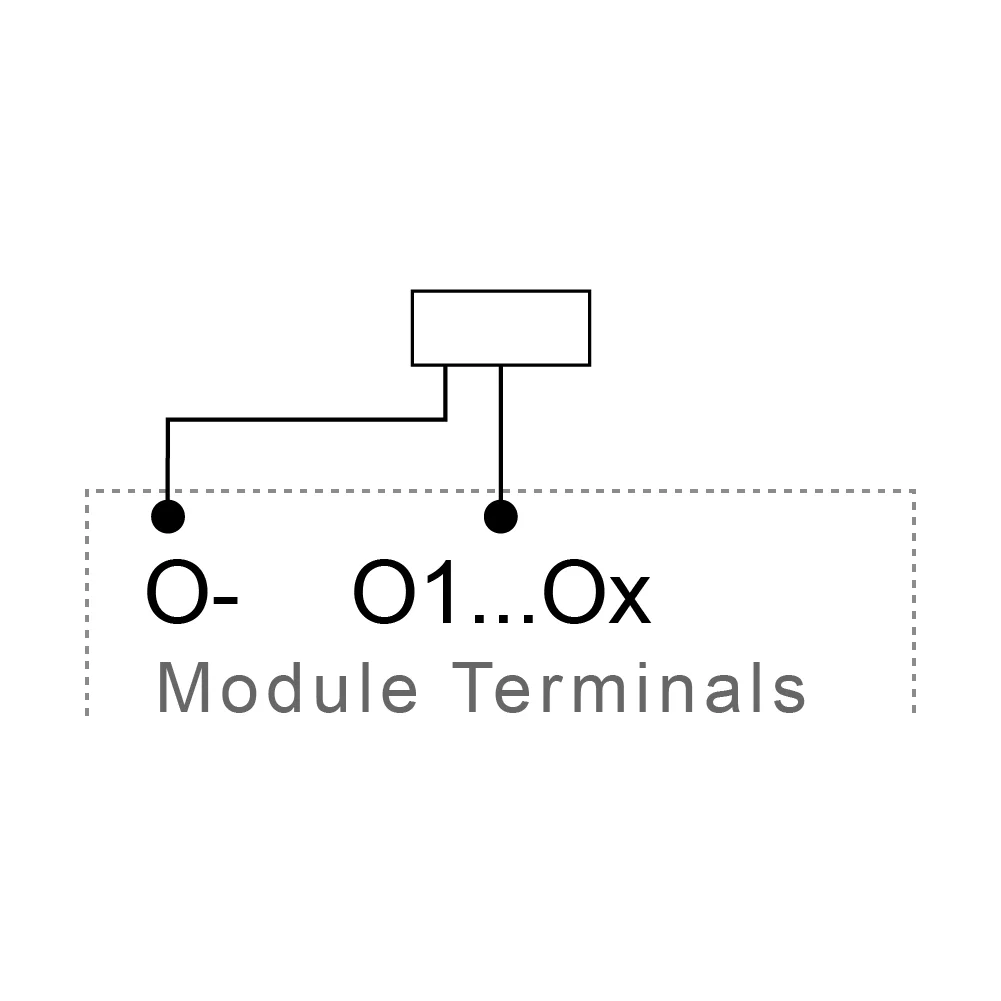

Outputs digital | 4 x electronic |
Input voltage (sensor supply) | out of AUX |
Output voltage (actuator supply) | out of AUX |
Connection | push in terminals |
ASi address | 1 Single address |
