2022 GR215 HP215 china motor grader machine price for sale new road grader
2022 GR215 HP215 china motor grader machine price for sale new road grader
2022 GR215 HP215 china motor grader machine price for sale new road grader
2022 GR215 HP215 china motor grader machine price for sale new road grader
2022 GR215 HP215 china motor grader machine price for sale new road grader
2022 GR215 HP215 china motor grader machine price for sale new road grader
2022 GR215 HP215 china motor grader machine price for sale new road grader

2022 GR215 HP215 china motor grader machine price for sale new road grader

Share on (11000008125637):


Price:

Quantity:


Product Overview

Description













GR215 is mainly used for large ground surface leveling, ditching, slope scraping, bulldozing, scarifying, snow removing and other work in highway, airport and farmland. The grader is necessary engineering machinery for national defense construction, mine construction, urban and rural road construction, water conservancy construction and farmland improvement, etc.





























































































































































Item


GR215













Basic parameters


Engine model


6CTA8.3-C215


Rated power/speed


160kW/2200rpm

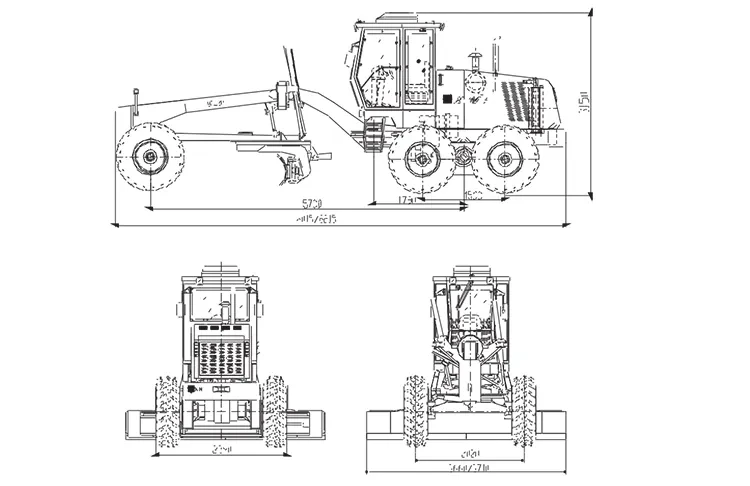

Overall dimension (standard)


8970*2625*3420mm


Total weight (standard)


16500 kg


Tire specification


17.5-25


Ground clearance (front axle)


430mm


Space of front and rear axles


6219 mm


Space of middle and rear wheels


1538 mm









Performance
parameters


Forward velocity


5,8,11,19,23,38km/h


Reverse speed


5,11,23km/h


Tractive effort f=0.75


87 kN


Maximum gradeability


20%


Tire inflation pressure


260kPa


Working system pressure


16MPa


Transmission pressure


1.3—1.8Mpa



















Working parameters


Maximum steering angle of front wheel


±50°


Maximum slant angle of front wheel


±17°


Maximum oscillating angle of front axle


±15°


Maximum oscillating angle of equilibrium box


forwards15°, Reverse15°


Maximum steering angle of frame


±27°


Minimum turning radius


7.3m


Scrape knife


Maximum lift height


450mm


Maximum cutting depth


500mm


Maximum tilt angle


90°


Cutting angle


28°—70°


Angle of revolution


360°


Length & chord height


4270*610mm











Oil filling amount


Coolant


50L


Fuel tank


280L


Engine


24L


Transmission


38L


Equilibrium box


46L


Coolant


28L


Hydraulic oil


110L
