Tobee Effluent Handling
$12,600

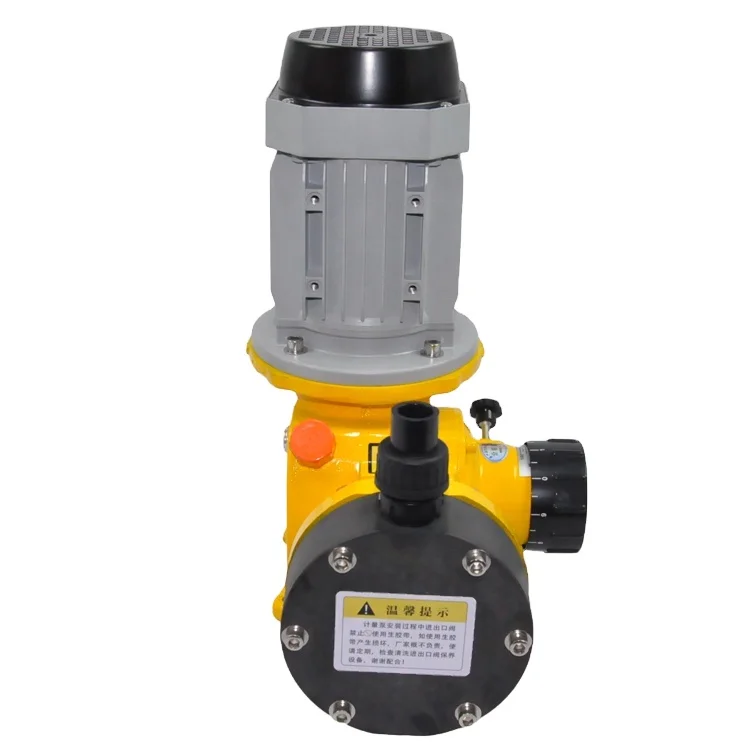

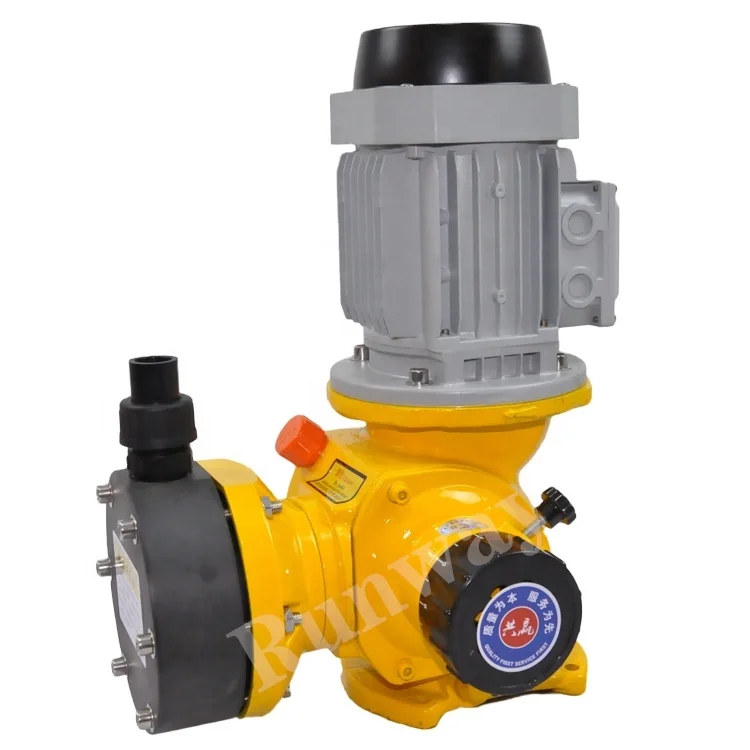

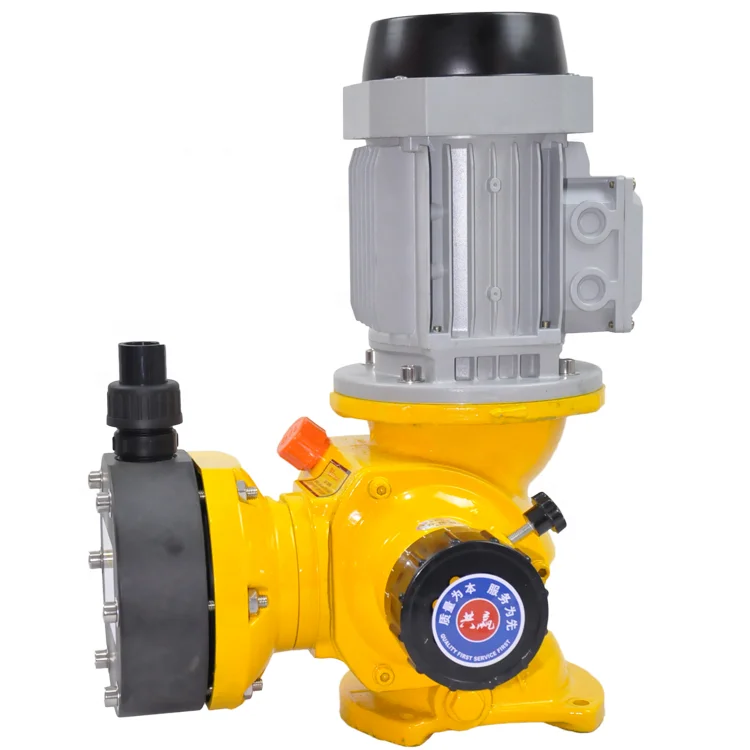

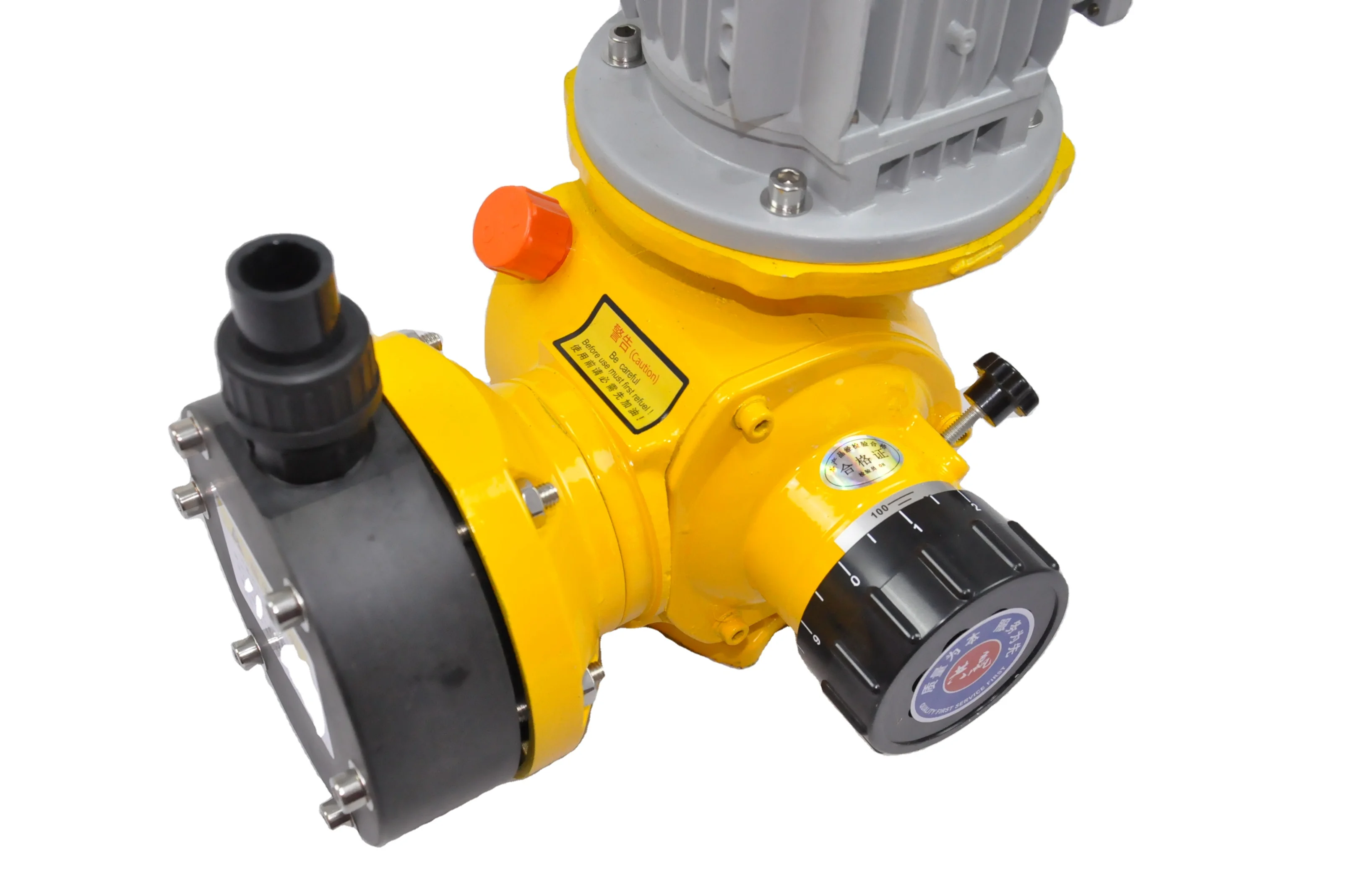

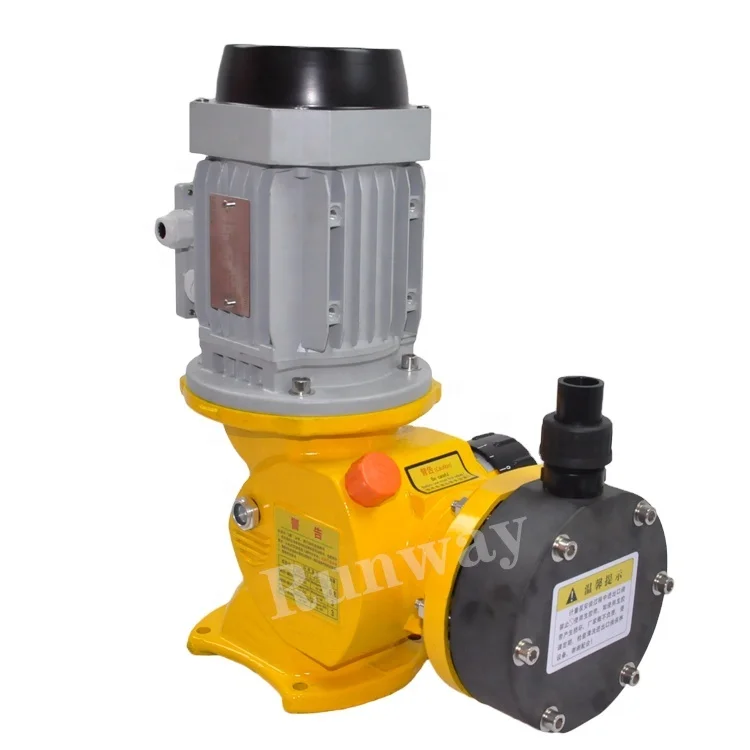

Delivery system adjustable flow 50L/h500L/h proportional fixed pump mechanical diaphragm metering pump
- Category: >>>
- Supplier: Jinan Runway Automation Co. Ltd.
Share on (11000008129608):
Product Overview
Description
Product introduction
The hydraulic end of the pump uses a diaphragm to form a working chamber, and the diaphragm periodically deforms to replace the reciprocating movement of the piston (plunger), which is called a mechanical diaphragm metering pump.
Flow range:1~3600L/H
Highest pressure：1.0MPa
Highest pressure：1.0MPa
Material selection
No moving seal, no leakage. Because the static seal of the fluid end diaphragm replaces the dynamic seal of the piston, it can
absolutely not leak when conveying fluid；In addition to clean water, it is more suitable for transporting flammable and explosive,highly toxic, foul, and radioactive fluids；
Can be equipped with metering pump digital controller for digitalization and local and remote control.
absolutely not leak when conveying fluid；In addition to clean water, it is more suitable for transporting flammable and explosive,highly toxic, foul, and radioactive fluids；
Can be equipped with metering pump digital controller for digitalization and local and remote control.
Application
Diaphragm metering pumps are widely used, from ordinary room temperature water to fluids with strong corrosion, volatile,crystalline, flammable and explosive, highly toxic and odorous, high specific gravity, medium viscosity, radioactive, etc., and can also transport suspended liquids. In order to prevent accidents caused by the mixture of fluid and hydraulic oil after the diaphragm ruptures, when transporting flammable and explosive, highly toxic and precious liquids, a dual diaphragm metering pump can be used with a diaphragm rupture alarm device.
Configure the pump head according to different fluids
Model | Flow L/H | Pressure/Mpa | Pump speed/min-1 | Diaphragm size | Motor Power/W |
GM50/1.0 | 50 | 1.2 | 50 | 84 | 0.37 |
GM90/1.0 | 90 | 1 | 95 | ||
GM120/0.8 | 120 | 0.8 | 100 | ||
GM170/0.7 | 170 | 0.7 | 100 | ||
GM240/0.5 | 240 | 0.5 | 140 | 145 | |
GM300/0.5 | 300 | 0.5 | 150 | 0.55 | |
GM400/0.5 | 400 | 0.5 | 95 | ||
GM500/0.5 | 500 | 0.5 | 95 |
Inlet and outlet diameter connection mode | ||||||
PVC | PVDF | SUS304/316 | Weight/KG | |||
6x¤9PE | Rc1/2″ | 10x16 | 18 | |||
DN15 | ||||||
15x22 | ||||||
DN20 | Rc3/4″ | |||||
19 | ||||||
DN25 | Rc1″ | |||||
22 | ||||||

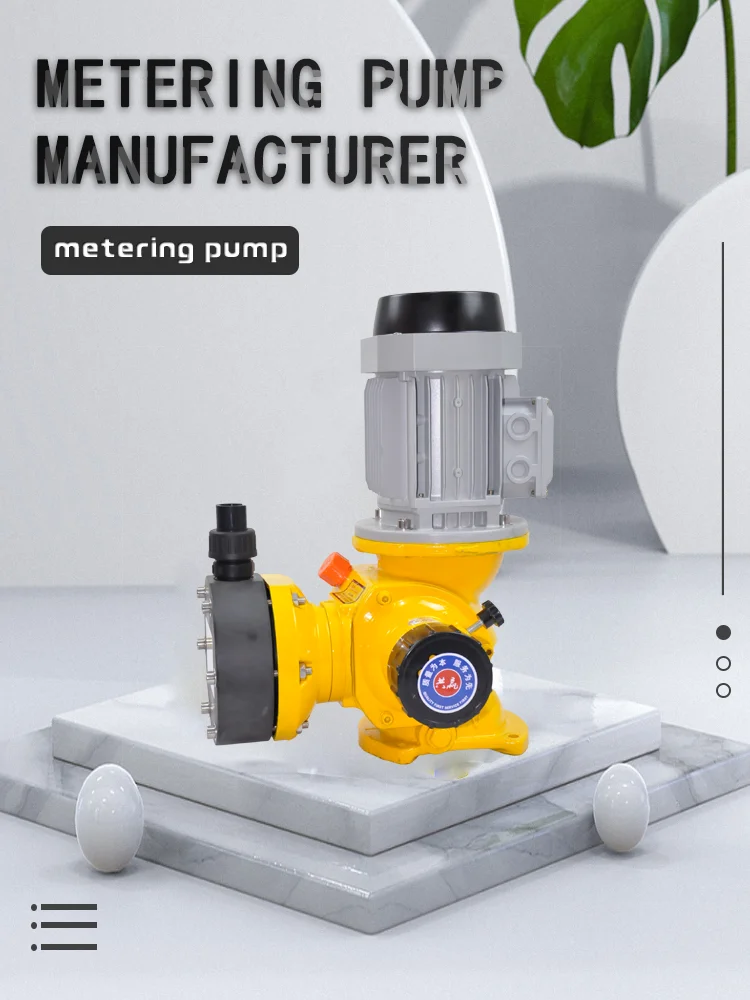

Product Line

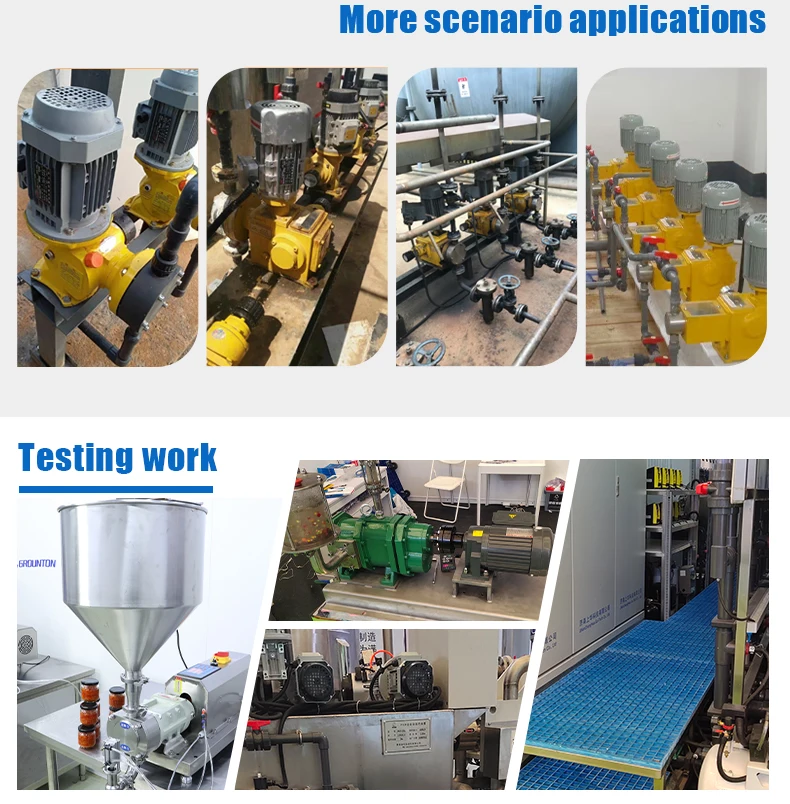

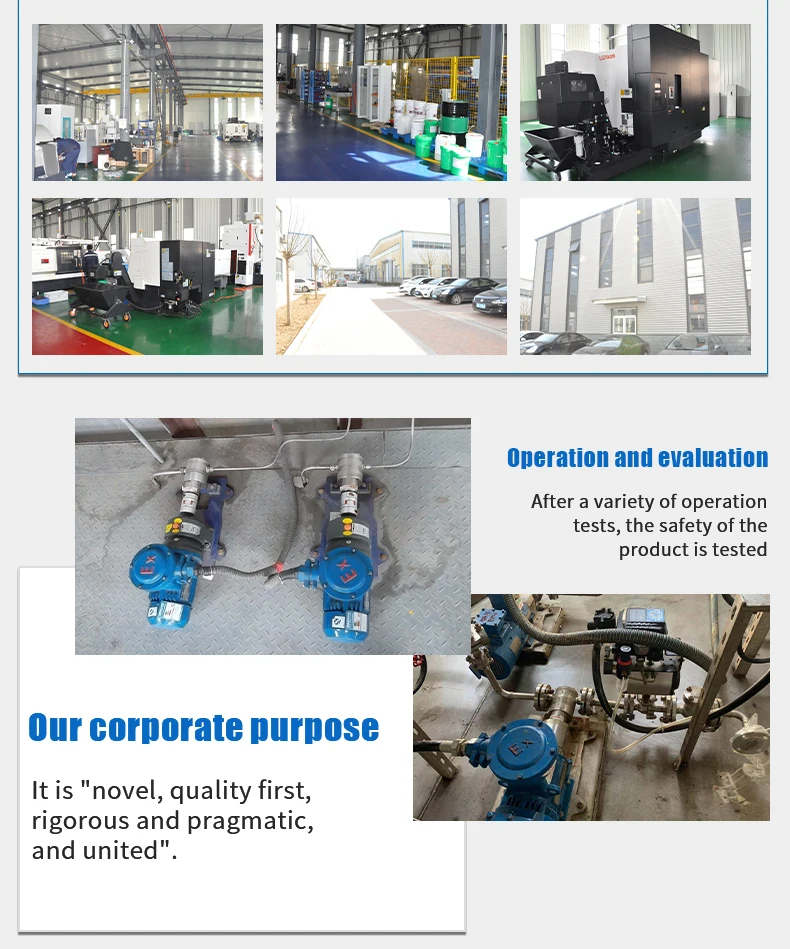

Application&Testing
Our Company

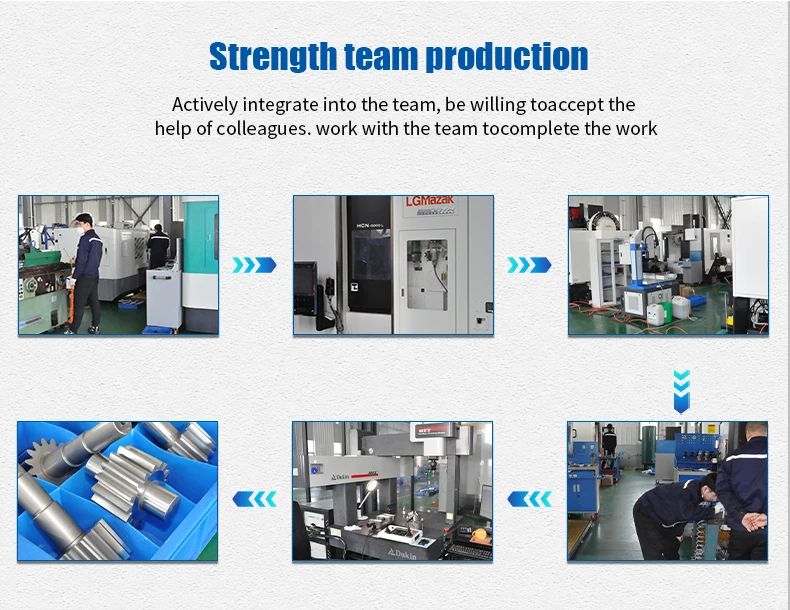

Factory Show
Cooperation&Certification
Packaging&Shipping
Hot Product
FAQ
1.Q: Are you a manufacturer or a trading company?
A: We are a manufacturer specializing in the production of diaphragm metering pumps, rotor pumps and other types of pumps, as well as pump-related products. Our products have passed the test.
2.Q:Why choose us?
2.Q:Why choose us?
A:We have more than 7 years of experience in the pump product industry. High-quality products and competitive prices. We have professional business personnel and engineers to provide you with selection assistance and technical support.
3.Q: How to buy our pump?
3.Q: How to buy our pump?
A: Tell us the required pump flow, pressure, head, medium, pump body material, voltage, current frequency, motor type and medium temperature. If you have special requirements, please highlight.
4.Q: What is the minimum order quantity for your products?
4.Q: What is the minimum order quantity for your products?
A: Different models have different MOQs, please check with the salesperson.
5.Q: How long is your delivery time?
5.Q: How long is your delivery time?
A: The samples can be sent to you within 7-10 days. Bulk orders can be shipped to you within 10-15 days after the order is confirmed.
