Multicolor tampon machine caps toys pens pad printing machinery for sale
- Category: >>>
- Supplier: Shenzhen Hejia Automatic Printing Machine Co. Ltd.
Share on (11000008155939):
Product Overview
Description
Product Description
What Is Pad Printing?
Pad printing, also called tampography or tampo printing, is a printing technique in which a flexible silicone pad is used to transfer ink from an etched base plate (cliché) onto the product or material (substrate).

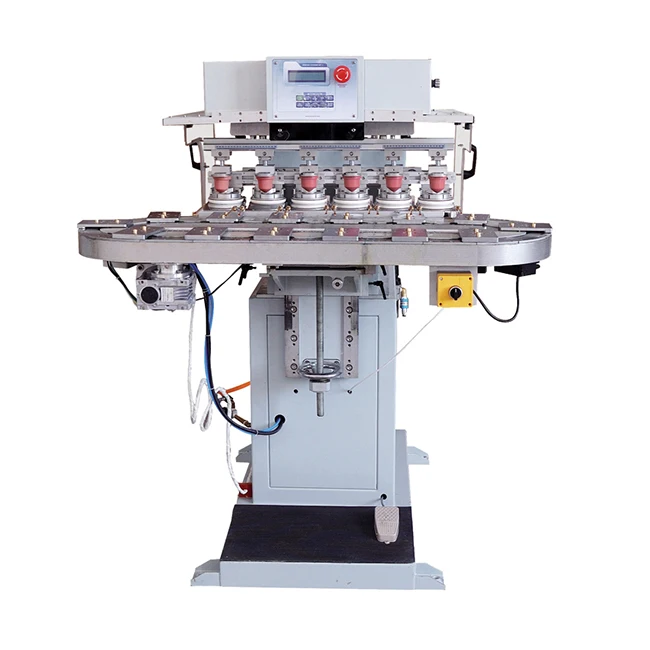

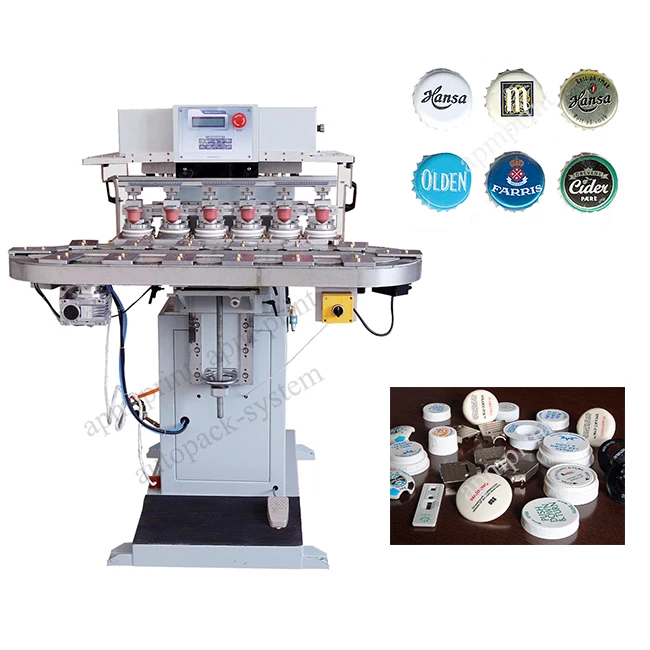

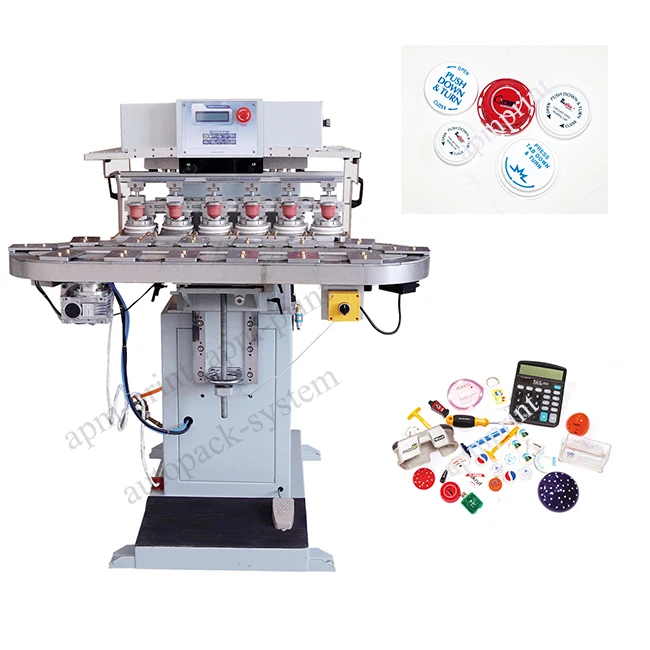

Six color ink cup pad printer
Description:
1.Easy operation panel with LCD
2.Quick adjusting XYR base, accurate color registration
3.Easy clean ink cup, quick plate change
4.XYZR adjustable worktable
1.Easy operation panel with LCD
2.Quick adjusting XYR base, accurate color registration
3.Easy clean ink cup, quick plate change
4.XYZR adjustable worktable
5.Motor driven shuttle, accurate color resistration
6.SMC or Festo pneumatics
7.CE safety operation
6.SMC or Festo pneumatics
7.CE safety operation
Options:
1.Open ink tray
2.Auto pad cleaning
3.Hot air dryer
4.Independent pads up/down
5.Auto flame treatment
1.Open ink tray
2.Auto pad cleaning
3.Hot air dryer
4.Independent pads up/down
5.Auto flame treatment
Applications

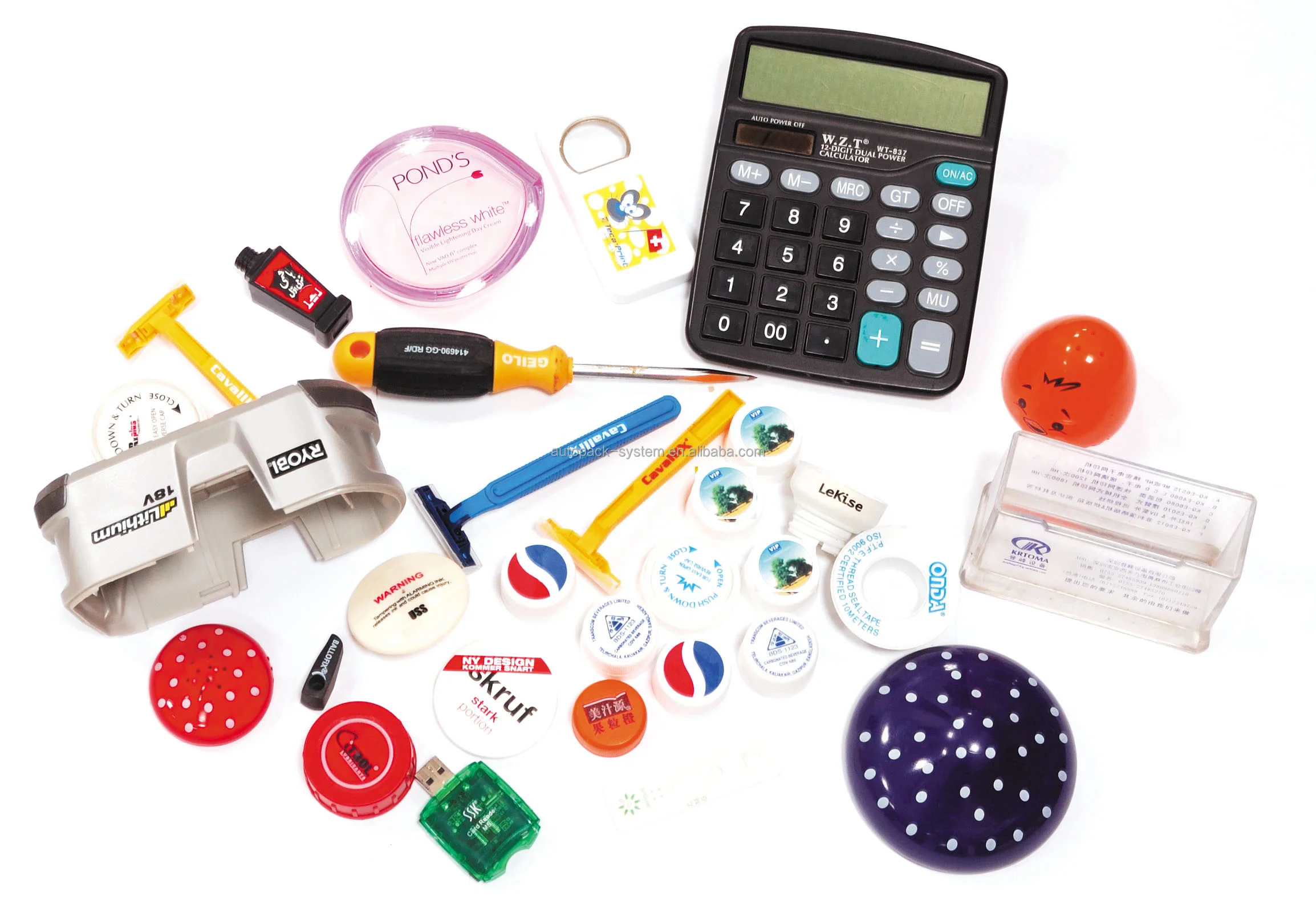

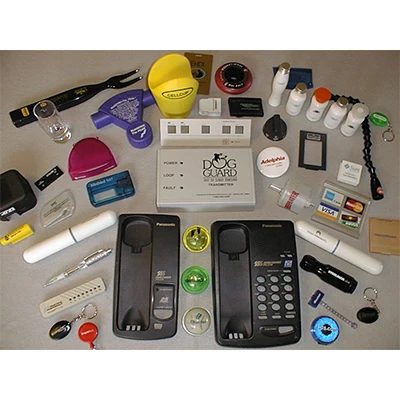

Pad printing machine is widely applied in many industries including toys, plastic, electronic, glass, metal, electrical appliances, ceramics, die-casting products, optical, sporting goods, stationery, etc.

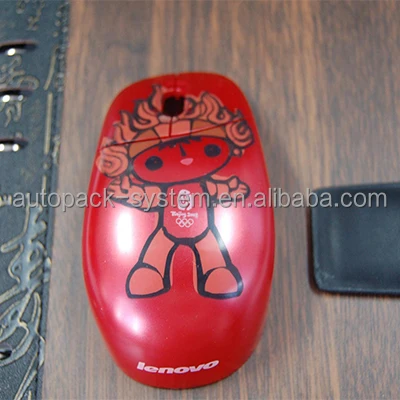

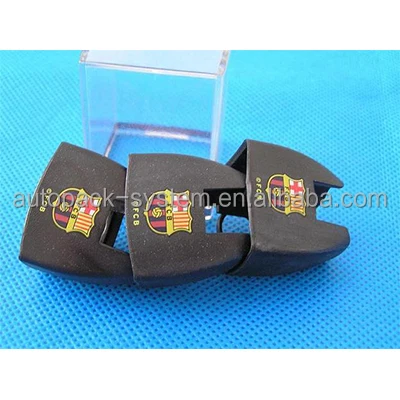

For example, rulers, pens, golf balls, ping-pong, eyes of doll, cap of bottle, watches, cameras, ceramic, pharmaceutical and medical equipment, rackets, tapes, electronic components, IC, CPU, DRAM, keyboard, mouse, cell phone shell, decorative signs, etc.
Specification
ink cup(Diameter) | Φ90 |
Max. printing size(Diameter) | Φ70 |
Pad stroke | 175mm |
Plate size | 100X250 |
Max. printing speed | 400pcs/hr |
Worktable size | 135*180 |
Net weight | 170kgs |
Power | 110V/220V 60/50Hz 40W |
Machine size | 1200*830*1430mm（L*W*H） |

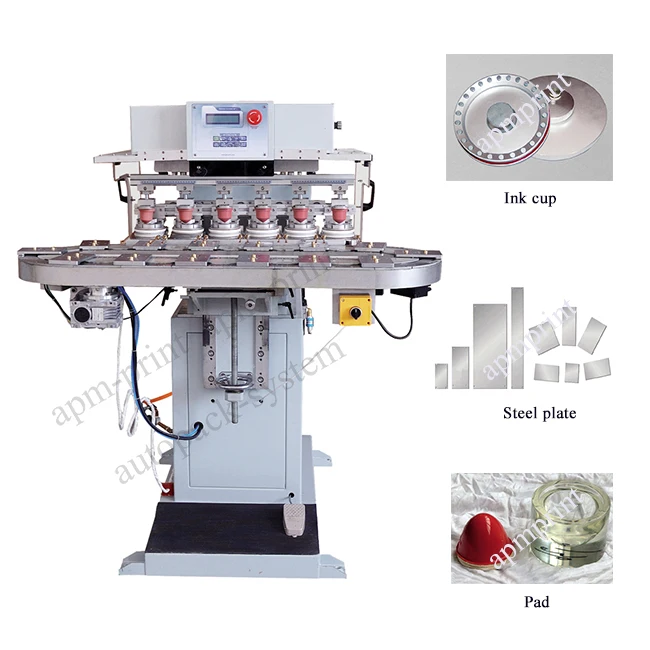

pad printing consumables
Ink cup
An ink cup is the housing mechanism for the ink printed on a part. The ink cup slides across a plate over an etch and back again, leaving only a small amount of ink in the etch. This process is called doctoring.
Steel plate
A pad printing plate, also known as a cliche, holds the image to be printed. The plate is etched with the image. There are two type of plate etching process: photopolymer and laser.
Printing pad
A pad printing pad is the ink transfer mechanism in a pad printing machine. The pad compresses onto the ink-filled etch to “pick-up” the image. The pad then slides over the part and once again compresses to apply the image.

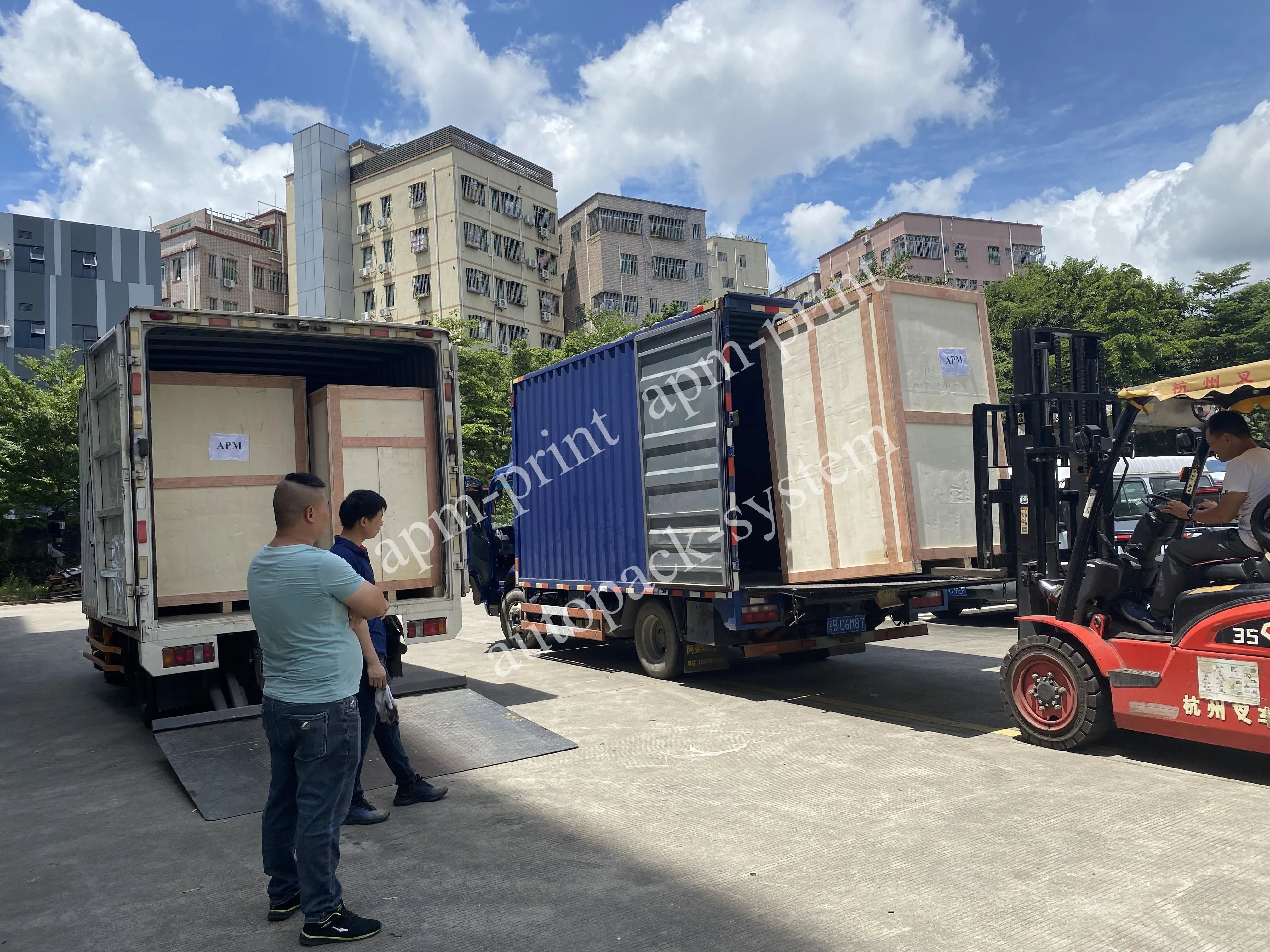

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

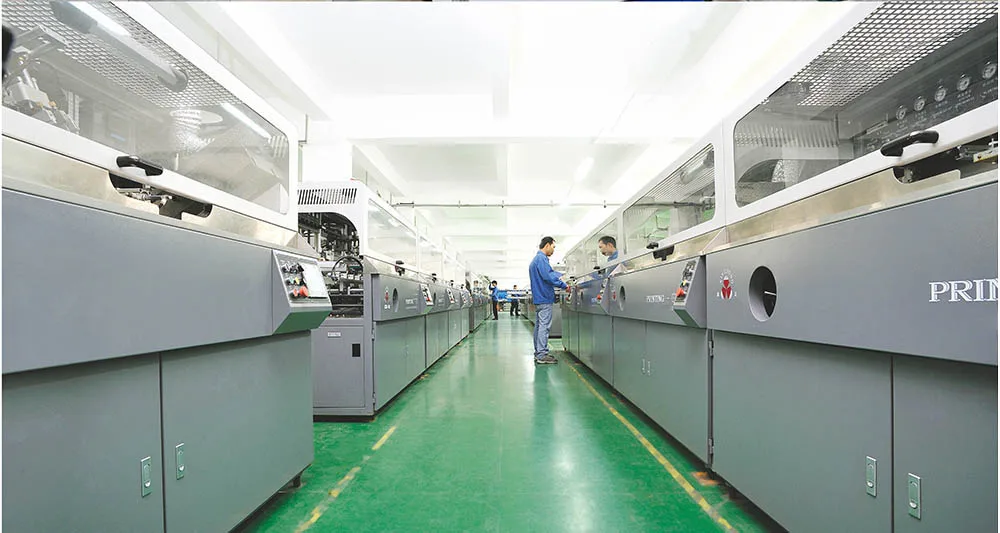

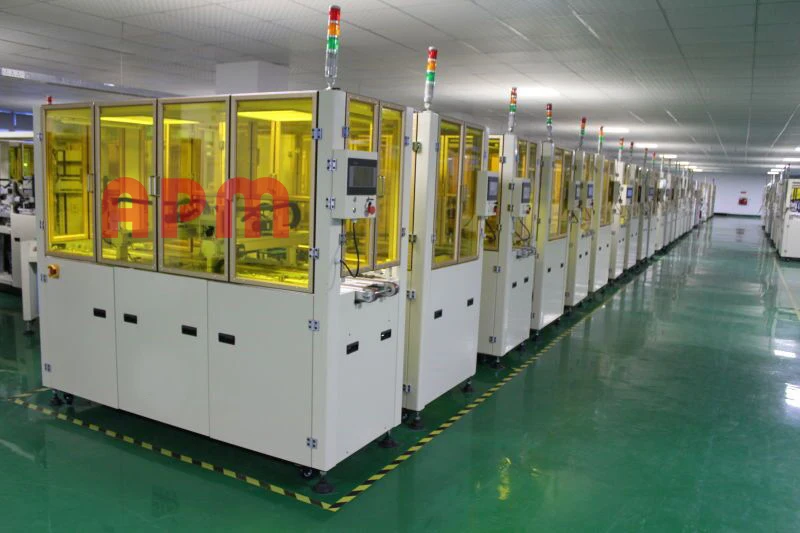

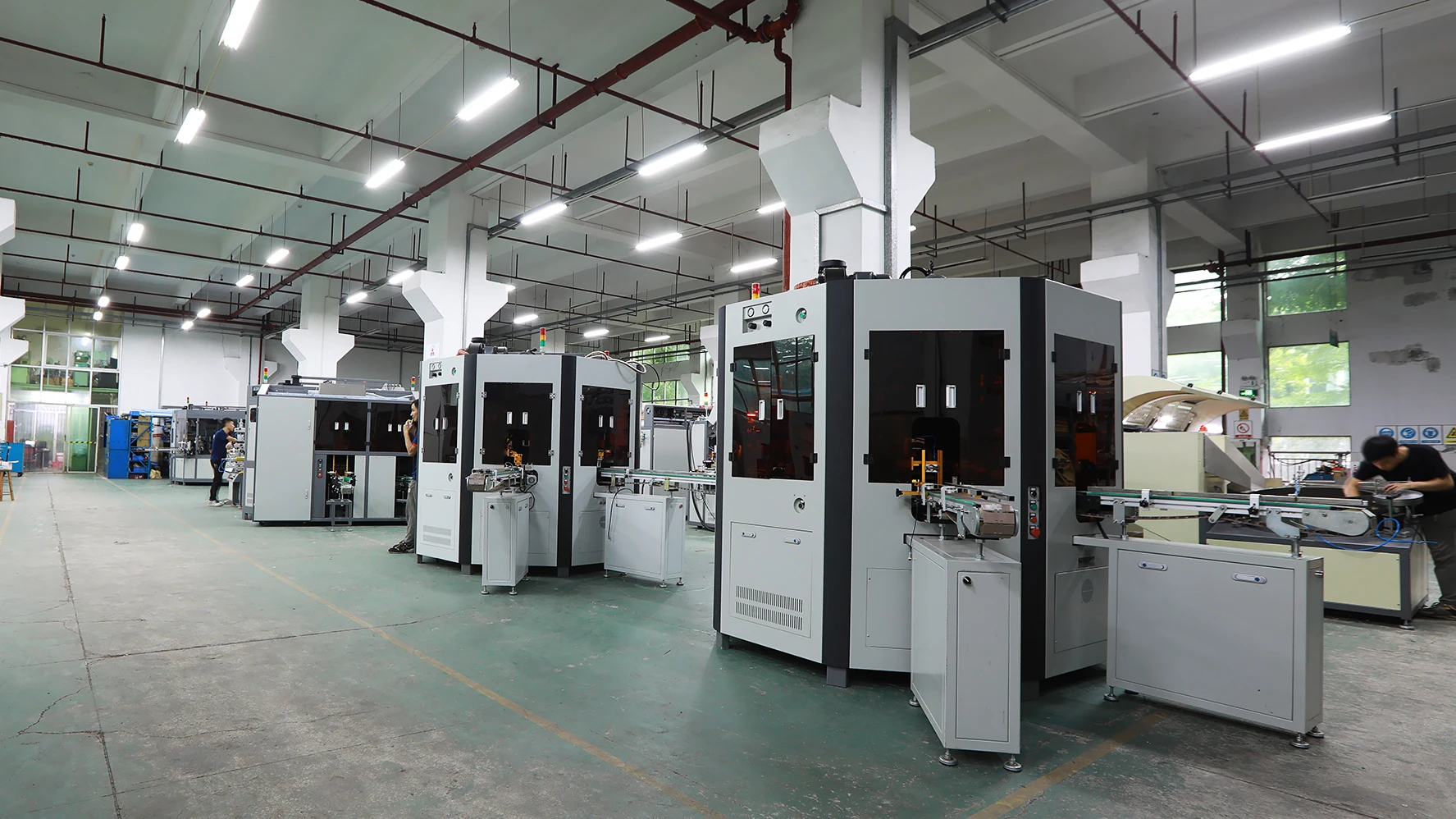

Company Profile
Company Profile

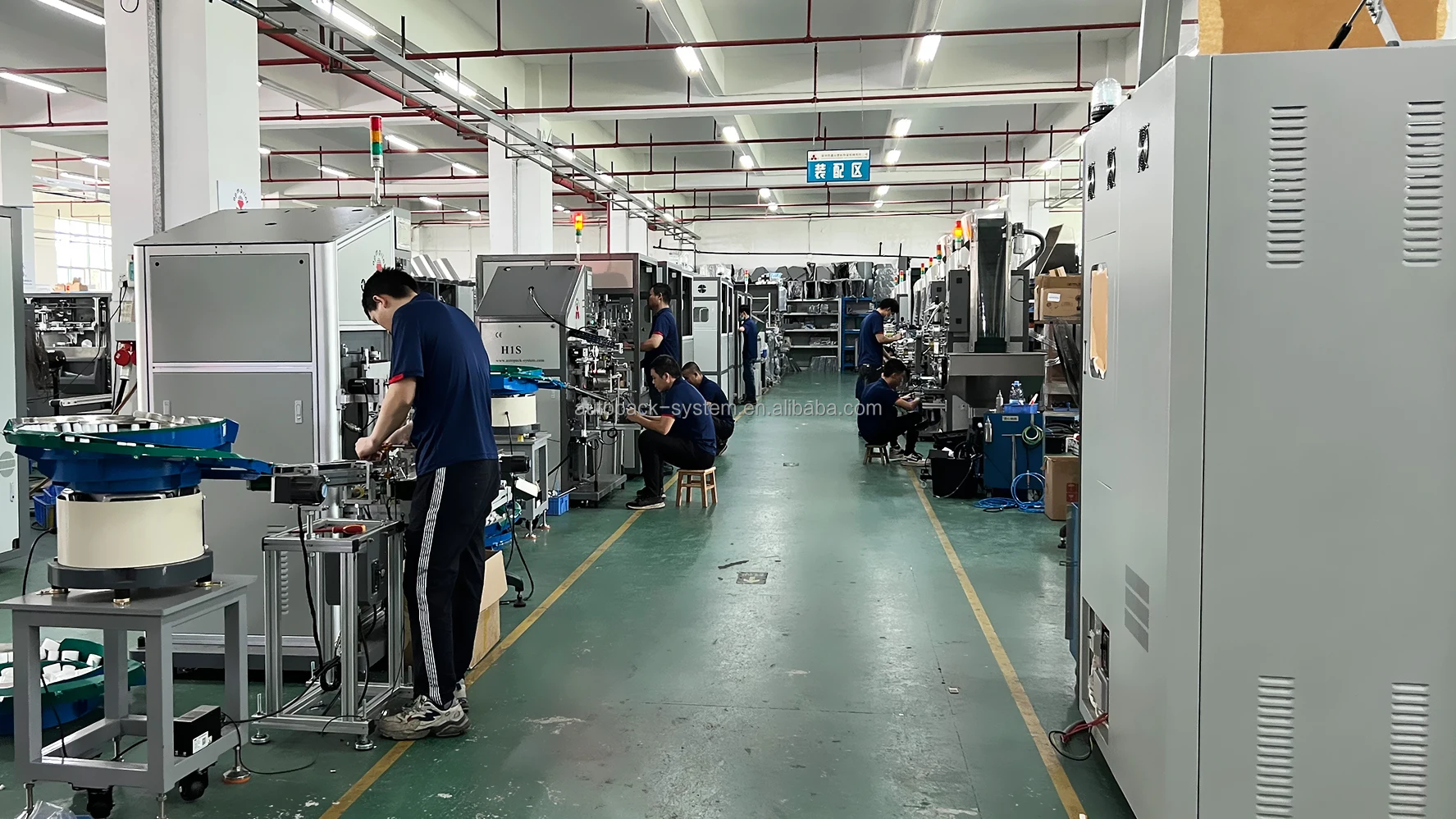

Automatic Packaging Machinery Co., Ltd. (APM) We are the top supplier of high quality automatic screen printers, hot stamping
machines, pad printing machines, as well as automatic assembly line and accessories. All machines are built according to CE standard.
machines, pad printing machines, as well as automatic assembly line and accessories. All machines are built according to CE standard.
With more than 20 years of R&D and manufacturing experience, we are fully capable of supplying various packaging machines, such as wine bottles, glass bottles, water bottles, cups, mascara bottles, lipsticks, bottles and jars, power boxes, shampoo bottles, barrels, etc.
Exhibition pictures
FAQ
Q1: How can I get a correct machine recommendation?
A1: Please provide some necessary information to APM sales.We will be glad to recommend best economic machine proposal.
1.What product you want to print?
2.How much printing size it is
3.Sample picture
4.Product material
A1: Please provide some necessary information to APM sales.We will be glad to recommend best economic machine proposal.
1.What product you want to print?
2.How much printing size it is
3.Sample picture
4.Product material
Q2: Can you do the production as customized?
A2:Yes,we could produce the machine depends on your requirements.
A2:Yes,we could produce the machine depends on your requirements.
Q3: How long warraty of the machine？
A3: year+lifelong technical supports
A3: year+lifelong technical supports
Q4: Is there operation training？
A4: Yes, we offer free training on how to install and use the machine, and more importantly, our engineers can go overseas to repair the machine!
A4: Yes, we offer free training on how to install and use the machine, and more importantly, our engineers can go overseas to repair the machine!
Q5: What's the MOQ, Delivery time ?
A5: MOQ: 1 set
Delivery time:Standard: Within 7 days
A5: MOQ: 1 set
Delivery time:Standard: Within 7 days
Customized: 25-30 workdays after receiving T/T 30% payment deposit

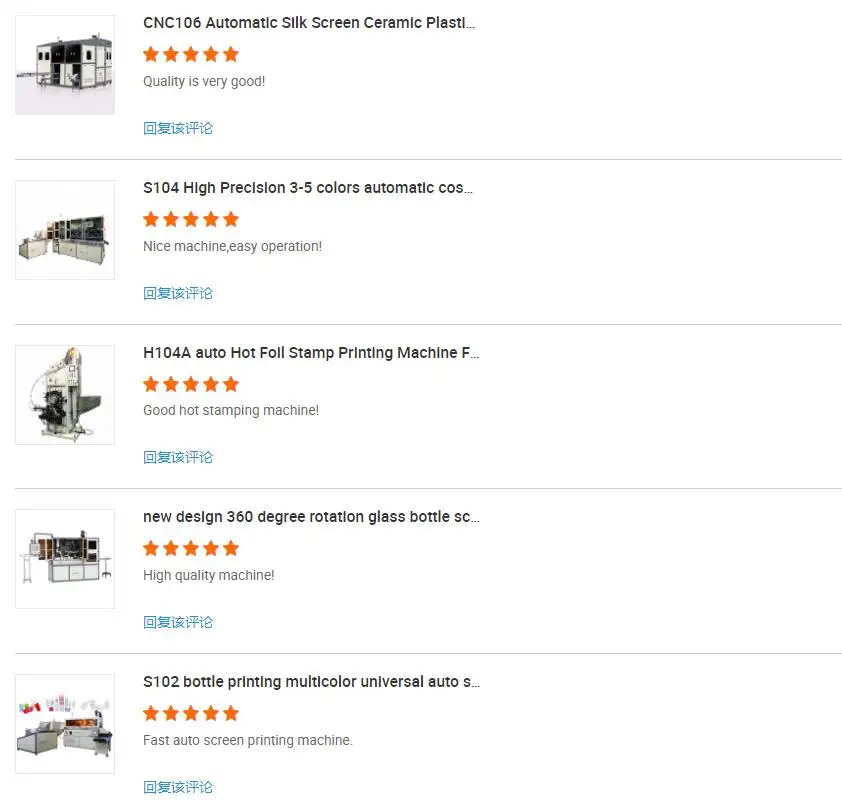

Customer praise
