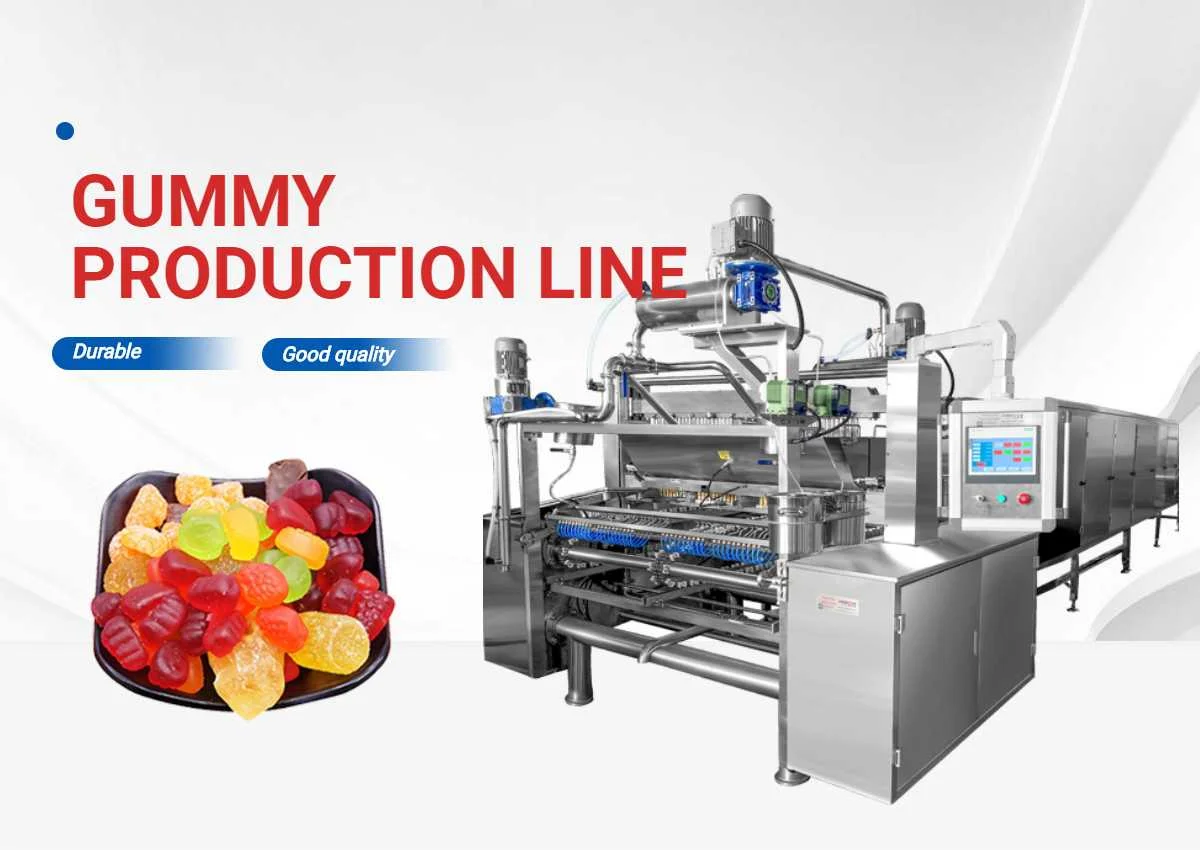

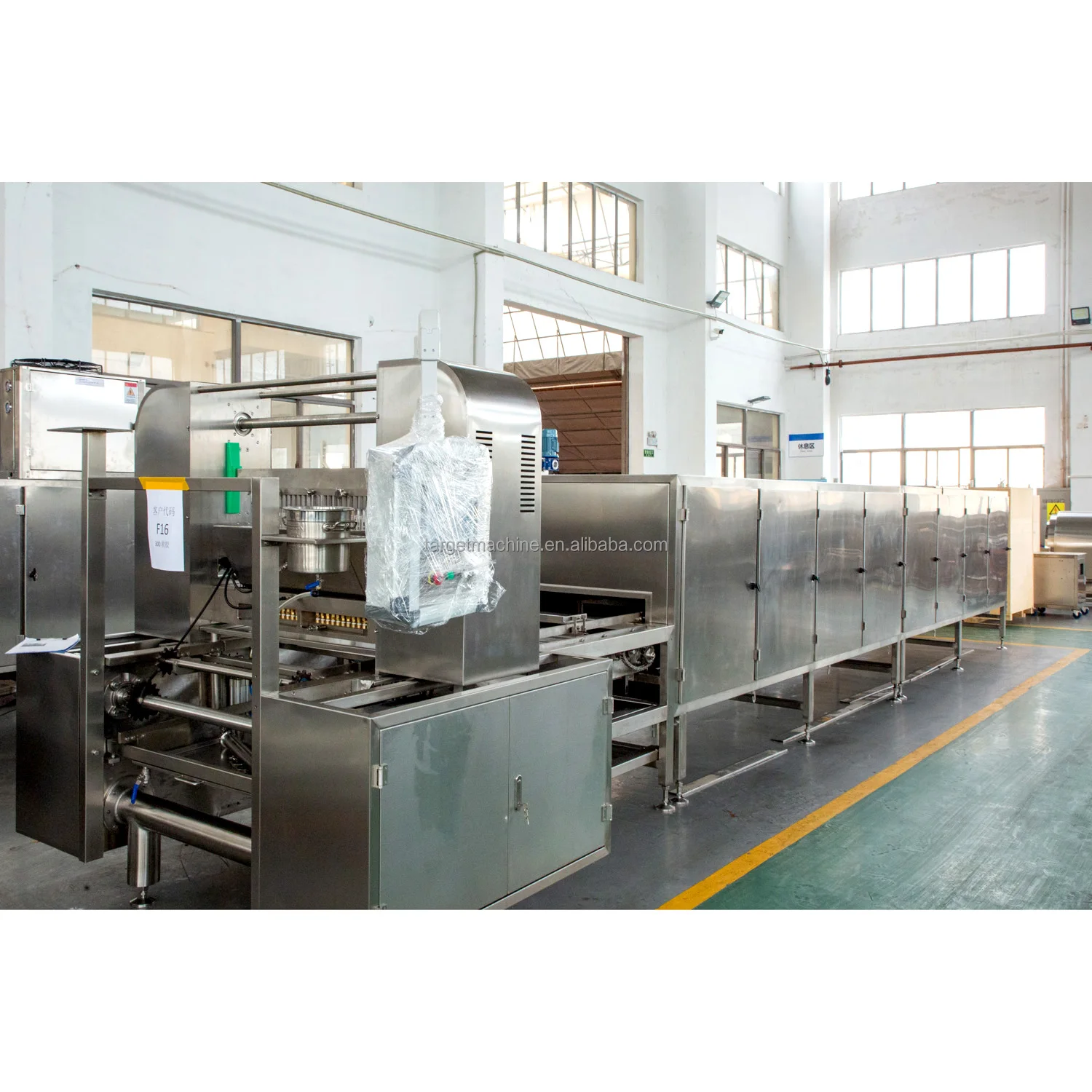

High Productivity automatic pectin gummy vitamin sandwich gummy making machine and production line
- Category: >>>
- Supplier: Shanghai,Target,Industry,Co.,Ltd.
Share on:
Product Overview
Description
Product Name | GD150Q | GD300Q | GD450Q | GD600Q | |||
Depositing Speed | 25-55N/MIN | ||||||
Electric power needed | 16KW/380V | 26KW/380V | 32KW/380V | 36KW/380V | |||
Total Length | 18M | 20M | 20M | 22M | |||
Weight of machine | 3000KG | 4500KG | 5000KG | 6000KG | |||
Candy weight | According to the size of candy | ||||||
Product Description

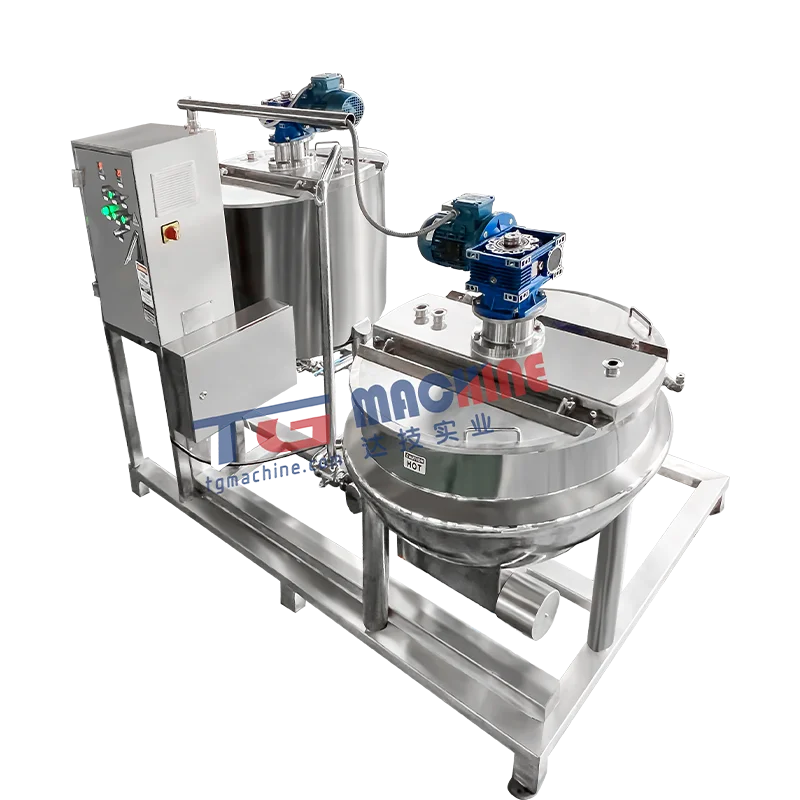

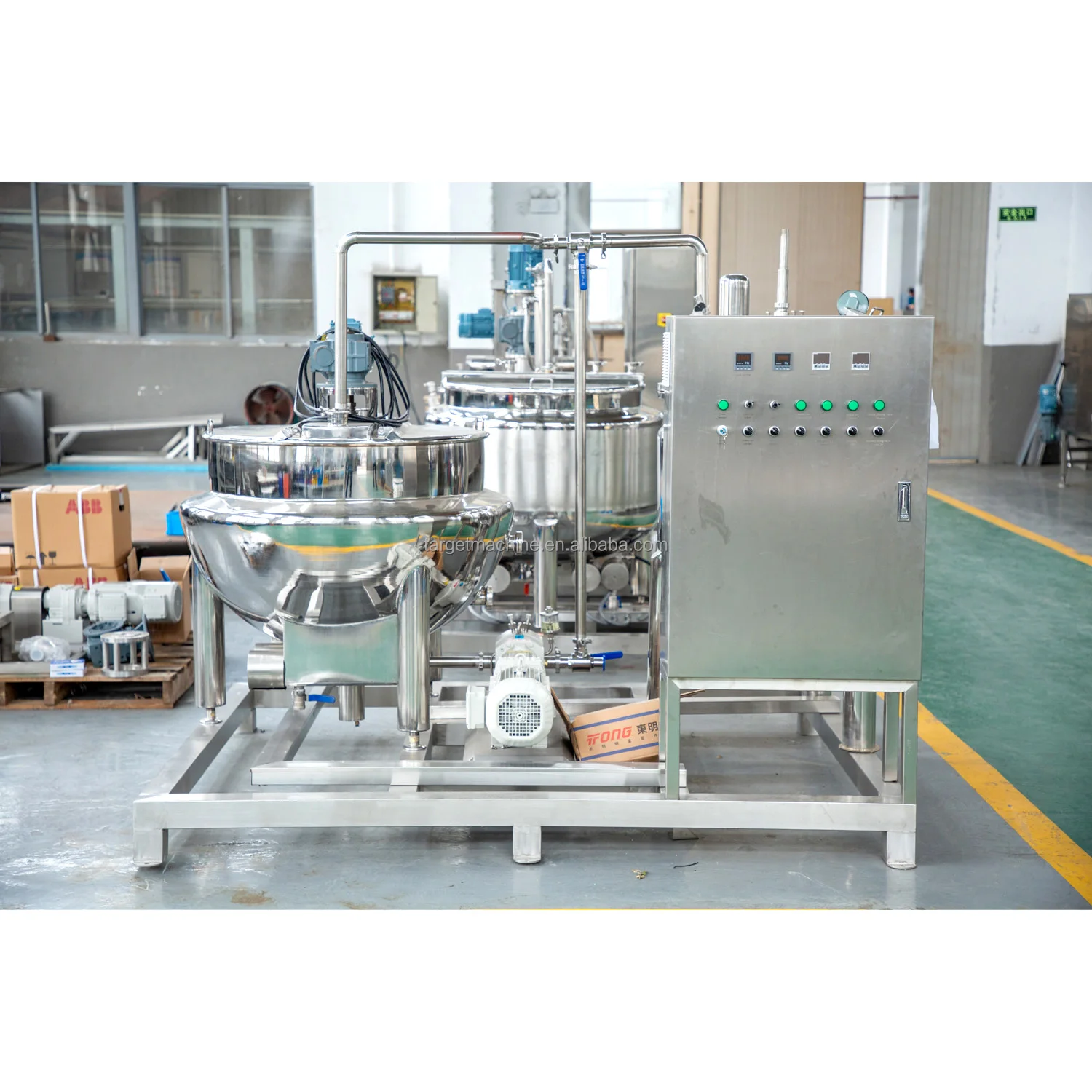

Cooking system
Cooking system is consists of jacket cooker and storage tank.Jacket cooker can dissolve sugar and maltose rapidly, reach full uniform effects of dissolving Storage tank is used to storage liquid and decrease the temperature of liquid.

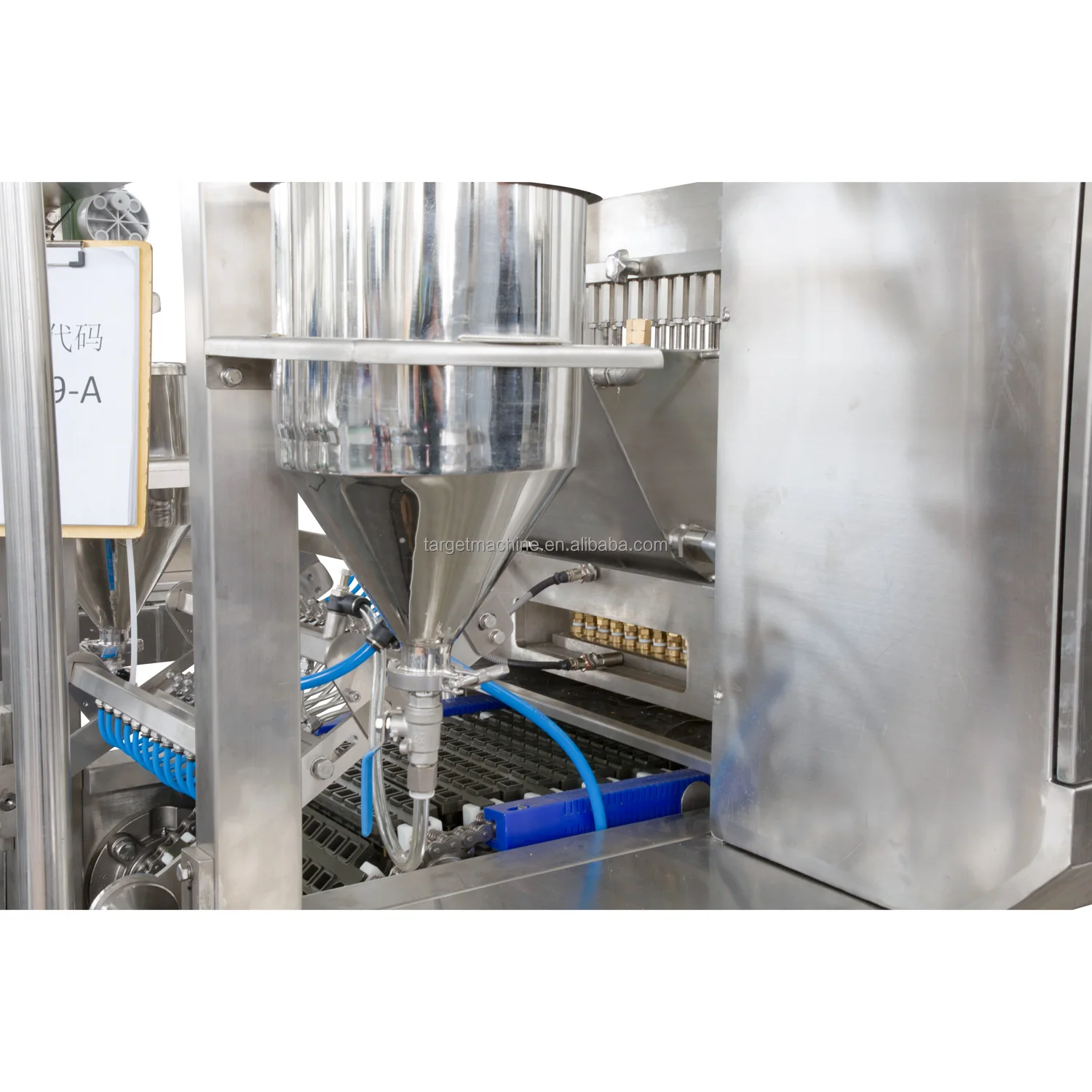

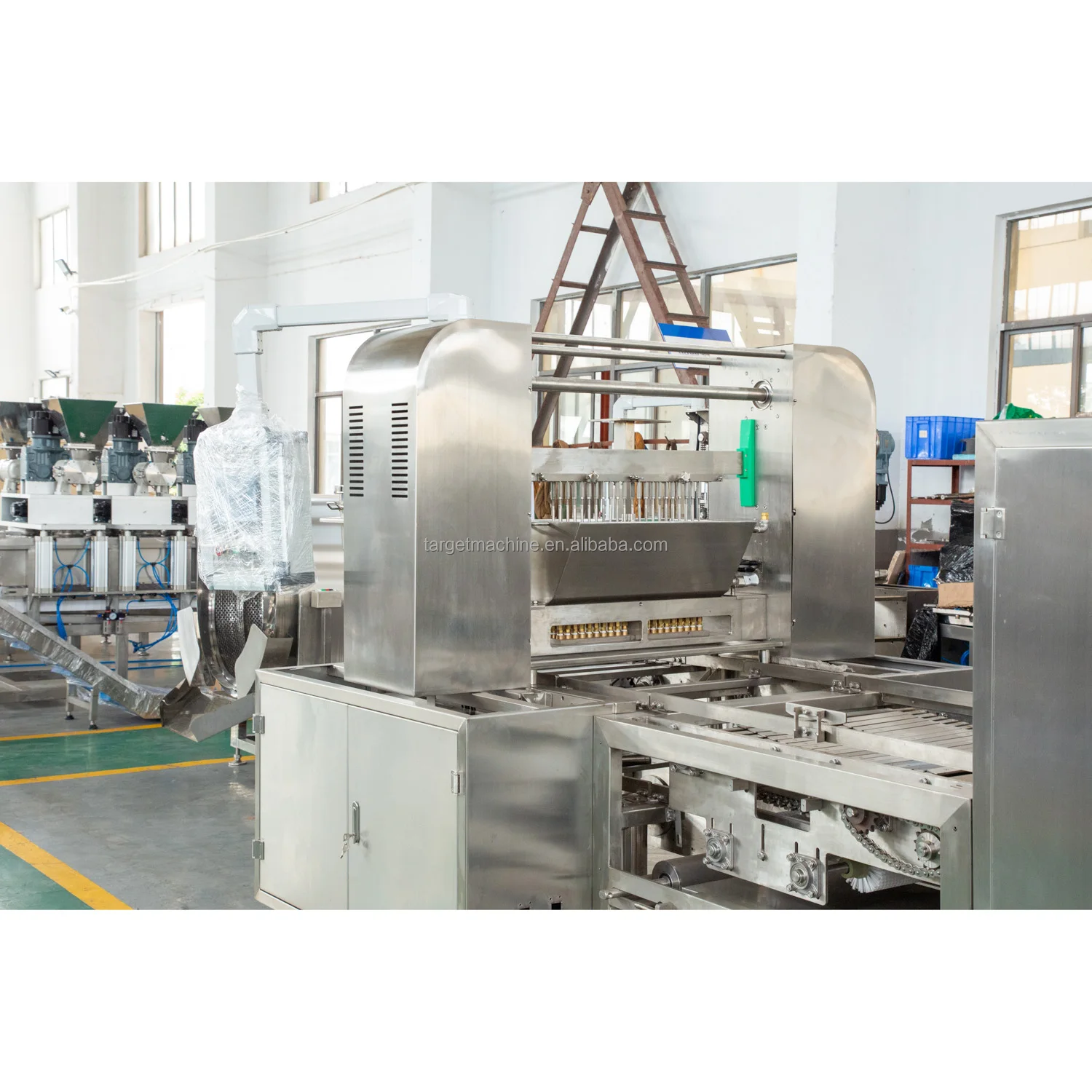

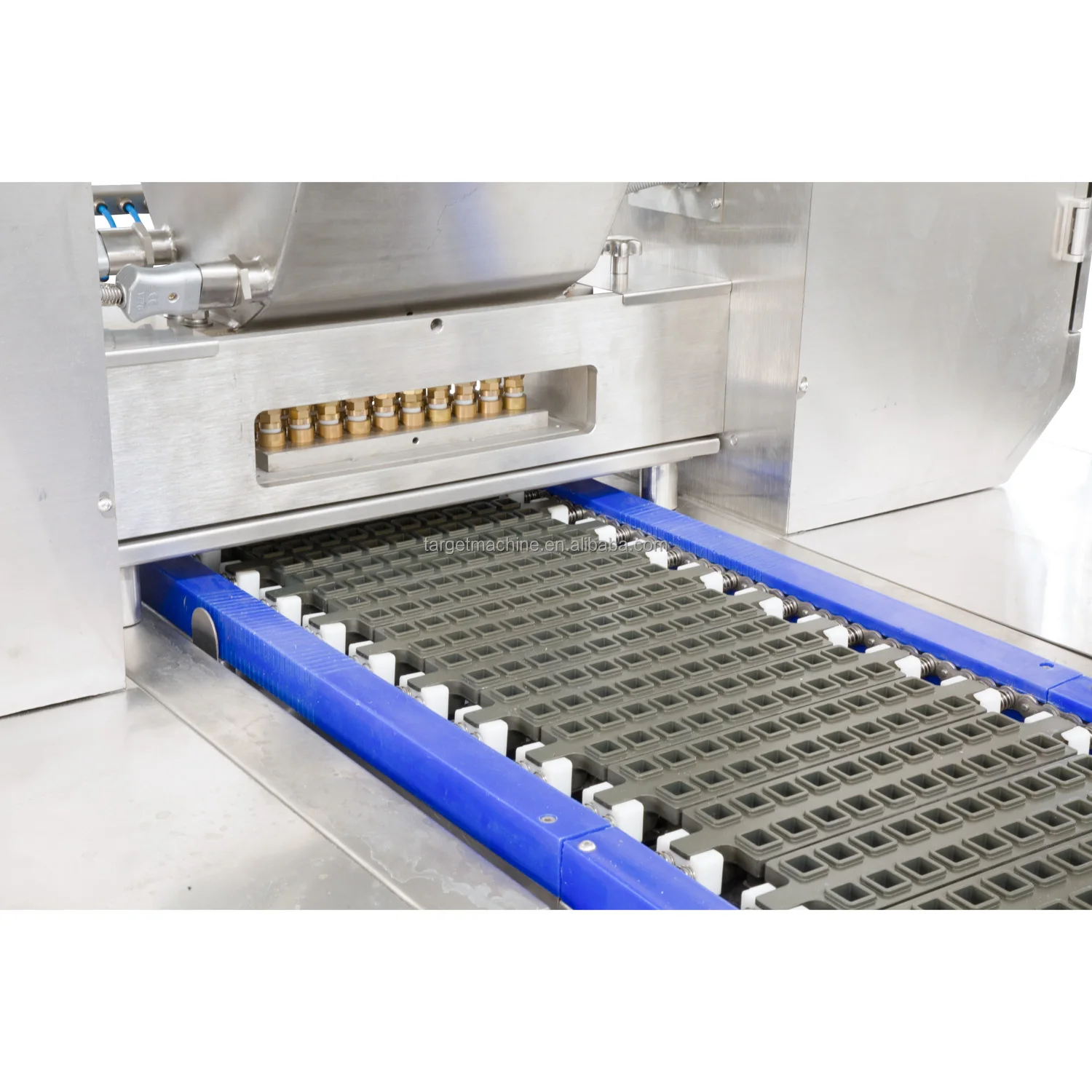

Depositing system
High accuracy fabrication technology for deposit piston and copper makes the same candy weight.Flavor and color mixer can effectively mix flavor color and other ingredients.The an oil-spraying machine makes the candy easier to demold.

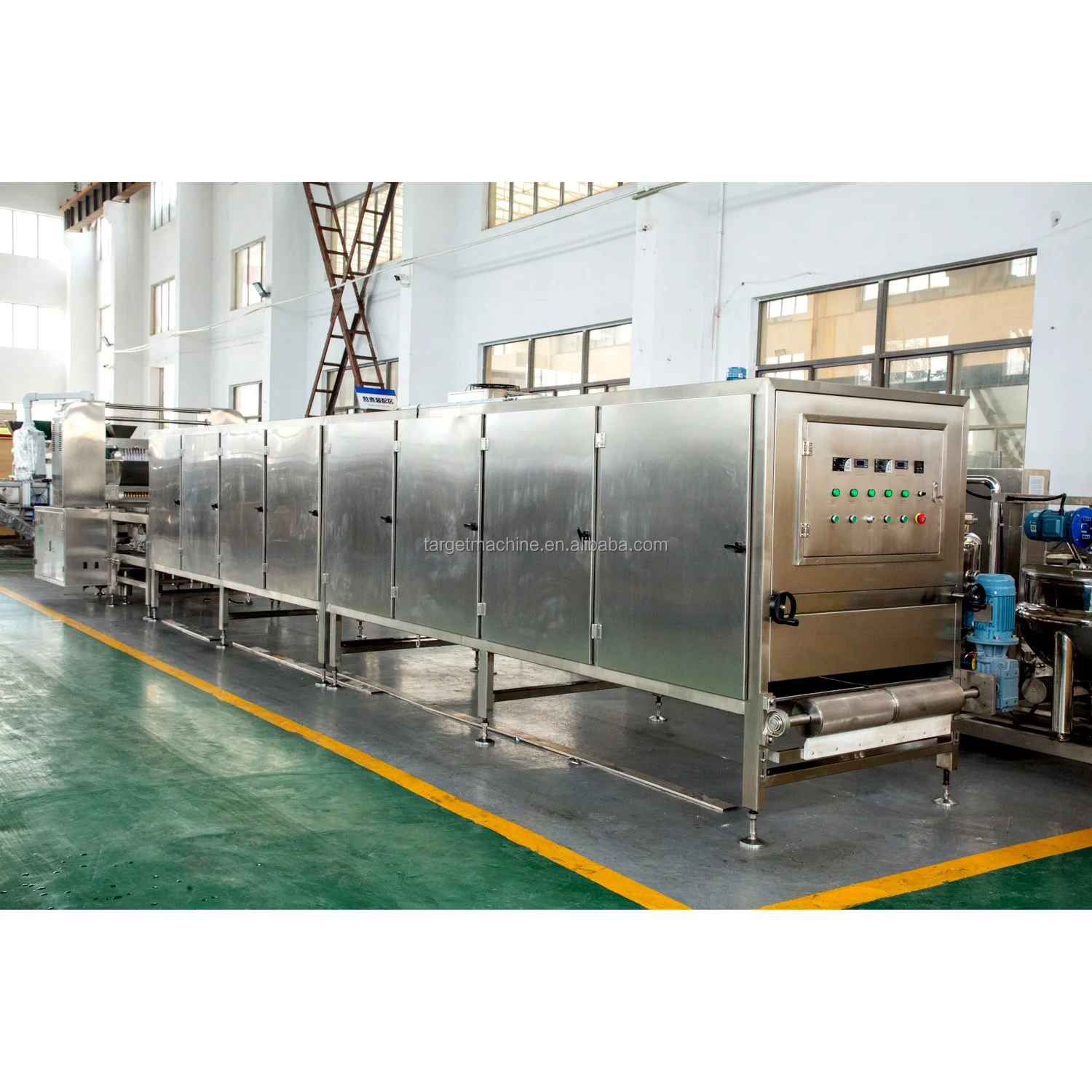

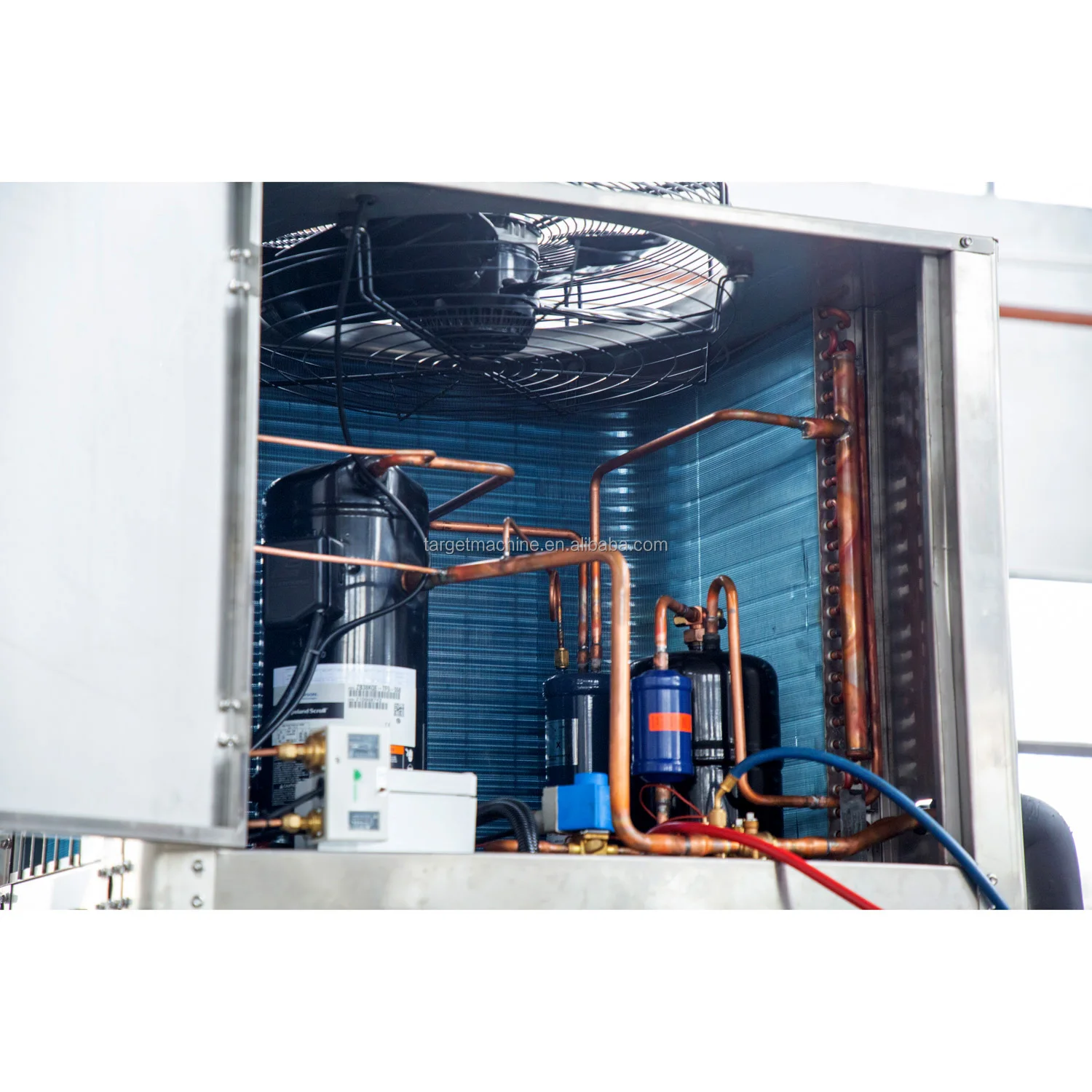

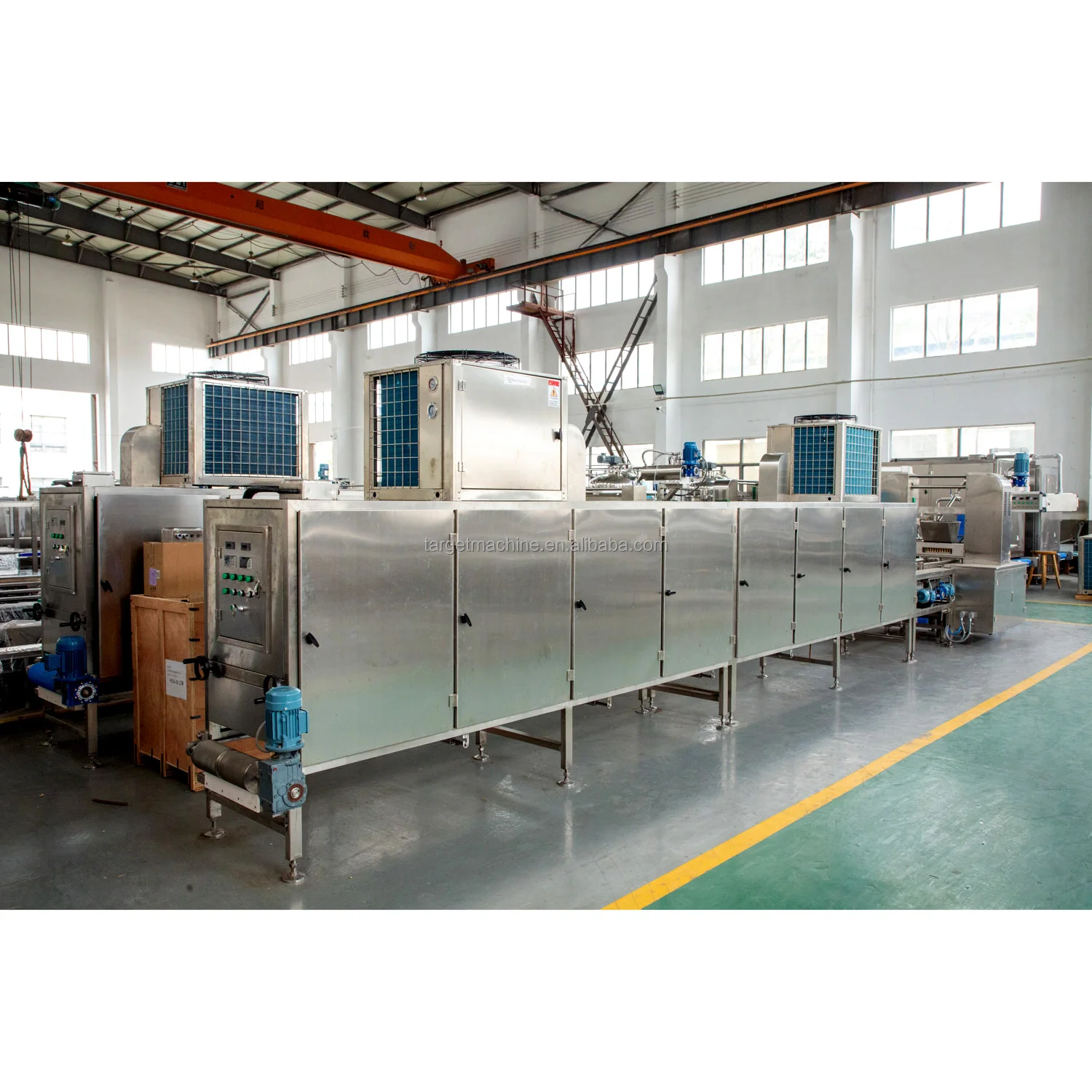

Cooling system
The cooling system is used to cool the temperature of the candy.Stable running with low noise and long life. it is much stronger than other factory with 1mm or 2mm thickness frame.

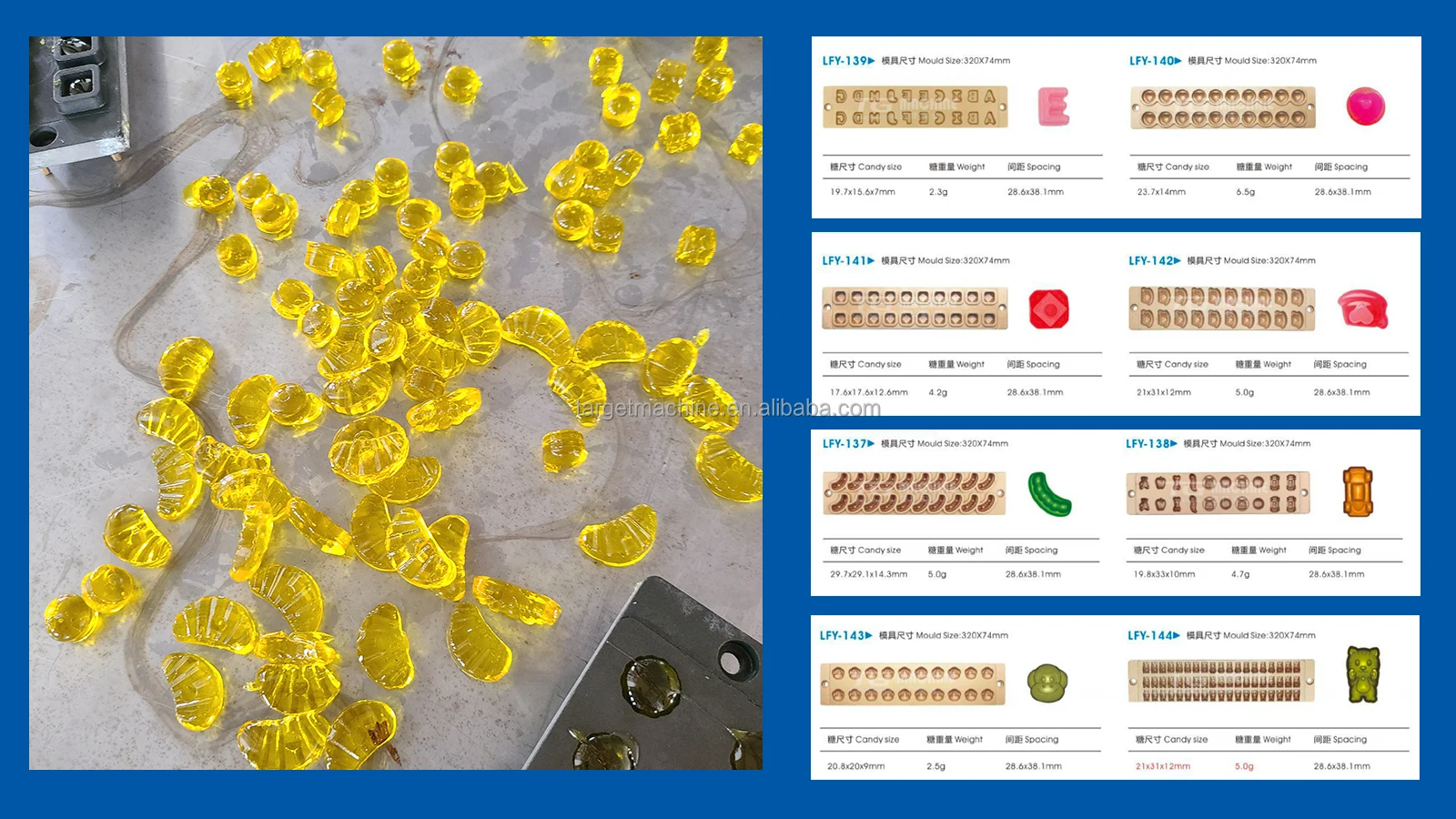

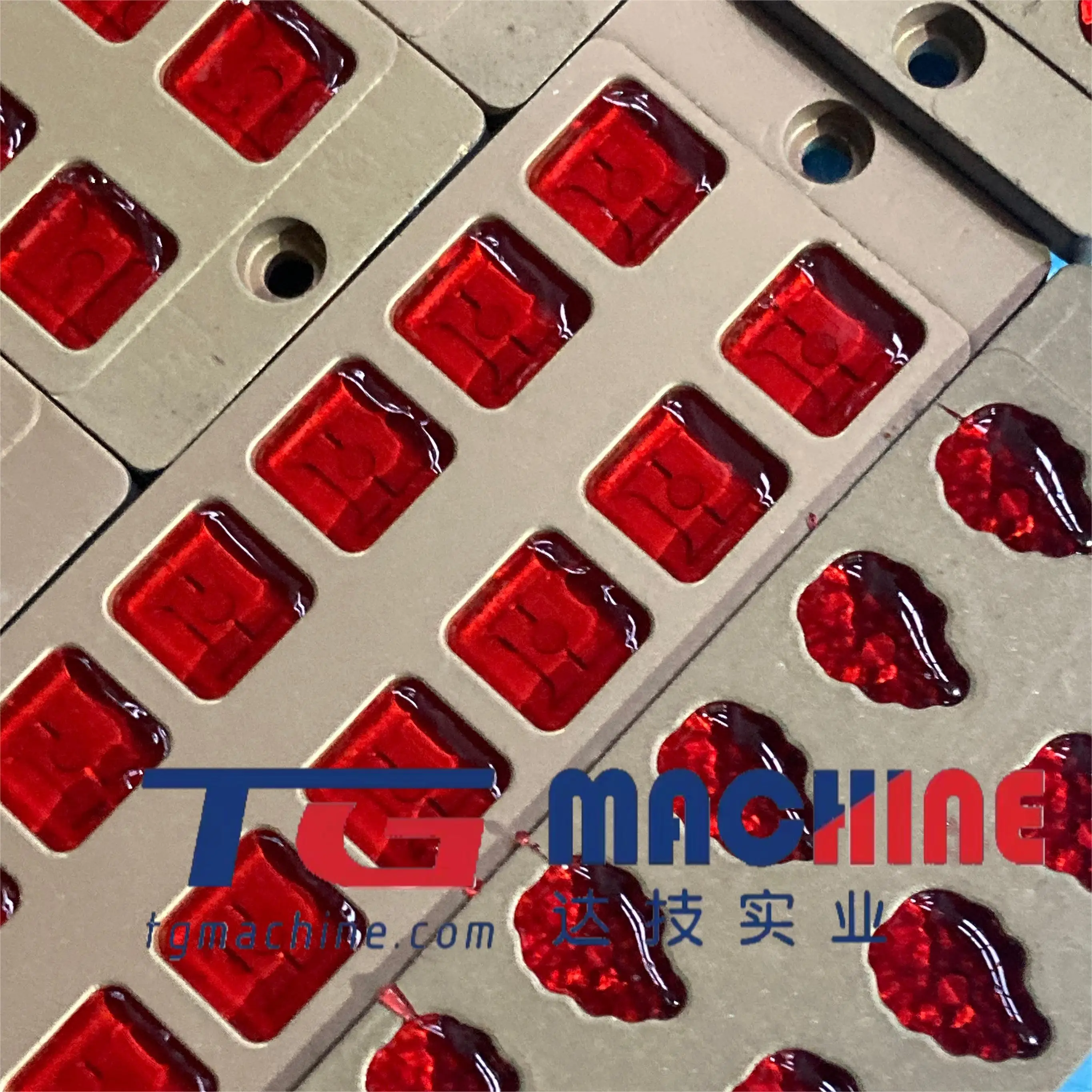

Gummy Mould
After-sales service
1、OEM service，Strong Production Capacity And Competitive Price.
2、Stable And Fast Transportation And Delivery.
3、Expatriate Maintenance.
4、Online Vedio Technical Support .
5、Free Spare Parts.
6、Perfect Quality Program,100% Test Before Delivery.
Certifications
Different Models
Gummy Machine GD40Q
10,000 gummies/hour
This machine is suitable for entering the industry for the first time.The unique design enables it to occupy a small footprint while ensuring the output. Plug and Play.
Gummy Machine GD150Q
30,000-50,000 gummies/hour
This machine is suitable for high output requirements, suitable for a wide range of people.Gummy Machine GD300Q
50,000-70,000 gummies/hour
This machine is suitable for high output requirements, suitable for a wide range of people.（according to your budget）
Contact us
Call Me! Call Me!
Call Me! Call Me!
Company Introduction
TGMachine is proud of the machine design with sanitary and easy washing structure for Gummy candy with C*D or T*C or Vitamin and Minerals. Etc functional products. It is ideal equipment that can produce good quality gummies with the saving of both the manpower and the space occupied. Optional with Touch screen, SERVO and PLC for Automatic operation, one shot system can make one color, two color or multi-color, center filled Gummy candy (optional) also available just change the manifold and nozzles. The cooling tunnel includes automatic Chain type/Air Knife/Brush de molding system as option. The complete line was designed according to pharmaceutical machine standard, higher level sanitary structure design and fabrication, all stainless steel materials are SUS304 and SUS316L in the line and it can be equipped with UL certified or CE certified components for CE or UL certificated.
FAQ
Q:Are you trading company or manufacturer ?
A:We integrate industry and trade, which is our advantage. We can give you lower price and more comprehensive service
Q:Do you provide any recipes for the product?
A:Yes,we will provide a basic recipe. and clients can add different color and flavor on that base.
Q:What are the advantages of your product over others?
A:We are more concerned about food safety than them, so our machine can be washed with water all over the body, and the pouring part has no sanitary defects; We can adjust the configuration of the machine according to your budget / output and give you a satisfactory answer.
