sell well multilayer leather nylon fabric ply plane cutting machine with ce certificate
- Category: >>>
- Supplier: Shandong Bangzheng Machinery Equipment Co. Ltd.
Share on (11000008180769):
Product Overview
Description
Product Description
clipping height | 1-11 cm | ||||||
Effective cropping width | 1700mm | ||||||
Effective cutting length | Automatic feeding unlimited length | ||||||
Automatic spreading length | 16.8m spreading table (total working length 24m) | ||||||
Way of transporting the knife | Reciprocating vibrating knife transport | ||||||
cutting speed | 0-60m/min | ||||||
Cutting knife grinding | Double wheel counter-rotating grinding | ||||||
Adsorption method | Frequency conversion vacuum constant pressure control mode | ||||||
safety devices | automatic induction | ||||||
using electric | Three-phase AC380V/50Hz/25Kw | ||||||
operation panel | touch control panel | ||||||
clipping parameters | Input LAN, USB | ||||||
Device weight | About 4500Kg | ||||||
Other functions | Mobile cutting device, automatic feeding device, pattern scanning, adsorption bed | ||||||
operating system | Supports the overall rotation of the nesting chart, knife-edge conversion, single-piece recutting, one-key deletion of overlapping areas (supports removal of repeated lines), automatic multi-layer cutting bed for residual cloth cutting, automatic cloth spreading machine, and air floatation table | ||||||
Product Description:
1. Computer-controlled automatic cutting, no need for printing paper, no need for a large number of cutting workers, to achieve mass production;
2. The pieces cut out by the equipment have high precision, and the lathe workers can sew directly without trimming the pieces, which effectively improves the sewing efficiency of the lathe workers;
3. The cutting bed control software supports multi-source data formats: it can directly receive common data clothing design typesetting software;
4. The unique algorithm and motion control technology realize the seamless connection between straight lines and arcs, and the cutting precision is high;
5. The equipment adopts automatic sharpening technology, and the sharpening time can be designed according to the characteristics of the fabric, effectively prolonging the service life of the cutting knife;
6. There is no need to print and store paper plates, the reuse rate is high, and the plate making management is convenient;
7. The replacement of consumables is convenient and the replacement cost is low;
8. High degree of automation and simple operation.

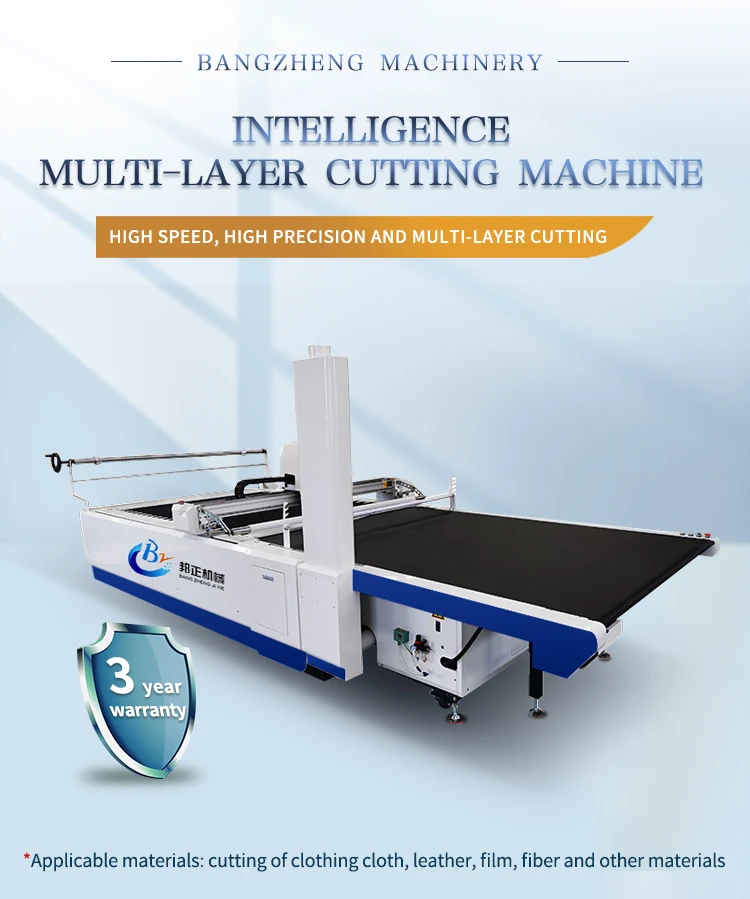

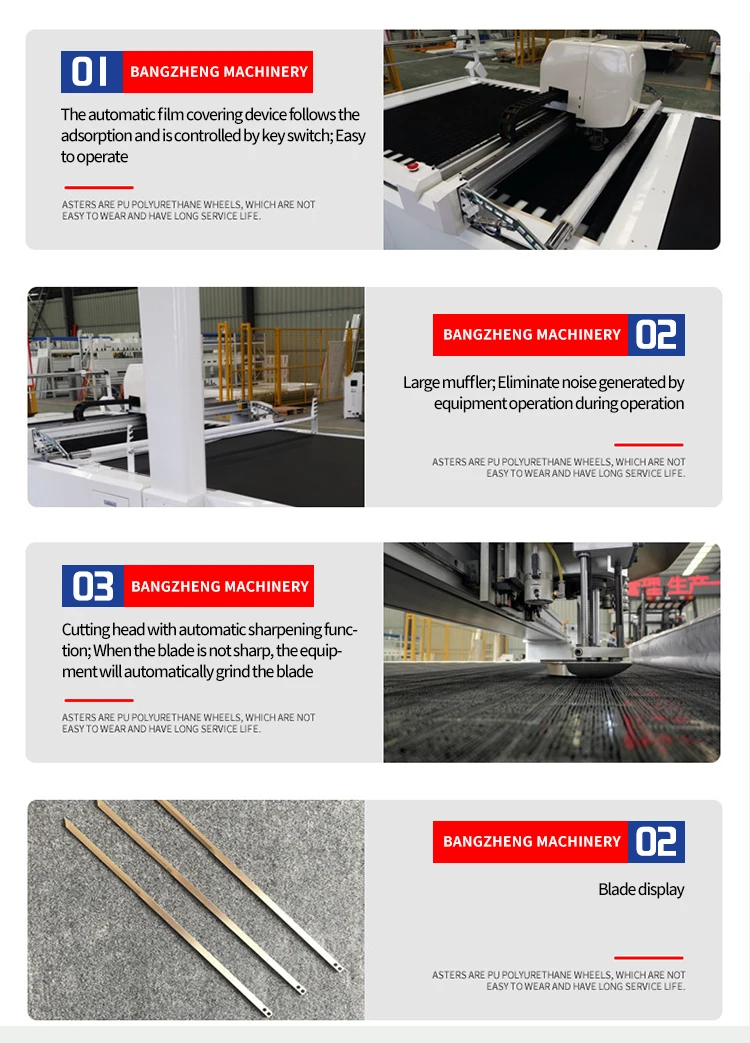

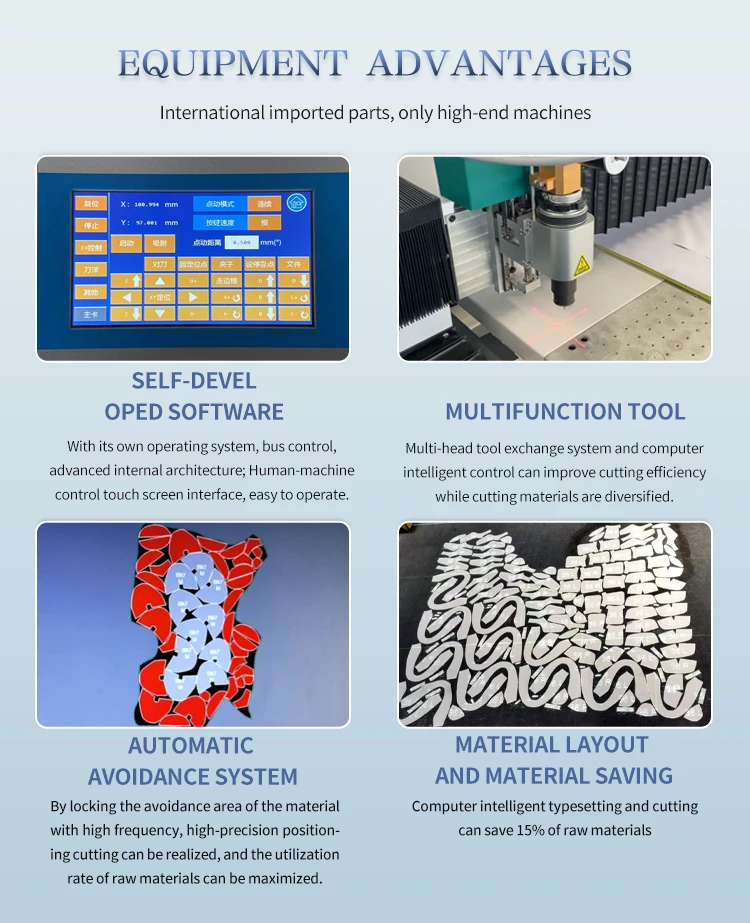

Product advantages

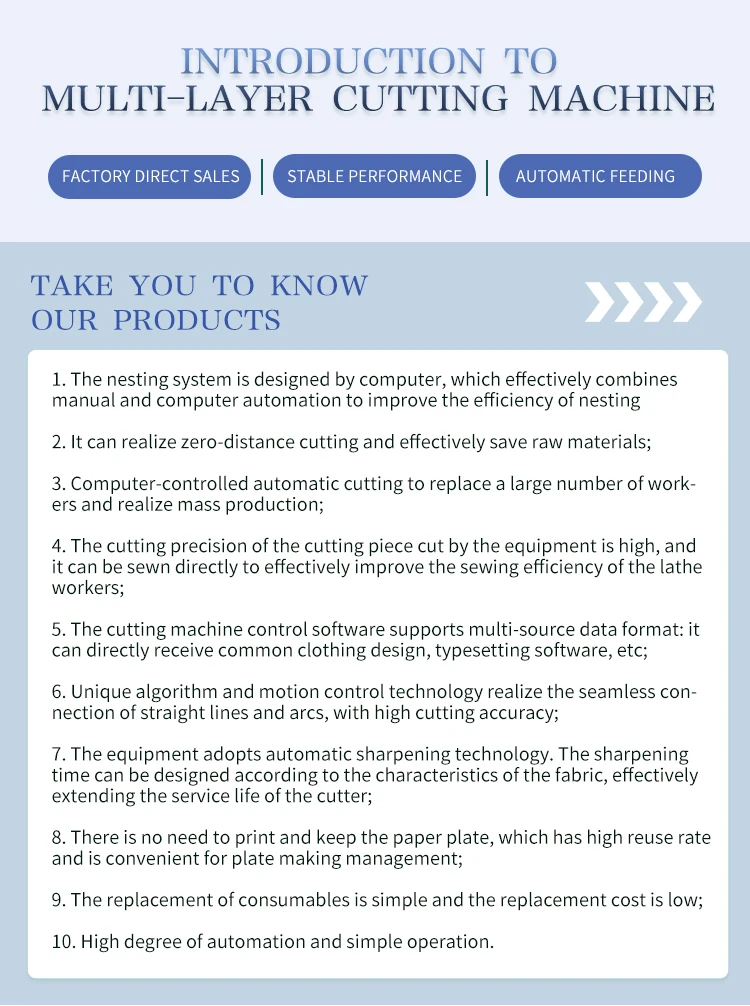

Introduction to multi-layer cutting machine

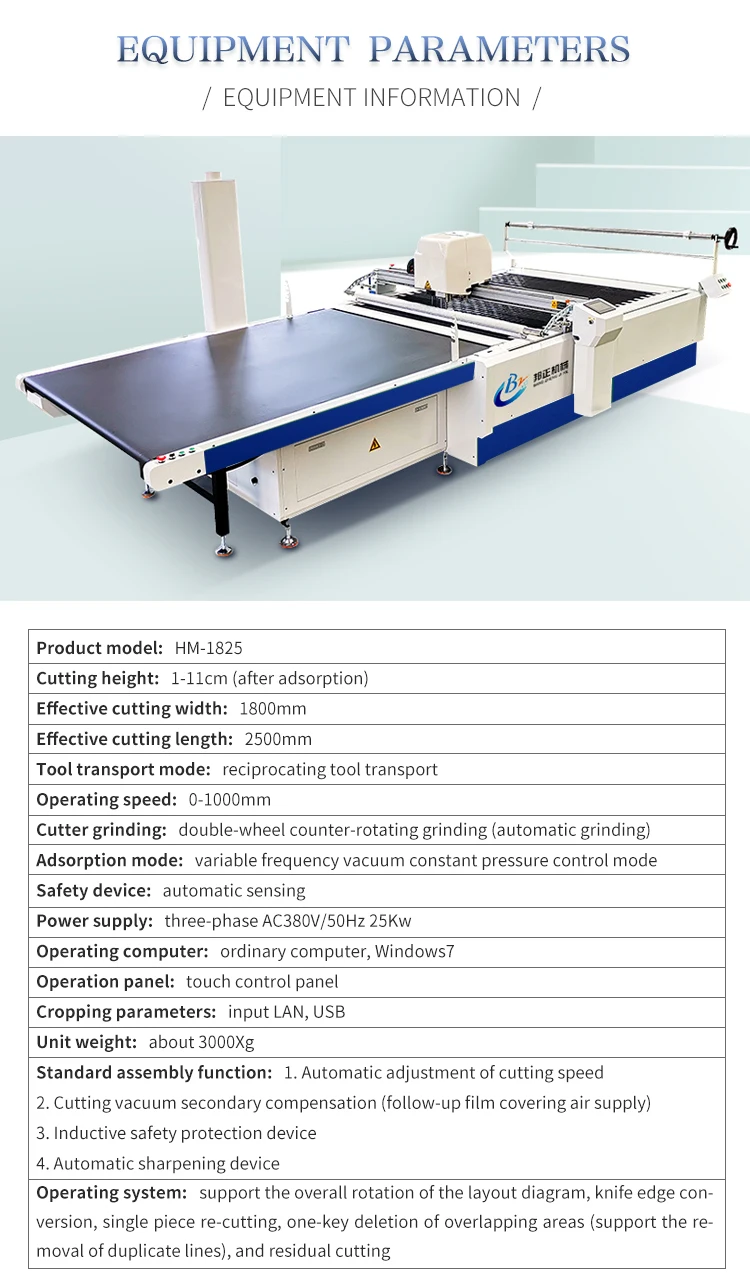

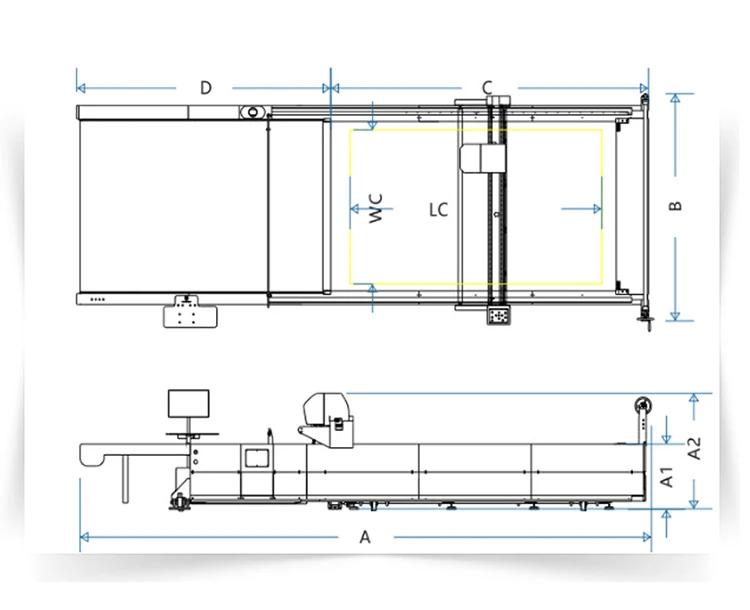

Product parameters

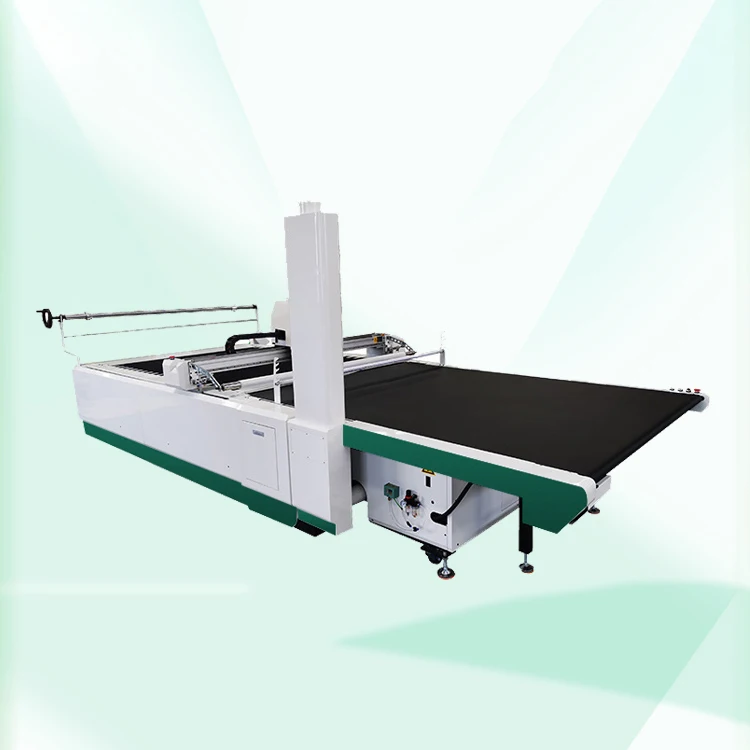

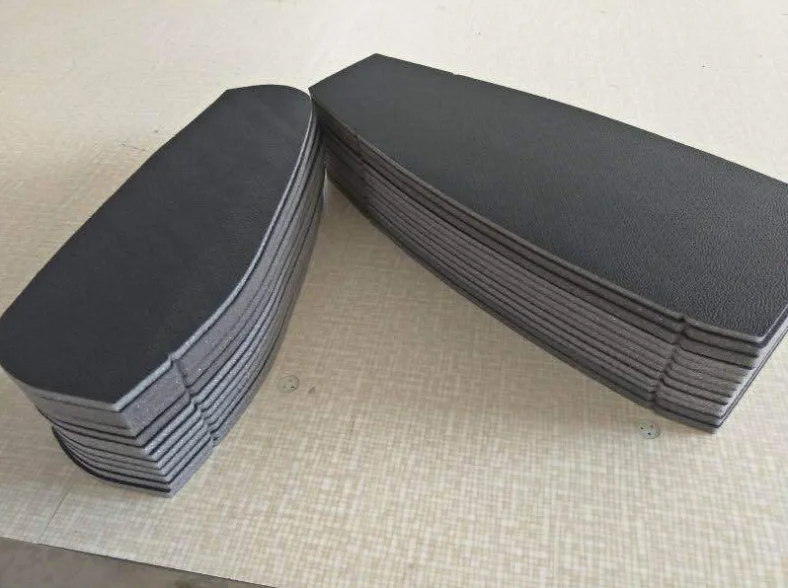

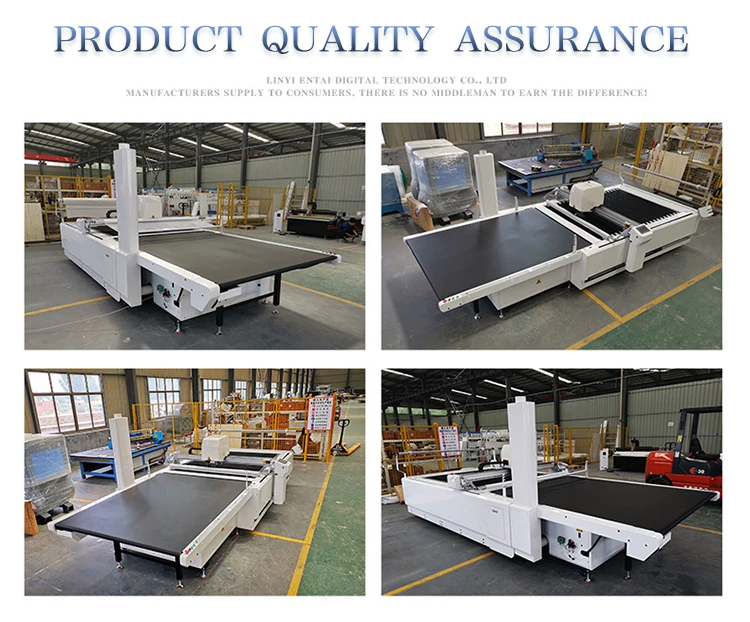

product display

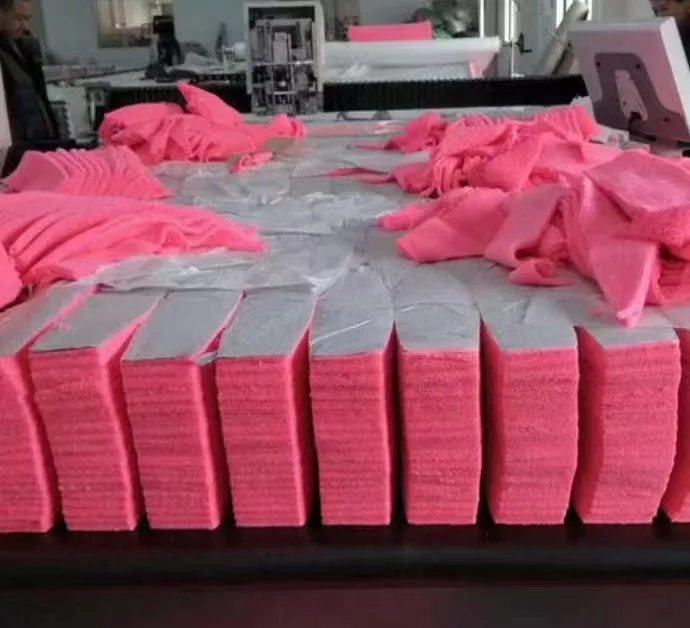

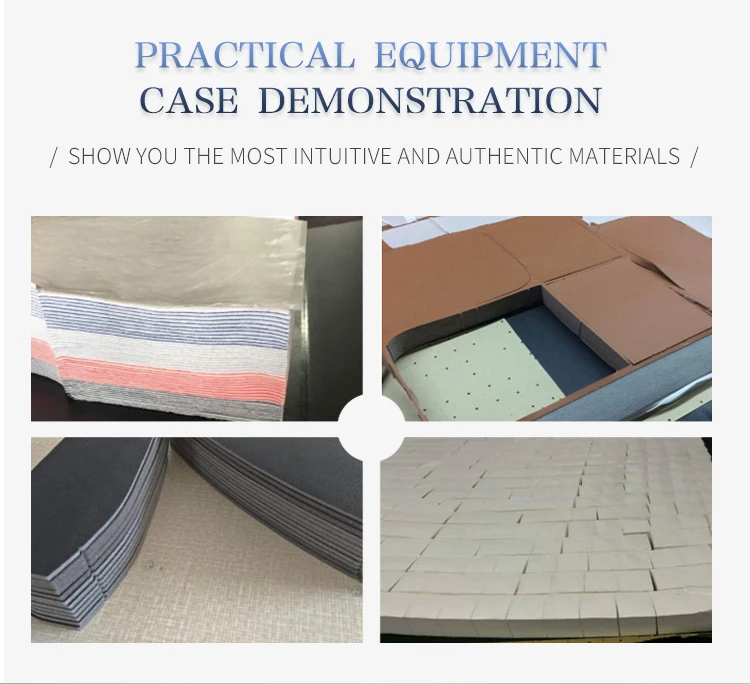

Scenario shows
Enterprise honor

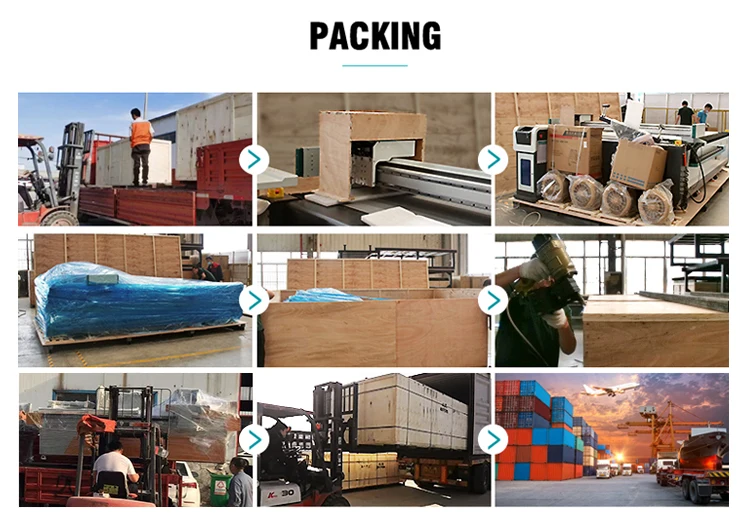

Packing and shipping
FAQ
Q: Are you a trading company or a factory?
A:We are manufacturers.
Q: When can we arrange shipment?
A:We usually arrange shipment within 15 days after receiving the deposit, but customized machines should be more than 25 days.
Q: Is equipment operation training provided after sale?
Q: Is equipment operation training provided after sale?
A:Yes. We can send professional engineers to the work site for equipment installation, commissioning and operation training. All our engineers have passports.
Q:Can you customize the machine according to my requirements?
A:Yes. We have experienced engineers and technical team, can provide personalized service.
