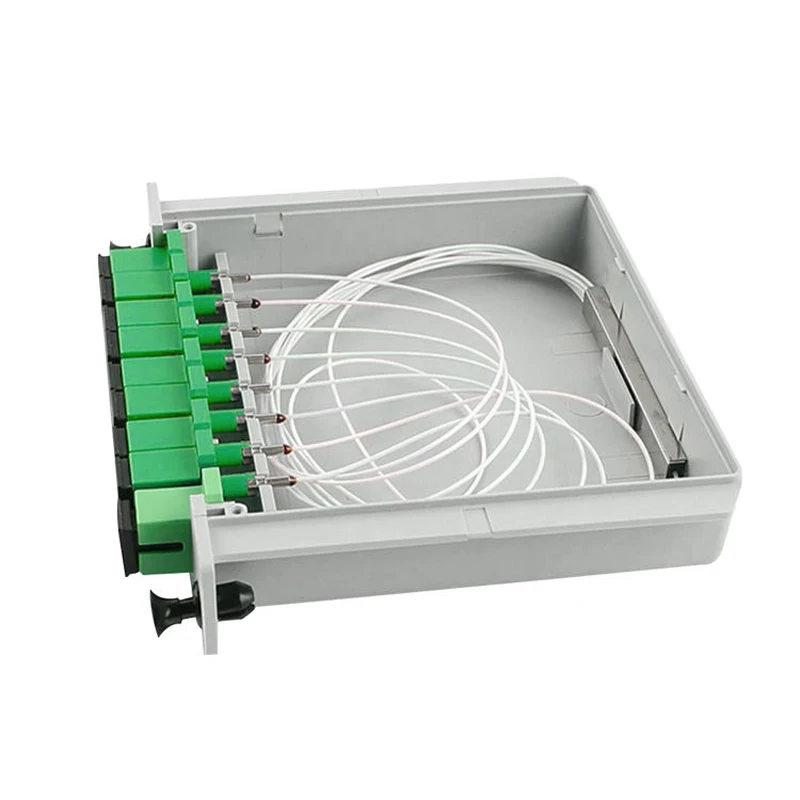

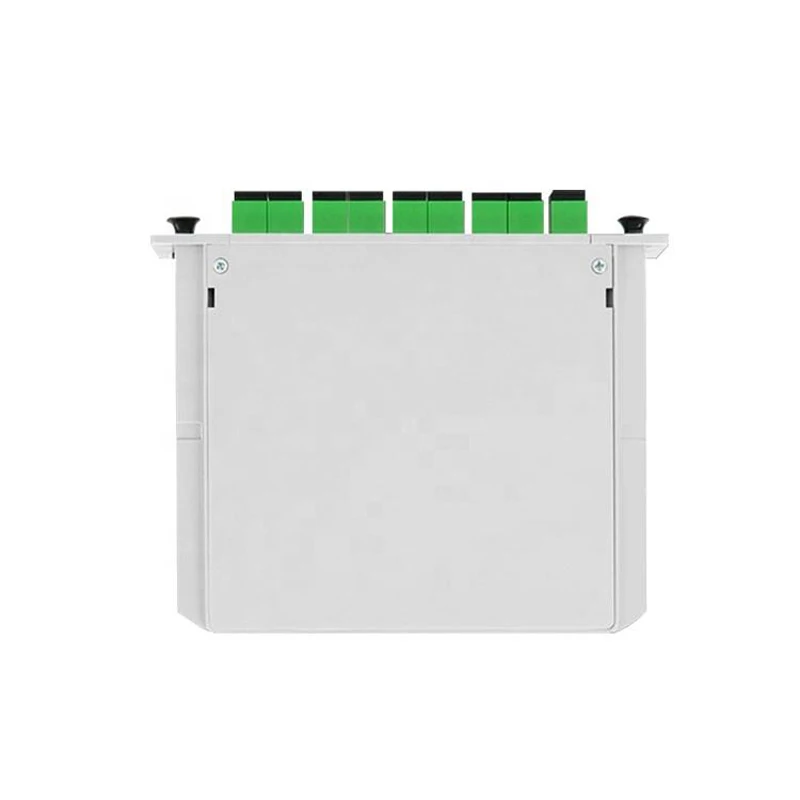

SC APC 1X8 FTTH fiber optical splitter insertion type Card PLC Splitter LGX cassette plc cassette splitter
- Category: >>>
- Supplier: Shenzhen Maplearashi Technology Co. Ltd.
Share on (11000008203745):
Product Overview
Description
SC APC 1X8 FTTH fiber optical splitter insertion type Card PLC Splitter LGX cassette plc cassette splitter
Product Overviews

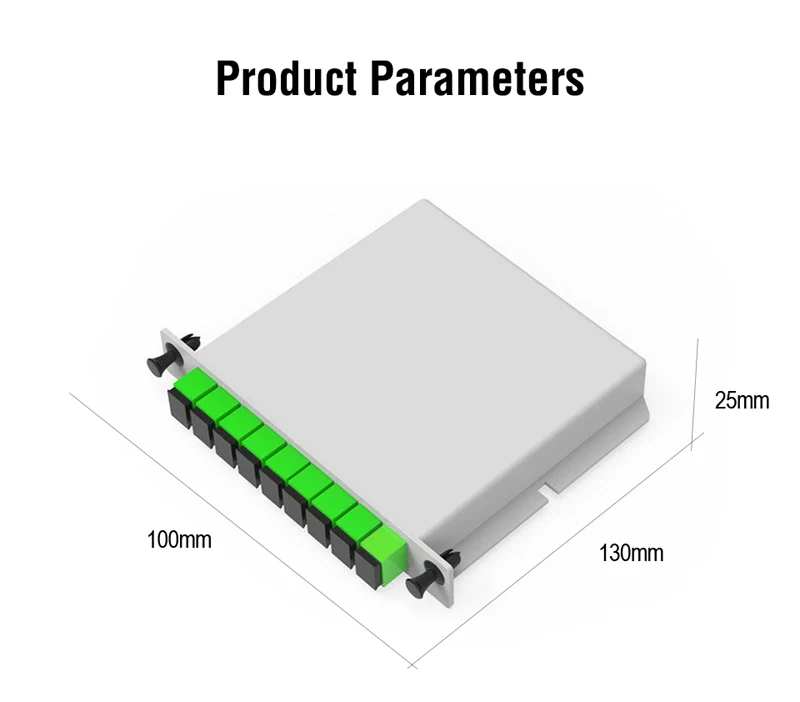

LGX Cassette PLC Splitter

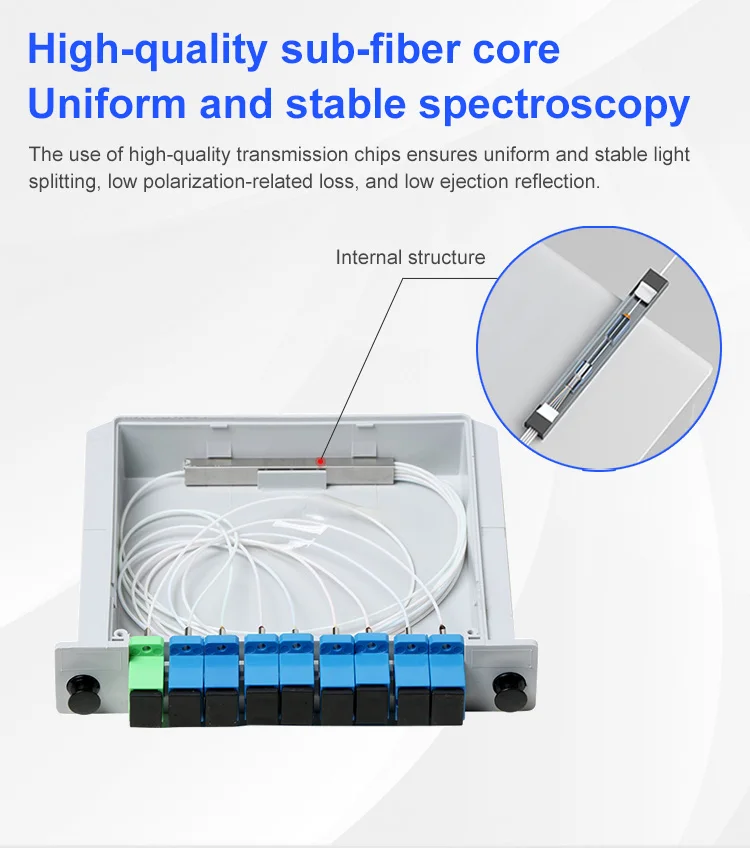

PLC(Planar Lightwave Circuit)splitters are used to distribute or combine optical signals. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high
reliability PLC Splitters are installed in each optical network between the PON Optical Line Terminal (OLT) and the Optical Network Terminals (ONTs) that the OLT serves. Networks implementing BPON, GPON, EPON, 10G EPON, and 10G GPON technologies all use these simple optical splitters. In place of an optical splitter, a WDM PON network will use an Arrayed waveguide (AWG). Passive Optical Network (PON) splitters play an
important role in Fibre to the Home (FTTH) networks by allowing a single PON network interface to be shared among many subscribers.
FEATURES
Low Insertion Loss & Low PDL.
Good Channel -to -Channel uniformity.
Wide Operating Wave length ( 1260 nm to 1650 nm )
APPLICATIONS
FTTH Systems
Optical LAN, PON, Metro & Optical CATV

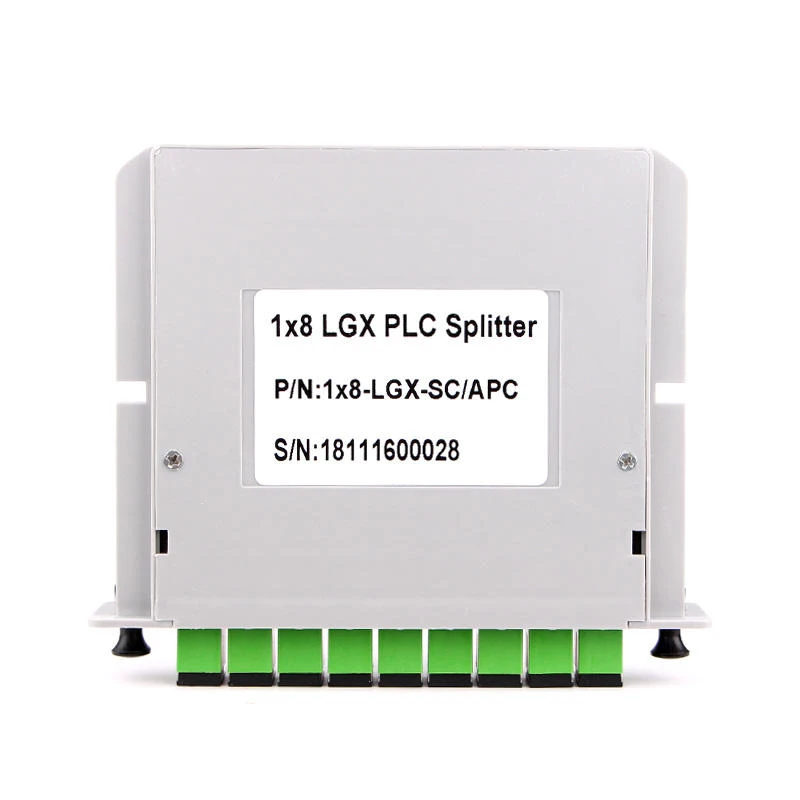

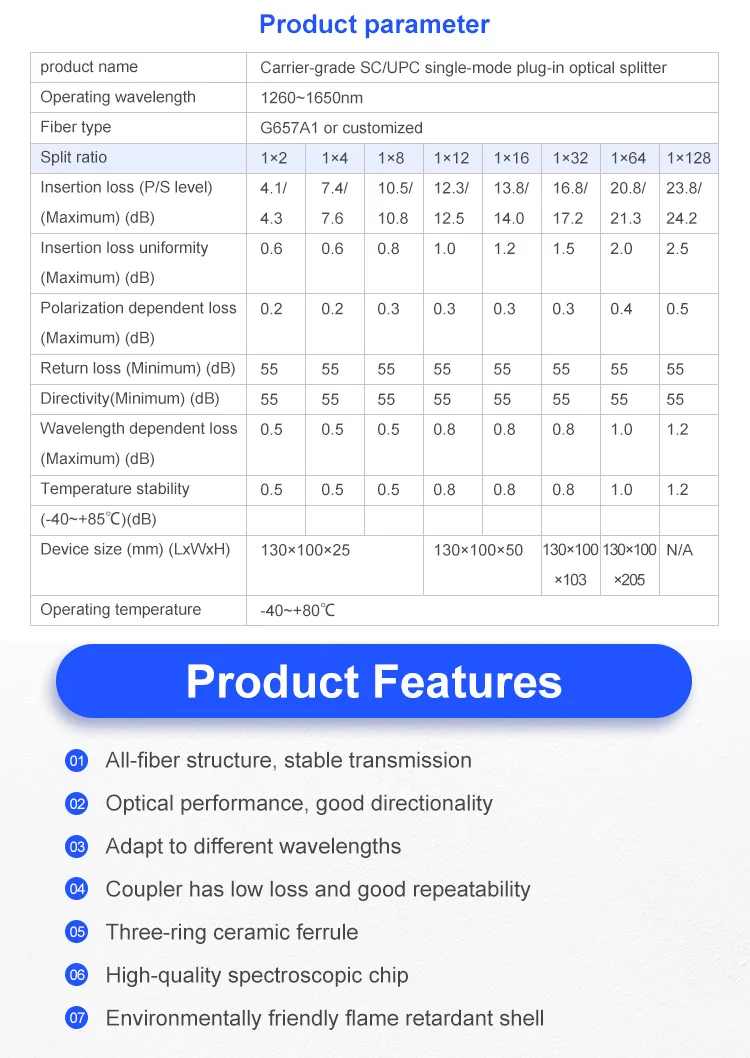

1×N LGX PLC optical splitter
Models | 1x2 | 1x4 | 1x8 | 1x16 |
Wavelength | 1260-1650 | |||
Insertion Loss (Max dB) | 4.2 | 7.2 | 10.5 | 13,7 |
Channel Uniformity (Max dB) | 0.6 | 0.8 | 1.0 | 1.6 |
Polarization Dependent Loss (Max dB) | 0.2 | 0.3 | 0.3 | 0.3 |
Return Loss (Min dB) | 55 | |||
Direction (Min dB) | 55 | |||
2×N LGX PLC optical splitter
Models | 1x2 | 1x4 | 1x8 | 1x16 |
Wavelength | 1260-1650 | |||
Insertion Loss (Max dB) | 4.2 | 7.3 | 11.5 | 14.3 |
Channel Uniformity (Max dB) | 0.8 | 1.0 | 1.2 | 1.5 |
Polarization Dependent Loss (Max dB) | 0.2 | 0.3 | 0.3 | 0.3 |
Return Loss (Min dB) | 55 | |||
Direction (Min dB) | 55 | |||
