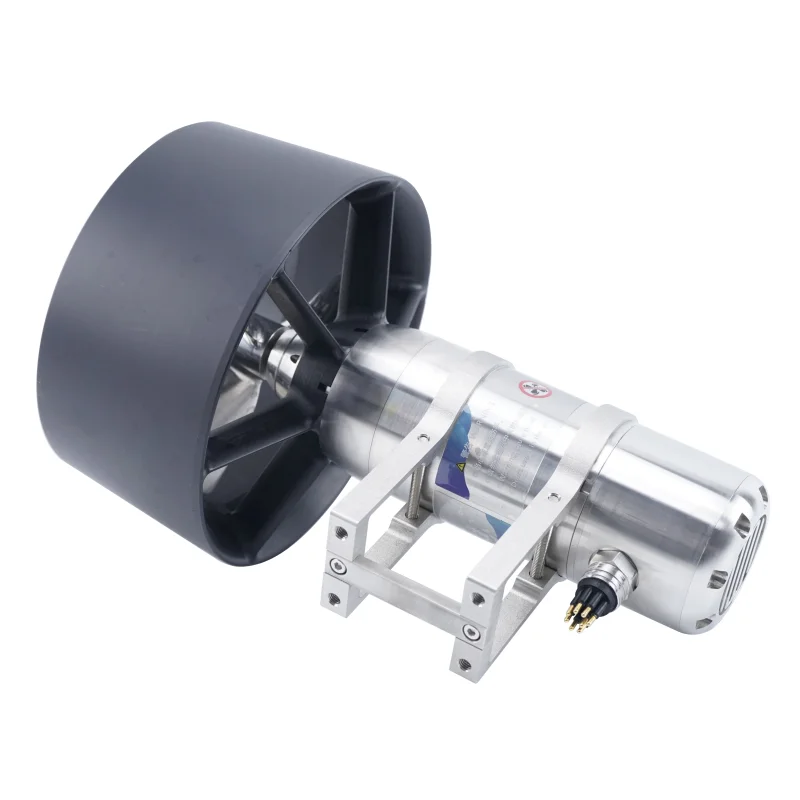

brushless thruster T150 500 underwater robot Waterproof Electric Diy RC Hydrofoil Underwater Thruster Kayak Boat

brushless thruster T150 500 underwater robot Waterproof Electric Diy RC Hydrofoil Underwater Thruster Kayak Boat

Price:$5,299.00

Price in USD:Details

Quantity:

Product Description

Features

1.56kgf thrust,300m depth.Max Power 2450W
2.Fully sealed with oil pressure compensation
3.316L ss pressure shell

4.Efficient fluid simulation structure, smaller volume, greater thrust
5.High-power brushless motor, reliable and durable
6.Built-in DC300V ESC

Specification

Model	Underwater thruster T150-500-48/T150-500-300EI
Model version	Underwater thruster T150-500-48（2022V2.1）/T150-500-300EI（2022V2.1）
Model description	Underwater thruster with propeller diameter 150mm and thrust about 500N
Seal structure	double compensation low resistance rotary dynamic seal structure
Oil pressure compensation	Yes
Maximum mooring thrust	51.6kgf (forward) 32.5kgf (reverse)
Rated voltage	T150-500-48：48VDC/T150-500-300EI：300VDC
Operating voltage	T150-500-48：44.4-50.4VDC/T150-500-300EI：DC250V~DC350V
Maximum power	T150-500-48：2500W/T150-500-300EI：2450W
Motor type	outer rotor brushless motor
Number of motor pole pairs	11
Spindle diameter	12mm
Spindle material	stainless steel 316L
Propeller diameter	150mm
Propeller configuration	CW/CCW
Propeller material	stainless steel 316L
Deflector material	POM (polyformaldehyde)
Thruster shell material	316L stainless steel
Cable sheath material	TPU (Thermoplastic Polyurethane)
Cable specifications	T150-500-48: Outer diameter: 12.5mm length: 1.5m Inner core: 3×6mm² T150-500-300EI: Outer diameter: 10mm length: 1.5m Inner core:3×3.3mm²
Material of mounting base	stainless steel 316L
Other parts material	stainless steel 316L
Driver	T150-500-48: External T150-500-300EI: Built-in
Depth Rating	300m (other depths can be customized)
