high voltage LiFePo4 solar energy storage system used 51.2v stackable battery
high voltage LiFePo4 solar energy storage system used 51.2v stackable battery
high voltage LiFePo4 solar energy storage system used 51.2v stackable battery
high voltage LiFePo4 solar energy storage system used 51.2v stackable battery
high voltage LiFePo4 solar energy storage system used 51.2v stackable battery
high voltage LiFePo4 solar energy storage system used 51.2v stackable battery
high voltage LiFePo4 solar energy storage system used 51.2v stackable battery

high voltage LiFePo4 solar energy storage system used 51.2v stackable battery

Share on (11000008273611):


Price:$525.00 - $600.00

Quantity:


Product Overview

Description



Products Description

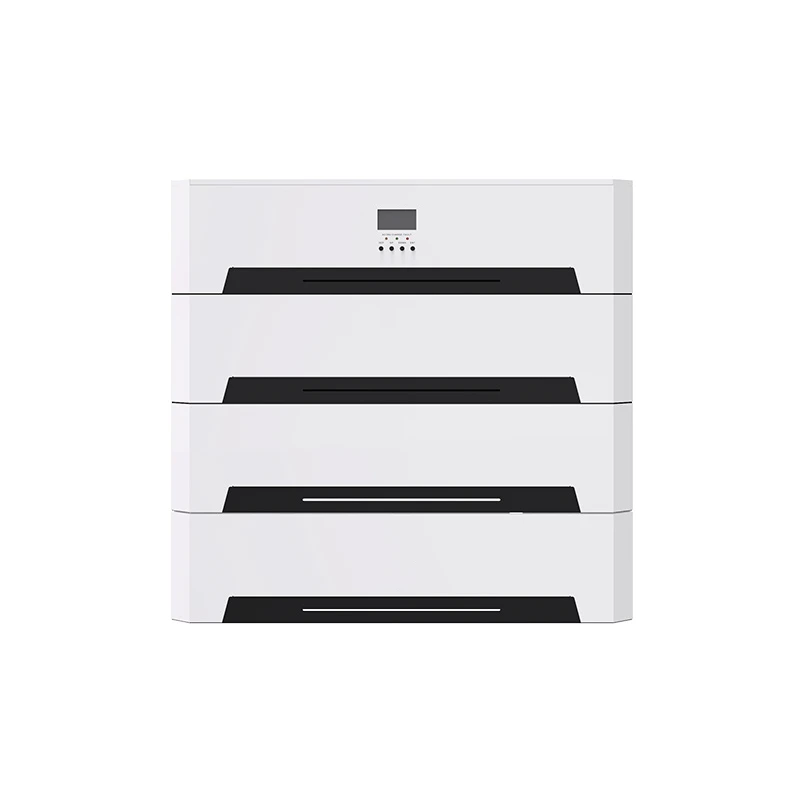

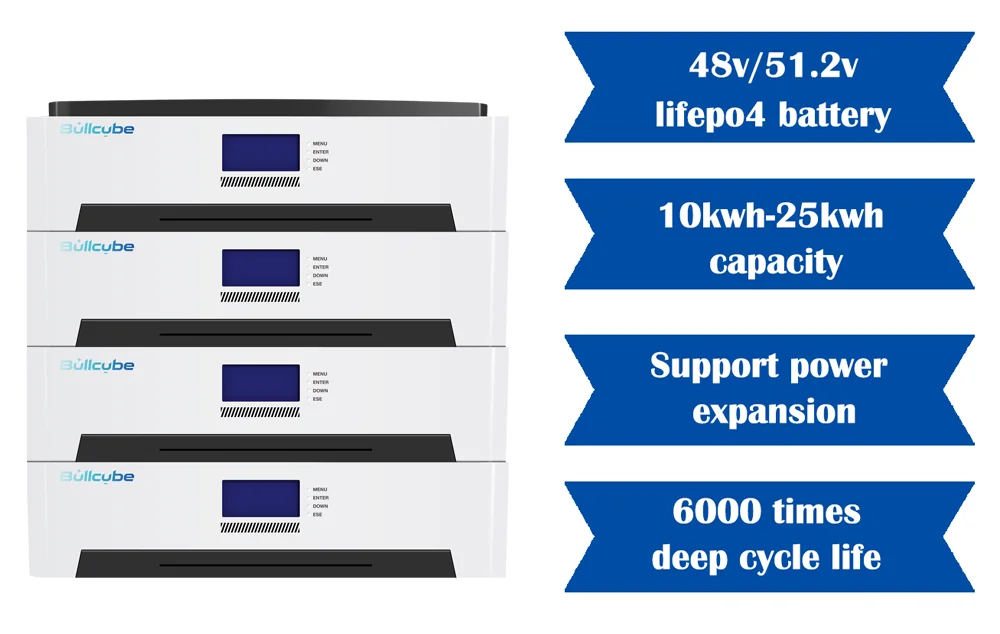

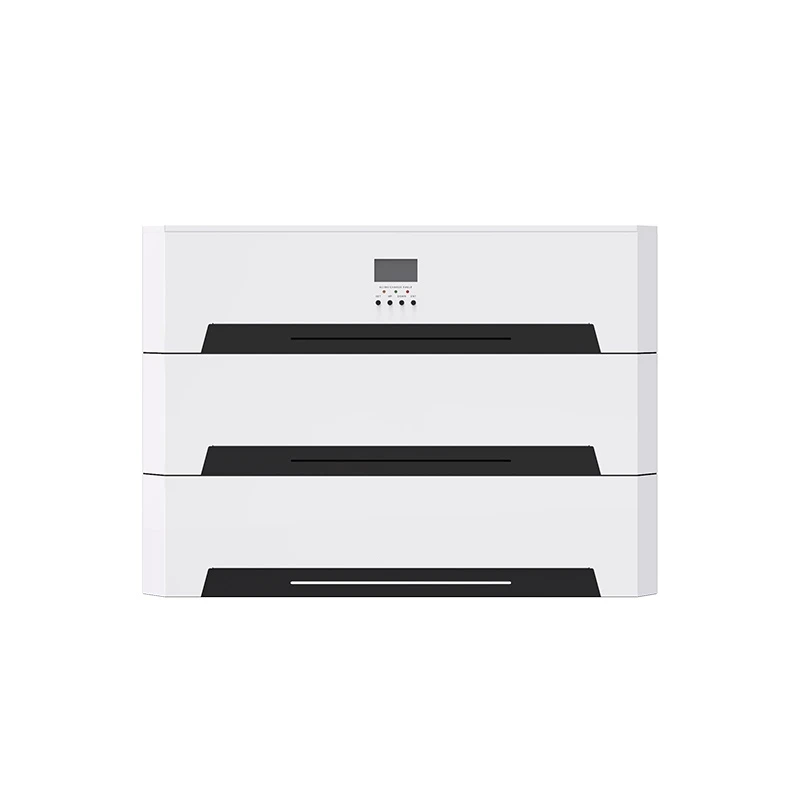

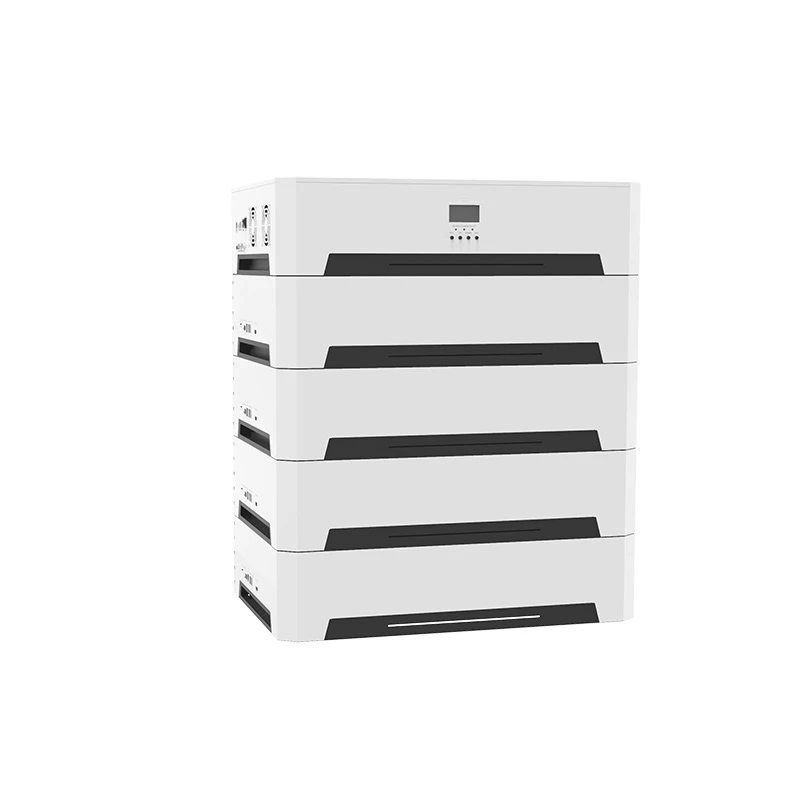

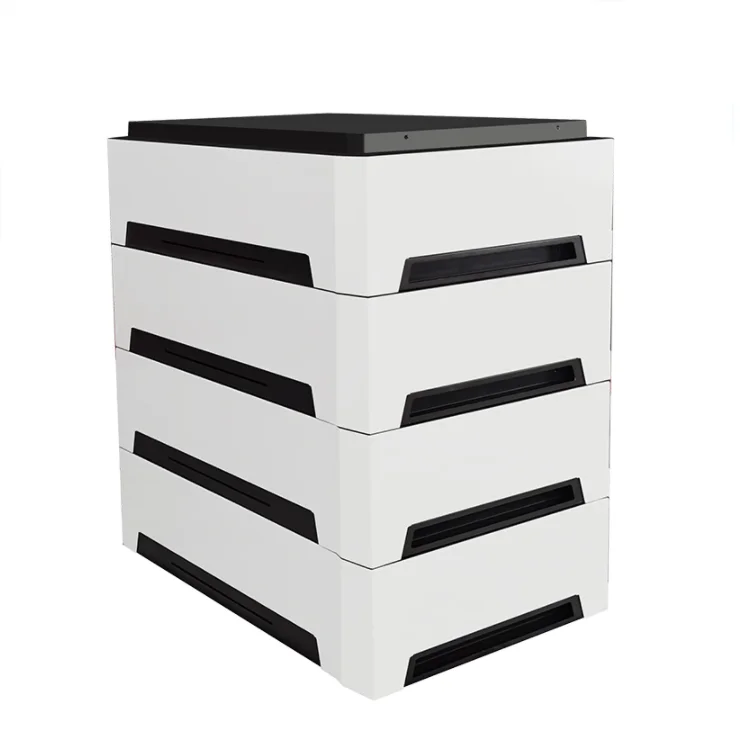

high voltage LiFePo4 solar energy storage system used 51.2v stackable battery

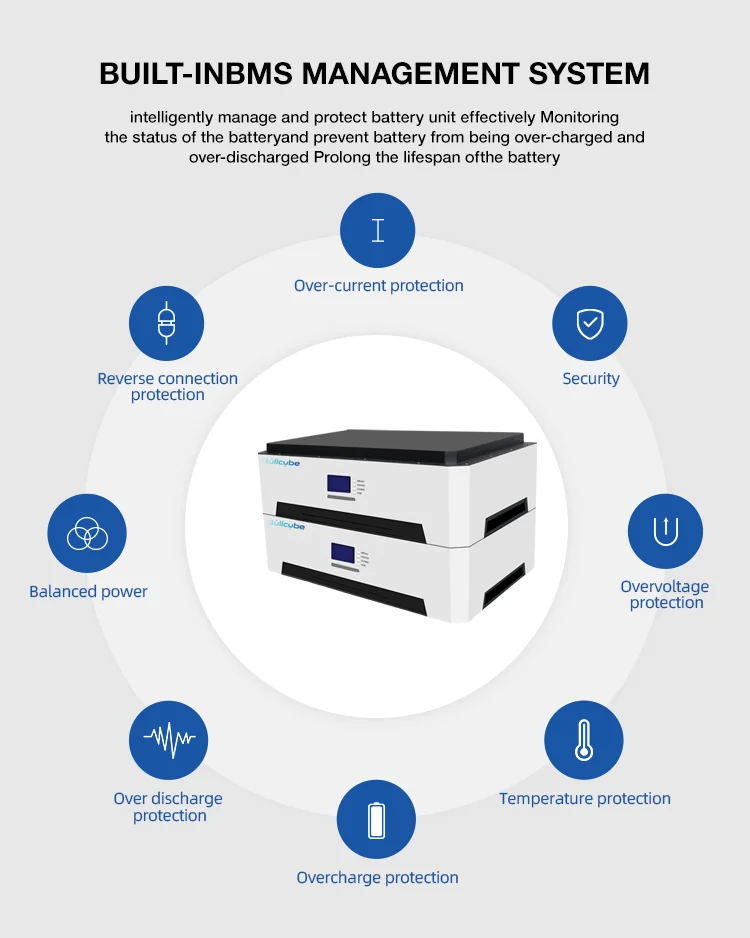

* LFP battery, inbuilt with BMS

* Long cycle life 6000 cycle times

* Scalable: 5.12kWh / module, up to
32.56kWh

* Light and flexible for ease of installation and maintenance

* Silent operation, no annoying noise like gas generator

* OEM & ODM available, appearance can be customized according to customer's requires

* Eco-friendly, Bill-saving for residential use



Voltage
51.2V, 102.4V, 153.6V, 204.8V, 256V, 307.2V
Capacity
100Ah
Cell
LiFePo4
Size
635*400*200mm
Net Weight
53kg(5.12Kwh)
Certification
IEC/ CE/ROSH/MSDS/UN38.3

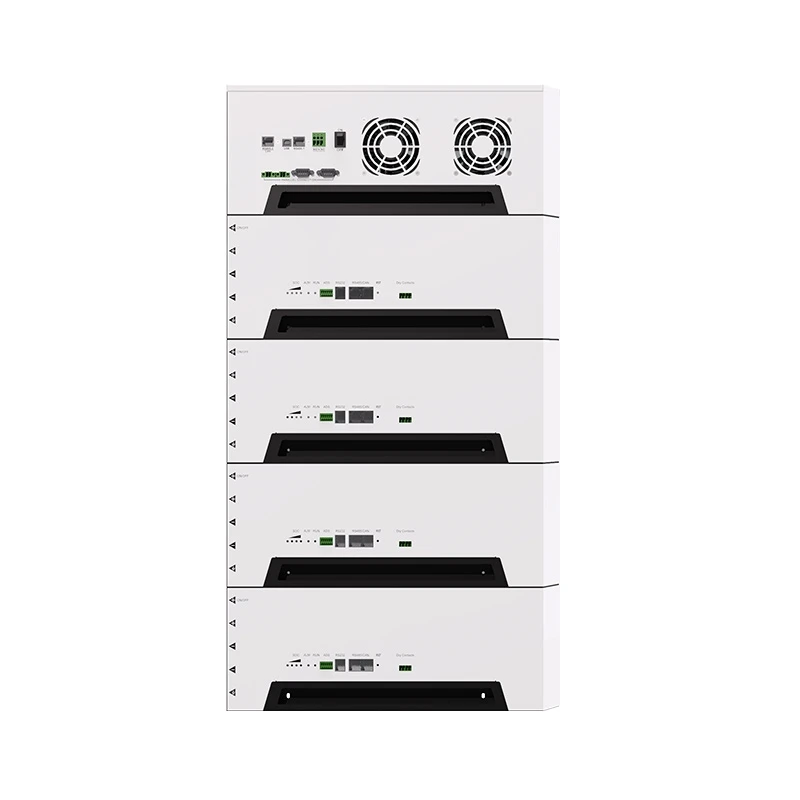

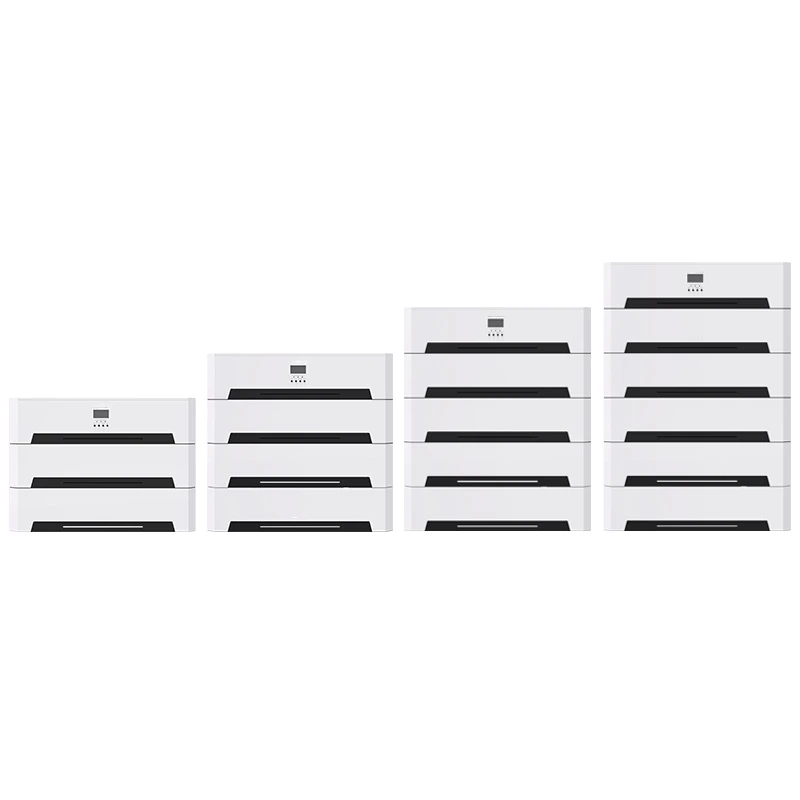

This type of battery is able to be expanded both in parallel and series according to the requires of capacity or voltage extension.

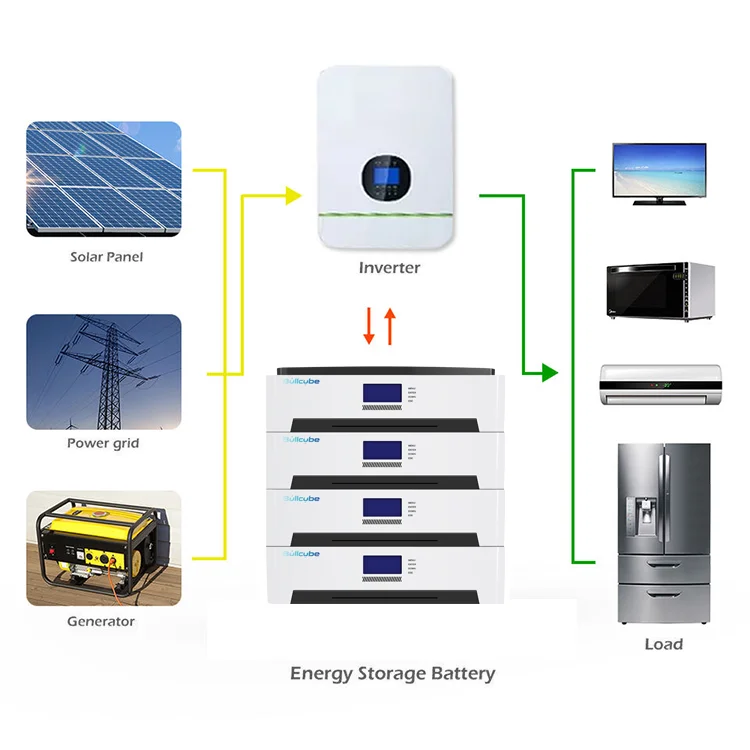

It allows adding more LiFePO4 51.2V 100Ah battery modules to support higher voltage requirements for home solar energy storage systems.




Note: This basic 48V 100Ah Stackable Battery module do not have the display screen, blue-tooth system, and inverter included, you need choose whether to add them or not.




Specifications


MODEL
BC-150HV
BC-200HV
BC-250HV
BC-300HV
Battery Cell
LiFeP04(LFP)
Battery Module
BC-50HV (51.2V, 50Ah)
Number of Modules
3
4
5
6
Nominal Voltage(V)
153.6V
204.8V
256.0V
307.2V
Nominal Capacity(KWH)
16.28KWH
21.7KWH
27.13KWH
32.56KWH
Usable Capacity (KWH)
14.65KWH
19.53KWH
24.41 KWH
29.30KWH
Design Life
15 Years
Dimension(mm)
600*400*447
600*400*596
600*400*745
600*400*894
Net Weight (kg)
135
180
225
270
Cycle Life
>6000 cycles
Discharge Voltage(V)
120-144
160-192
200-240
240-288
Charge Voltage(V)
168-175.2
224-233.6
280-292
336-350.4
Charge/Discharge Current(A)
50A (Recommended) 100A(Max)
Communication
CAN/RS-485/RS-232
Operating Temperature Range
-10℃-50℃






Recommend Products




Company Profile

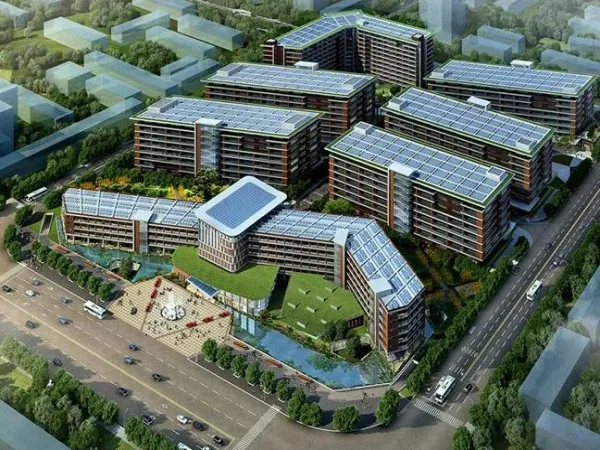

Shenzhen Guangxun Energy Technology Co., LTD was established in 2011 as a protection board and control board manufacturer.
In 2019, lithium-ion soft pack battery cell manufacturing plant was built in Huizhou;
In 2021, the Energy Storage Pack Division was found;
In 2022, integrated the BMS protection board, battery cell, Energy Storage Pack three core departments to set up Shenzhen Guangxun Energy Technology Co.LTD.

Our brand BULLCUBE dedicated to providing high-performance, high-quality, cost-effective energy storage products customization and solutions.

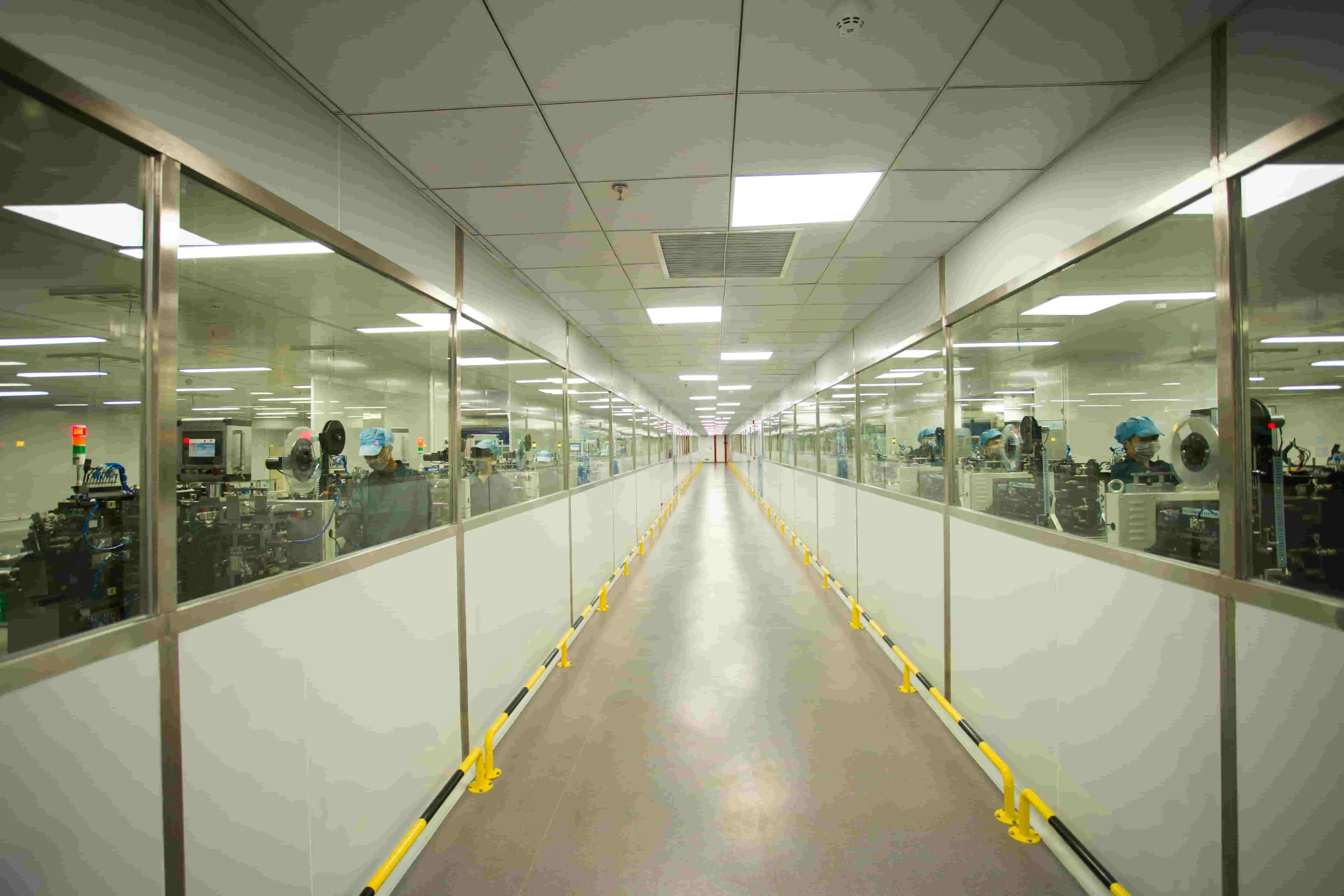

The total production area of factory reached 17,000 square meters, contained office and dormitory area over 8,000 square meters.The company's annual production capacity exceeds 600 million RMB, and it has nearly 500 employees. The company has built a high starting point and high standard 100,000-grade dust-free workshop, and invested more than 50 million RMB in plant decoration.










Customization Services Available

Whether you’re looking for standard lithium ion battery energy storage battery, battery energy module, power pack, or customized energy storage product with specific voltage, capacity, energy, shape and size, or even a complete power storage system, Just contact Bullcube with your idea, we will get them realized to reality for your particular project application.




Certifications




Why Choose Us


Bullcube has strong customization capabilities with Independent research and development, delf-design, self-manufacture, special design abilities.


Independent research and development
Bullcube closely focuses on technological development goals, aims at market demand, combines its own characteristics and advantages, vigorously promotes the development of high technologies, and blazes a path of independent innovation.

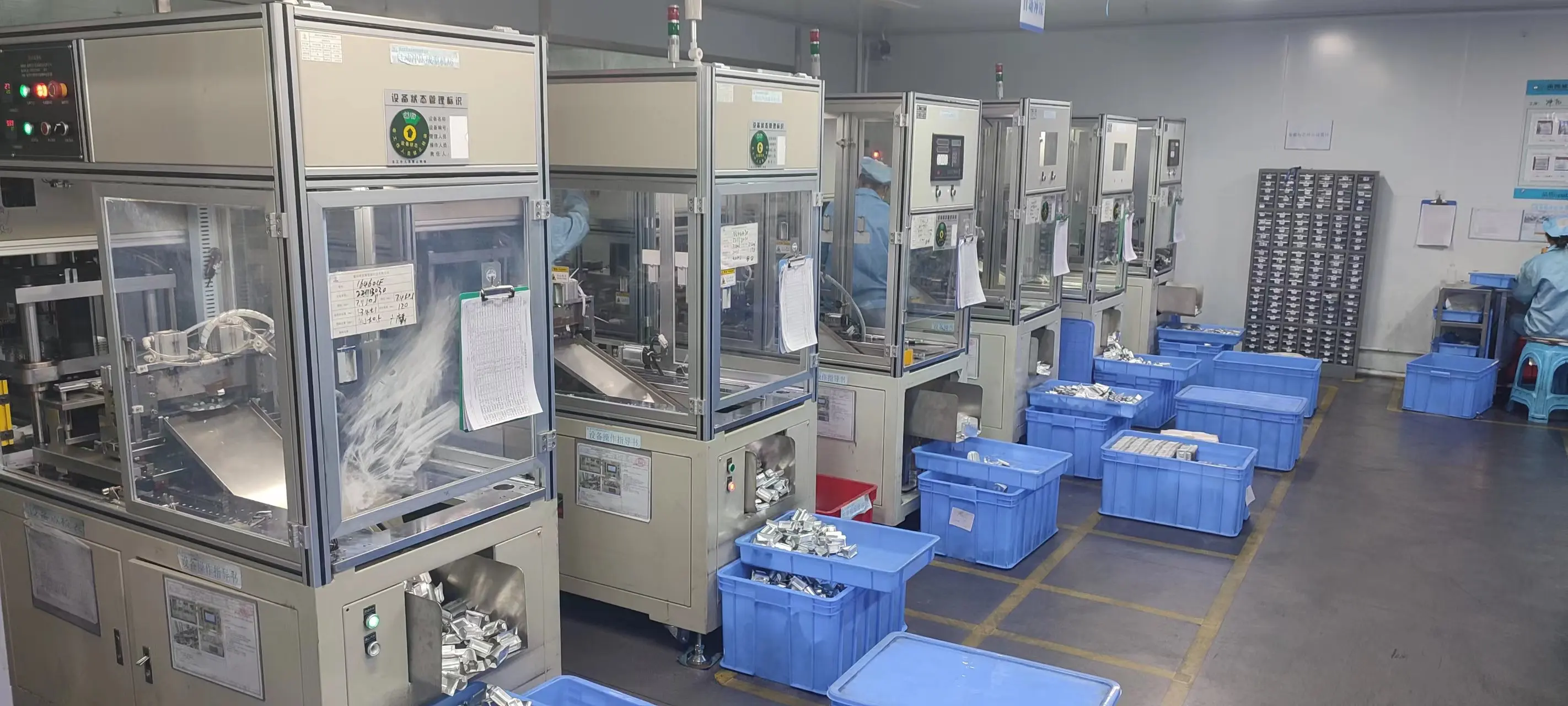

Intelligent Manufactuing

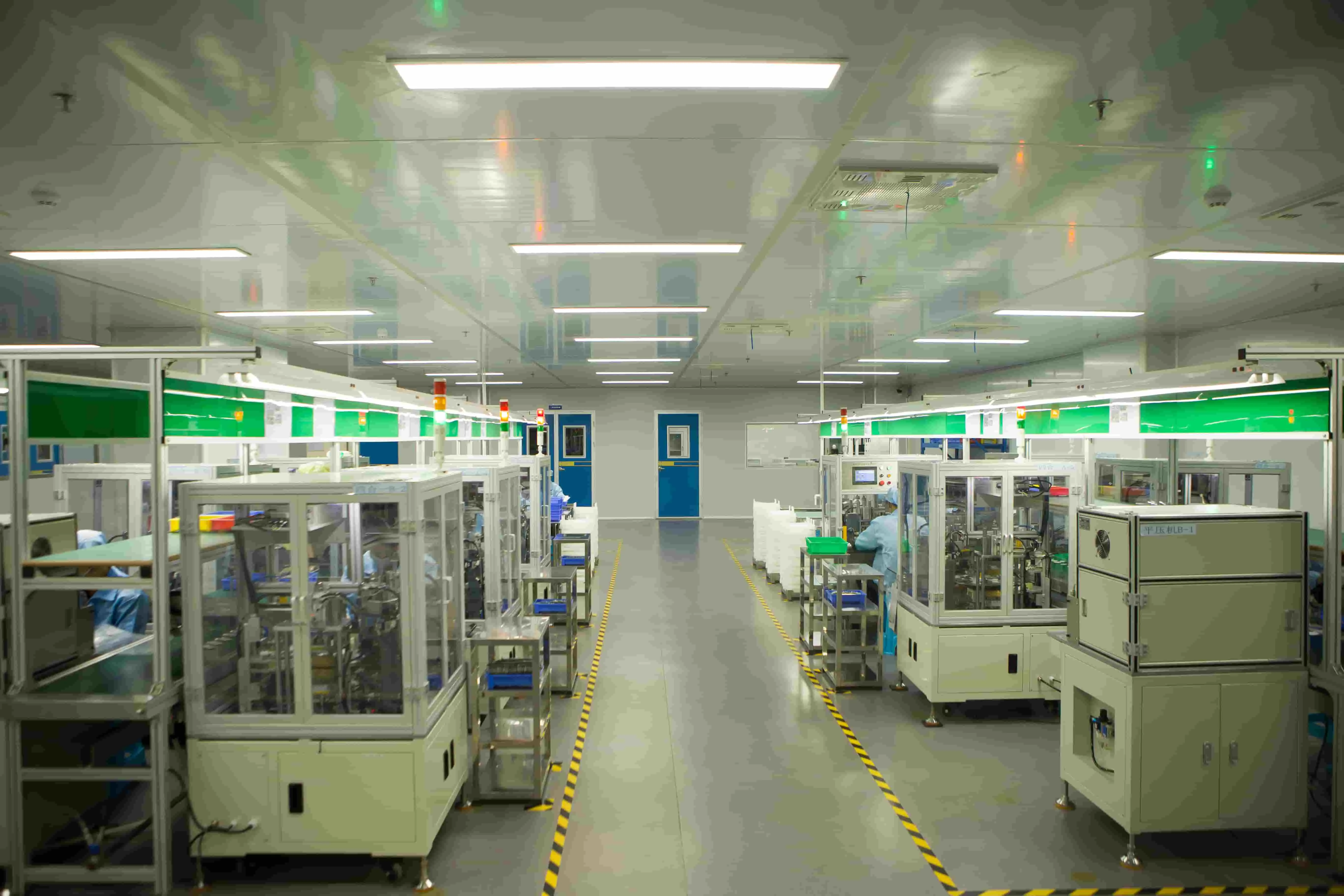

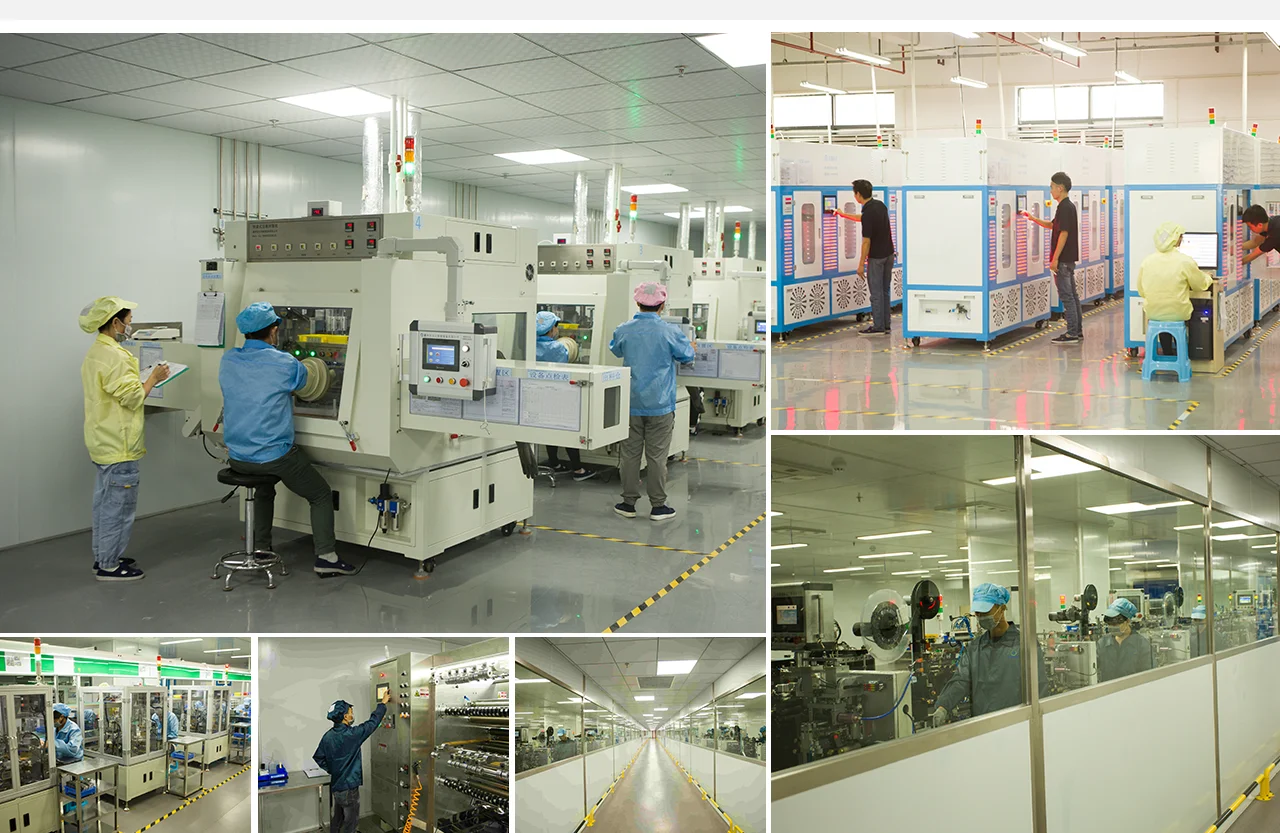

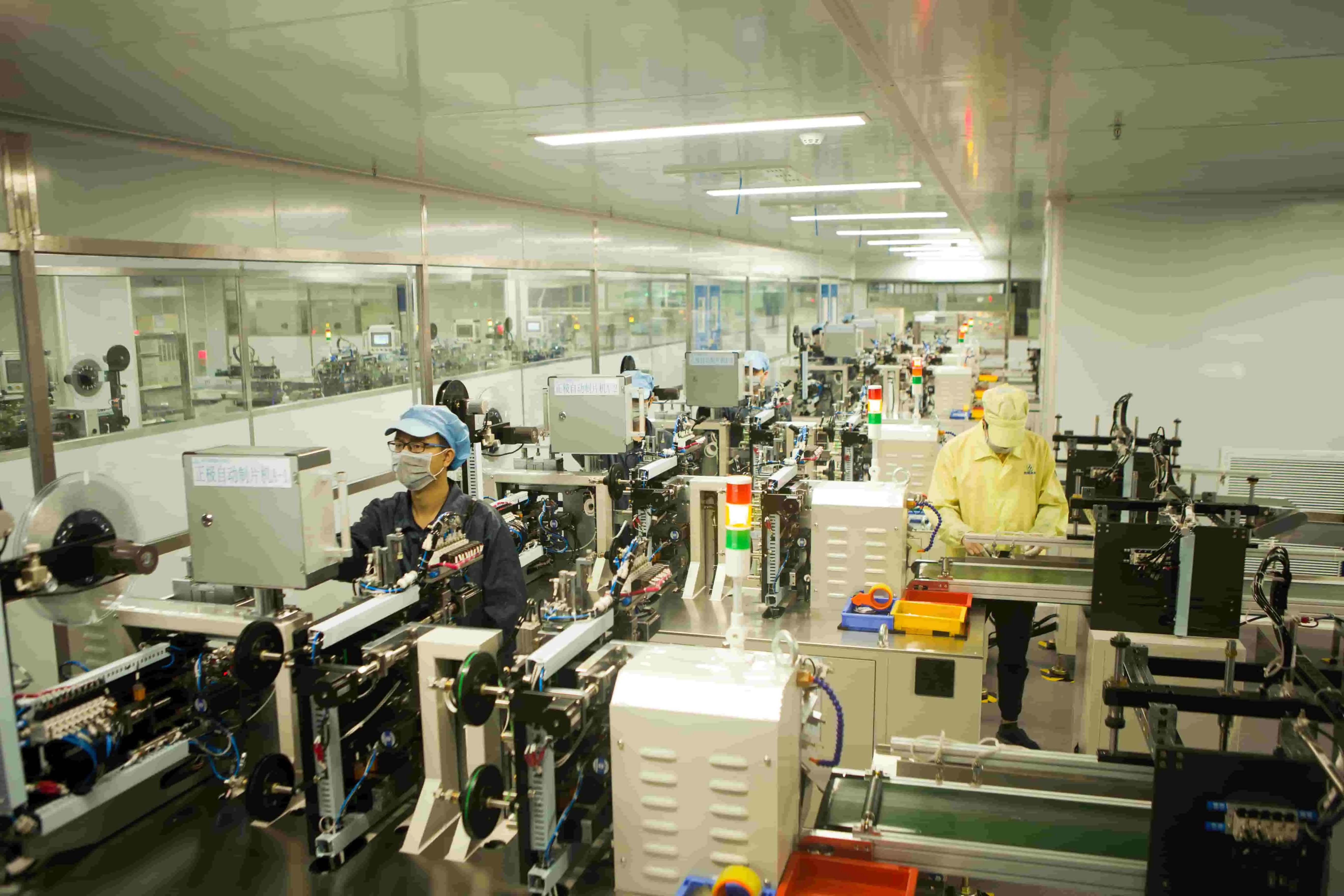

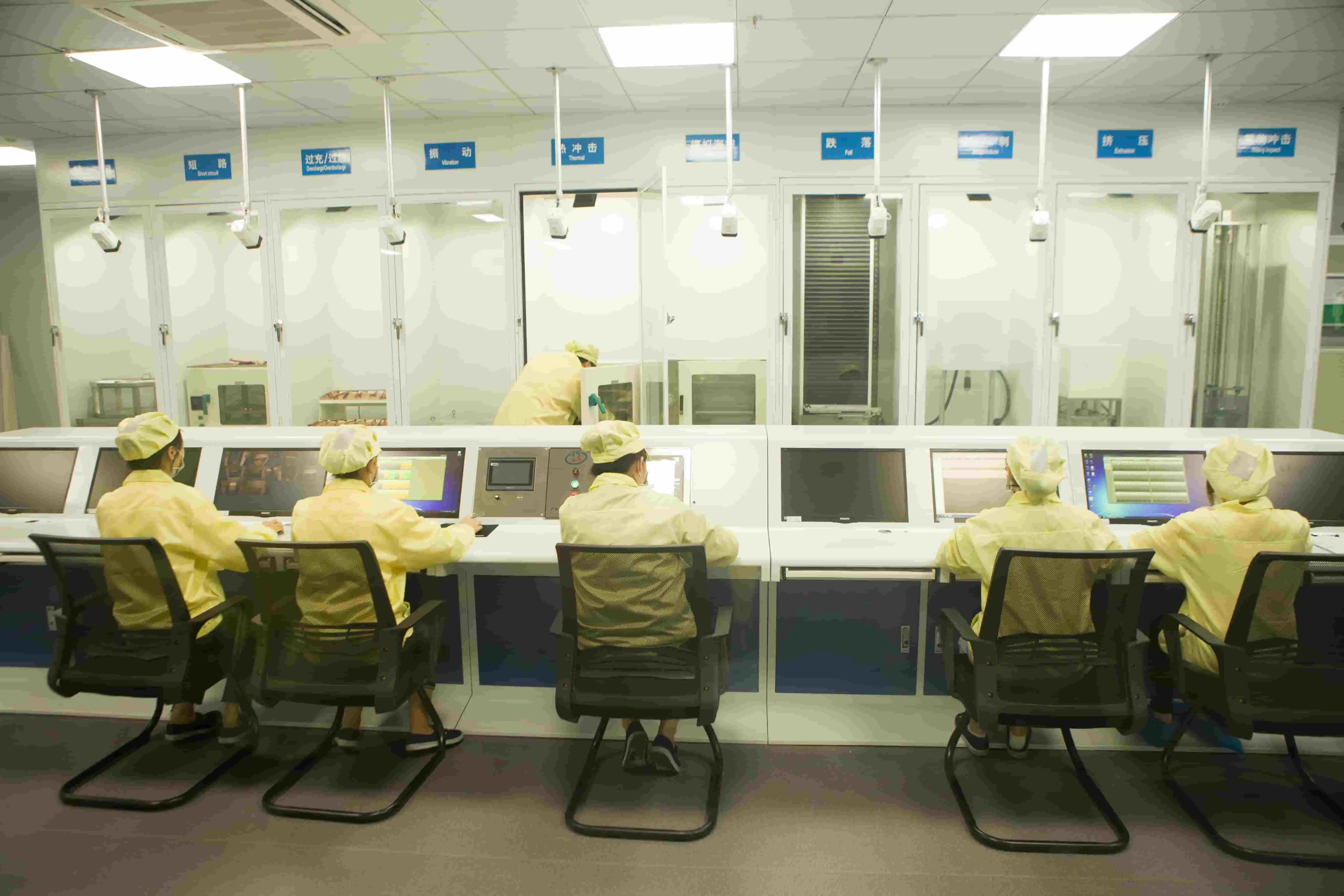

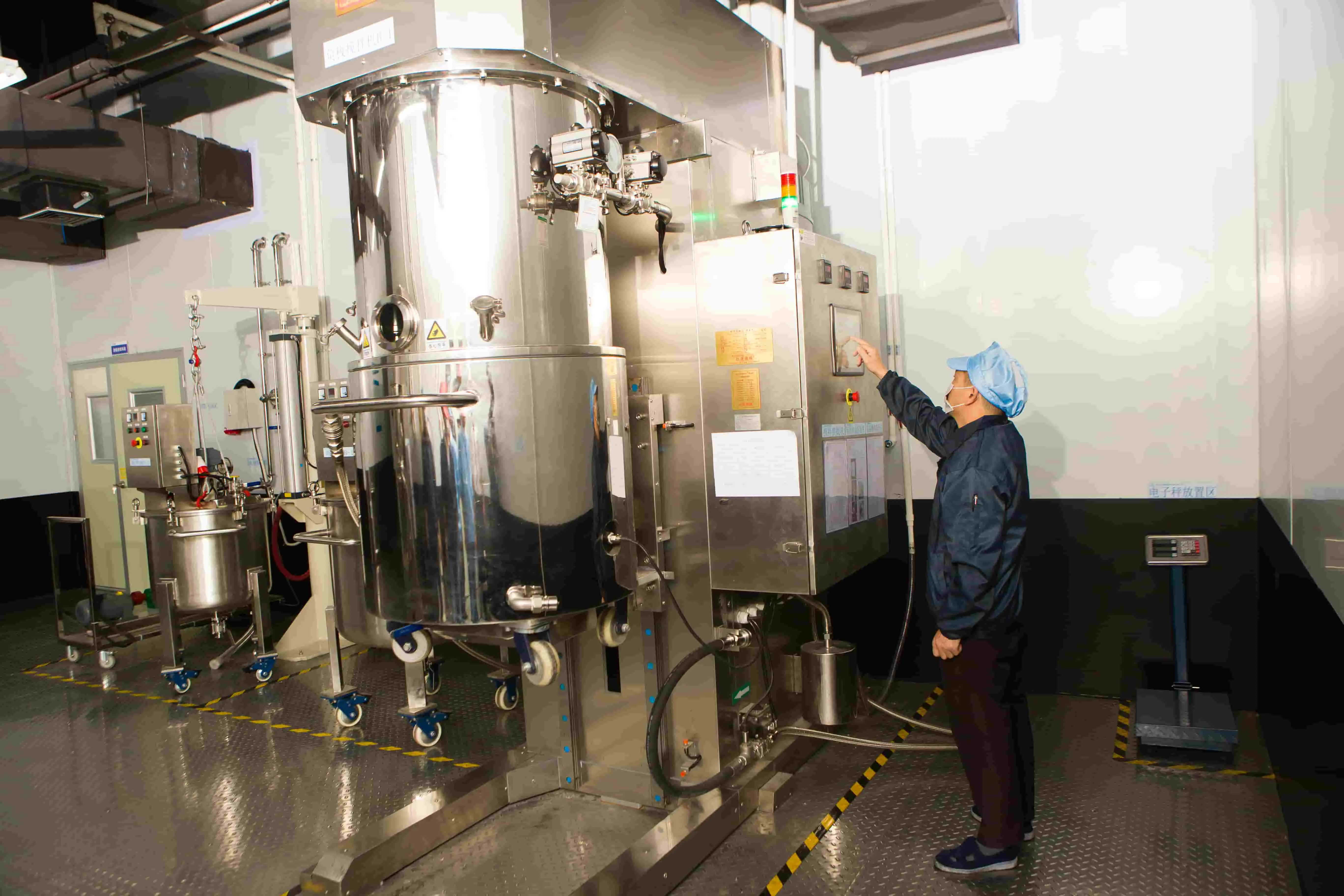

Bullcube has a number of battery cell fully automatic production lines, PACK assembly lines and SMT production lines, each of them reflects the "intelligent manufacturing" ability and guarantees the delivery relying on efficient production.
Delivery Advantage
A mature delivery process and good logistics partners are the guarantee for customers to receive the required products in the shortest time.
Service System
Bullcube has established a perfect service system, and the service hotline is ready to provide customers with
pre-sales, sales and after-sales consultation. And professional after-sales service personnel are always on standby.


Delivery & Payment






FAQ


Q. Can I print my LOGO on it？
A: YES, LOGO/sticker are all welcome.

Q. Can the bms be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened for replacing the BMS & cells under the guidance of engineer.

Q: Can I have samples to test? And what is lead time for sample order?
A: Yes,we can supply samples,the leadtime for samples is 7 days, and buyer pay for sample cost and shipping cost.

Q: Do you accept OEM/ODM?
A: Yes, it is available for OEM/ ODM.

Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.
