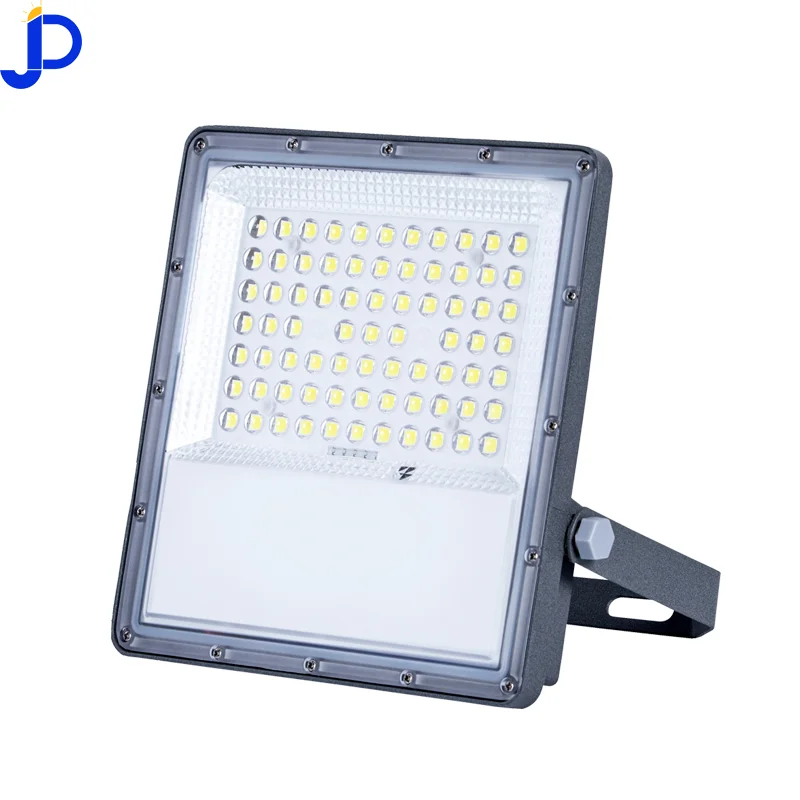

customized outdoor lamp housing rgb 100watt 150w 200w watt led floodlight housing explosion proof LED aluminum flood light
- Category: Lamp Covers & Shades >>>
- Supplier: Zhongshan,Jiading,Lighting,Technology,Co.,Ltd.
Share on:
Product Overview
Description

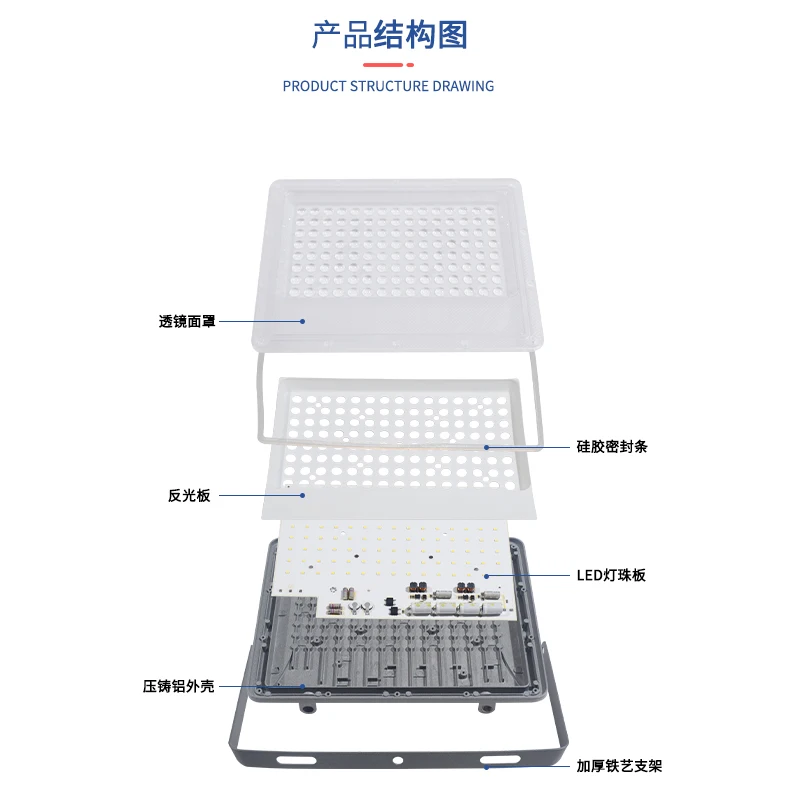

JD-Golden Apple Flood Light-Lens SKD
Main features

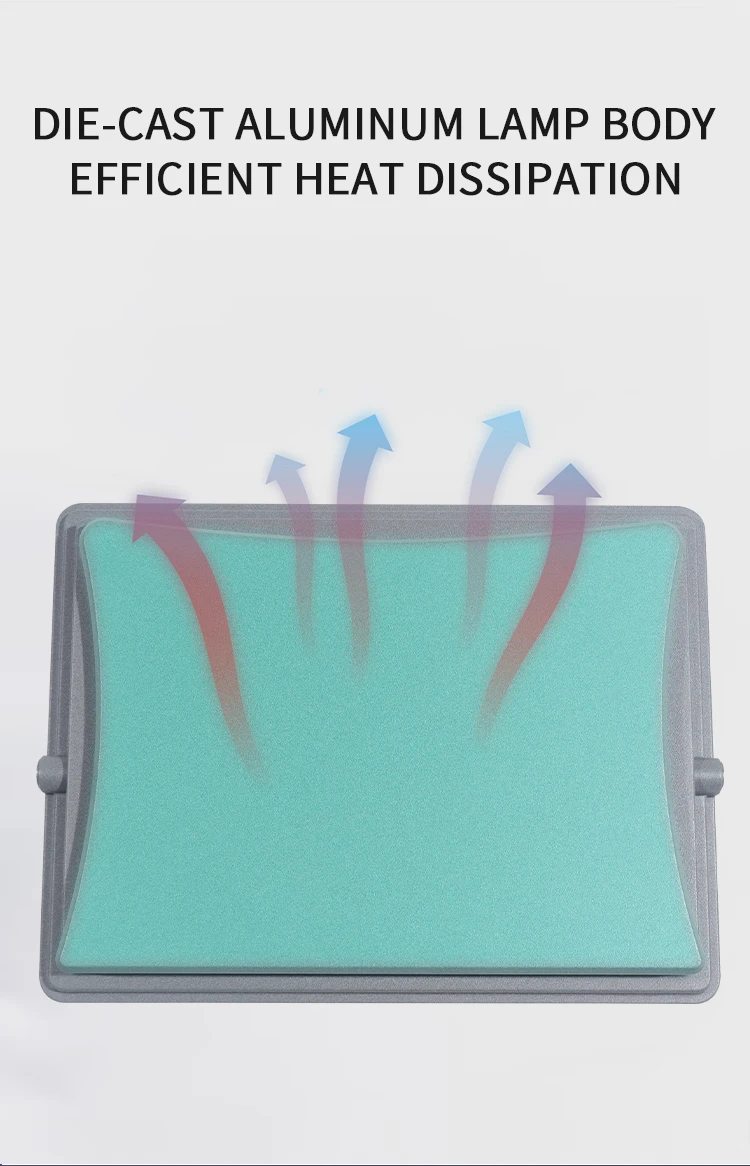

1. Private mould,integrated aluminum die-casting housing,high luminous efficiency 130-150LM/W,2 options:
3030/2835.
3030/2835.

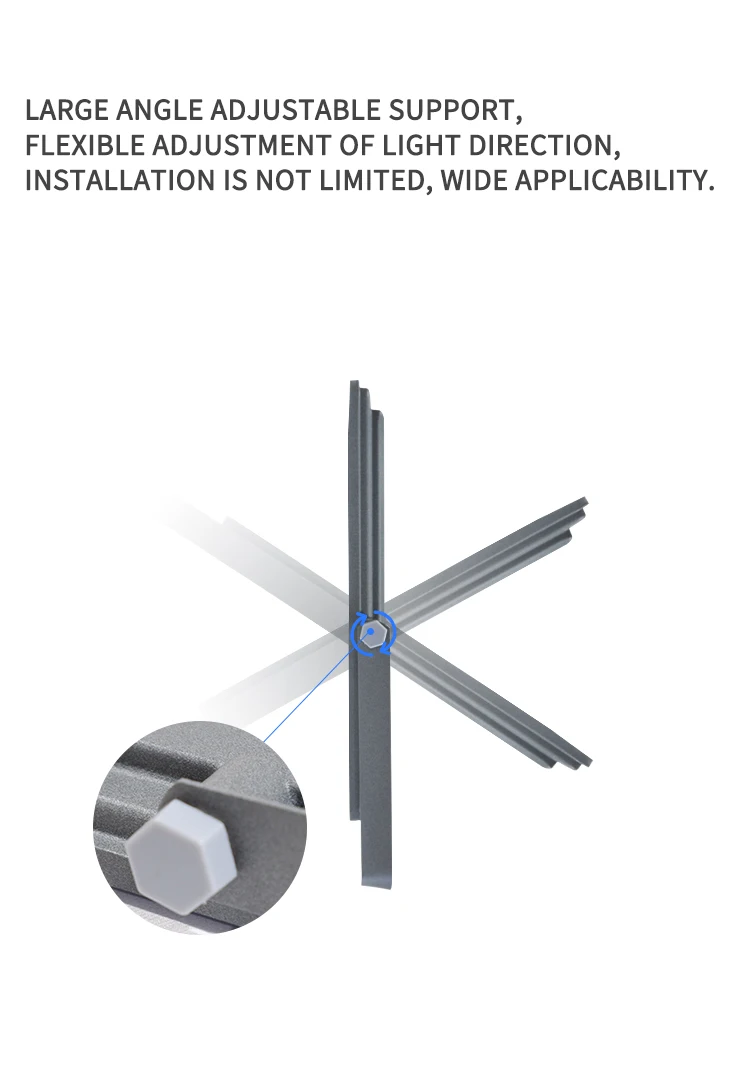

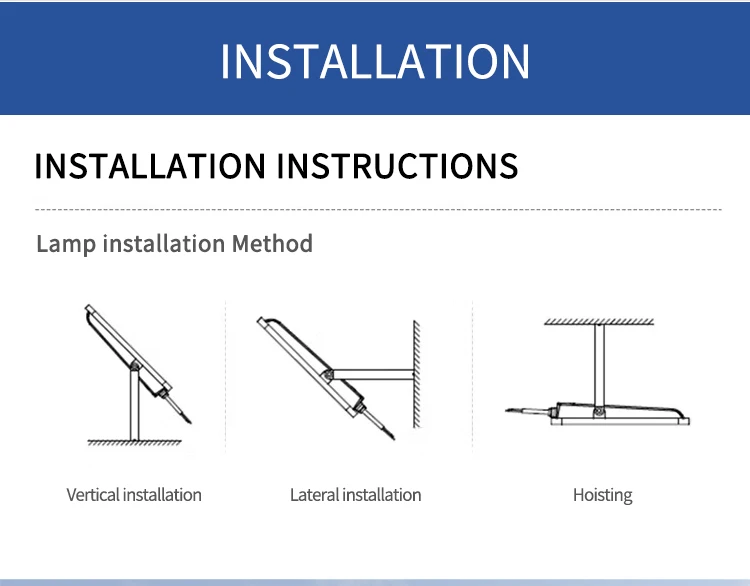

2. Installation method: bracket installation can be adjusted 360 °
3. Powder coated surfaces: Sandy-grey (Outdoor specific colours)

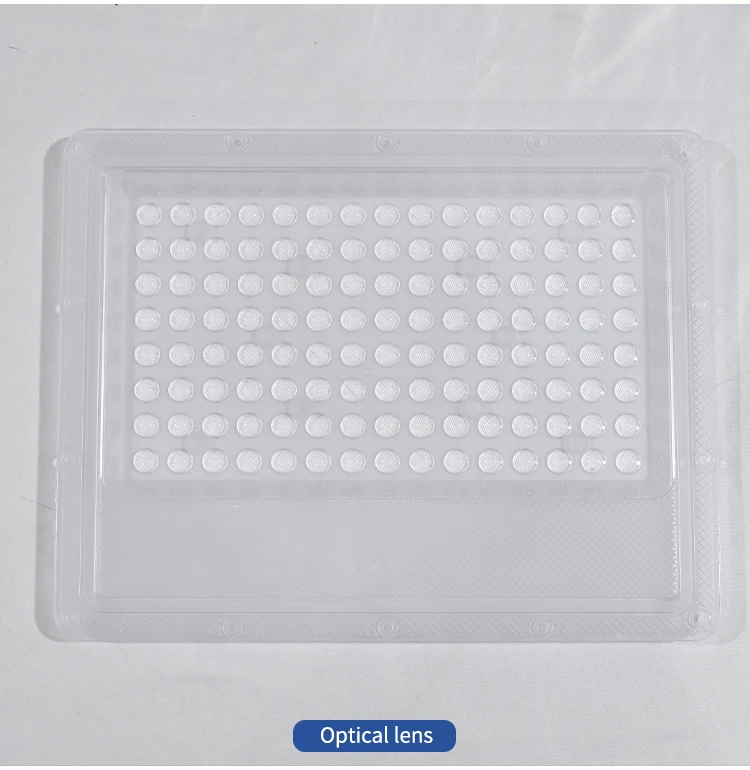

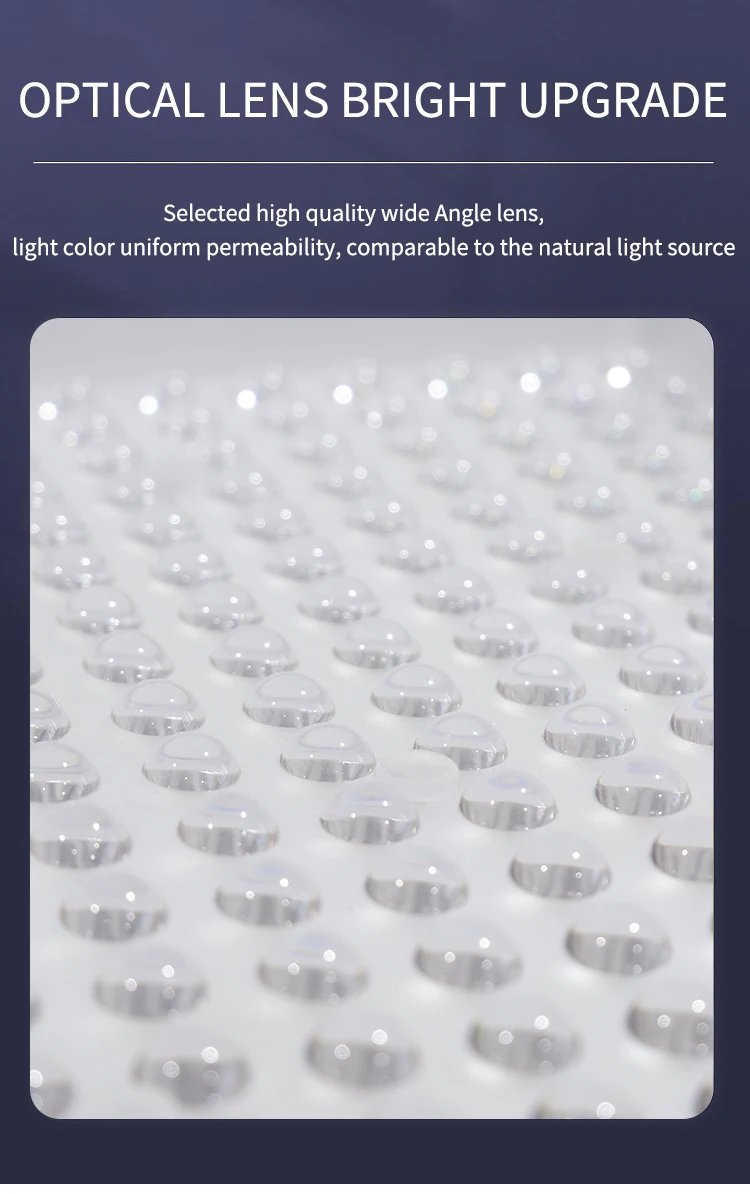

4. Adopt professional 70-140° anti-glare lens.

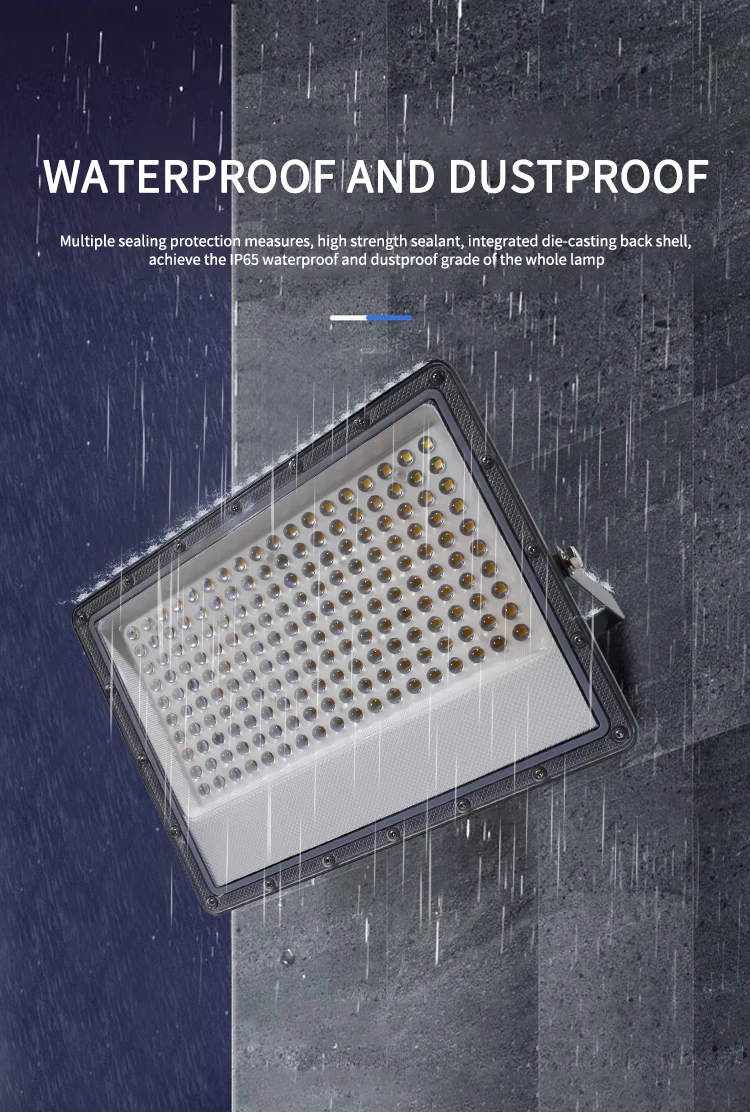

5. Thickened Seal,Glue-free fixation.
6. Design customization:lens design or glass design.
outdoor garde light rgb 50w 100w 150w 200w watt led flood light for football field stainless marine explosion proof flood light

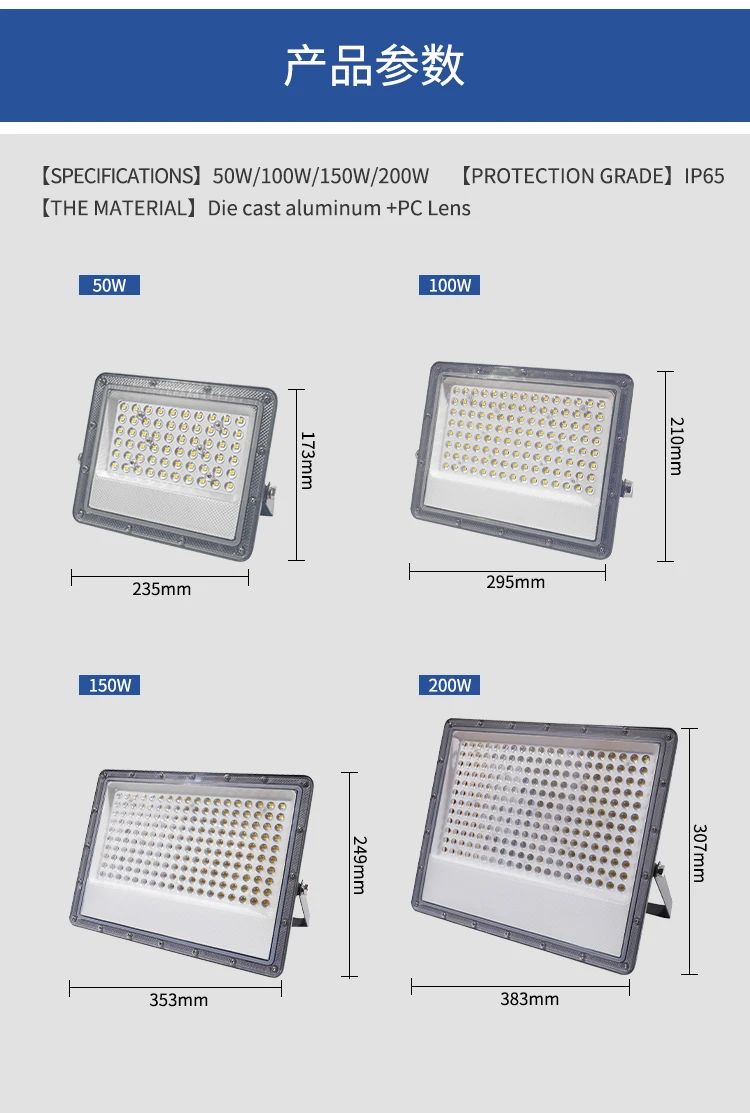

50W | ||

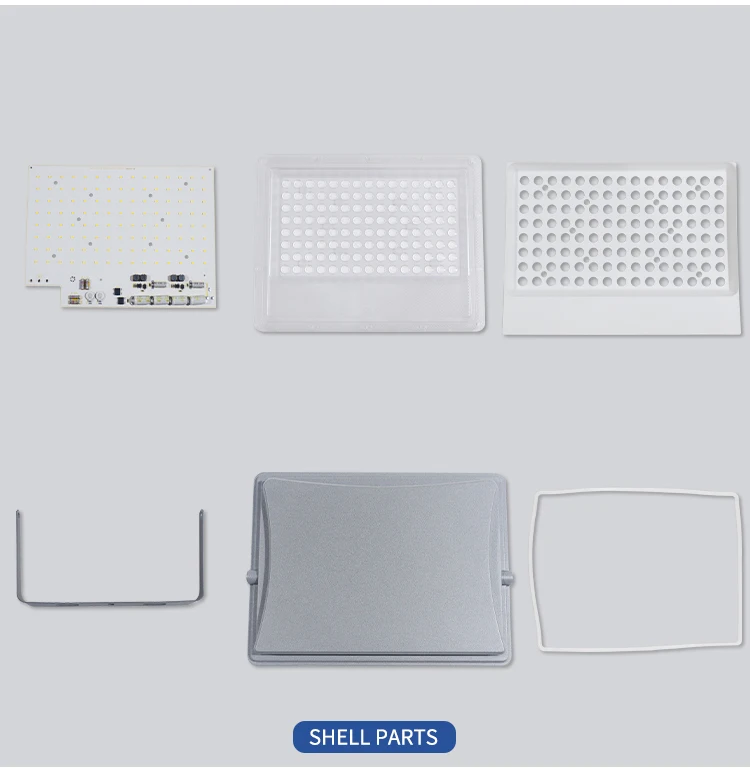

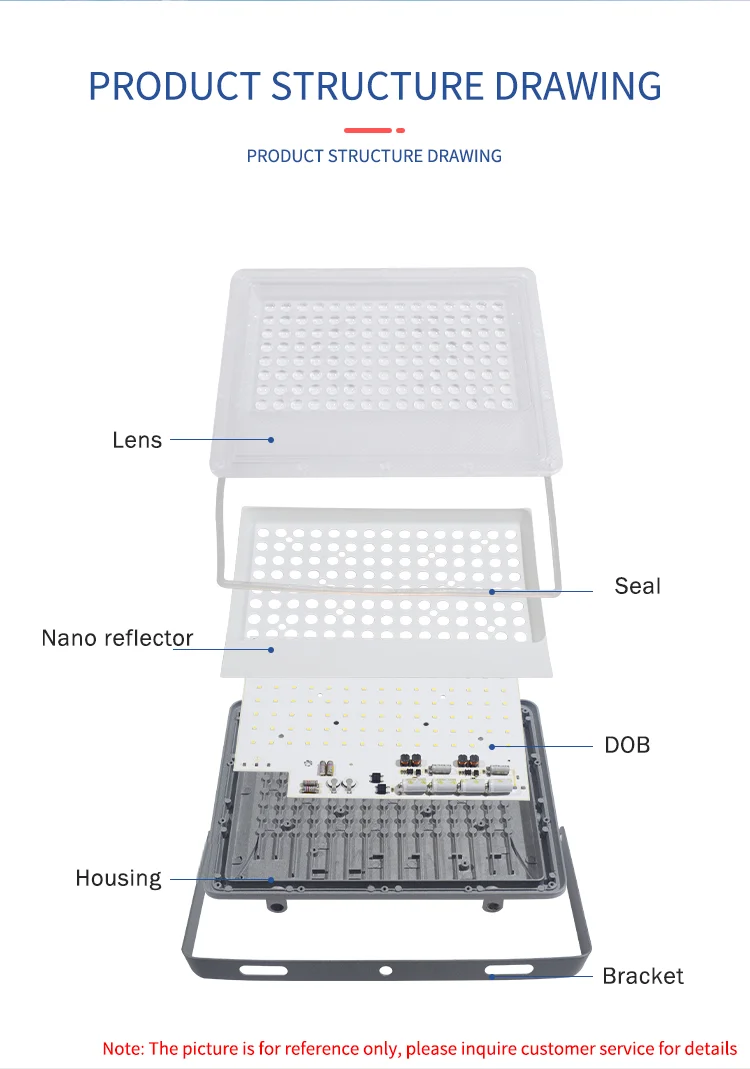

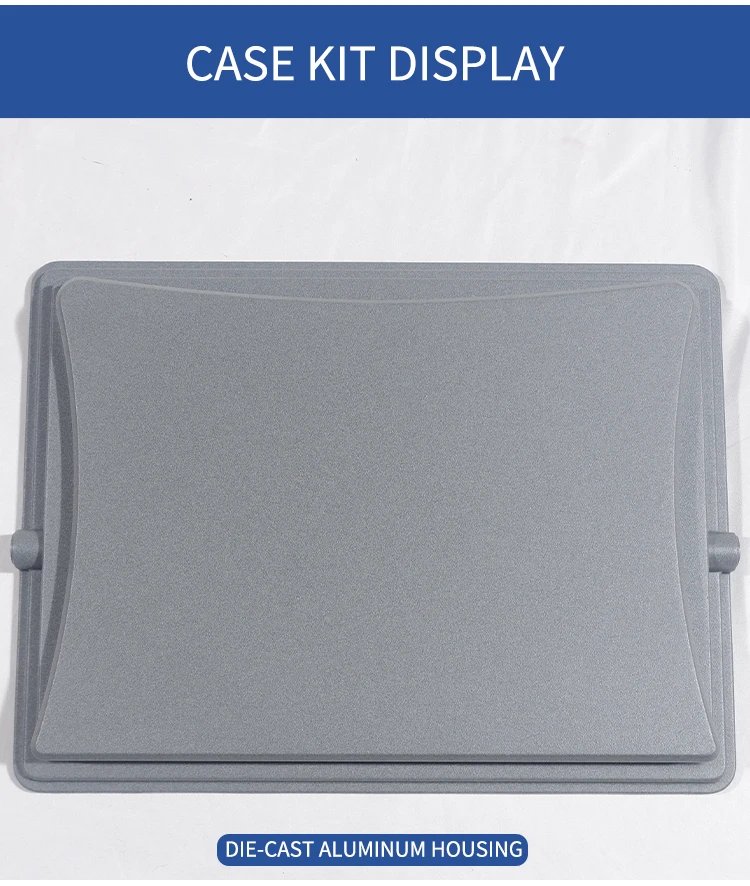

Housing | Sandy-grey,350 g ,207 mm * 172 mm * 25 mm,aluminum die-casting,Φ 9.5 mm left outlet aperture,right outlet aperture is M10 fine thread. | |

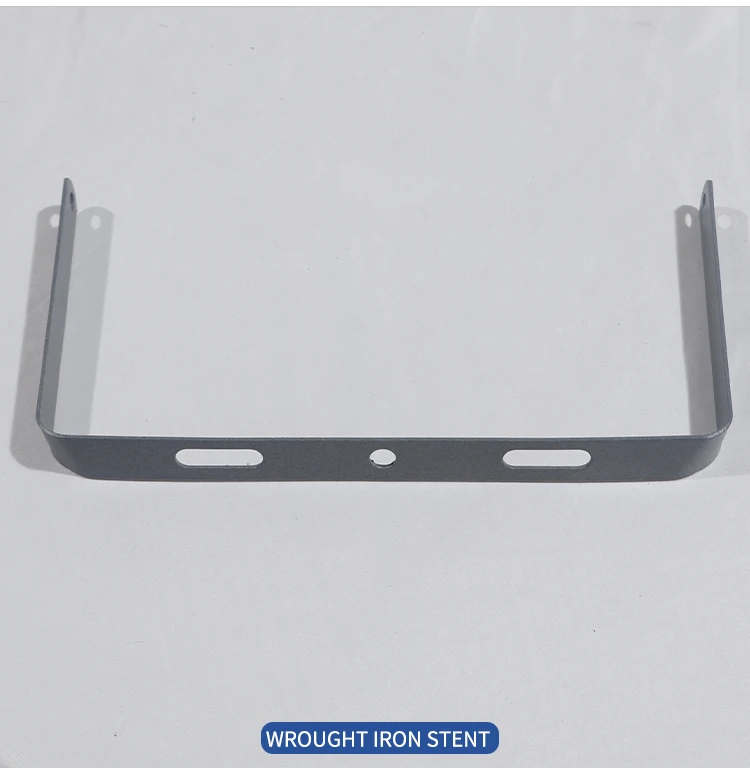

Bracket | Sandy-grey,115 g ,215 mm * 123 mm * 22 mm,2 mm thick,iron. | |
Lens | 200 mm * 168 mm * 15 mm,103 g,60 led chips,light beam angle 90 °,PC. | |
Seal | 5mm wide,3mm thick,10.5g,milky white silicone. | |
Nano reflector | White ,9 g ,165 mm * 130 mm * 15 mm,0.4 mm thick,nano materials. | |
DOB | 6000 K-6500 K,input voltage 100 V-265 V,2835/6V1W,60 led chips, 80Ra,5 series and 12 parallel,130-140LM,entire light 95 LM/W,size 265 mm * 131mm,board thickness 1mm, withstand voltage 1.5 KV.Surge：Differential mode 2KV,measured CE,pad and ground wire are tinned | |
100W | ||
Housing | Sandy-grey,545 g ,270 mm * 210 mm * 25 mm,aluminum die-casting,Φ 9.5 mm left outlet aperture ,right outlet aperture is M10 fine thread. | |
Bracket | Sandy-grey,150 g ,278 mm * 147 mm * 22 mm,2mm thick,iron. | |
Lens | 263 mm * 206 mm * 15 mm,159 g ,120 led chips,light beam angle 90 ° ,PC. | |
Seal | 5 mm wide,3 mm thick,14.5 g,milky white silicone. | |
Nano reflector | White ,6 g,225 mm * 170 mm * 15 mm,0.4 mm thick,nano materials. | |
DOB | 6000 K-6500 K,input voltage 100 V-265V,2835/6 V1W,120 led chips,80 Ra,12 series and 10 parallel,130 -140 LM,entire light 95 LM/W,size 220 mm * 168mm,board thickness 1 mm, withstand voltage 1.5 KV.Surge：Differential mode 2 KV,measured CE,pad and ground wire are tinned. | |
150W | ||
Housing | Sandy-grey,720 g ,330mm * 250 mm * 25 mm,aluminum die-casting,Φ 9.5 mm left outlet aperture ,right outlet aperture is M10 fine thread. | |
Bracket | Point sand grey,175 g ,340 mm * 160 mm * 22 mm,2 mm thick,iron. | |
Lens | 325 mm* 245 mm * 15mm,280 g ,180 led chips,light beam angle 90 °,PC. | |
Seal | 5 mm wide,3 mm thick,15 g,milky white silicone. | |
Nano reflector | White,23 g ,290 mm * 210 mm * 15 mm,0.4 mm thick,nano materials. | |
DOB | 6000 K-6500 K,input voltage 100 V-265V,2835/6V1W,180 led chips,80 Ra,15 series and 12 parallel,130 - 140 LM,entire light 95 LM/W,size 288 mm * 208 mm,board thickness 1 mm, withstand voltage 1.5 KV.Surge：Differential mode 2 KV,measured CE,pad and ground wire are tinned. | |
200W | ||
Housing | Sandy-grey,1000 g ,358 mm * 304 mm * 25 mm,aluminum die-casting,Φ 9.5 mm left outlet aperture ,right outlet aperture is M10 fine thread. | |
Bracket | Sandy-grey,205 g ,365 mm * 195 mm * 22 mm,2 mm thick,iron. | |
Lens | 355 mm * 300 mm * 15 mm,355 g ,240 led chips,light beam angle 90 ° ,PC. | |
Seal | 5 mm wide,3 mm thick,21 g,milky white silicone. | |
Nano reflector | White 34 g ,320 mm * 265 mm * 15 mm,0.4 mm thick,nano materials. | |
DOB | 6000K - 6500K,input voltage 100 V -265 V,2835/6V1W,240 led chips, 80Ra,20 series and 12 parallel,130-140 LM,entire light 95 LM/W,size 317 mm * 263 mm,board thickness 1 mm, withstand voltage 1.5 KV.Surge：Differential mode 2 KV,measured CE,pad and ground wire are tinned. | |
