125 градусов 900 В EVR 2*10 мм2 автоматический провод электрический кабель EV зарядный кабель экранированный кабель для электромобиля
- Category: Power Cables >>>
- Supplier: Hongqi,Cable,Electric,Instrument,Group,Co.,Ltd.
Share on:
Product Overview
Description
What is EV charging cable high-voltage Cable?
The electric vehicle high-voltage cable is used to connect the charging port and the battery, the inside of the battery, the battery and the engine and other components, as a carrier for power transmission. For some reason, the application environment in the car is harsh, and the high-voltage lines of electric vehicles have very high performance requirements.
Material

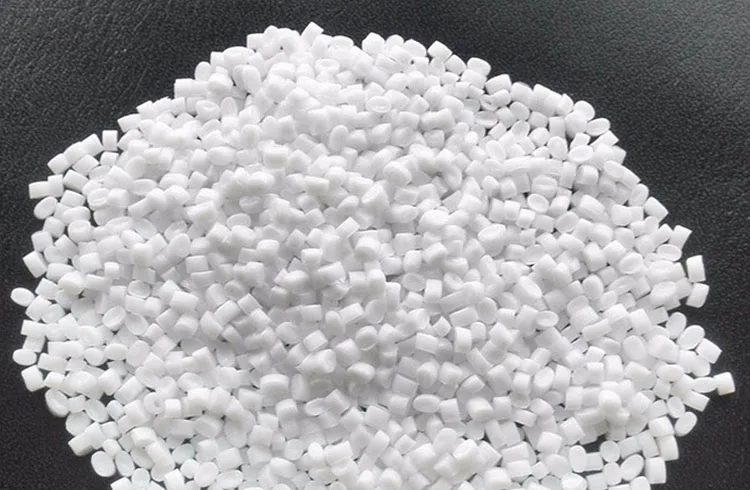

High Quality of XLPE for Insulator
Our ev cable insulator ia made of high quality of silicone rubber material,which is temperature resistance range -40~180℃.So it can be used in harsh car application environment.

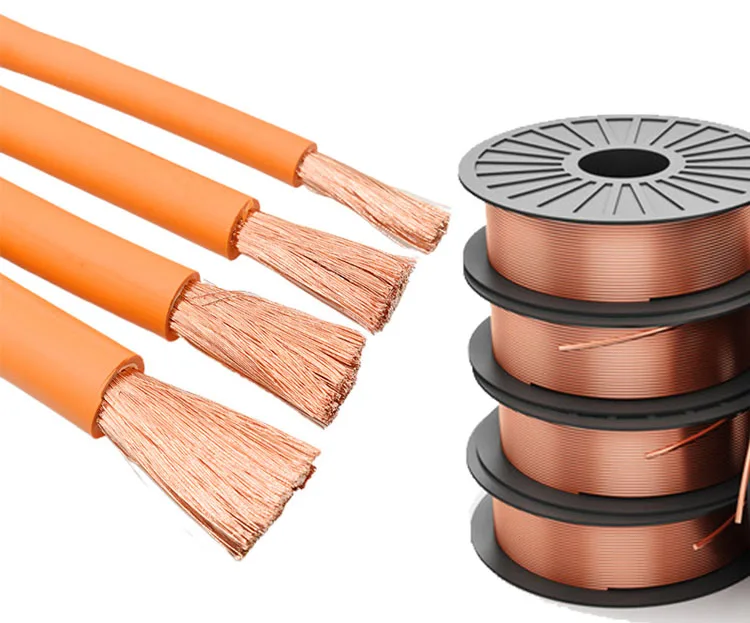

Oxygen-free Copper for Conductor
Strict selection of copper conductor,high copper content,soft core,with strong conductiveity,good performance comes from good conductor.
EV Cables Standards
National Standards for Electric Vehicle High Voltage Lines:
GB/T 25085-2010/ISO 19642: 2019, GB/T 2508.7-2010/ISO 14572: 2006
Electric Vehicle High Voltage Cable Industry Standard: QCT/T 1037-2016
Electric Vehicle High Voltage Cable Industry Standard: QCT/T 1037-2016
Rated Temperature | 125℃ | Rated Voltage | 900V | |||||
Conductor | Standard cross-section area mm2 | 2×10 | ||||||
Material | Bare Copper | |||||||
Conductor construction mm | 357/0.19±0.008 | |||||||
Approximate OD mm | 4.2±0.2 | |||||||
Insulator | Material | XLPO | ||||||
Standard Thickness mm | 0.6 | |||||||
Thinnest thickness mm | 0.48 | |||||||
Color | Red,Black | |||||||
OD mm | 5.8±0.2 | |||||||
Core | Cable OD mm | 11.6 | ||||||
Filled | PP net | |||||||
Wrapped Material | Non-woven Fabric | |||||||
Insulator | Material | XLPO | ||||||
Standard Thickness mm | 1.0 | |||||||
Thinnest thickness mm | 0.80 | |||||||
Color | orange | |||||||
OD mm | 15.0±0.3 | |||||||
Technical Requirement
1. Reference standard: GB/T25087/ISO14572
2. Bending radius: the minimum bending radius of the cable meets 6×OD
3. High temperature pressure: 125℃*4h, 1kV/1min withstand voltage without breakdown
4. Low temperature winding: -40℃*4h, low temperature winding, no exposed conductor by visual inspection, 1kV/1min withstand voltage without breakdown
5. Low-temperature impact: After impacting at -15°C, the conductor is not exposed visually, and the withstand voltage of 1kV/1min does not break down
6. Short-term aging: 150°C*240h, winding at -25°C, no conductor exposed by visual inspection, no breakdown of withstand voltage
7. Thermal overload: 175℃*6h, coiled, no conductor exposed by visual inspection, no breakdown of withstand voltage
8. DC resistance of conductor at 20℃: ≤1.82Ω/km
9. Voltage resistance test: 5000V/5min without breakdown
10. Insulation volume resistivity: ≥109Ω·mm
11. Spark voltage: 8KVAC
12. Flame retardant grade meets ISO14572 standard 70s self-extinguishing requirements
13. Packaging: shaft
2. Bending radius: the minimum bending radius of the cable meets 6×OD
3. High temperature pressure: 125℃*4h, 1kV/1min withstand voltage without breakdown
4. Low temperature winding: -40℃*4h, low temperature winding, no exposed conductor by visual inspection, 1kV/1min withstand voltage without breakdown
5. Low-temperature impact: After impacting at -15°C, the conductor is not exposed visually, and the withstand voltage of 1kV/1min does not break down
6. Short-term aging: 150°C*240h, winding at -25°C, no conductor exposed by visual inspection, no breakdown of withstand voltage
7. Thermal overload: 175℃*6h, coiled, no conductor exposed by visual inspection, no breakdown of withstand voltage
8. DC resistance of conductor at 20℃: ≤1.82Ω/km
9. Voltage resistance test: 5000V/5min without breakdown
10. Insulation volume resistivity: ≥109Ω·mm
11. Spark voltage: 8KVAC
12. Flame retardant grade meets ISO14572 standard 70s self-extinguishing requirements
13. Packaging: shaft
Features
The product is soft and has a bending radius of less than 5D; high and low temperature resistance, oil resistance, acid and alkali resistance, water resistance, wear resistance, crack resistance, and UV resistance; good flame retardant performance; good electrical conductivity, small conductor temperature rise; all materials comply with the latest ROHS&REACH environmental protection standard.
The product is soft and has a bending radius of less than 5D; high and low temperature resistance, oil resistance, acid and alkali resistance, water resistance, wear resistance, crack resistance, and UV resistance; good flame retardant performance; good electrical conductivity, small conductor temperature rise; all materials comply with the latest ROHS&REACH environmental protection standard.

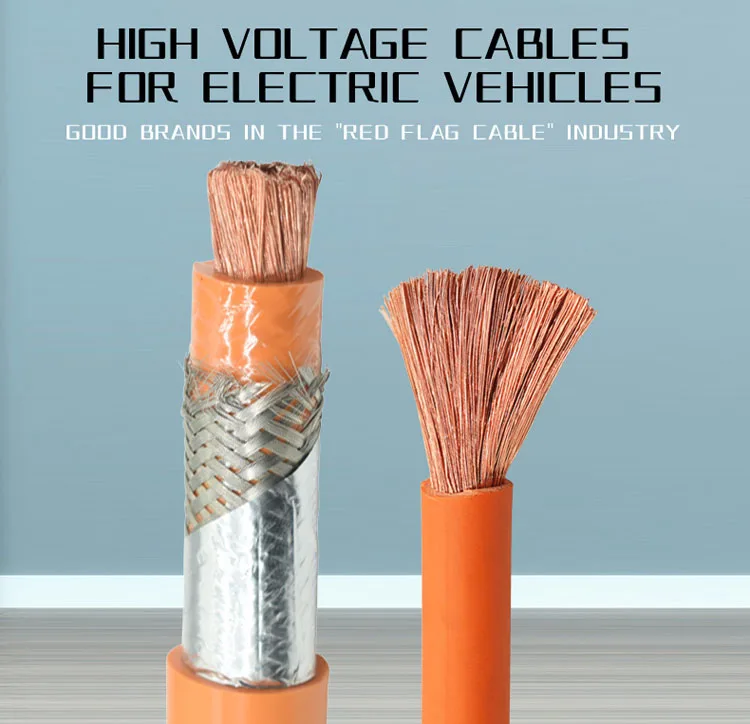

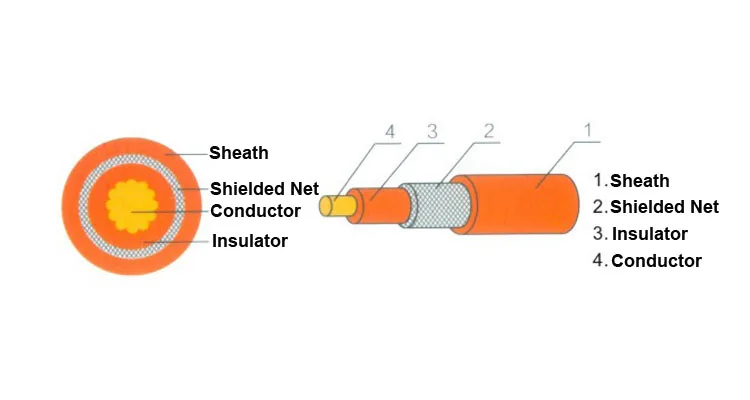

Shielded Construction

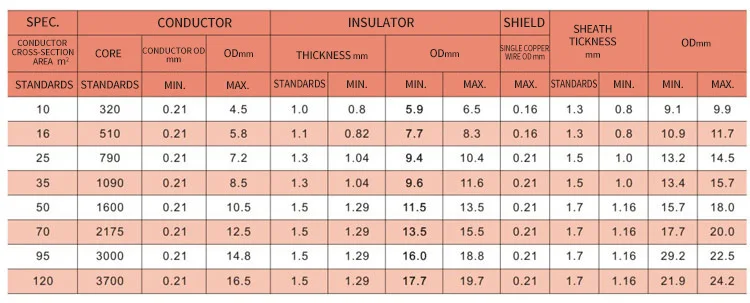

AC 1000V/DC1500V Single Core Shielded High Voltage Cable
Certifications
About Us
Founded in 1991, Hongqi Cable Electric Instrument Group Co., Ltd. is the parent company of Red-flag Group, a multi-industry & interregional large-scale group with its products and activities including cables and wires, transformers, electric power fittings, instrument, electrical appliances, electronic components, mechanical equipment, biopharmaceutical and fundamental education. Red-flag Group now has 5 subsidiaries, over 200 sales offices, more than 2,000 employees and total assets of RMB7.2 billion.
Possessing 11 catenary continuous vulcanization (CCV) lines and more than 200 pieces (sets) of manufacturing equipment, we are specialized in producing cables & wires. Its main products include: XLPE/PVC insulated power cables of low and high voltages, control cables, electrical wires, power and communication cables for mining use, rubber insulated cables for general purposes, arc welding electrode cables, electric forklift truck cables, pile driver cables, lift cables, oilfield special cables, wind-resistant flexible cables for wind power, electric hoist cables, special cables of various kinds such as low-smoke, halogen free, oxygen-proof, flame retardant, fire resistant and environmental friendly ones, computer cables, overhead cables, etc. Depending on its advanced technology, reliable quality, first rate service and competitive prices, the product is widely used in the fields of electric power, water conservancy, mining, petro chemistry, metallurgies, building construction, transportation, communication and urban infrastructure construction.
The company has successively gained 43 certificates including ISO 9001:2008 Quality System Certificate, National Industrial Products Manufacture Certificate, CCC Certificate of China Compulsory Product Certification, and Safety Certificate of Approval for Mining Products. Besides, the company has also won the honors of China State Economic and Trade Commission Recommended Power Grid Products, Enterprise of Continuously Stable Quality, Enterprise of Customer Satisfaction with After-sales Services, China AAA Quality Credit Enterprise, etc., and Hongqi is selected as a name brand of Zhejiang Province.
Hongqi Cable Electric Instrument Group Co., Ltd. sincerely looks forward to cooperating with you!
Possessing 11 catenary continuous vulcanization (CCV) lines and more than 200 pieces (sets) of manufacturing equipment, we are specialized in producing cables & wires. Its main products include: XLPE/PVC insulated power cables of low and high voltages, control cables, electrical wires, power and communication cables for mining use, rubber insulated cables for general purposes, arc welding electrode cables, electric forklift truck cables, pile driver cables, lift cables, oilfield special cables, wind-resistant flexible cables for wind power, electric hoist cables, special cables of various kinds such as low-smoke, halogen free, oxygen-proof, flame retardant, fire resistant and environmental friendly ones, computer cables, overhead cables, etc. Depending on its advanced technology, reliable quality, first rate service and competitive prices, the product is widely used in the fields of electric power, water conservancy, mining, petro chemistry, metallurgies, building construction, transportation, communication and urban infrastructure construction.
The company has successively gained 43 certificates including ISO 9001:2008 Quality System Certificate, National Industrial Products Manufacture Certificate, CCC Certificate of China Compulsory Product Certification, and Safety Certificate of Approval for Mining Products. Besides, the company has also won the honors of China State Economic and Trade Commission Recommended Power Grid Products, Enterprise of Continuously Stable Quality, Enterprise of Customer Satisfaction with After-sales Services, China AAA Quality Credit Enterprise, etc., and Hongqi is selected as a name brand of Zhejiang Province.
Hongqi Cable Electric Instrument Group Co., Ltd. sincerely looks forward to cooperating with you!

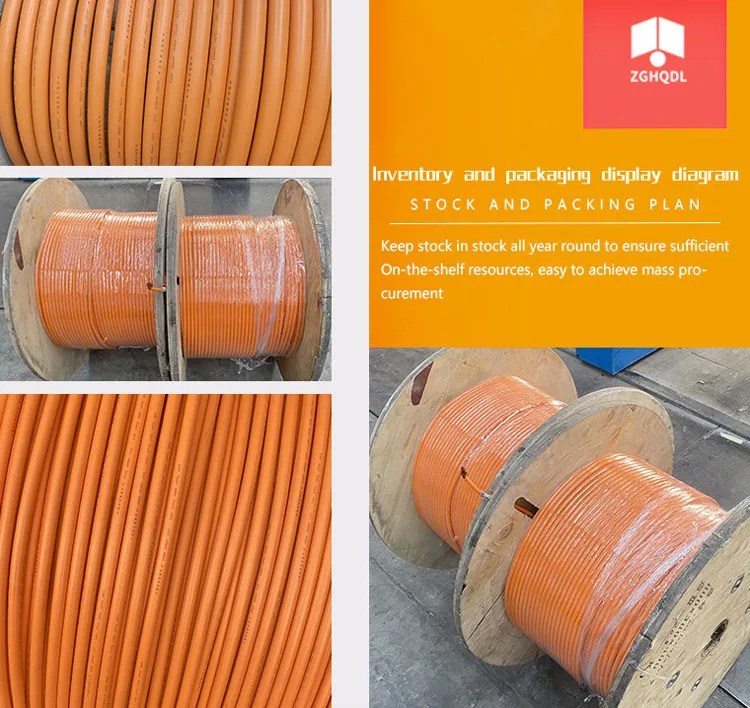

Product packaging

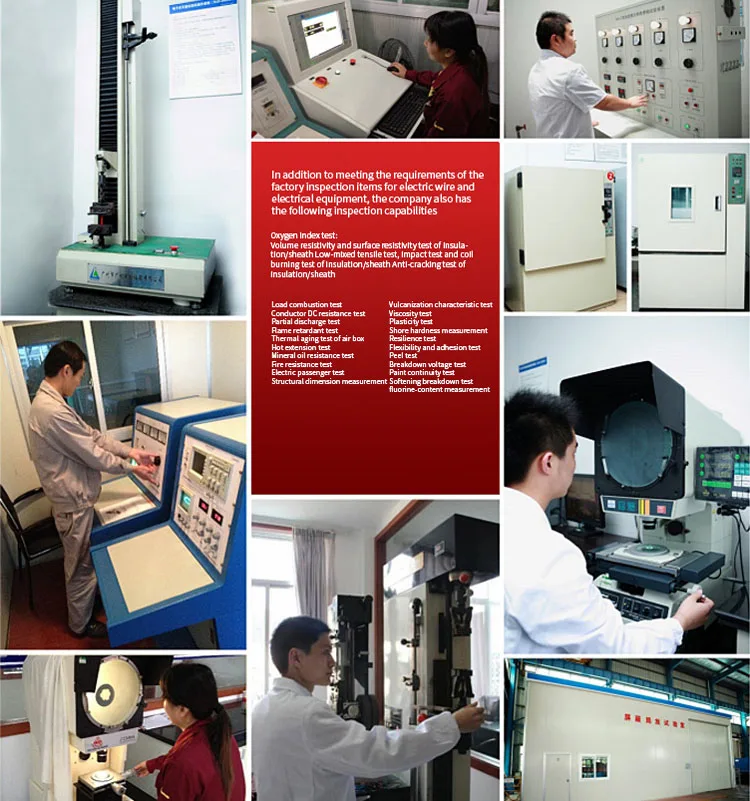

Test before Shipment
