Testing Instrument Furnace Muffle Furnace Laboratory 1100c 1200c 1400c 1500c 1600c 1800c Electric Box/muffle Furnace for Sale
- Category: >>>
- Supplier: EIE INSTRUMENTS PRIVATE LIMITED
Share on (11000008339980):
Product Overview
Description
Product Description

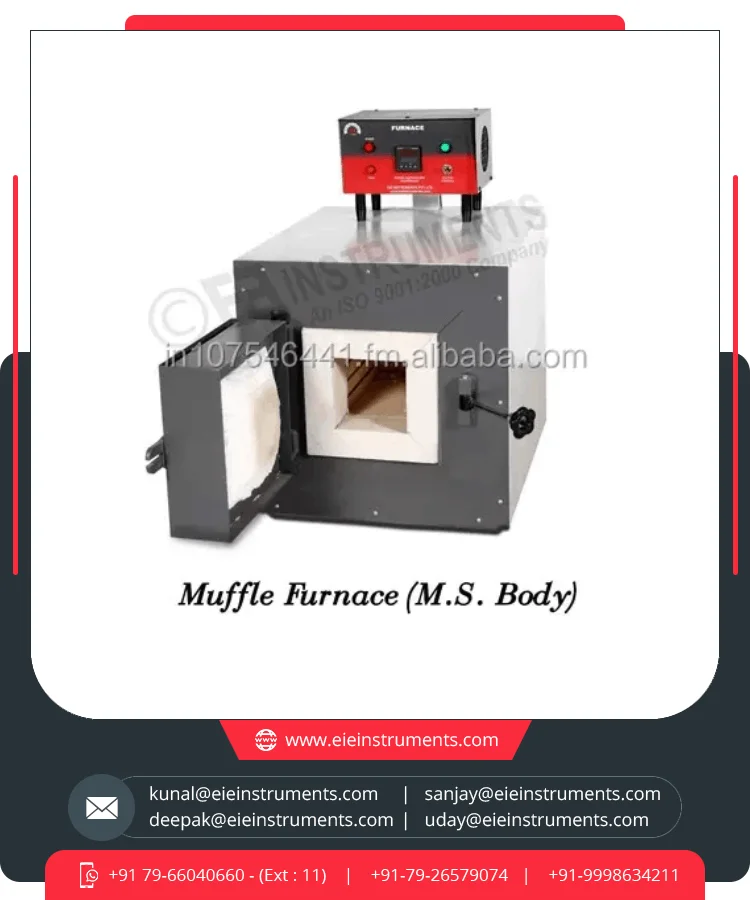

Refractory furnace (EIE – 108)

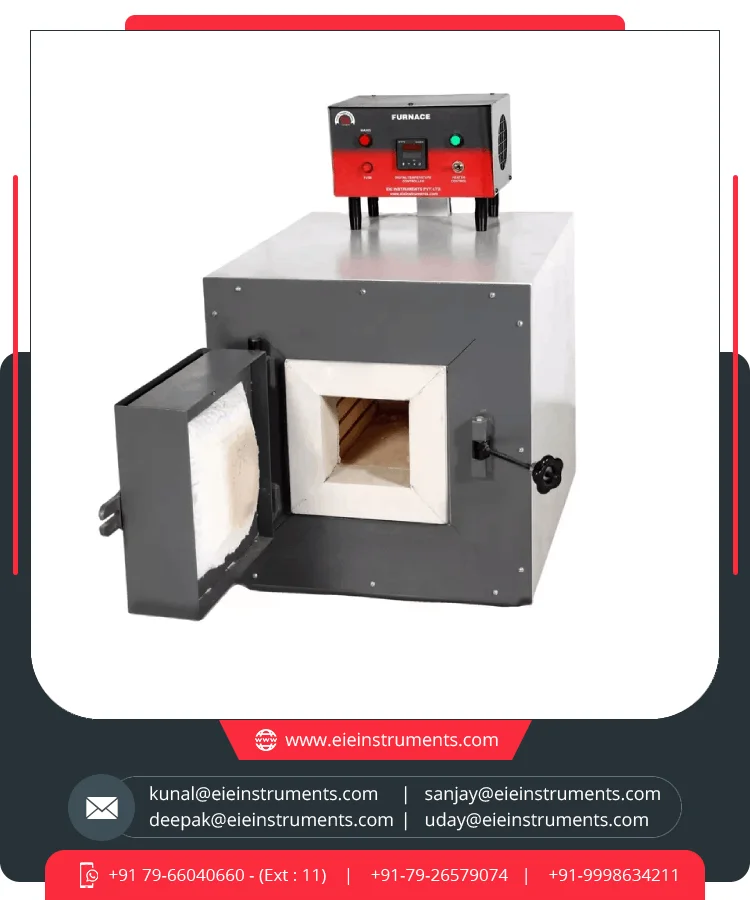

Standard Model (EIE – 108DP)
Inner Chamber made of Ceramic material with Muffle pattern for heating elements & Outer body is fabricated from CRC Sheet, Powder coated in attractive shades
GMP Model (EIE – 108DG)
Inner Chamber made of Ceramic material with Refractory pattern for heating elements & Outer body is fabricated from S.S.304 matt finished material.
Applications
Particle size distribution
Salient Features
- Ceramic fiber wool insulation to reduce weight and size of furnace.
- Less heat up time is
- Nominal heat-loss resulting in power saving
- Built in vent port for removal of noxious gases etc.
- Provision of hole with cover in the furnace door to insert temp sensor for calibration purpose
- Construction : CRC sheet - attractively powder coated
- Max Temperature : 1200°C
- Working Temperature : 1150°C
- Temperature control : Dual display microprocessor based Digital temperature indicator cum controller
- Temperature Sensor : K - type sensor
- Heating elements : KANTHAL A-1 wire in coil form placed in the Elements ribs & easily replaceable
- Circuit Wiring : As per CE Norms
- Operation on : 220/230 Volts, Single phase, AC Supply
- Available in following sizes
Selection Guide
| Inner chamber size (mm) (H x W x D) | Power consumption (Kw) | Approximate Weight (Kgs) | Digital Model Numbers (EIE-108DP) | Digital GMP Model Numbers (EIE-108DG) |
| 225 x 100 x 100 (9” x 4” x 4”) | 1.5 | 60 | EIE-108DP2.25 | EIE-108DG2.25 |
| 250 x 125 x 125 (10” x 5” x 5”) | 2.0 | 71 | EIE-108DP4 | EIE-108DG4 |
| 300 x 150 x 150 (12” x 6” x 6”) | 3.0 | 82 | EIE-108DP7 | EIE-108DG7 |
| 300 x 200 x 200 (12” x 8” x 8”) | 5.0 | 115 | EIE-108DP12 | EIE-108DG12 |
| 450 x 225 x 225 (18” x 9” x 9”) | 6.0 | 125 | EIE-108DP23 | EIE-108DG23 |
D : Digital | G : GMP | P : Powder coating
| Place of Origin | India |
| Brand Name | EIE |
| Estimated lead time | 30 Days |
| Packaging | Plywood packing with robust foundation at the base |
