Outstanding splendid custom polyester agglomerator granulator machine for PP PE woven bags film recycling
- Category: >>>
- Supplier: Zhangjiagang Boxin Machinery Co. Ltd.
Share on (11000008342256):
Product Overview
Description
Product Description

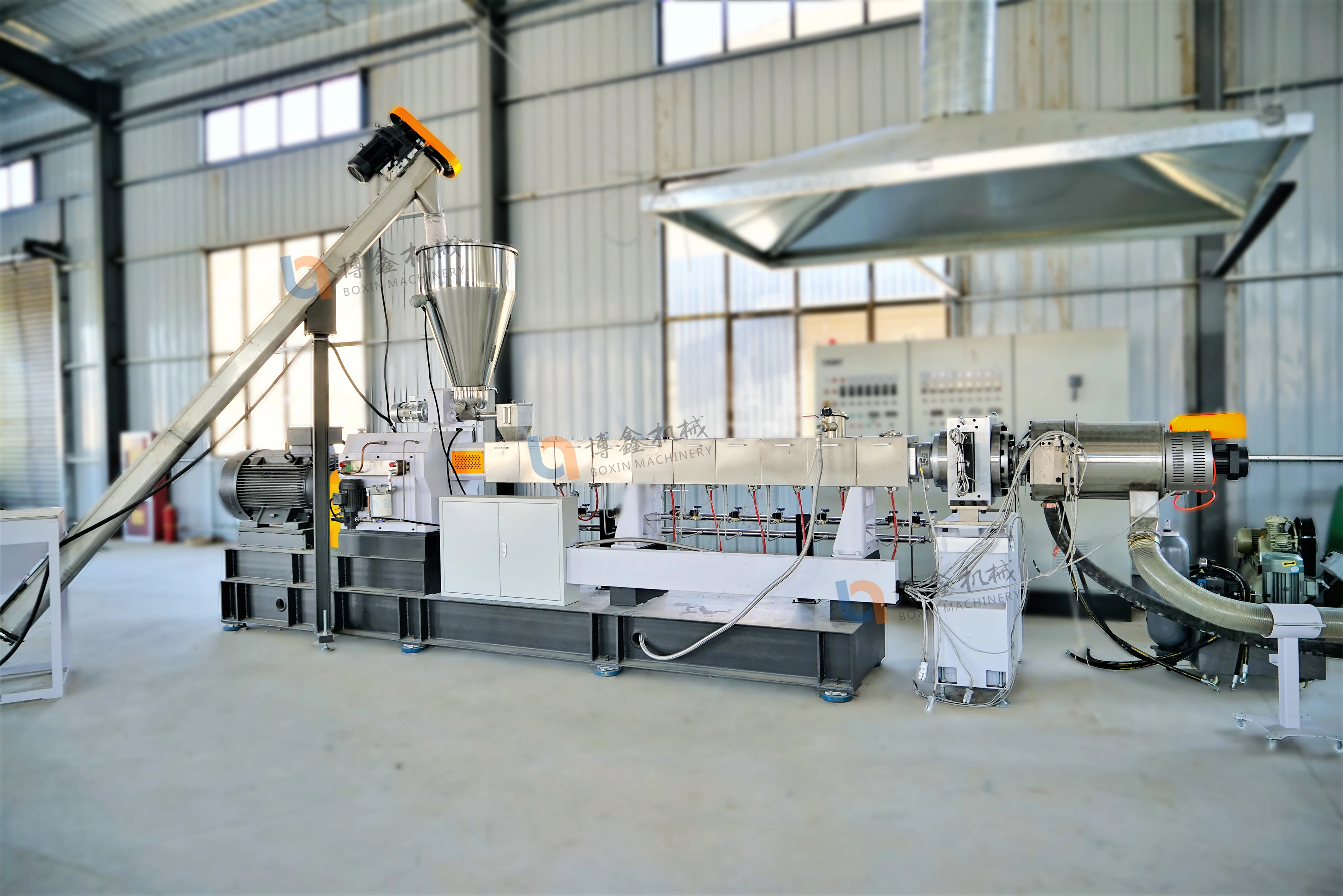

Boxin have two types of PP PE pelletizer machine : one stage and two stags.
The first stage extruder adopts exhaust type barrel screw, which can effectively de-gassing and eliminate the moisture and
contamination; And the second extruder usually adopts small L/D extruder, further plasticizing the material and filter contamination which can achieve stable extrusion.
mother baby Plastic pellet making machine is especially good for the raw material which contain high moisture, high impurities.
The first stage extruder adopts exhaust type barrel screw, which can effectively de-gassing and eliminate the moisture and
contamination; And the second extruder usually adopts small L/D extruder, further plasticizing the material and filter contamination which can achieve stable extrusion.
This PP PE Plastic Granule Making Machine mainly do HDPE hard bottles ,PP PE hard flakes, or film, bags after agglomerating,Adopting special screw design and different technical ,it also can produce etc. various plastic recycling and color mixing pelletizing.
Processing Material
Details Images
1 | Belt Conveyor with Metal Detector |
Usage | Belt Coveyor: Transport the materials into next unit; Metal Detector: Detect the metal and sound the alarm |
NSK/SKF material belt | |
Equipped with roller for easy movement | |
Brand | Boxin Machinery |
2 | Single screw Extruder |
Usage | Heating and melting raw materials |
Exhausting gas | |
Barrel, screw material | 38CrMoALA, After nitriding treatment |
Brand | Boxin Machinery |
3 | Compactor |
Usage | Cutting large whole film or woven bags into small fragments and compressing |
Effective capacity | 700L |
Material of the part in contact with the material Stainless steel | |
Brand | Boxin Machinery |

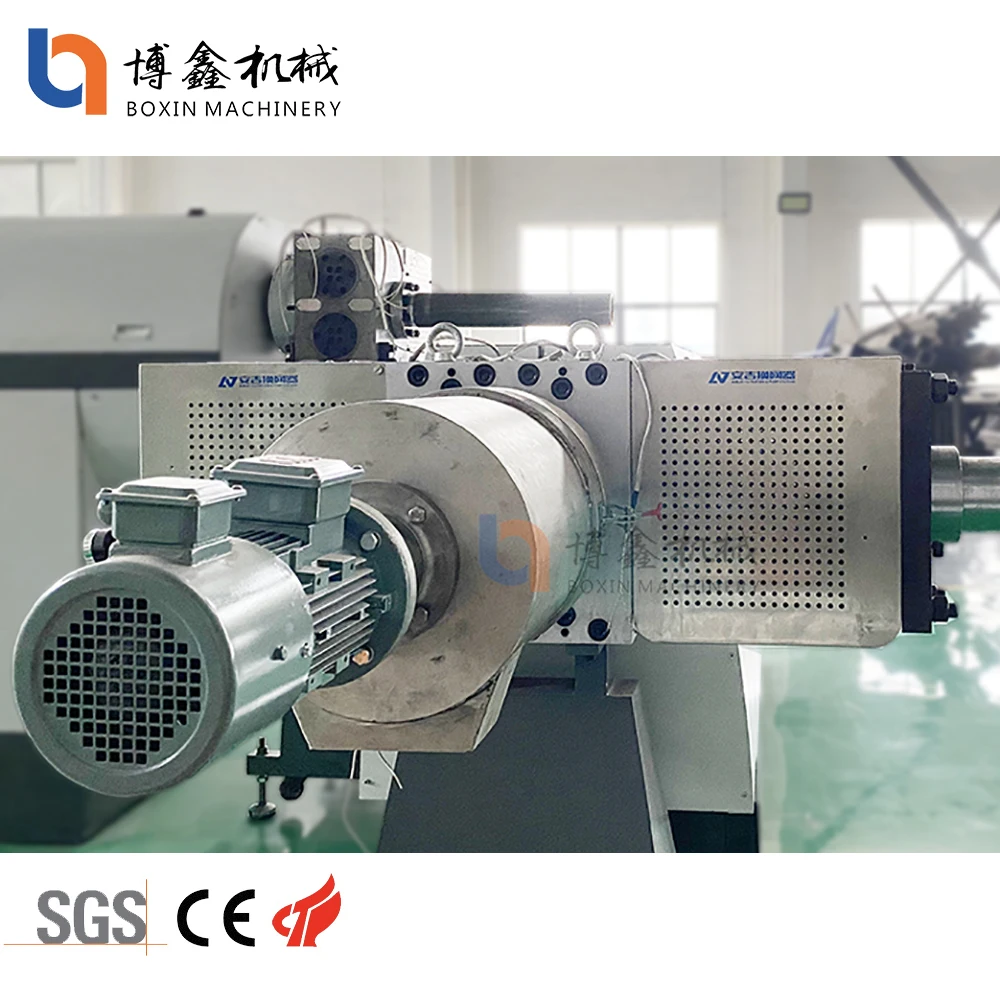

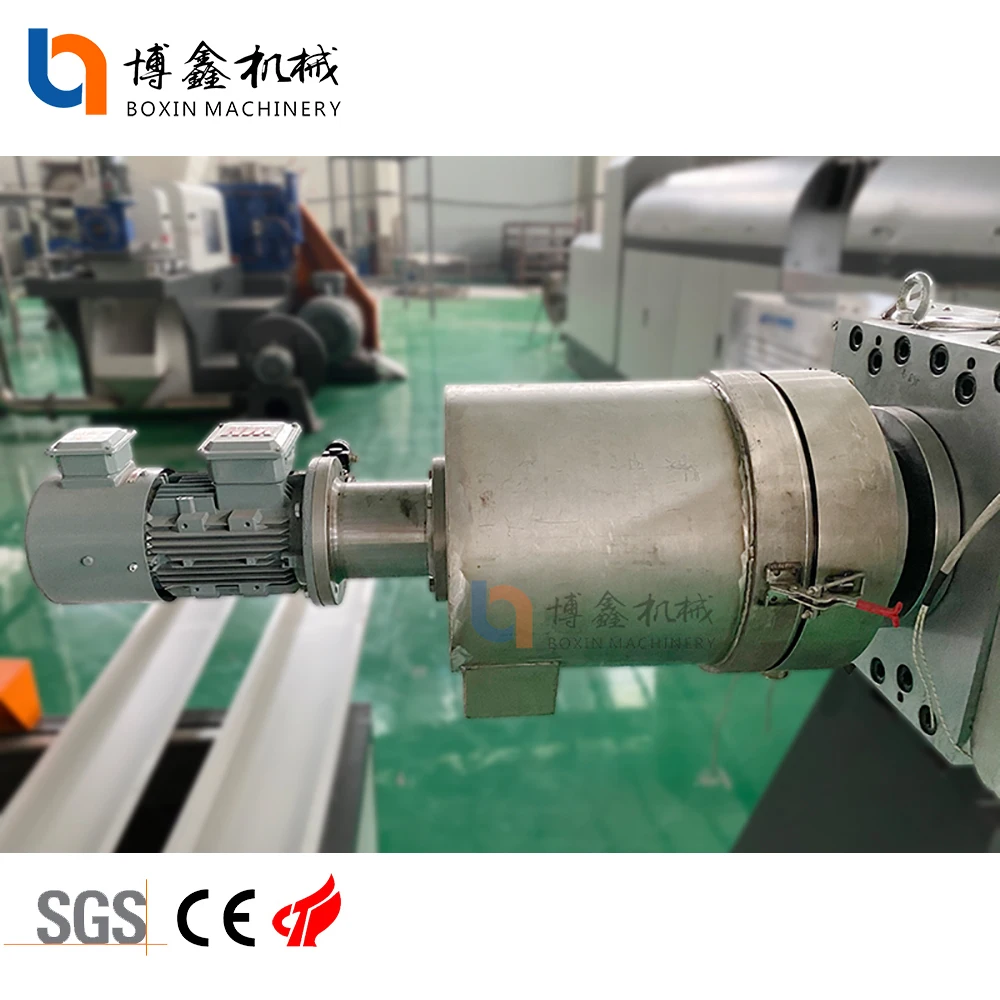

4 | Hydraulic screen changing device |
Plate type | Hydraulic screen changer for No stopping, no leaking |
Motor Power | 2.2kw |
Changing screen time≤2 sec | |
Brand | Boxin Machinery |
5 | Water-Ring cutting system |
Usage | Vertical/Horizonal Water-ring die face hot cutting system |
Speed controlling by frequency conversion | |
Containing | hot cutting die head、diffluence strick, water-ring cover, knife rest |
Brand | Boxin Machinery |
6 | Vibrating screen dewatering machine |
Usage | Remove moisture from granules and remove bad particles |
Material of the part in contact with the material Stainless steel | |
Brand | Boxin Machinery |

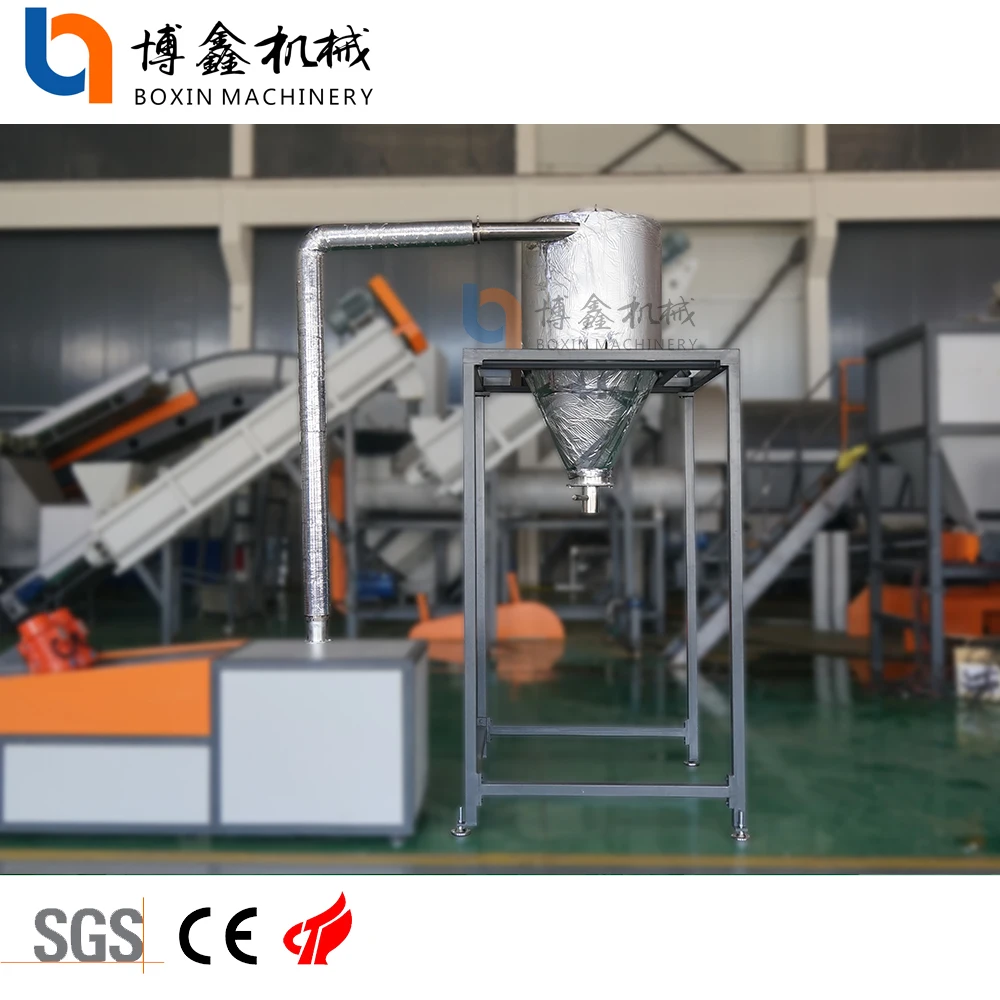

7 | Storage silo |
Usage | Storage the final pellets to with a bag |
Effective capacity | 700L |
Material of the part in contact with the material Stainless steel | |
Brand | Boxin Machinery |
Product Paramenters
Single stage plastic film pelletizing machine
Model | Capacity(kg/h) | L/D Ratio | Installed Power(kw) | Labour Requirements | Factory Size(L*W*H) |
BXC2-85 | 100-200 | 33:1 | 110 | 2-3 | 9*5*4 |
BXC2-100 | 200-300 | 33:1 | 135 | 2-3 | 10*5*4 |
BXC2-120 | 300-400 | 33:1 | 160 | 2-3 | 12*5*4 |
BXC2-150 | 500-600 | 36:1 | 310 | 2-3 | 13*6*4 |
BXC2-160 | 700-800 | 36:1 | 370 | 2-3 | 13*6*4 |
BXC2-180 | 800-1000 | 36:1 | 520 | 2-3 | 13*6*4 |

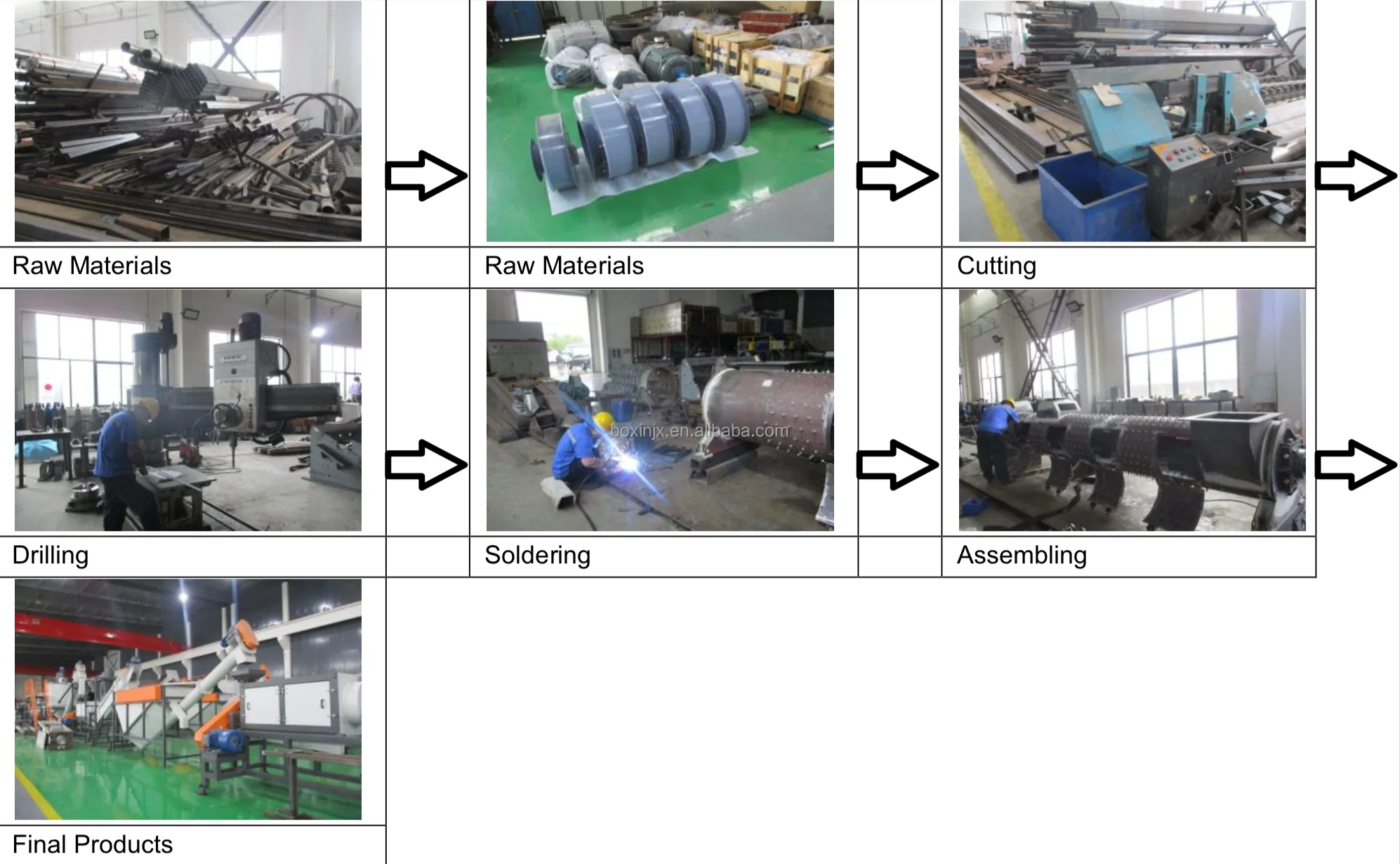

Workflow Chat
Company Profile
After-sale Service
Best After-sale service
* 24h online service for support your machine running.
* Video installation support
* Video technical support.
* Door-to-door service in some areas.
* After the epidemic, an engineer can be arranged for local service.
