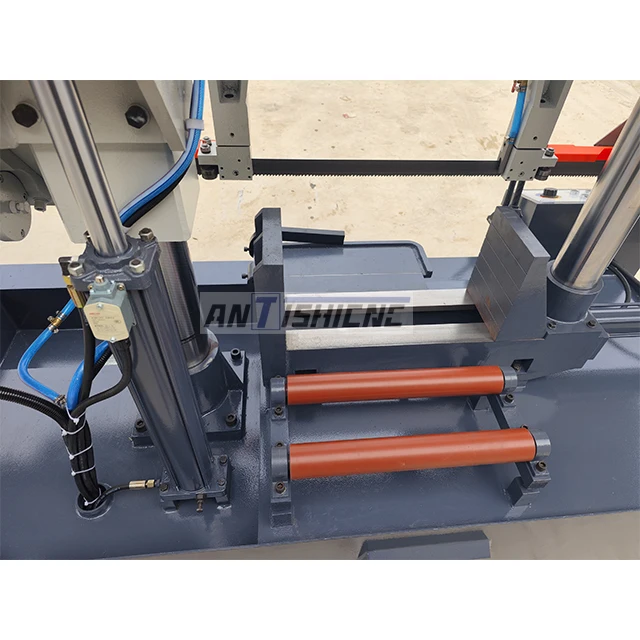

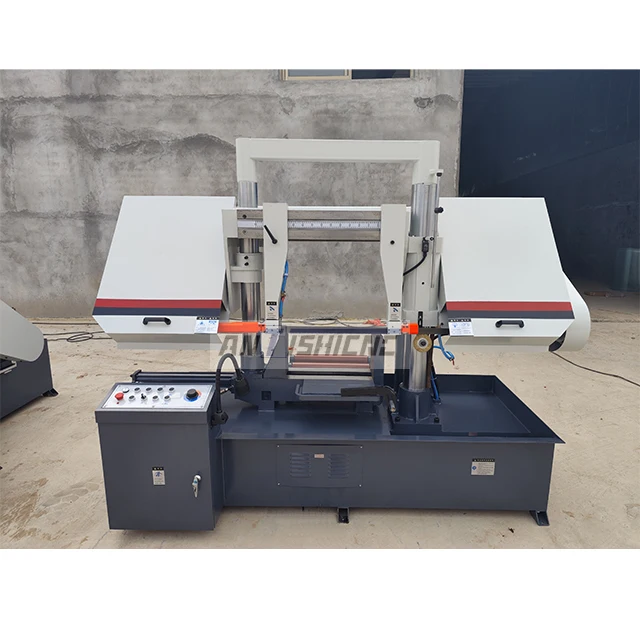

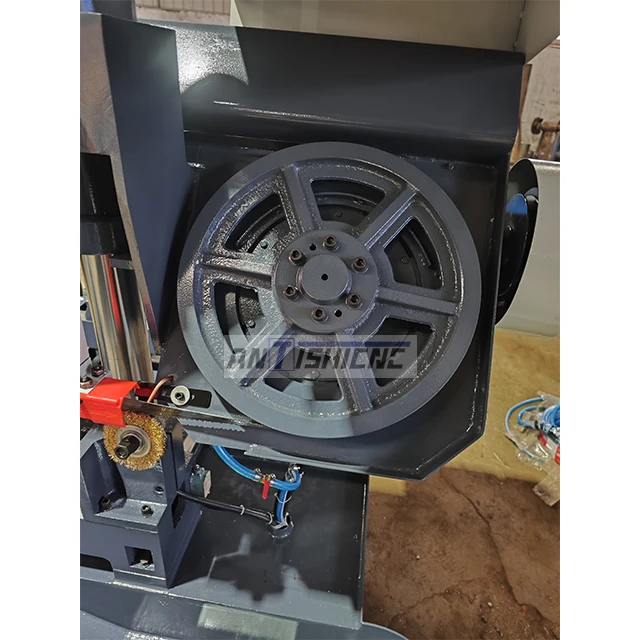

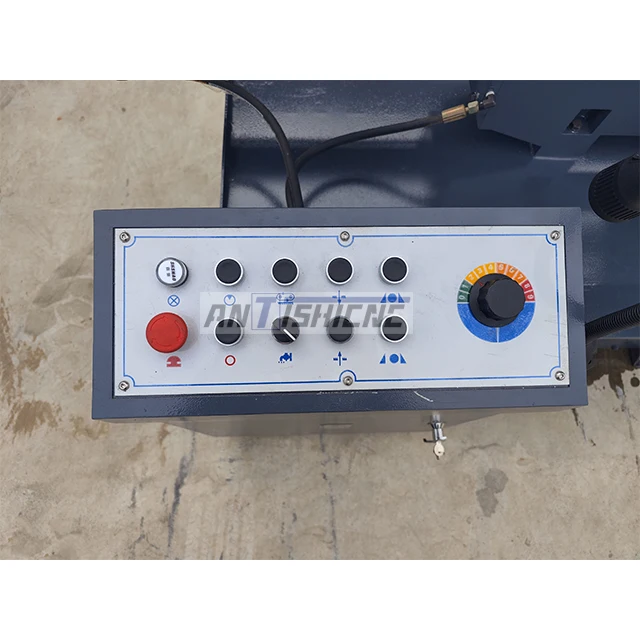

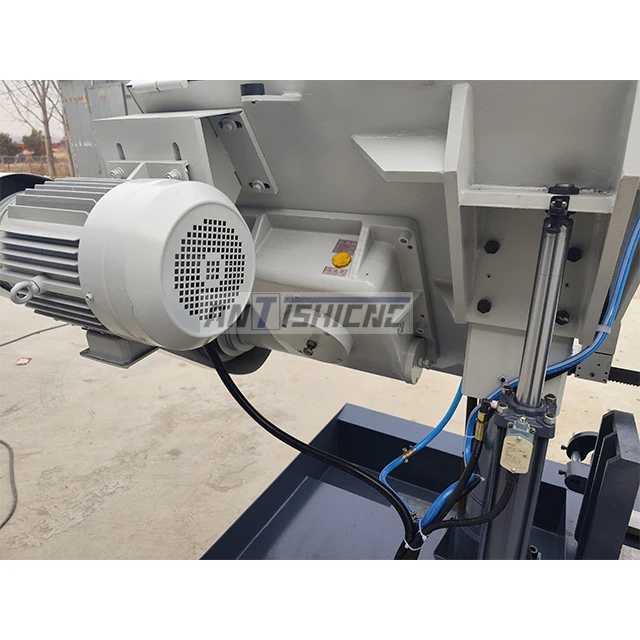

Semi automatic Metal Cutting Band Saw Machine12 Inch GH4220 GH4228 GH4230 GH4235 Electric pipe small band saw machine
- Category: >>>
- Supplier: Shanghai Ants Machine Equipment Co. Ltd.
Share on (11000008346550):
Product Overview
Description
Product Description
Specifications | Units | GH4220 | GH4228 | GH4235 | GH4240 | GH4250 | ||
Cutting Capacity 90° | Rectangular | mm | 200X200 | 280X280 | 350X350 | 400X400 | 500X500 | |
Circular | mm | 200 | 280 | 350 | 400 | 500 | ||
square | mm | 200 | 280 | 350 | 400 | 500 | ||
Blade speed | M/min | 27,45,69 | 27,45,69 | 27,45,69 | 27,45,69 | 27,45,69 | ||
Blase size | mm | 2800x27x0.9 | 3505x27x0.9 | 4115x34X1.1 | 5000x41X1.3 | 5800x41X1.3 | ||
Main motor power | kw | 1.5 | 2.2 | 3 | 4 | 5.5 | ||
Hydraulic motor power | kw | 0.55 | 0.55 | 0.55 | 0.75 | 0.75 | ||
Coolant pump motor power | kw | 0.04 | 0.04 | 0.04 | 0.09 | 0.09 | ||
Overall dimension | mm | 1400x900x1100 | 1860x1100x1400 | 2000x1100x1500 | 2400x1100x1900 | 2800x1400x1900 | ||
weight | kg | 350 | 610 | 720 | 1400 | 1900 | ||
ANTS Machine is a leading Chinese industrial lathe machinery andtooling machines supplier, located in the downtown of Shanghai City.Since our company was founded, based on the advantage of BOCHI which is the No.1 Chinese machine tool manufacturer, we continuallyintroduce top Chinese lathe machinery enterprises and their productsto international markets and export them to approximately 30countries and several regions across the globe, such as BOCHI,Shanghai Machine Tool, SPARK etc. Today we stand tallamidst a number of competitors across the world.
