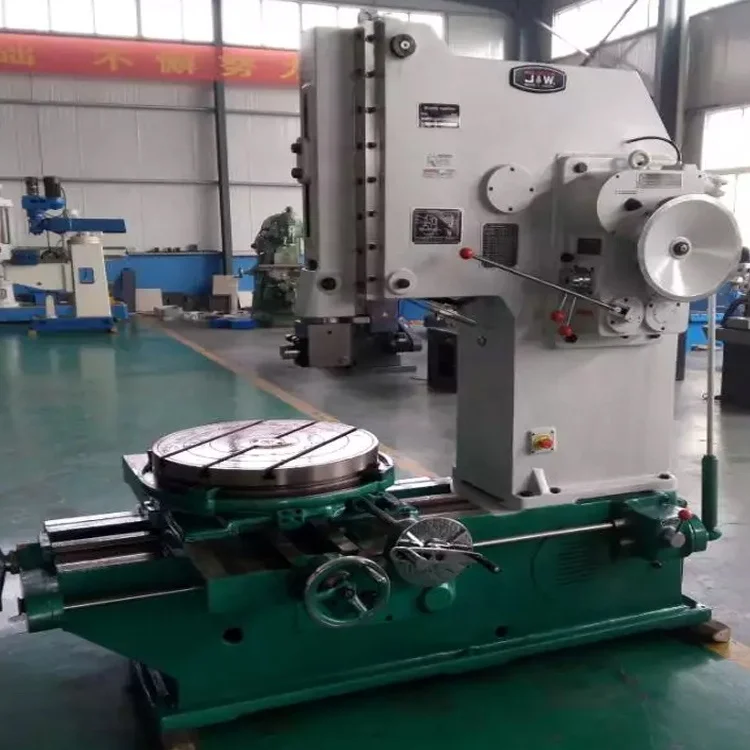

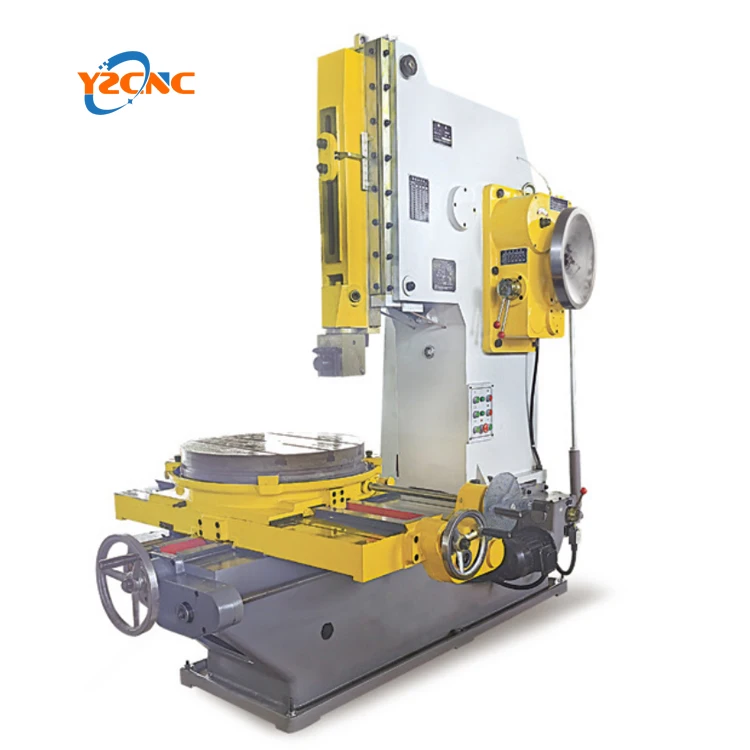

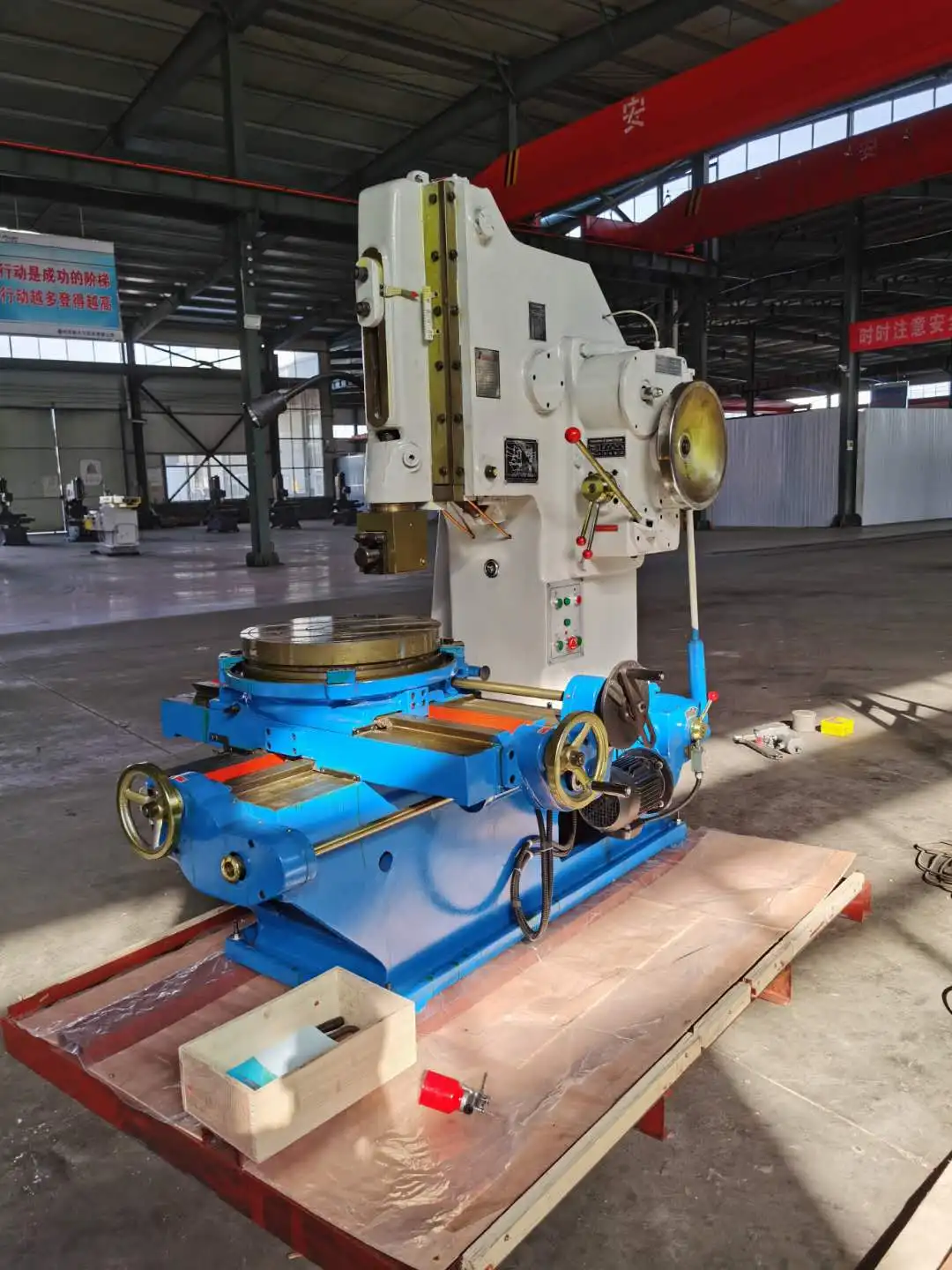

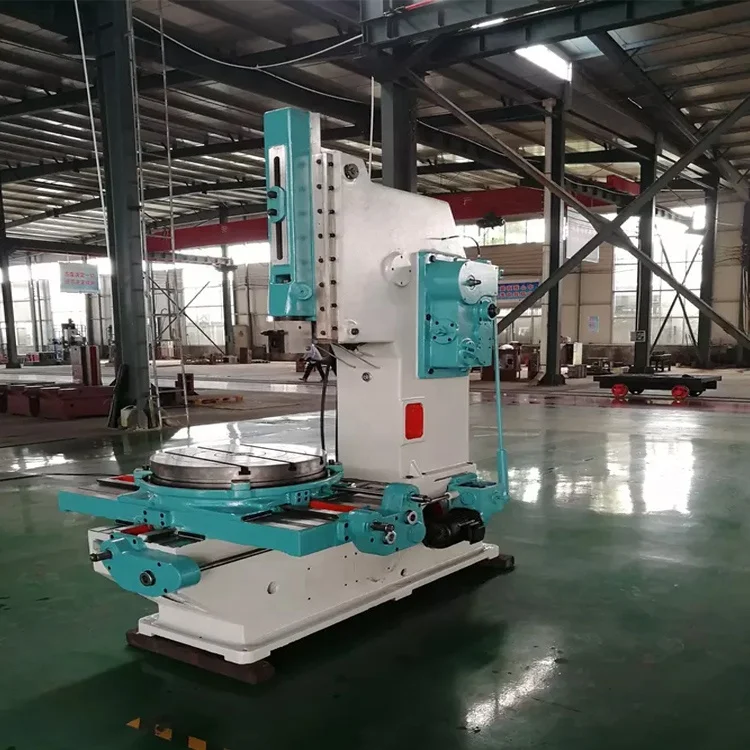

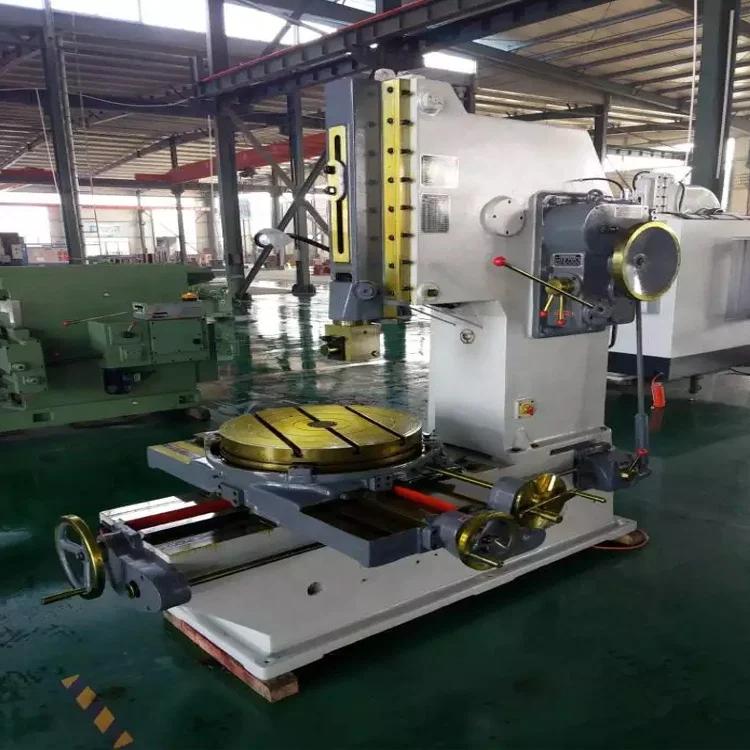

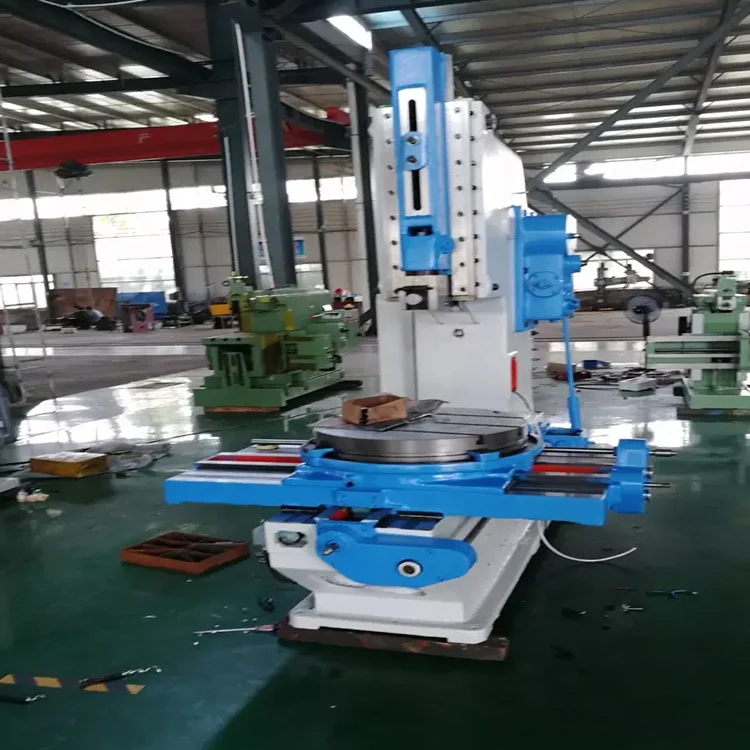

slot machine BQ5040 cheap slot machine slot machines sale
- Category: >>>
- Supplier: Taian Yuzhuo Machinery Co. Ltd.
Share on (11000008349296):
Product Overview
Description
Details Display
The main performance characteristics:
1.The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary),
therefore work object go through once clamping, Several surfaces in the machine tool machining
2.Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.
3.The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted
continuously.
4.Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer,
Even there single motor drive vertical, horizontal and rotary fast moving.
5.Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than
mechanical slotting machine used drum wheel feed.
1.The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary),
therefore work object go through once clamping, Several surfaces in the machine tool machining
2.Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.
3.The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted
continuously.
4.Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer,
Even there single motor drive vertical, horizontal and rotary fast moving.
5.Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than
mechanical slotting machine used drum wheel feed.
Application:
1. This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold
and other within the scope of etc. work matter,,
2. Enterprise suitable for single or small batch production.
1. This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold
and other within the scope of etc. work matter,,
2. Enterprise suitable for single or small batch production.
Specifications
Specification | Unit | BQ5040 |
Maximum cutting length (interpolated inner hole 360 mm) | mm | 400 |
Maximum weight of the workpiece | kg | 500 |
Maximum cutting force | n | 7500 |
The number of reciprocations per minute of the ram | - | 20.32.50.80 |
Ram vertical adjustment distance | mm | 315 |
Maximum size of the plug (width × height) | mm | 25x40 |

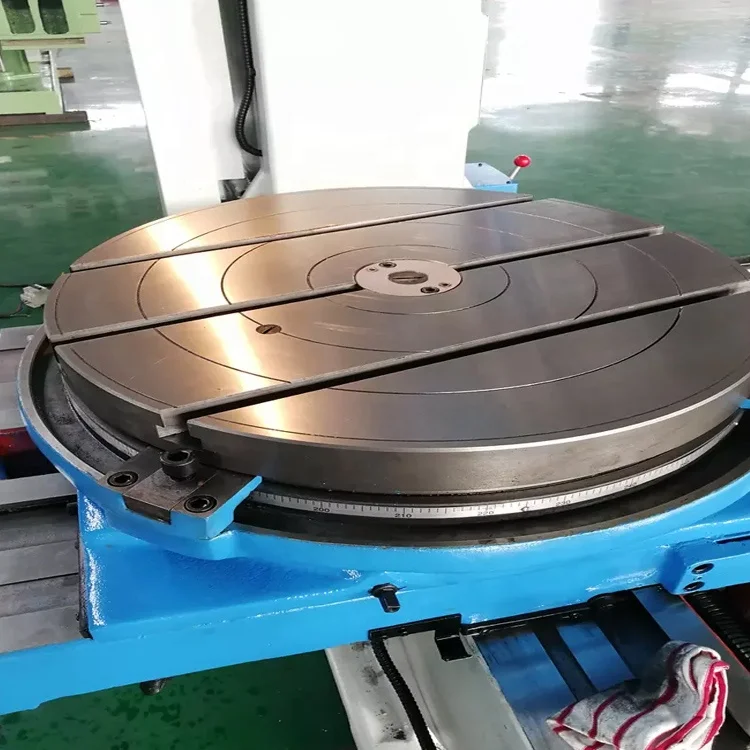

Table diameter | mm | 630 |
Distance between the support surface of the cutter head and the front wall of the bed | mm | 600 |
Work surface to the lower end of the carriage | mm | 690 |
Worktable maximum longitudinal movement distance | mm | 620 |
Workable maximum lateral movement distance | mm | 560 |
Worktable vertical and horizontal maneuvering feed range | mm | 0.08-1.21 |
Worktable rotary maneuvering feed range | mm | 0.052-0.783 |
Main motor power | kw | 4 |
Main motor speed | rpm | 960 |
Machine tool outline size (length x width x height) | mm | 2290x1525x2485 |
Machine weight | kg | 3700 |
