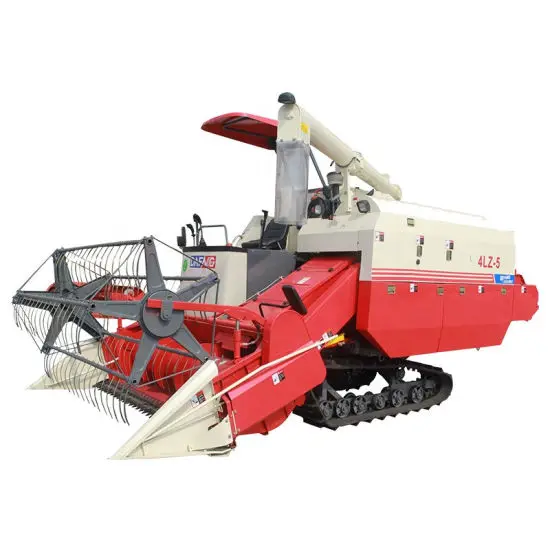

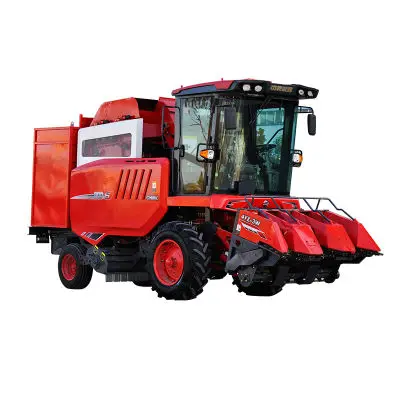

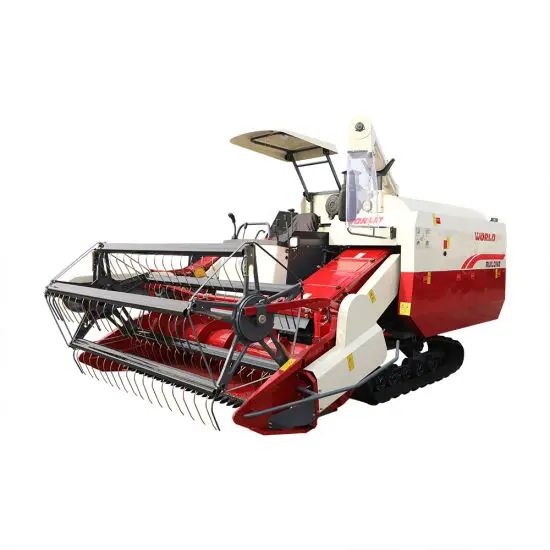

Power Transmission Corn Harvester Machine Combine Agriculture Machinery 4LZ 2.2 Z 1 Rows Corn Combine Harvester

Product Overview

Description

Combine harvester configured is to efficiently rake, using a raking auger, the ear-tip side part of divider-side grain stems harvested using a cutting blade device, and to prevent damage to the divider. A combine harvester according to the present invention is provided with a divider, a raking reel, a cutting-blade device, a raking auger, a platform, and a conveyor, wherein the combine harvester is characterized in that the raking auger is composed of a cylindrical drum, helical blades projecting from the outer circumferential surface of the drum and being capable of lateral movement for orienting the grain stems to the conveyor, and a plurality of rod-shaped raking fingers capable of radially extending and retracting from the outer peripheral surface of the drum for guiding the grain stems to the conveyor; at least one of the fingers being provided in a position on the drum aligned within two pitches of receiving blades from the outermost effective receiving blade of the cutting-blade device end section to the inner side in plan view.



Fast walking system

1, reliable performance of diesel engine

Kubota homemade high power, low fuel consumption 49 2kW turbocharged diesel T motor.Powered by a vertical water-cooled 4-cylinder turbocharged diesel engine system, it provides more output power and starting torque with less fuel than a conventional spherical diesel engine.

2. Wide track

Wide-width tracks can work more smoothly than ever in wet fields.275mm ground clearance, not easy to accumulate mud, bad field adaptation is stronger.

Efficient threshing system - outstanding handling capacity, low loss

Large diameter long threshing barrel

Longitudinal oil flow threshing system adopts 620mm large diameter, drum length up to 1790mm long threshing drum, can carry out more efficient and accurate harvesting and threshing operations.

Simple and convenient operating system



Model	Kubota 688Q Harvesting
Engine	68HP/2700rpm
Fuel tank capacity	60L
Cutting lenght	2000mm
Grain Tank	1000L
Harvesting Capacity	0.5-1.02 acre/hour

IMAGE DETAILS
