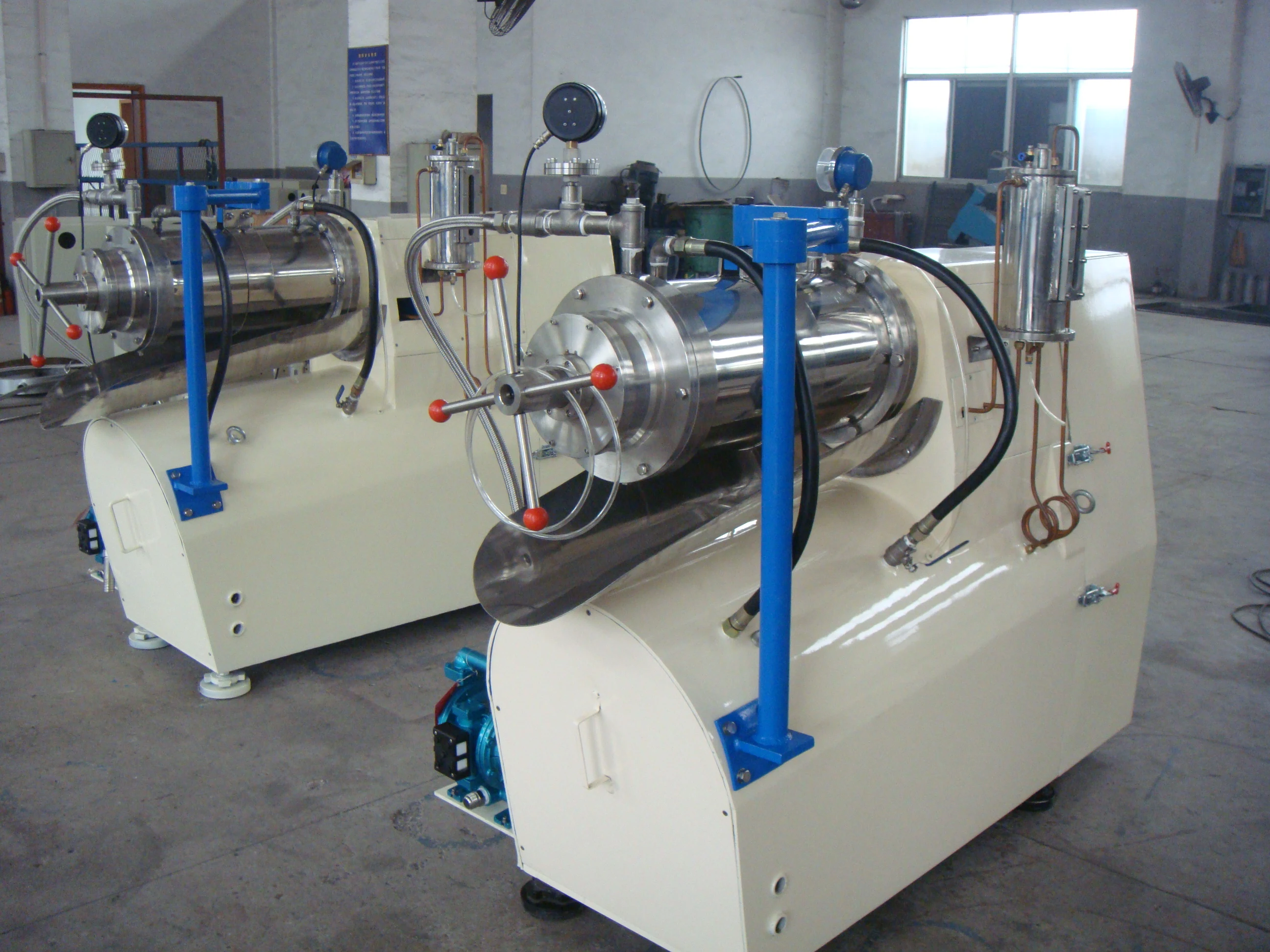

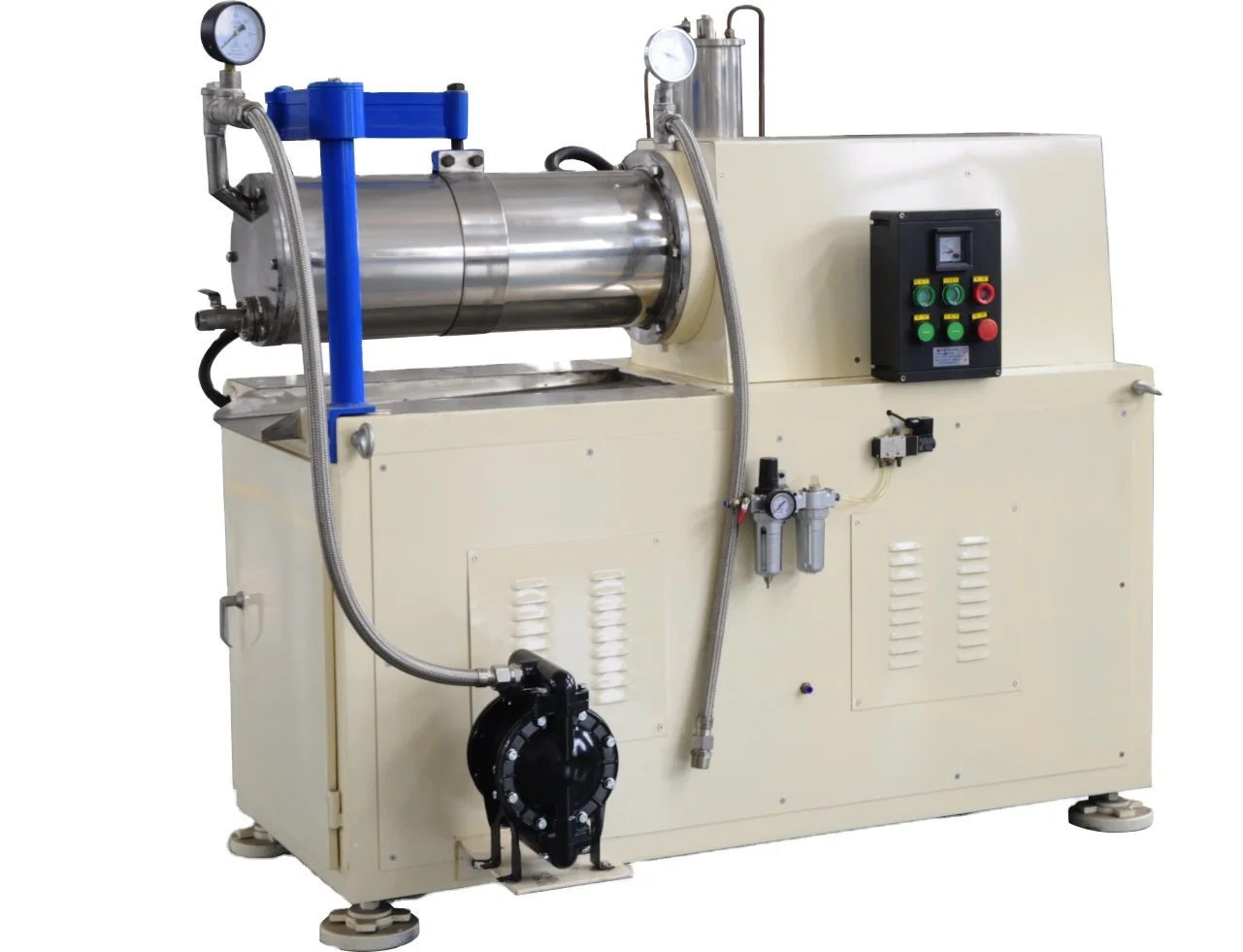

Wall paint making machine horizontal bead mill high quality wet grinding mill price
- Category: Grinding Equipment >>>
- Supplier: Jiangyin,Fanshi,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Industrial Basket Mill
Description
Espread ESBM industrial basket mill is an integrated equipment, which combines milling and dispersing to reduce particle size for paint, coatings, inks and pigment dispersions applications. The basket mill integrates high speed dissolving and pump wheels, a very narrow particle size distribution can be achieved in this machine.
Feature
Drive Head
Steel fabricated enclosure inside which is installed the drive assembly consisting of a set of balanced pulleys, V belts, electric
motor and motor tensioning device. The drive head is of hinged type construction which can be opened for maintenance.
Main shaft and grinding basket
SS 304 shaft duly machined and balanced is provided. The shaft is installed in a bearing housing provided with taper roller
bearings. Lubrication points are provided on the housing. The grinding basket is made from special steel to withstand high wear and tear. The double jacket cooling grinding basket is optional. The excellent grinding basket design makes good milling result, easy to clean and convenient to maintain the machine.
Lifting and lowering
The entire drive head and shaft is mounted on a hydraulic column which can be lifted and lowered to clear the height of the
vessel. The Hydraulic column comes complete with hydraulic cylinder, piston rod, power pack unit, valves electric motor and all interconnecting pipelines and hoses.
Electric Motor
TEFC motor, drives a set of pulleys and V belts. The Motor is provided with a belt tensioning device. The motor details are 415 V/ 50 Cycles / 3 Phase RPM 1500 / . First-class Chinese motor as standard. Siemens and ABB motor are optional
Speed control
An AC Frequency inverter installed in a panel controls the RPM from 0-1500.depend on the viscosity The inverter is provided with settings for monitoring torque, amperage, voltage, power factor etc and is PC compatible.First-class Chinese speed inverter as standard. Siemens, ABB and Yaskawa speed inverter are optional
Electric Control Panel (Non-Ex proof)
A control panel is provided with the following functions. Main motors on off, ammeters, voltmeter, emergency stop, inverter trip, indicating lamps, speed control switch, RPM indicator. All internal wiring is per international codes of practice.
Electric Control Panel (Ex proof)
A remote control panel is provided with the following ex proof controls. Main motors on off, ammeters, voltmeter, emergency stop, inverter trip, indicating lamps, speed control switch, RPM indicator. All internal wiring is per international codes of practice.The inverter is installed in a separate panel and is to be installed in a safe Non-Ex proof zone.
Vessel Locking Device (Optional)
A vessel locking device consisting of locking arms, cantering device, and manually operated locking screw is provided.
Vessel (Optional)
The vessel is fabricated from SS plates and is provided with 3 nos castor wheels, SS bottom discharge ball valve and towinghandles. All SS parts are duly polished inside and outside.The Vessel is double jacket type for cooling.
Description
Espread ESBM industrial basket mill is an integrated equipment, which combines milling and dispersing to reduce particle size for paint, coatings, inks and pigment dispersions applications. The basket mill integrates high speed dissolving and pump wheels, a very narrow particle size distribution can be achieved in this machine.
Feature
Drive Head
Steel fabricated enclosure inside which is installed the drive assembly consisting of a set of balanced pulleys, V belts, electric
motor and motor tensioning device. The drive head is of hinged type construction which can be opened for maintenance.
Main shaft and grinding basket
SS 304 shaft duly machined and balanced is provided. The shaft is installed in a bearing housing provided with taper roller
bearings. Lubrication points are provided on the housing. The grinding basket is made from special steel to withstand high wear and tear. The double jacket cooling grinding basket is optional. The excellent grinding basket design makes good milling result, easy to clean and convenient to maintain the machine.
Lifting and lowering
The entire drive head and shaft is mounted on a hydraulic column which can be lifted and lowered to clear the height of the
vessel. The Hydraulic column comes complete with hydraulic cylinder, piston rod, power pack unit, valves electric motor and all interconnecting pipelines and hoses.
Electric Motor
TEFC motor, drives a set of pulleys and V belts. The Motor is provided with a belt tensioning device. The motor details are 415 V/ 50 Cycles / 3 Phase RPM 1500 / . First-class Chinese motor as standard. Siemens and ABB motor are optional
Speed control
An AC Frequency inverter installed in a panel controls the RPM from 0-1500.depend on the viscosity The inverter is provided with settings for monitoring torque, amperage, voltage, power factor etc and is PC compatible.First-class Chinese speed inverter as standard. Siemens, ABB and Yaskawa speed inverter are optional
Electric Control Panel (Non-Ex proof)
A control panel is provided with the following functions. Main motors on off, ammeters, voltmeter, emergency stop, inverter trip, indicating lamps, speed control switch, RPM indicator. All internal wiring is per international codes of practice.
Electric Control Panel (Ex proof)
A remote control panel is provided with the following ex proof controls. Main motors on off, ammeters, voltmeter, emergency stop, inverter trip, indicating lamps, speed control switch, RPM indicator. All internal wiring is per international codes of practice.The inverter is installed in a separate panel and is to be installed in a safe Non-Ex proof zone.
Vessel Locking Device (Optional)
A vessel locking device consisting of locking arms, cantering device, and manually operated locking screw is provided.
Vessel (Optional)
The vessel is fabricated from SS plates and is provided with 3 nos castor wheels, SS bottom discharge ball valve and towinghandles. All SS parts are duly polished inside and outside.The Vessel is double jacket type for cooling.
1.Q: What is your MOQ of this item?
A: Our MOQ is one set.
2.Q: What is the delivery time?
A:It will take 5~7 days if the goods are in stock, and 15-30days if the goods out of stock, depends on your order quantities.
3.Q: Is it all right to make our own brand name?
A: OEM is acceptable.
4.Q: Where is your Loading Port?
A: Shenzhen / Guangzhou ,China port.
5.Q:Are you a manufactuer or trading company?
A:We are a manufactuer specialized in drill bit grinder, end mill re-sharpener, screw tap re-sharpener, lathe tool grinder, saw
blade re-sharpener, chamfer, universal cutter grinder, tapping machine and electrical tapping machine more than 10 years.
6.Q:How many exhibitions will you participate in every year?
A: As last year we took part in 10~20 exhibitions, which include 3 exhibitions in oversea.
7.Can you provide the CE certification?
A: Yes, we can provide CE certification for our products.
Welcome to visit our factory ~
A: Our MOQ is one set.
2.Q: What is the delivery time?
A:It will take 5~7 days if the goods are in stock, and 15-30days if the goods out of stock, depends on your order quantities.
3.Q: Is it all right to make our own brand name?
A: OEM is acceptable.
4.Q: Where is your Loading Port?
A: Shenzhen / Guangzhou ,China port.
5.Q:Are you a manufactuer or trading company?
A:We are a manufactuer specialized in drill bit grinder, end mill re-sharpener, screw tap re-sharpener, lathe tool grinder, saw
blade re-sharpener, chamfer, universal cutter grinder, tapping machine and electrical tapping machine more than 10 years.
6.Q:How many exhibitions will you participate in every year?
A: As last year we took part in 10~20 exhibitions, which include 3 exhibitions in oversea.
7.Can you provide the CE certification?
A: Yes, we can provide CE certification for our products.
Welcome to visit our factory ~
