Variable Speed Bench Drill Press DP VS Series with Cast Iron Base Heavy Duty Semi Industrial Drilling Machine
- Category: >>>
- Supplier: Qingdao Bright Machinery Co. Ltd.
Share on (11000008464294):
Product Overview
Description
Product Description

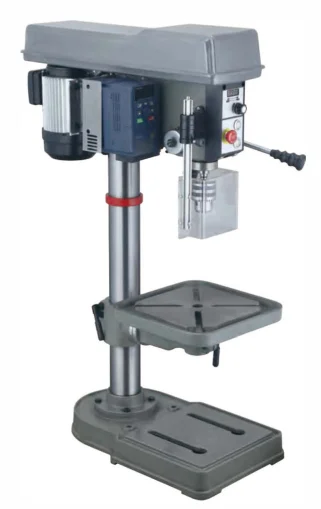

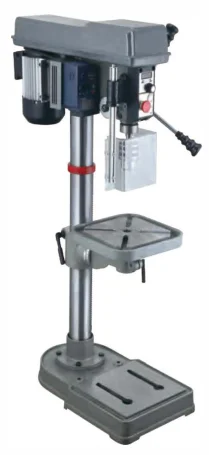

New Variable Speed Drill Press DP-VS Series Bench Type
New design semi-industrial Drill Press with Variable Speed DP-VS Series - Bench Type Models
Swing ranging from 10" to 17" (250mm to 430mm)
Swing ranging from 10" to 17" (250mm to 430mm)
Features:

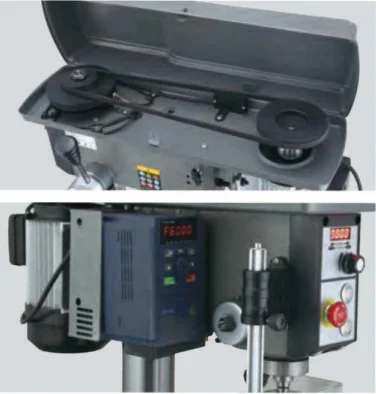

* Unlike other common drill presses that use mechanical unit to change working speed, our DP-VS series machines adjust working
speed by a unique design VFD/Inverter that controls the input frequency without compromise on output power.
* With the VFD/Inverter, the machine can ensure more precise speed with low energy cost and long service life.
* Front control panel features 12V low voltage start-up, much safer during operation.

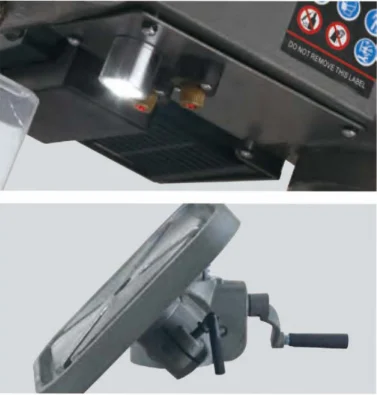

* Digital display on working speed, emergency stop button, LED light, cross laser alignment & auto power-off protection guard.
* Two speed gears multi-wedge pulley with poly V-belt provide wider torque force range and less vibration.
* Solid cast iron body, powder coating multi-processing surface, fine grinding finish on worktable and headstock hole.
* Low noise level, high precision, good rigidity, solid quality, new design novel-looking.
speed by a unique design VFD/Inverter that controls the input frequency without compromise on output power.
* With the VFD/Inverter, the machine can ensure more precise speed with low energy cost and long service life.
* Front control panel features 12V low voltage start-up, much safer during operation.
* Digital display on working speed, emergency stop button, LED light, cross laser alignment & auto power-off protection guard.
* Two speed gears multi-wedge pulley with poly V-belt provide wider torque force range and less vibration.
* Solid cast iron body, powder coating multi-processing surface, fine grinding finish on worktable and headstock hole.
* Low noise level, high precision, good rigidity, solid quality, new design novel-looking.
Specification
Model | DP25016B-VS | DP33016B-VS | DP38016B-VS | DP43016B-VS |
Drill Capacity(mm) | 16 | 16 | 20 | 25 |
Chuck Capacity(mm) | 16 | 16 | 16 | 16 |
Swing（mm) | 250 | 330 | 380 | 430 |
Distance - Spindle to Column(mm) | 125 | 165 | 190 | 215 |
Spindle Taper | MT2 | MT2 | MT2 | MT2 |
Speed RPM (50Hz) | 2(0-700,0-3000) | 2(0-700,0-3000) | 2(0-700,0-3000) | 2(0-700,0-3000) |
Spindle Travel | 60 | 80 | 80 | 80 |
Column Diameter(mm) | 59.5 | 73 | 73 | 80 |
Rack & Pinion | yes | yes | yes | yes |
Poly V-belt | yes | yes | yes | yes |
CE Chuck Guard | yes | yes | yes | yes |
Max Distance - Spindle to Table | 390 | 470 | 470 | 440 |
Max Distance - Spindle to Base | 530 | 670 | 670 | 640 |
Base Size | 355*210 | 520*310 | 520*310 | 545*330 |
Base Material | cast-iron | cast-iron | cast-iron | cast-iron |
Table Size(mm) | 197*197 | 270*270 | 270*270 | 325*325 |
Table Tilt | yes -45/45° | yes -45/45° | yes -45/45° | yes -45/45° |
Table Material | cast-iron | cast-iron | cast-iron | cast-iron |
LED Light | yes | yes | yes | yes |
Laser Light | yes | yes | yes | yes |
Inverter (vector control) | yes | yes | yes | yes |
Motor(w)/S1 | 400 | 600 | 600 | 1100 |
Height(mm) | 850 | 1050 | 1050 | 1060 |
NW/GW(kg) | 35/38 | 60/63 | 65/68 | 81/84 |
Packing Size(mm) | 690*430*260 | 895*490*290 | 895*490*290 | 970*540*330 |
Loading Qty 20' Container | 400 | 224 | 224 | 154 |
Packing Details | Packaged in high quality carton, with extra foam to protect |
Delivery Time | 40-50 days after payment confirmed or contact us for accurate time. |
