4GE 1POTS WIFI USB ZTE GPON AC 2.4G/5G DUAL BAND ONU XPON

Product Overview

Description

      4GE+1POTS +WIFI+USB  ZTE  GPON AC 2.4G/5G DUAL BAND ONU XPON

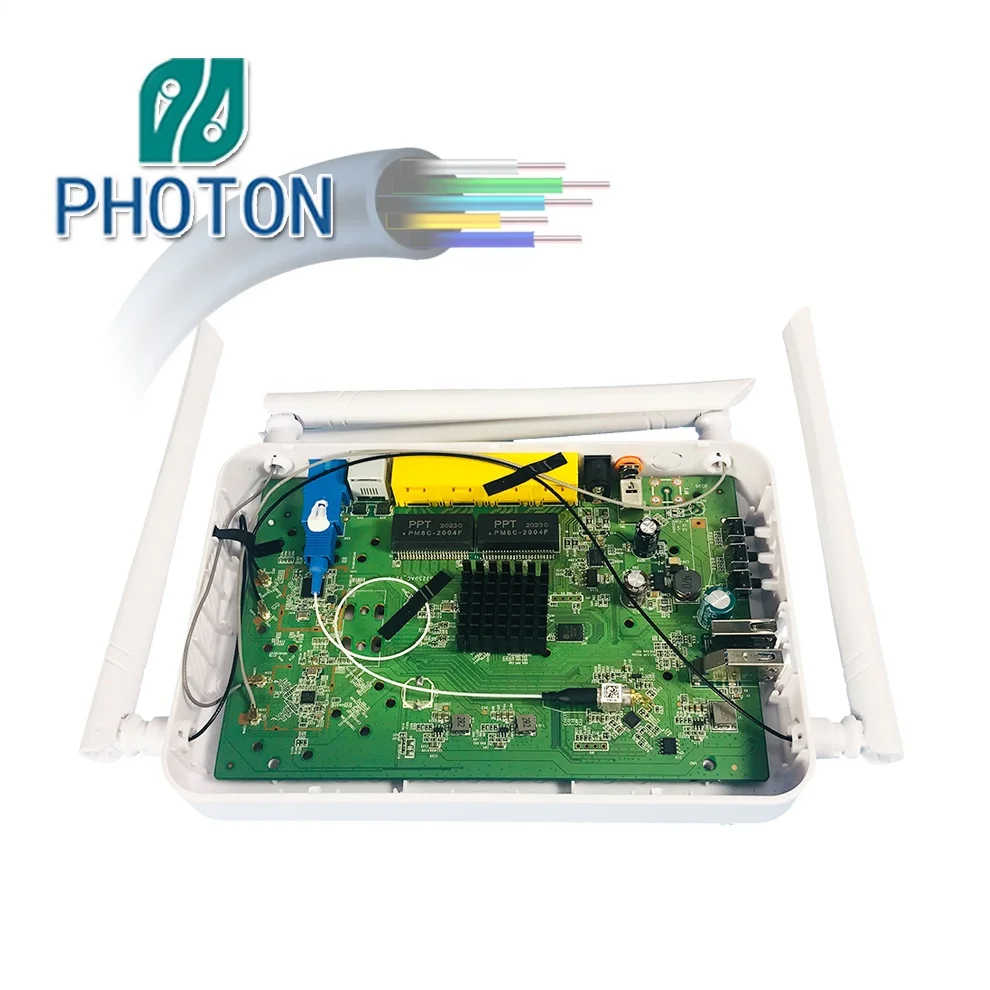

FIBERWAY PTF2264Q is 4GE+1POTS+2USB+WiFi GPON/EPON HGU terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators. These boxes are based on the mature Chipset (Realtek) technology, which have high ratio of performance to price, and the technology of IEEE802.11b/g/n/ac WiFi, Layer 2/3, and high quality VoIP as well.  They are high ratio of performance to price, high reliability and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as IEEE802.3ah,ITU-T G.984.x and technical requirement of GPON Equipment from China Telecom.It can also be applied to a wide temperature environment, and also has a firewall function.

2. Features:(4GE+1POTS +WIFI +USB ZTE  GPON AC 2.4G/5G DUAL BAND ONU XPON)

Ø HGU ONU, bridging and routing modes can be set

Ø Dual mode ONU compatible with popular EPON and GPON OLT

Ø Support  rich QinQ VLAN functions, IGMP snooping multicast features

Ø 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service

Ø Support port speed, support for storm suppression

Ø Support 802.11a/b/g/n/ac dual band WiFi(4T4R),  rate up to 1.167Gbps

Ø Support No-auth, WEP, WPA-PSK and WPA2-PSK

Ø Support Telnet, CLI, OMCI/OAM /TR069 and Web management

Ø POTS function support SIP protocol

Ø Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade , etc

Ø Support IPv4 and IPv6 dual stack

Ø Support SIP protocol

3. Technical parameters

Items	Unit	Specifications
PON standard.		EPON IEEE802.3ah, GPON ITU-T G.984.x
Optical interface		SC/PC connector,1 GPON/EPON interface(EPON PX20+ and GPON Class B+)Receiving sensitivity: ≤-28dBmTransmitting optical power: 0~+4dBmTransmission distance: 20KM
Speed	Gbps	GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps.
Wavelength	nm	Tx1310, Rx 1490

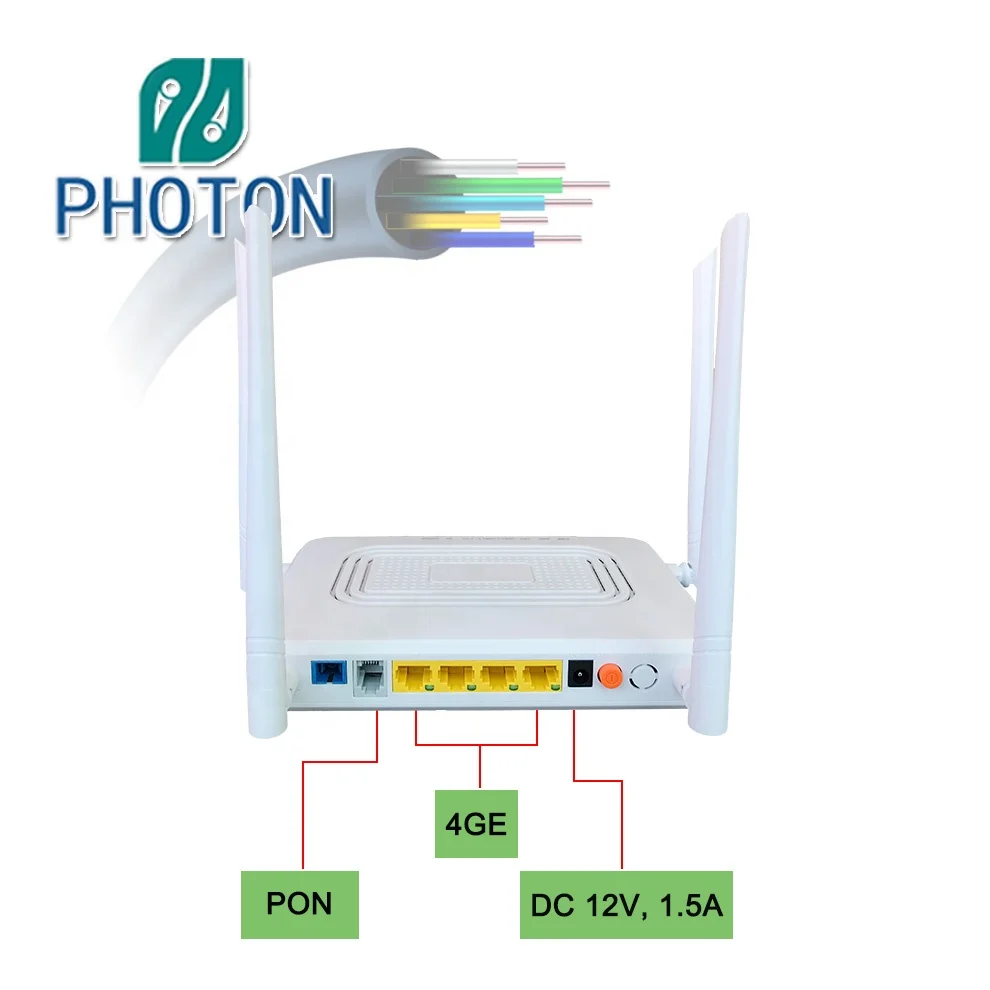

Interface	data	4GE 10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors
	Wireless	Compliant with IEEE802.11b/g/n/ac 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support MIMO, 4T4R,5dBi external antenna, rate up to 1.167Gbps Support: multiple SSID TX power: 11n--22dBm/11ac--24dBm
	POTS	1 x RJ11 connectorsSupport: G.711A/G.711U/G.723/G.729 codec Support: T.30/T.38/G.711 Fax mode, DTMF Relay
	USB	1 x USB2.0 1 x USB3.0

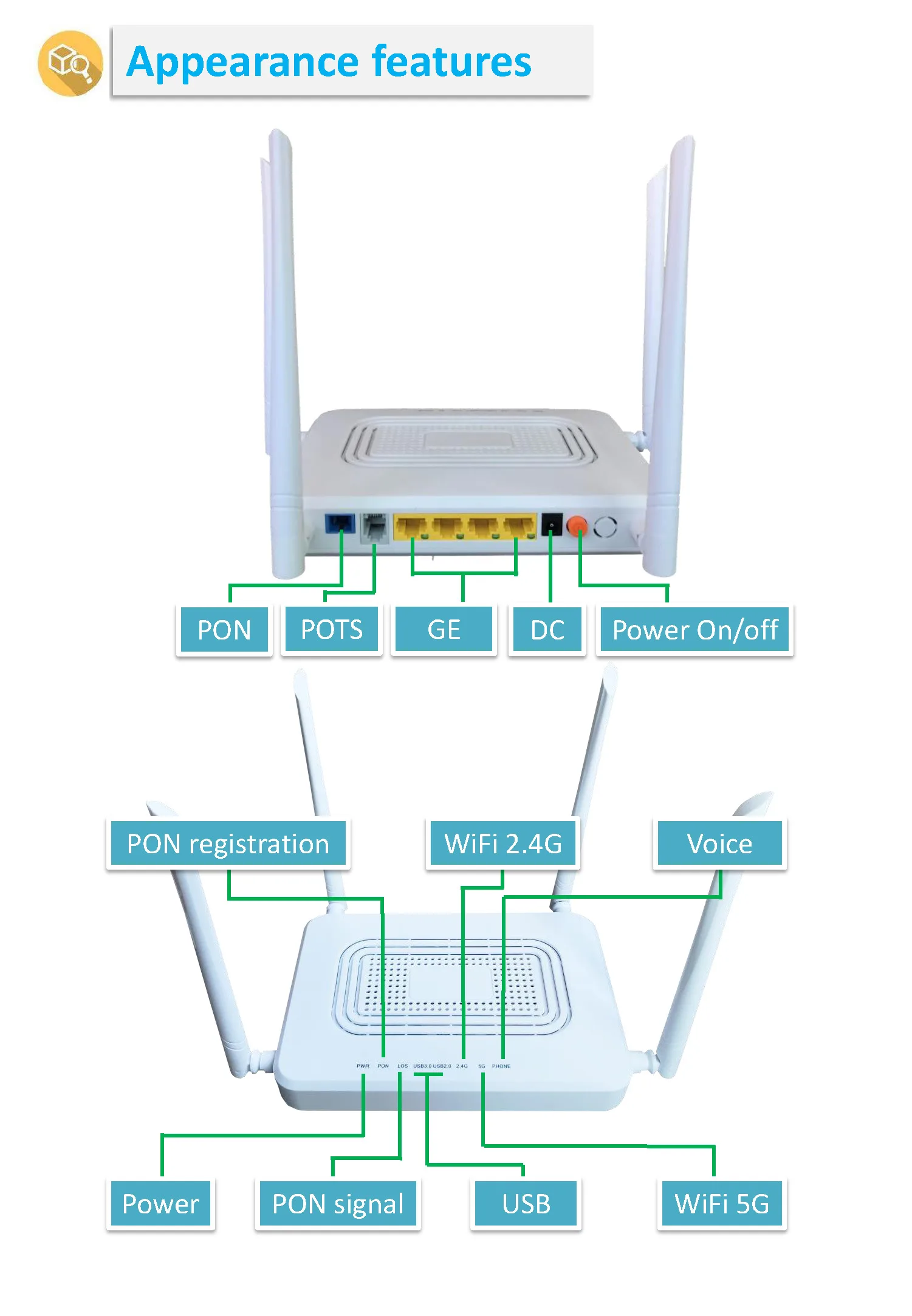

Indicator	LED	12 LED for Status of POWER,LOS,PON, LAN1~LAN4,WiFi2.4G,WiFi5.0G,USB0,USB1,Phone
Operating condition	℃	Operating temp: 0 ~ +50
Storing condition	℃	Storing temp: -30 ~ +70
Humidity	%	10~90(non-condensing)
Power supply	V	DC 12V,1.5A adapter
Power consumption	W	≤12

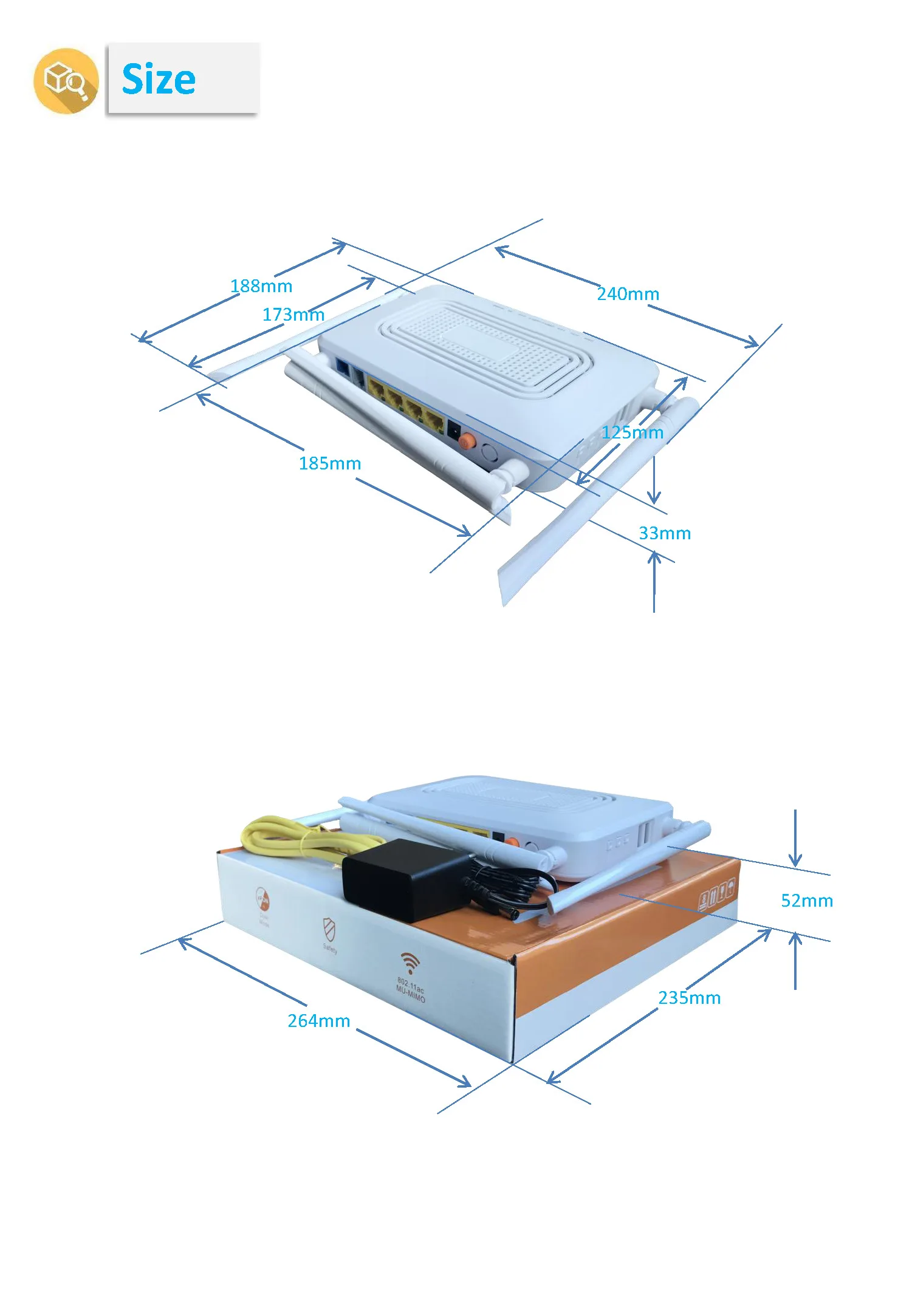

Dimension	mm	242mm×154mm×35mm(L×W×H)
Net weight	Kg	0.42



4. Shipping packaging
