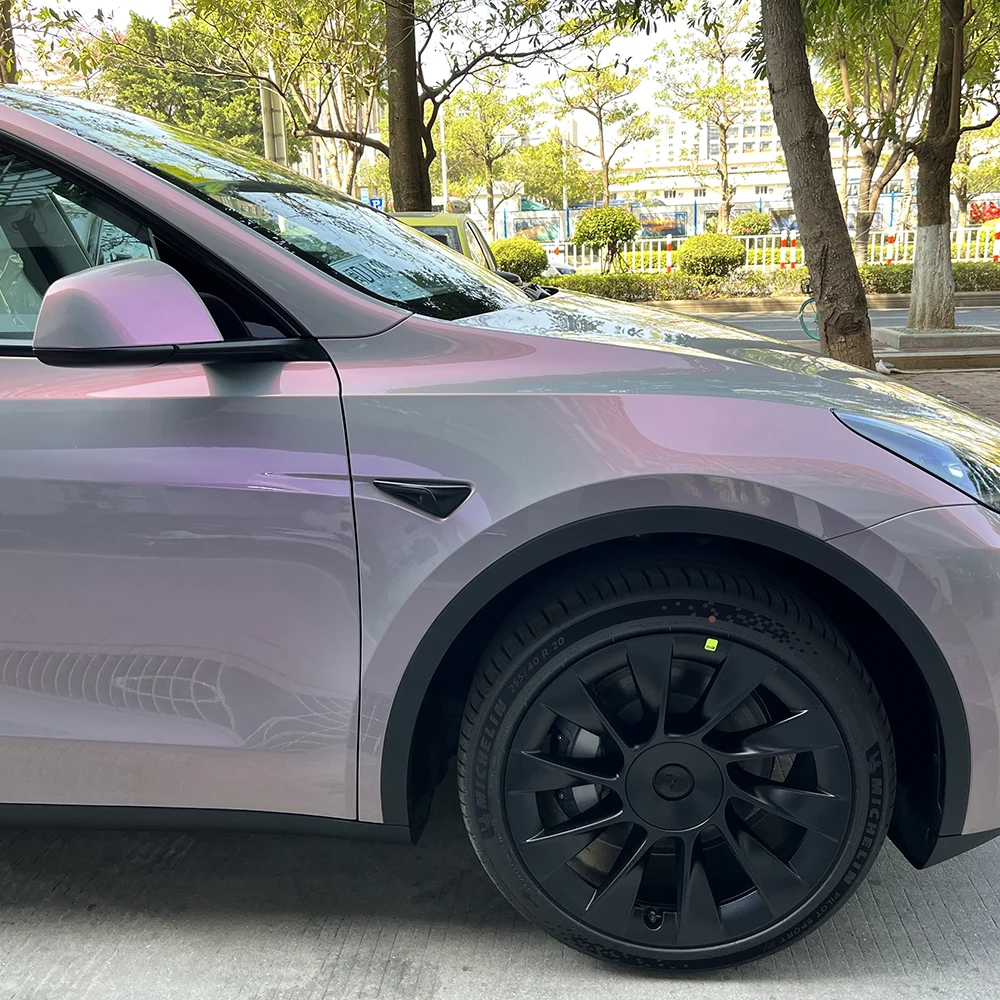

5 Years Warranty TSAUTOP 1.52*17m Magic Candy Color Flip Volcano Grey Anti abrasion Non yellowing TPU PPF Auto Paint Protection
- Category: >>>
- Supplier: Hangzhou Tsautop Machinery Co. Ltd.
Share on (11000008514007):
Product Overview
Description
Product Description
8 Years Warranty TSAUTOP 1.52*17m Magic Candy Color Flip Volcano Grey Anti-abrasion Non-yellowing TPU PPF Auto Paint Protection
Color TPU PPF is a cutting-edge, high-performance material that combines the best qualities of TPU and PPF in foreign substrates. Traditional PVC is replaced with colored TPU materials to simulate the texture of actual auto paint using two-way stretching technology and TPU film dyeing. Many hues are available to meet your various needs. It is compatible with a wide range of substrates, including paper, foil, and metals. Because of its high elasticity, tensile strength, self-healing, anti-yellowing, anti-scratch, and removable qualities, color TPU PPF is an excellent choice for demanding applications such as labels and tags.
Product Quality Standard
NO. | Paint Protection Film Test Report (7MIL) | Test Method | Test value |
1 | Anti-yellowing | GB/T 16422.3-2014 QUV5000 hrs | B value<5 |
2 | Xenon lamp aging test | GB/T 32088-2015 2000 hrs | No change |
3 | TPU thickness | Mitutoyo Thickness meter | 150±10μm |
4 | Coating thickness | Mitutoyo Thickness meter | 15±2μm |
5 | Adhesive thickness | Mitutoyo Thickness meter | 25±2μm |
6 | Release liner thickness | Mitutoyo Thickness meter | 75±2μm |
7 | Clearcoat thickness | Mitutoyo Thickness meter | 50μm |
8 | Overall thickness | Mitutoyo Thickness meter | 330±10μm |
9 | Coating layer Elongation | ASTM D882 | >200% |
10 | Finished film Elongation | ASTM D882 | >300% |
11 | Tensile resistance | ASTM D638-2014 | 25Mpa |
12 | Tear resistance | ASTM D624-2000 | 100N |
13 | Puncture resistance | GB/T 10004 | >15N |
14 | Gravel chip resistance | SAE J400 | Pass |
15 | Initial adhesiveness | GB/T 4852 | >1000g |
16 | Hold adhesiveness | GB/T 4851 | >2200g |
17 | Gloss | 3NH Gloss meter 60 degree | 95GU |
18 | Scratch repairable | Warm water, heat gun | >45℃ |
19 | Coating adhesion | ASTM D3359 | Level 5 |
20 | Water drop angle | Water drop angle meter | 85o |
21 | Waterlogging resistance | GB/T 22886-2008 50℃，168 hrs | No change |
22 | High-temperature resistance | GB/T 7141-2008 80℃，384 hrs | No change |
23 | Hydrolysis resistance | GB/T 4671-2014 40℃，400 hrs | No change |
24 | Acid & alkali resistance | GB/T 11547-2008, soaking for 24 hrs | No change |
25 | Oil resistance | Spraying on surface directly for 60 seconds | No change |

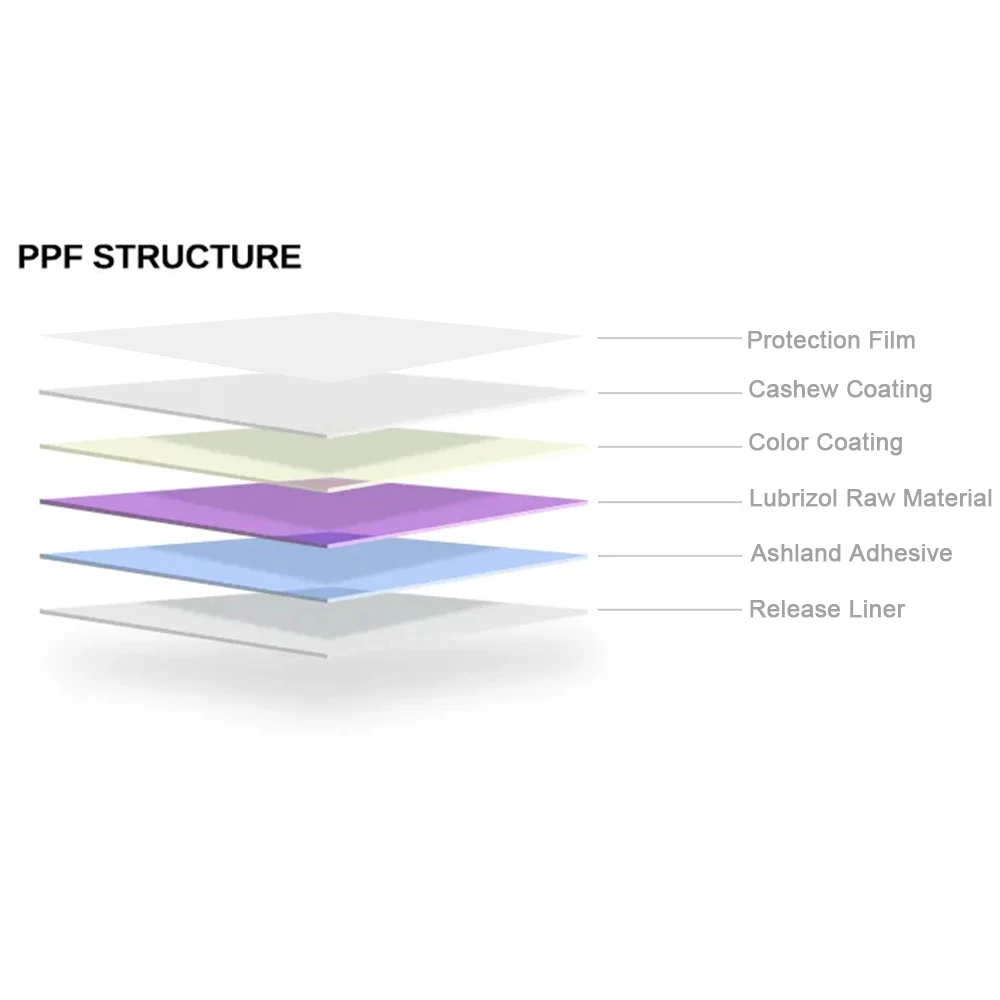

PPF STRUCTURE
Protection FilmCashew Coating
Color Coating
Lubrizol Raw Material
Ashland Adhesive
Release Liner
Color Coating
Lubrizol Raw Material
Ashland Adhesive
Release Liner
Raw material uses TPU top rank 500 enterprise: lubrizol
Adhesive: Uses ashland adhesive top rank 500 enterprise. Ashland
Coating: Coating technology adopted from Japan Cashew Coating
PET PET release liner uses Japan Toray Model NO.CMII: Japan “Toray”
Adhesive: Uses ashland adhesive top rank 500 enterprise. Ashland
Coating: Coating technology adopted from Japan Cashew Coating
PET PET release liner uses Japan Toray Model NO.CMII: Japan “Toray”

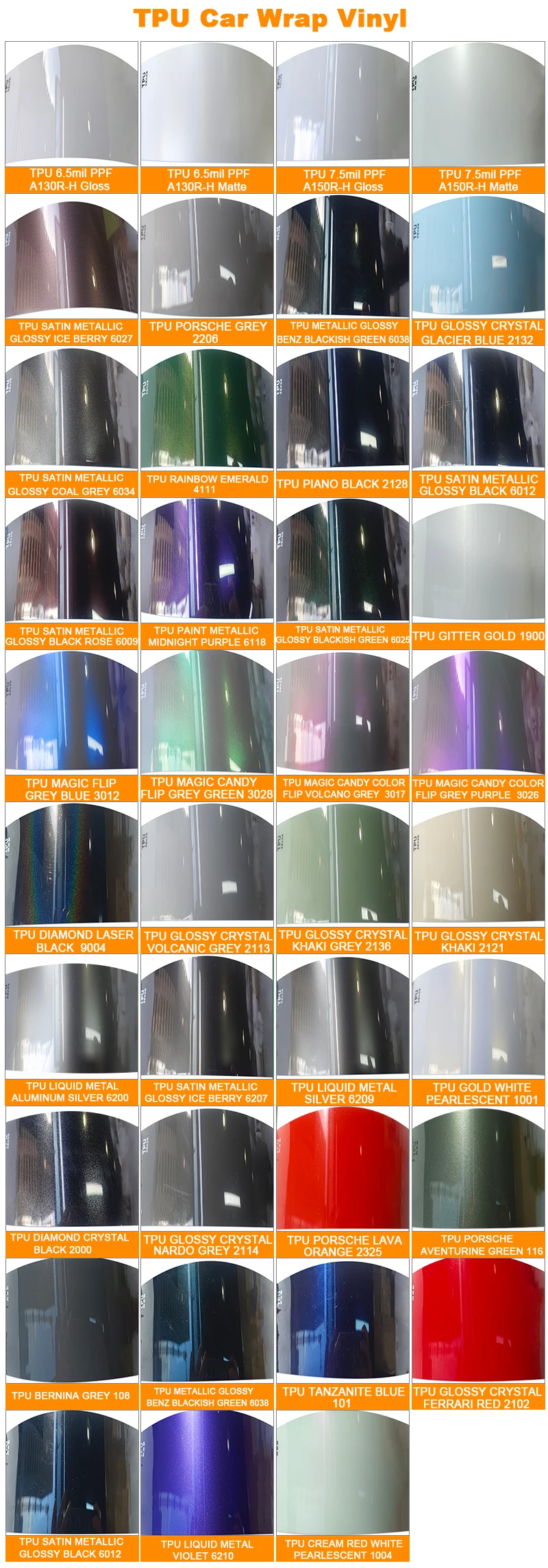

Color Sheet
Size Guide
● Moped:1.52m*3m(5*9.8ft)
● Dirt Bike:1.52m*2m(5*6.5ft)
● ATV Quad:1.52m*3m(5*9.8ft)
● Sportsbike:1.52m*4m(5*13ft)
● Mirco:1.52m*10m(5*32.8ft)
● Hatch:1.52m*13m(5*42.6ft)
● Convertible:1.52*13M(5*42.6ft)
● Coupe:1.52*15M(5*49.2ft)
● Sedan:1.52*18M(5*59ft)
● Small SUV:1.52*20M(5*65.6ft)
● Large SUV/Sedan:1.52*23M(5*75.4ft)
● MPV:1.52*23M(5*75.4ft)
● Pickck Truck:1.52*23M(5*75.4ft)
● Small Van:1.52*18M(5*59ft)
● Large Van:1.52*25M(5*82ft)
● Truck Cab:1.52*18M(5*59ft)
To keep your project running smoothly, we recommend leaving an extra 6-9 feet (2-3 meters) when measuring in case you need extra length during the film application process. This avoids unnecessary delays or expenses due to insufficient materials.
● Dirt Bike:1.52m*2m(5*6.5ft)
● ATV Quad:1.52m*3m(5*9.8ft)
● Sportsbike:1.52m*4m(5*13ft)
● Mirco:1.52m*10m(5*32.8ft)
● Hatch:1.52m*13m(5*42.6ft)
● Convertible:1.52*13M(5*42.6ft)
● Coupe:1.52*15M(5*49.2ft)
● Sedan:1.52*18M(5*59ft)
● Small SUV:1.52*20M(5*65.6ft)
● Large SUV/Sedan:1.52*23M(5*75.4ft)
● MPV:1.52*23M(5*75.4ft)
● Pickck Truck:1.52*23M(5*75.4ft)
● Small Van:1.52*18M(5*59ft)
● Large Van:1.52*25M(5*82ft)
● Truck Cab:1.52*18M(5*59ft)
To keep your project running smoothly, we recommend leaving an extra 6-9 feet (2-3 meters) when measuring in case you need extra length during the film application process. This avoids unnecessary delays or expenses due to insufficient materials.
Related Products
Why Choose Us

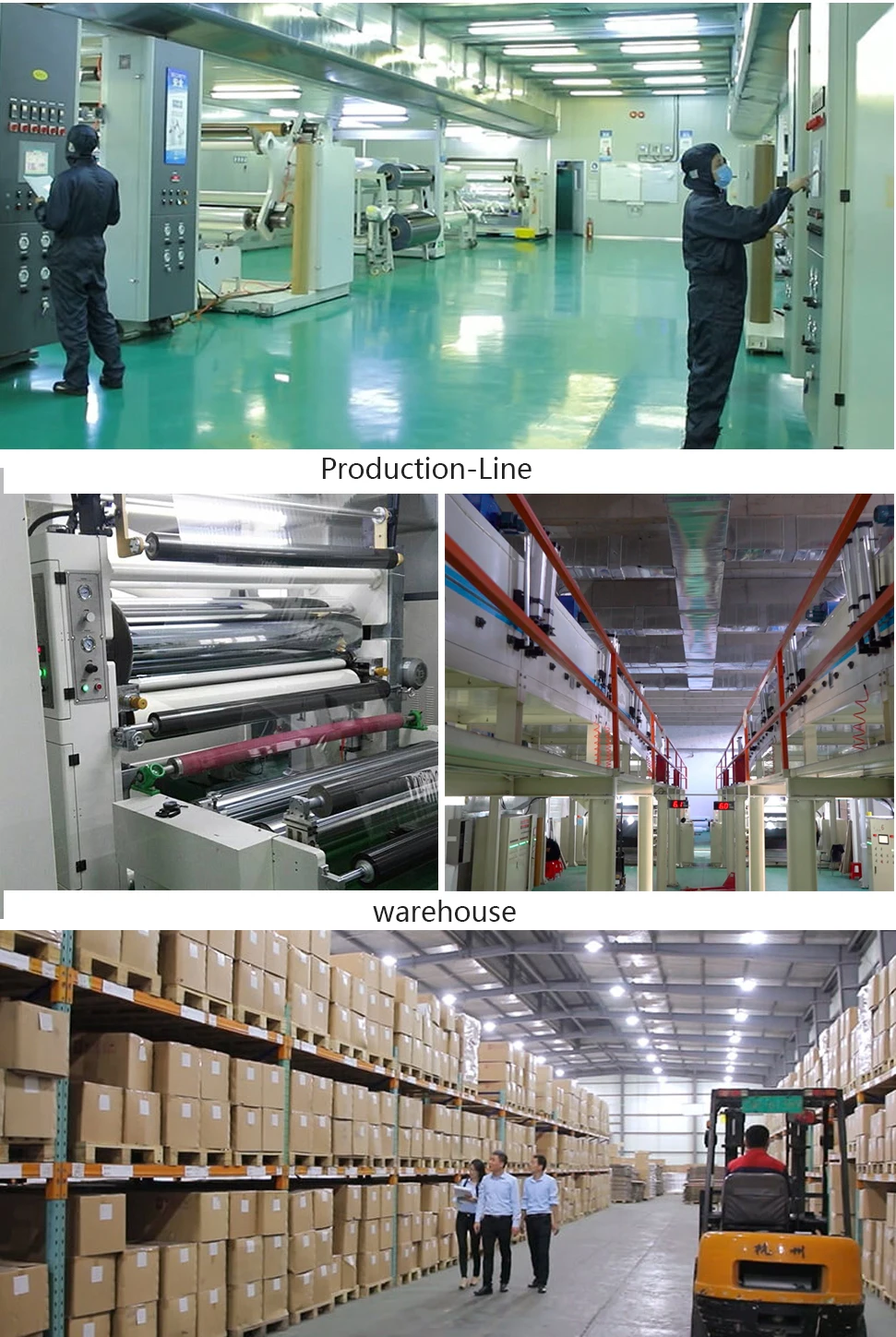

OUR FACTORY
Certifications
Payment and Shipping
FAQ
1, Does colored PPF exist?
Colored PPF offers rock chip protection, Self Healing, UV PROOf, Sand Proof, Color Changing, Anti Scratch, Infrared proof, privacy protection, Anti-Yellowing, Removable, Stretchable, thickness, and 8 years warranty. as Color TPU PPF.
2, How much does PPF TPU cost?
PPF With High-Quality TPU Material For Car Paint Protection. 1 roll is equivalent to the combination of transparent PPF and color-changing vinyl.
3, Does PPF make the paint look dull?
Choosing a professional installer will ensure your PPF lasts for years to come with high-quality products and better warranties. High-quality color TPU PPF, closer to the original paint color.
4, Does PPF have an orange peel?
It has self-healing properties. Its noticeably original paint color finish shows an intense gloss with no orange peel appearance.
5, How long does TPU take to yellow?
As for the TPU, Due to its anti-yellowing function, it will not change color for at least 10 years. Of course, except for high-intensity exposure to the sun 24 hours a day.
6, When PPF is removed, does it harm paint?
Does Paint Be Damaged by PPF Removal? Since the PPF is of the highest caliber, it is simple to peel off at the end of its useful life and, when removed correctly, does not affect the paint of your automobile or compromise it. A professional removal of the film is advised, especially if a new film will be used in its place.
7, Is your automobile shinier with PPF?
TPU PPF actually magically removes swirls and scratches from paint protection film (PPF), leaving your paint smooth and shiny.
8, Is TPU better than PVC?
TPU is superior to PVC in abrasion resistance, low-temperature resistance, oil resistance, chemical resistance, and resilience.TPU can also be self-healing, anti-ultraviolet, anti-sand, discoloration, anti-scratch, anti-infrared, privacy protection, anti-yellowing, detachable, stretchable, and other functions.
Colored PPF offers rock chip protection, Self Healing, UV PROOf, Sand Proof, Color Changing, Anti Scratch, Infrared proof, privacy protection, Anti-Yellowing, Removable, Stretchable, thickness, and 8 years warranty. as Color TPU PPF.
2, How much does PPF TPU cost?
PPF With High-Quality TPU Material For Car Paint Protection. 1 roll is equivalent to the combination of transparent PPF and color-changing vinyl.
3, Does PPF make the paint look dull?
Choosing a professional installer will ensure your PPF lasts for years to come with high-quality products and better warranties. High-quality color TPU PPF, closer to the original paint color.
4, Does PPF have an orange peel?
It has self-healing properties. Its noticeably original paint color finish shows an intense gloss with no orange peel appearance.
5, How long does TPU take to yellow?
As for the TPU, Due to its anti-yellowing function, it will not change color for at least 10 years. Of course, except for high-intensity exposure to the sun 24 hours a day.
6, When PPF is removed, does it harm paint?
Does Paint Be Damaged by PPF Removal? Since the PPF is of the highest caliber, it is simple to peel off at the end of its useful life and, when removed correctly, does not affect the paint of your automobile or compromise it. A professional removal of the film is advised, especially if a new film will be used in its place.
7, Is your automobile shinier with PPF?
TPU PPF actually magically removes swirls and scratches from paint protection film (PPF), leaving your paint smooth and shiny.
8, Is TPU better than PVC?
TPU is superior to PVC in abrasion resistance, low-temperature resistance, oil resistance, chemical resistance, and resilience.TPU can also be self-healing, anti-ultraviolet, anti-sand, discoloration, anti-scratch, anti-infrared, privacy protection, anti-yellowing, detachable, stretchable, and other functions.
