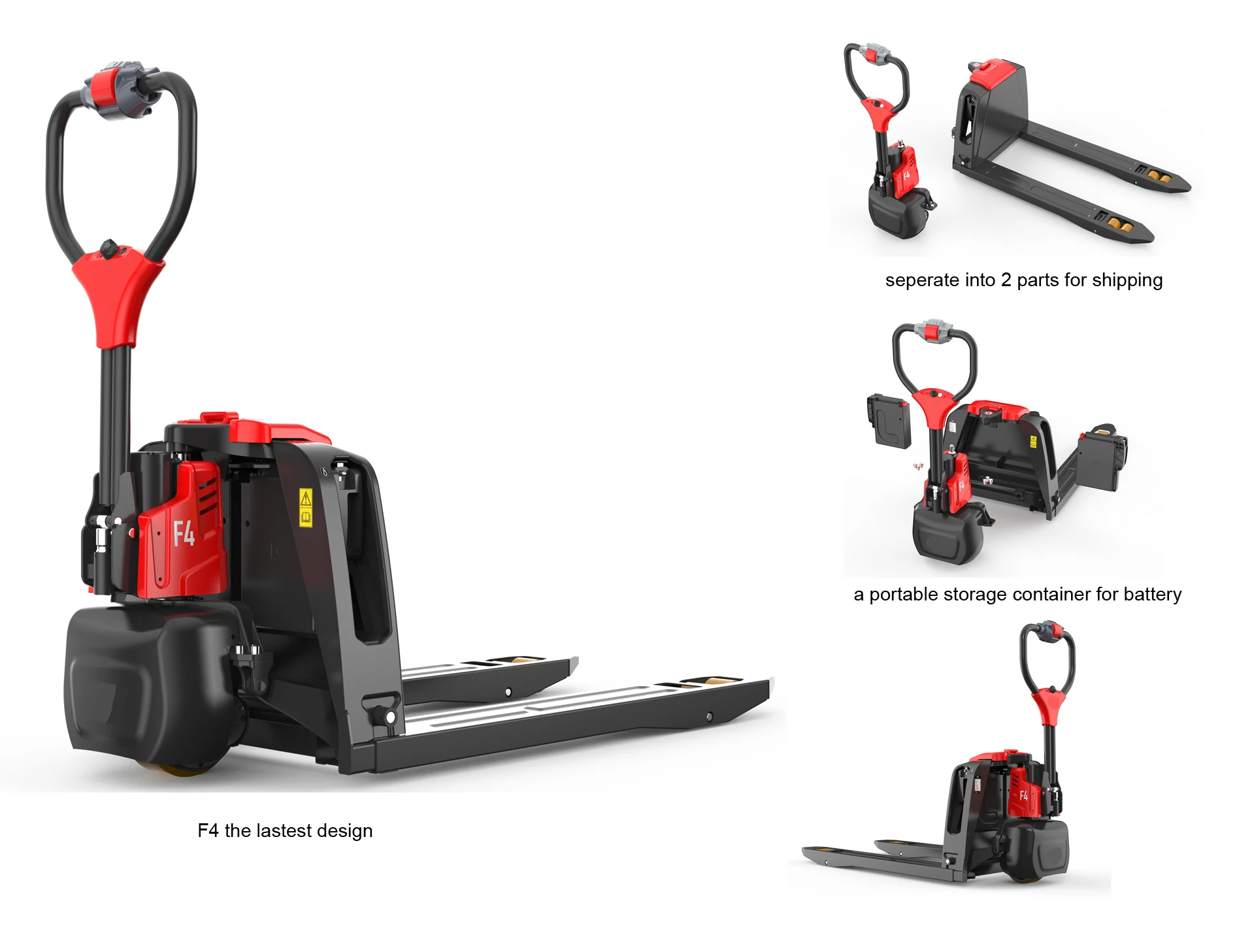

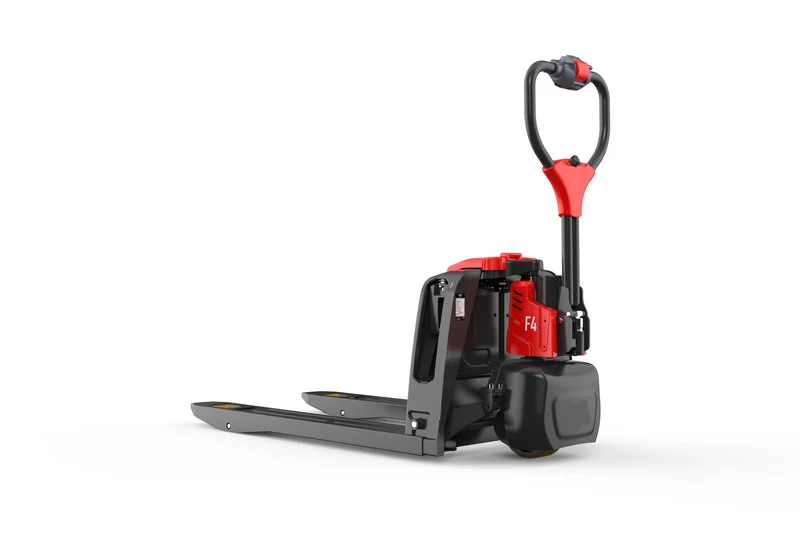

Li Ion Pallet Jack 1.5Ton

Product Overview

Description

Product Description

•Capacity:1500kg.

•All-rounder for diverse applications
•Platform-based design to maximise competitive advantage in the market
•Cost-saving operations throughout the distribution cycle

•F4 brings maximum flexibility in configurations for every application, from occasional usage to heavy duty, thanks to the two power slot design. Its versatility makes F4 an all-rounder, perfect for diverse tasks in the most cost effective way.

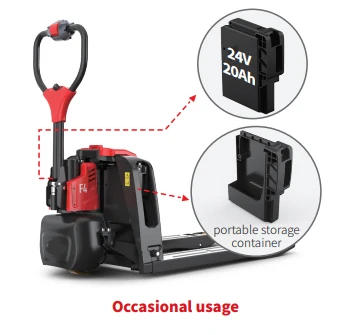

•1 battery for occasional usage.

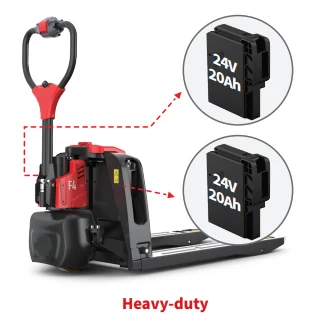

•2 batteries for heavy-duty.
•176 units in a 40' shipping container.



Model		NL-F4
Drive		Full Electric
Operator Type		Pedestrian
Load Capacity	kg	1500
Fork Width	mm	560/685
Fork Length	mm	1150
Lowered Height	mm	88
Lift Height	mm	105
Load Center Distance	mm	600
Tyre Type		Polyurethane
Tyre Size, Front	mm	Ø210x70
Tyre Size, Rear	mm	Ø80x60
Additional Castor Wheels	mm	Ø74x30
Ground Clearance	mm	25
Turning Radius	mm	1360
Travel Speed, laden/unladen	km/h	4/4.5
Max. Gradeability, laden/unladen	%	6/16
Service Brake		Electromagnetic
Drive Motor	kw	0.75
Lift Motor	kw	0.5
Battery	V/Ah	24/20
Energy Consumption	kWh/h	0.18
Type of Drive Control		DC
Battery Weight	kg	5
Service Weight	kg	120
Overall Length	mm	1550
Overall Width	mm	590/695
