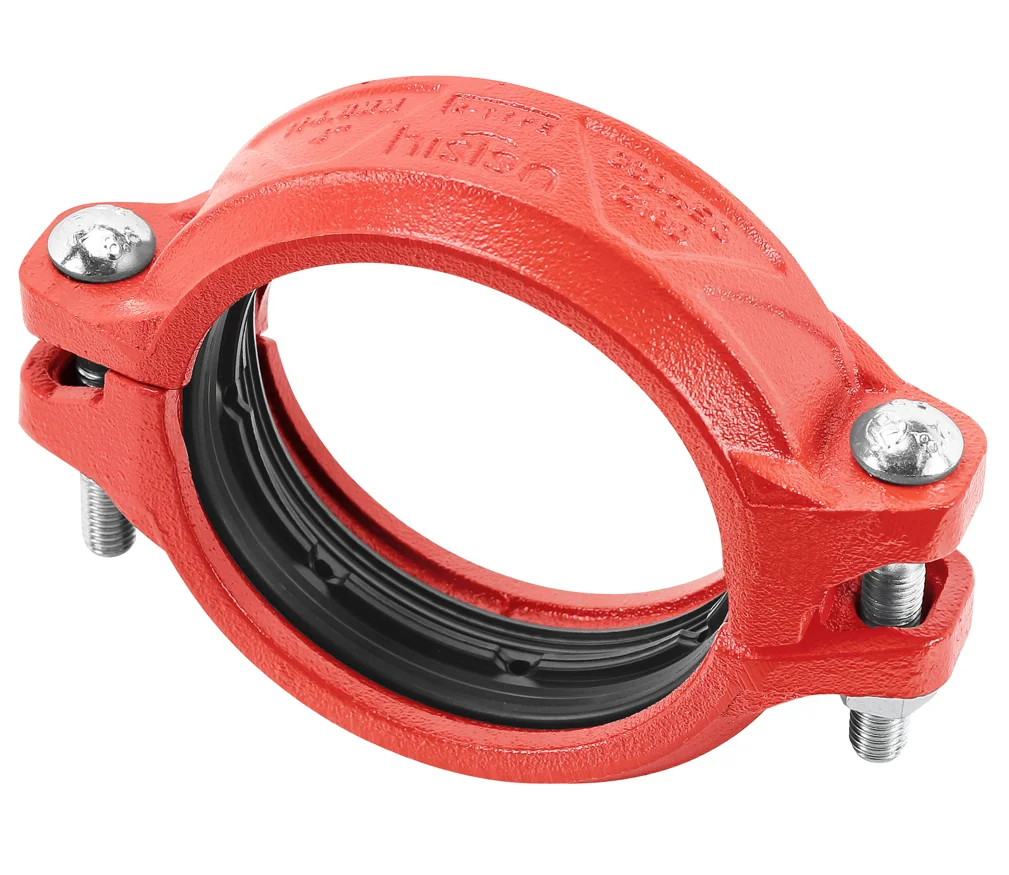

HISTEN One push Grooved coupling

Product Overview

Description





Product Descriptions

1) TOTAL 4 Types
: RIGID (BASIC) / FLEXIBLE (BASIC) / RIGID (ONE-PUSH) / FLEXIBLE (ONE-PUSH)



2) Size : 2", 2-1/2", 3", 4", 5", 6", 8", 10", 12"



3) Applications
- Fire Extinguishing Pipelines
- Water supply pipelines



4) Materials
: Ductile iron castings(ASTM A536) / Stainless steel CF8 & CF8M



5) Working Pressure : 20 bar / 35 bar (High-pressure model)







Features
- One-push insertion method that simply pushes in without disassembling the product (Improving workability)

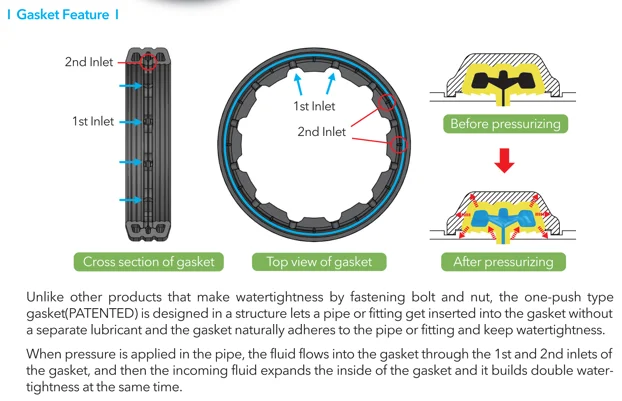

- Step-by-step sealing effect by uniquely designed gasket that lets it naturally adheres to the pipe surface (No gasket deformation and leakage)
- Reduced construction time by 4 times compared to basic products
- Completion of product quality and function verification through “Korea Institute of Machinery and Materials”
- Only supplier in Korea who has acquired the UL approval for both of ductile iron and stainless steel materials
