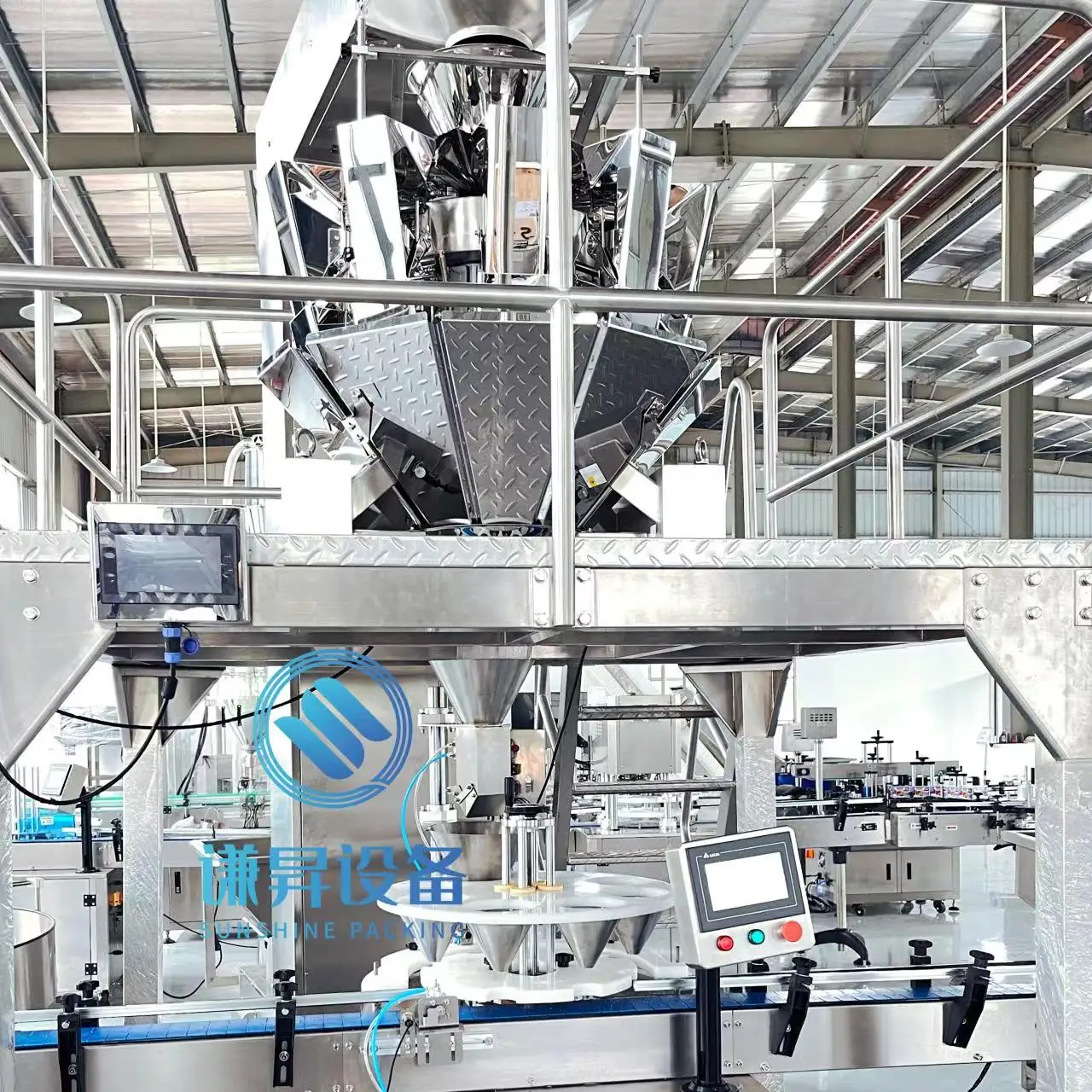

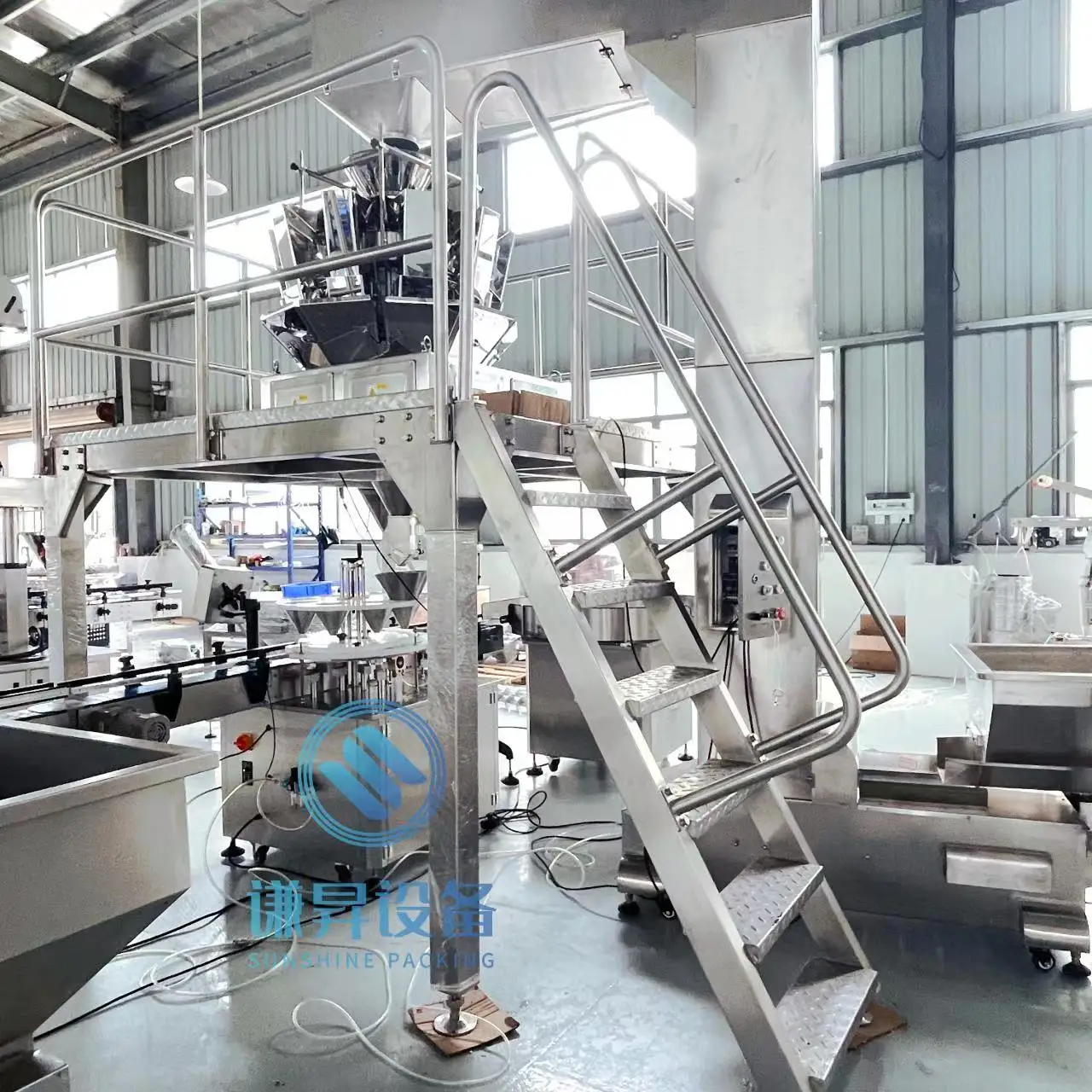

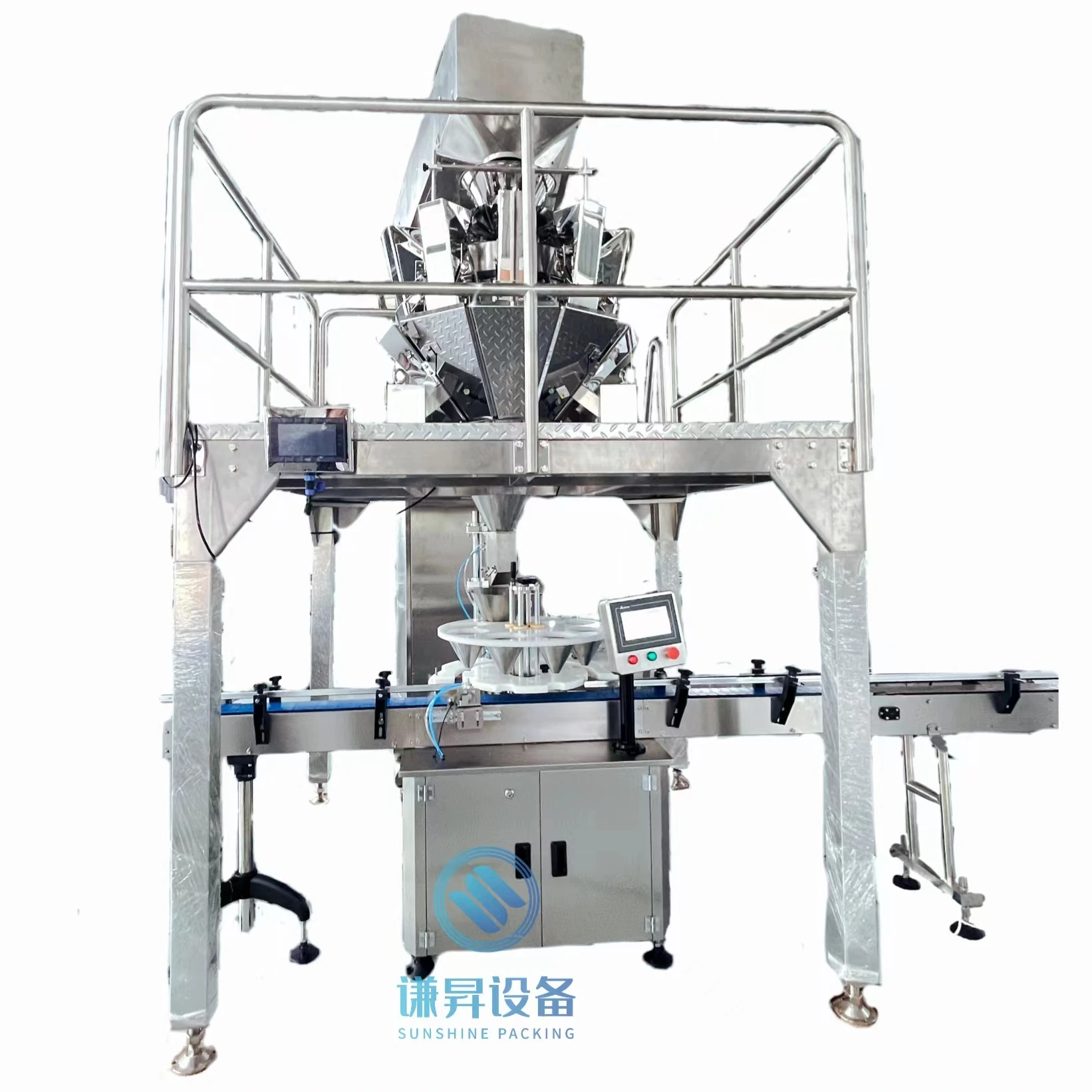

Automatic particle capsule counting bottling bag filling machine and packaging production line
- Category: >>>
- Supplier: Guangzhou Sunshine Packaging Equipment Co. Ltd.
Share on (11000008548228):
Product Overview
Description
VR
Product Advantage

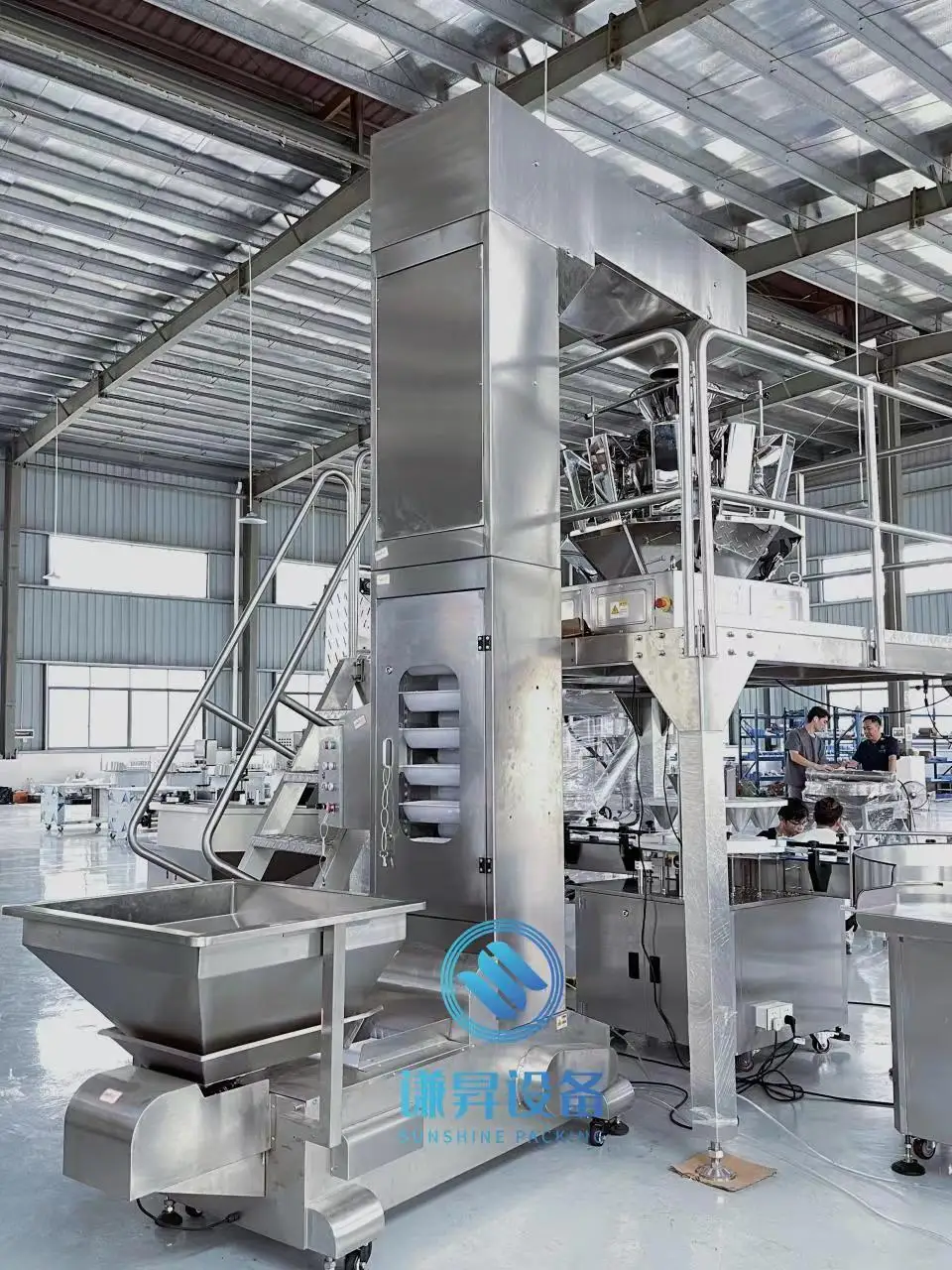

1. It adopts deceleration lifting motor, automatic feeding control system when material is missing, and the bucket type lifting mechanism is completely closed, non-polluting, no leakage, feeding, weighing, filling, and full automation control.
2. Equipped with domestic well-known ultra-miniature combination, the filling speed is fast and the precision is high. Multi-language touch screen human-computer interaction system, visual operation, can also record the total number of cans, pass rate and single can
error of each batch.
error of each batch.
3. Additional installation of rejecting device, materials that do not meet the required weight, will be diverted to another outlet, greatly improving the qualification rate of filling and avoiding waste.
4. Suitable for all kinds of granules and solid materials, flexible machine materials can be selected according to product materials.
Schematic diagram of production line
Machines in this packaging line are optional according to buyer request！Please tell our packing machine factory your needs.
Suitable For
PRODUCT SPECIFICATIONS
Round can sorting table | ||
Production capacity | 35～50cans/min | |
Can height | 40-200mm | |
Can diameter | 35-130mm | |
Operating temperature/ humidity | 0～45℃/ 35～85% | |
Power supply | AC220V 50/60Hz | |
Power | 200W | |
Weight | 152KG（about） | |
Size | L1200*W1200*H840mm | |

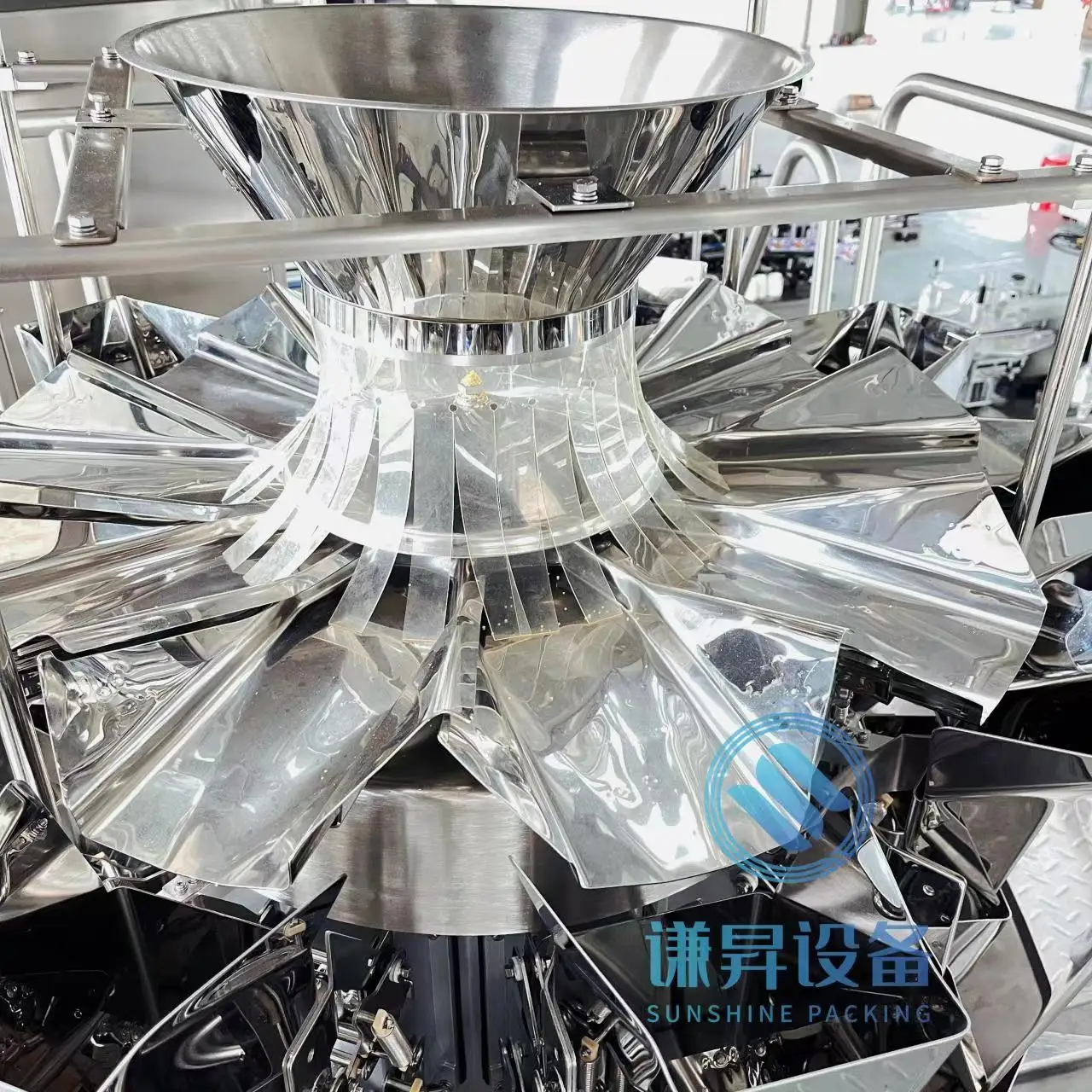

Combination weigher filling system | ||
Weighing range | 10-1500g 10-3000g | |
Weighing accuracy | 0.1-1.5g 0.2-2g | |
Max. filling speed | 60cans/min | |
Hopper capacity | 1.6L/2.5L | |
Control System | MCU | |
Touch screen | 7 inches | |
Power supply | AC220V 50/60Hz | |
Size | L1960*W4060*H3320mm | |
Weight | 1000kg | |
Machine power | 3 kw（about） | |
Automatic turntable feeder | ||
Material | 304 # stainless steel | |
Conveyor belt | 2495mm | |
Maximum speed | 40-50 cans/minute | |
Power specification | 220V 50/60HZ | |
Powe | 800W | |
Weight | 226kg | |
Size | 2495 * W900 * H1620mm | |
Without vibration, add 1500 yuan with vibration | ||
High speed sealing machine(with acrylic cover) | ||
Number of sealing head | 1 | |
Number of seaming rollers | 4 (2 first operation, 2 second operation) | |
Sealing speed | 5 ~ 50 cans / min | |
Sealing height | 21-220mm | |
Sealing can diameter | 25-130mm | |
Working temperature/humidity | 0 ~ 45 ° C 35 ~ 85% | |
Working power supply | single-phase AC220V 50/60Hz | |
Total power | 2.1KW | |
Weight | 330KG (about) | |
Dimensions | L 1850* W 840* H1650mm | |
Servo capping machine（Including lids loading machine） | ||
Cap screwing speed | 30-50 bottles/min | |
Bottle cap diameter | 25-85mm | |
Bottle height | 25-300mm | |
Total power | 1.3KW | |
Power supply | AC220V 50/60Hz | |
Weight | 200KG (about) | |
Dimensions | L 2500*W 800*H 1600mm | |
Round bottle labeler | ||
Labeling speed | about 0-60P/min | |
Labeling accuracy | ±1mm (does not include product label errors) | |
Applicable product size | diameter 30-150mm/height 30-350mm | |
Applicable label range | length 10 ~ 260mm, bottom paper width 10-160mm | |
Max label supply | OD 300 or less, inner diameter 76mm | |
Ambient temperature / humidity | 0-50 ° C / 15-85% | |
Voltage specification | AC220V, 50HZ | |
Dimensions/weigh | about L2200*W1300*H1700mm / 190Kg | |
CO2 laser printing machine | ||
Laser power | 10W/30W/50W | |
Laser wavelength | 10.6um | |
Marking range | 110X110mm | |
Line speed | ≤180 m / min; (galvanometer speed: 0~10000mm / s) | |
Power demand | 220V/50HZ | |
Machine power consumption | 700W | |
Cooling method | air cooling | |
Size/Weight | 750*800*1400mm/ 50kg | |
FEATURES AT A GLANCE
Suitable for weighing of small granule materials such as candy, seed, monopodium glutamate, coffee,chocolate bean,etc.
The elevator silo is 120L, which can be adjusted according to customer requirements and sealed.
Delta PLC whole machine Servo control makes the equipment run safer, more stable and smarter.
Metering system
8-head combined scale
10-head combined scale
114-head combined scale
Different types of combined scales are available in the factory for products packaging in various weight ranges.
HOT PRODUCT
Company profile
Service
Pre-Sale service
1. Contact the customer engineer how to design the packaging machine.
2. Test packaging machine with sample machine and material.
3. Send the video of testing the packaging machine to customers remotely, so as to understand the packaging machine more directly.
After-sales service
1.Manual book.
2.On-site or remote installation，equipment commissioning，training for customer operators, operation instructions and relevant technical data，are available for you.
3.Strong after-sales service team to solve the problems caused by users' use and prevent equipment accidents.
4.Free one-year warranty for the complete machine. During the warranty year, without human-being broken, we will replace a new one to you. The warranty will start from the machine sent out and get the Bill of Lading.
5. Equipment upgrade services with an irregular user access system are available for you.
1. Contact the customer engineer how to design the packaging machine.
2. Test packaging machine with sample machine and material.
3. Send the video of testing the packaging machine to customers remotely, so as to understand the packaging machine more directly.
After-sales service
1.Manual book.
2.On-site or remote installation，equipment commissioning，training for customer operators, operation instructions and relevant technical data，are available for you.
3.Strong after-sales service team to solve the problems caused by users' use and prevent equipment accidents.
4.Free one-year warranty for the complete machine. During the warranty year, without human-being broken, we will replace a new one to you. The warranty will start from the machine sent out and get the Bill of Lading.
5. Equipment upgrade services with an irregular user access system are available for you.
Want to know more, welcome to contact us.
Q 1 : Are you factory or trading company?
A: We are factory or manufacturer.
Q 2: Is engineer available to serve oversea?
Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q 3: If we have very special request for the production line,could you help me to do the design?
We have more than 15 years of experience, we have a professional engineer and installation team to meet your packaging needs.
Tell us about your product details and packing requirements.
1. What kind of product you would like to pack?
2. The bag/sachet/pouch size of you need for the product packing ( the length, width).
3. The weigh of each pack you need.
4. You requirement for the machines and the bag style.
Q 4: How can we make sure about the machine quality after packing the order?
Before delivery, we will send you the pictures and videos for you to check the machine quality.
And also you can arrange for quality checking by yourself or by your contacts in China.
Q 5: What should I do if we are not able to operate the machine when we receive it?
A: Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional
after-sale group to customer 's site to solve any problems.
Q 6: We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate. And it is available for us to use alibaba trade assurance service,guarantee your
money, and guarantee your machine's on-time delivery and machine quality.
Q 7: Can you explain me the whole transaction process ?
①Sign the Contact
②Arrange 30% deposit to our factory
③Factory arrange production
④Testing & detecting the machine before shipping
⑤Inspected by customer or third agency through online or site test.
⑥Arrange the balance payment before shipment.
A: We are factory or manufacturer.
Q 2: Is engineer available to serve oversea?
Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q 3: If we have very special request for the production line,could you help me to do the design?
We have more than 15 years of experience, we have a professional engineer and installation team to meet your packaging needs.
Tell us about your product details and packing requirements.
1. What kind of product you would like to pack?
2. The bag/sachet/pouch size of you need for the product packing ( the length, width).
3. The weigh of each pack you need.
4. You requirement for the machines and the bag style.
Q 4: How can we make sure about the machine quality after packing the order?
Before delivery, we will send you the pictures and videos for you to check the machine quality.
And also you can arrange for quality checking by yourself or by your contacts in China.
Q 5: What should I do if we are not able to operate the machine when we receive it?
A: Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional
after-sale group to customer 's site to solve any problems.
Q 6: We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate. And it is available for us to use alibaba trade assurance service,guarantee your
money, and guarantee your machine's on-time delivery and machine quality.
Q 7: Can you explain me the whole transaction process ?
①Sign the Contact
②Arrange 30% deposit to our factory
③Factory arrange production
④Testing & detecting the machine before shipping
⑤Inspected by customer or third agency through online or site test.
⑥Arrange the balance payment before shipment.
