Product Overview
Description
lCD interface PCB

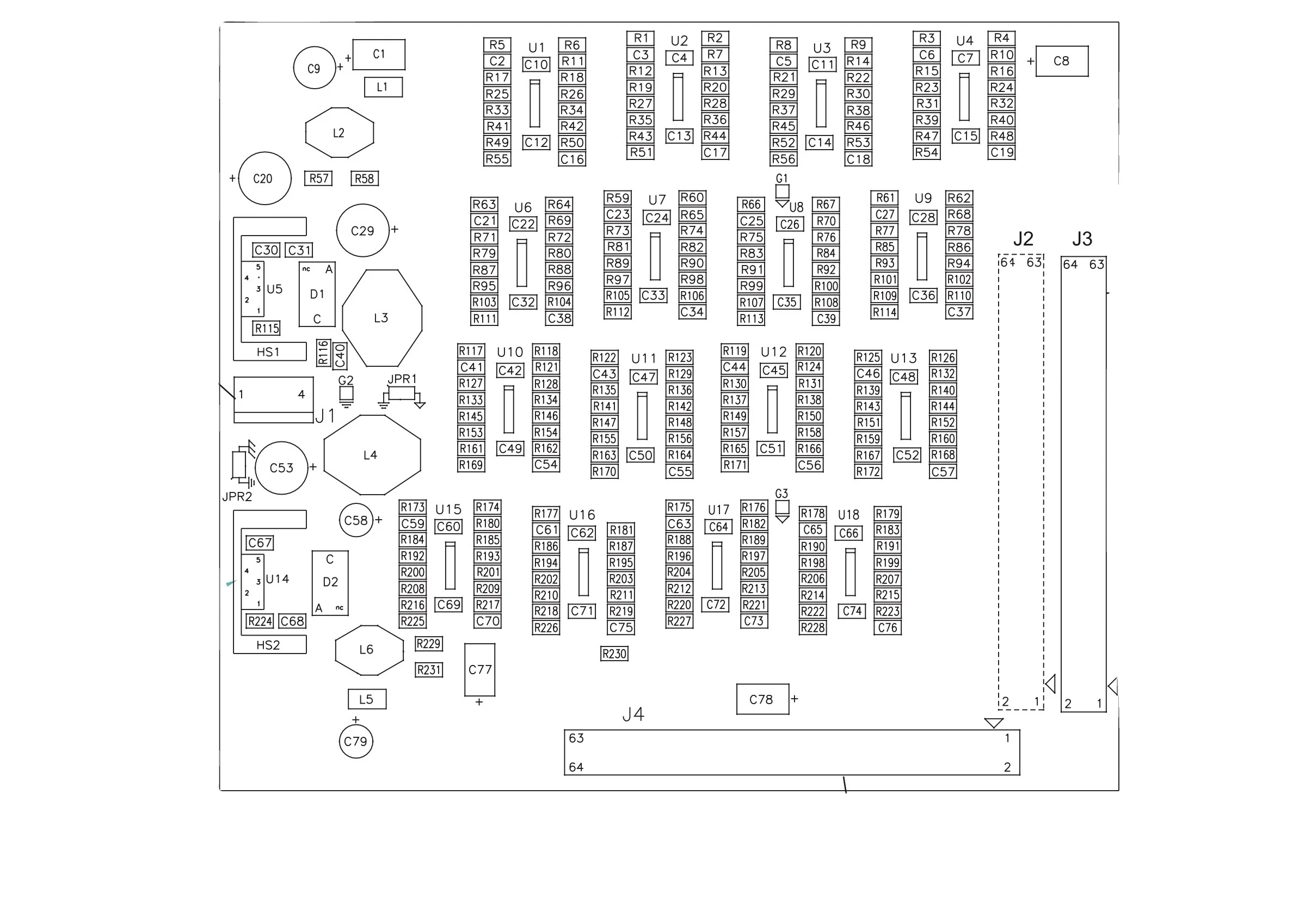

The LCD Interface PCB is used to adapt the video for the lower screens so that it can be displayed properly on the LCD flatscreens. The board receives 8 lanes of RGBS video from a Video3 PCB and converts the video intended for the lower LCD Screens. The signals for all eight lanes are converted and transferred to the Secondary Patch Panel through connector J3. Refer to figure titled LCD Interface PCB.
Brunswick Vector Scoring Computer Keypad/LCD
Index No. | Part No. | Description |
1 | 57-863481-402 57-863480-402 | Scoring Computer Complete - Keypad only Sconng Computer Complete - Lower LCD Touchscreen |
2 | 57-500268-800 57-500269-800 | Mother Board PCB Only (Brunswick Rapid Exchange) Mother Board PCB Assembly (Brunswick Rapid Exchange) |
3 | 57-500295-810 | Hard Drive w/Mounting Bracket (Brunswick Rapid Exchange) |
4 | 57-500234-800 | Scoring Computer Power Supply (Brunswick Rapid Exchange) |
5 | 57-500283-800 | Video 3 PCB (Brunswick Rapid Exchange) |
6 | 57-500329-800 | Primary Patch Panel PCB (Brunswick Rapd Exchange) |
7 | 57-500229-800 | Ethernet PCB (Brunswick Rapid Exchange) |
8 | 57-500248-800 | LCD Interface. LCD Touch Screen only (Brunswick Rapid Exchange) |
9 | 57-500309-800 | LCD Patch Panel PCB (rear). LCD Touchscreen onfy (Brunswick Rapid Exchange) |
