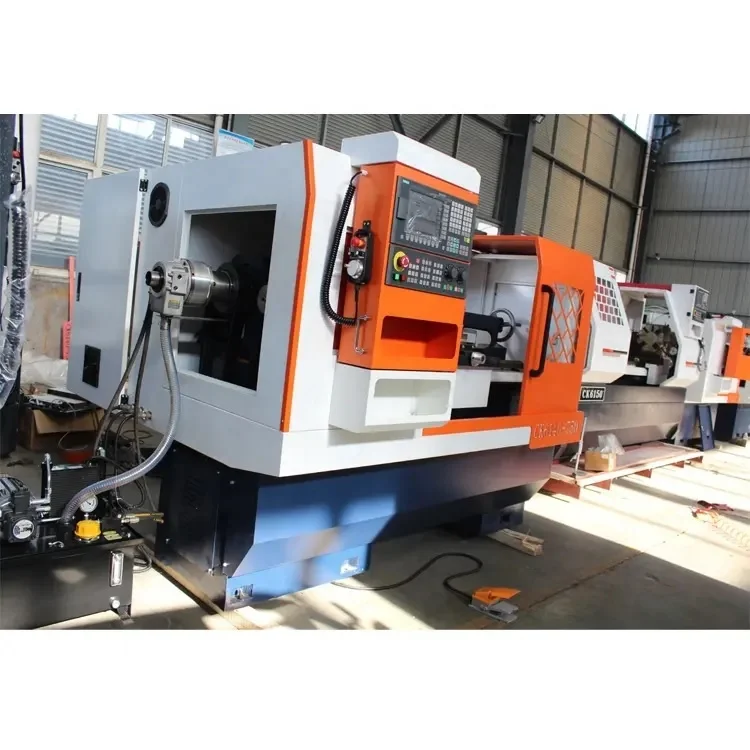

CK6140 cnc lathe automatic China torno metal cnc parallel lathe price CK6140 metal torno price cnc
- Category: >>>
- Supplier: Taian Yuzhuo Machinery Co. Ltd.
Share on (11000008570990):
Product Overview
Description
Product Description
Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as
processing, and also. can process the single and multiple threads in metric, inch and other standards.
processing, and also. can process the single and multiple threads in metric, inch and other standards.
Specification
Model | CK6140A | CK6140B | ||
Max. rotation diameter over bed | mm | Φ400 | Φ400 | |
Max. rotation diameter over pallet | mm | Φ245 | Φ245 | |
Max. workpiece length | mm | 750/1000 | 750/1000 | |
Main transmission form | Independent spindle | Two gears | ||
Spindle speed mode | Frequency stepless speed | Frequency stepless speed in gear | ||
Spindle speed range | r/min | 200-2500 | 60-1800 | |
Spindle head form | 6-A2 | 6-A2 | ||
Spindle bore | mm | Φ60 | Φ52 | |
Spindle hole outside taper | MT6 | MT6 | ||
Chuck diameter | mm | Φ250 | Φ250 | |
Main motor power | kw | 5.5 | 5.5 | |
Turret maximum stroke | mm | X: 260 Z: 760/1020 | X: 260 Z: 760/1020 | |
Fast-moving feed | mm/min | X: 6000 Z: 8000 | X: 6000 Z: 8000 | |
Positioning accuracy | mm | X: 0.01 Z: 0.015 | X: 0.01 Z: 0.015 | |
Dia. of tailstock quill | mm | Φ60 | Φ60 | |
Tailstock quill stroke | mm | 120 | 120 | |
Taper of tailstock quill | MT4 | MT4 | ||
Repeat positioning accuracy | mm | 0.008 | 0.008 | |
Section of turning tool | mm | 25x25 | 25x25 | |
Size (LxWxH) | mm | 2320x1400x17002570x1400x1700 | 2320x1400x1700 2570x1400x1700 | |
Net weight | kg | 2000 | 2100 | |
Standard configuration:

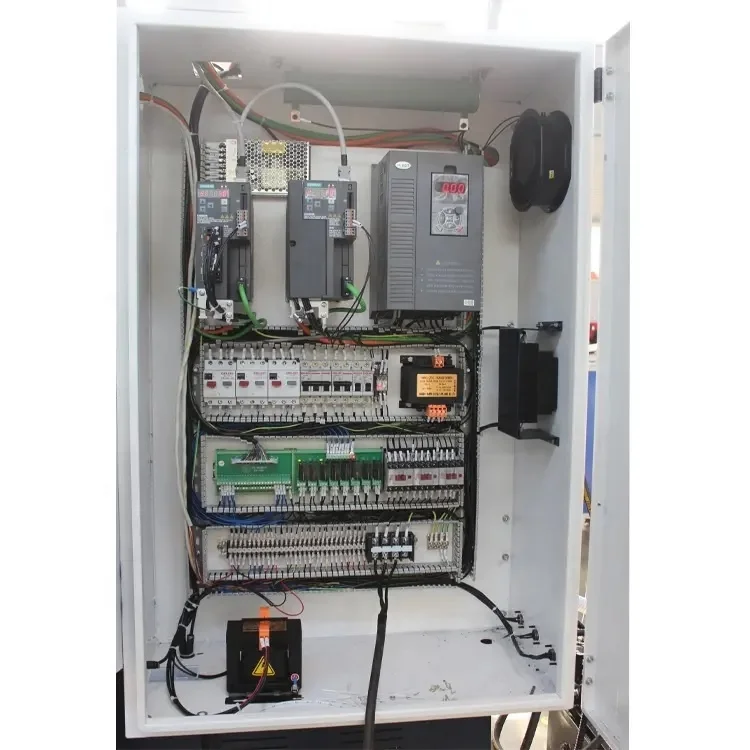

1) System:GSK928TD-L, servo motor and drive.
2) 3-jaw manual chuck.

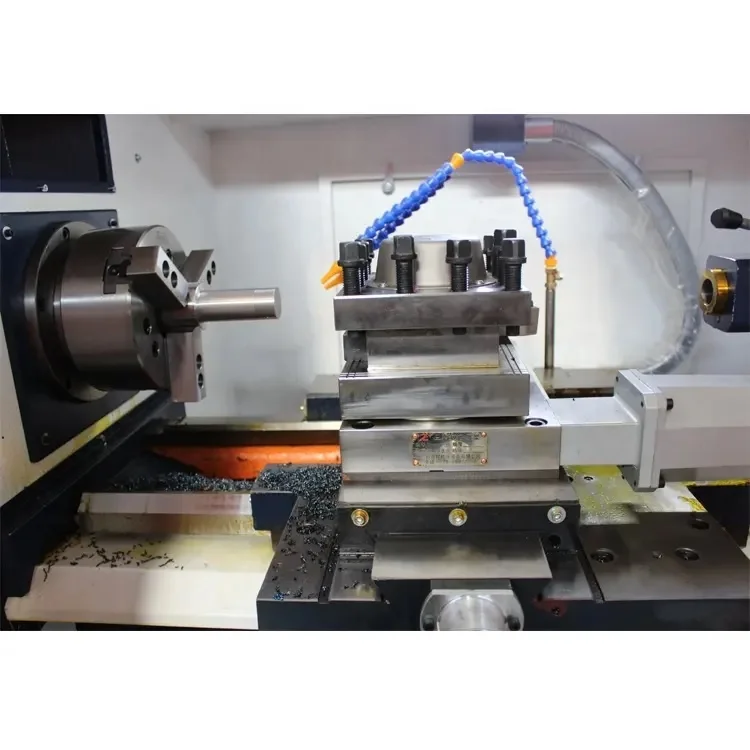

3) Four station electric tool post.

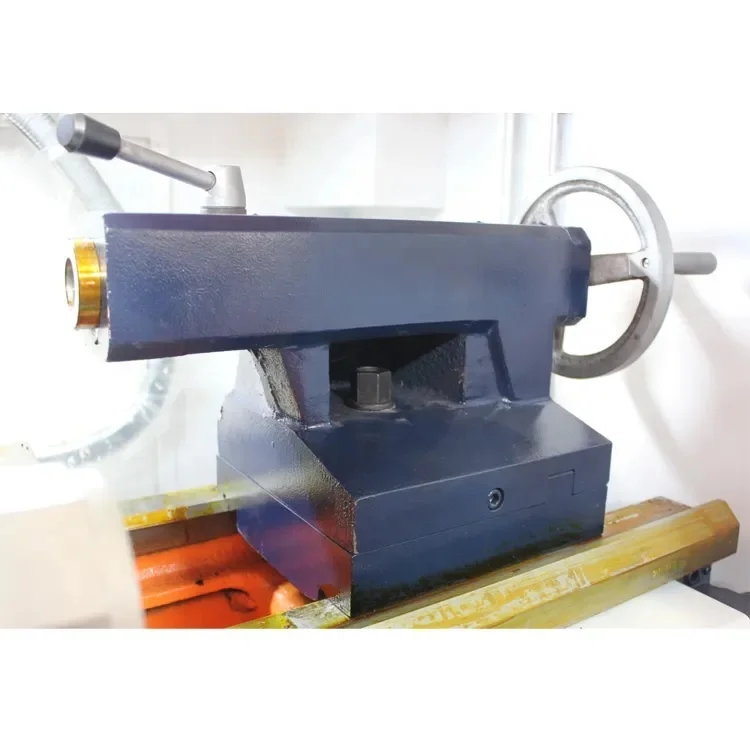

4) Manual tailstock.
5) Cooling system.
6) Lighten system.
7) Automatic lubrication system.
2) 3-jaw manual chuck.
3) Four station electric tool post.
4) Manual tailstock.
5) Cooling system.
6) Lighten system.
7) Automatic lubrication system.

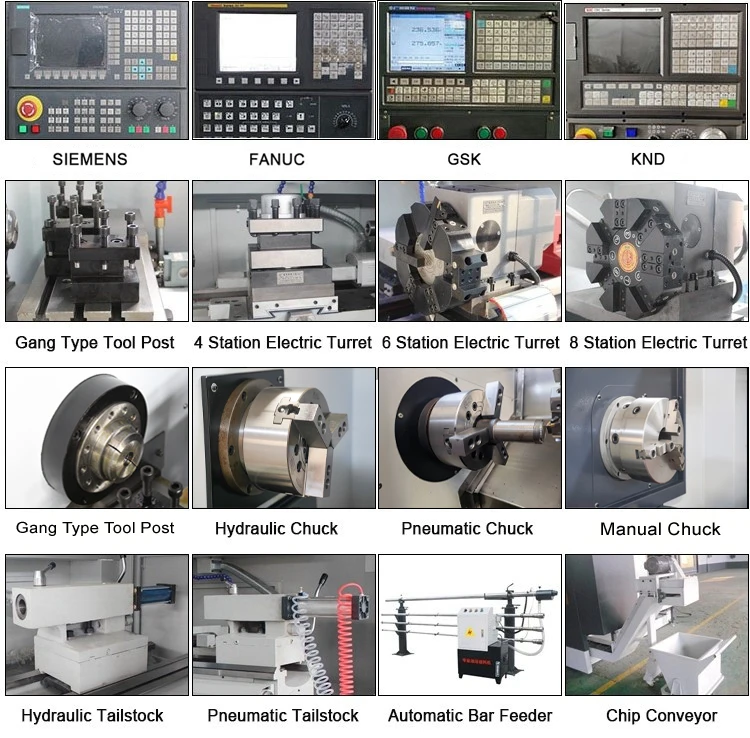

Optional configuration:
1). CNC system: GSK, Siemens, Fanuc, KND, GUNT.
2). Hydraulic chuck, Pneumatic chuck .
3). Hydraulic tailstock, Pneumatic tailstock.
4). 6/8-station electric turret, Hydraulic turret.
5). Automatic bar feeder, Chip conveyor.
6). Optional processing length: 1000/1500mm.
2). Hydraulic chuck, Pneumatic chuck .
3). Hydraulic tailstock, Pneumatic tailstock.
4). 6/8-station electric turret, Hydraulic turret.
5). Automatic bar feeder, Chip conveyor.
6). Optional processing length: 1000/1500mm.
Important note:
1. Please confirm your local voltage with our sales staff before ordering.
2. Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose
the best model for you.
2. Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose
the best model for you.

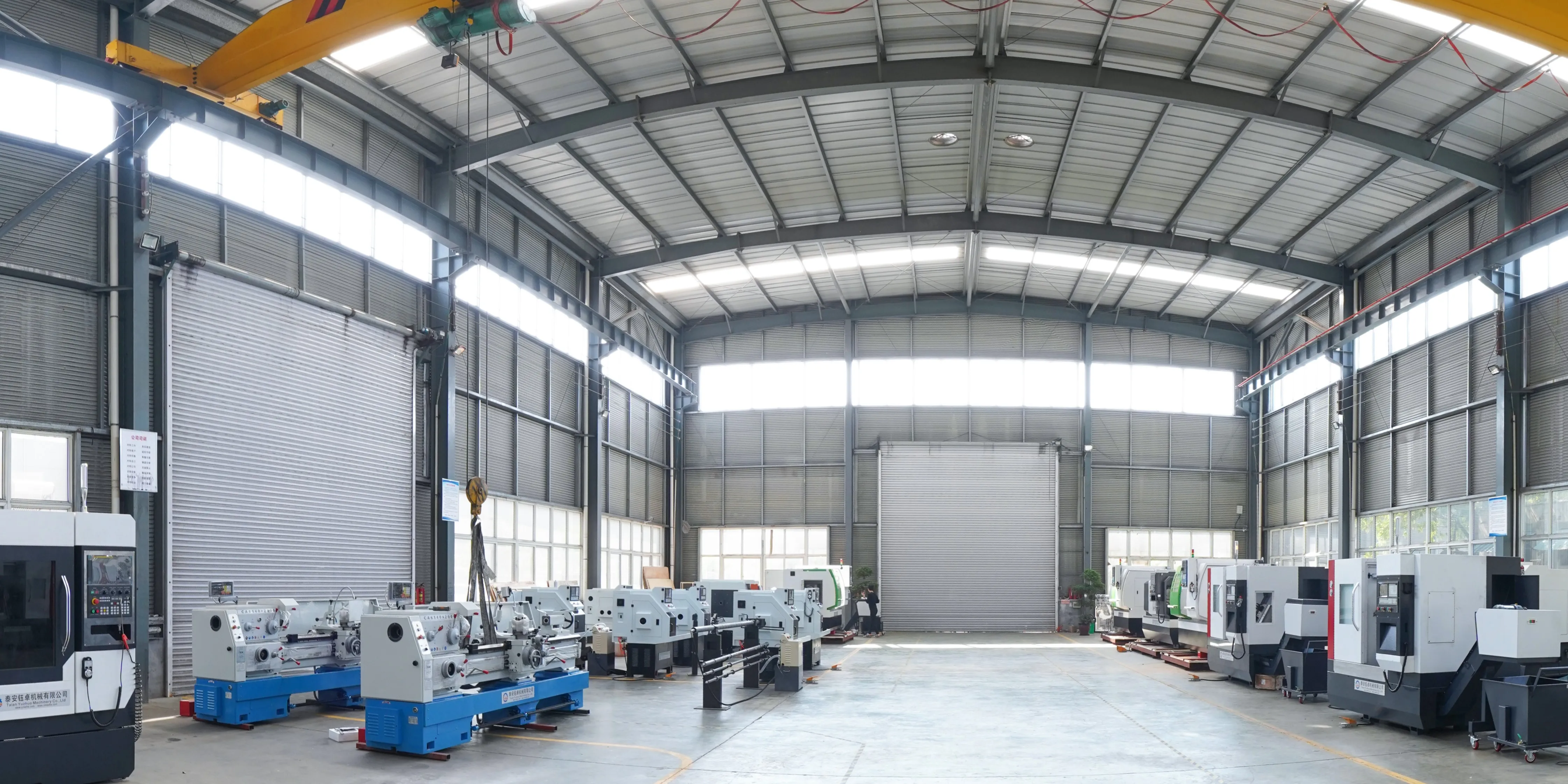

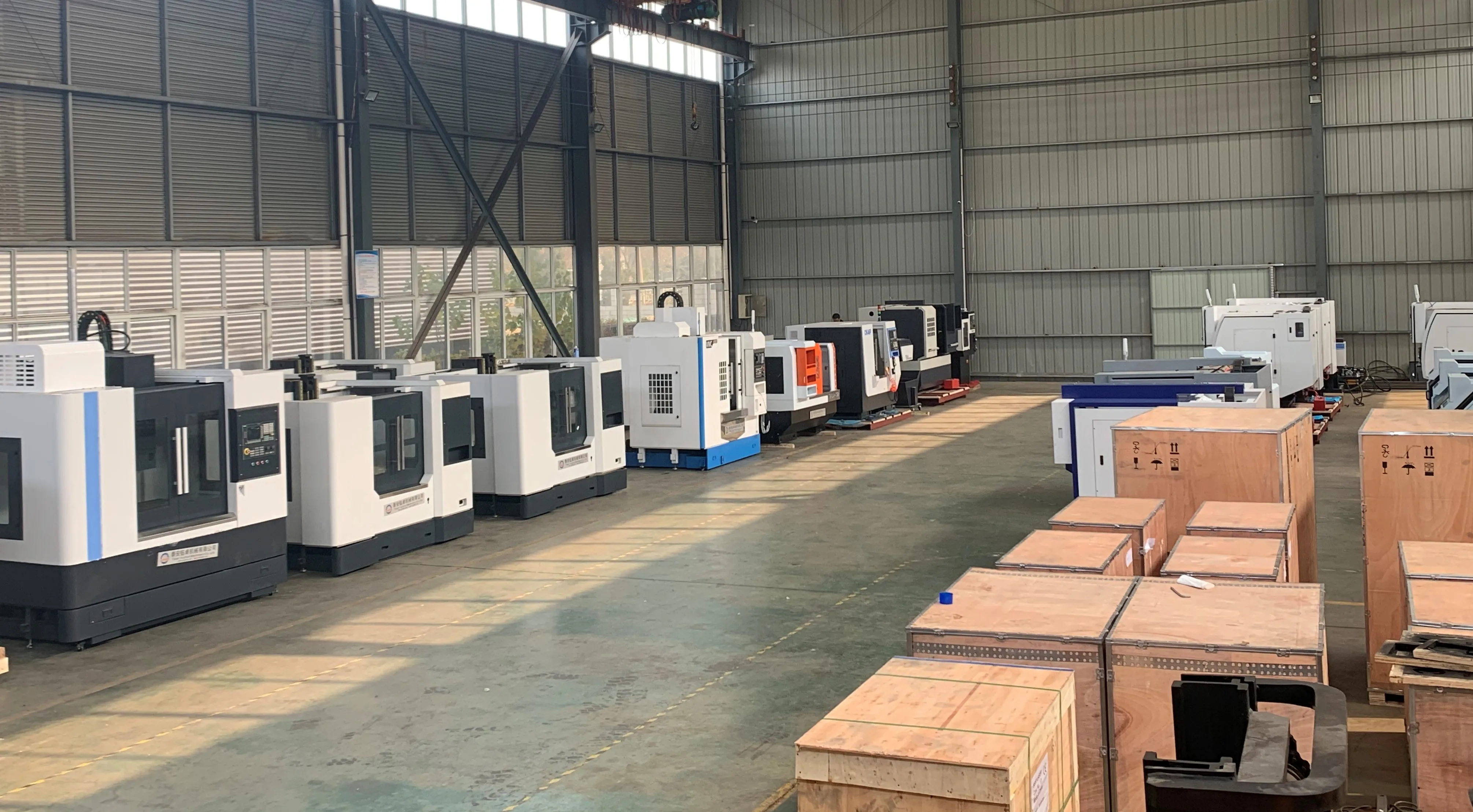

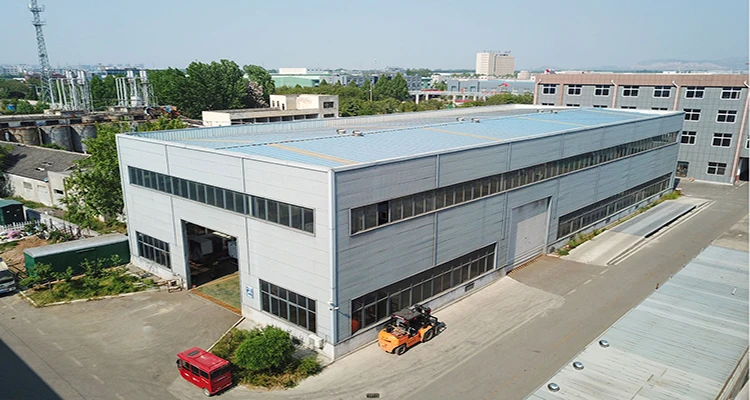

Company Profile
Tai'an YuZhuo Machinery Co.,Ltd(as for "YZ CNC"),is a company including active and professional teams ,specialized in CNC machining Center,CNC Lathe Machine,Wheel Lathe machine . Our team have great experience on manufacturing and exporting. Our service department has experienced technicians that can offer you answers to your technical questions, and in many cases, solve your problem effectively over the phone.
We are dedicated to provide customers with the best, highly value added machines. We have earned a strong reputation in design and manufacturing of a wide variety of CNC machine tools. We continuously improve the performance level of our machines, strengthen our quality control system, and offer worldwide support services. Our dedication to the global marketplace will create a new era of CNC machine tools.
We are dedicated to provide customers with the best, highly value added machines. We have earned a strong reputation in design and manufacturing of a wide variety of CNC machine tools. We continuously improve the performance level of our machines, strengthen our quality control system, and offer worldwide support services. Our dedication to the global marketplace will create a new era of CNC machine tools.
FAQ
1. who are we?
We are based in Shandong, China, start from 2015,sell to Domestic Market(20.00%),North America(15.00%),Western Europe(10.00%),Eastern Europe(10.00%),Oceania(10.00%),South America(5.00%),Africa(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Southeast Asia(5.00%),Eastern Asia(5.00%),Mid East(5.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
CNC Lathe,Vertical CNC Lathe,Slant Bed CNC Lathe,Pipe Threading CNC Lathe,CNC Machining Center
4. why should you buy from us not from other suppliers?
With over 18 years experience supplying CNC machine tools to all over the world, especially to UK, US, Europe and Middle East countries, YZ CNC is renowned for its value, quality and service. Simple rim repairs using YZ wheel repair CNC lathe machine
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shandong, China, start from 2015,sell to Domestic Market(20.00%),North America(15.00%),Western Europe(10.00%),Eastern Europe(10.00%),Oceania(10.00%),South America(5.00%),Africa(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Southeast Asia(5.00%),Eastern Asia(5.00%),Mid East(5.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
CNC Lathe,Vertical CNC Lathe,Slant Bed CNC Lathe,Pipe Threading CNC Lathe,CNC Machining Center
4. why should you buy from us not from other suppliers?
With over 18 years experience supplying CNC machine tools to all over the world, especially to UK, US, Europe and Middle East countries, YZ CNC is renowned for its value, quality and service. Simple rim repairs using YZ wheel repair CNC lathe machine
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
