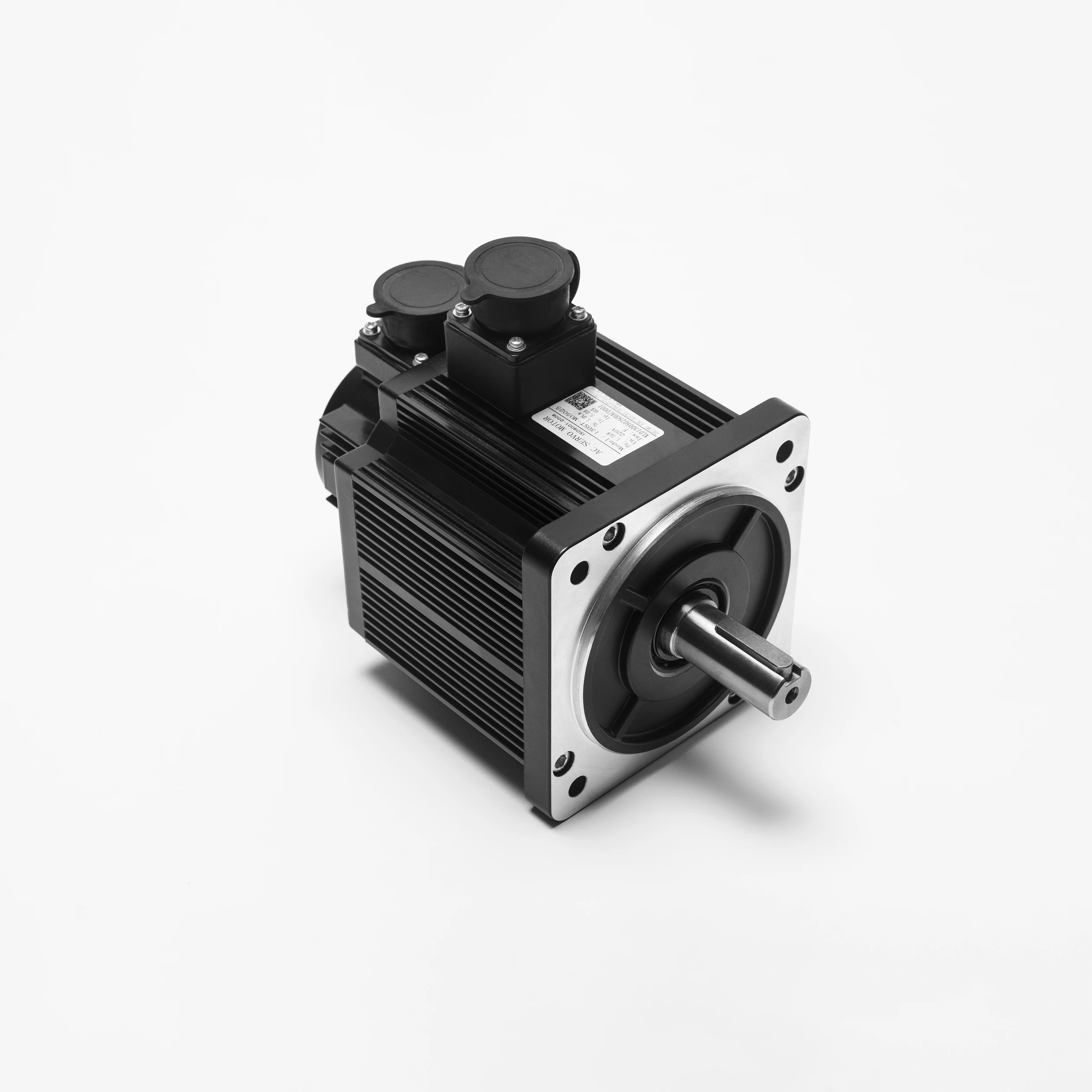

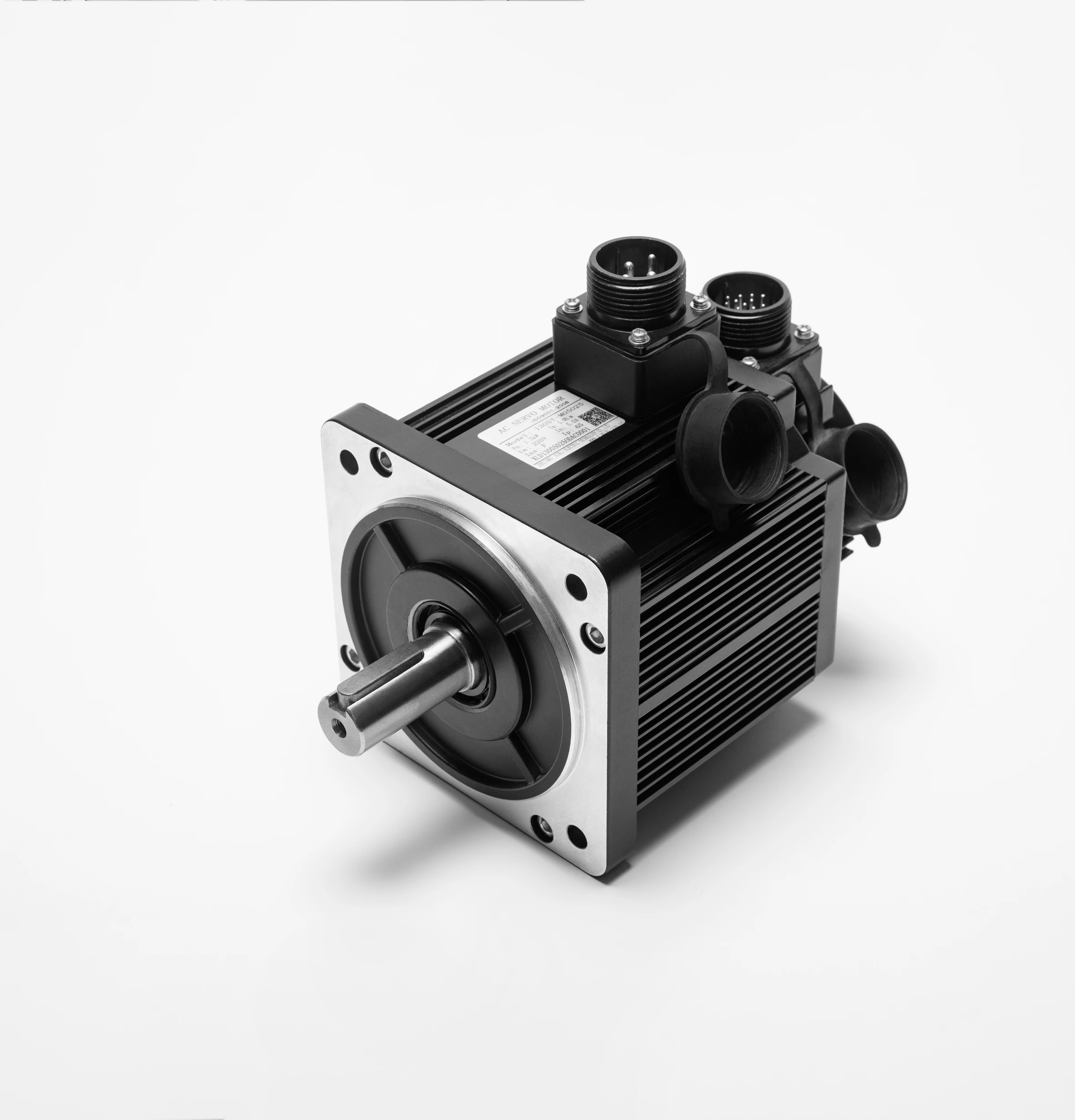

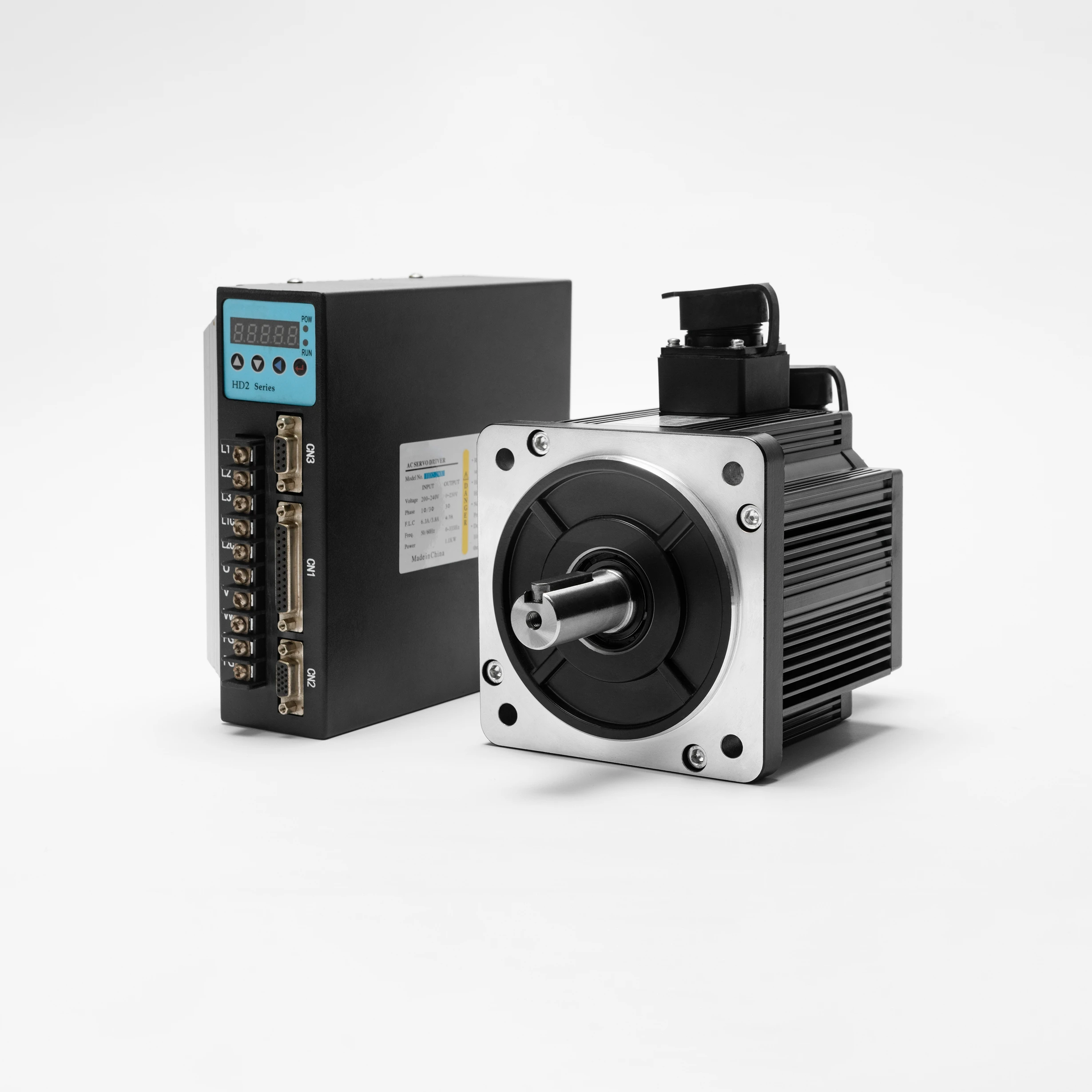

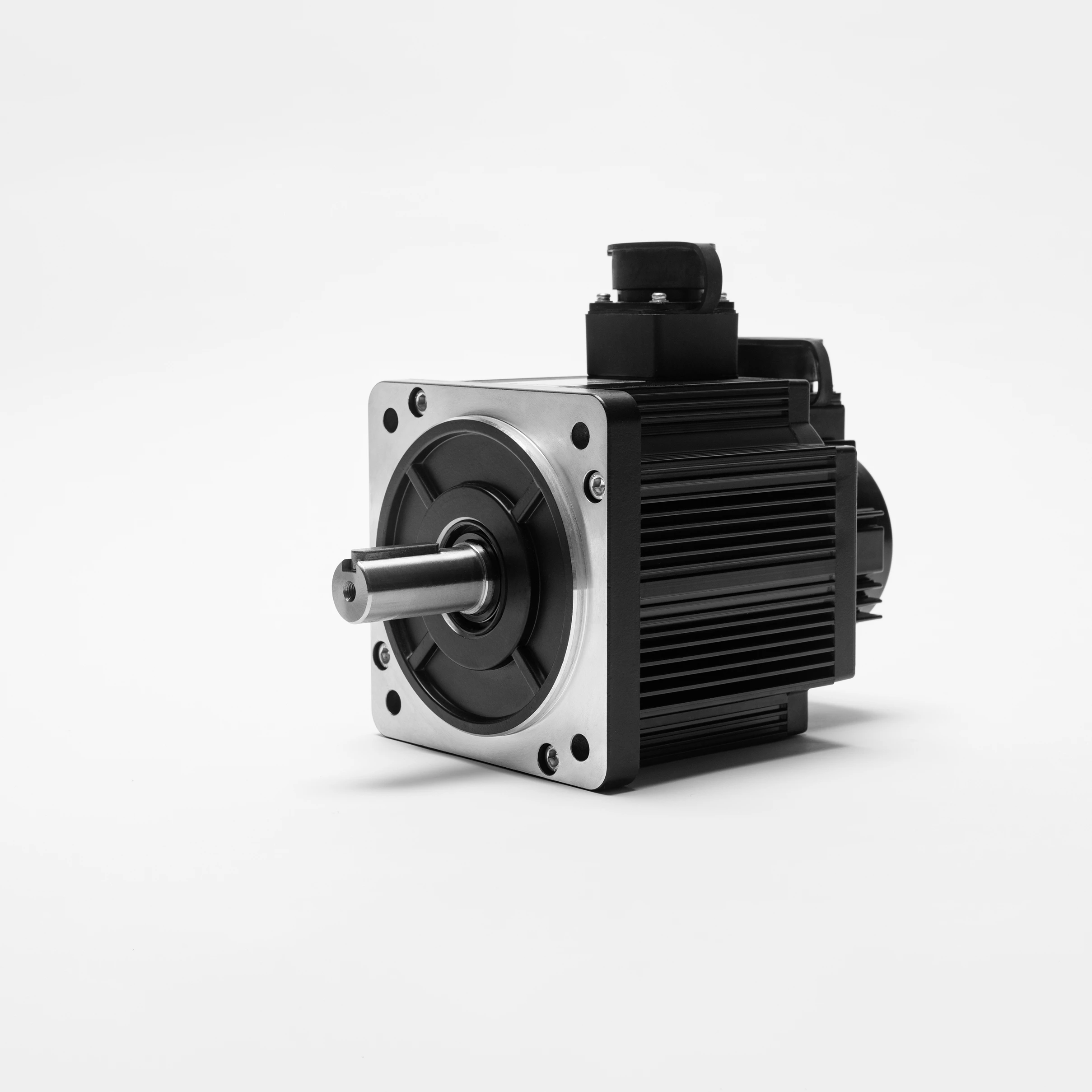

Custom 750w 3kw 5kw 11kw 35kw servo drive motor 3 phase servomotor with driver
- Category: >>>
- Supplier: Zhejiang Xinli Electric Technology Co. Ltd.
Share on (11000008576419):
Product Overview
Description
Product Description

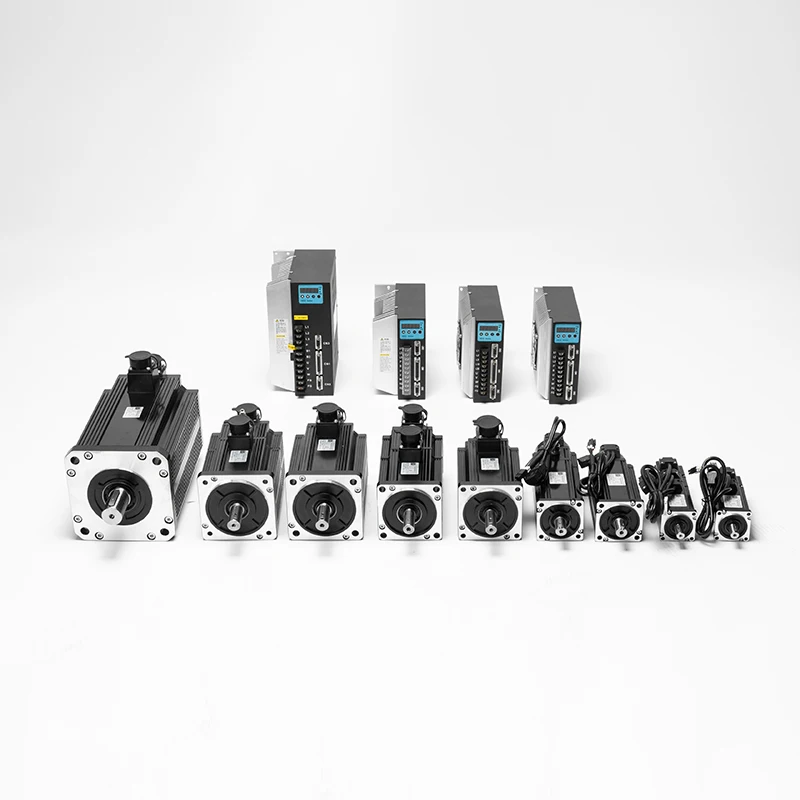

We are a professional manufacturer of servo motors with a full range of products.
Contact us for a catalogue to view all products and quotes
Motor Model | 130ST-M15015 | |
Rated Voltage (V) | 380 | |
Rated Power (KW) | 2.3 | |
Rated Torque (N.m) | 15 | |
Peak Torque (N.m) | 30 | |
Rated Current (A) | 5 | |
Rated Speed (rpm) | 1500 | |
Torque Coefficient (N.m/A) | 0.33 | |
Rotor Inertia (KG.M2) | 2.77x10-3 | |
Rotor Inertia with Brake (KG.M2) | 2.8x10-3 | |
Line-line Resistance (Ω) | 3.27 | |
Line-line Inductant (mH) | 12.36 | |
Electrical Time-constant (ms) | 3.77 | |
Encoder Line Number (ppr) | 2500 | |
Insulation Class | ClassF | |
Safety Class | IP65 | |
Environment | Temputer: -20~+50℃ Humidity Below 90%RH No Dewing | |
Weight(kg) | 12.6 | |
Our motors can replace a wide range of global brands, with excellent quality and reasonable price. | ||
Specification
1. Q: Are you manufacturer ?
A:Yes, we are the manufacturer with continuous and improved R & D, production, sales and service supply.
2.Q: What are your main products ?
A: Our products are AC servo motors and drives, brushless DC motors, micro asynchronous motors and related products.
3.Q: How to get a quotation ?
A: In order to send you our best price, please kindly inform us detailed product parameters.
4.Q: Could you provide free sample ?
A: Yes, we could provide free sample if the value is not big, but the courier charge will be on your side.
5. Q: Can I choose the different brake to the motors?
A: Yes, you can choose the different kinds of brake or without brake.
6.Q: What’s your payment terms ?
A: Mainly accept T/T, L/C is also available if order amount big. Other payment terms can be further discussed.
7.Q: What is your delivery time ?
A:In normal condition, small order needs around 5-10 working days. 20’container needs about 15-20 days, 40’container needs about 30 days.
8.Certicification:
We are ISO9001, ISO14001, CE certified.
9.Shipping :
If your order is not big enough , Door to Door Service is the best choice via UPS,FEDEX,DHL,.
For big quantity, by air or by sea through your forwarder is a Normal Way , we also can provide cost-effective forwarder for your reference.
A:Yes, we are the manufacturer with continuous and improved R & D, production, sales and service supply.
2.Q: What are your main products ?
A: Our products are AC servo motors and drives, brushless DC motors, micro asynchronous motors and related products.
3.Q: How to get a quotation ?
A: In order to send you our best price, please kindly inform us detailed product parameters.
4.Q: Could you provide free sample ?
A: Yes, we could provide free sample if the value is not big, but the courier charge will be on your side.
5. Q: Can I choose the different brake to the motors?
A: Yes, you can choose the different kinds of brake or without brake.
6.Q: What’s your payment terms ?
A: Mainly accept T/T, L/C is also available if order amount big. Other payment terms can be further discussed.
7.Q: What is your delivery time ?
A:In normal condition, small order needs around 5-10 working days. 20’container needs about 15-20 days, 40’container needs about 30 days.
8.Certicification:
We are ISO9001, ISO14001, CE certified.
9.Shipping :
If your order is not big enough , Door to Door Service is the best choice via UPS,FEDEX,DHL,.
For big quantity, by air or by sea through your forwarder is a Normal Way , we also can provide cost-effective forwarder for your reference.
