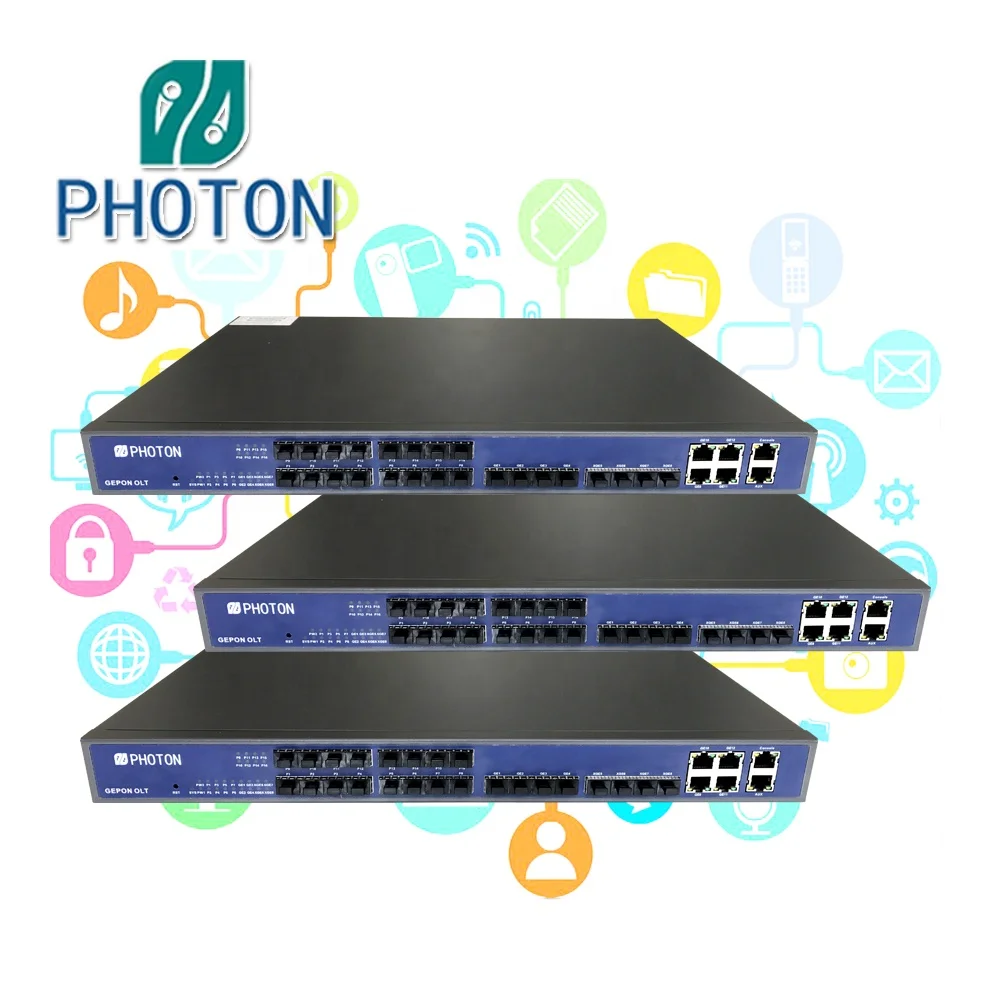

Fiber Optic L3 16 Pon Ports 4*10GE 4GE SFP 4GE RJ45 EPON OLT
- Category: >>>
- Supplier: Shenzhen Photon Broadband Tech Co. Ltd.
Share on (11000008685569):
Product Overview
Description
Fiber Optic L3 16 Pon Ports+4*10GE+4GE SFP+4GE RJ45 EPON OLT
Product Description
1. Overview
ProductDescription:

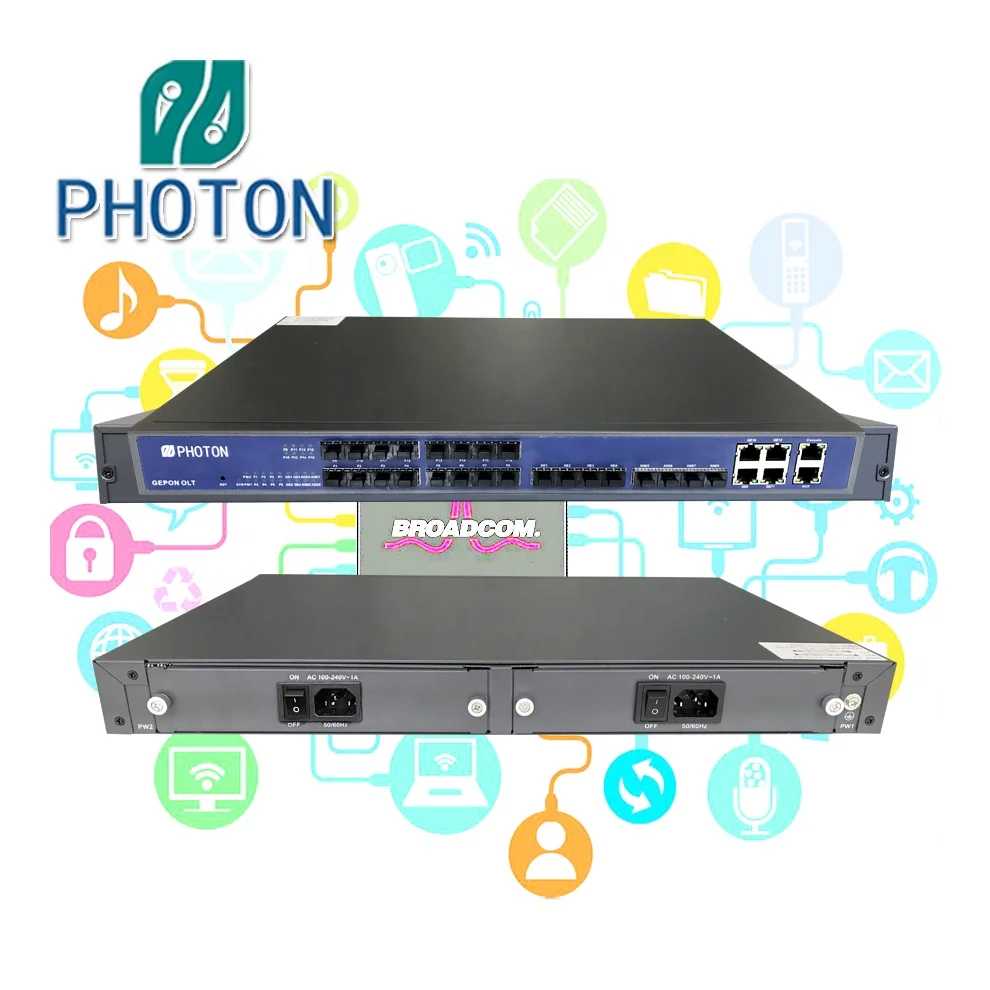

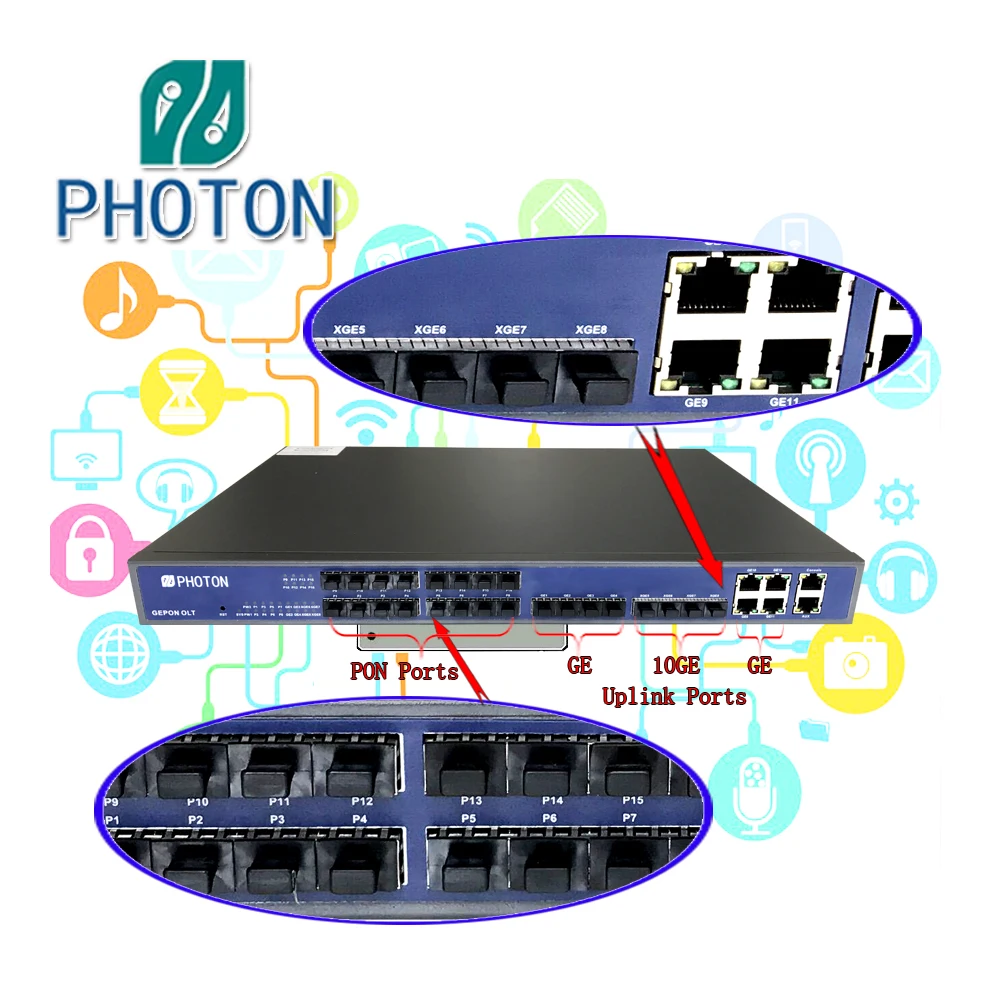

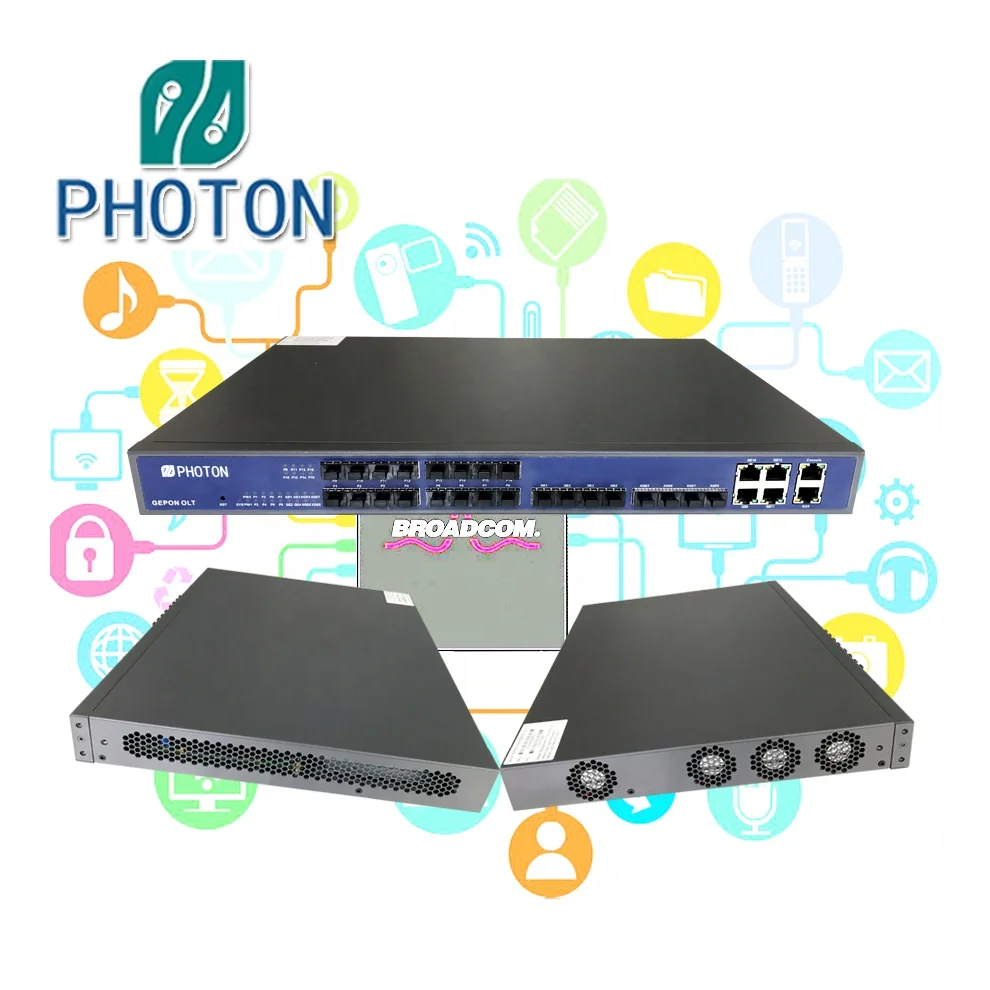

PTF3616E EPON OLT, which provides 16 EPON ports, 12 uplink ports (4*GE copper RJ45 ethernet ports, 4*SFP(GE) and 4*SFP+(10GE) ) , it has high reliability, highly dense broadband access and robust switching and routing abilities, is a new generation of broadband and multiservice access OLT devices oriented towards the service-integrated network.
PTF3616E OLT integrates with network security, supports data, voice and video, and provides continuous forwarding, graceful restarting and ring protection, improving the work efficiency and securing the maximum running time.Independent
2. Features(Fiber Optic L3 16 Pon Ports+4*10GE+4GE SFP+4GE RJ45 EPON OLT )
Ø 1U 19 inch standard box EPON OLT with 16 PON ports
Ø Compliant with IEEE802.3ah YD/T1475-2006—EPON and China Telecom EPON Technical Requirements
3. Parameters
Items | Unit | Specifications |
PON standard |
| EPON IEEE802.3ah |
PON interface |
| 16*EPON SFP Ports (PX20+), Receiving sensitivity: ≤-30dBm(Saturation Optical -6dBm). Power,Transmitting optical power: +2~+7dBmTransmission distance: 20KM. Max splitting ratio1:64 |
Speed | Upstream 1.25G Downstream 1.25G | |
Wavelength | nm | Tx1490, Rx 1310 |
Uplink | GE | 4*copper ethernet ports 10/100/1000M auto-negotiation |
SFP GE | 4*SFP(GE) | |
SFP 10GE | 4*SFP+ (10GE) | |
Layer 3 |
| Support static route,dynamic route RIP v1/v2 and OSPF |
Management Ports |
| 1*10/100BASE-T out-band port, 1*CONSOLE port |
Management Mode |
| SNMP,Telnet,CLI,WEB,SSH v1/v2 |
Backplane | Gbps | 128 |
MAC table | K | 16 |
Operating condition | ℃ | Operating temp: -5 ~ +55 |
Storing condition | ℃ | Storing temp: -40 ~ +85 |
Humidity | % | 5~90(non-condensing) |
Power consumption | W | ≤95 |
Dimension | mm | 442mm×320mm×44mm(L×W×H) |
Net weight | Kg | 6.5Kg |
