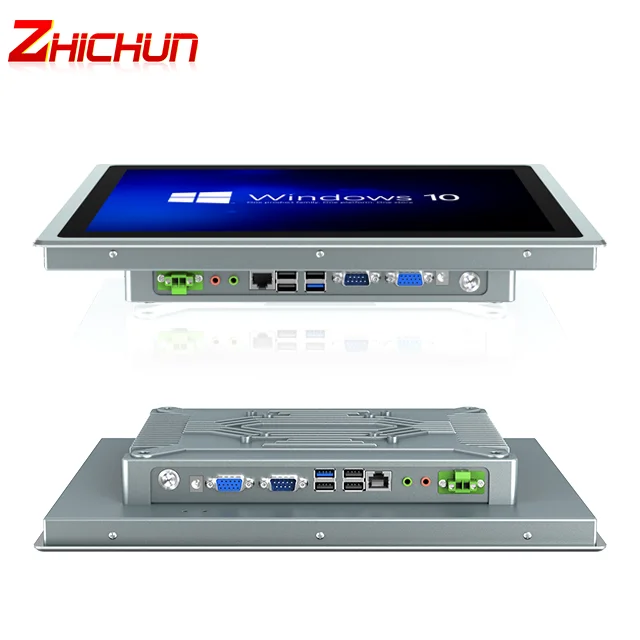

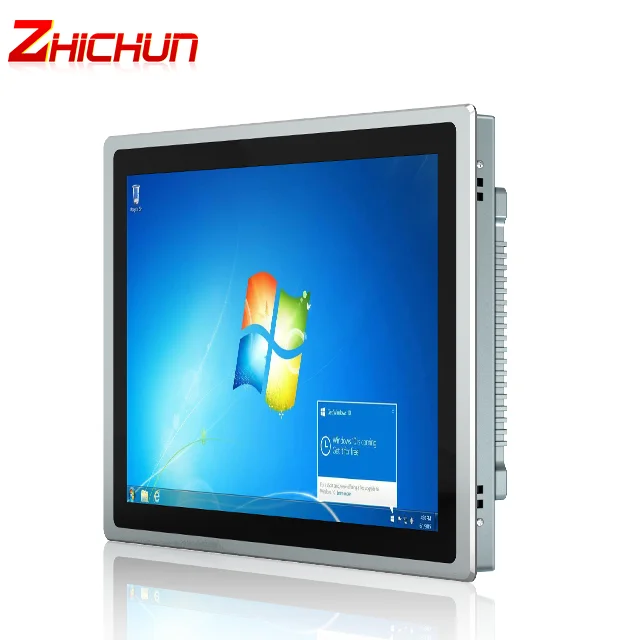

Outdoor 1000 Nits rugged marine panel pc Ip66 Explosion waterproof open frame embedded Touch Screen industrial tablet computer
- Category: >>>
- Supplier: Guangzhou Chongchang Computer Technology Co. Ltd.
Share on (11000008739450):
Product Overview
Description
15.6 Inch Waterpoof Ip65 Embedded Touch Screen Fanless Industrial Android Tablet PC with Wifi Bt Usb Hdm
We know,
you compare different industrial computers price from other factory.
We know, our price may be higher than others.
But we suggest, you can try different samples.
The accessary we use is better,
so that the tablet pcs are more stable when using.
so that the tablet pcs are more stable when using.
We are looking forward to do a long term business with you.
Not just once time sample business
by selling poor quality with cheap price.

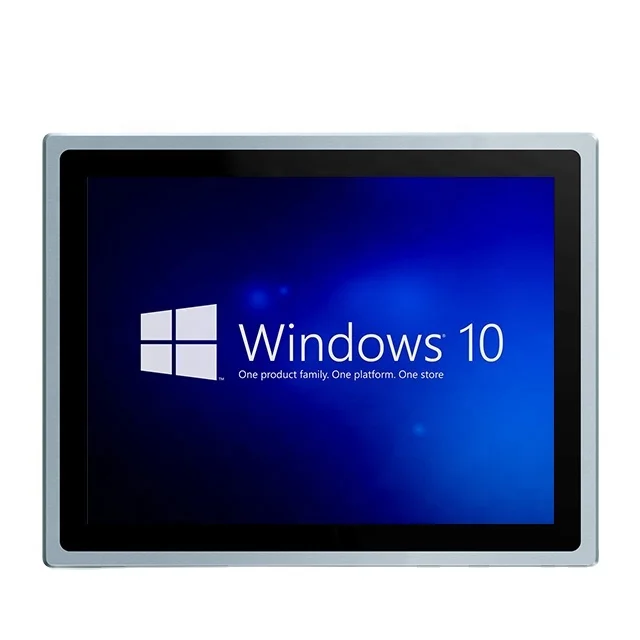

Support Mutiple System
Win 7, Win 8, Linux, Win 10, Win 11,
You can send other computer system to us,
our engineer can install and test then send video for you before sending the sample.

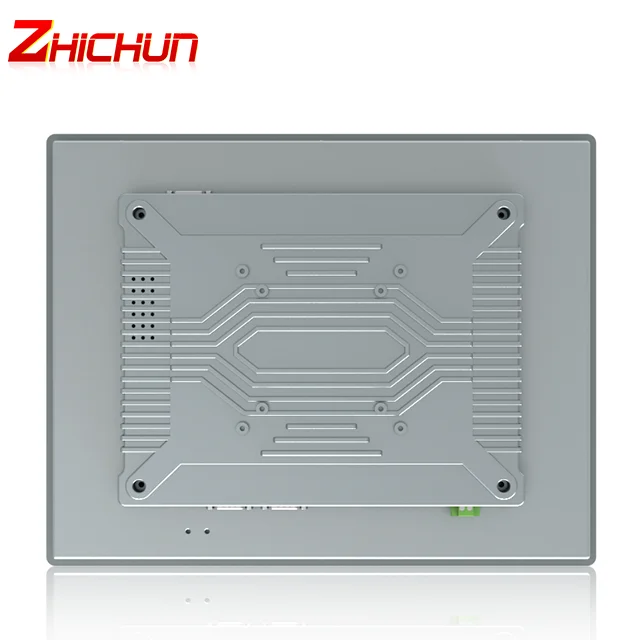

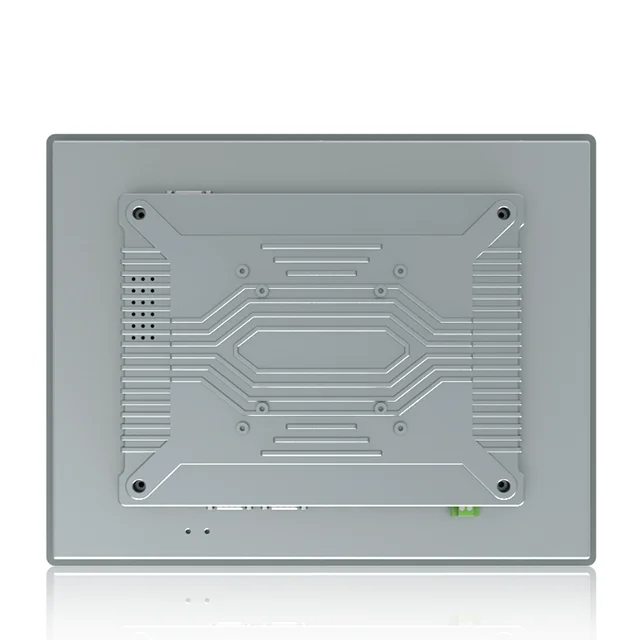

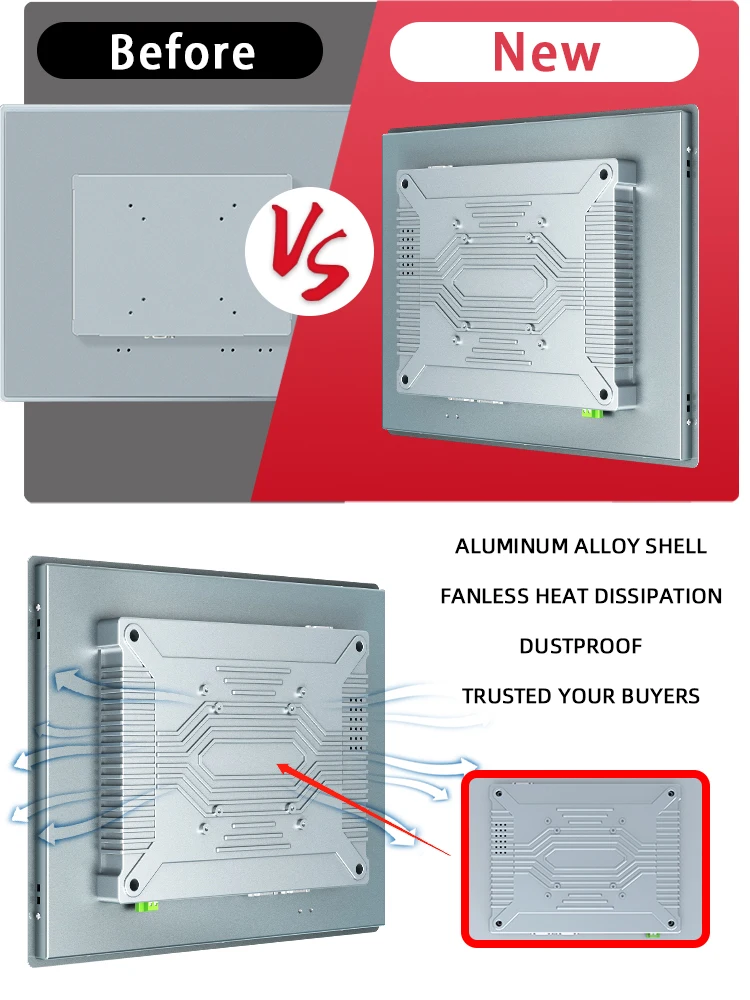

Updated Aluminum alloy shell
Fanless heat dissipation
Dustproof
Trusted your buyers
Products Description
Specification | ||
Industrial computer | ||
Chipset | RK3288 | |
Chipset Optional | RK3399 | |
Chipset Optional | RK3568 | |
Chipset Optional | A311D | |
memory | 2GB DDR | |
storage | 8GB eMMC (Optional 8GB, 16GB, 32GB eMMC) | |
graphics | CPU integrated graphics | |
vocal | Realtek ALC662, High Definition Audio (HD), Line In, Line Out | |
The internet | 1×Realtek RTL 8111E Gigabit Ethernet Controller | |

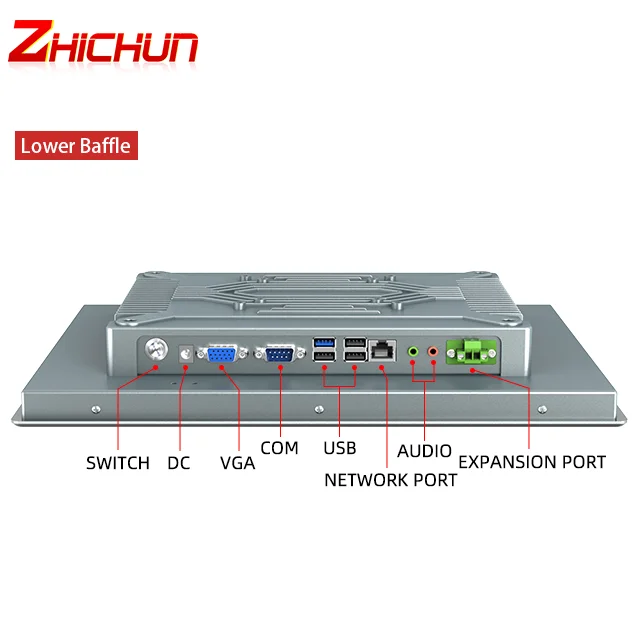

Input and output interface | 2xUSB 2.0, 1x Built-in USB SoftDog, | |
1x HD/Audio Line Out | ||
Expansion slot | MINI-PCIE x 1, onboard SIM card slot, support 3G/4G module | |
MINI-PCIE x 1, support WIFI | ||

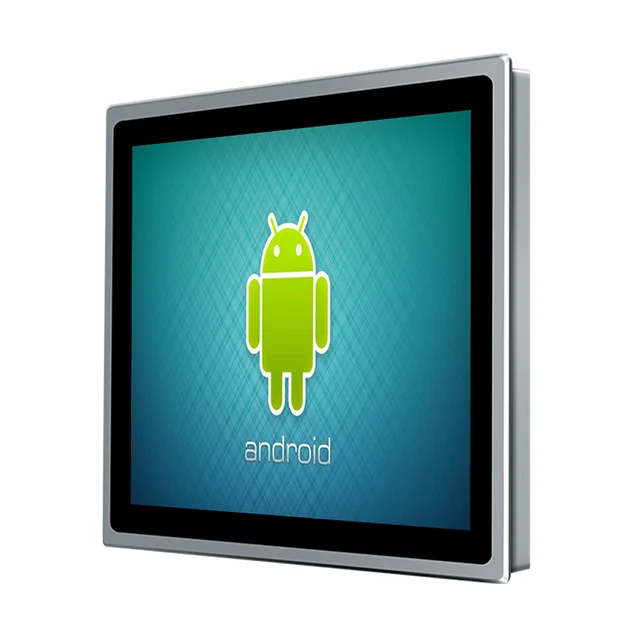

operating system | Support Android | |
LCD panel | ||
aspect ratio | 16:9 | |
color support | 16.7 million colors | |
Brightness (cd/m²) | 200-250 | |
Response time | 5ms | |
Contrast ratio | 1000:1 | |
perspective | 85°/85°/85°/85° (R/L/U/D) | |
touch panel | ||
Touch screen type | capacitive touch screen | |
touch interface | USB (RS232 optional) | |
touch response time | 5 ms | |
Surface hardness | 7H | |
career | >50 million times | |
touch option | (Capacitive touch optional) | |
power supply | ||
External power supply | AC 100-240V | |
Operating Voltage | 12V-5A | |
energy consumption | ≤35W | |
Operating environment | ||
temperature range | Operation: -10 to 60°C, Storage: -30 to 70°C | |
Relative humidity | 10%~90% @ 30° C, non-condensing | |
vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
Accessories | Monitor, embedded clip, wall bracket, power adapter, power cord, maintenance card, manual | |
install (option) | Flush Mounting Screws | |
Wall mount bracket (optional) | ||
Desk Stand (Upgrade) | ||
Warranty | 1 year warranty | |
Certificate | CE, FCC, 3C | |
Mutiple Size of Embedded Panel Computer
Touch Screen
Touch Screen brightness can custom up to 1500CD/m '.
Under sunlight, the Panel computer screen interface
remains clear and visible, bidding farewell to
the troubles of outdoor environments and ensuring user use
Resistive Touch Screen
Support finger-tip touch,
glove touch
pressure touch
Not affected by liquid
Contact us for
which touch screen computer you need
Capacitive Touch Screen
support 10-point touch
high luminousness
long touch life
>50 million times
5 ms fast speed
Applicable Industry
*Automatic system: intelligent self-service terminal, intelligent retail terminal, O2O smart device, robot equipment, etc.
*Public Places: subway, airports, stations, gas stations, electric vehicle charging station, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
* Business Organizations: hospitality industrial, supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
*Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
*Non-profit Organizations: Telecommunications, post offices, hospital, schools.
*Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers.
* Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
*Public Places: subway, airports, stations, gas stations, electric vehicle charging station, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
* Business Organizations: hospitality industrial, supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
*Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
*Non-profit Organizations: Telecommunications, post offices, hospital, schools.
*Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers.
* Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
Quality Inspection
Our factory will finish quality inspection before shipping. Make sure that you receive the product well. Screen detection, withstand pressure test, touch test, aging detection, vibration detection, electrostatic test. Dropping test. And even we will do simulated transportation vibration detection. Please check video for more information.
Certifications
Product packaging
Recommend Products
Company Profile
Guangzhou Chongchang Computer Technology Co. Ltd (brand Zhichun) is an innovative technology enterprise specializing in industrial automation touch display equipment products. Zhichun is dedicated to refined production, continuous quality development, and considers high-tech products as the core competitiveness of the company. We are committed to providing customers with a wide range of industrial solutions, including embedded industrial computers, industrial monitors, industrial Android all-in-one computers, industrial motherboard boards, industrial control hosts, and customized services.
At Zhichun, we pride ourselves on offering one-stop solutions to our customers.
Our comprehensive services include appearance design, mold development and manufacturing, product production, and end customer background support. Our experienced team of professionals is always ready to assist customers with their unique requirements and provide personalized solutions.
One of our key strengths lies in our OEM/ODM capabilities. We welcome inquiries from customers looking for customized products.
Our dedicated team of engineers will work closely with clients to understand their specific needs and deliver tailored solutions that meet their expectations.
Our dedicated team of engineers will work closely with clients to understand their specific needs and deliver tailored solutions that meet their expectations.
Our commitment to quality is unwavering. We adhere to strict quality control standards throughout the manufacturing process to ensure that our products meet the highest industry standards. By leveraging advanced technologies and continuously improving our processes, we strive to deliver products that not only meet customer requirements but also exceed their expectations.
Zhichun aims to establish long-term partnerships with our customers based on mutual trust and satisfaction. With our reliable products and excellent after-sales support, we have gained a strong reputation in the industry. We value customer feedback and continuously invest in research and development to stay at the forefront of technological advancements.
Zhichun aims to establish long-term partnerships with our customers based on mutual trust and satisfaction. With our reliable products and excellent after-sales support, we have gained a strong reputation in the industry. We value customer feedback and continuously invest in research and development to stay at the forefront of technological advancements.
