10-100A smart three phase modbus rs485 digital din rail kwh energy meter price

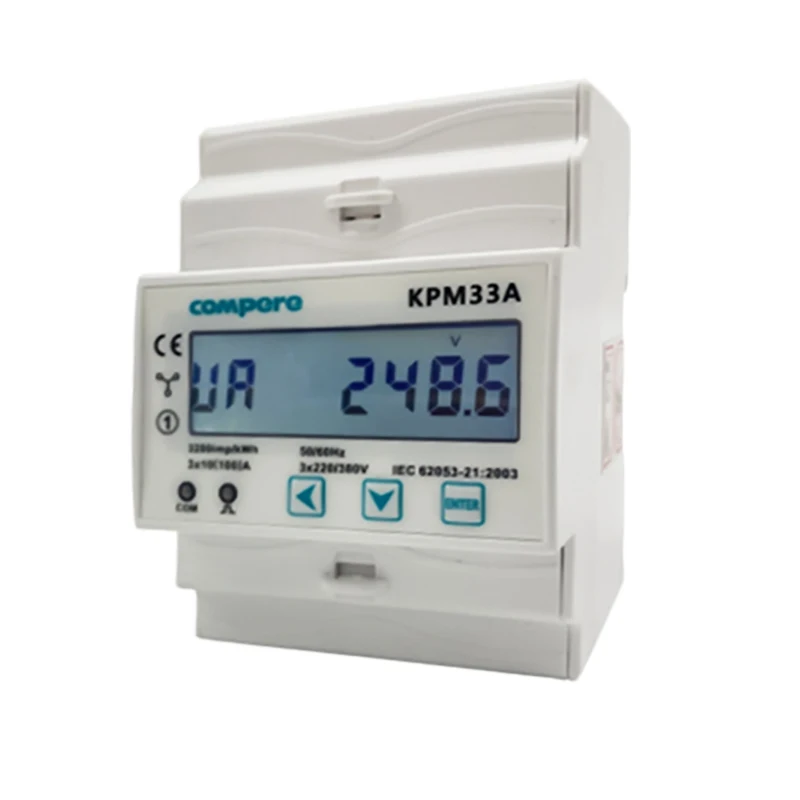

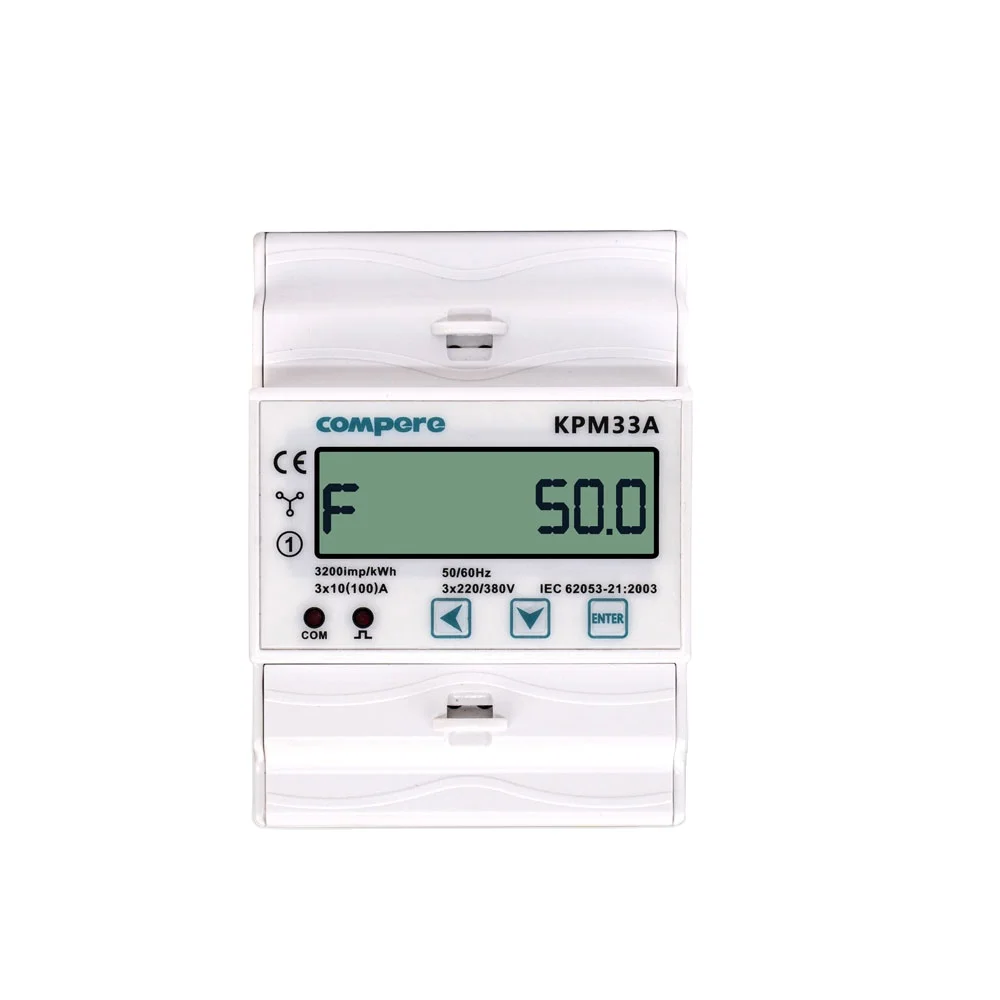

KPM33 three-phase smart energy meter with DIN35mm type installation structure, LCD display, electricity measurement and other parameters, it can set some parameters, such as the clock, rate period, and so on, it also own electrical energy pulse output function.
KPM33 default RS485 communication interface, optional WIFI connection, it's widely used in the energy measurement of government agencies and large public buildings and also be used for enterprises and institutions for energy management assessment.
FEATURES AT A GLANCE
Application
1. Intelligent distribution management system
2. Internal energy consumption statistical analysis and charging statistics basis
3. Energy metering, automatic meter reading system
4. Energy and energy efficiency management system
2. Internal energy consumption statistical analysis and charging statistics basis
3. Energy metering, automatic meter reading system
4. Energy and energy efficiency management system
Feature
1. Measurement of three-phase voltage, current, active power, reactive power, apparent power, power factor, frequency,
active energy, reactive energy
active energy, reactive energy
2. Multi-rate energy statistics, a day can be set up to eight time periods, four kinds of rates historical power statistics function
3. Rated current 10-100A
4. LED indicates pulse, phase failure, reverse power, communication status
5. 1 road passive optical coupler collector active pulse output
6. 1 –way RS485 communication interface, default Modbus protocol, optional WIFI communication.
7. 7 +1 bit LCD display a variety of power parameters and information
8. Built-in clock and maintenance-free battery, real-time monitoring, data is permanently saved after power off
9. 35mm standard DIN rail installation, beautiful appearance, easy installation
10. Optional built-in relay for remote control

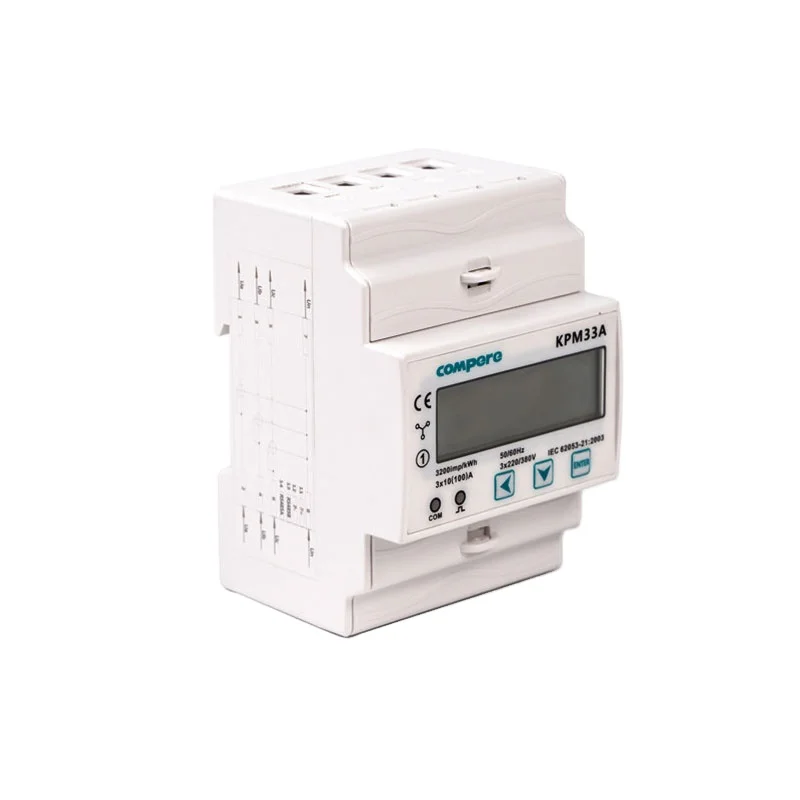

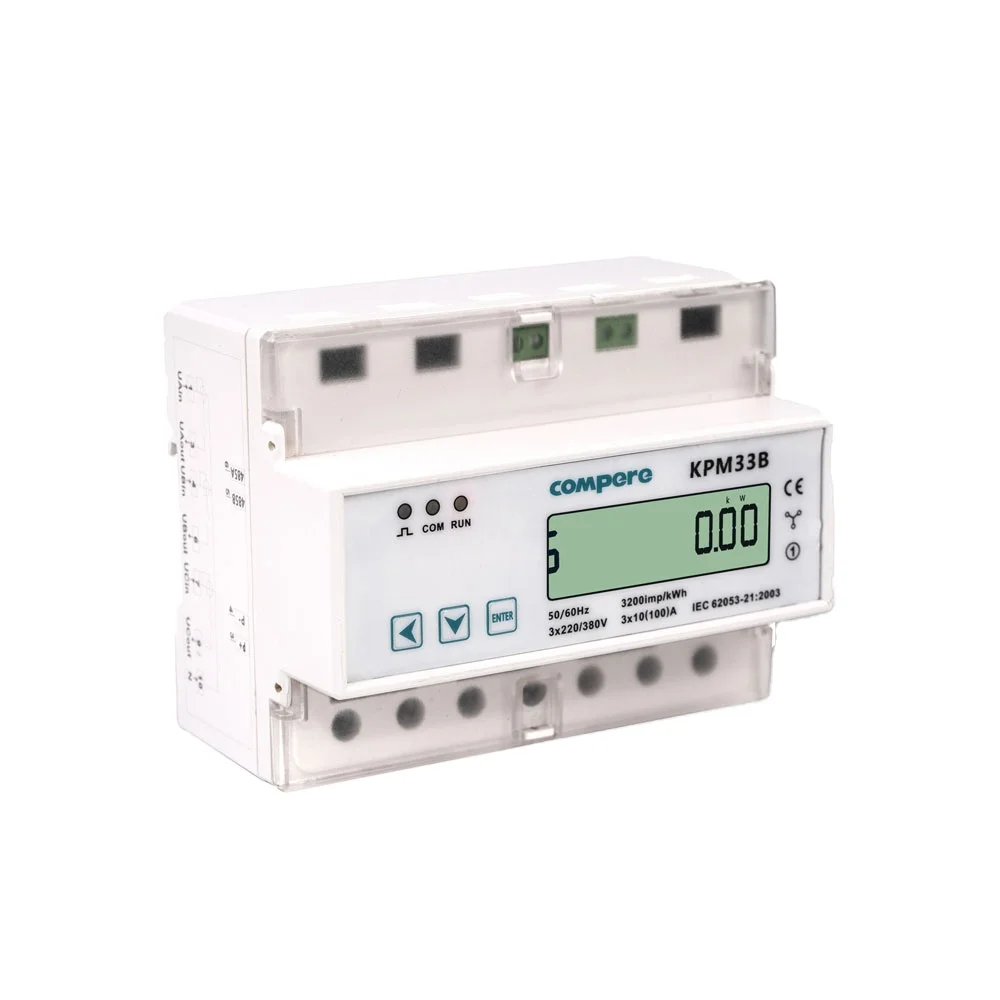

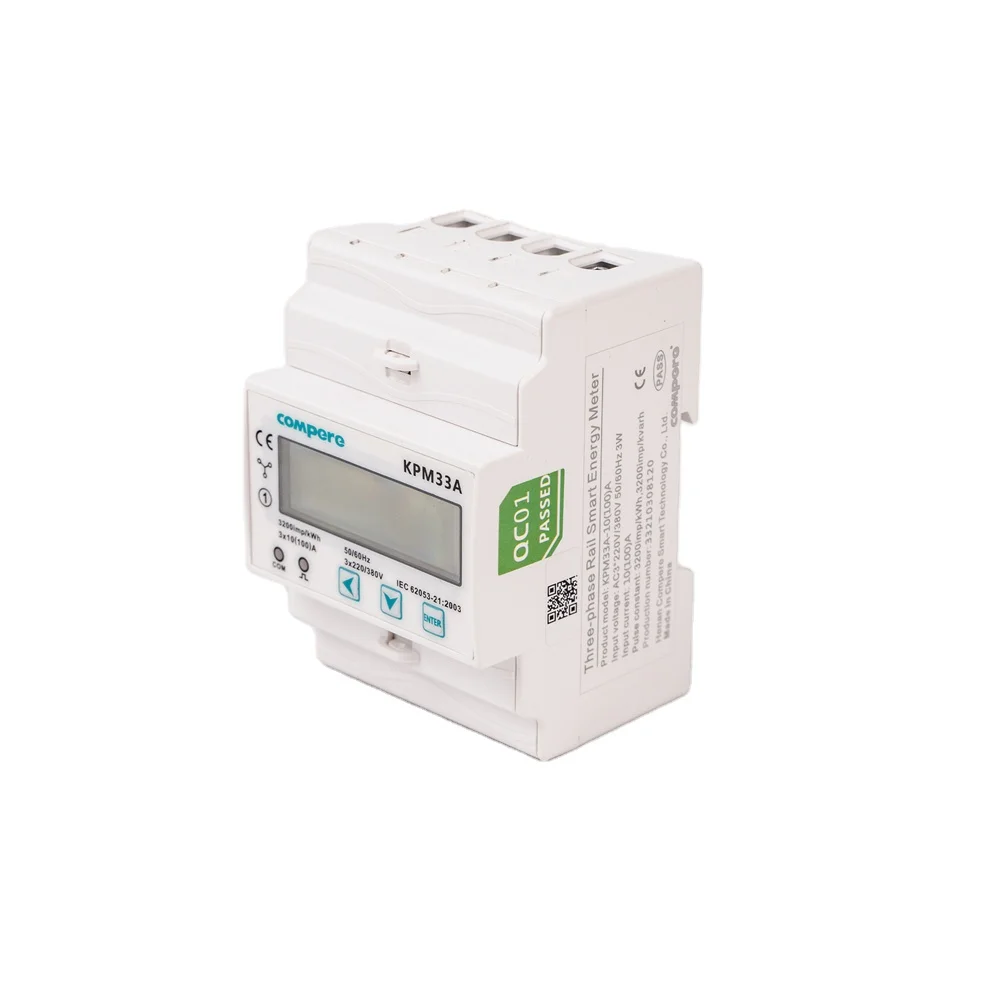

Details Images
Product Paramenters
KPM33 digital din rail kwh energy meter price -Technical parameters | ||||||||
Input voltage | Rated voltage | AC 3x220V/380V | ||||||
Overall power consumption | <2VA/ | |||||||
Frequency range | 45~65Hz | |||||||
Input current | Rated current | 10-100A | ||||||
Frequency range | 45~65Hz | |||||||
Measurement accuracy | Voltage | ±0.2%(0.01V) | ||||||
Current | ±0.2%(0.01A) | |||||||
Active power | ±0.5%(0.1W) | |||||||
Reactive power | ±2.0%(0.1kvar) | |||||||
Active energy | ±0.5%(0.1kWh) | |||||||
Reactive energy | ±2.0%(0.1kvarh) | |||||||
Power factor | ±0.5%(0.001) | |||||||
Frequency | ±0.02Hz(0.01Hz) | |||||||
Clock | Clock accuracy | <0.5S/D | ||||||
Communication | Communication interface | RS485,Photoelectric isolation interface | ||||||
Communication protocol | Modbus-RTU,1200~38400bps | |||||||
Electrical insulation | Power frequency withstand voltage | AC2kV/min~1mA Input-output-power source | ||||||
Insulation resistance | >50MΩ | |||||||
Impact voltage | 5kV(Peak),1.2/50us | |||||||
Working environment | Operating temperature | -25℃ ~ +70℃ | ||||||
Relative humidity | 5%~95% No condensation | |||||||
Storage temperature | -30℃ ~ +75℃ | |||||||
Altitude | No more than 4000m | |||||||

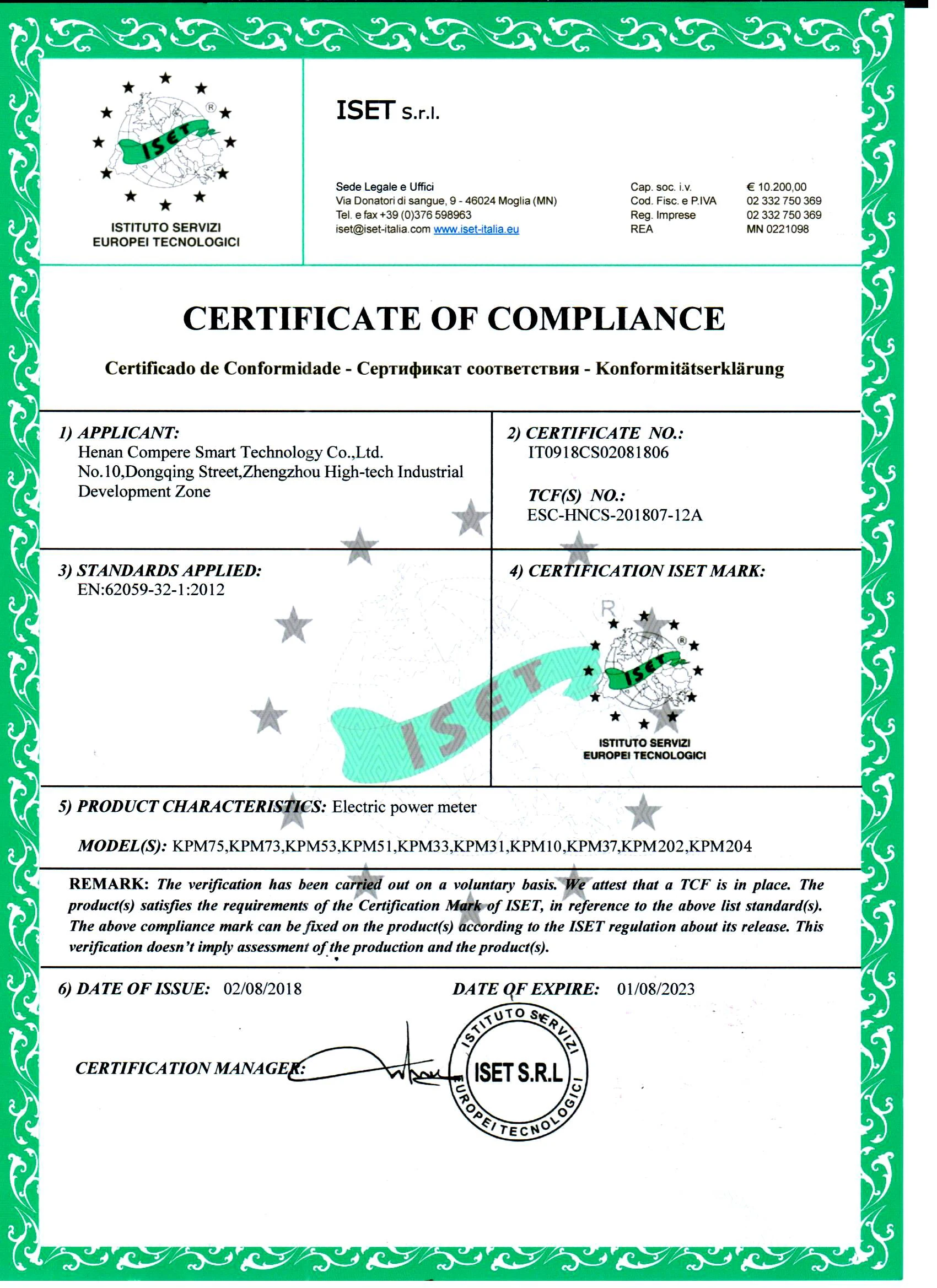

Certifications
