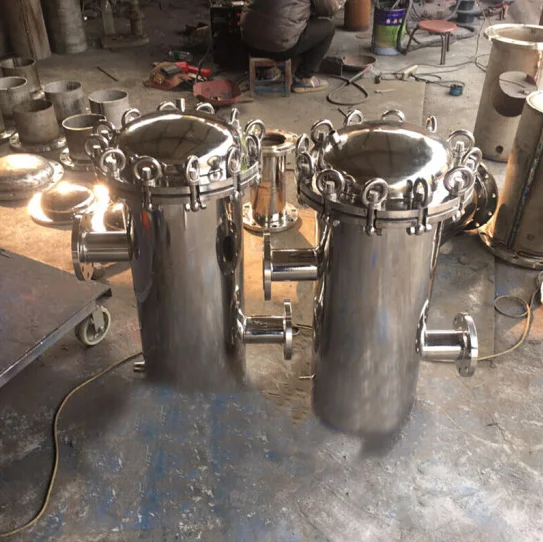

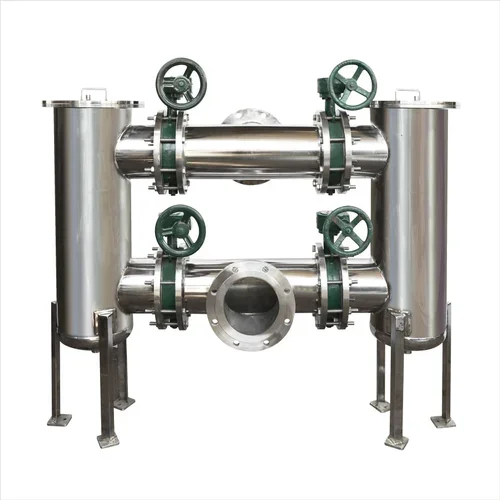

stainless steel 304 316L basket filter vessels housings for oil chemical polymers
- Category: >>>
- Supplier: Hebei Slot Filter Technology Co. Ltd.
Share on (11000008765125):
Product Overview
Description
Products Description

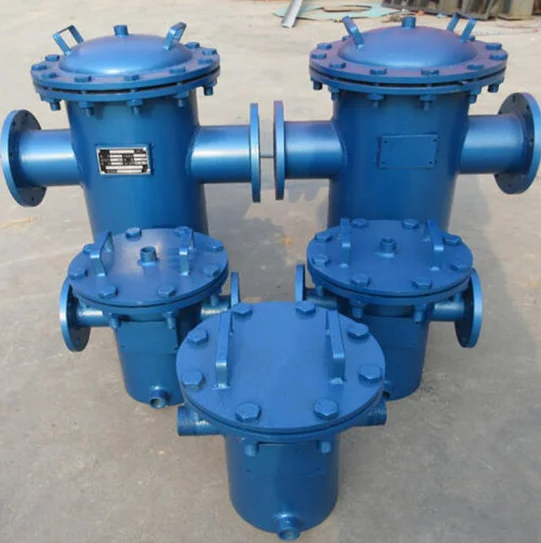

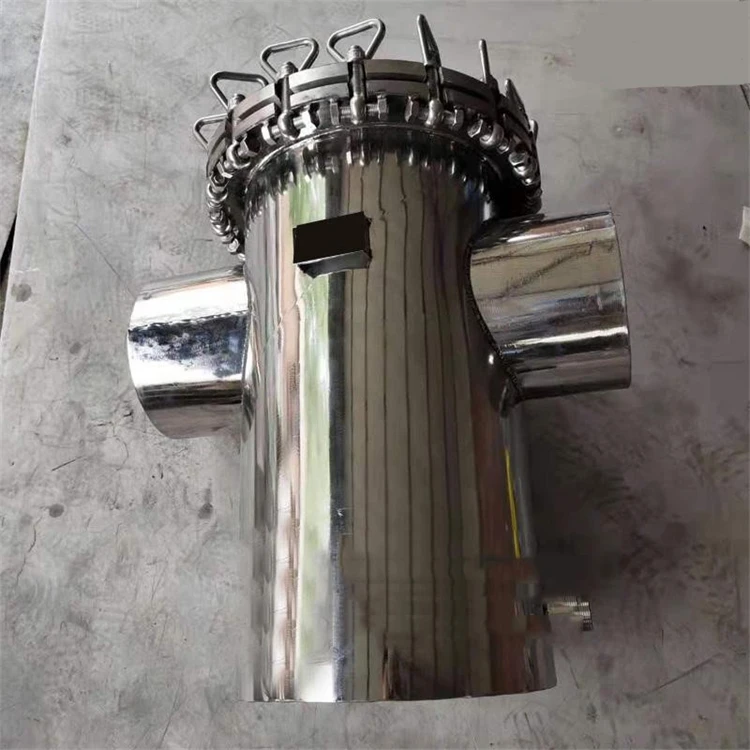

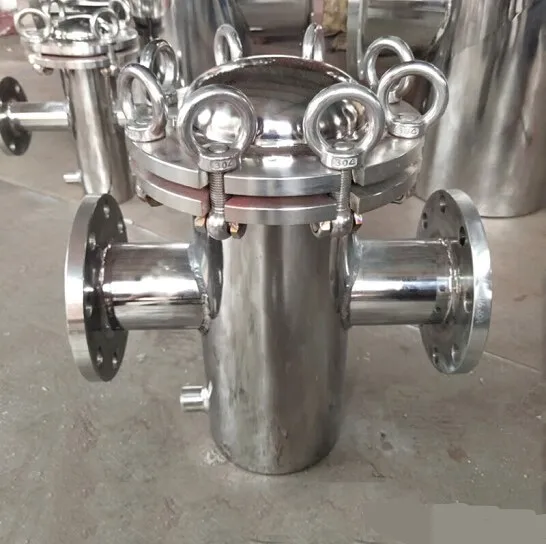

Stainless steel basket filter housing
Basket Strainer Removes Large Particle Impurities in Pipeline Systems

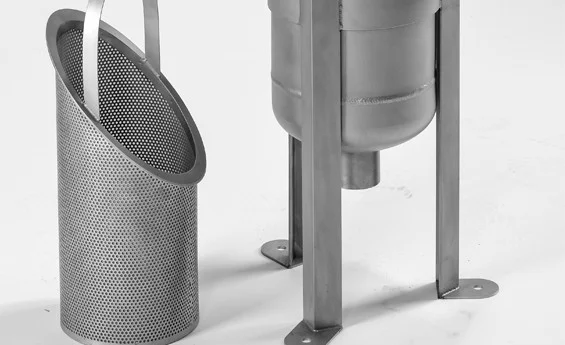

Taking basket strainers as filter elements, basket strainers are used to filter out particulate impurities from liquids and gases to protect liquid pipelines such as seawater, fuel oil and slurry pipelines, gas pipelines such as natural gas and argon pipelines, and fittings downstream.
Material: stainless steel, carbon steel, or customized.
Large screen area ensures efficient filtration with low pressure drop.
Remove large particles, clean fluids and gases, and protect key devices.
Easy to disassemble and clean, reusable.
Taking basket strainers as filter elements, basket strainers are used to filter out particulate impurities from liquids and gases to protect liquid pipelines such as seawater, fuel oil and slurry pipelines, gas pipelines such as natural gas and argon pipelines, and fittings downstream.
Material: stainless steel, carbon steel, or customized.
Large screen area ensures efficient filtration with low pressure drop.
Remove large particles, clean fluids and gases, and protect key devices.
Easy to disassemble and clean, reusable.

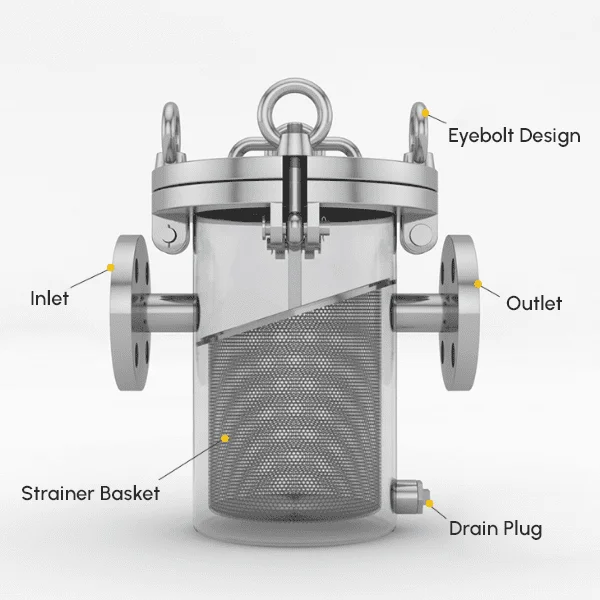

Working Principle

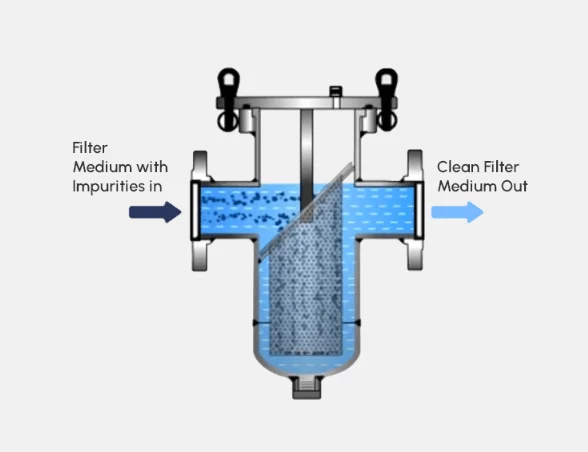

When the filter medium enters the chamber from the filter inlet, the solid impurity particles are retained in the filter basket and clean filtrate flows out from the filter outlet.

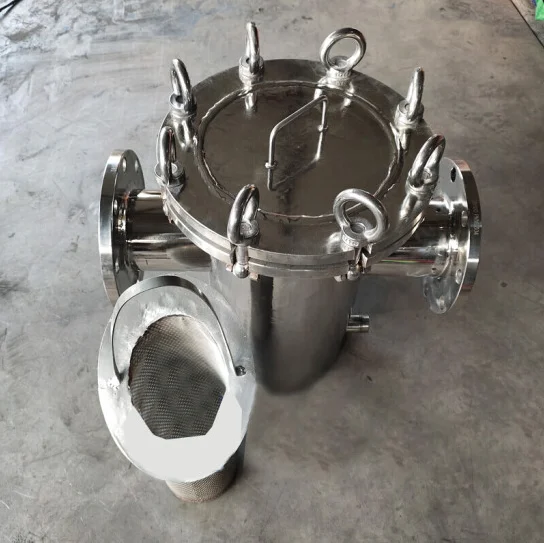

When cleaning or replacing the filter basket, close the pipeline system, unscrew the drain plug at the bottom of the main pipe and drain the fluid. And then open the filter cover, re-install the filter basket after cleaning, and fasten the filter housing and filter cover.
When the filter medium enters the chamber from the filter inlet, the solid impurity particles are retained in the filter basket and clean filtrate flows out from the filter outlet.
When cleaning or replacing the filter basket, close the pipeline system, unscrew the drain plug at the bottom of the main pipe and drain the fluid. And then open the filter cover, re-install the filter basket after cleaning, and fasten the filter housing and filter cover.

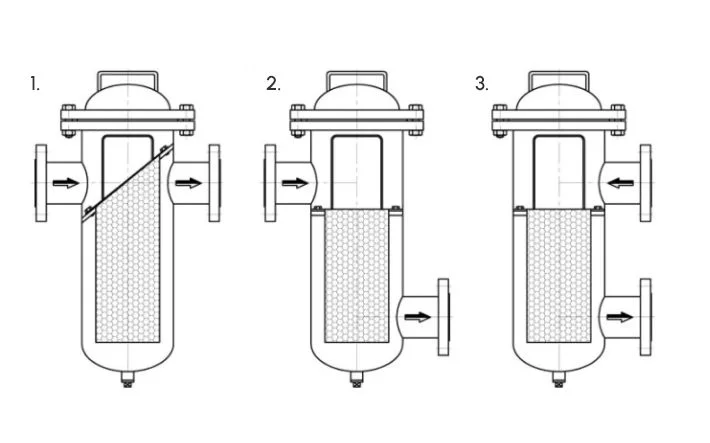

Nozzle Type
Housing material | Carbon steel, stainless steel or customized | ||||||
Filter Rating | 10μm-5000μm | ||||||
Operating pressure | 0.6-1.6Mpa | ||||||
Operating temperature | Carbon steel: -30℃ to +350℃ Stainless steel: -80℃ to +480℃ | ||||||
Nominal diameter | DN15-400, or customized upon request | ||||||
Seal type | O-ring or flat gasket | ||||||
Surface treatment | Carbon steel: anti-corrsion paint Stainless steel: acid dipping | ||||||
Connetion type | Flange, female thread, male thread, quick opening clamp | ||||||
Lid/cover type | Swing bolts,flange,etc | ||||||

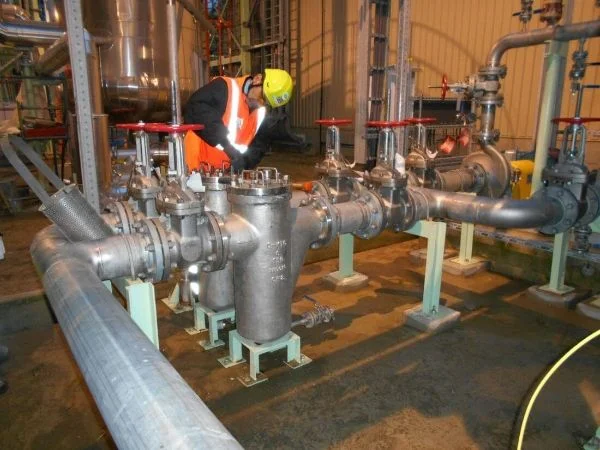

Application

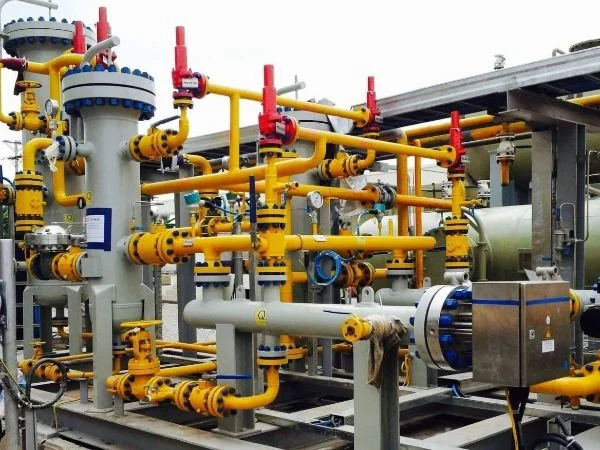

Basket strainers are mainly used to remove rocks, sand, dirt, pipe scale, gravels and other solids from industrial liquids, gases, steam and water, and are widely used in the following industries.

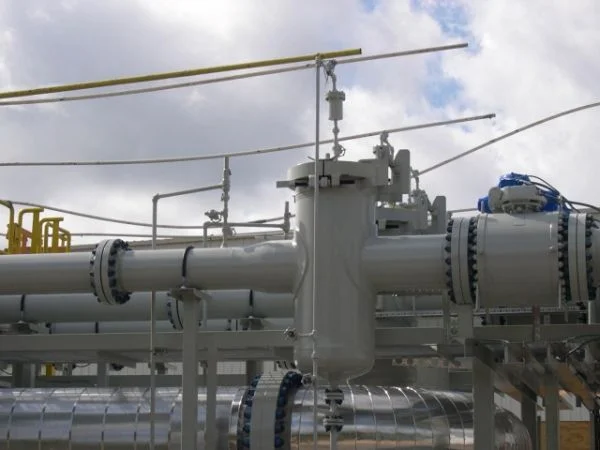

Oil & gas. Natural gas pipeline transportation and filtration;
Basket strainers are mainly used to remove rocks, sand, dirt, pipe scale, gravels and other solids from industrial liquids, gases, steam and water, and are widely used in the following industries.
Oil & gas. Natural gas pipeline transportation and filtration;
Water treatment. Raw water filtration; large farm irrigation water filtration; fire water filtration;
Marine filtration systems. On-board freshwater system filtration, seawater valve box filters, fire line suction systems, bilge line filters, lubricating oil filters;
Chemical. Cooling water filters and chemical process filters;
Mining. Dewatering filters and process fluid filters;
Metallurgy. Cooling water filters for rolling mills and furnaces.
Marine filtration systems. On-board freshwater system filtration, seawater valve box filters, fire line suction systems, bilge line filters, lubricating oil filters;
Chemical. Cooling water filters and chemical process filters;
Mining. Dewatering filters and process fluid filters;
Metallurgy. Cooling water filters for rolling mills and furnaces.

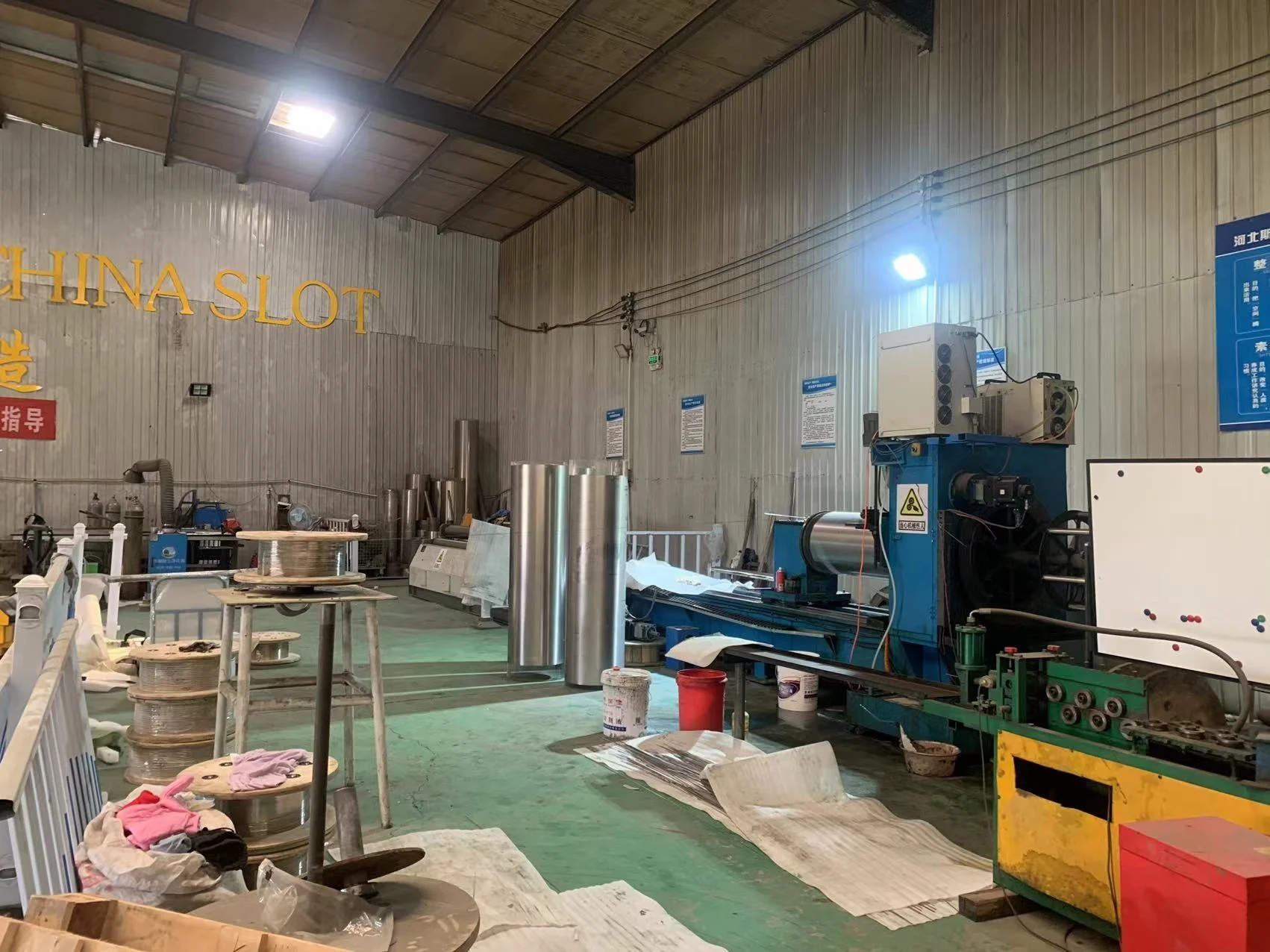

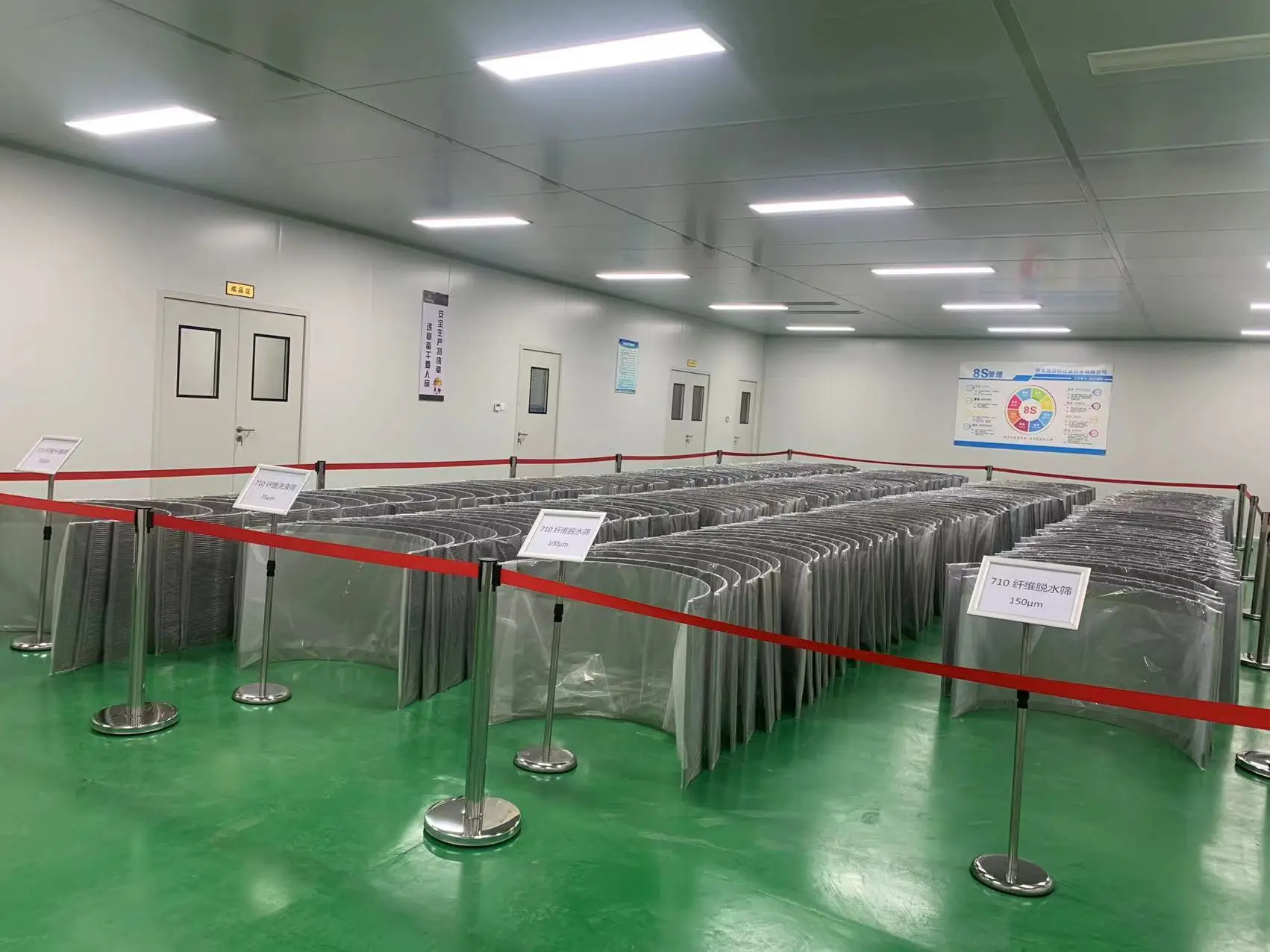

Company Profile
Hebei Slot Filter Technology Co.,Ltd as a major manufacturer and supplier of wire mesh screen for professional users in the world, delivers you a wide range of Wedge Wire Screen, Sieve Bend, Quarry Screen and other wire mesh screen products.
We are the chief supplier in China for cylindrical screens, flat and curved wire mesh sieves.
These wire screen components are custom made to specific specifications and design for waste/process water treatment, quarry screening, mine sifting and other industrial screening.
We are the chief supplier in China for cylindrical screens, flat and curved wire mesh sieves.
These wire screen components are custom made to specific specifications and design for waste/process water treatment, quarry screening, mine sifting and other industrial screening.
Testing
Material testing
The instrument for testing the opening rate of filter screen
Exhibition
Certifications
Shipping & Payment

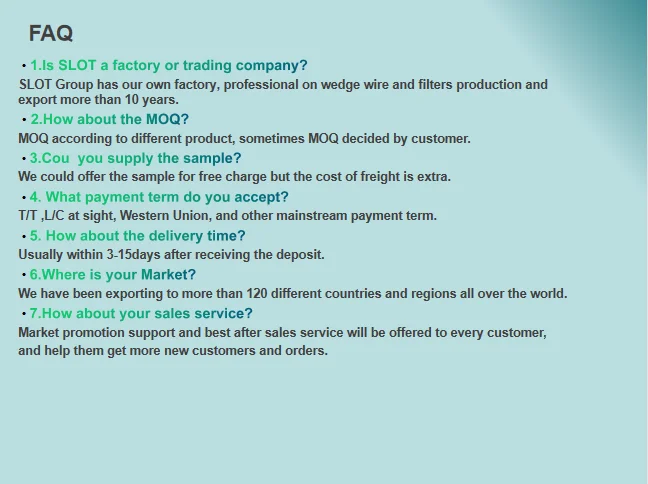

FAQ
