Product Overview
Description
Roslane Meditech offers various models of export quality Operating Microscopes at most affordable price as per the buyer’s need.

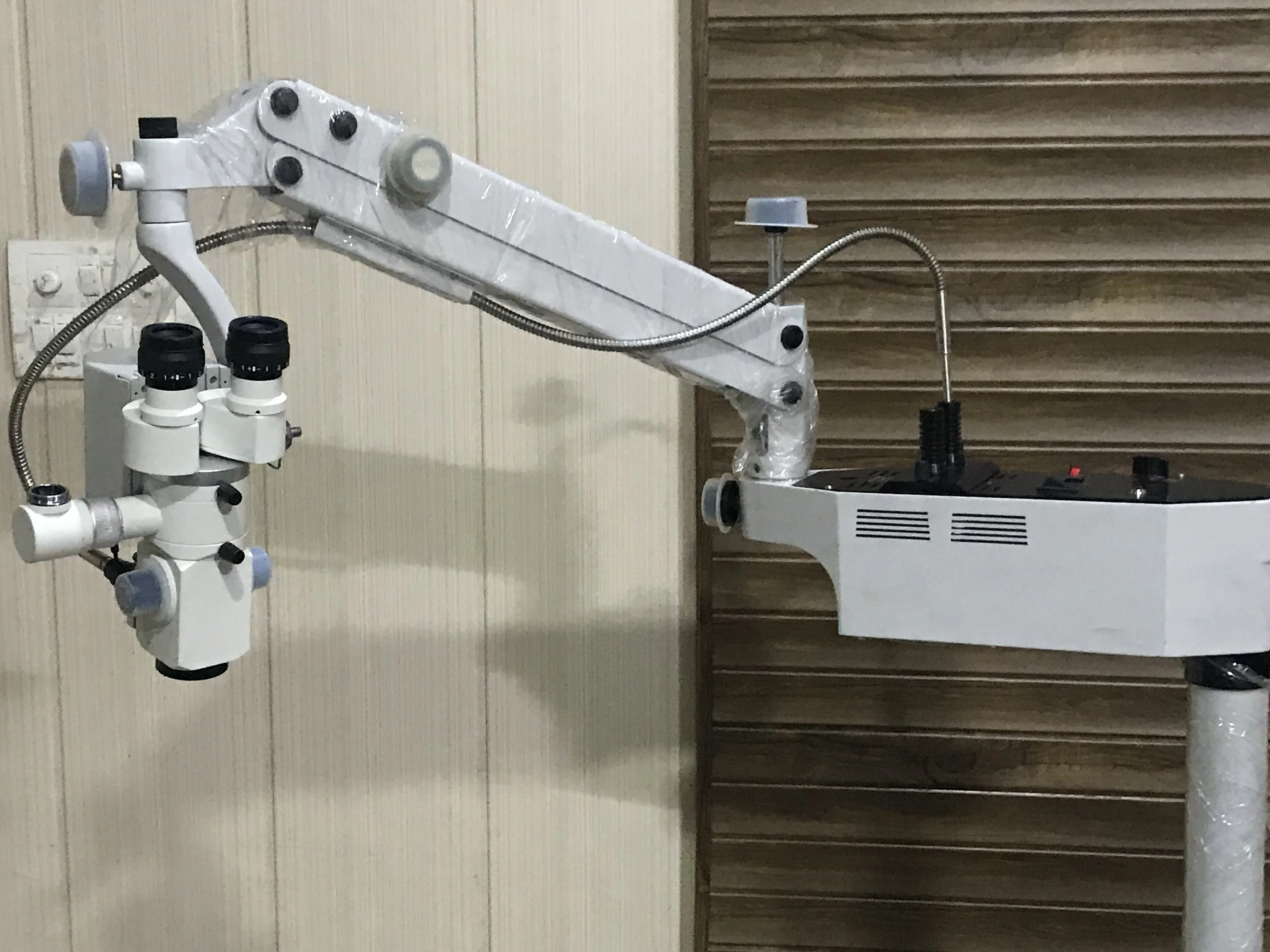

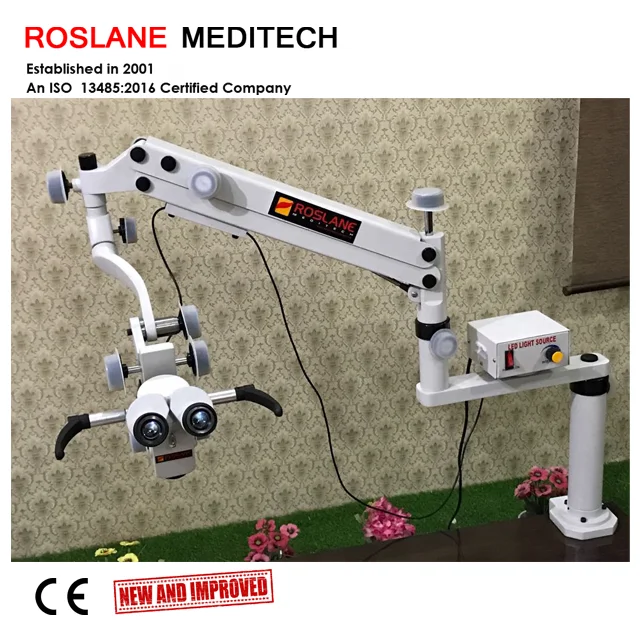

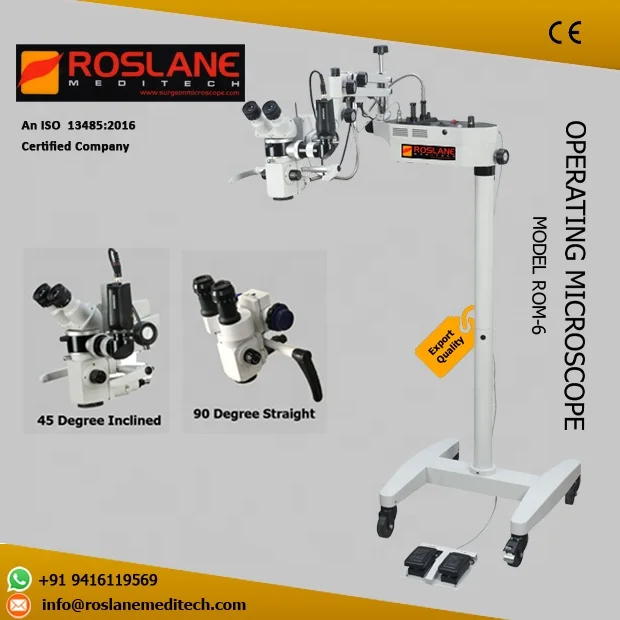

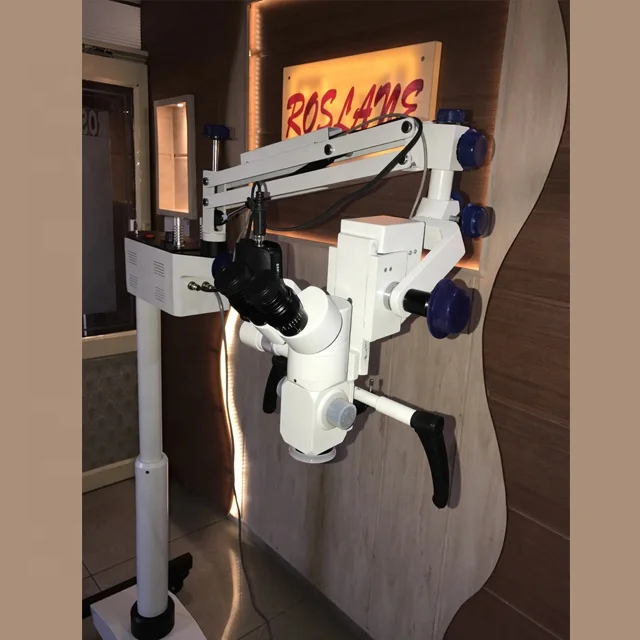

Here, we are submitting the Operating Microscope Model ROM 6 for various surgical procedures as per the specifications given below:
OPERATING MICROSCOPE |
TECHNICAL SPECIFICATIONS |
MICROSCOPE SECTION
Binocular Tube | 45 Degree inclined Binocular Tube OR 90 Degree straight Binocular Tube |
Eye Pieces | 12.5x W.F. |
Magnification | 5 Step Zoom Magnification (5x, 7.5x, 12.5x, 20x & 30x) OR 3 Step Zoom Magnification (7.5x, 12.5x & 20x) |
Objective | F= 200, 250, 300, 400 mm |
Working Distance | 200, 250, 300, 400 mm |
Inter Pupillary Distance Adjustment | 55mm to 75mm |
Focusing System | Motorized Foot Focusing System Or Manual Focusing |
ILLUMINATION SECTION
Type | By Optical Light Guide System |
Light Source | 24V/250W Halogen Lamp |
Illumination Control | Continuous Adjustment |
Field of Illumination | 70mm |
STAND SECTION
Type | Floor Stand |
Vertical Range of Counter Balanced Arm | 400mm |
GENERAL INFORMATION
Base Size | 600mm x 550mm |
Weight | 62 kg Approx. |
Height | 1550mm |
Electrical Power | AC 220V/110V |
OPTIONAL ACCESSORIES
A. Beam Splitter with Camera Mount |
B. Digital CCD Camera |
C. Mobile Phone Adapter |
