Wallbox App Control Type 2 Plug Wall Mounted 32a 7kw Ev Charging Stations Pile
- Category: >>>
- Supplier: Guangzhou Shengpin Technology Co. Ltd.
Share on (11000008900729):
Product Overview
Description
Best Selling
Product Description
Safe and fast
The best charging station for home and private use
Type A+DC 6mA leakage protection
Simple and intelligent
Home use app with intelligent control the wallbox
Dynamic Load Balance
Flexible Option
Type 1 or Type 2 charging cable

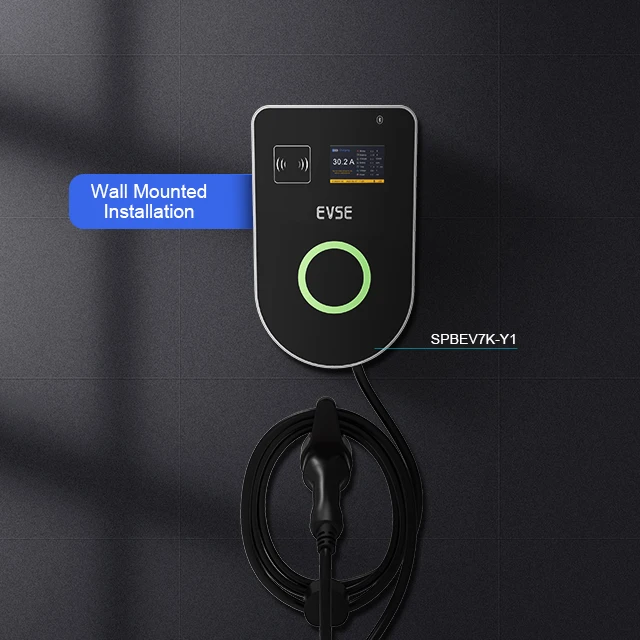

Wall-mount or floor-stand installation
Dual DC outlet dual CCS2 Fast EV Charger pile floor-mounted charging stations can support OCPP and cable management system
Main Parameters:
Model | SPBAC7JH3 | SPBAC11JH4 | SPBAC22JH5 | |||
Technical features | ||||||
Charging capacity | Up to 7KW | Up to 11 KW | Up to 22KW | |||
Input/Output power | 230VAC±20%-50/60Hz-32A-1 phase | 400VAC±20%-50/60Hz-16A-3 phase | 400VAC±20%-50/60Hz-32A-3 phase | |||
RCD | 30Ma RCD Type A and DC 6Ma RCD function | |||||
Standby power | <3w | |||||
Measuring accuracy | 1% | |||||
Communication | WIFI(Optional) APP | |||||
Load balancing | CT+Meter(Optional) | |||||
PEN Protection | Optional | |||||
User interface | LED/LCD(3.5")/ RFID(mifare iso& IEC 14443A) | |||||
Certificate/Compliance | CE / EN/IEC 61851-1:2017, EN/IEC 61851-21-2:2018 | |||||
Charging Interface | Type 2 cable 5M | |||||
Special Protection | Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection | |||||
Physical properties | ||||||
Warranty | 2 years | |||||
Protection | IP54, IK10 | |||||
Enclosure | Plastic PC940 | |||||
Front Panel | Temper glass | |||||

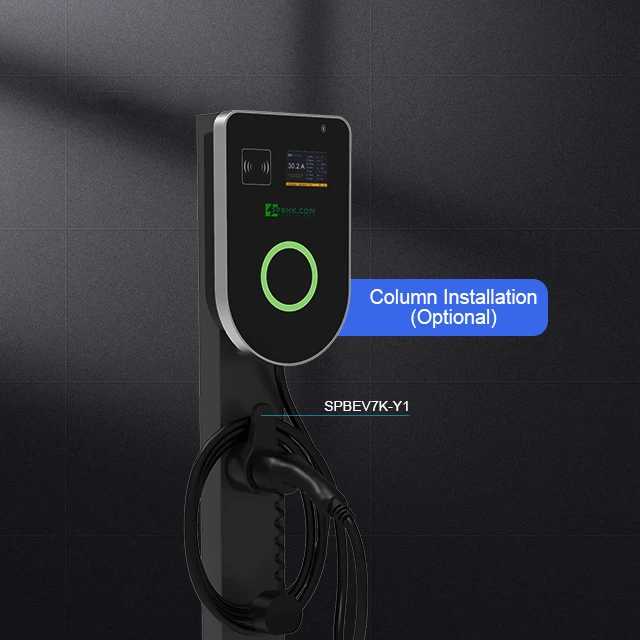

Installation | Wall-mount/Pole-mount | |||||
Cooling | Natural cooling | |||||
Operating temperature | -30℃ to +55℃ | |||||
Humidity | Max.95%(non-regulating) | |||||

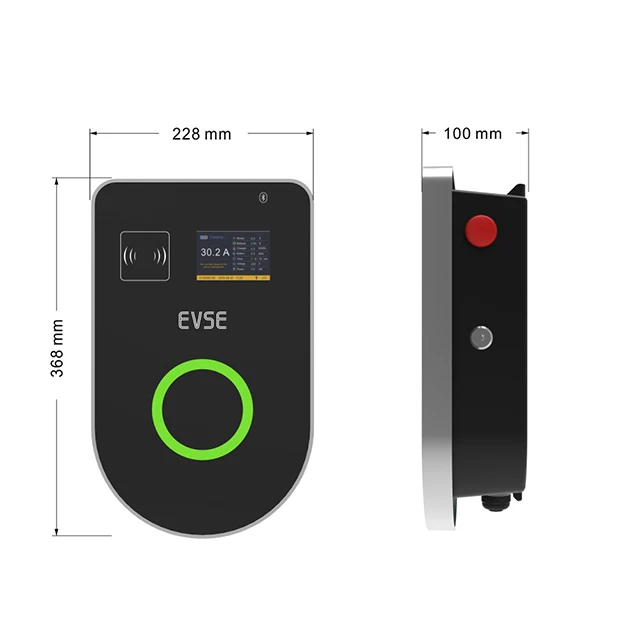

Product Dimensions | 320*230*100 (L*W*H)mm | |||||
Package Dimension | 465*325*270 (L*W*H)mm | |||||
Net Weight | 5.1Kg | 5.5Kg | 5.5Kg | |||
Gross Weight | 5.8Kg | 6.2Kg | 6.5Kg | |||
