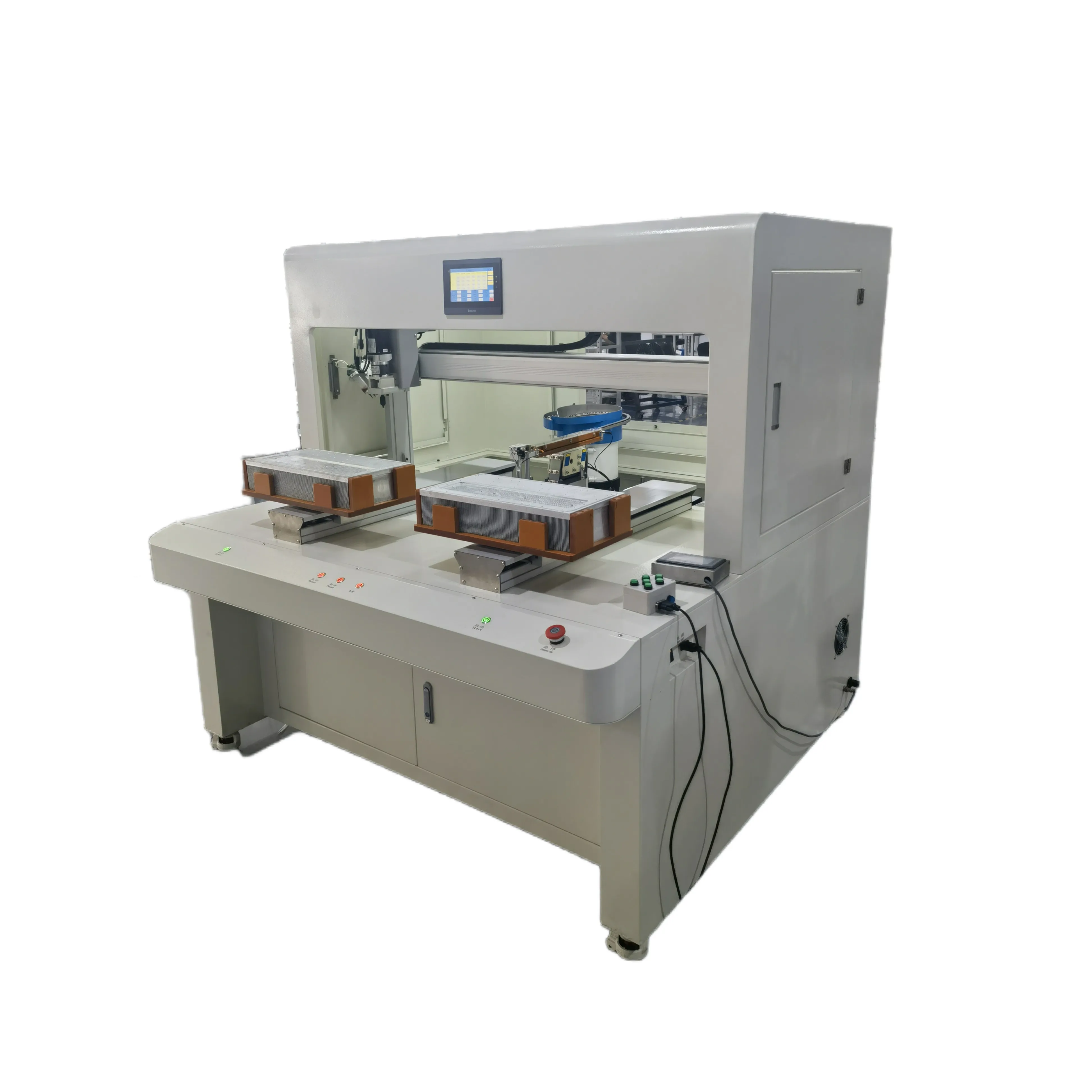

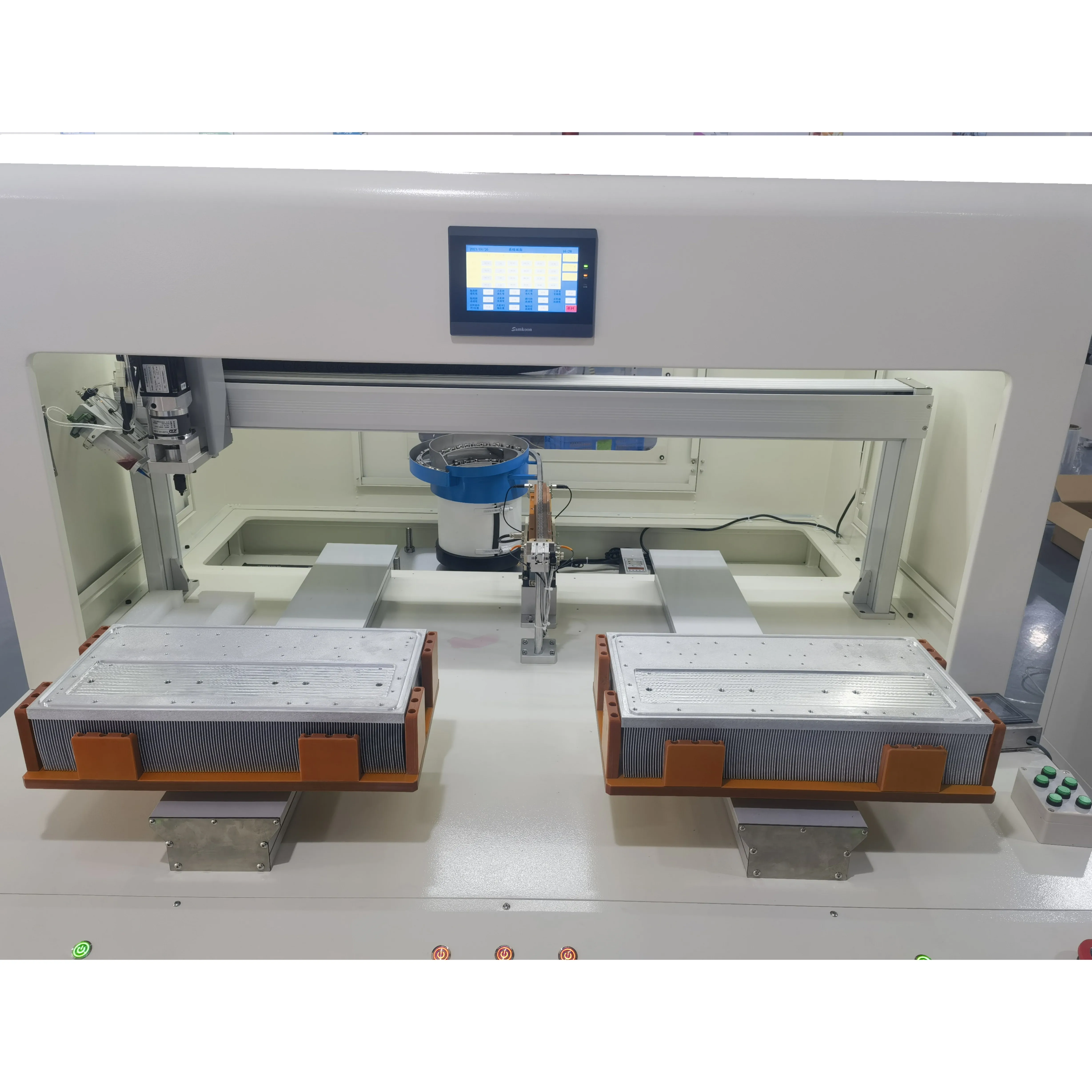

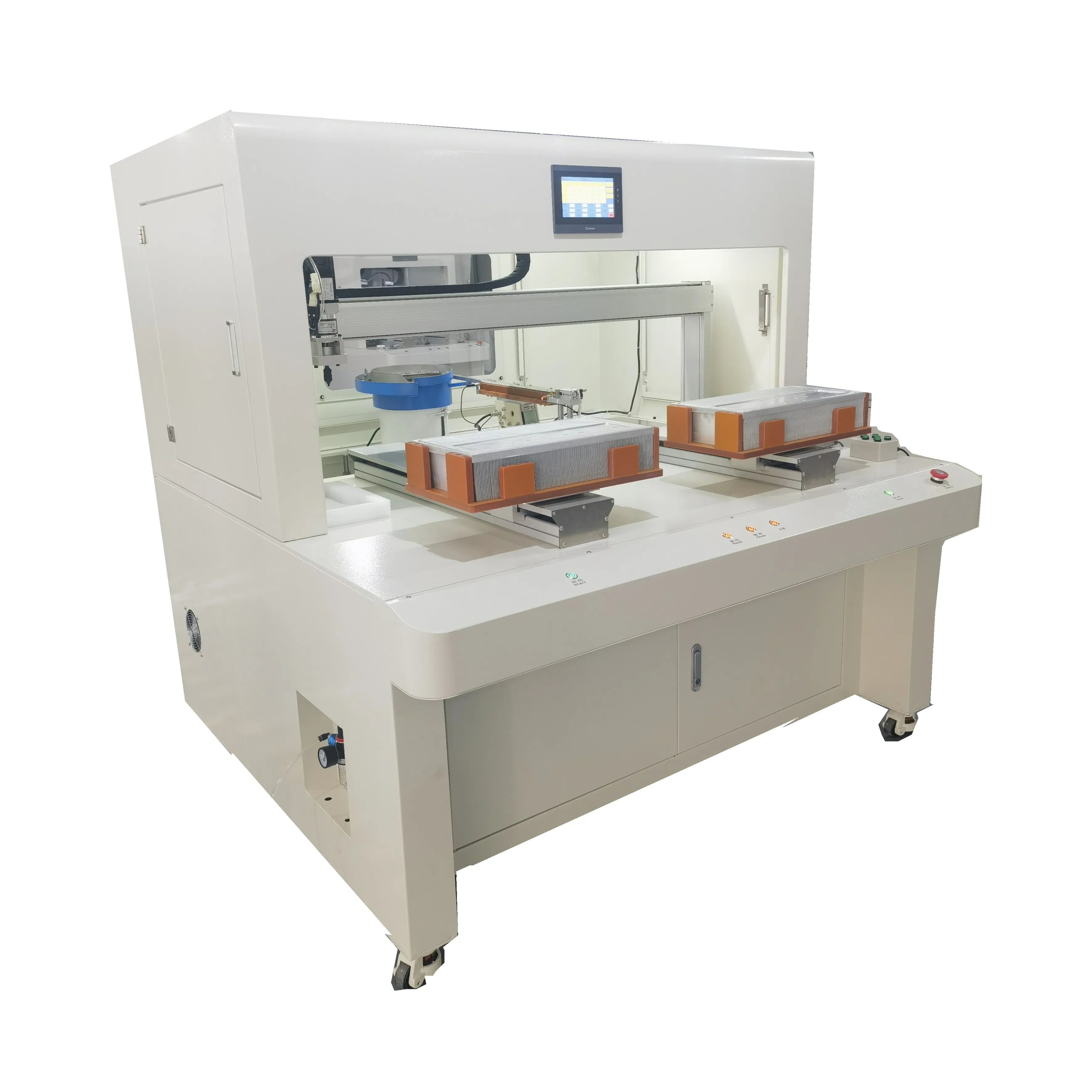

BBA Automatic Coil Screw Tightening Machine Stainless Steel Wire Screw Sleeve assembly machine for Stator Casing of Car Starter
BBA Automatic Coil Screw Tightening Machine Stainless Steel Wire Screw Sleeve assembly machine for Stator Casing of Car Starter
BBA Automatic Coil Screw Tightening Machine Stainless Steel Wire Screw Sleeve assembly machine for Stator Casing of Car Starter
BBA Automatic Coil Screw Tightening Machine Stainless Steel Wire Screw Sleeve assembly machine for Stator Casing of Car Starter
BBA Automatic Coil Screw Tightening Machine Stainless Steel Wire Screw Sleeve assembly machine for Stator Casing of Car Starter
BBA Automatic Coil Screw Tightening Machine Stainless Steel Wire Screw Sleeve assembly machine for Stator Casing of Car Starter
BBA Automatic Coil Screw Tightening Machine Stainless Steel Wire Screw Sleeve assembly machine for Stator Casing of Car Starter

BBA Automatic Coil Screw Tightening Machine Stainless Steel Wire Screw Sleeve assembly machine for Stator Casing of Car Starter

Share on (11000008901786):


Price:$4,600.00 - $9,300.00

Quantity:


Product Overview

Description

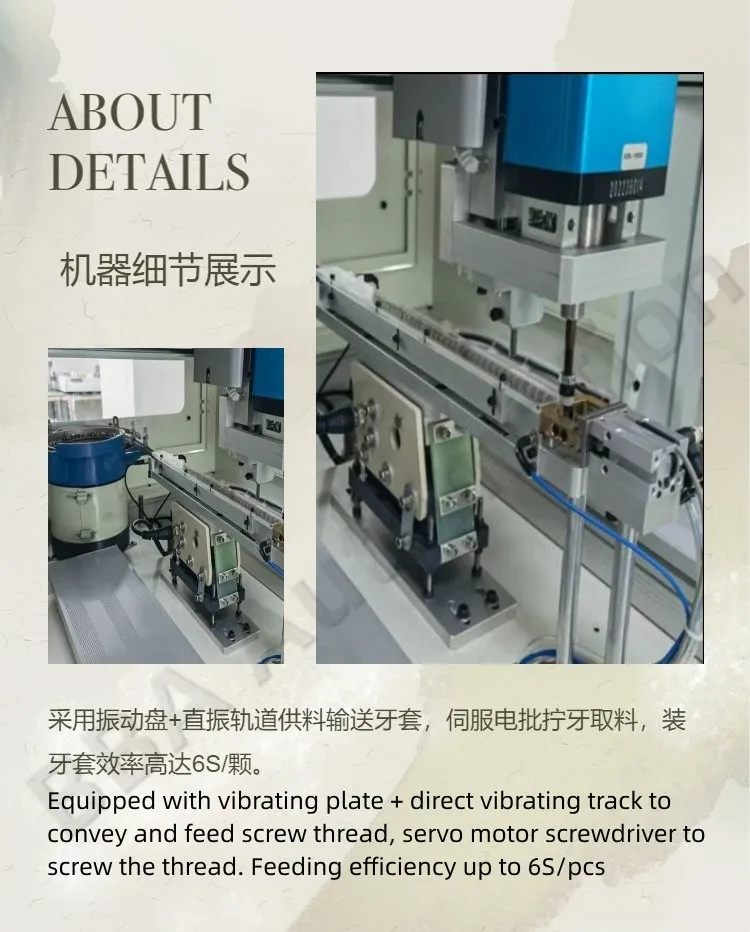

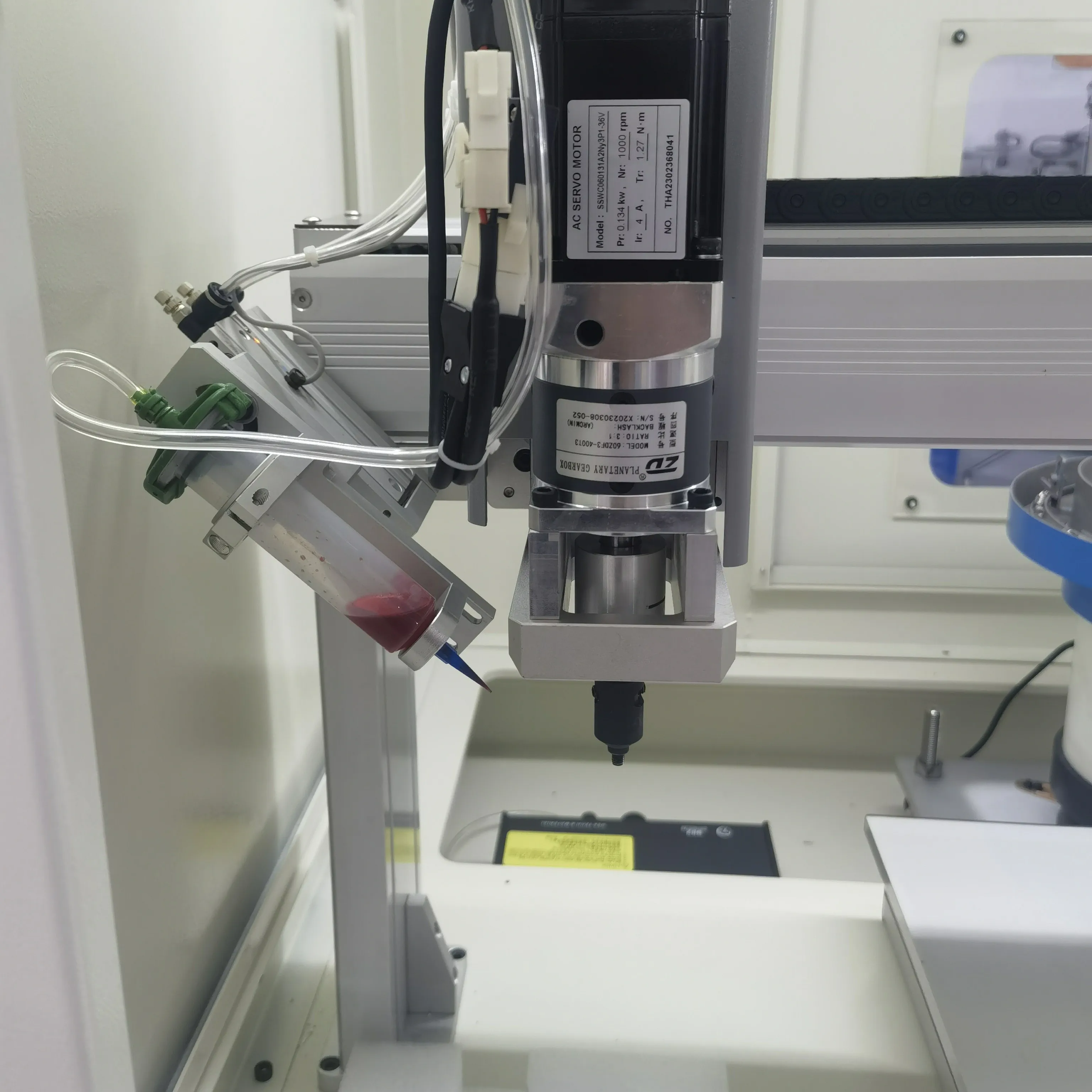

Automatic screw thread tightening machine can tighten the screw thread into the product automatically and quickly, meanwhile to ensure the quality of the product. Adopting the vibrating feeder and direct vibration track for feeding the screws. Using servo motor for screwing and reclaiming, can working in forward and reverse direction. After the screw thread are inserted and tightened, the tread tail are automatically retracted. The functions of glue dispensing and depth detection can be added. Also can be performed as double screw thread tightening system.




Products Description

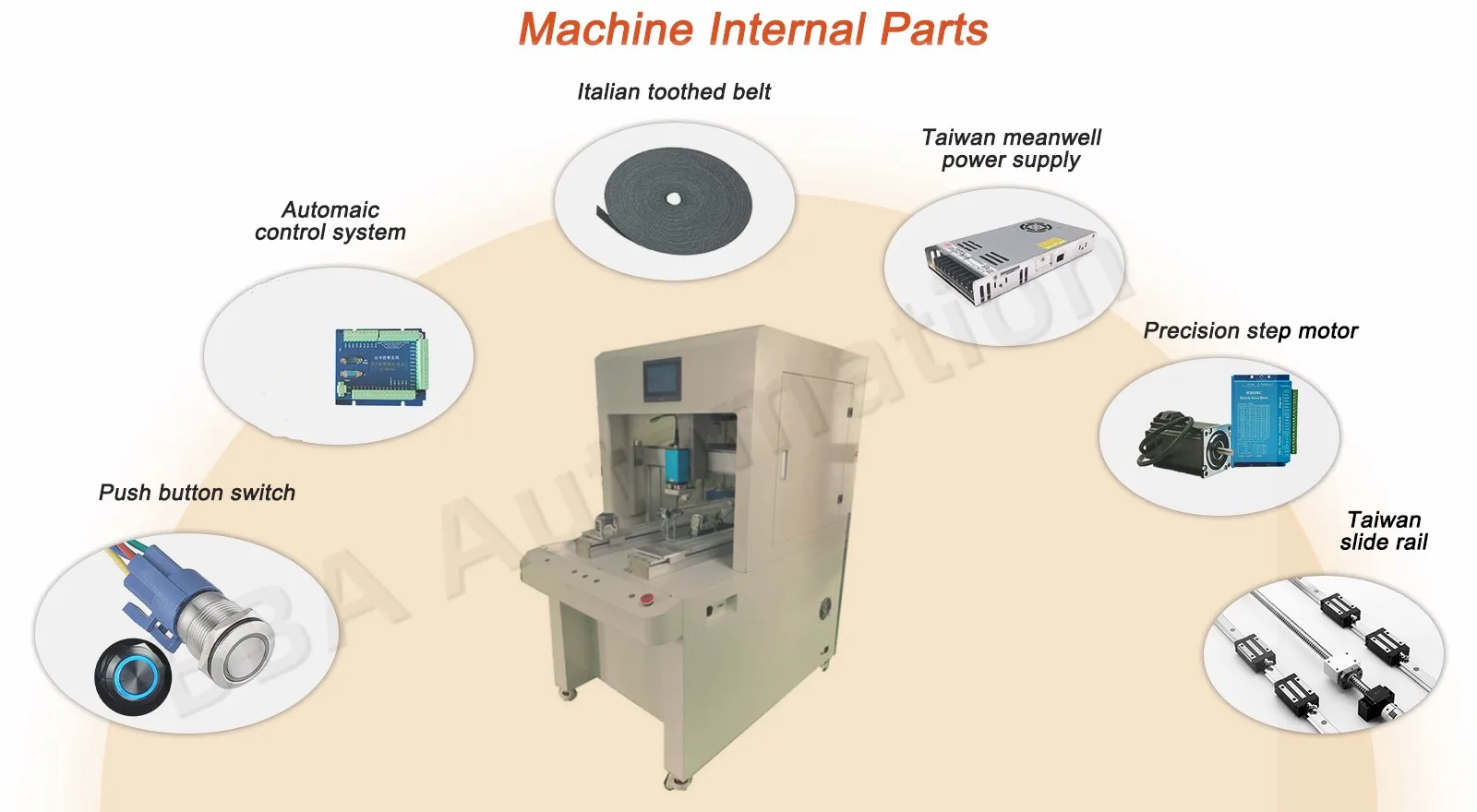

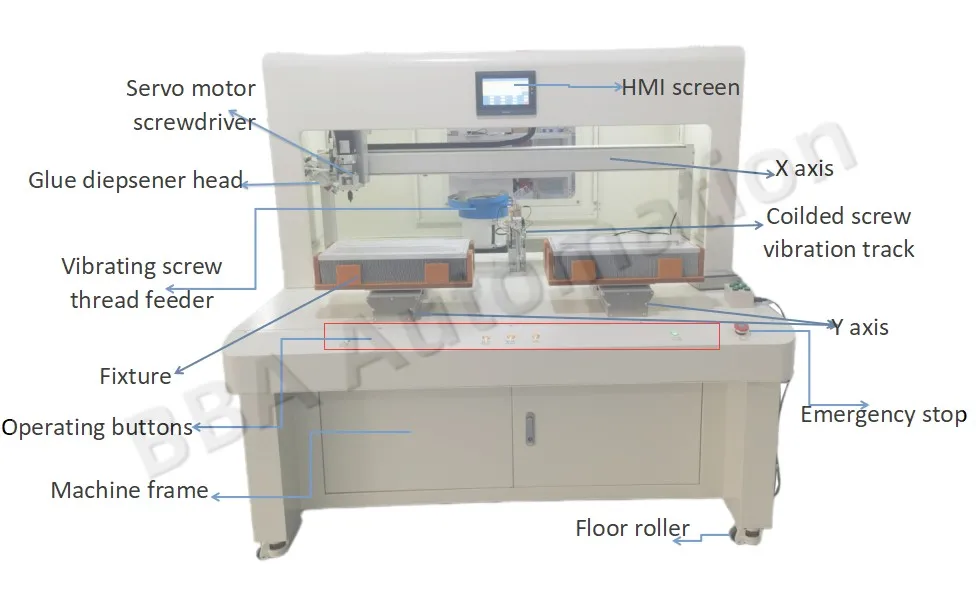

Machine external accessories

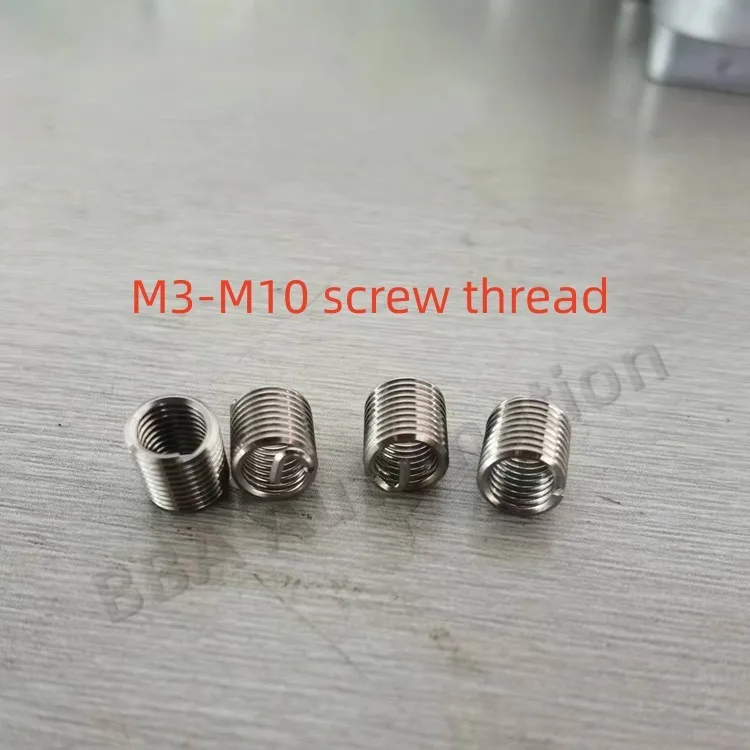

Applicable screws






Specification


Voltage
AC110/220V 50/60HZ
Power
1000W
Stroke
500*400*400*100mm (X*Y*Z), can be customized
Movement speed
10-500mm/S
Position accuracy
±0.05mm/axis
Universal screw thread
M3-M10
Screw thread height
6-20mm
Screw thread material
Copper, Aluminum, Metal, Stainless steel
Screw thread type
Self-tapping thread, screw thread, steel thread
Transmission mode
Precision toothed belt+guide rail
Control panel
PLC+HMI screen
Conveying mode

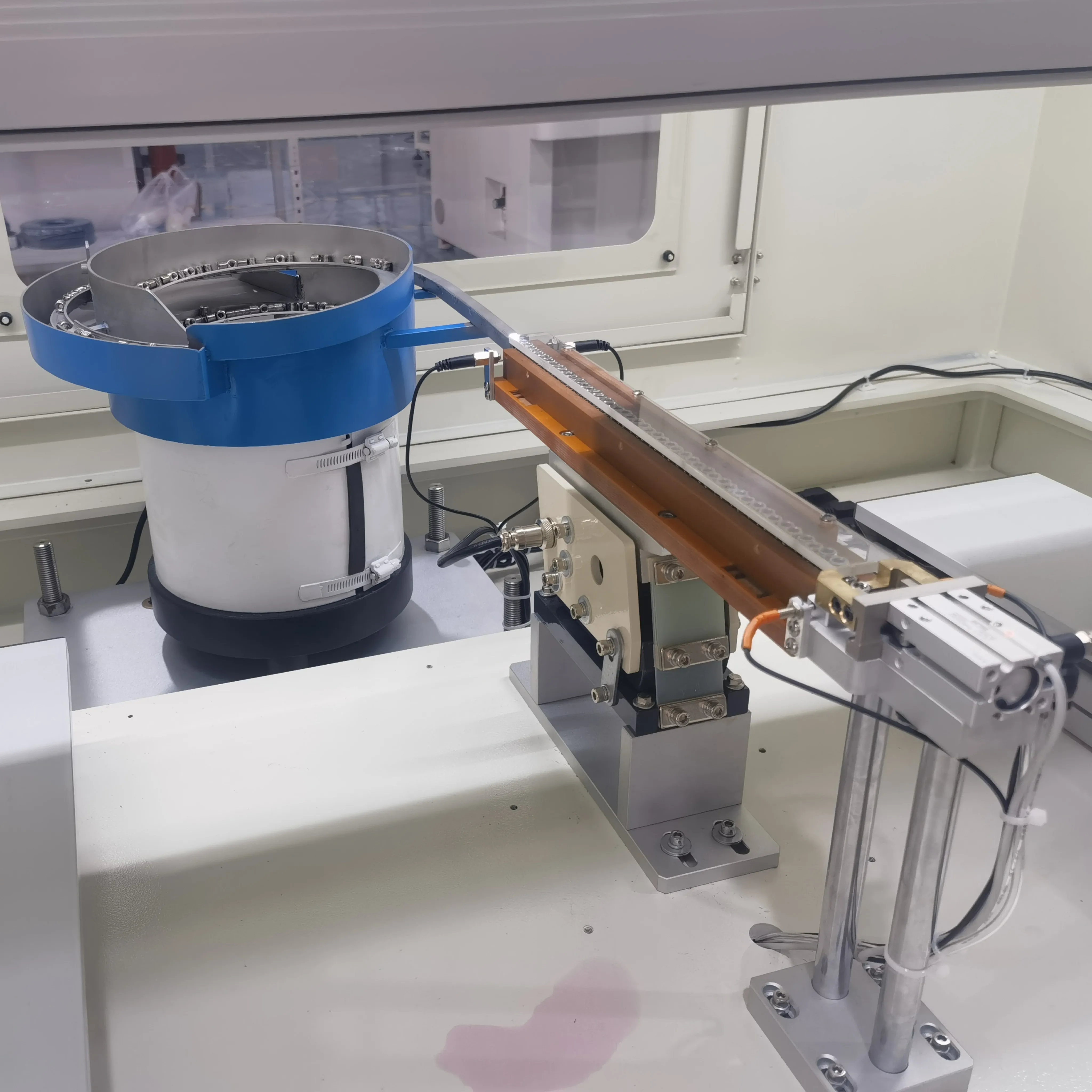

Vibrating plate+direct vibrating track
Work efficiency
6S/pcs (include cutting thread tail), details depends on thread size
Air pressure
0.4-0.6Mpa
External port
RS232
Program capacity
12 groups, 20 points per group; can be customized
Work environment
Temperature: 5-40℃ Humidity: 20-90%
Weight
580kg
External machine size (L*W*H)
850*1270*1560mm

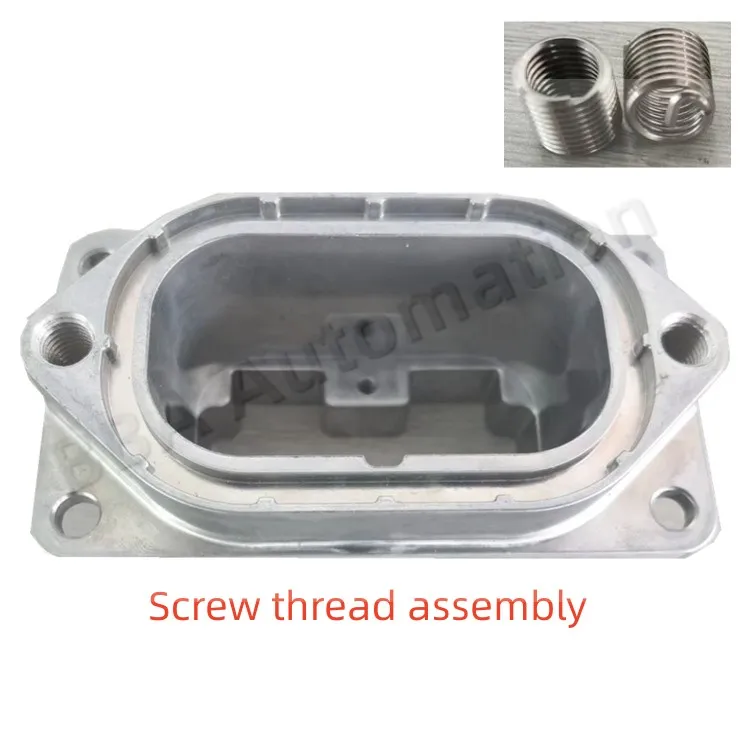

Customer case




Application: precision hardware industry, new energy electric vehicle, energy storage, inverter, 5G industry, die casting,aluminum casting, automotive pallet processing, battery tray, cold water plate, electric vehicle power lithium battery, industrial power supply, outdoor lighting , drones, aerospace, shipbuilding, charging piles and many other industries, fast, efficient and accurate, save time, save labor costs, and greatly improve efficiency.
