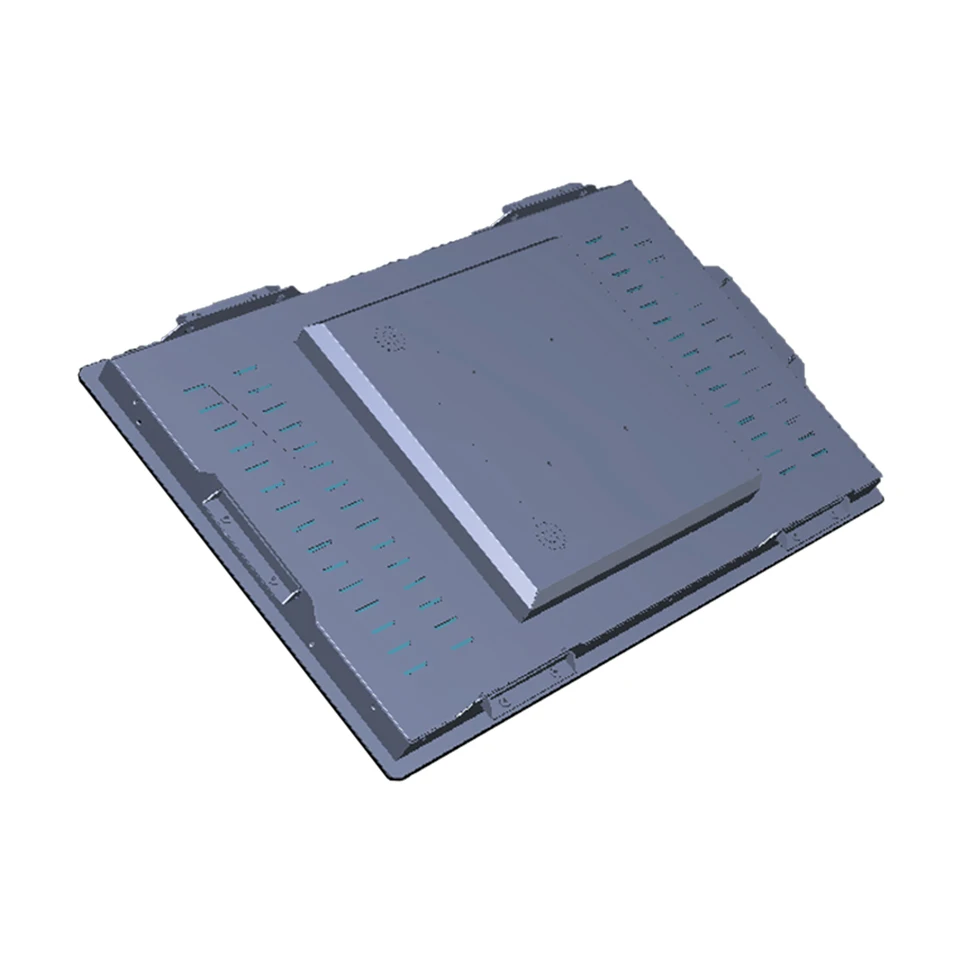

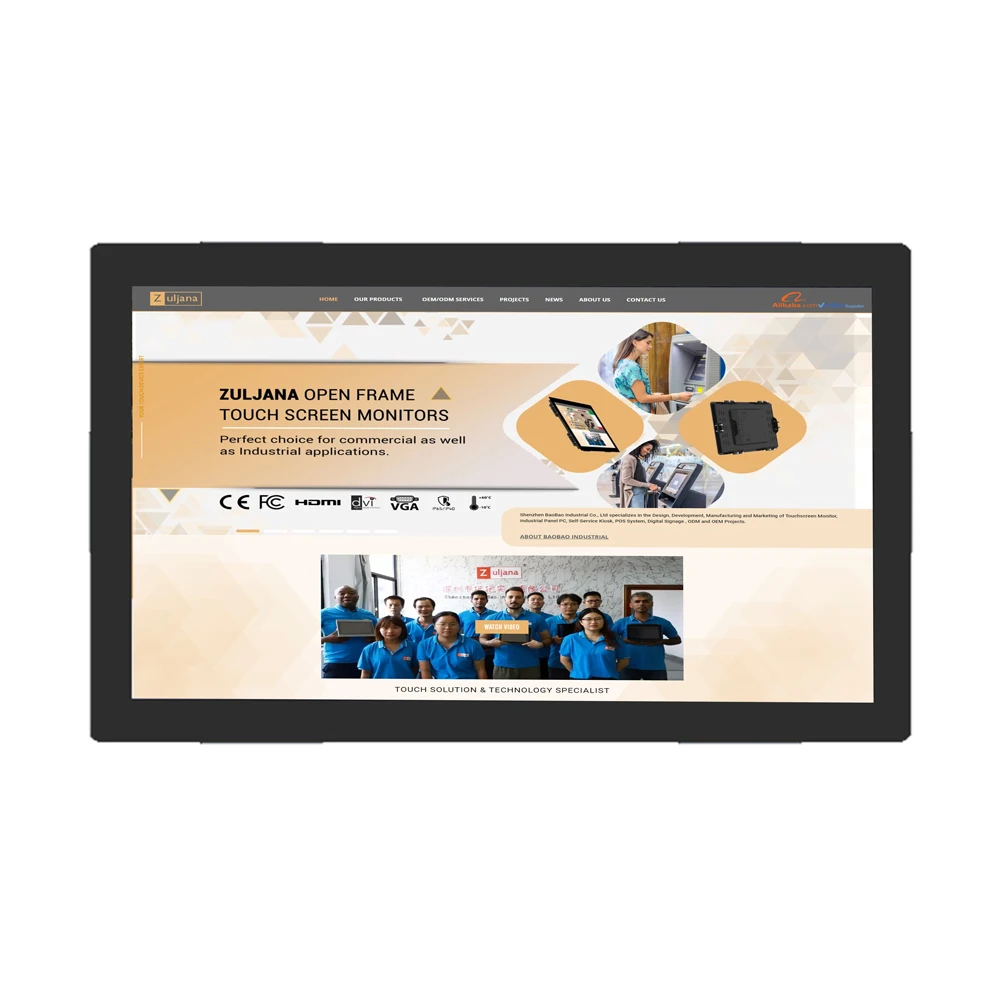

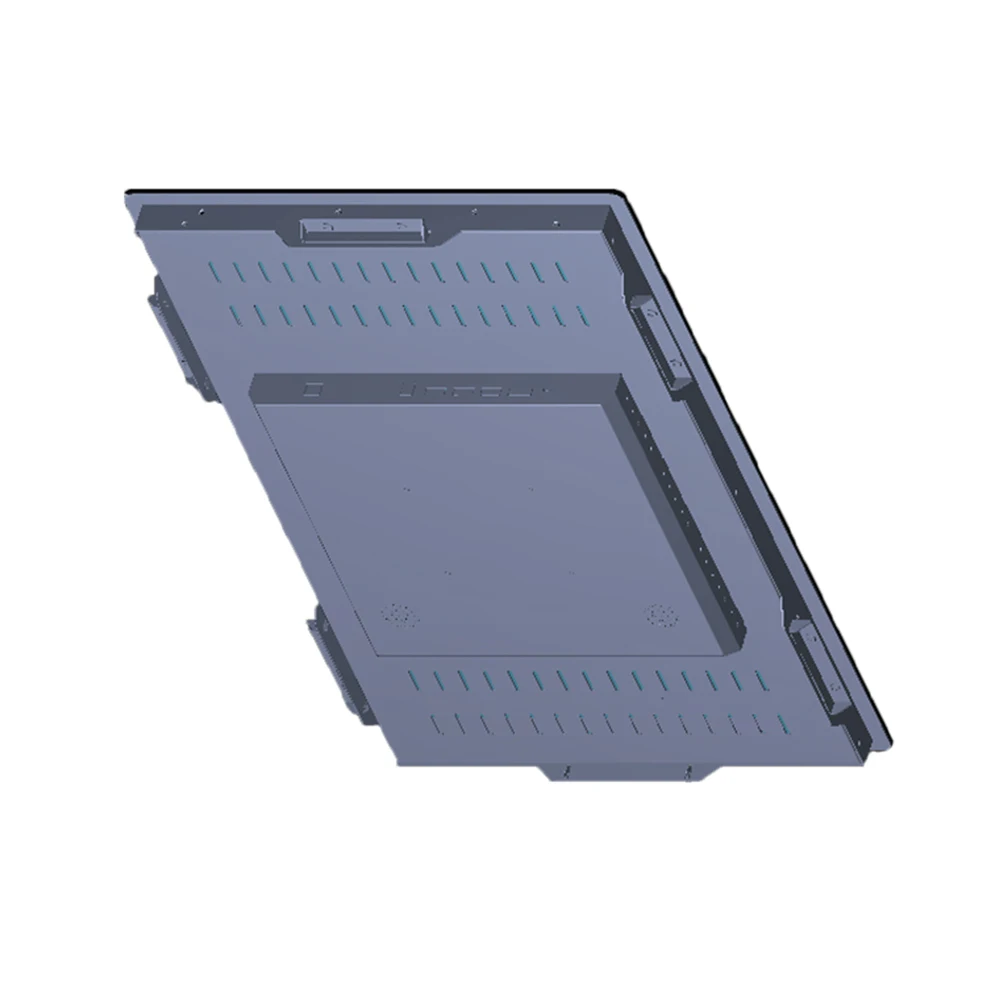

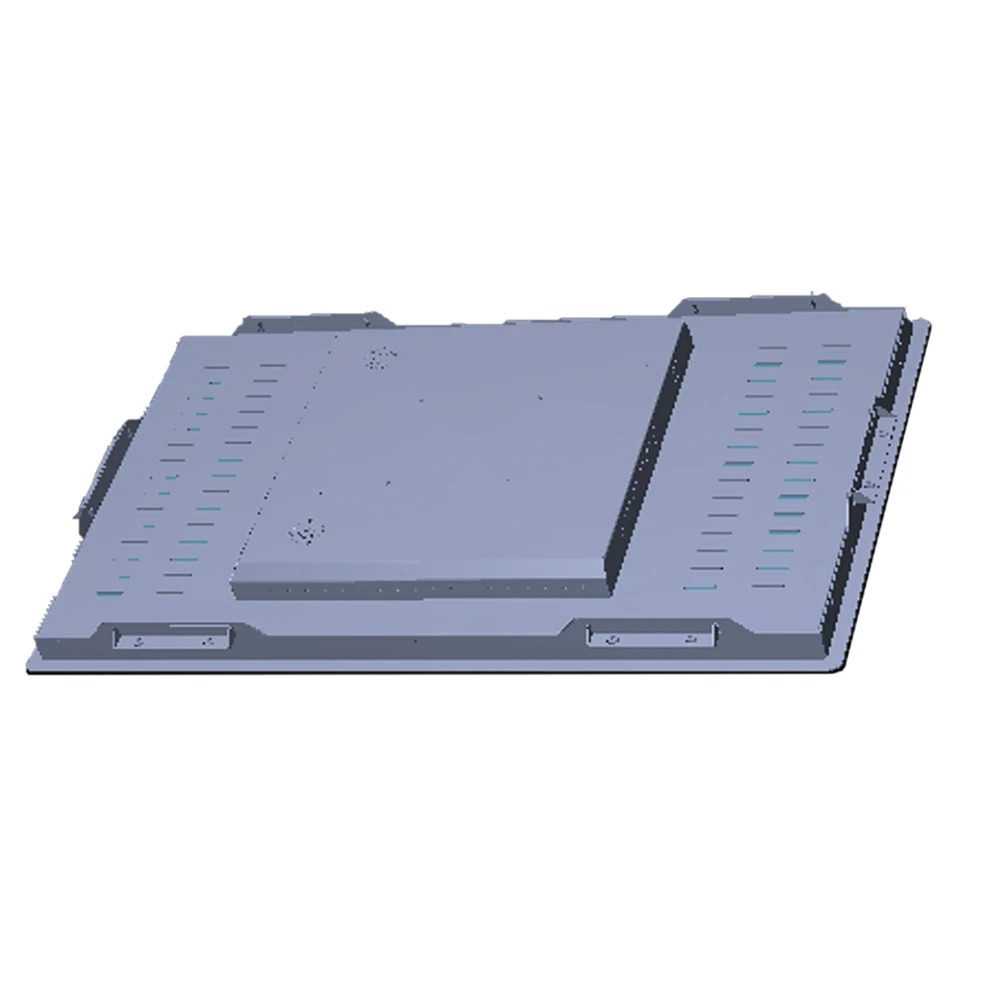

27 inch IP 65 Waterproof display embedded Capacitive Open Frame touch screen monitor for ATM kiosk



| Product Details | |
| Product name | 27″ Capacitive Open frame Screen Monitor |
| Model No | ZL27TMBCAP-OF |
| LCD Panel | |
| IP Rating | IP65 Front / IP40 Back |
| Screen diagonal (Inch/cm) | 27/68.57 |
| Display active screen size (cm) | 59.86 x 33.71 |
| Aspect ratio | 16:9 |
| Physical resolution | 1024 X 600 |
| Maximum showable resolution | 1920×1080 |
| Colours displayed | 162K |
| Brightness (cd/m²) | 300 |
| Contrast | 3000:1 |
| Typical reaction time Tr/ Tf (ms) | 7/5 |
| Visual Angle horizontal/vertical (°) | 178/178 |
| Backlight / Backlight Lifetime (hours) | LED / 30,000 |
| Touch Panel | |
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Panel Drivers | Windows; Linux; Mac; Android |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Surface Treatment | Anti-glare (Optional) |
| Operation/Mechanical | |
| Operating Temperature (°C) | -10 ~ +60 |
| Humidity Range (RH) | 10% – 90% |
| Net weight (kg) | 5.50 |
Gross weight (kg) | 6.5(incl. cartonage) |
| Housing material | Aluminum Front/backCase |
| Housing (mm) L × W × H | 1278.0 × 749.0 × 65.06 |

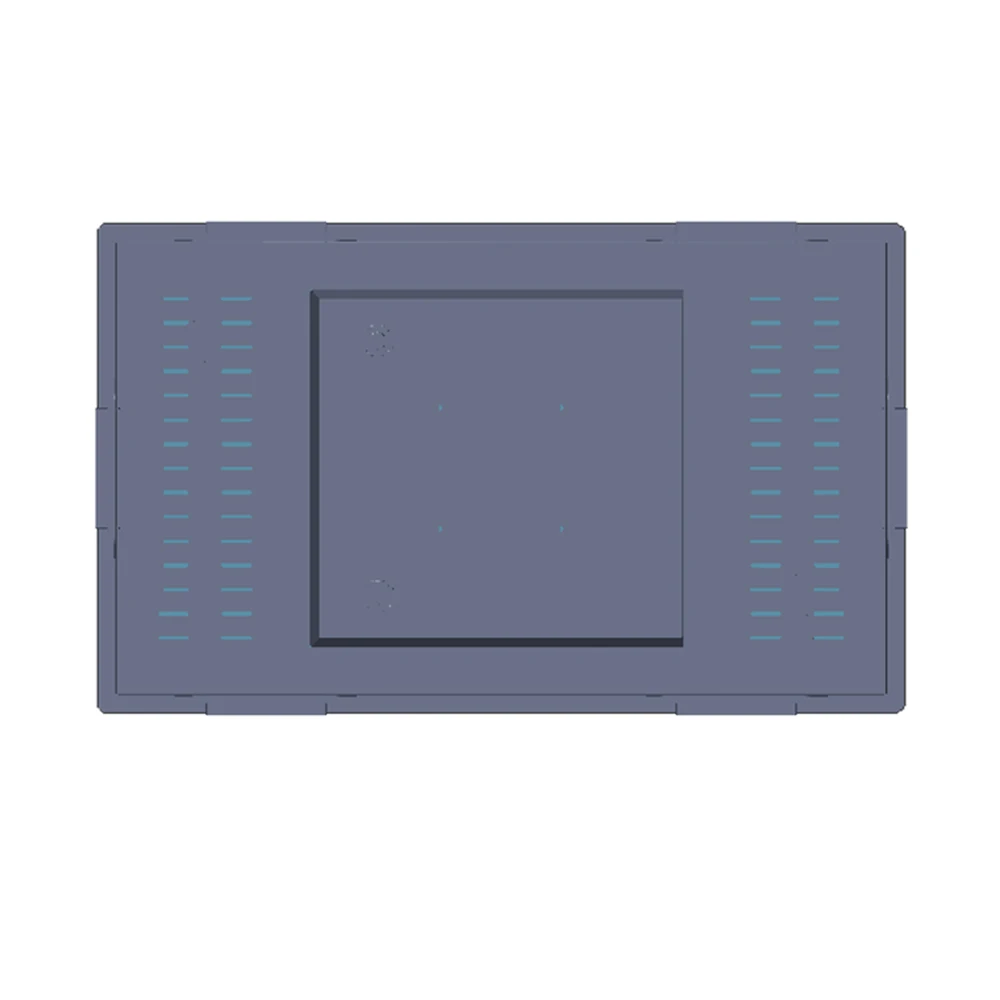

| Mounting | VESA 400*400 |
| Power | |
| Power Indicator | Green LED |
| Power Supply | 100-240V ACDC active switching; 12V DC-Out |
| Working Power (V) | 12 |
| Power Consumption (W) | 20 |
| Stand-By Consumption (W) | <1 |
| Included in the Delivery | |
| Power Supply | |
| Short Installation Manual | |
W-LAN Antenna (RP-SMA female) | |
Standard Stand | |
