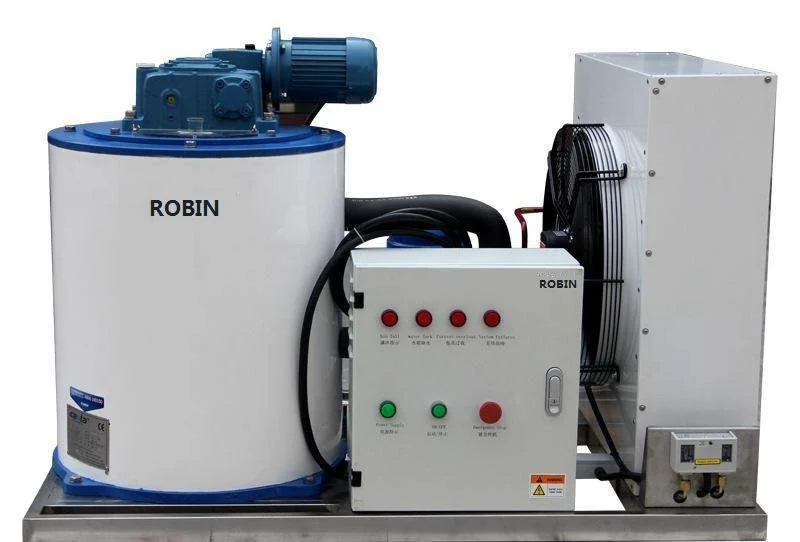

Robin top 1 ton flake ice machine with single phase compressor
- Category: >>>
- Supplier: Jinan Robin Machinery Co. Ltd.
Share on (11000009010671):
Product Overview
Description
Product Description
●The evaporation tank is made of stainless steel or carbon steel chromium upon the user's requirement. ●The evaporator with flange connection structure, evaporation chamber with ribs spiral groove around the welded structure to enhance inner strength, and the all thickness through strict testing to uniform wall thickness, ensure the sustainable use of the evaporator is not deformed.
●The PLC controlling system can automatically control the whole progress of procuring ice with alarm of lacking water, full ice, high/low pressure, and motor reverse rotation protection so as to guarantee the machine run stably with less faults.
●The scratch-style ice dropping system inside machine ensures constant working with minimum power consumption.
●The latest technology allows for highly efficient heating transfer and energy saving.
●The PLC controlling system can automatically control the whole progress of procuring ice with alarm of lacking water, full ice, high/low pressure, and motor reverse rotation protection so as to guarantee the machine run stably with less faults.
●The scratch-style ice dropping system inside machine ensures constant working with minimum power consumption.
●The latest technology allows for highly efficient heating transfer and energy saving.
Flake Ice Machine Features
●The temperature of the borneol is low and the ice temperature can reach below -8 °C.
●It is dry and clean, beautiful in shape, not easy to block, good in fluidity and convenient in hygiene. The sheet structure, so the contact area with the cold collection is large, and the cooling effect is wonderful.
●The flakes have no sharp edges and corners, which will not damage the surface of the cold collection and are very convenient for storage and transportation. The thickness of the borneol can reach 1.5mm-2.2mm, and it can be used at any time without using a crusher.
●It is dry and clean, beautiful in shape, not easy to block, good in fluidity and convenient in hygiene. The sheet structure, so the contact area with the cold collection is large, and the cooling effect is wonderful.
●The flakes have no sharp edges and corners, which will not damage the surface of the cold collection and are very convenient for storage and transportation. The thickness of the borneol can reach 1.5mm-2.2mm, and it can be used at any time without using a crusher.
Technology of flake ice machine
Capacity | 1 Ton/24hours | |
Refrigerant | R22/R404A/R507/R449 | |
Compressor Brand | Copeland/Bizter | |
Cooling Way | Air Cooling | |
Compressor Power | 6 HP | |
Ice Cutter Motor | 0.2 KW | |
Power of Circulating Water Pump | 0.15 KW | |
Cooling Fan Motor | 0.38 KW | |
Machinery Unit Size(L*W*H) | 1320mm*900mm*900mm | |
Machinery Unit Weight | About 450kg | |
Input Water Temp | 21degrees Celsius | |
Evaporating Temp | 25degrees Celsius | |
Condensing Temp | 40degrees Celsius | |
Supply power | 380V/50Hz(60Hz)/3P; 220V(230V)/50Hz/1P; 220V/60Hz/3P(1P); 415V/50Hz/3P; 440V/60Hz/3P. | |
The above data is subjected to the final design without notice. | ||
Flake Ice Machine details

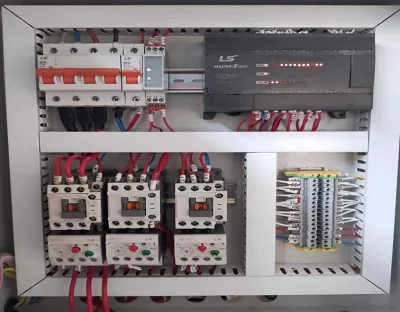

Electric box
Microcomputer Intelligent control: the flake ice machine is using PLC control system with world famous brand components.
Meanwhile, it can portect the flake ice machine when there are water shortage, ice full, H / L pressure alarm, and motor reversal.
Meanwhile, it can portect the flake ice machine when there are water shortage, ice full, H / L pressure alarm, and motor reversal.

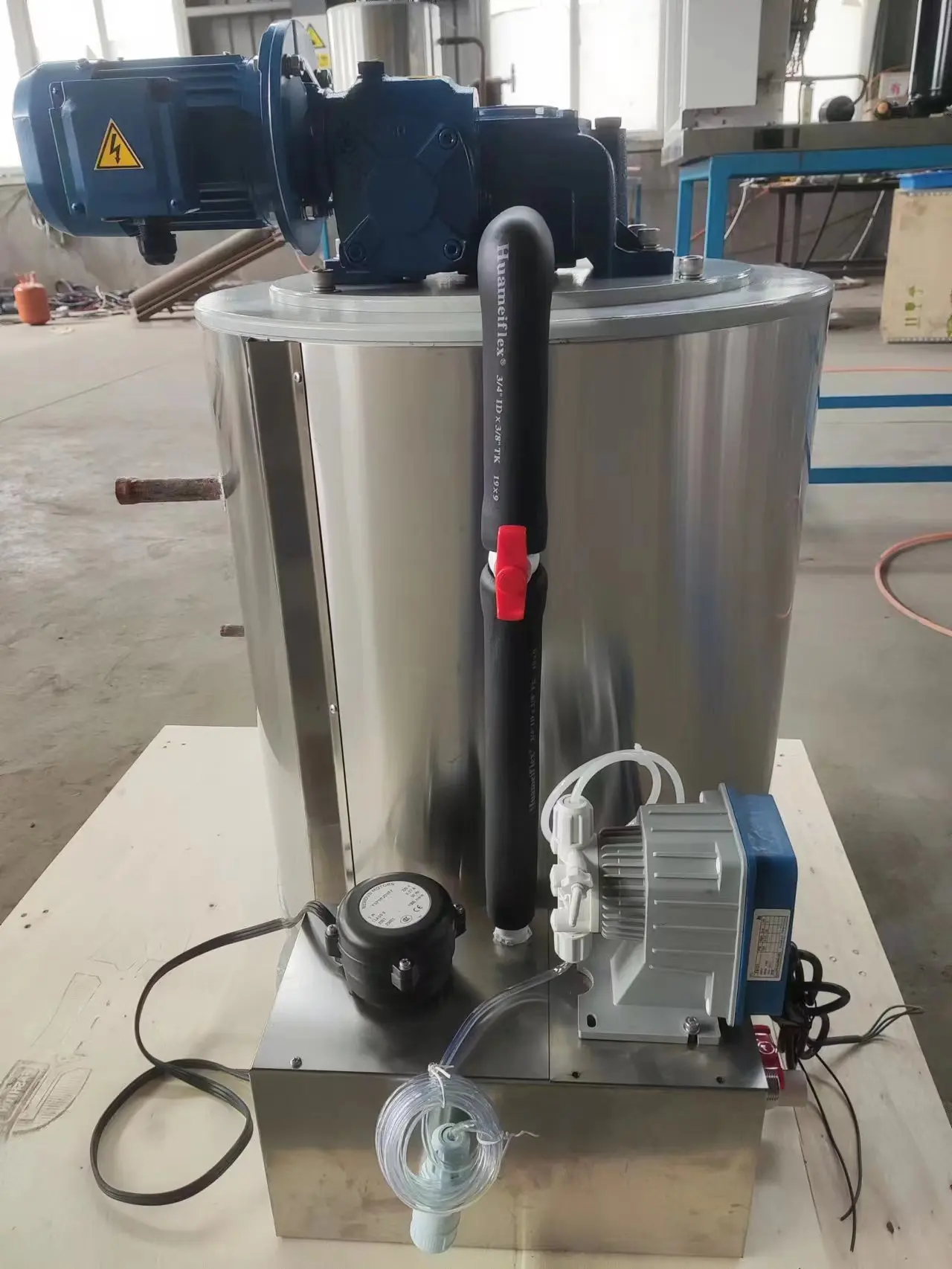

Evaporator drum
Use stainless steel material or carbon steel chrominum. The style of inside machine ensures constant running at the lowest power consumption.Stainless steel materials, advanced processing equipment and heat treatment to ensure the best heat transfer efficiency;Directly liquid feeding, dry-type evaporation make simple, safe and reliable control.

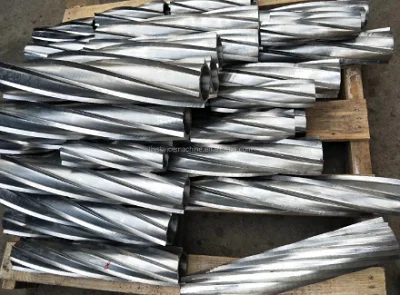

Ice cutter
Internally-scraping ice remover helps to reduce energy loss, guarantee the supply of refrigerant, and prevent leakage of refrigerant; Ice thickness can be varied by changing the speed of the rotor.
Compressor
Adopt famous compressor brand, Bitzer, Refcomp, USA copeland, Danfoss ect keep the high quality flake ice machine product, and make it sure for stable working and long life working.
Flake Ice Application
Fishing processing, preservation and transportation.
Meat processing, preservation and transportation.
Food processing, preservation and transportation.
Fruit and vegetable preservation and transportation.
Chemistry cooling, concrete cooling and air conditioning cooling.
Meat processing, preservation and transportation.
Food processing, preservation and transportation.
Fruit and vegetable preservation and transportation.
Chemistry cooling, concrete cooling and air conditioning cooling.
Main brands on Flake Ice Machine
Company Profile
Jinan Robin Machinery CO., LTD is located in Jinan, Shandong, which is an comprehensive enterprise specializing in design,production,technical support and services for ice making machine, such as flake ice machine, seawater machine, block ice machine,tube ice machine, cold room, refrigeration equipment. The large, medium and small sized ice machine can applied to the supermarket, hotel, Marine fishery, aquatic products processing, food processing, chemical industry, concrete cooling and the coalmine cooling etc.
Based on the principle of "Customer First, Credit First", Robin Machinery has established long-term cooperative relationships with many companies. Sincerely welcome friends from all walks of life to visit, inspect and negotiate business.
Based on the principle of "Customer First, Credit First", Robin Machinery has established long-term cooperative relationships with many companies. Sincerely welcome friends from all walks of life to visit, inspect and negotiate business.
Certificate
Services
Service before sale
1.One-on-one exclusive customer service staff, 24 hours online.
2.Inquiry, email, message will be replied at first time.
3.Supply professional technical parameters, video picture sharing, project design.
Service on sale
1.Ensure customer payment security.
2.Ensure the customer's price is stable and reasonable.
3.Insist on quality first the production standard, every machine before leave the factory we test it ensure the quality is good.
Service after sale
1.Arrange high-efficiency delivery and safe transport.
2.Supply installation training, direction for use, maintenance instructions, techinical support, all necessary documents you need and oversea service.
1.One-on-one exclusive customer service staff, 24 hours online.
2.Inquiry, email, message will be replied at first time.
3.Supply professional technical parameters, video picture sharing, project design.
Service on sale
1.Ensure customer payment security.
2.Ensure the customer's price is stable and reasonable.
3.Insist on quality first the production standard, every machine before leave the factory we test it ensure the quality is good.
Service after sale
1.Arrange high-efficiency delivery and safe transport.
2.Supply installation training, direction for use, maintenance instructions, techinical support, all necessary documents you need and oversea service.
FAQ
1. Can I customize the machine?
Yes. You can choose output, material, accessories brand, etc.
2. Are the prices on the website accurate?
No. Because the price of the machine is affected by many factors, the price of the website is not very accurate.
3. How do I get a more accurate price?
Tell the salesman your requirements and they will give you a more accurate price.
4. How long will it take to make the machines?
The production time required for machines of different output is different. Peak season requires longer production time.
5. Is there any guarantee for my payment?
In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release your payment to us.
6. How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
2. Are the prices on the website accurate?
No. Because the price of the machine is affected by many factors, the price of the website is not very accurate.
3. How do I get a more accurate price?
Tell the salesman your requirements and they will give you a more accurate price.
4. How long will it take to make the machines?
The production time required for machines of different output is different. Peak season requires longer production time.
5. Is there any guarantee for my payment?
In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release your payment to us.
6. How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
