XIAOSHU Electric Heating Tube Cartridge Heater 110v 250w 300w 180mm For Plastic Injection Machine
- Category: >>>
- Supplier: Yancheng Xiaoshu Technology Co. Ltd.
Share on (11000009019924):
Product Overview
Description
Product Overview

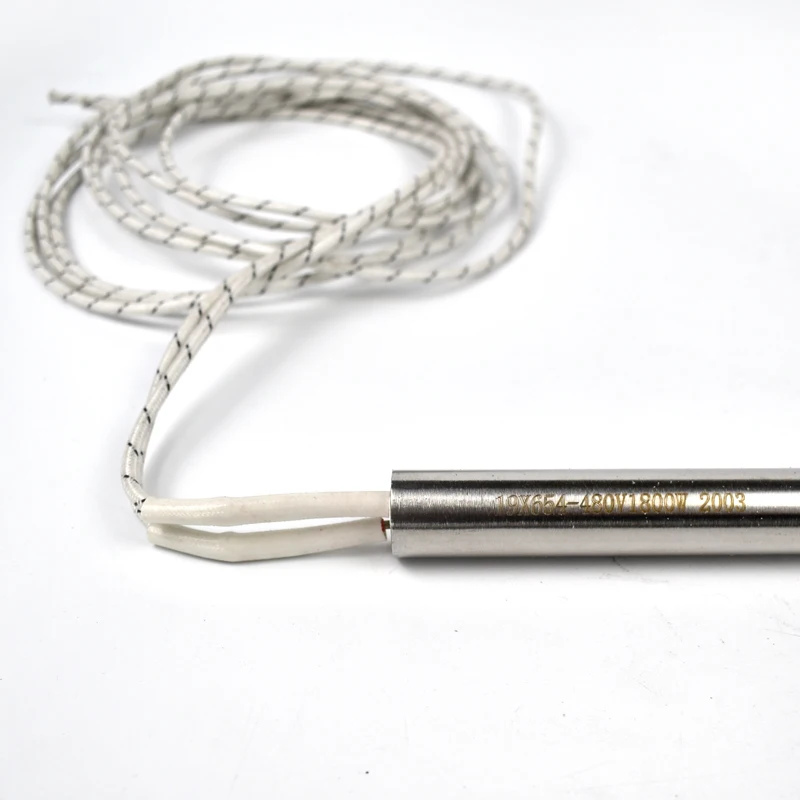

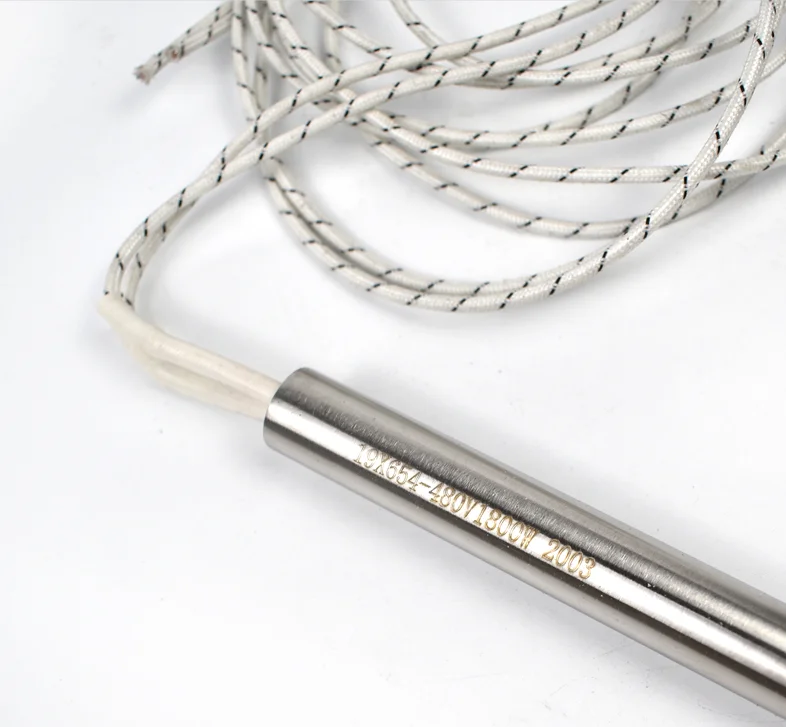

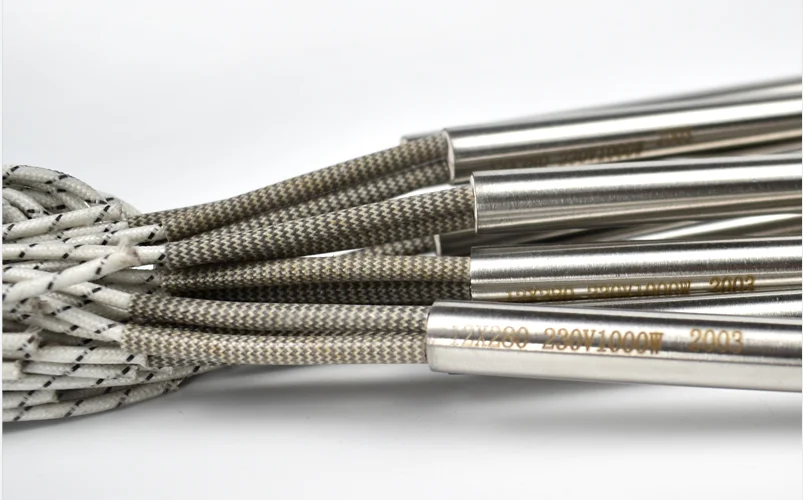

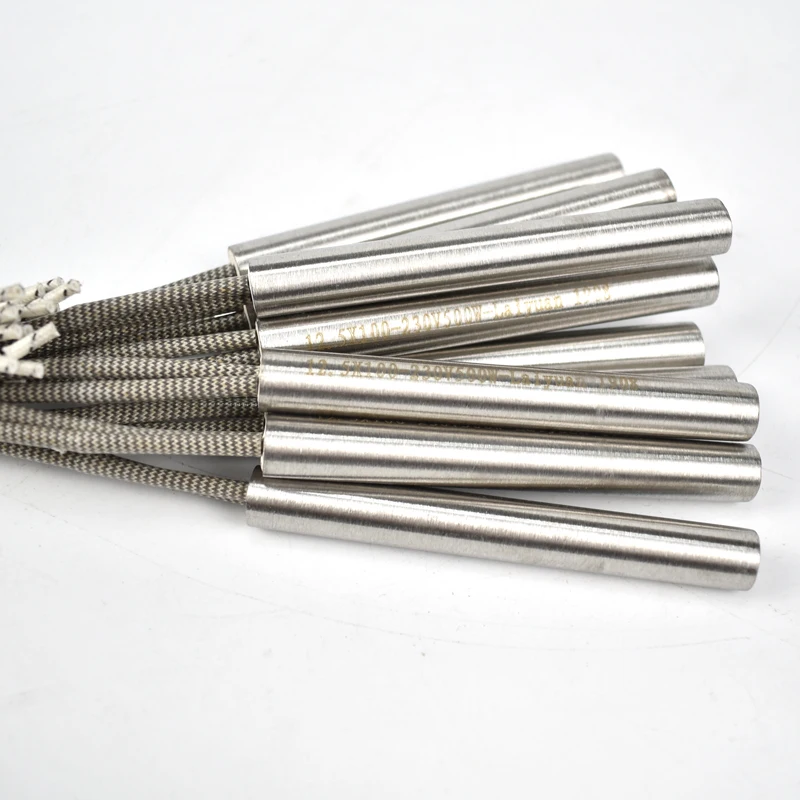

Cartridge Heater
Cartridge heater is a piece of equipment, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080), high temperature leads and seamless stainless steel sheath(SS304,321,316, Incoloy800,840).
Usually in tube form, it is widely used in heating applications by way of insertion into metal blocks via a series of drilled holes.
This heater is also multi usage for air heating or immersion liquid heating with screws.
Usually in tube form, it is widely used in heating applications by way of insertion into metal blocks via a series of drilled holes.
This heater is also multi usage for air heating or immersion liquid heating with screws.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
Diameter | 2.0mm to 50mm |
Diameter tolerance | 0mm~0.08mm |
Length tolerance | ±1mm |
Sheath Material | SUS304, SUS321, SUS316, SUS310S, Copper, Tatinium, Incoloy800, Incoloy840 |
Suggested Maximum Surface Use Temperature | SUS304(650℃), SUS316(650℃), SUS310S(800℃), Incoloy800(850℃） |
Cold zone | 5~15mm from lead wire; 3~10mm at the bottom |
Max surface loading | 40w/cm^2 |
Voltage | 1.5V~440V |
Insulation resistance | 500ohm |
Temperature tolerance | ±3C |
Shape | Straight/ L/ Square/ Split type/ Special-shaped |

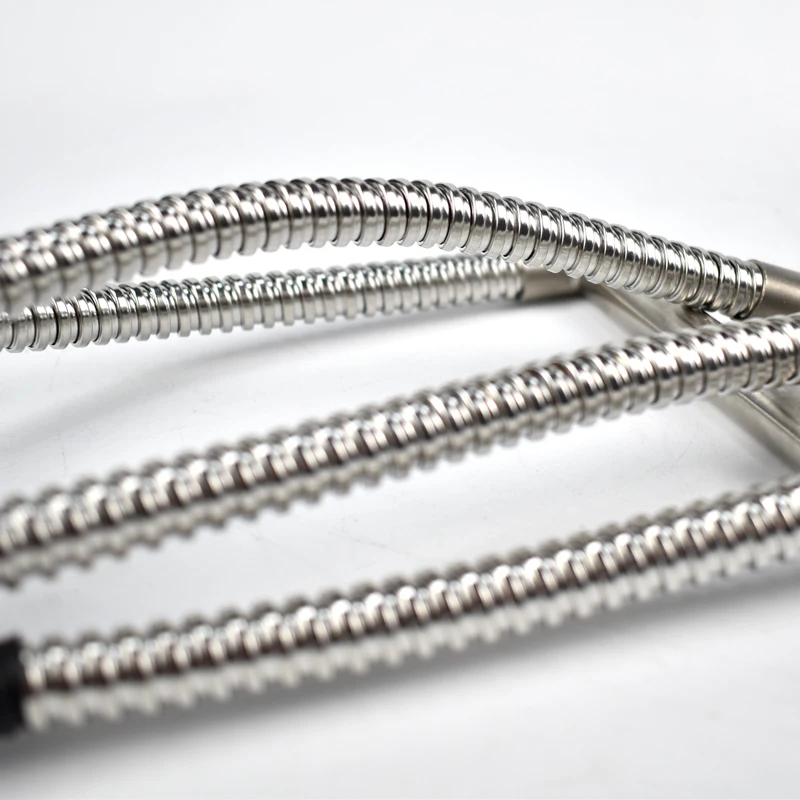

Material of lead wire | Silicone rubber; Teflon; High Temperature Fiberglass; Metal hose protection; Metal braided |
Thermocouple wire | K type,J type,E type ,PT100 |
Method of lead wire | Internal wire(Swaged) and External wire (Cripmed) |
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in India
Project in Russia
SIMILAR PRODUCTS
FAQ
1. Are you Manufacturer or Trade Company?
We are manufacturer of Industry Heating Element for many years.
2.Where is your factory located? How can I visit there?
Our factory is located in Yancheng City, Jiangsu Province, China. It takes 4.5 hours by bus ride from Shanghai.Warmly welcome to
visit us freely.
3.What type of payment do you have available?
A: TT and L/C
B: West Union,Money gram and Aliexpress are available for sample order.
4. How can I get some samples?
We are honored to offer you samples .
5. How does your factory do regarding quality control?
Quality without compromise, XIAOSHU people always attach great importance to quality control from the beginning to the end.
6. Are your products customized?
Yes, the products in the website are only the common type or the previous types from other customers, we can supply the new
products according to your requirements or drawings.
Welcome to contact us for more details, most competitive price for you !
