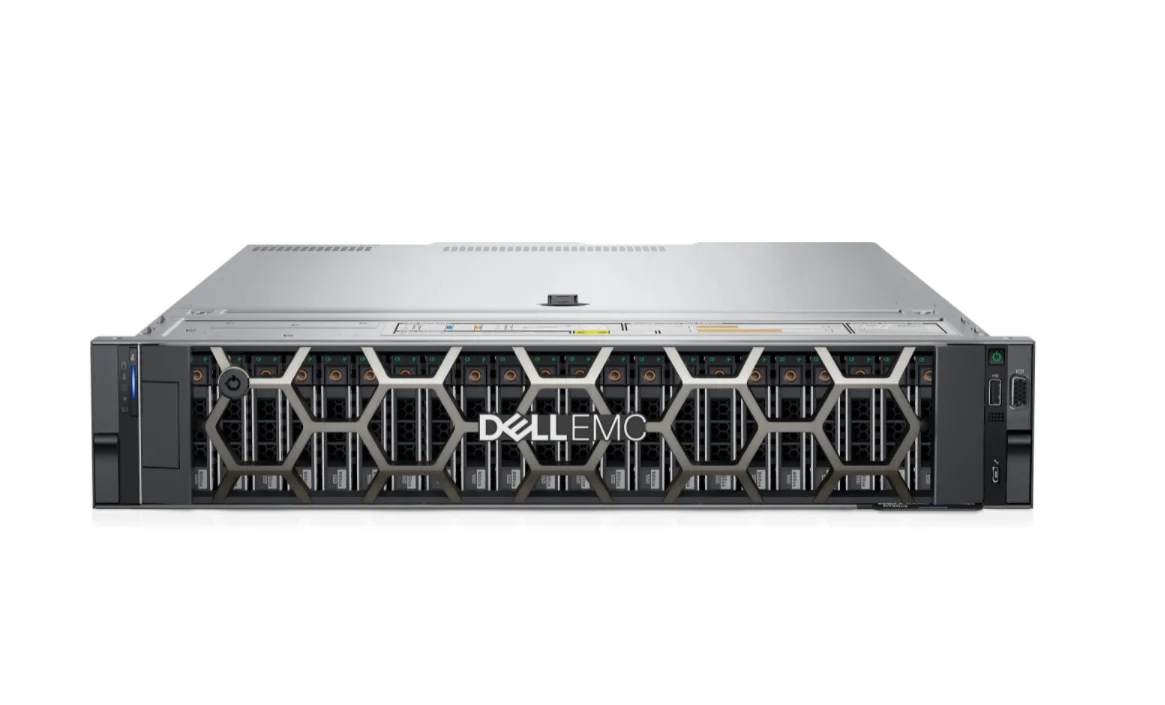

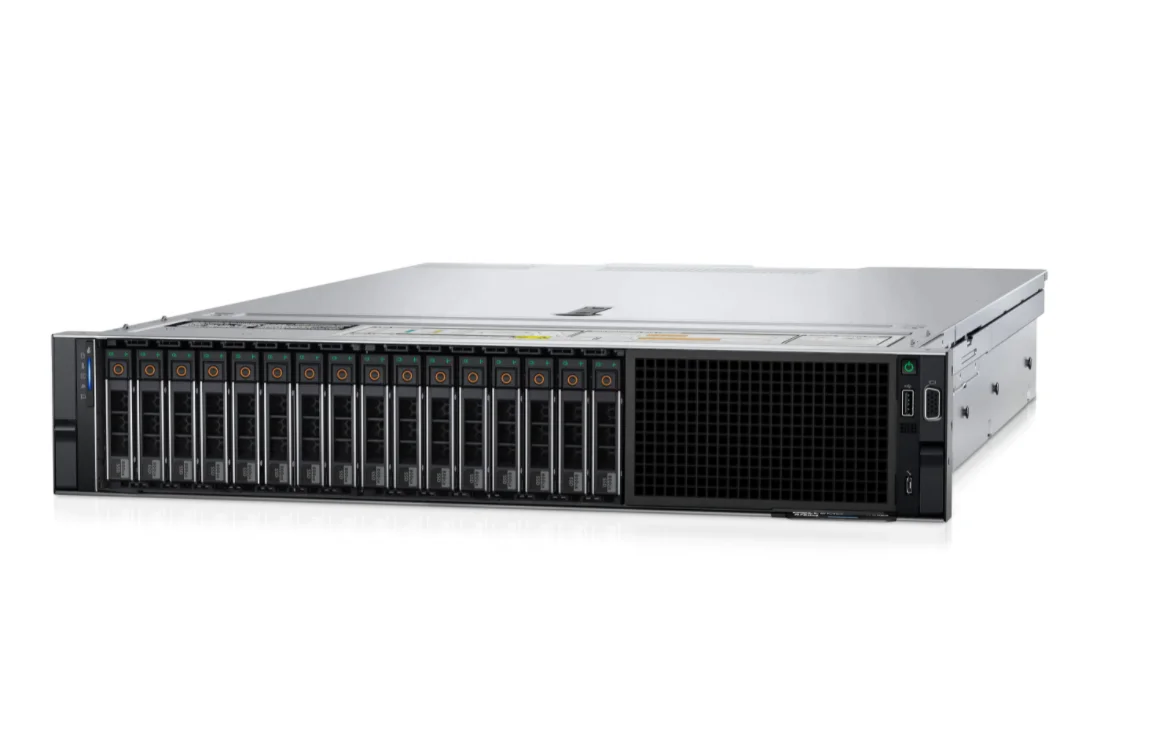

Dell EMC PowerEdge R750xs
The Dell EMC PowerEdge R750xs, with 3rd generation Intel® Xeon® Scalable processors, is purposefully designed with distinctive, customer-defined requirements
to deliver enterprise performance for scale-out environments.
to deliver enterprise performance for scale-out environments.
The PowerEdge R750xs system 2S, 2U system that supports:
* Up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores per processor.
* 16 DDR4 DIMM slot
* Two AC or DC power supply units
* 16 x 2.5-inch SAS/ SATA + 8 x 2.5-inch NVMe drives.
* 16 x 2.5-inch SAS/ SATA drives.
* 12 x 3.5-inch SAS/ SATA + 2 x 2.5-inch SAS/ SATA or NVMe rear drives.
* 8 x 2.5-inch SAS/ SATA drives.
* 8 x 2.5-inch NVMe drives.
* 8 x 3.5-inch SAS/ SATA drives.
* Up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores per processor.
* 16 DDR4 DIMM slot
* Two AC or DC power supply units
* 16 x 2.5-inch SAS/ SATA + 8 x 2.5-inch NVMe drives.
* 16 x 2.5-inch SAS/ SATA drives.
* 12 x 3.5-inch SAS/ SATA + 2 x 2.5-inch SAS/ SATA or NVMe rear drives.
* 8 x 2.5-inch SAS/ SATA drives.
* 8 x 2.5-inch NVMe drives.
* 8 x 3.5-inch SAS/ SATA drives.
Product Specification
Feature | Technical Specifications |
Processor | Up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores |
Memory | • 16 DDR4 DIMM slots, supports RDIMM 1 TB max, speeds up to 3200 MT/s • Supports registered ECC DDR4 DIMMs only |
Storage controllers | • Internal controllers: PERC H345, PERC H745, PERC H755, PERC H755N, HBA355i, S150 • Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSSS1): HWRAID 2 x M.2 SSDs, USB • External PERC (RAID): PERC H840, HBA355e |

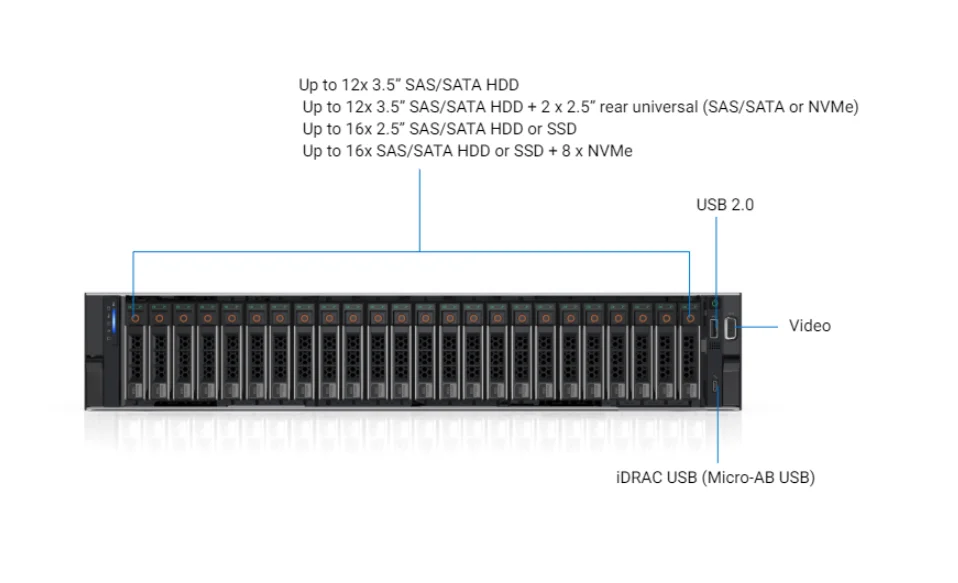

Drive Bays | Front bays: • 0 drive bay • Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB • Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB • Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/SSD) max 184.32 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB |
Power Supplies | • 600 W DC/240 V • 600 W Platinum AC/100 - 240 V • 800 W DC/240 V • 800 W Platinum AC/100 - 240 V • 1100 W DC/-48–(-60) V • 1100 W DC/240 V • 1100 W Titanium AC/100 - 240 V • 1400 W DC/240 V • 1400 W Platinum AC/100 - 240 V |

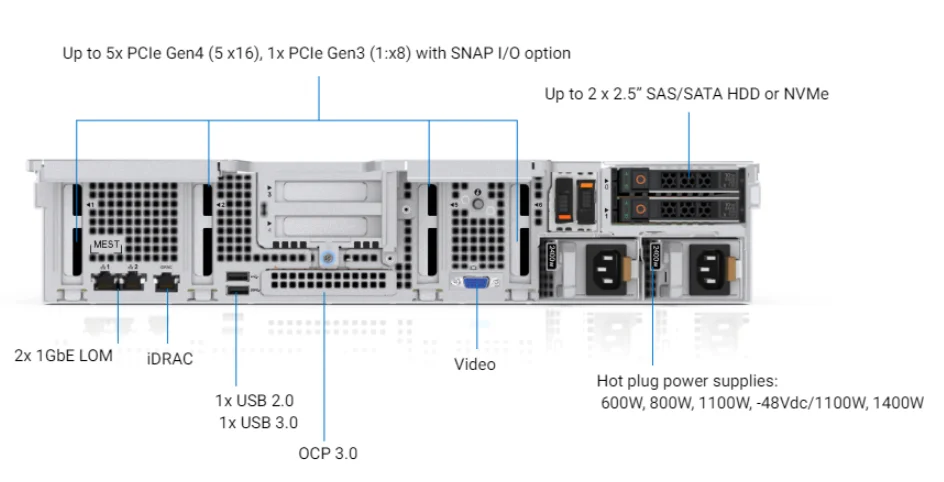

Ports | Front Ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 2.0 • 1 x VGA Rear Ports • 1 x USB 2.0 • 1 x Serial (optional) • 1 x USB 3.0 • 2 x Ethernet • 1 x VGA Internal Ports • 1 x USB 3.0 (optional) |
Product Comparison
Feature | PowerEdge R750xs | PowerEdge R740 |
Processor | Maximum two 3rd Generation Intel® Xeon® Scalable processors with maximum 32 cores per processor | Maximum two 2nd Generation Intel® Xeon® Scalable processors with maximum 28 cores per processor |
Memory | 16 DDR4 DIMM slots Supports RDIMM 1 TB max Speed maximum 3200 MT/s Supports registered ECC DDR4 DIMMs only Apache Pass : No NVDIMM : No | 24 DDR4 DIMM slots Supports RDIMM 1 TB maximum Speed maximum 2933 MT/s Apache Pass : 12x Intel Optane DC Persistent Memory NVDIMM : 12x NVDIMM |
Storage Drives | Front bays: ● 0 drive bay ● Maximum 8x 3.5-inch SAS/SATA (HDD/ SSD) max 128 TB ● Maximum 12x 3.5-inch SAS/SATA (HDD/ SSD) maximum 192 TB ● Maximum 8x 2.5-inch SAS/SATA/NVMe (HDD/SSD) maximum 61.44 TB ● Maximum 16x 2.5-inch SAS/SATA (HDD/ SSD) maximum 122.88 TB ● Maximum 16x 2.5-inch (SAS/SATA) + 8x 2.5-inch (NVMe) (HDD/SSD) maximum 184.32 TB Rear bays: ● Maximum 2x 2.5-inch SAS/SATA/NVMe (HDD/SSD) maximum 15.36 TB | Front bays: ● Maximum 16x 2.5-inch SAS/SATA/SSD, maximum 122.88 TB ● Maximum 8x 3.5-inch SAS/SATA, maximum 128 TB |
PCIe SSD | Maximum 16x 2.5-inch (NVMe drives) | Maximum 12x PCIe SSD (NVMe drives) Maximum 24x PCIe SSD (NVMe drives) |
USB Ports | Front ports ● 1x Dedicated iDRAC micro-USB ● 1x USB 2.0 ● 1x VGA Rear ports: ● 1x USB 2.0 ● 1x Serial (optional) ● 1x USB 3.0 ● 2x Ethernet ● 1x VGA Internal port: ● 1x USB 3.0 (optional) | Front ports: ● 1x Dedicated iDRAC direct USB ● 2x USB 2.0 ● 1x USB 3.0 (optional) ● 1x VGA Rear ports: ● 1x Dedicated iDRAC network port ● 1x Serial ● 2x USB 3.0 ● 1x VGA |
Power Supplies | ● 1400 W Platinum AC/100 - 240 V ● 1400 W DC/240 V ● 1100 W Titanium AC/100 - 240 V ● 1100 W DC/240 V ● 1100 W DC/-48–(-60) V ● 800 W Platinum AC/100 - 240 V ● 800 W DC/240 V ● 600 W Platinum AC/100 - 240 V ● 600 W DC/240 V | ● 495 W Platinum ● 750 W Platinum ● 750 W 240VDC Platinum ● 1100 W Platinum ● 1100 W -48 V DC Gold ● 1100 W 380 V DC Platinum ● 1600 W Platinum ● 2000 W Platinum ● 2400 W Platinum ● 750 W Titanium |

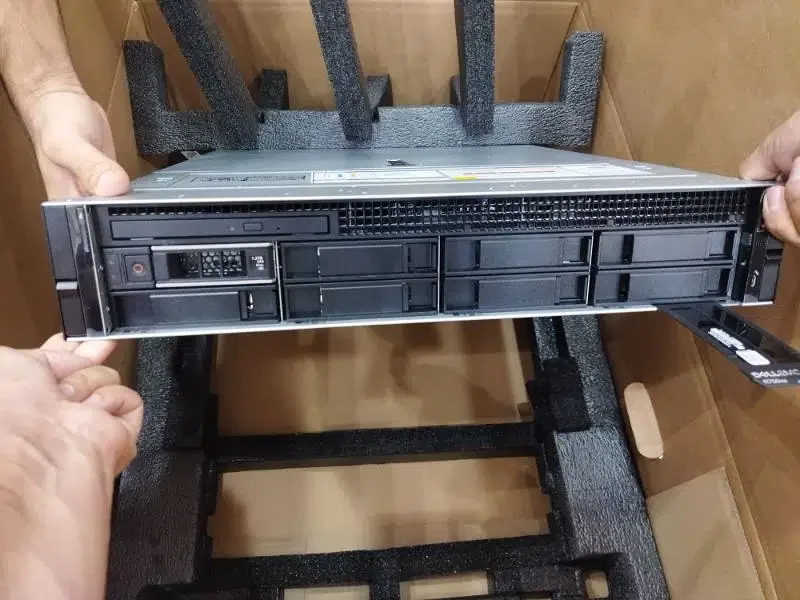

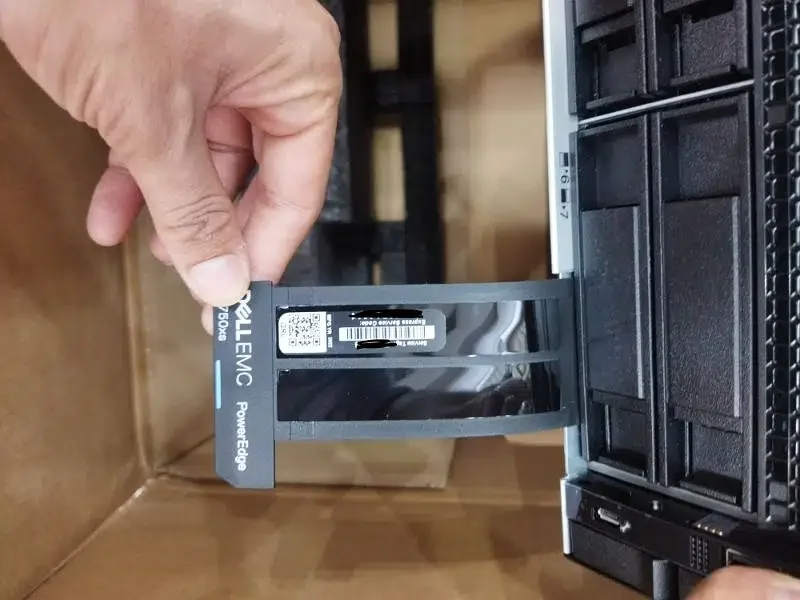

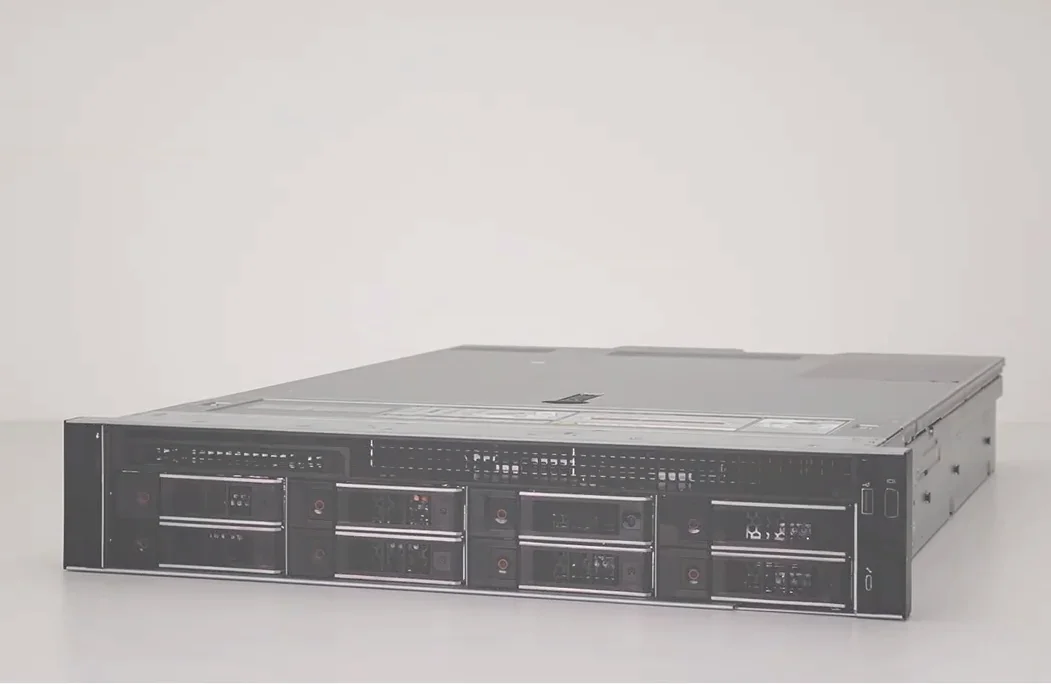

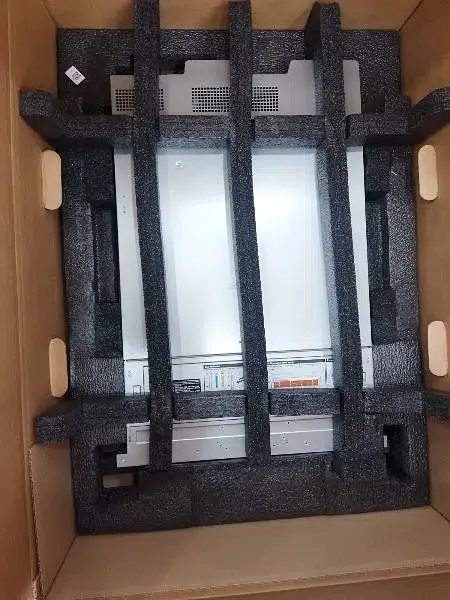

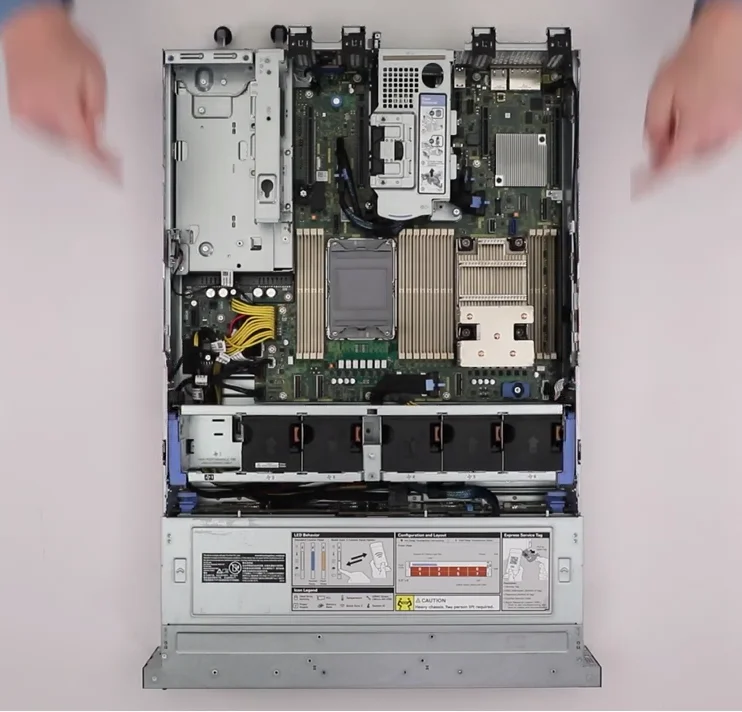

Detail Images
