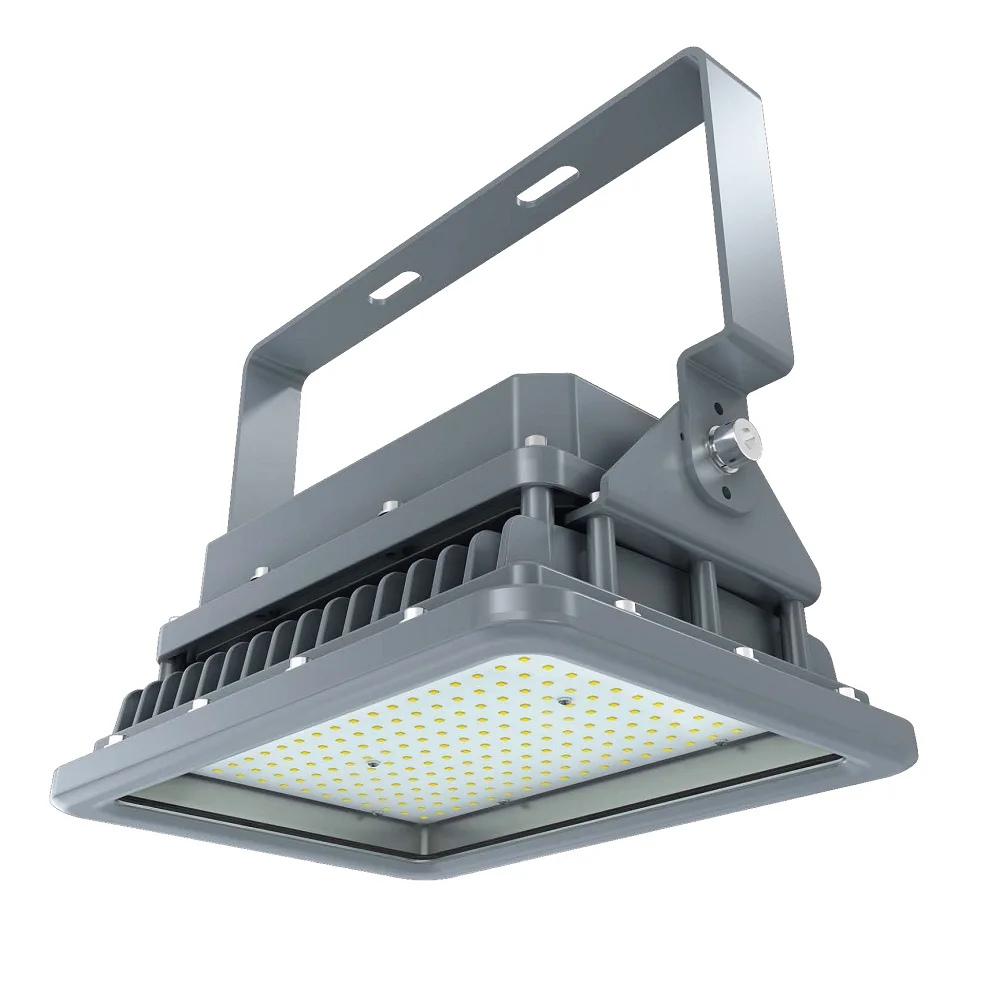

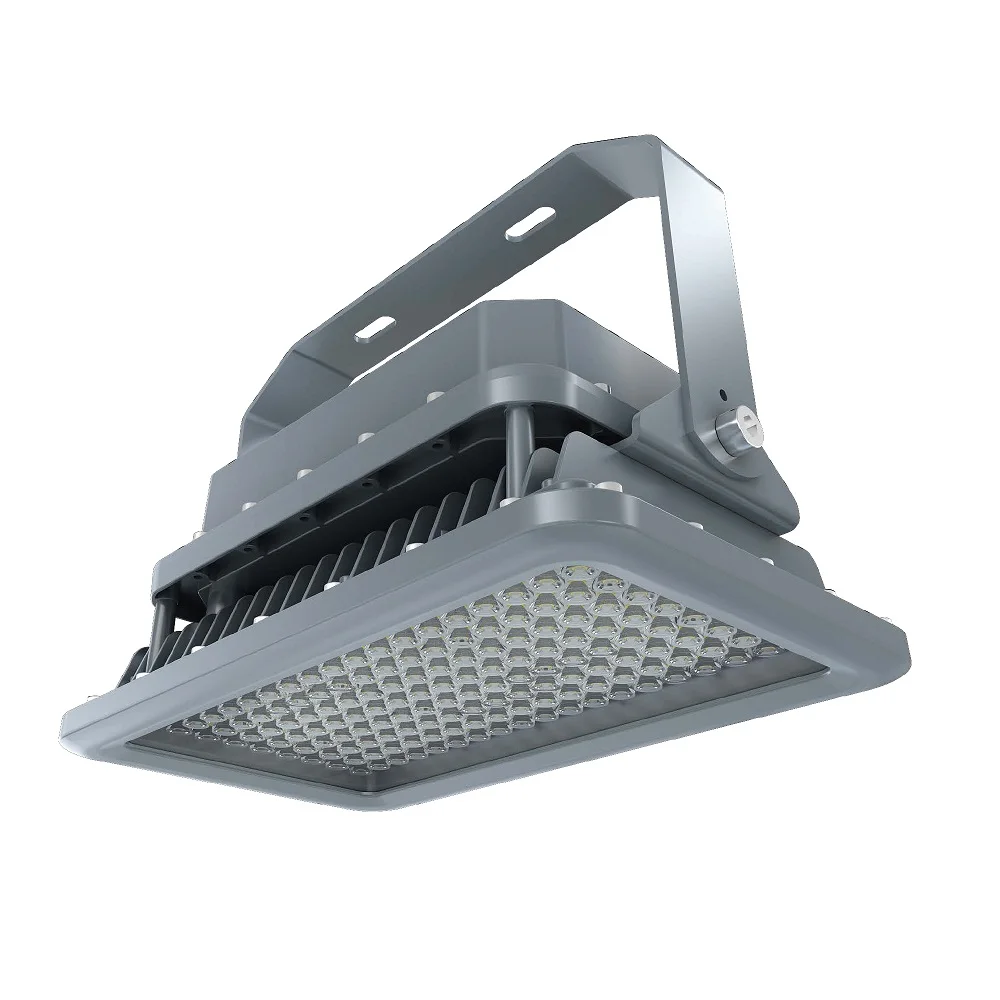

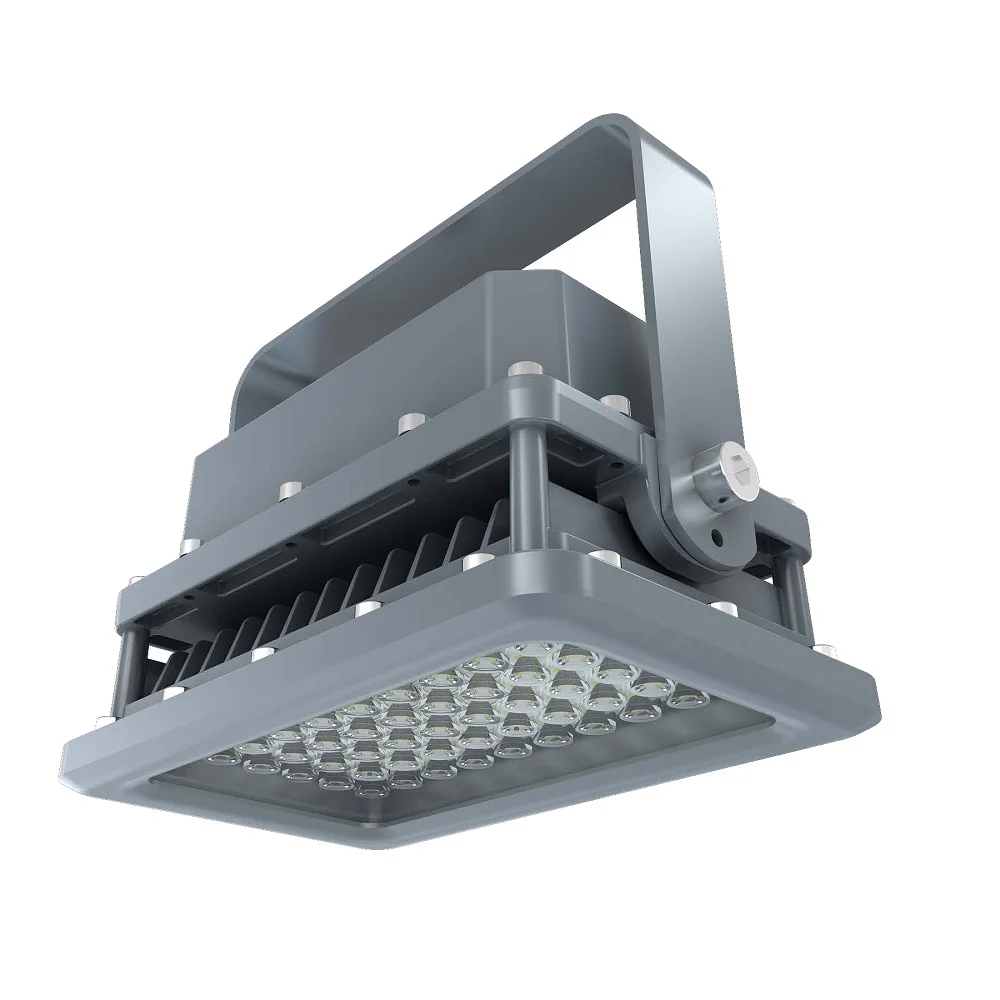

In stock water proof led explosion proof light ATEX IEC TUV hazardous area luminaire IP66 120 277v
- Category: >>>
- Supplier: Shanghai Yidi Electronic Technology Co. ltd
Share on (11000009161776):
Product Overview
Description
For American Clients, we will ship from USA stock.
For other country client, we will ship from Chinese factory.
Product Description
A series
60W
80W
100W
20W
40W
60W
40W
60W
A3 series
150W
150W
180W
200 W
200 W
A4 series
150W
180W
200W
200W
250W
300W
400W
Specification
item | value |
Color Temperature(CCT) | 5000K (Daylight) |
Input Voltage(V) | 100-277v |
Lamp Luminous Efficiency(lm/w) | 140 |
Warranty(Year) | 5-Year |
Color Rendering Index(Ra) | 80 |
Support Dimmer | NO |
Lighting solutions service | Lighting and circuitry design, DIALux evo layout |
Product Weight（kg） | 8 |
CRI (Ra>) | 80 |
Lamp Luminous Flux(lm) | 8400-56000lumen |
IP Rating | IP66 |
Place of Origin | China |
Brand Name | OEM |
Light Source | LED |
Power | 60w 80w 100w 150w 200w 250w 300w 400w |

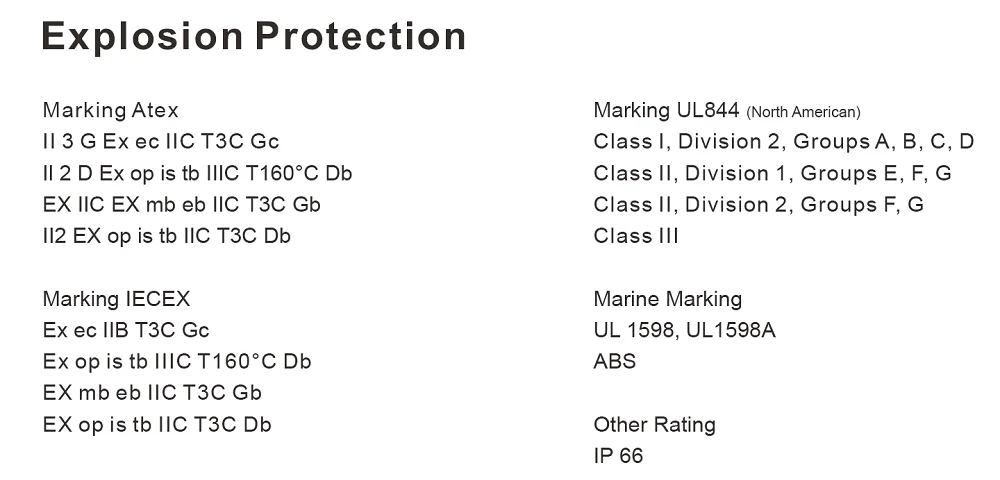

Certificate | Atex, IECEX, UL 844 |
Size 60w-100w | 317.5x240x165.1mm |
Size 150-200w | 378.5x231x270mm |
Size 250-400w | 421x300x210.82mm |

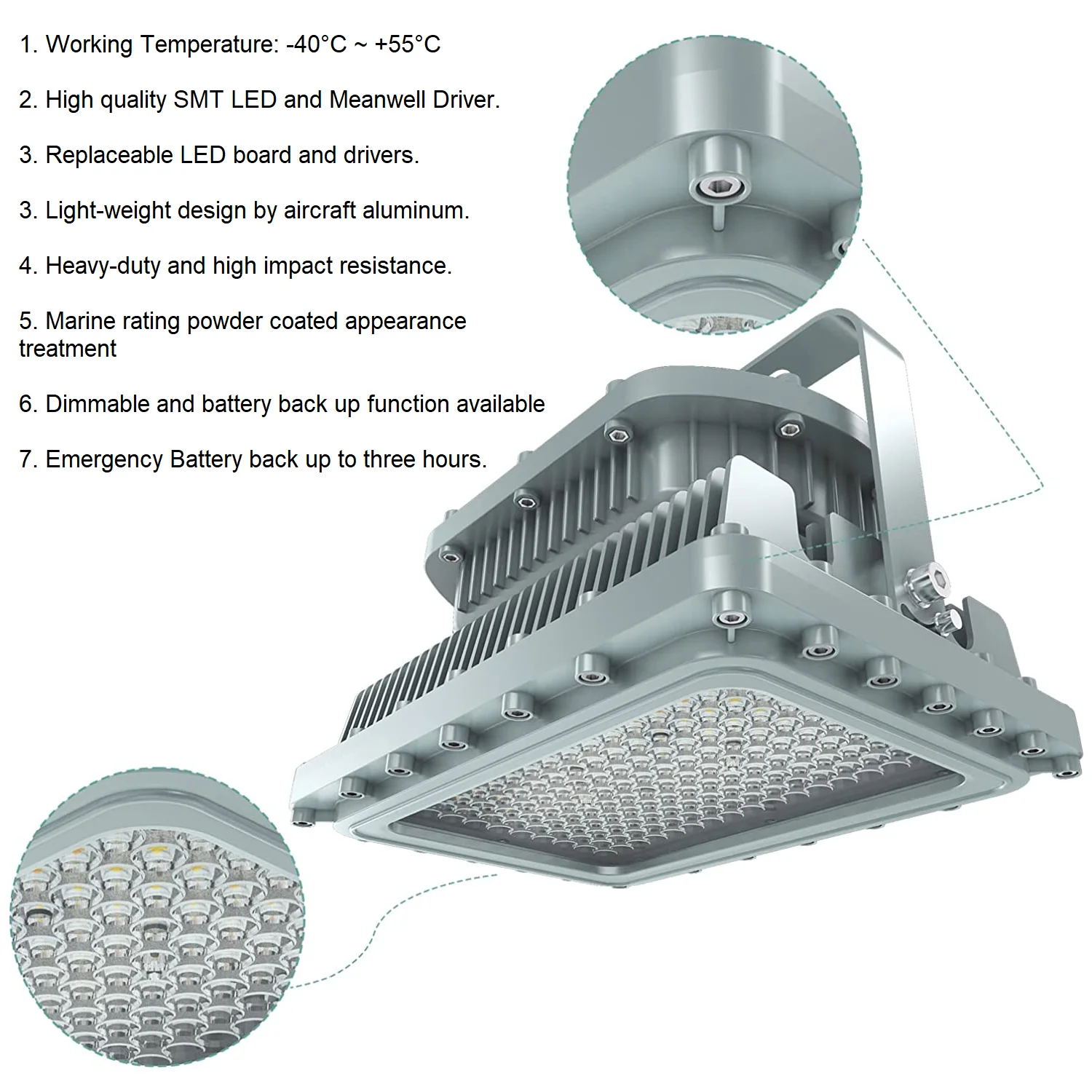

Features
*IP66 Certified
*10KV Surge Protection
* Working temperature
* Working temperature
-40°C ~ +55°C.

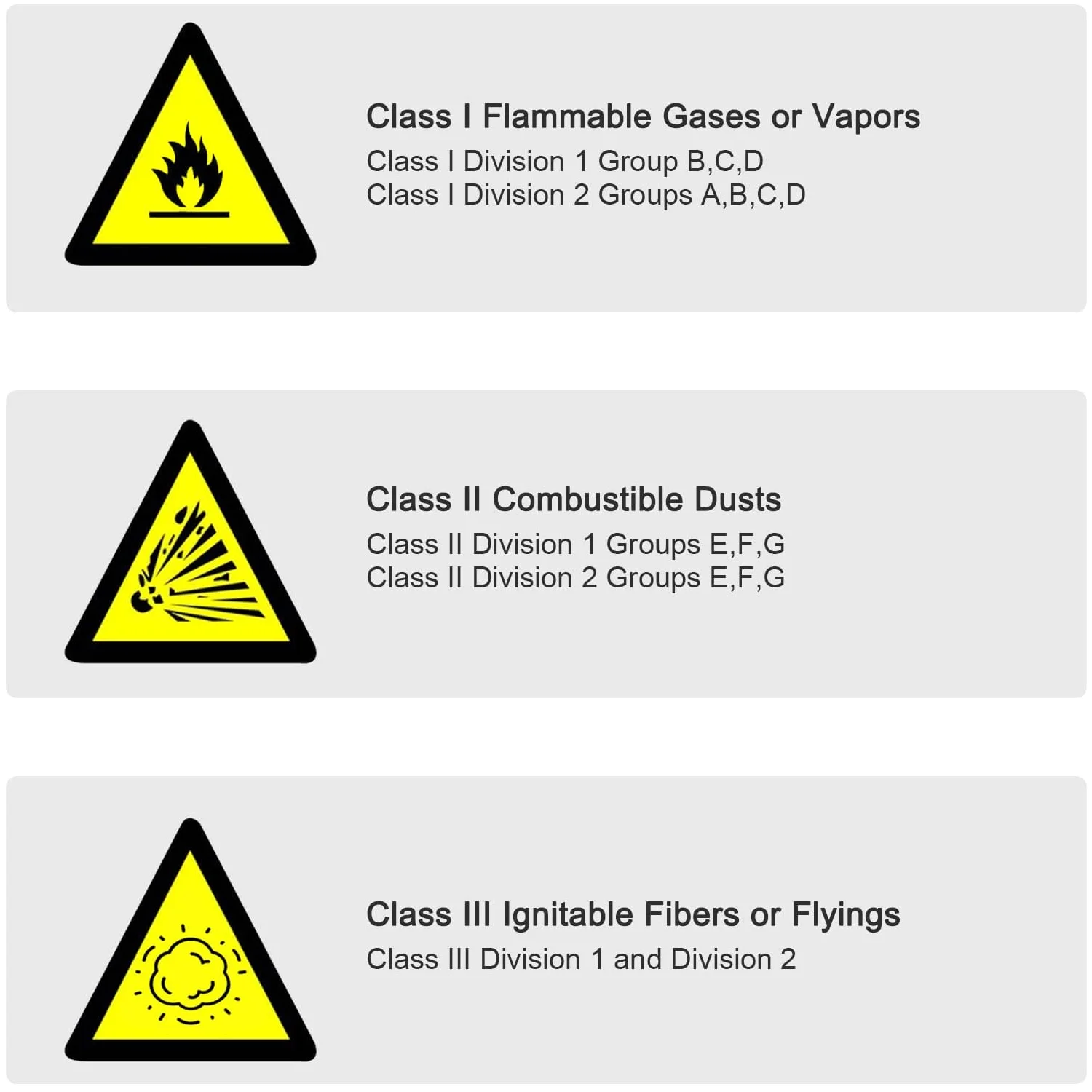

*Work Well in Hazardous Locations
*Work Well in Hazardous Locations
Model No | Wattage | CCT | Voltage | Lumens | Warranty | Remark |
EX-20W A2YZDA | 20W | 2700-7000K | 100-277V | 2800 | 5 years | |
EX-40W A2YZDA | 40W | 2700-7000K | 100-277V | 5600 | 5 years | |
EX-60W A2YZDA | 60W | 2700-7000K | 100-277V | 8400 | 5 years | |
EX-80W AYZDA | 80W | 2700-7000K | 100-277V | 11200 | 5 years | |
EX-100W AYZDA | 100W | 2700-7000K | 100-277V | 14000 | 5 years | |
EX-150W A3YZDA | 150W | 2700-7000K | 100-277V | 21000 | 5 years | |
EX-180W A3YZDA | 180W | 2700-7000K | 100-277V | 25200 | 5 years | |
EX-200W A3YZDA | 200W | 2700-7000K | 100-277V | 28000 | 5 years | |
EX-150W A4YZDA | 150W | 2700-7000k | 100-277v | 21000 | 5 years | |
EX-180W A4YZDA | 180W | 2700-7000K | 100-277V | 25200 | 5 years | |
EX-200W A4YZDA | 200W | 2700-7000K | 100-277V | 28000 | 5 years | |
EX-250W A4YZDA | 250W | 2700-7000K | 100-277V | 35000 | 5 years | |
EX-300W A4YZDA | 300W | 2700-7000K | 100-277V | 42000 | 5 years | |
EX-400W A4YZDA | 400W | 2700-7000K | 100-277V | 56000 | 5 years |

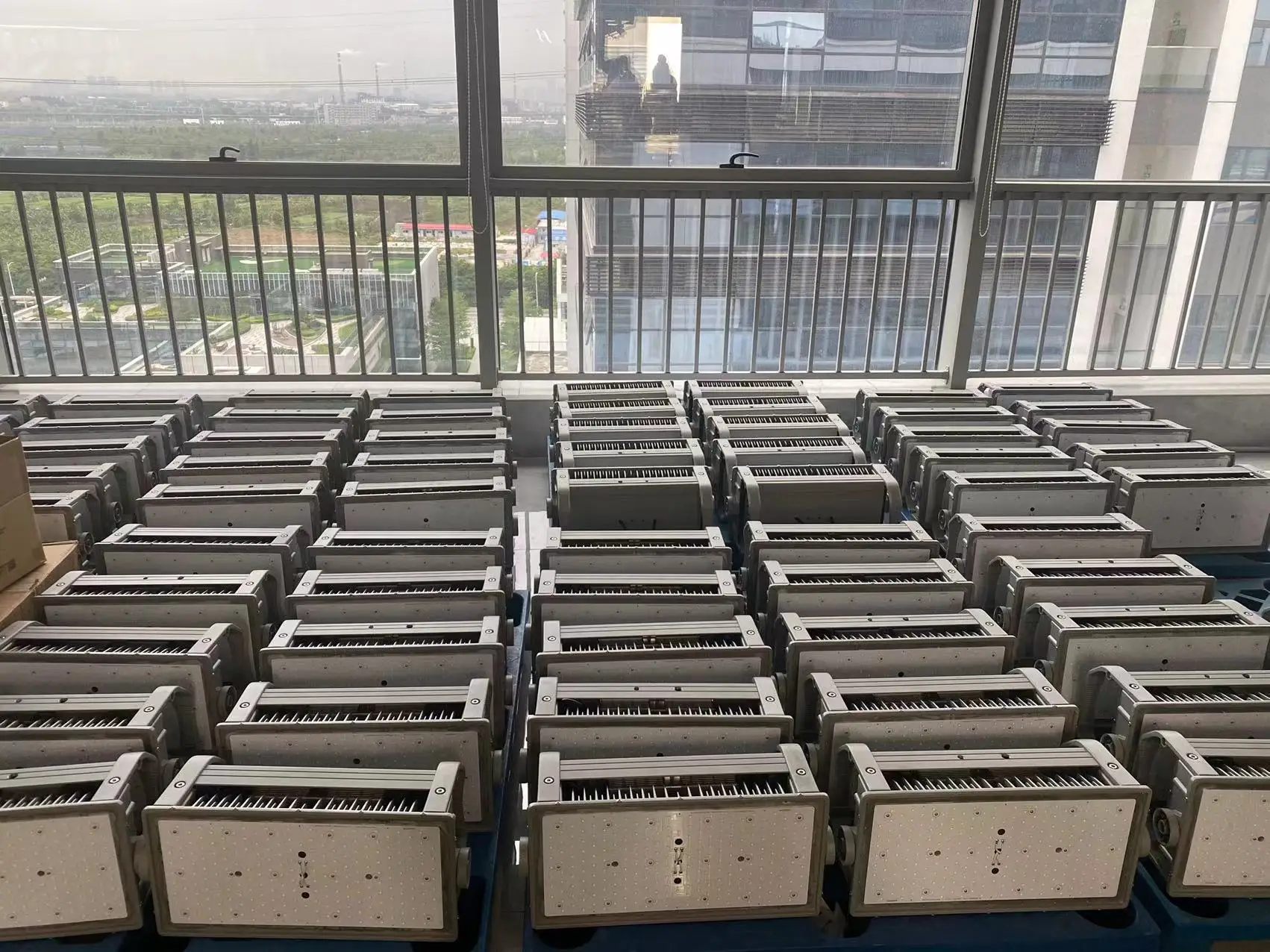

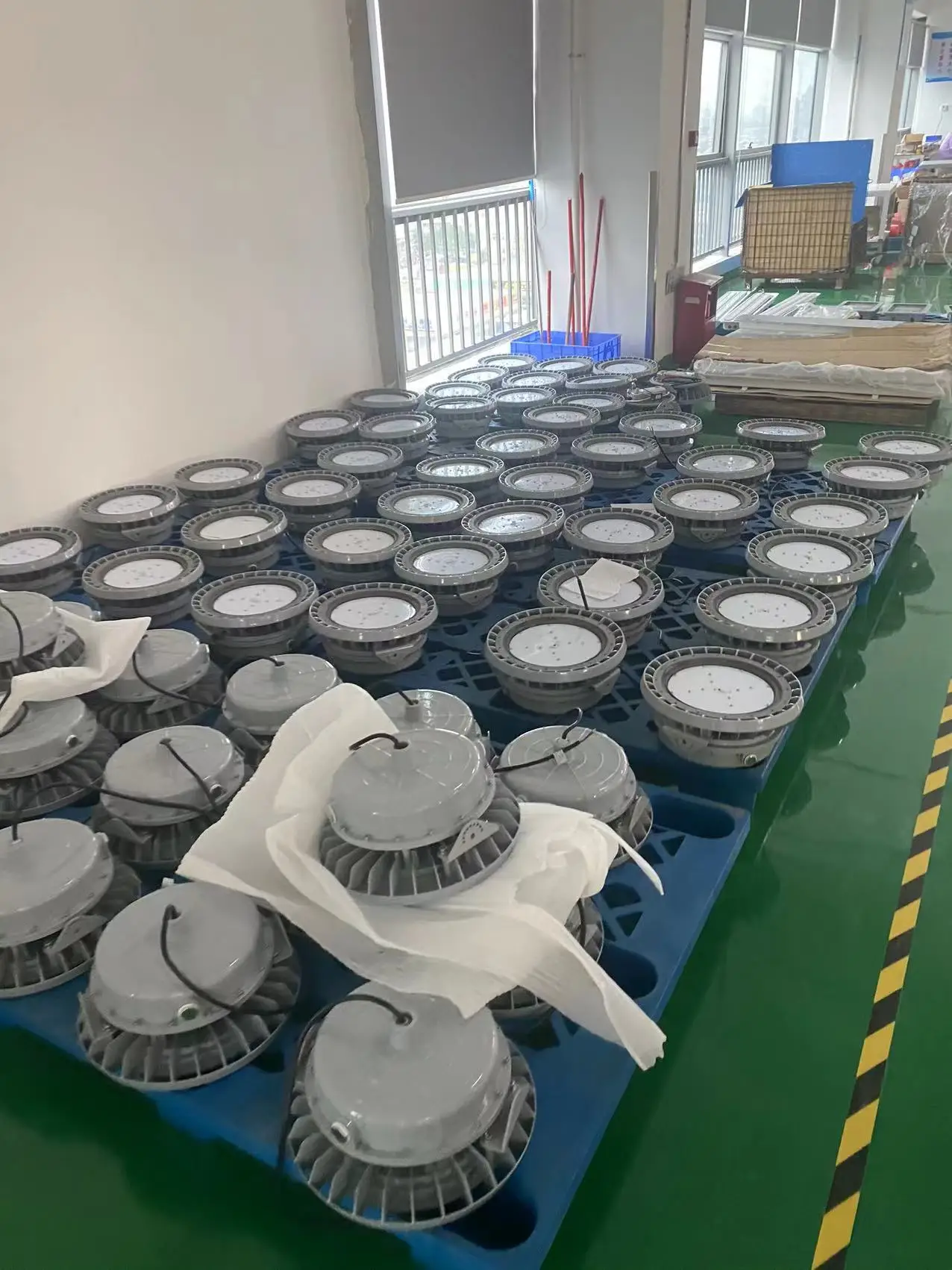

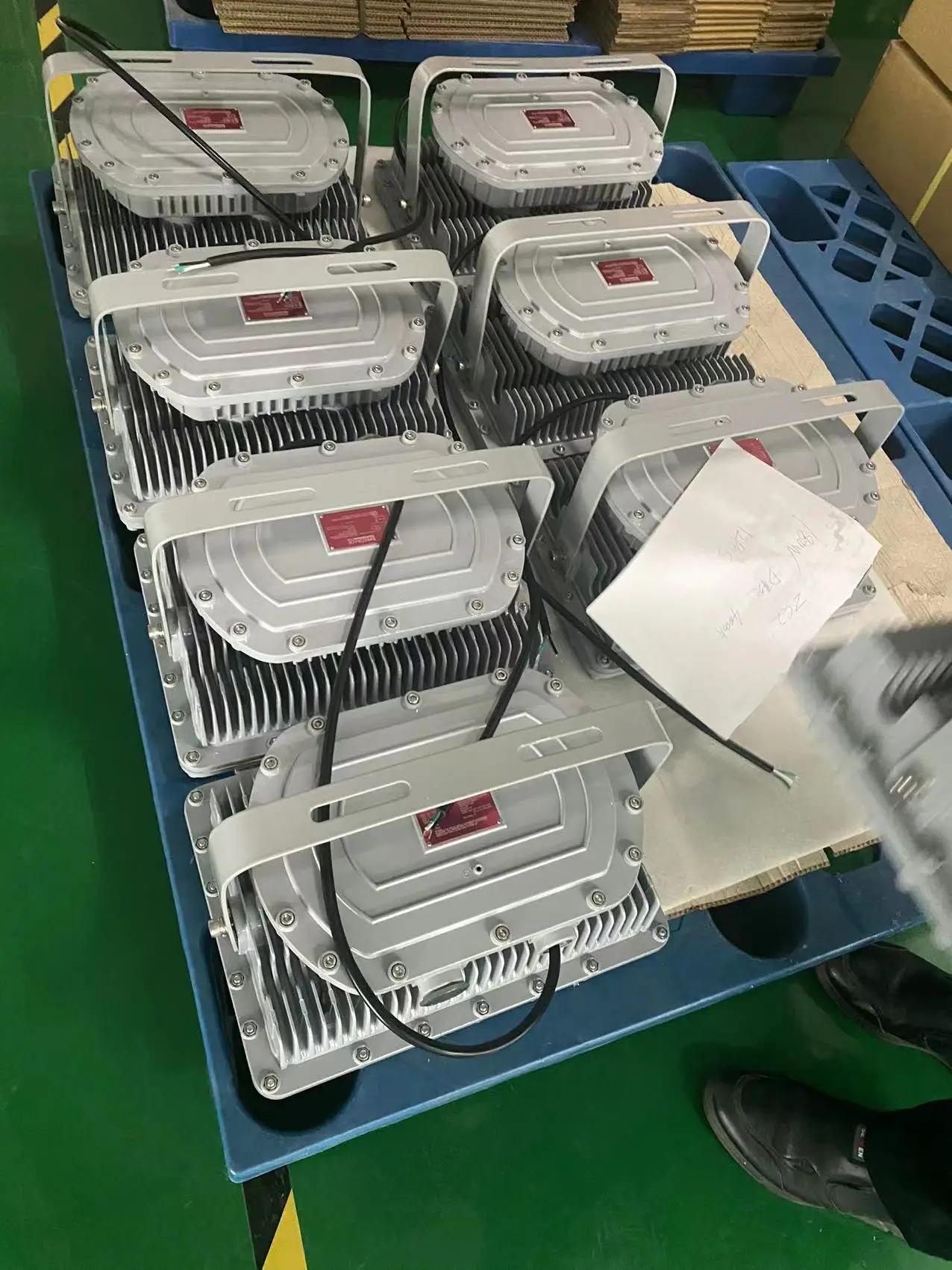

Production line
Title goes here.

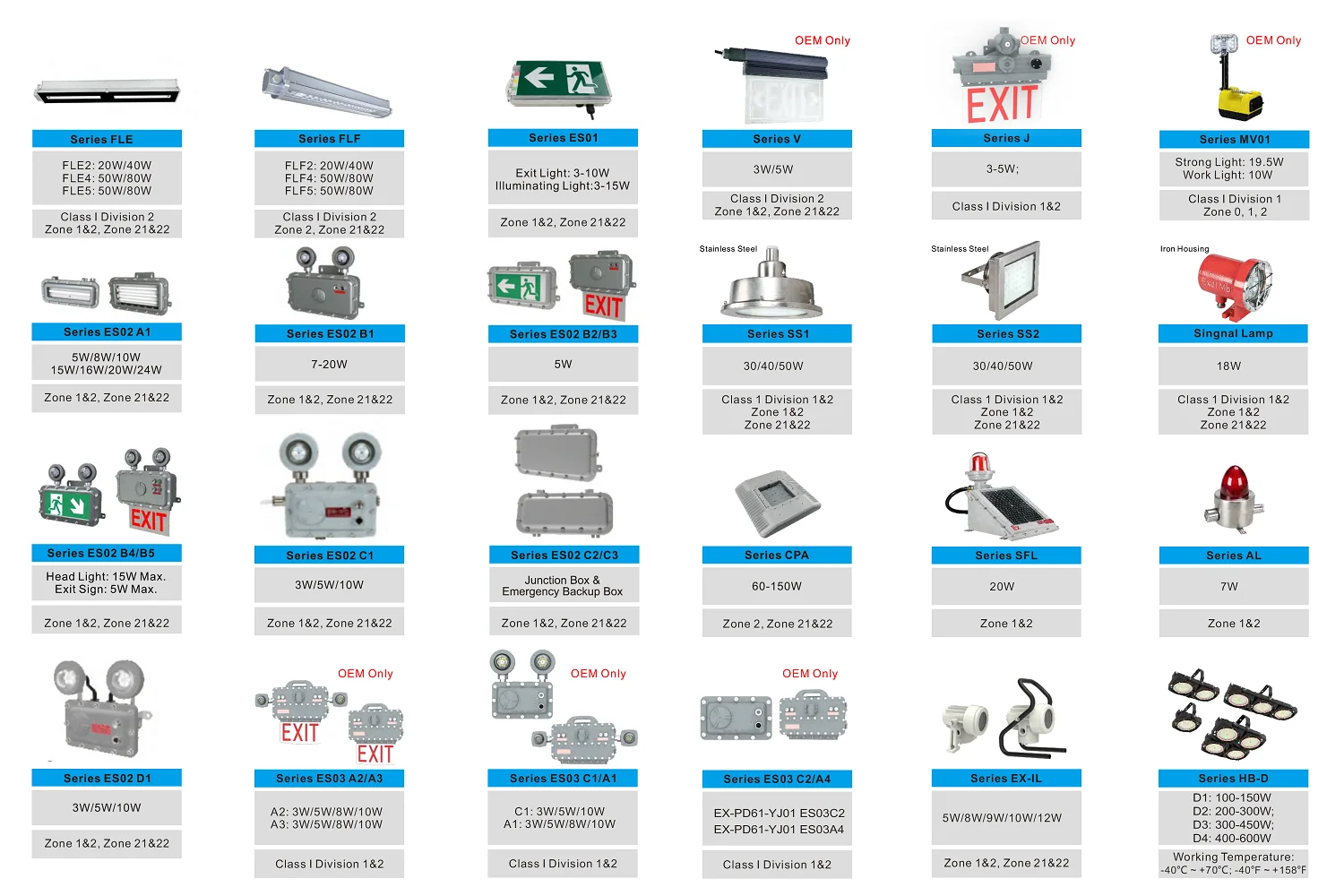

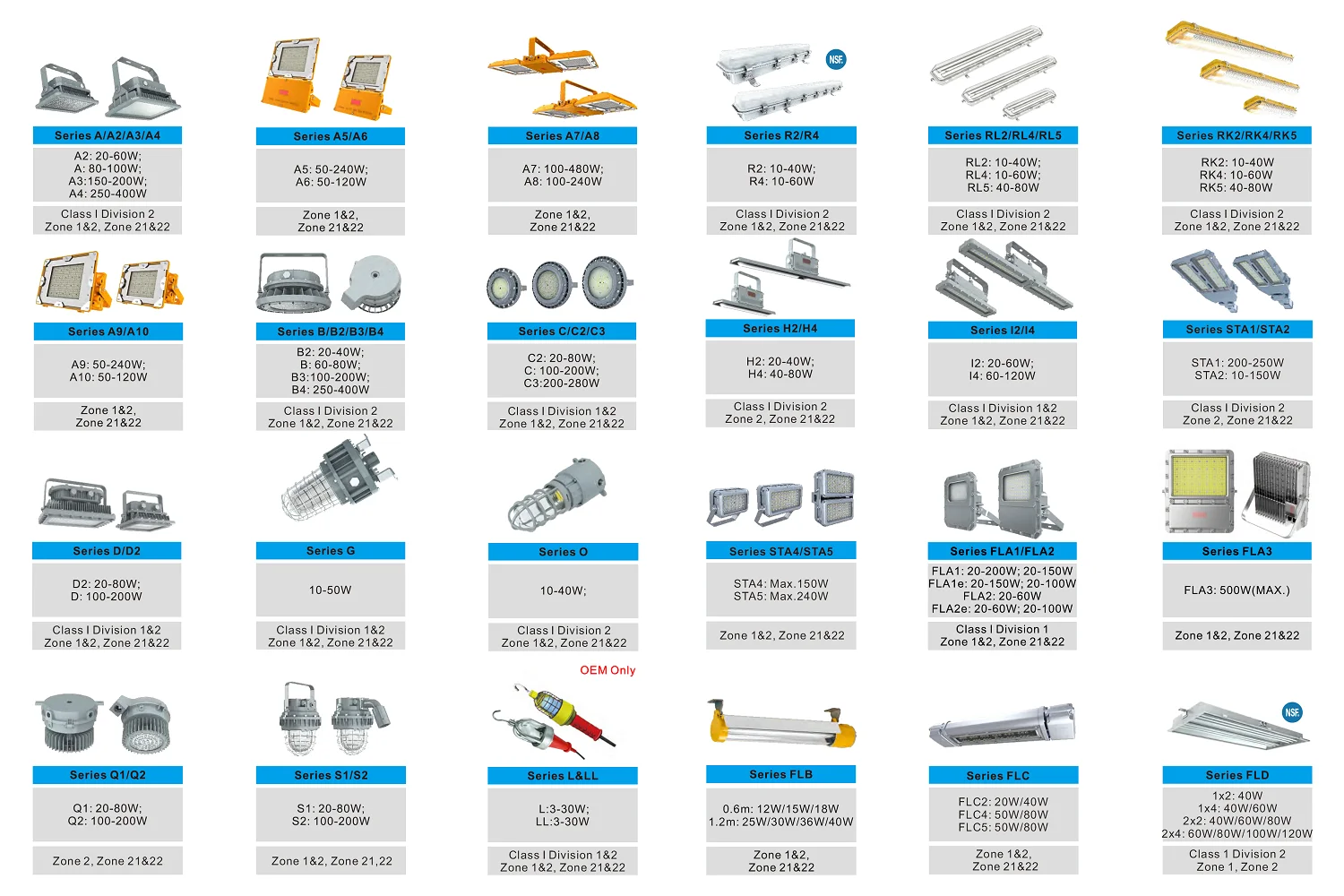

Pls click above to get explosion proof lights family brochure
FAQ
1. who are we?
We are based in Shanghai, China, start from 2014,sell to North America(60.00%),Domestic Market(5.00%),Europe (25%）
We are based in Shanghai, China, start from 2014,sell to North America(60.00%),Domestic Market(5.00%),Europe (25%）
Other region (10%)
2. Can we buy the sample?
Yes, sample can be arranged.
3.How do you ship the lights?
We can ship by air or by sea.
4. why should you buy from us not from other suppliers?
We are LED lighting factory, the explosion proof lights are certified by ETL, DLC, IEC,TUV...
2. Can we buy the sample?
Yes, sample can be arranged.
3.How do you ship the lights?
We can ship by air or by sea.
4. why should you buy from us not from other suppliers?
We are LED lighting factory, the explosion proof lights are certified by ETL, DLC, IEC,TUV...
We have put stock in United states for fast shipping.
5. what services can we provide?
5 years warranty after sales.
5. what services can we provide?
5 years warranty after sales.
