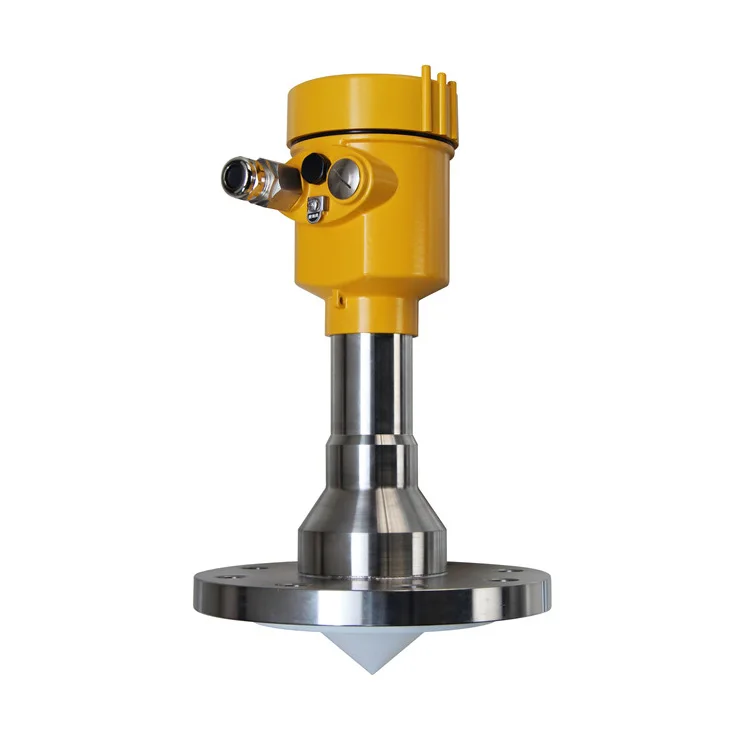

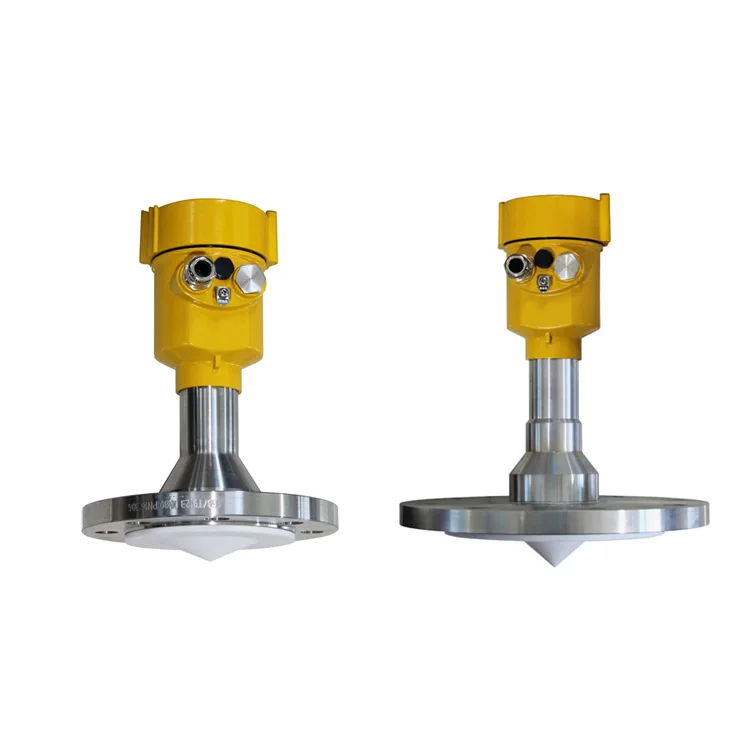

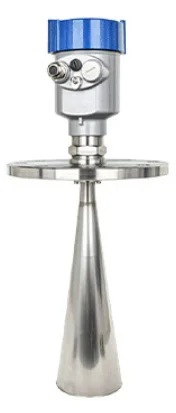

500mhz 26ghz 80ghz 120ghz New Industrial 6G Radar Level Sensor Intelligent 4 20 ma radar level sensor

Product Overview

Description

This series of radar level meter adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 20 meters. Antenna is optimized further processing, the new fast microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.6GHz radar level gauge is suitable for liquid, paste,granule and block material leveiand non-contact measurement.sultable ioroment method of microwave pulse,there is an inert gas and volatile.The measurement menou he heam enerav is low.can work normally in the industrial frequency band range.The beam energy is low,can be installed on all kinds of metal, non-metallic container or pipe, no harm to human body and environment.



<SUITABLE FOR MEDIUM>

Liquid (especially with pressure and Volatile Liquid)
Measuring Range:35m Solid powder
Not suitable for this working conditions
Application: Water tank,Acid and alkali tanks



<TECHNICAL PARAMETERS>
Explosion-proof Grade: Exia IC T6 Ga/Exd IC T6 GB
Frequency:6.8 GHz

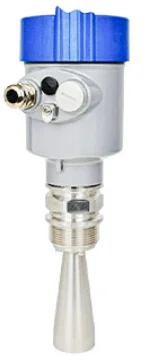

Aerials: The Horn Antenna
Measurement Accuracy:+10mm
Repeatability:1mm
Process Temperature: -40...130°C(Standard type);-40...250°C(High temperature type)Process pressure:-0.1...4MPa
Signal output: 4...20mA /HART or RS485(Four-wire)
The Scene Display: Four LCD or Can be programmed
Power Source:Two-wire DC24Vor Four-wire DC24V or AC220V
Shell: Aluminum or Plastic, Stainless steel
Connection: Stainless Steel Flanges
