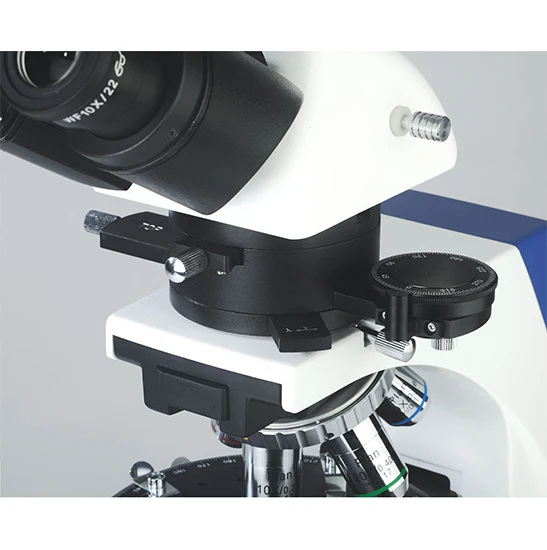

Bestscope BS 5062B Transmitted Illumination Professional Polarizing Microscope for Geological and Petroleum Instruments
- Category: >>>
- Supplier: Beijing Bestscope Technology Co. Ltd.
Share on (11000009256891):
Product Overview
Description
Products Description
Introduction
BS-5062 series polarizing microscopes feature a highly robust construction and first class optics to provide a long life and
excellent quality images. Accessories like Gypsum slide, Mica slide, Quartz wedge and Mechanical stage are available. The microscopes are specifically designed for geology, minerals and material areas. They also can be used in chemical fiber, semiconductor and pharmaceutical industries.
Feature
1. Excellent Infinite Optical System.
2. Widely used White+Blackin geology, Mineralogy, Fossil fuel exploration.
3. Single polarization, othorgonal polarization or conoscopic observation is available.
BS-5062 series polarizing microscopes feature a highly robust construction and first class optics to provide a long life and
excellent quality images. Accessories like Gypsum slide, Mica slide, Quartz wedge and Mechanical stage are available. The microscopes are specifically designed for geology, minerals and material areas. They also can be used in chemical fiber, semiconductor and pharmaceutical industries.
Feature
1. Excellent Infinite Optical System.
2. Widely used White+Blackin geology, Mineralogy, Fossil fuel exploration.
3. Single polarization, othorgonal polarization or conoscopic observation is available.
Professional dedicated polarizing binocular / trinocular head can keep the cross in the right-hand eyepiece always same when the eyepiece tubes turned.
Bertrand lens

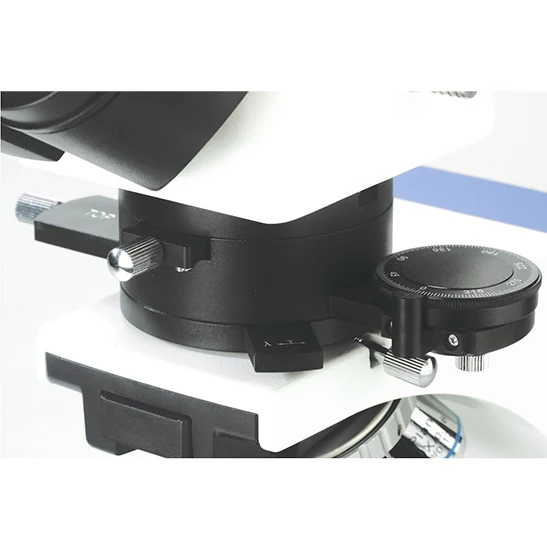

360° rotatable analyzer(with division, can be locked), can be moved out of the light path.
360° rotatable analyzer(with division, can be locked), can be moved out of the light path.
Centering Nosepiece

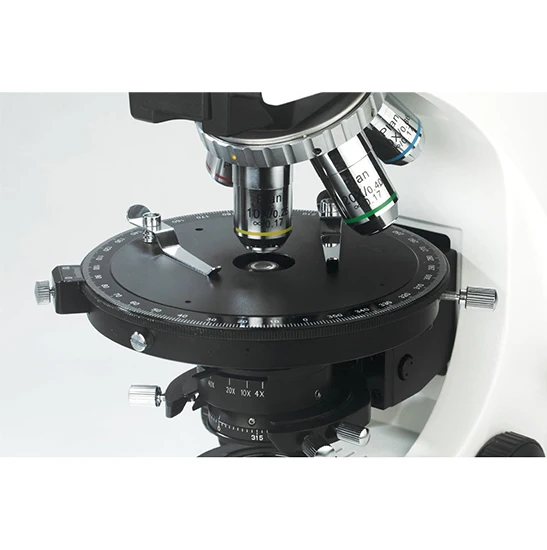

Centering Revolving Round Stage
Polarizer
Swing-out Condenser
Compensator
Polarizing Attached Mechanical Stage
Application
BS-5062 series polarizing microscopes are ideal instrument in geology, petroleum, coal, mineral, chemicals, semiconductor and pharmaceutical inspection fields. They are widely used in academic demonstration and scientific research areas.
BS-5062 series polarizing microscopes are ideal instrument in geology, petroleum, coal, mineral, chemicals, semiconductor and pharmaceutical inspection fields. They are widely used in academic demonstration and scientific research areas.
Specification
Item | Specification | BS-5062B | BS-5062BR | BS-5062BTR |
Optical System | Infinite Optical System | ● | ● | ● |
Viewing Head | Seidentopf Binocular Head, inclined at 30°, 360° Rotatable, Interpupilary Distance: 48-76mm. | ● | ● | ● |
Seidentopf Trinocular Head, inclined at 30°, 360° Rotatable, Interpupilary Distance: 48-76mm, Light distribution (both) 100: 0 (100% for eyepiece), 80:20 (80% for trinocular head and 20% for eyepiece) | ○ | ○ | ○ | |
Eyepiece | WF10×/22mm | ● | ||
WF10×/22 mm (Reticule 0.1mm) | ● | |||
WF10×/20 mm | ● | ● | ||
WF10×/20 mm (Reticule 0.1mm) | ● | ● | ||
Infinite Strain Free Plan Achromatic Objective (Transmitted) | 4×/0.10 W.D=12.1mm | ● | ● | |
10×/0.25 W.D=4.64mm | ● | ● | ||
20×/0.40(S) W.D=2.41mm | ● | ● | ||
40×/0.66(S) W.D=0.65mm | ● | ● | ||
60×/0.80 (S) W.D=0.33mm | ○ | ○ | ||
100×/1.25 (S, Oil) W.D=0.12mm | ○ | ○ | ||
LWD Infinite Strain Free Plan Achromatic Objective (Reflected) | 5×/0.13 (S) W.D=24.23mm | ● | ○ | |
10×/0.25 (S) W.D=18.48mm | ● | ○ | ||
20×/0.40 (S) W.D=8.35mm | ● | ○ | ||
50×/0.70 (S) W.D=1.95mm | ● | ● | ||
100×/0.90 (S, Dry) W.D=1.1mm | ○ | ○ | ||
Nosepiece | Backward Quintuple nosepiece, center adjustable | ● | ● | ● |
Analyzer Unit | Rotatable 360°, module type, can be locked | ● | ● | ● |
Bertrand Lens | Built In, Center Adjustable | ● | ● | ● |
Optical Compensator | λ Slip(First Class Red), 1/4λ Slip, Quartz Wedge (Ⅰ- ⅣClass) | ● | ● | ● |
Revolving Round Stage | Diameter Φ156mm, Rotatable 360°, Center Adjustable, Division 1°, Vernier Division 6’ | ● | ● | ● |
Attachable Mechanical Stage | Polarizing Attached Mechanical Stage with X-Y movement | ○ | ○ | ○ |
Focusing | Coaxial Coarse & Fine Adjustment, Range 25mm, Fine Stroke 0.2mm, Fine Division 0.002mm | ● | ● | ● |
Swing-out Condenser | N.A.0.9/0.13 swing out condenser | ● | ● | |
Polarizing Unit | with Scale, Rotatable 360°, Can Be Locked | ● | ● | |
Transmitted Illumination | 5W LED lamp (Input voltage:100V～240V) | ● | ● | |
Koehler Illumination 6V/30W Halogen Lamp (Input voltage: 100V～240V) | ○ | ○ | ||
Reflected Illumination | 5W LED lamp (Input voltage:100V～240V) | ● | ● | |
With field diaphragm, aperture diaphragm, polarizer, 12V/50W halogen lamp (Input voltage:100V～240V) | ○ | ○ | ||
Filter | Blue | ● | ● | ● |
Amber | ○ | ○ | ○ | |
Green | ○ | ○ | ○ | |
Neutral | ○ | ○ | ○ | |
C-mount | 1× (Focus adjustable) | ○ | ○ | ○ |
0.75× (Focus adjustable) | ○ | ○ | ○ | |
0.5× (Focus adjustable) | ○ | ○ | ○ | |
Packing | Packing size 565mm×310mm×410mm, Gross Weight 12.5kgs, Net Weight 10kgs | ● | ||
Packing size 750mm×360mm×450mm, Gross Weight 15kgs, Net Weight 11kgs | ● | |||
Packing size 750mm×360mm×450mm, Gross Weight 16kgs, Net Weight 12kgs | ● |
Note: ● Standard Outfit, ○ Optional
