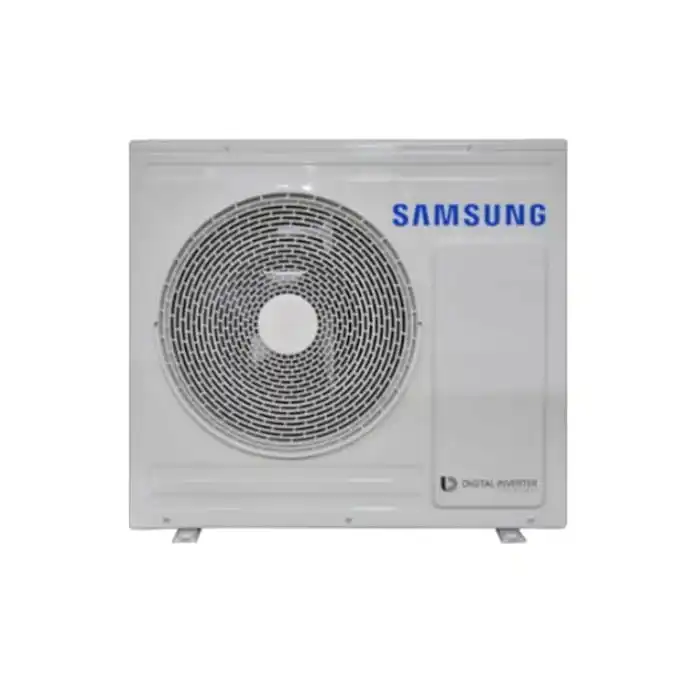

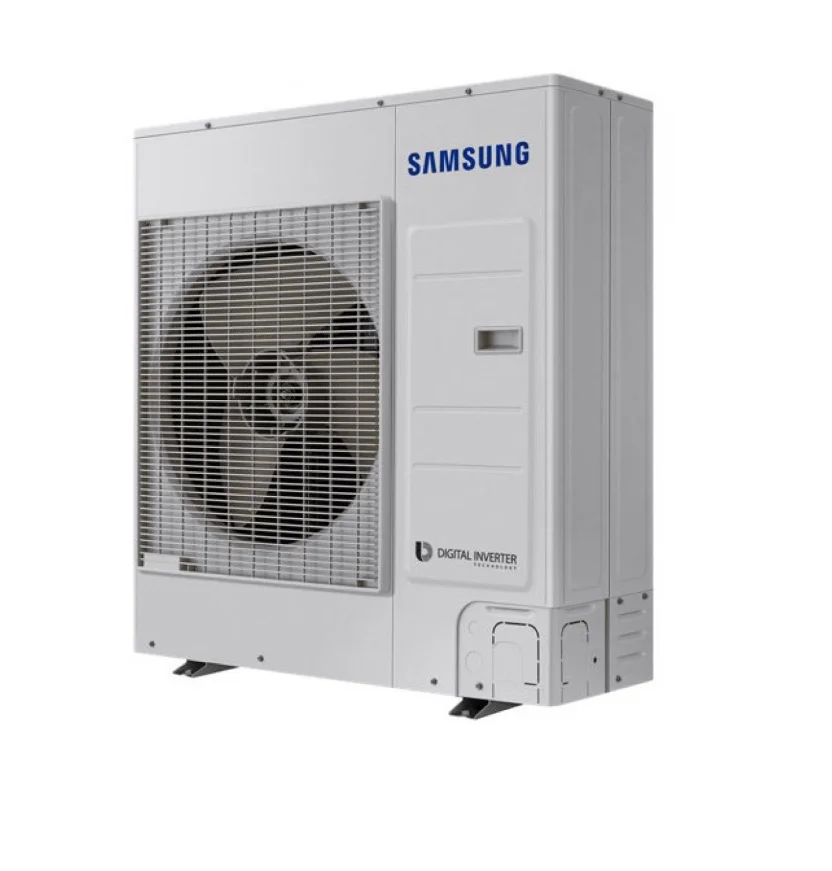

Heat pump air to water SAMSUNG AE050RXYDEG/EU monobloc 5 kW 1 phase

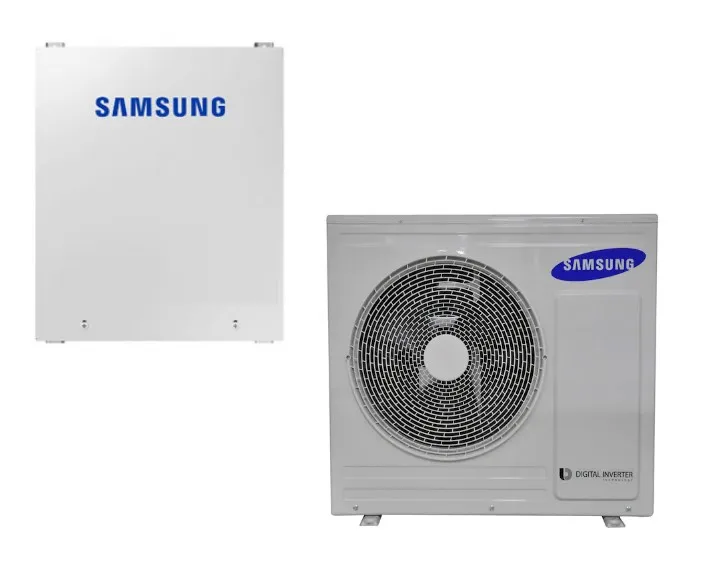

Air/water heat pump Samsung | EHS mono-default | Monobloc | Outdoor unit AE050RXYDEG/EU + control module MIM-E03CN (incl. touch controller MWR-WW10N) | 1 phase , 220~240V, 50Hz + optional WiFi MIM-H04EN

 Samsung EHS Mono heat pumps only require hydraulic connections. No intervention in the cooling system is required. The heating installation can be done with the Samsung EHS Mono version, the outdoor unit and the control module, as well as the installation components from different manufacturers. The mono outdoor unit can also be combined with the ClimateHub indoor unit in a compact design.

Specifications:

• Heat output (A7/W35 / A7/W55 °C): 5.0 kW / 4.3 kW
• Cooling capacity (A35°C / W18°C): 5.0 kW
• Nominal power consumption heating (A7/W35 / A7/W55 °C): 1.03 / 1.52 kW
• Nominal power consumption cooling (A35 / W18 °C): 1.14 kW
• COP (nominal heating) (A7/W35¹/ A7/W55 °C): 4.85 / 2.83 W/W
• EER (nominal cooling) (A35°C, W18°C): 4.39 W/W
• Energy efficiency class heating (LWT 35°C/55°C): A+++ / A++
• Operating temperature heating / cooling: -25 - 35 °C / 10 - 46 °C
• Domestic hot water operating temperature: -25 - 43 °C
• Sound pressure level heating / cooling: 45 / 45 dB(A)
• Sound power level heating: 61 dB(A)
• Net dimensions (WxHxD): 880 x 798 x 310 mm
• Net weight: 58.5 kg
• Refrigerant: R32, GWP=675
