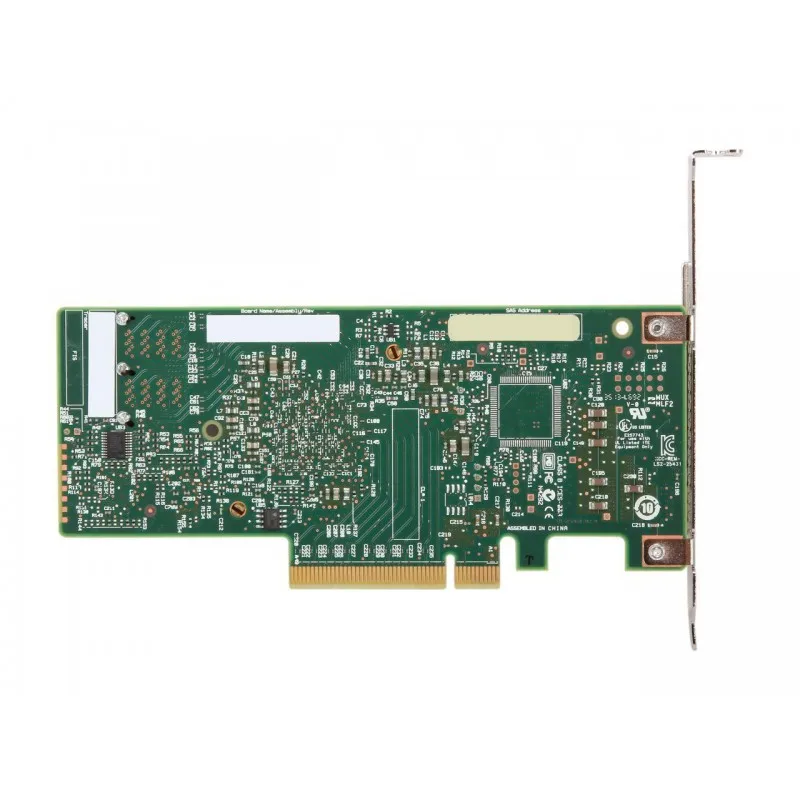

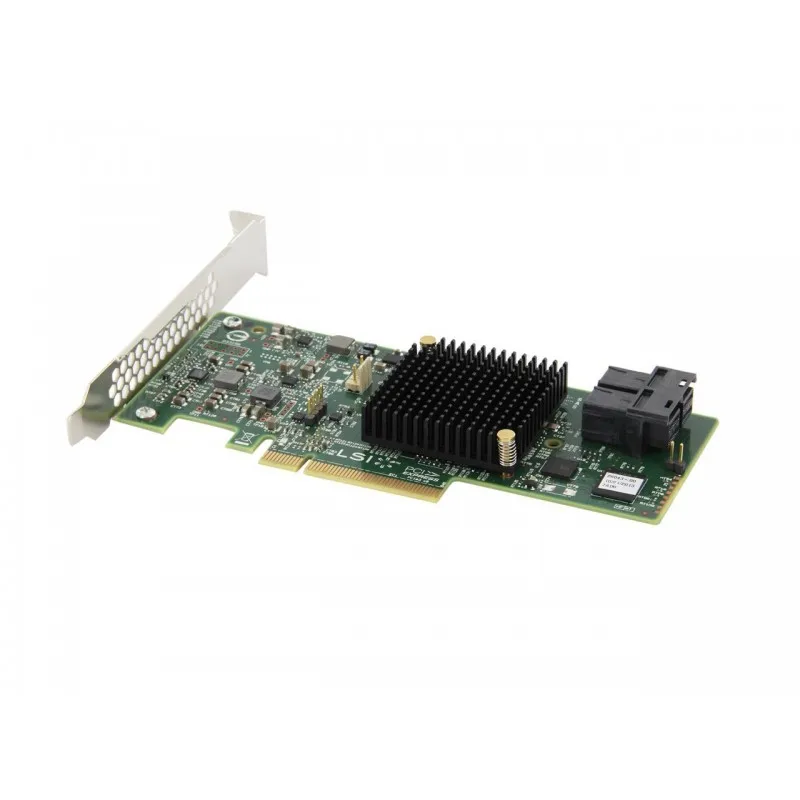

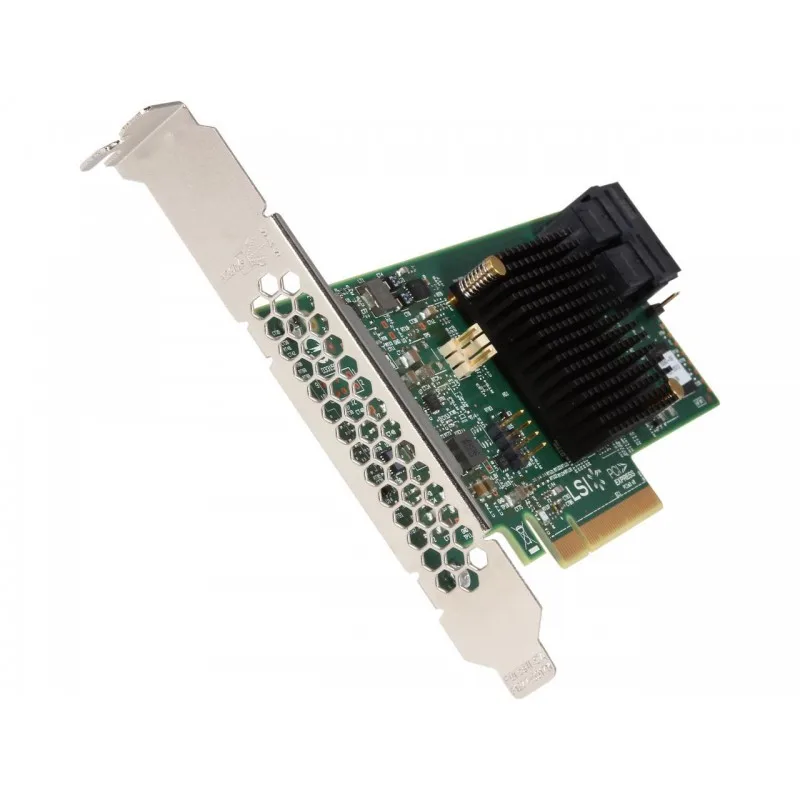

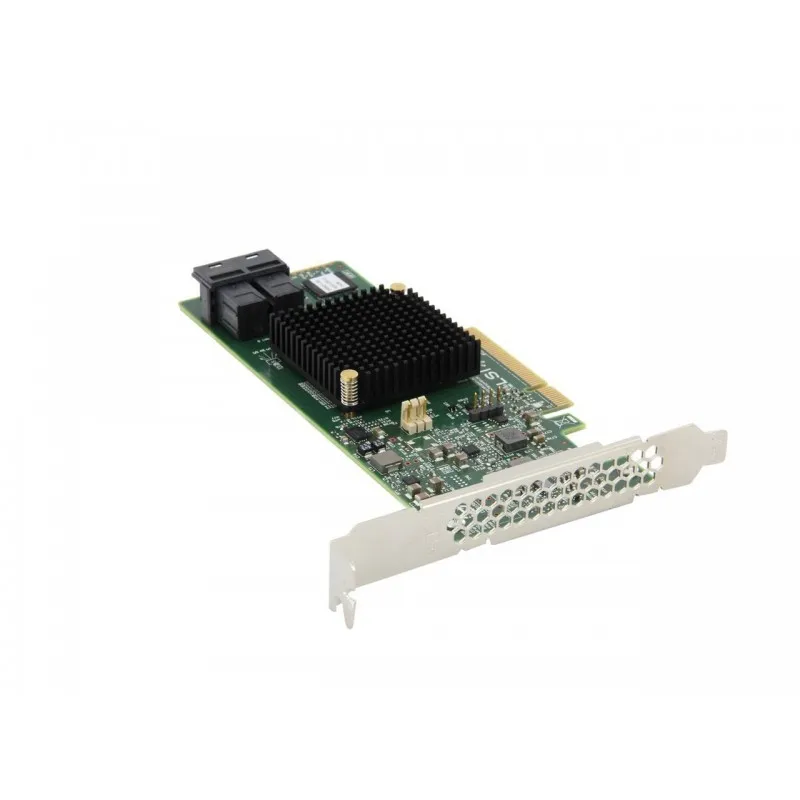

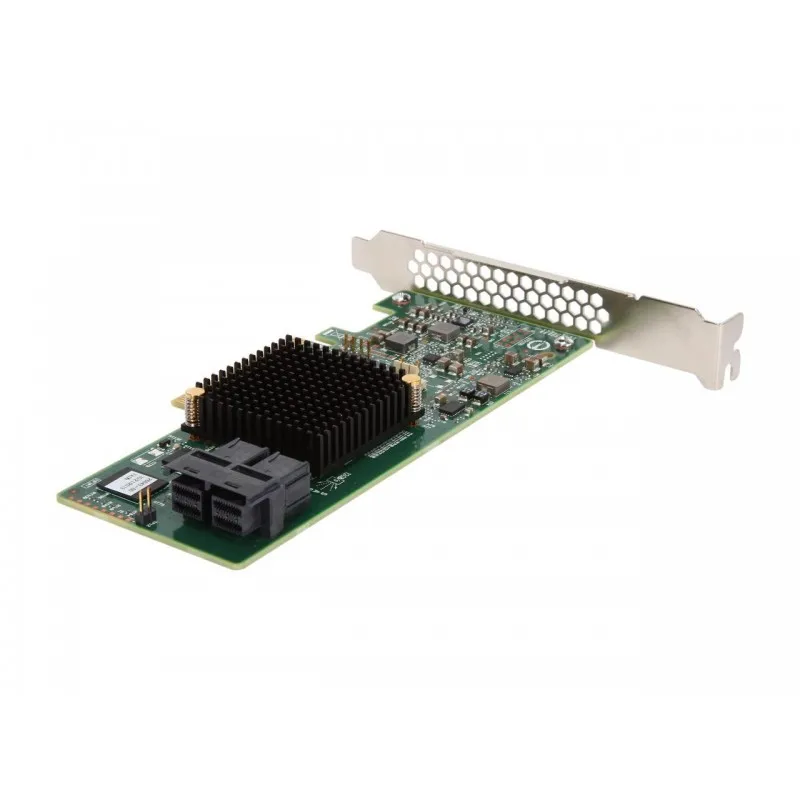

Broadcom LSI 9341-8i Internal Ports MegaRAID SATA+SAS RAID Controller



• Product: MegaRAID SAS 9341-8i


• MPN: 05-26106-00


• OPN: LSI00407


• I/O Controller: LSISAS3008


• Solution Provided: Low-cost, green SATA+SAS RAID solution for high-density servers and workstations with the flexibility to use both SATA and SAS hard drives and solid state drives


• Physical Dimensions: 2.6” x 6.0”


• Connectors: Two, x4, SFF-8643 mini-SAS HD horizontal connector placement


• Max Number of Physical Devices




• Non-RAID (JBOD Mode): 64


• RAID 0: 32 per volume


• RAID 1: 2 per volume plus hot spare: RAID 5: 32 per volume


• RAID 10: 32 per volume


• RAID 50: 32 per volume




• Host Bus Type: 8-lane, 5 GT/s PCI Express 3.0 Compliant


• Data Transfer Rates: Up to 12Gb/s per port


• Key RAID Data Protection Features



  • Global, dedicated (copy back), enclosure affinity and emergency SATA support








• RAID levels 0, 1, 5, 10, 50 and JBOD mode


• Online Capacity Expansion (OCE)


• Online RAID Level Migration (RLM)


• Auto resume after loss of system power during array rebuild or RLM


• Single controller multipathing (Load balancing)


• Drive hot plug support


• Drive roaming


• Selectable logical drive as boot drive


• Virtual Disk (VD) Consistency Check


• Fast initialization for quick array setup


• Staggered disk spin up


• Hot Spare support (up to 8)


• Automatic rebuild support


• SafeStore Encryption Services for SED HDDs


• Shielded state drive diagnostic technology


• Patrol Read media scan and repair


• Online HDD firmware update


• Error recovery support


• SAS TCQ support


• SATA NCQ support


• Support for native 4K HDDs


• Non disk device support


• >2TB logical drive support


• Soft bad block management


• DDF-compliant Configuration on Disk


• Foreign Configuration Import


• S.M.A.R.T. support


• SES (inband) & SGPIO (sideband) management




• MegaRAID Management Suite




• MegaRAID Storage Manager™ – Now with single login for domain admin


• StorCLI (command-line interface)


• CTRL-R (BIOS configuration utility)


• HII (UEFI Human Interface Infrastructure)




• Environments



  • 0°C to 70°C


  • 5 to 90% Non-condensing






  • -45°C to 105°C


  • 5 to 90% Non-condensing








• Operating


• Storage




• PCI Card Type: 3.3V add-in Card


• PCI Voltage: +12V +/-8%


• PCI Power: 13.0 W (normal), 19.04 W (max)


• PCI Modes: Bus Master DMA


• LED Indicators: Internal


• Activity/Fault per x4 port – Heartbeat


• MTFB: >2,800,000 hours


• Compliances: EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950


• Regulatory Certifications: EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick


• OS Support: Extensive support includes Microsoft® Windows® Server 2012/Vista/2008/Server 2003, Linux®, Solaris™ (x86), FreeBSD®, VMware® and more. Visit the download center for the most complete list of supported operating systems: www.lsi.com/support

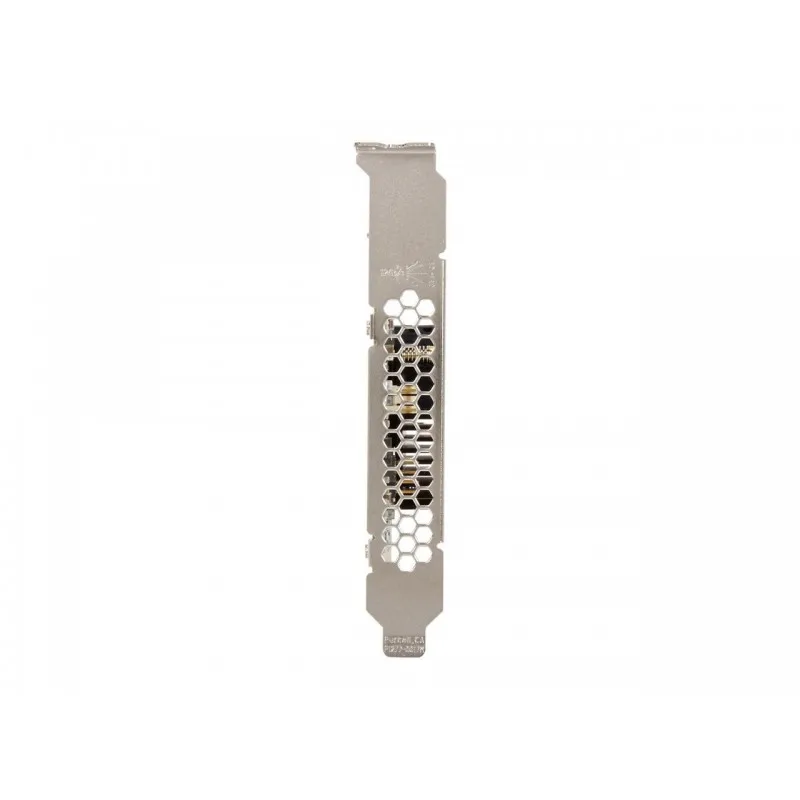

• Brackets: Full Height and Low-Profile





Rate	12G
Connector	TWO
PCI Power:	13W
Operating Temperature	0-70°C
PCI Card Type	3.3V add-in Card
MTFB	>2,800,000 hours
