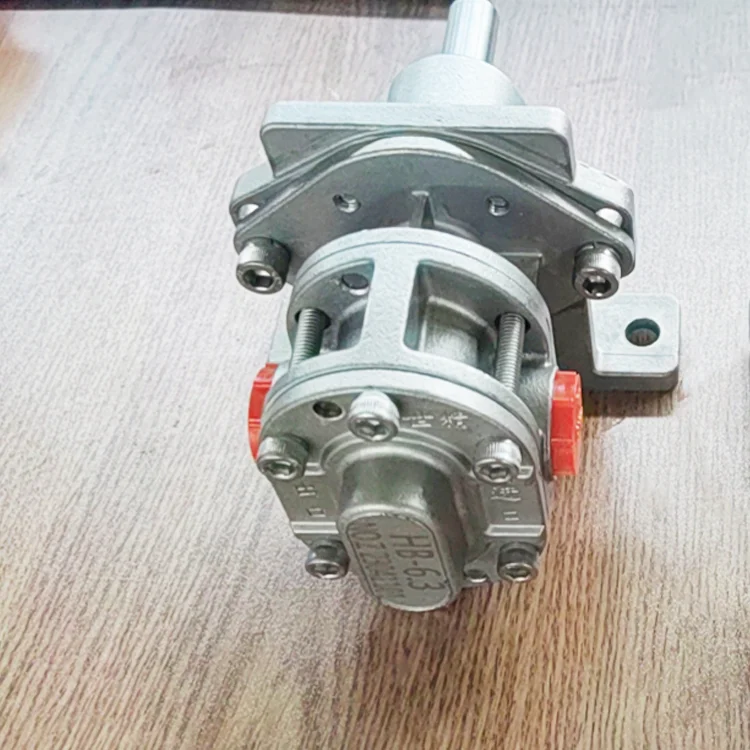

Easy to install stainless stee Chemical gear pumps for the transfer of chemical acid liquids
Easy-to-install stainless stee Chemical gear pumps for the transfer of chemical acid liquids
Easy-to-install stainless stee Chemical gear pumps for the transfer of chemical acid liquids
Easy-to-install stainless stee Chemical gear pumps for the transfer of chemical acid liquids
Easy-to-install stainless stee Chemical gear pumps for the transfer of chemical acid liquids
Easy-to-install stainless stee Chemical gear pumps for the transfer of chemical acid liquids
Easy-to-install stainless stee Chemical gear pumps for the transfer of chemical acid liquids

Easy to install stainless stee Chemical gear pumps for the transfer of chemical acid liquids

Share on (11000009296589):


Price:$449.00 - $469.00

Quantity:


Product Overview

Description



Product Description










Model
Flowcc/r
Speed/min
Flow/min
Caliber
HN3.2
3.2
980
3.1L
G1/2
HN6.3
6.3
980
6.2L
G1/2
HN10
10.0
980
9.8L
G3/4
HN12
12.5
980
12.3L
G3/4
HN16
16
720
11.5L
G3/4
HN25
25
720
18.0L
G1 1/4
HN40
40
720
28.8L
G1 1/4
HN63
63
720
45.4L
G1 1/2
HN80
80
720
57.6L
G1 1/2
HN120
125
500
62.5L
G1 1/2


Product description
The gear metering pump is suitable for medium and low pressure, medium and small flow, conveying fluid materials with high viscosity and temperature and certain metering requirements (cannot contain particles).The gear metering pump principle is that the power of the motor transports the liquid to different pump chambers through the gears, and the gear metering pump overcurrent part is made of high-strength corrosion-resistant alloy and metal graphite.The gear metering pump sealing way is double end face mechanical seal, with higher reliability, suitable continuous operation for a long time. It is mainly used for the metering and transportation of viscous, corrosive liquids or liquids with higher hygienic requirements.
Material
The gear metering pump flow overcurrent part adopt austenitic stainless steel 304, 304L, 316, 316L and alloy stainless steel, which are treated with strict solid solution. Make the material structure uniform and stress relief.
Matters needing attention
The gear metering pump working temperature must not exceed 200 degrees and the viscosity should not exceed 100,000 cps. (If the temperature exceeds 90"C， please specify when selecting)
product advantages
Product advantages
1.The gear metering pump sturdy drive coupling between the motor and the metering pump, eliminates the influence of the alignment error between the motor and the gear metering pump on the measurement accuracy. At the same lime, avoid the motor transmitting vibration to the gear metering pump.
2.The gear metering pump high flow accuracy: continuous accurate and stable flow control under different conditions of temperature, pressure and viscosity.

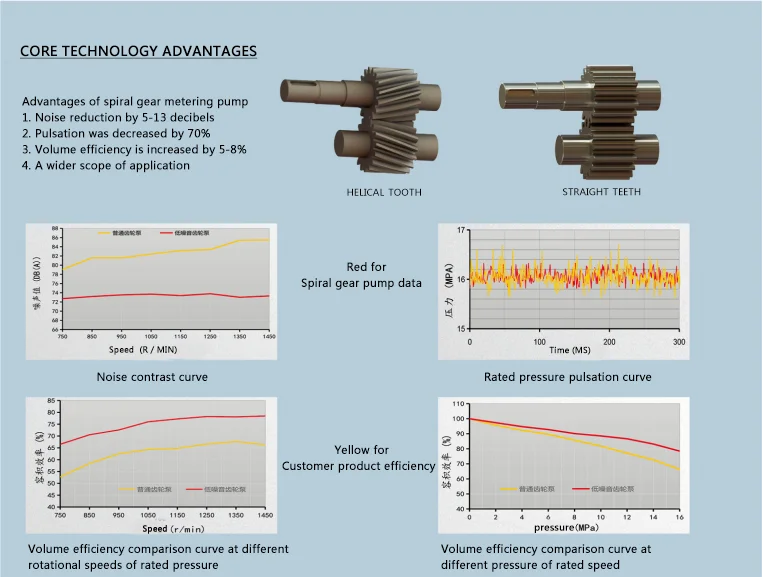

3.The gear metering pump gear transmission structure design makes flow delivery without pulse.
4. The gear metering pump disassembling and assembling is simple and easy to clean, the moving parts resist wear and tear, the size is small, the noise is low, can work stably for a long time.

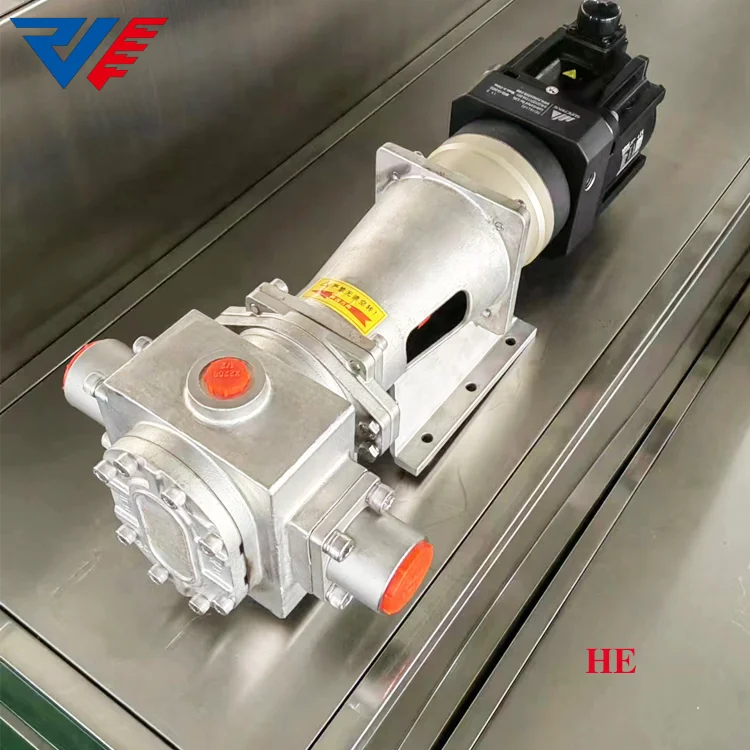

5.The gear metering pump servo drive flow accurate, digital regulation, remote control can be achieved.
6.The gear metering pump suitable for transporting substances:
Resins, curing agents, emulsifiers, additives, corrosives, adhesives, oxidizing agents, surfactants, hot melt adhesives, Defoamer, tackifier, sealant, catalyst, chemical agent, scale inhibitor, varnish, paint, ink, emulsion, Emulsion, chemical fiber, dye, pigment, viscose, methanol, ethanol, ethylene glycol, methyl ether, lubricating oil, grease, isocyanate, Black, white, dye, ketchup, water treatment, cosmetics, spices, viscose, fuel, urethane, lubricants, adhesives, Condiments, pharmaceuticals, polymers, oils, paints, vitamins, detergents, corrosion inhibitors, etc.


gear metering pump gear metering pump gear metering pump gear metering pump gear metering pump gear metering pump gear metering pump gear metering pump gear metering pump gear metering pump gear metering pump gear metering pump gear metering pump gear metering pump gear metering pump gear metering pump gear metering pump




Application&Testing




Our Company




Factory Show




Cooperation&Certification




Packaging&Shipping




Hot Product




FAQ


1.Q: Are you a manufacturer or a trading company?
A: We are a manufacturer specializing in the production of diaphragm metering pumps, rotor pumps and other types of pumps, as well as pump-related products. Our products have passed the test.

2.Q:Why choose us?
A:We have more than 7 years of experience in the pump product industry. High-quality products and competitive prices. We have professional business personnel and engineers to provide you with selection assistance and technical support.

3.Q: How to buy our pump?
A: Tell us the required pump flow, pressure, head, medium, pump body material, voltage, current frequency, motor type and medium temperature. If you have special requirements, please highlight.

4.Q: What is the minimum order quantity for your products?
A: Different models have different MOQs, please check with the salesperson.

5.Q: How long is your delivery time?
A: The samples can be sent to you within 7-10 days. Bulk orders can be shipped to you within 10-15 days after the order is confirmed.
