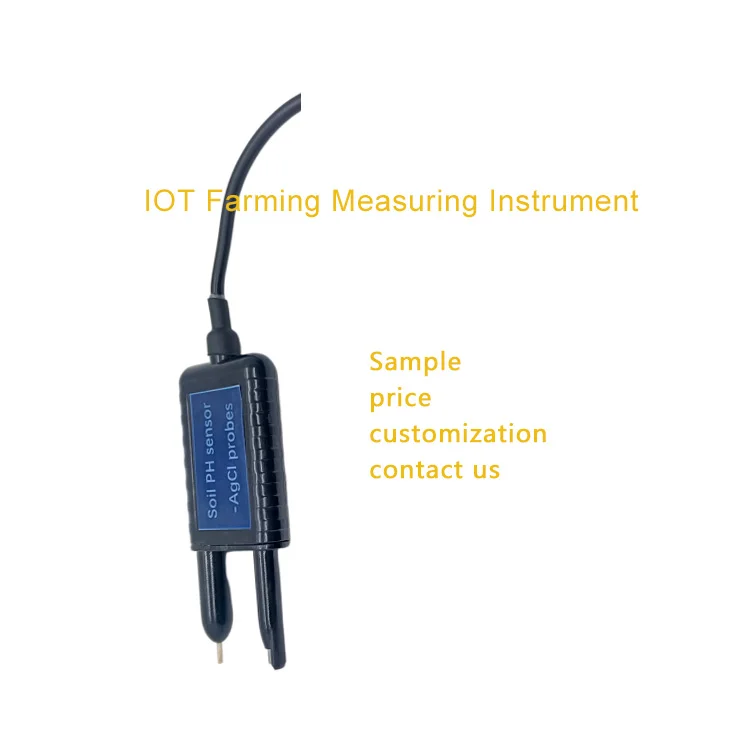

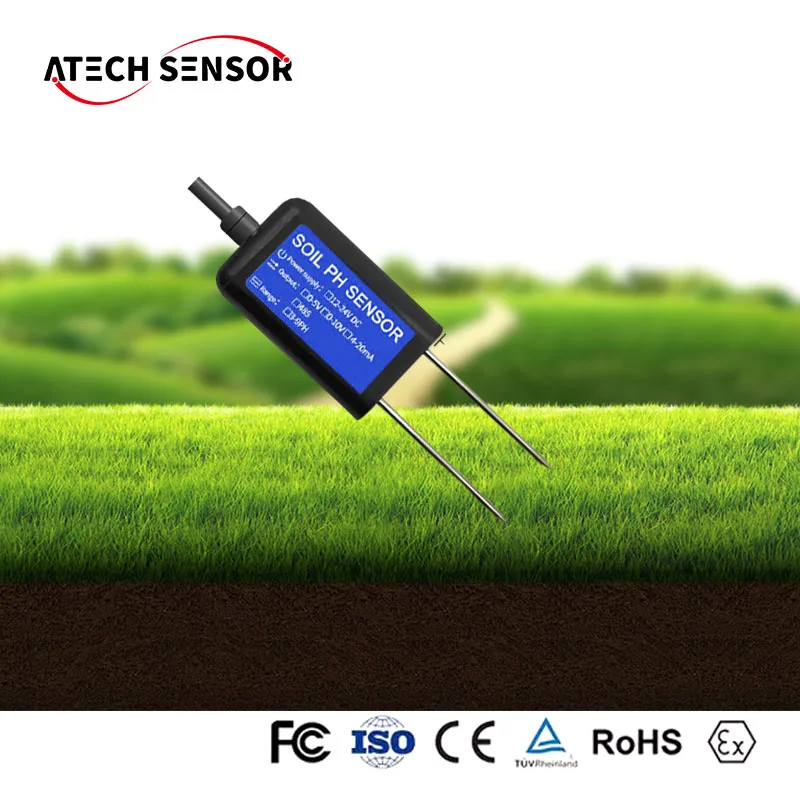

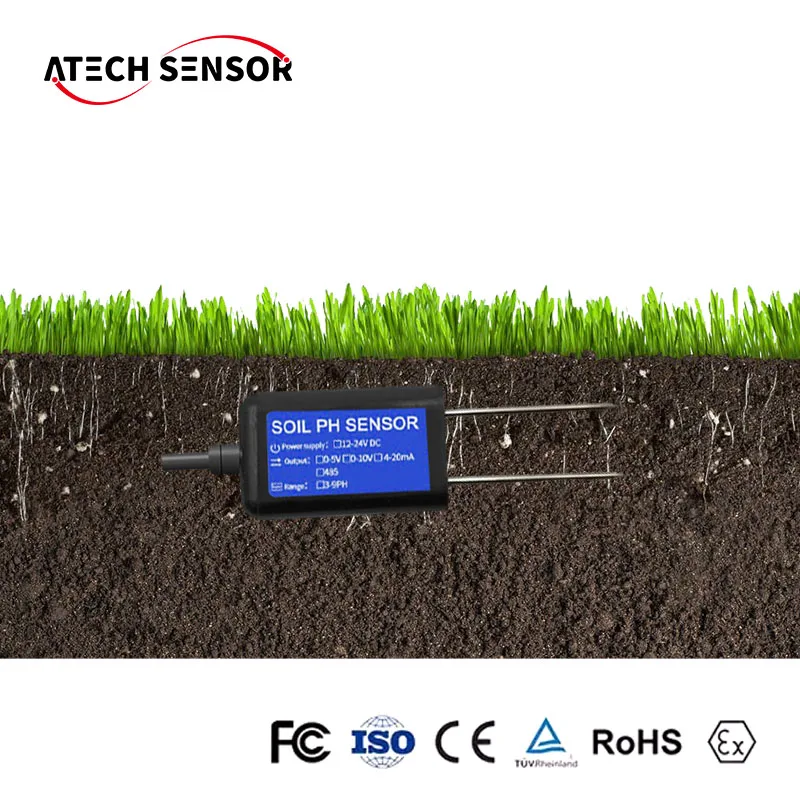

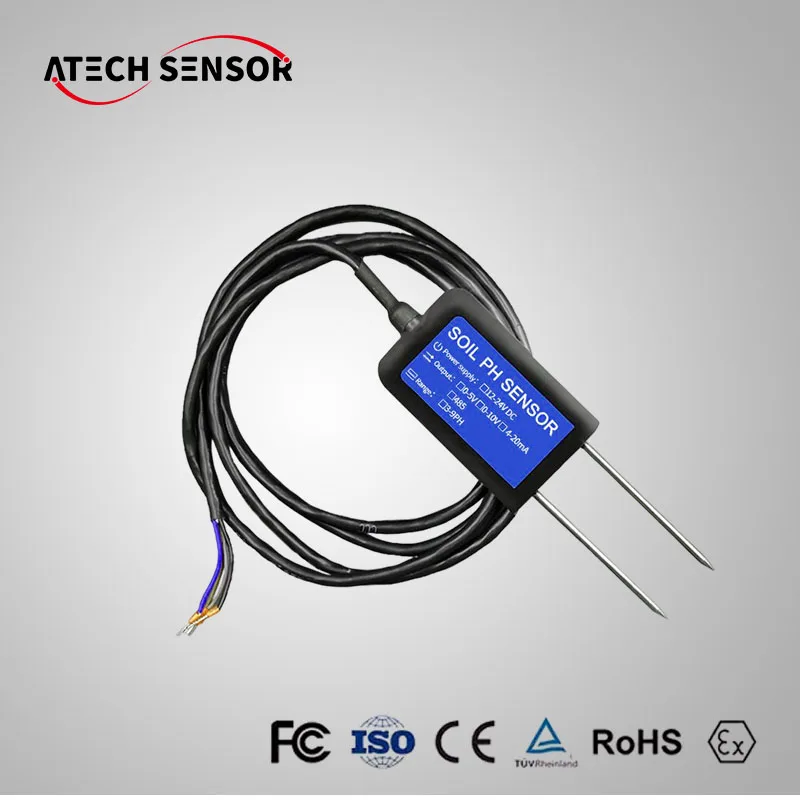

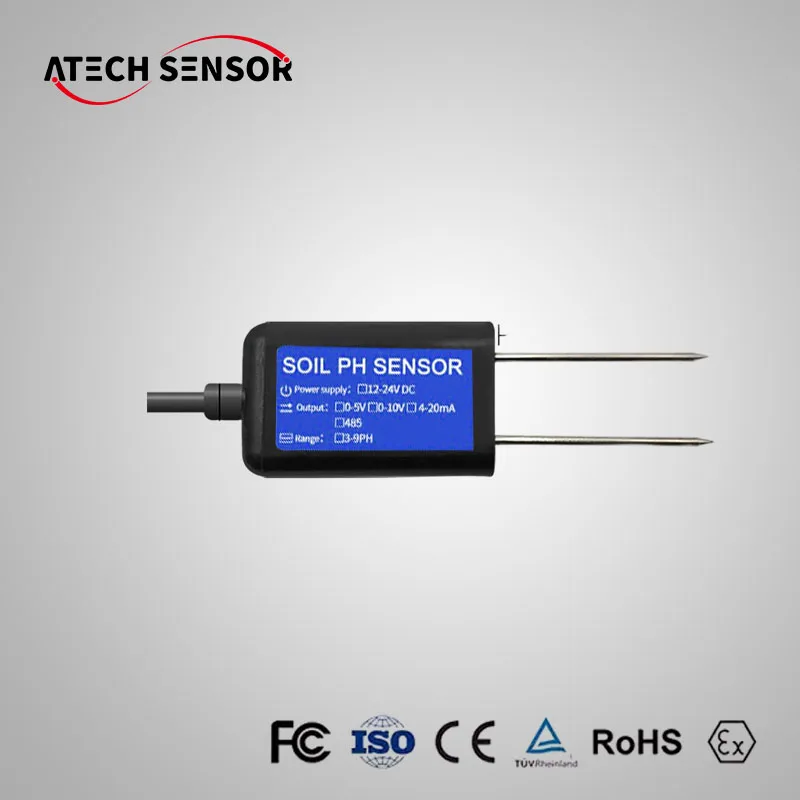

Atech IOT Farming Measuring Instrument Iot Soil Temperature And PH Sensor Soil
- Category: >>>
- Supplier: Atech Sensor Co. Ltd.
Share on (11000009308078):
Product Overview
Description
Product Name | Soil PH and temperature 2 in 1 sensor |
Probe type | AgCl Anti-corrosion reference probe |
Measurement parameters | Soil PH Value; Soil temperature value |
Measuring range | 3 ~ 10 PH; -40℃～85℃ |
Measurement accuracy | ±0.2PH; ±0.4℃ |
Resolution | 0.1 PH; 0.1℃ |

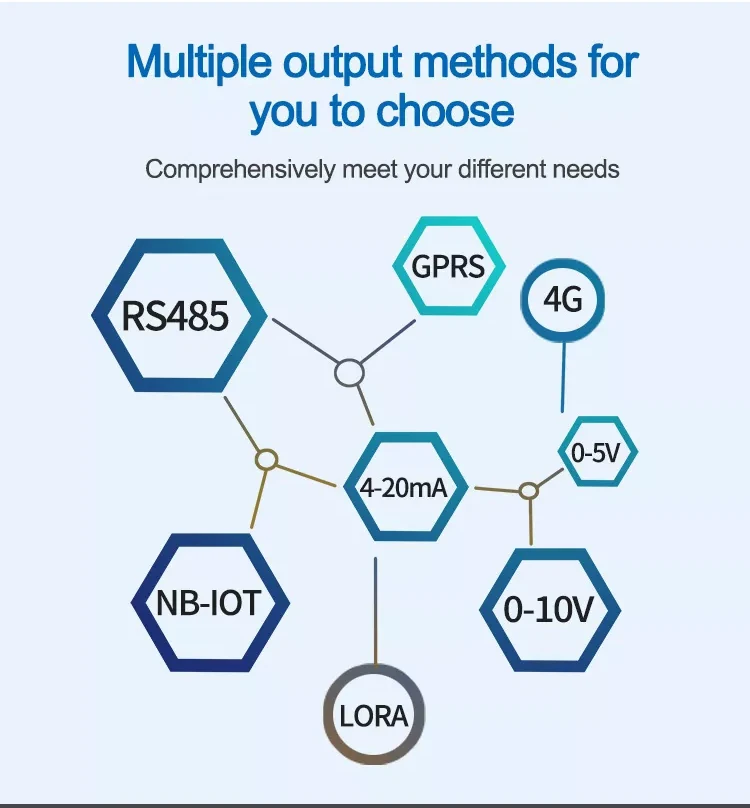

Outputsignal | A:RS485 (standard Modbus-RTU protocol, device default address: 01) |
B:4 to 20 mA (current loop) | |
C:0-5V /0-10V | |
Output signal with wireless | A:LORA/LORAWAN |
B:GPRS | |
C:WIFI | |
D:NB-IOT | |
Software | Can send the free server and software to see the real time data and download the history data in the PC or mobile end with our wireless module |
Supply voltage | 2～5VDC /5-24VDC |
Working temperature range | -30 ° C ~ 70 ° C |
Calibration | Three points calibration |
Sealing material | ABS engineering plastic, epoxy resin |
Waterproof grade | IP68 |
Cable specification | Standard 2 meters (can be customized for other cable lengths, upto 1200 meters) |

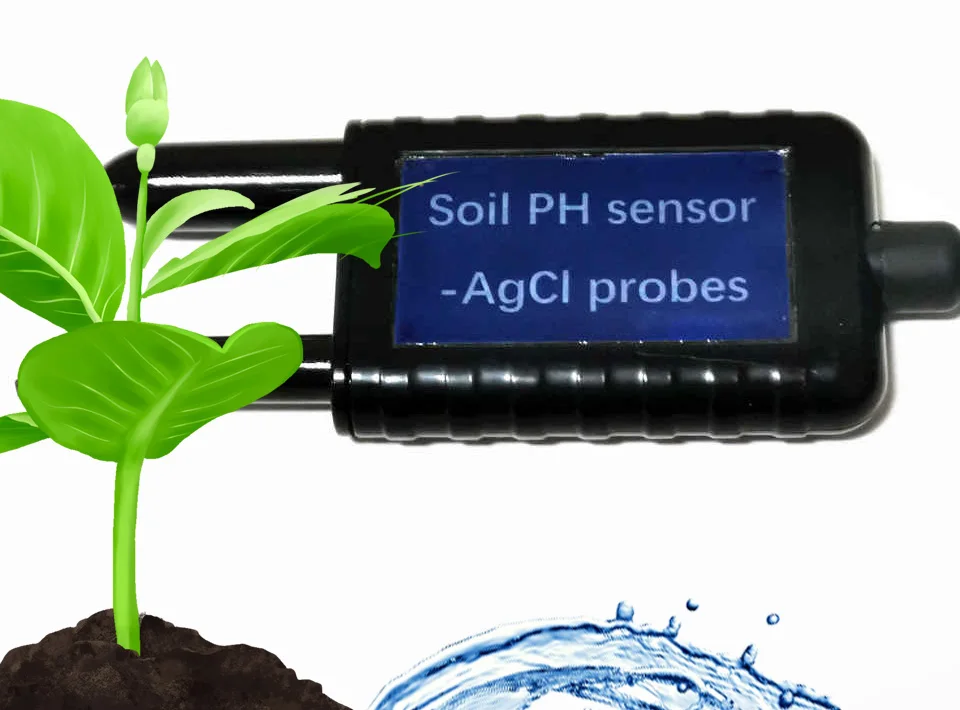

1. Corrosion-resistant Solid AgCl electrodes
Using solid AgCl reference electrode and pure metal PH sensitive electrode.
Using solid AgCl reference electrode and pure metal PH sensitive electrode.
2 . IP68 Waterproof
Can be burried into the soil on years to monitor the data in realtime
Can be burried into the soil on years to monitor the data in realtime
3. High precise with three points calibration
Using high precise AgCl probes with three points calibration which can keep in high precise.
Using high precise AgCl probes with three points calibration which can keep in high precise.
4. With temperature compensation also can measure soil temperature value
The PH sensor has temperature compensation inside, which can realize the pH value stabilization within a certain temperature range.
The PH sensor has temperature compensation inside, which can realize the pH value stabilization within a certain temperature range.

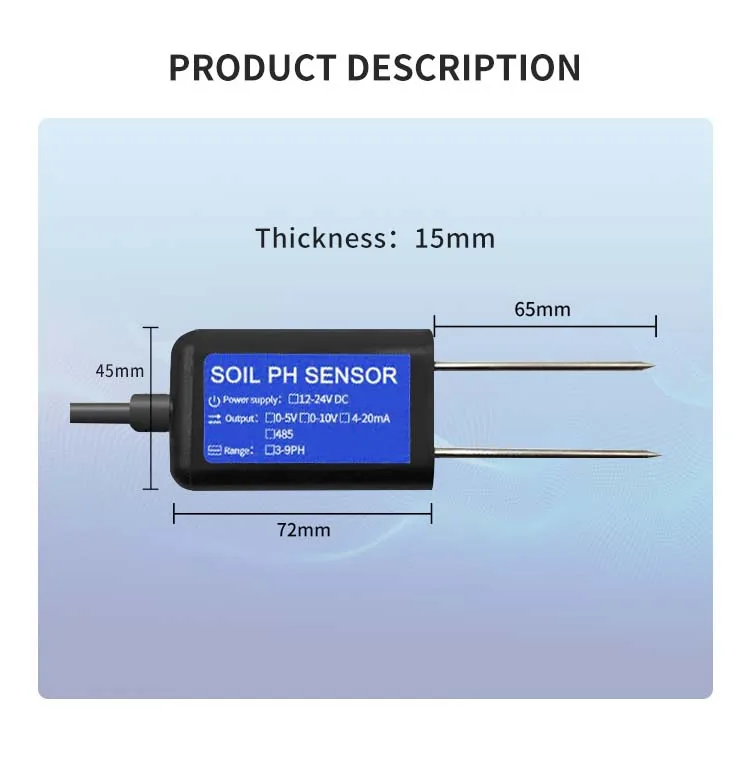

Products Description
Contact us for more information on discounts
Specification
Model Number | ATS-PH01 |
Responding speed | ≤15S |
Accuracy | ±0.3PH |
Operaing temperature | 0-55°C |
Customized support | OEM, ODM |
Warranty | 12 months |
scenes to be used
Our Advantages
Company Profile
Exhibition
Logistics and transportation
FAQ
1.Q: How long is the delivery?
-- Mostly within 10days
-- Mostly within 10days
2.Q:Can I get a sample?
-- Sure, contact our sales please
3.Q:What is your MOQ?
-- 1pcs
4.Q: How about warranty time?
-- 12-18months
5.Q: How can I visit your factory?
-- Fly to Xi'an air port, it’s our pleasure to pick you up.
6.Q:How do you control your quality ?
-- We have EPR system .we control from parts, process, testing, packing ,retesting.
7.Q: Do you have test report for each product?
-- Yes,we have test report for each product.
8.Q: Can you customize product for us according to our required specifications?
-- Yes,we are OEM manufacturer,we could customize products according to your required specifications.
-- Sure, contact our sales please
3.Q:What is your MOQ?
-- 1pcs
4.Q: How about warranty time?
-- 12-18months
5.Q: How can I visit your factory?
-- Fly to Xi'an air port, it’s our pleasure to pick you up.
6.Q:How do you control your quality ?
-- We have EPR system .we control from parts, process, testing, packing ,retesting.
7.Q: Do you have test report for each product?
-- Yes,we have test report for each product.
8.Q: Can you customize product for us according to our required specifications?
-- Yes,we are OEM manufacturer,we could customize products according to your required specifications.
Every Sensor will be tested two times before reach you, after that sport test for the third time. Make sure about the quantity.Welcome to order our products
