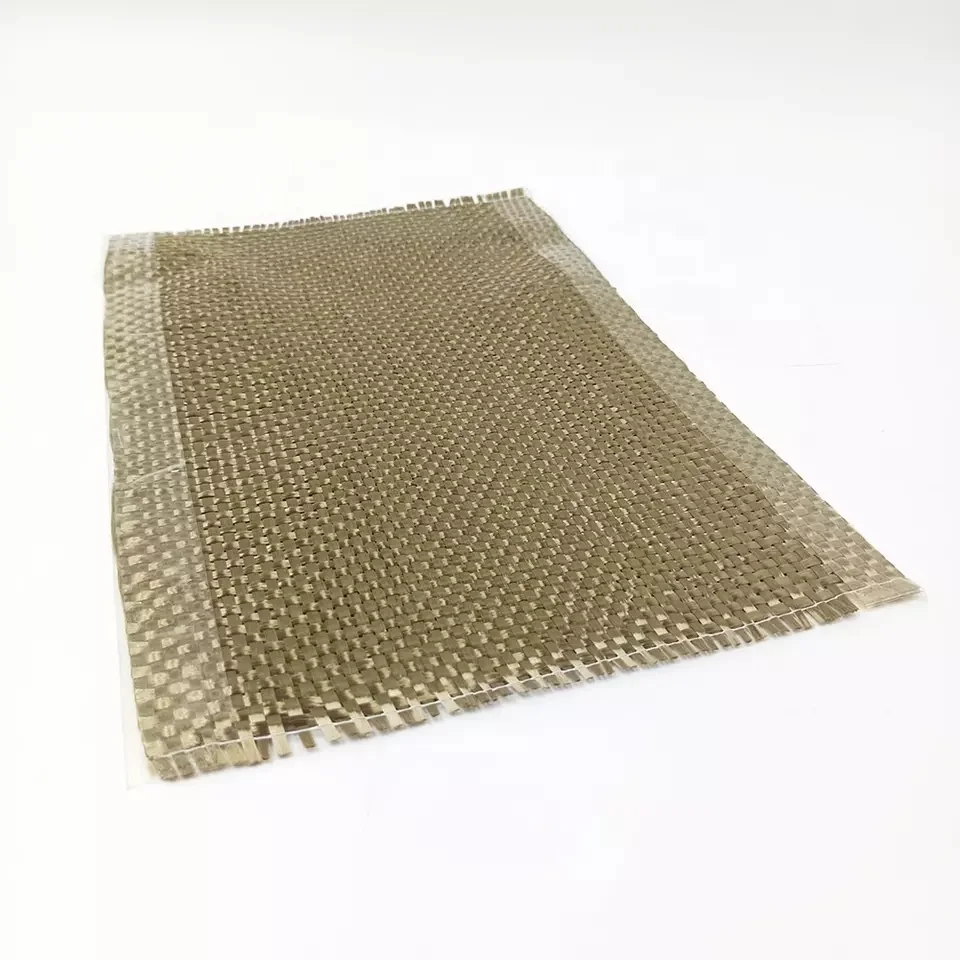

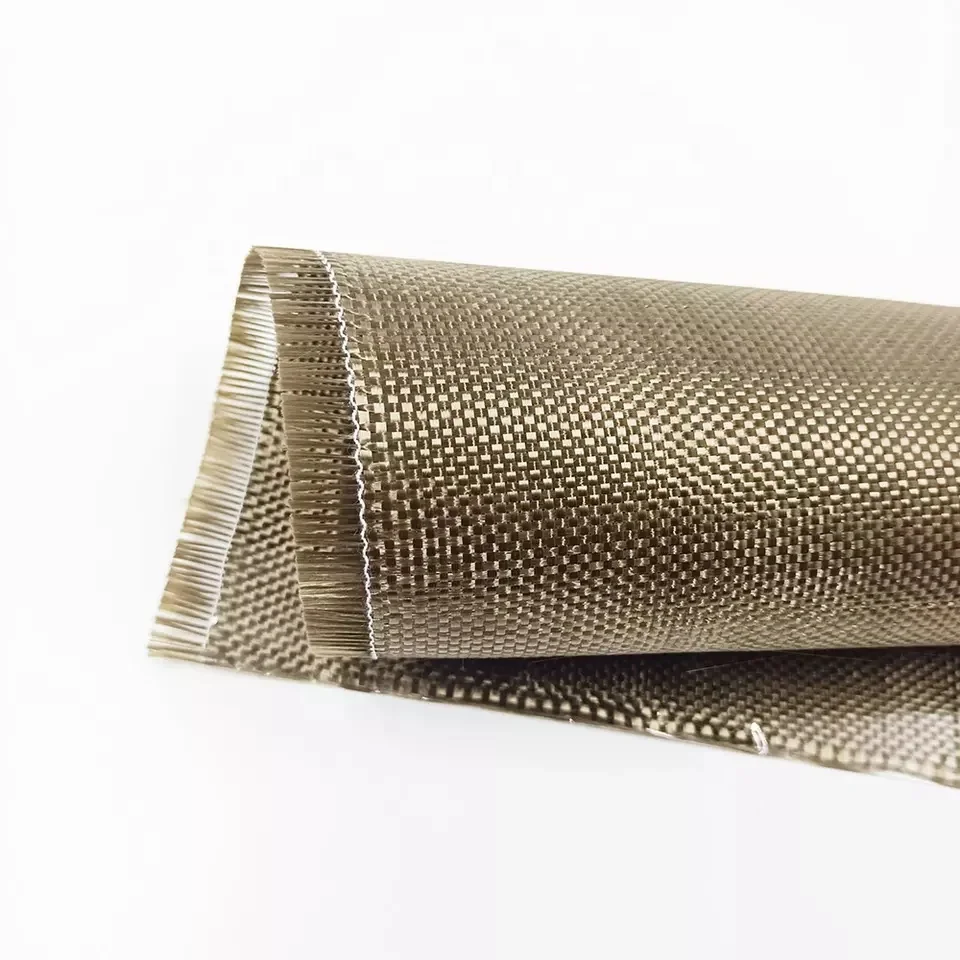

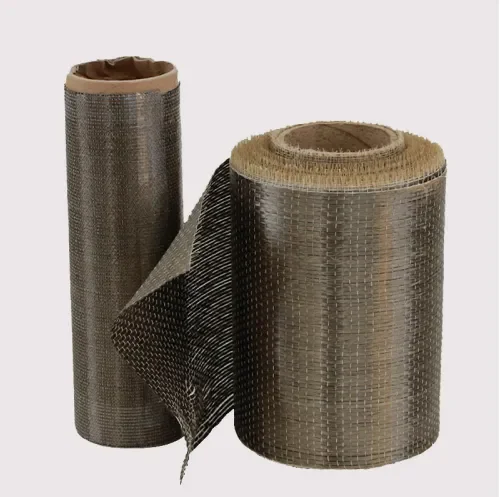

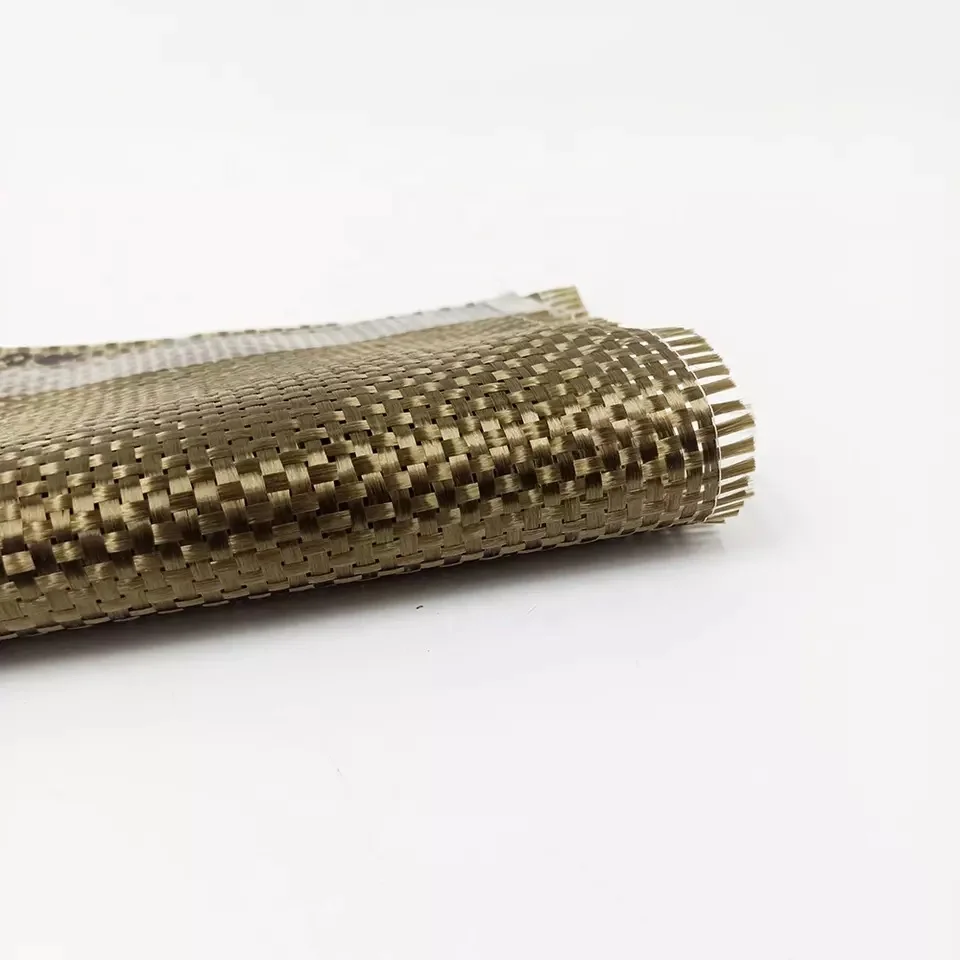

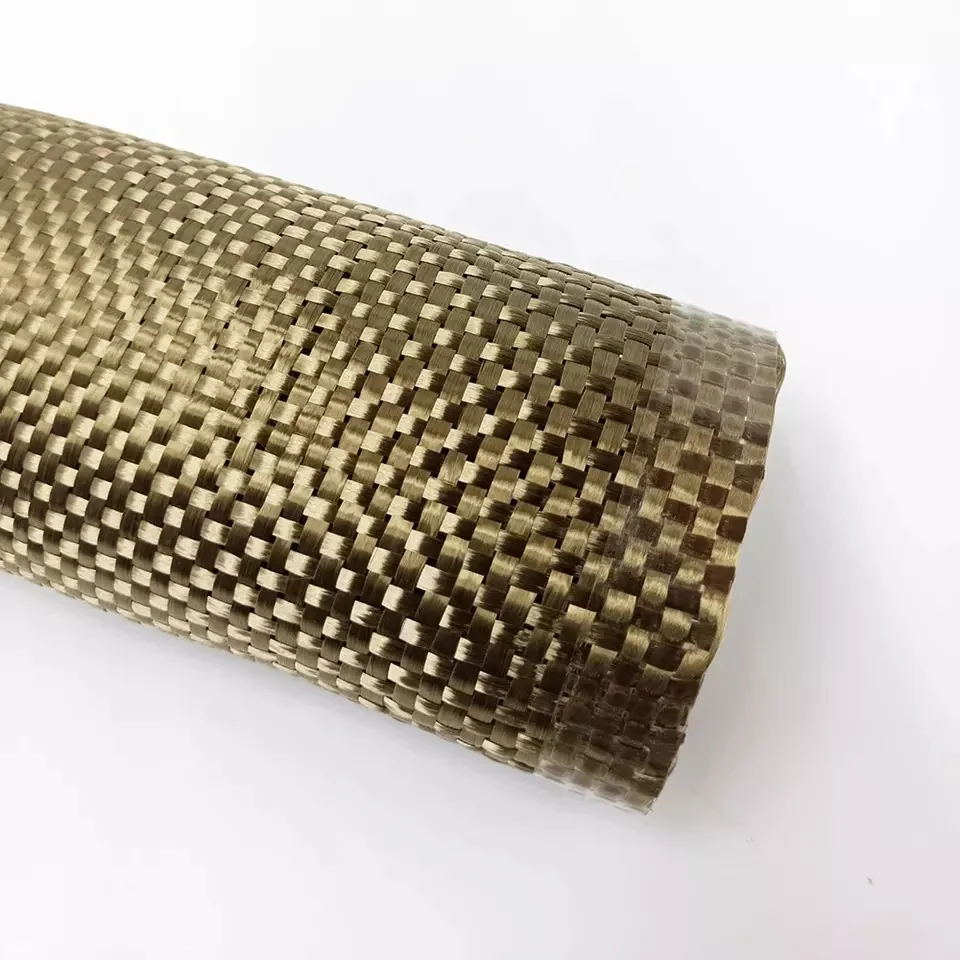

Basalt Fiber Fabric Factory Direct Basalt Fiber Cloth 300gsm
- Category: >>>
- Supplier: Guangdong Cinon New Material Technology Co. Ltd.
Share on (11000009316940):
Product Overview
Description
Product Description

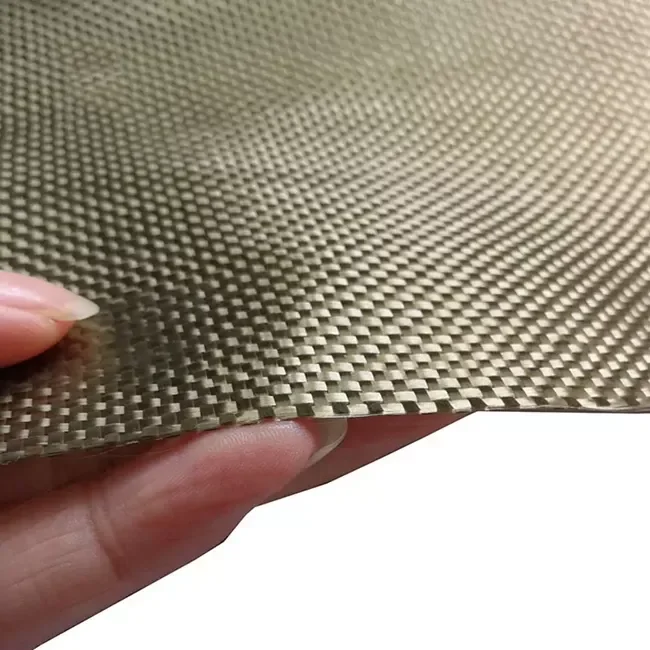

The basalt fiber cloth of our company adopts twisted or untwisted basalt continuous fibers as raw materials, and is woven with plain, twill and satin weaves.

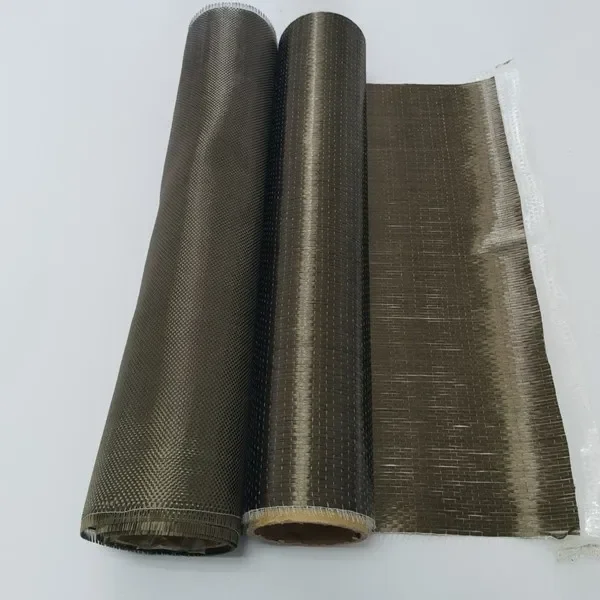

Divided into unidirectional cloth, bidirectional cloth and multi-directional cloth. Relying on the temperature resisitance,
corrosion resistance, high strenght and modulus, and electrical insulation of basalt fiber, it is processed by hand lay-up, pultrusion, autoclave, vacuum introduction,winding, resin transfer and other processes, combined with unsaturated polyester resin (UP) or epoxy resin (EP).Used in bridge construction, wind turbine blades,boats, automobiles, sports
equipment and other fields.
Divided into unidirectional cloth, bidirectional cloth and multi-directional cloth. Relying on the temperature resisitance,
corrosion resistance, high strenght and modulus, and electrical insulation of basalt fiber, it is processed by hand lay-up, pultrusion, autoclave, vacuum introduction,winding, resin transfer and other processes, combined with unsaturated polyester resin (UP) or epoxy resin (EP).Used in bridge construction, wind turbine blades,boats, automobiles, sports
equipment and other fields.
Product Features :
-High temperature resistance, corrosion resistance, excellent physical and chemical properties.
-High strenght, small thickness, good flexibility.
-High acid resistance,alkali resistance.
-Strong anti-ultraviolet performance, low moisture absorption, good insulation and good transmission properties.
-Parallel and straightening yarn, excellent mechanical properties.
-More direction mechanical performance can design according to the actual need freedom enhancement effect.
-High strenght, small thickness, good flexibility.
-High acid resistance,alkali resistance.
-Strong anti-ultraviolet performance, low moisture absorption, good insulation and good transmission properties.
-Parallel and straightening yarn, excellent mechanical properties.
-More direction mechanical performance can design according to the actual need freedom enhancement effect.
Specification
Type | Denisty(filament/10cm) | Width(mm) | Thickness(mm) | Moisture content(%) | Fracture strength(N/5cm) | ||
0°(Longitude) | 90°(Latitude) | ||||||
BFWR-155-1000-P | 60±0.5 | 55±1 | 1000±5 | 0.12±0.02 | ≤0.2 | ≥1400 | |
BFWR-300-1000-P | 55±0.5 | 55±1 | 1000±5 | 0.28±0.02 | ≤0.2 | ≥3150 | |
BFWR-400-1000-P | 50±0.5 | 50±1 | 1000±5 | 0.35±0.02 | ≤0.2 | ≥4200 | |
BFWR-300-1000-T | 62.5±0.5 | 62.5±1 | 1000±5 | 0.30±0.02 | ≤0.2 | ≥3150 | |
Application
Used in bridge construction, wind turbine blades, boats, automobiles, sports equipment and other fields.

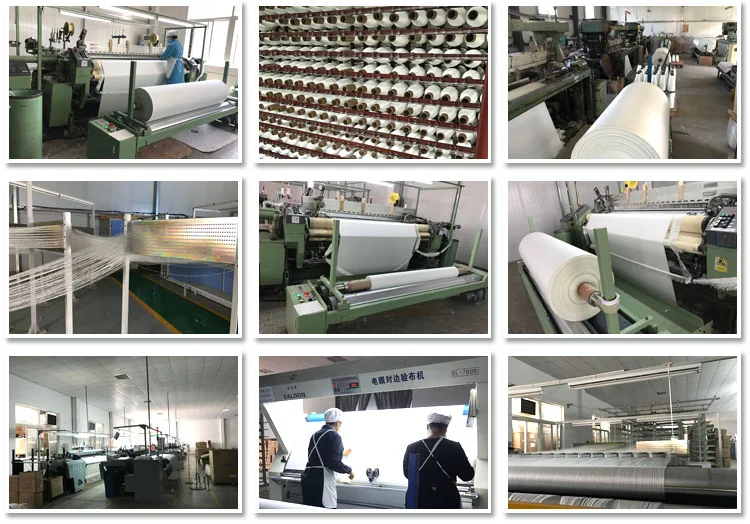

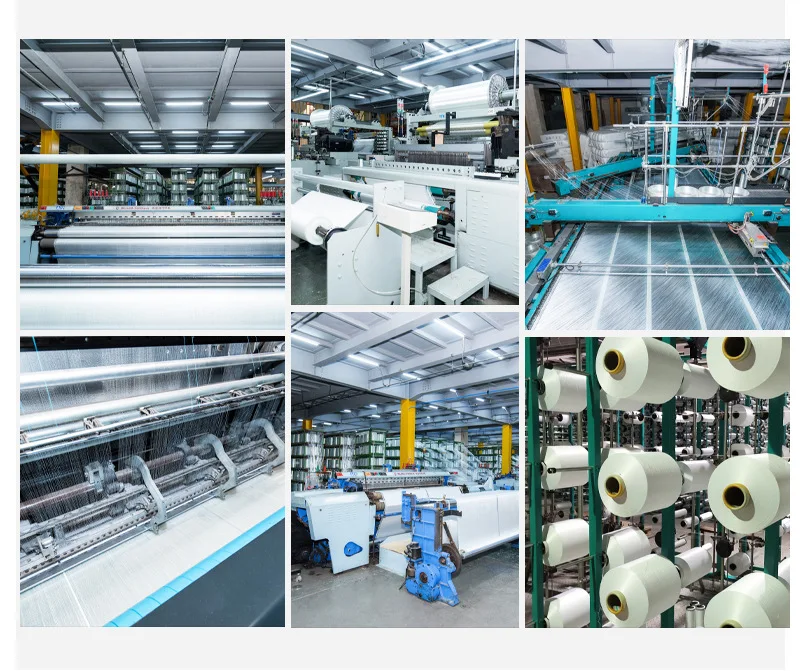

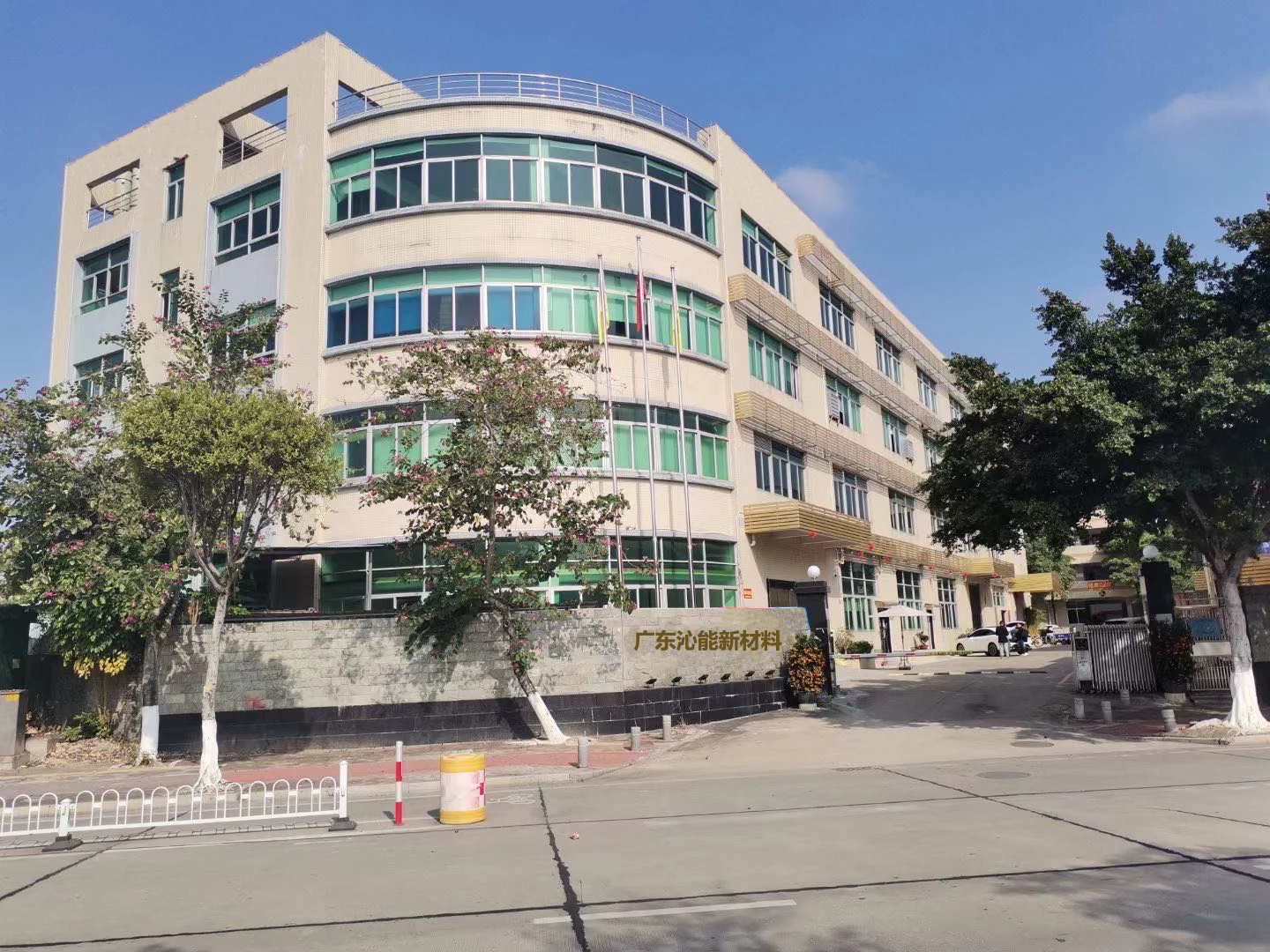

Company Profile
CINON is established in 2017 in Guangzhou, a leading company of composite materials productions. Cinon has a group of passionate team are experienced in product technical support, manufacturing, export delivery. CINON deliver a comprehensive range of composite materials throughout the globe, providing tailored and timely solutions at cost-effective prices. CINON insist in “trustworthy product quality, strived for perfection.” to serve our customers all over the world.
Certifications

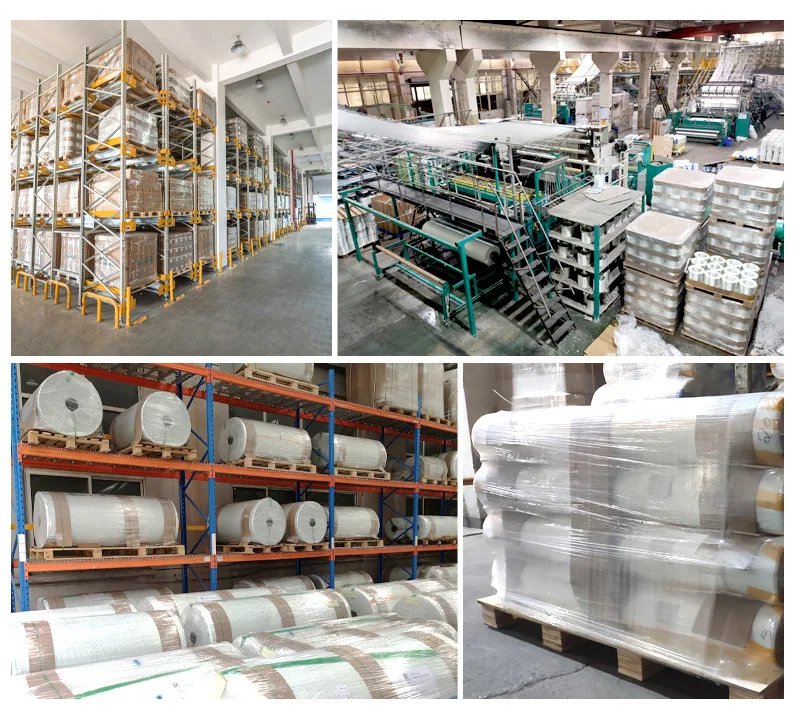

Packing & Delivery
FAQ
Q1. Are you a trading company or manufacturer?
A: We are the manufacturer, We have a complete industrial chain, from raw material purchasing, to production, to transportation.
A: We are the manufacturer, We have a complete industrial chain, from raw material purchasing, to production, to transportation.
Q2. Can you provide OEM or ODM service?
A: Sure, very welcome.Both the logo and packaging can be customized.
Q3. What other services can you offer?
A: Provide product pictures, details, videos, customer development, sales ideas, etc.
Q4. Can I see your factory or show room?
A: Of course, you are welcome to come for a site visit or to see our factory certification video.
Q5. Free samples? How long does it take to arrive?
A：a sample is provided free of charge, but the shipping cost is at your own expense. They are sent out within 3 days after the order is placed, and usually arrive in 5-12 days.
Q6. What is the minimum order quantity? How long does it take to deliver?
A: We can build cooperation from small orders and grow together. Shipping 7-15 days after receipt of deposit.
A: Sure, very welcome.Both the logo and packaging can be customized.
Q3. What other services can you offer?
A: Provide product pictures, details, videos, customer development, sales ideas, etc.
Q4. Can I see your factory or show room?
A: Of course, you are welcome to come for a site visit or to see our factory certification video.
Q5. Free samples? How long does it take to arrive?
A：a sample is provided free of charge, but the shipping cost is at your own expense. They are sent out within 3 days after the order is placed, and usually arrive in 5-12 days.
Q6. What is the minimum order quantity? How long does it take to deliver?
A: We can build cooperation from small orders and grow together. Shipping 7-15 days after receipt of deposit.
