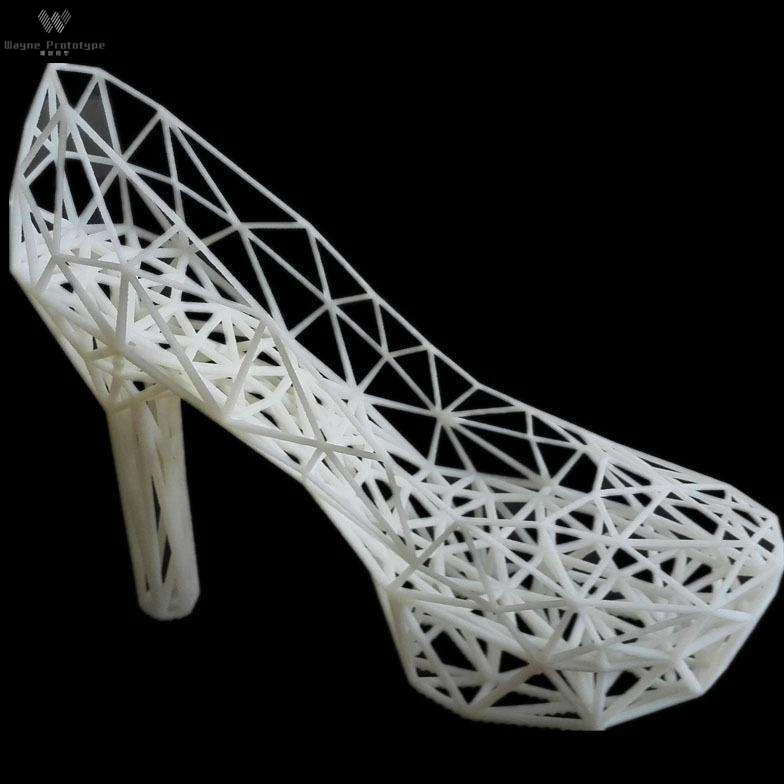

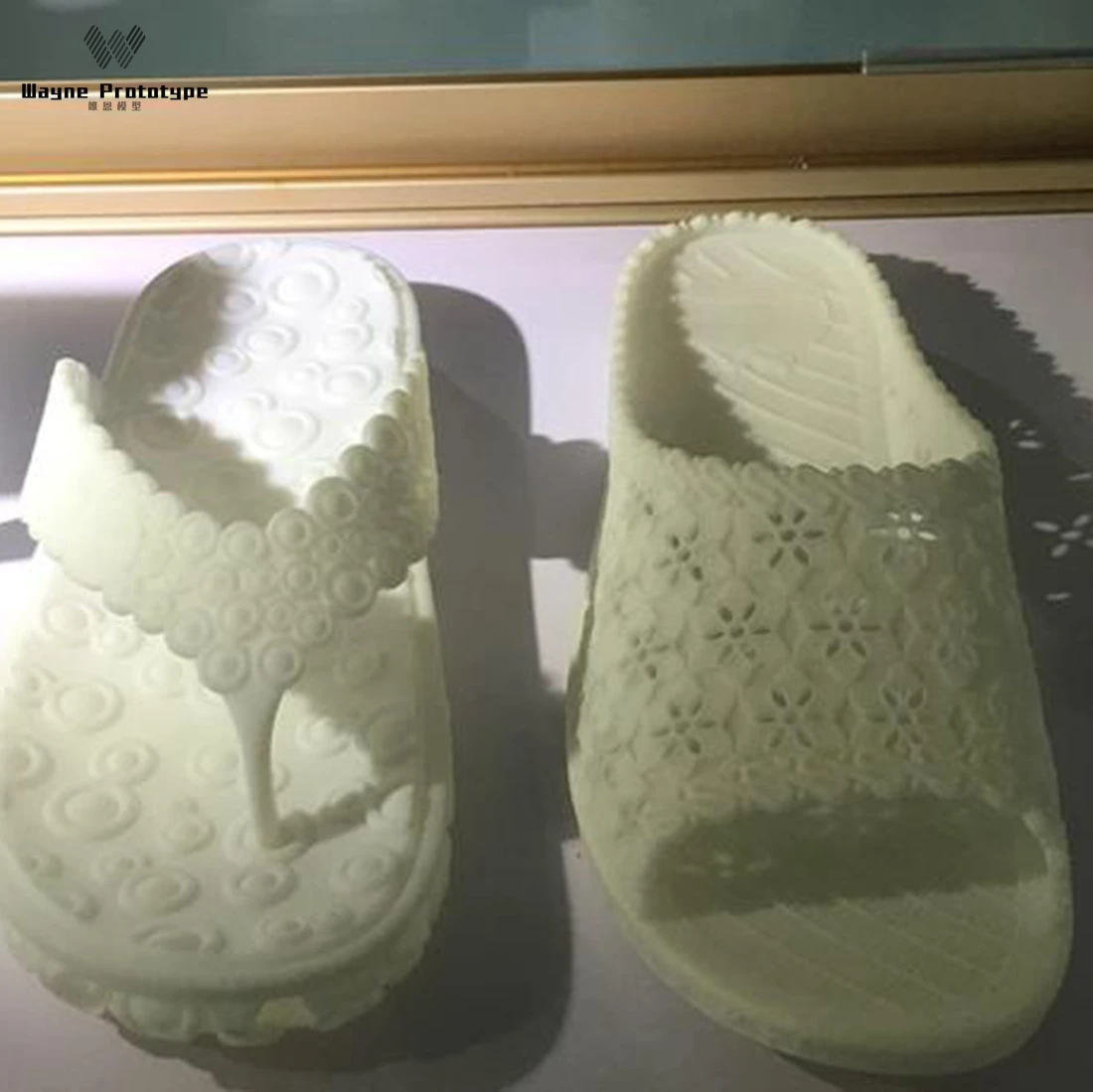

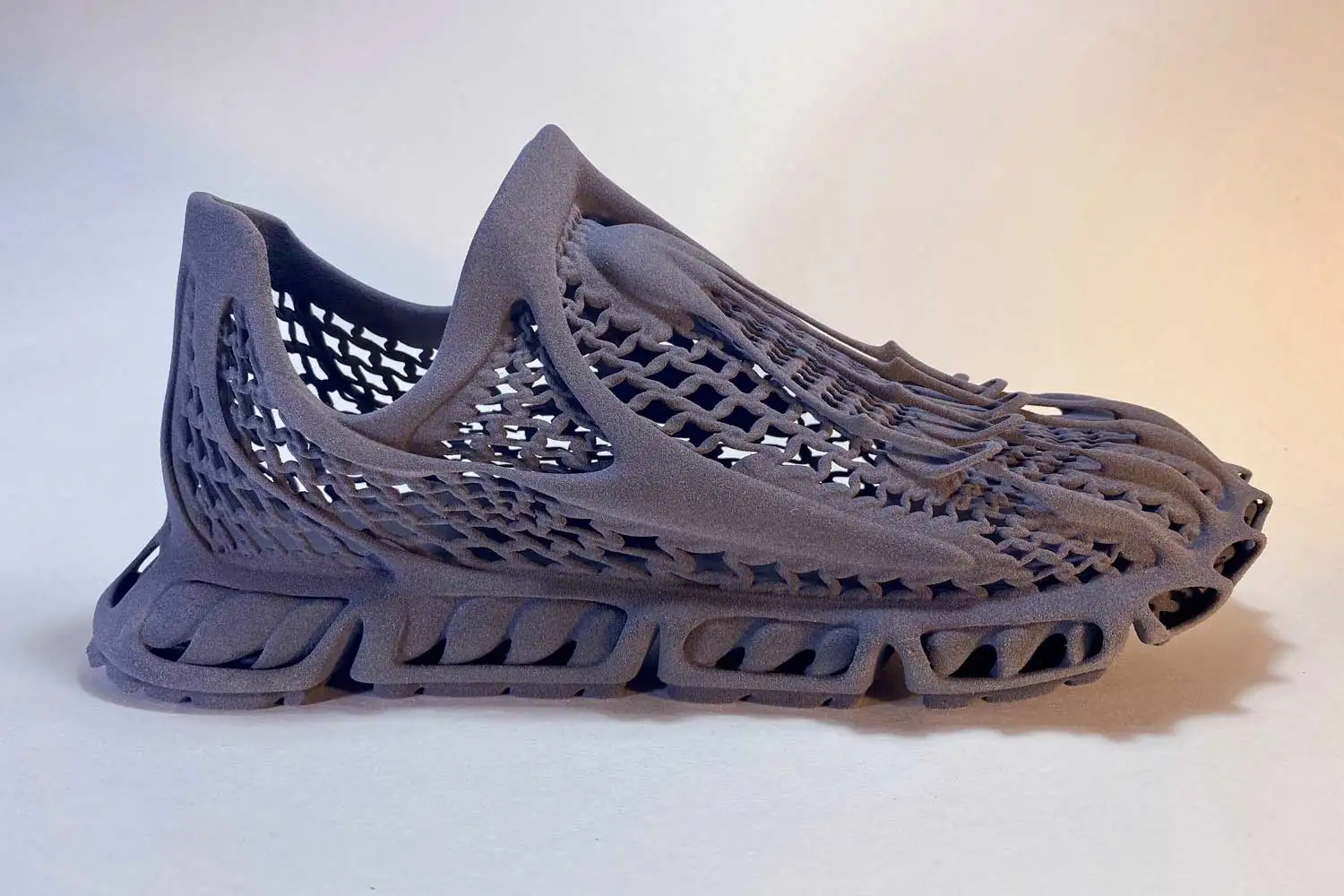

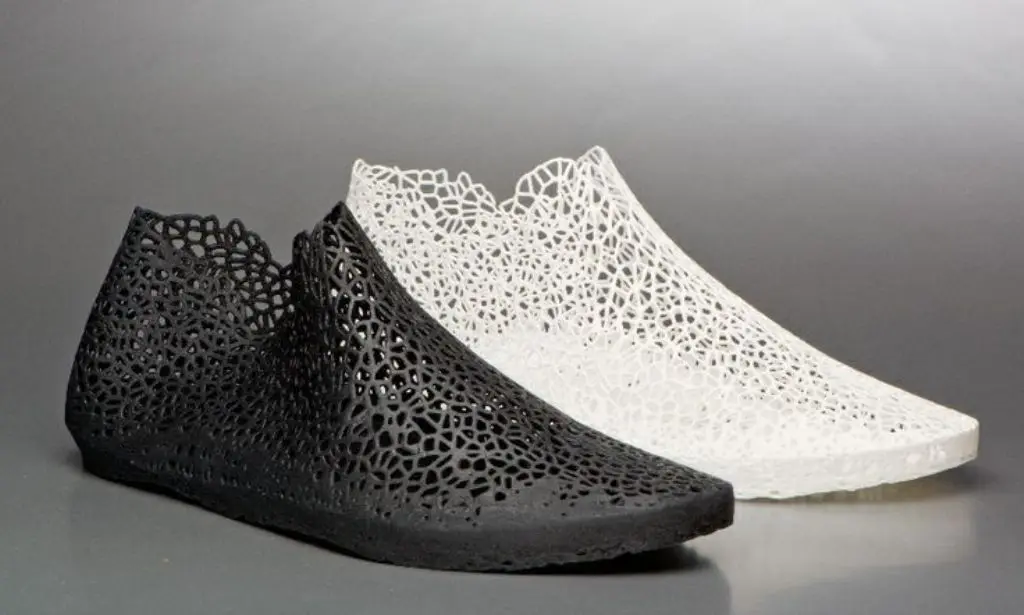

SLA 3D Printing Footwear Shoe Printing Services

Product Overview

Description



What is SLA?



SLA(Stereo Lithography Apparatus): also known as stereolithography apparatus, optical fabrication, photo solidification, or resin printing) is a form of 3D printing technology used for creating models, prototypes, patterns, and production parts in a layer by layer fashion using photochemical processes by which light causes chemical monomers and oligomers to cross-link together to form polymers.Those polymers then make up the body of a three-dimensional solid.



Stereolithography (SLA) is a powerful 3D printing technology that produces extremely accurate and high-resolution parts that are capable of being used directly in end-use, low-volume production, or for rapid prototyping.

How does SLA work?



Here is how the SLA fabrication process works:



1. The build platform is first positioned in the tank of liquid photopolymer, at a distance of one layer height for the surface of the liquid.

2. Then a UV laser creates the next layer by selectively curing and solidifying the photopolymer resin. The laser beam is focused in the predetermined path using a set of mirrors, called galvo. The whole cross sectional area of the model is scanned, so the produced part is fully solid.

3. When a layer is finished, the platform moves at a safe distance and the sweeper blade re-coats the surface. The process then repeats until the part is complete.

4. After printing, the part is in a green, no-fully-cured state and requires further post processing under UV light if very high mechanical and thermal properties are required.



The liquid resin is solidified through a process called c: during solidification, the monomer carbon chains that compose the liquid resin are activated by the light of the UV laser and become solid, creating strong unbreakable bonds between each other.The photo polymerization process is irreversible and there is no way to convert the SLA parts back to their liquid form: when heated, they will burn instead of melting. This is because the materials that are produced with SLA are made of thermoset polymers, as opposed to the thermoplastics that FDM uses.





Materials

---



Material Name	Description	Flexural Strength (MPa/KSI)	Elongation at Break (%)	HDT 0.46 MPa (°C)
Accura ClearVue	Clear/Translucent, PC-like	67 MPa/KSI	7%	46°C
Somos Watershed Black	Black/Dark-Grey, ABS-like	69 MPa/KSI	15%	50°C
Somos WaterShed XC 11122	Clear/Translucent, ABS-like	69 MPa/KSI	15%	50°C
Somos EvoLVe 128	White, ABS-like	70 MPa/KSI	11%	52°C
Accura Xtreme Grey	Grey, ABS-like	71 MPa/KSI	22%	62°C
Somos ProtoGen 18420	White, ABS-like	71 MPa/KSI	16%	47°C
Somos Taurus	Dark Gray, ABS-like	74 MPa/KSI	24%	62°C





Size and Tolerance

---



Description	Standard Resolution	High Resolution
Build envelope	29” x 25” x 21”	10” x 10” x 10”
Tolerance, XY Plane	+/- 0.005” for the first inch is typical, plus +/- 0.002” for every inch thereafter.	+/- 0.005” for the first inch is typical, plus +/- 0.002” for every inch thereafter.
Tolerance, Z Plane	+/- 0.010” for the first inch is typical, plus +/- 0.002” for every inch thereafter.	+/- 0.010” for the first inch is typical, plus +/- 0.002” for every inch thereafter.
Layer height	0.004"	0.002"
Minimum linear feature size	Under 0.030” are at risk and under 0.020” will not build.	Under 0.020” are at risk and under 0.010” will not build.
Minimum radial feature size	0.035"	0.030"

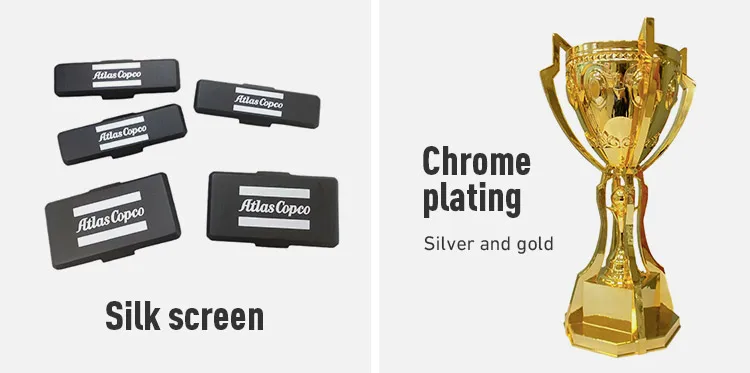

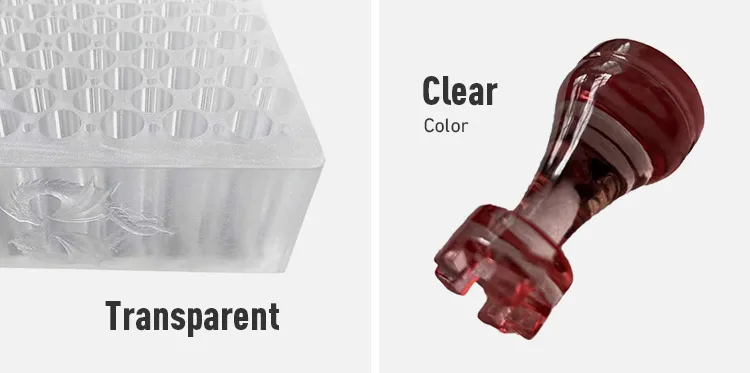

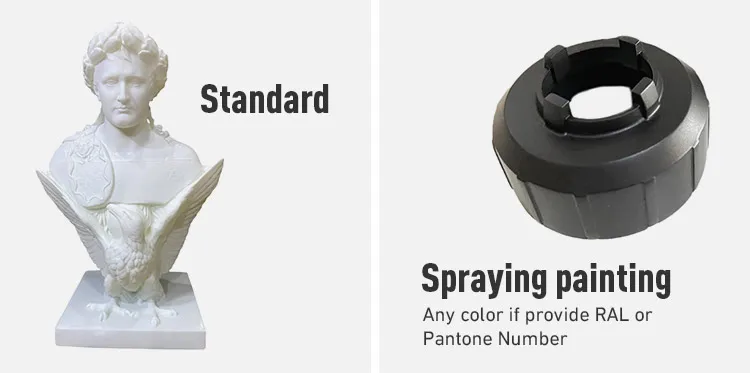

Surface Treatment

---











Applications of Stereolithography (SLA) 3D Printing

---

Concept Models



The speed, accuracy, and great surface finish of SLA parts lets product developers create physical snapshots of their designs through the iterative process.



Rapid Prototyping SLA prototyping is a fully-functional prototype, with materials that can simulate polypropylene, polycarbonate, ABS, and rigid composites.



Direct Digital Manufacturing



The high accuracy and consistency of SLA makes it an ideal way to build large quantities of discrete or customized parts.





Company Profile

---



WAYNE PROTOTYPE



Wayne Prototype is a specialists at design and engineering company who support you from the concept stage to prototyping and fabrication of the completed product with plastic injection molding. Whether you need prototypes or production parts, we can make them for you on demand in as fast as a day. We are your one-stop manufacturer for accurate, precise, custom 3D printed parts at an affordable price. We print everything from single prototypes to thousands of production-grade parts.



We use the latest additive manufacturing technology to build affordable functional parts in over 20 metals and plastics. WayNe Prototype offers four high-quality 3D printing processes including stereolithography (SLA), direct metal laser sintering(DMLS), HP Multi Jet Fusion (MJF) and selective laser sintering(SLS). Our main goal is to help companies to turn their dream projects into reality. We work very closely with our clients and strive to give them the best services at all times., We use industrial-grade printers such as hp printer, Union-Tech SLA printer, EOS printer and DMLS and more.



We make all projects possible and get your idea valued, designed, tested, prototyped and manufactured in a fast, reliable, easy and supportive way.



You think it, we make it !





Certificates

---





Customer Reviews

---





Question & Answer

---

Q:Where can I get product&price information?
A:sorellinachen at gmail.com



Q:What kind of production service do you provide?
A:Rapid prototyping, 3d printing service(SLA/MJF/SLM/FDM), Vacuum casting, CNC machining/milling/turning, Plastic/Rubber injection molding, Reverse engineering service.



Q:How about the lead time?
A:abs or nylon 3d printed parts: 3-4 days.
      Metal 3d printed parts: 4-5 days.
      Injection mold: 4 weeks.
      Mass production: About 10 days.



Q:How about your product quality?
A:· Our management and production executed strictly according to ISO9001:2008 quality System.
      · We will 100% inspect the products before shipment.
      · If there is quality problem, we will supply the replacement by our shipping cost.



Q:How long should we take for a quotation?
A:After receiving detail information we will quote within 2 days.



Q:What is your quotation element?
A:Drawing or Sample, Material, finish and Quantity.



Q:What is your payment term?
A:· Mould:30% prepaid, 40% after the mould finish, balance after sample approval.
      · Goods:30% prepaid, balance T/T before shipment.
