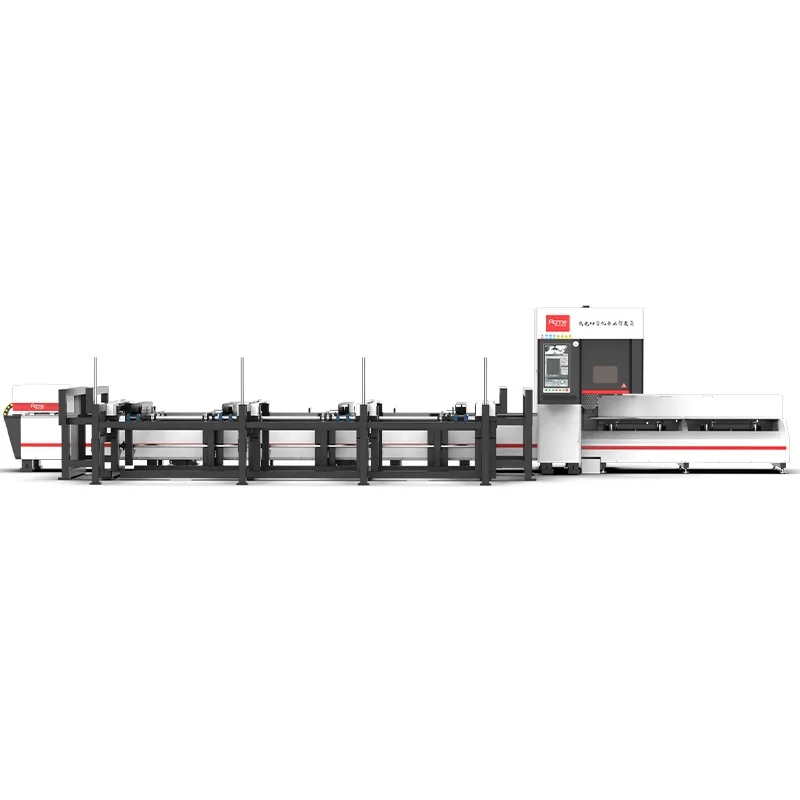

3000W 4000W 6000W 8000W Auto Feeding Tube Metal Laser Cutting Machine For Carbon Steel Tube Price
- Category: Industry Laser Equipment >>>
- Supplier: Jinan Acme CNC Equipment Co. Ltd.
Share on (11000009342016):
Product Overview
Description
Product Introduction

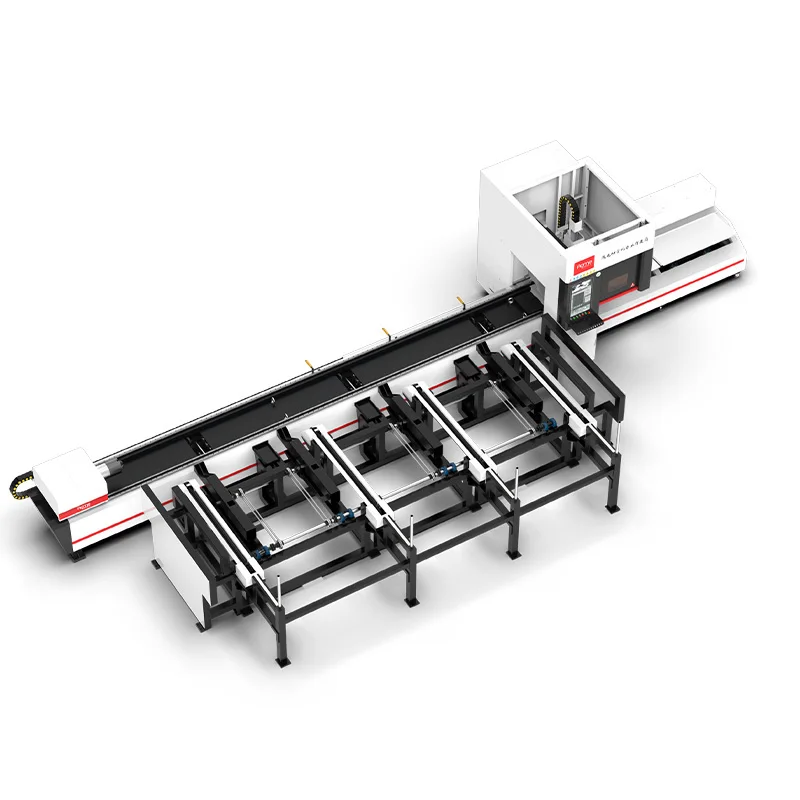

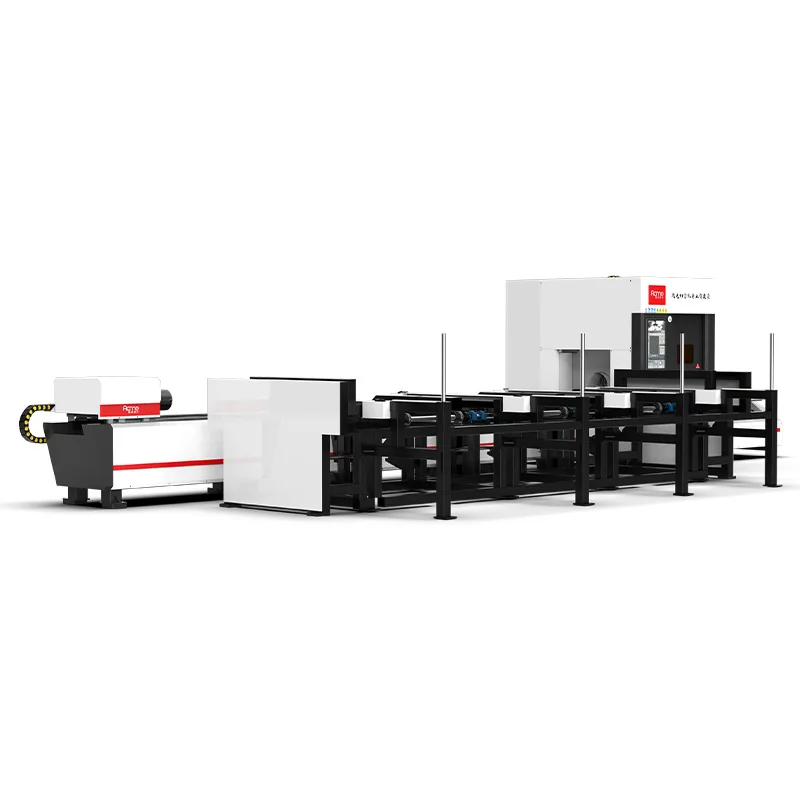

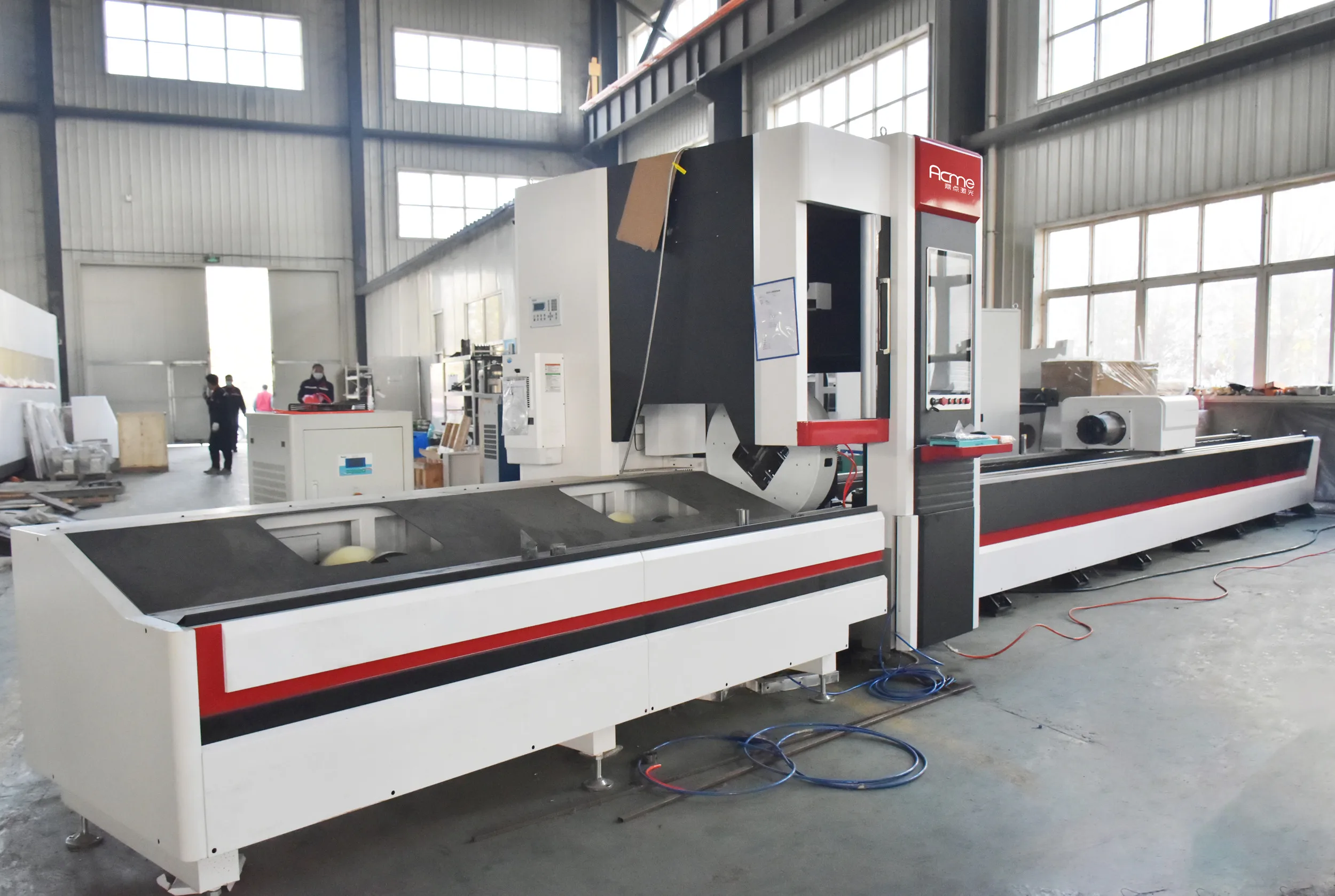

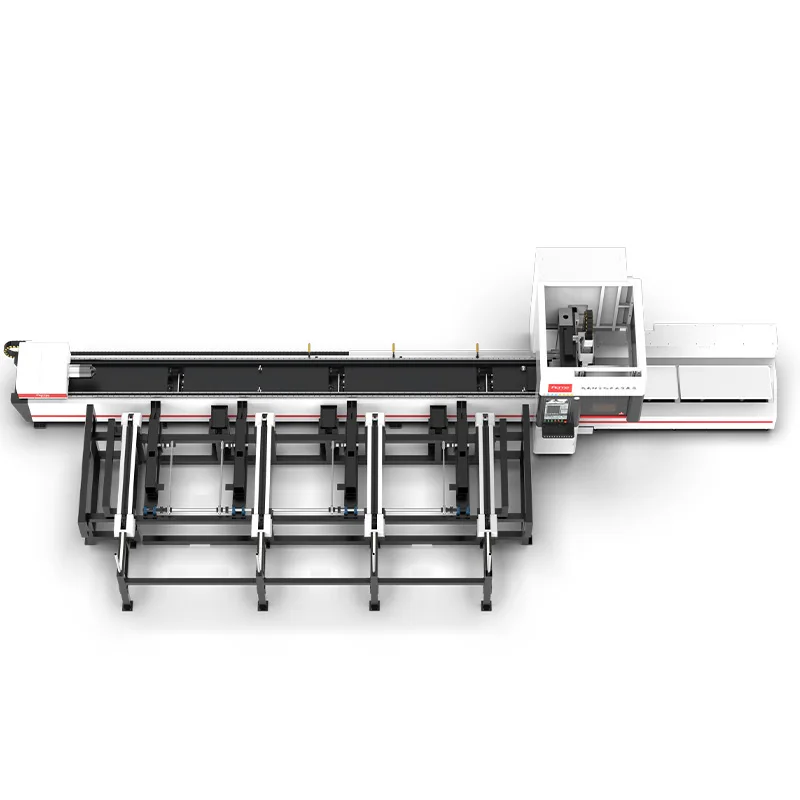

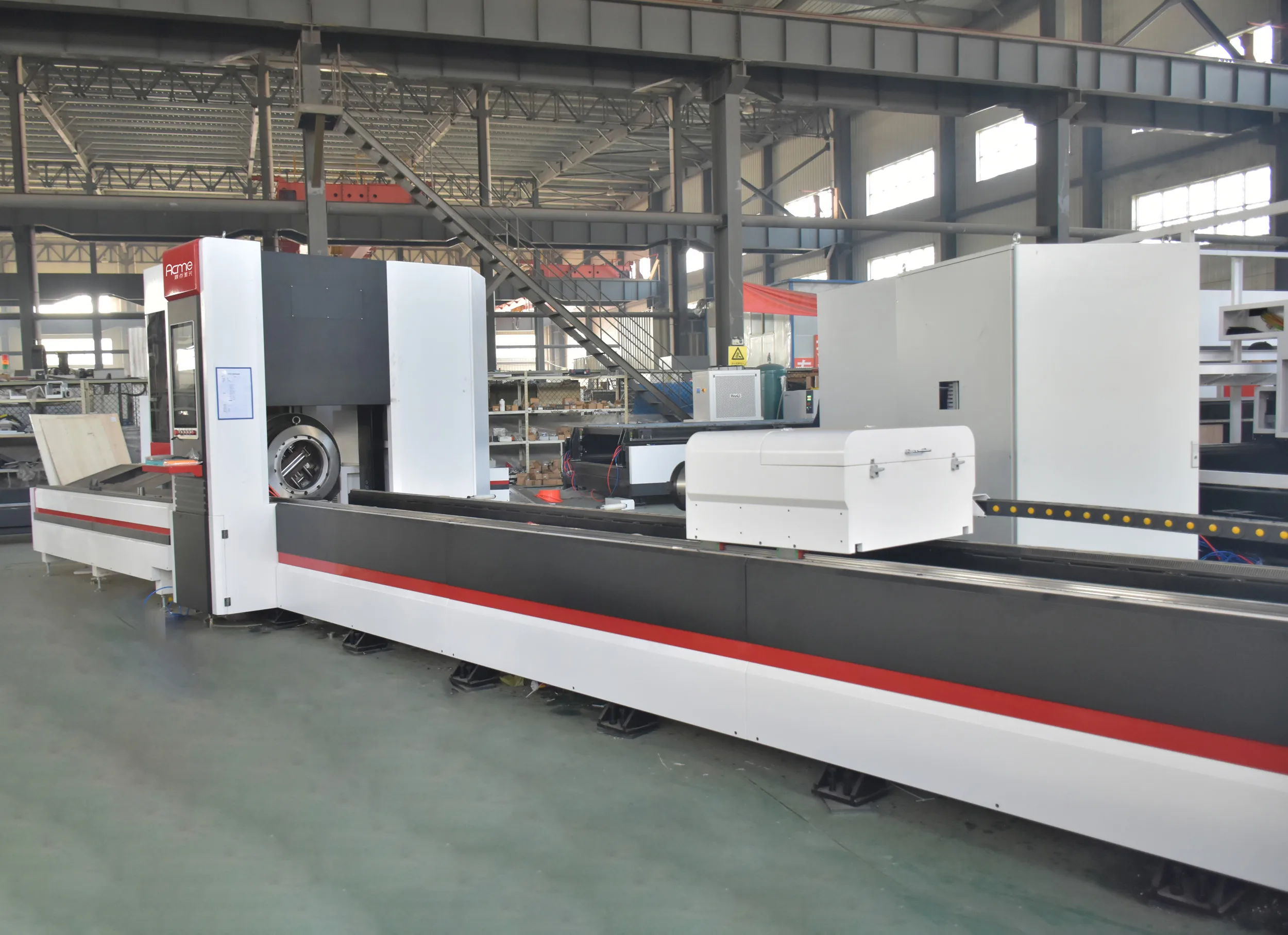

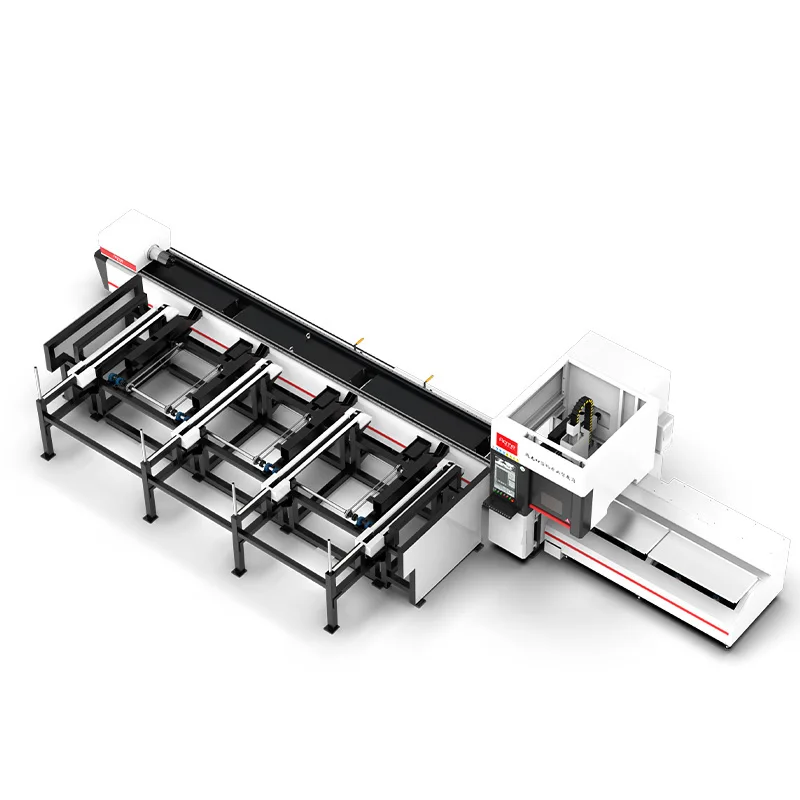

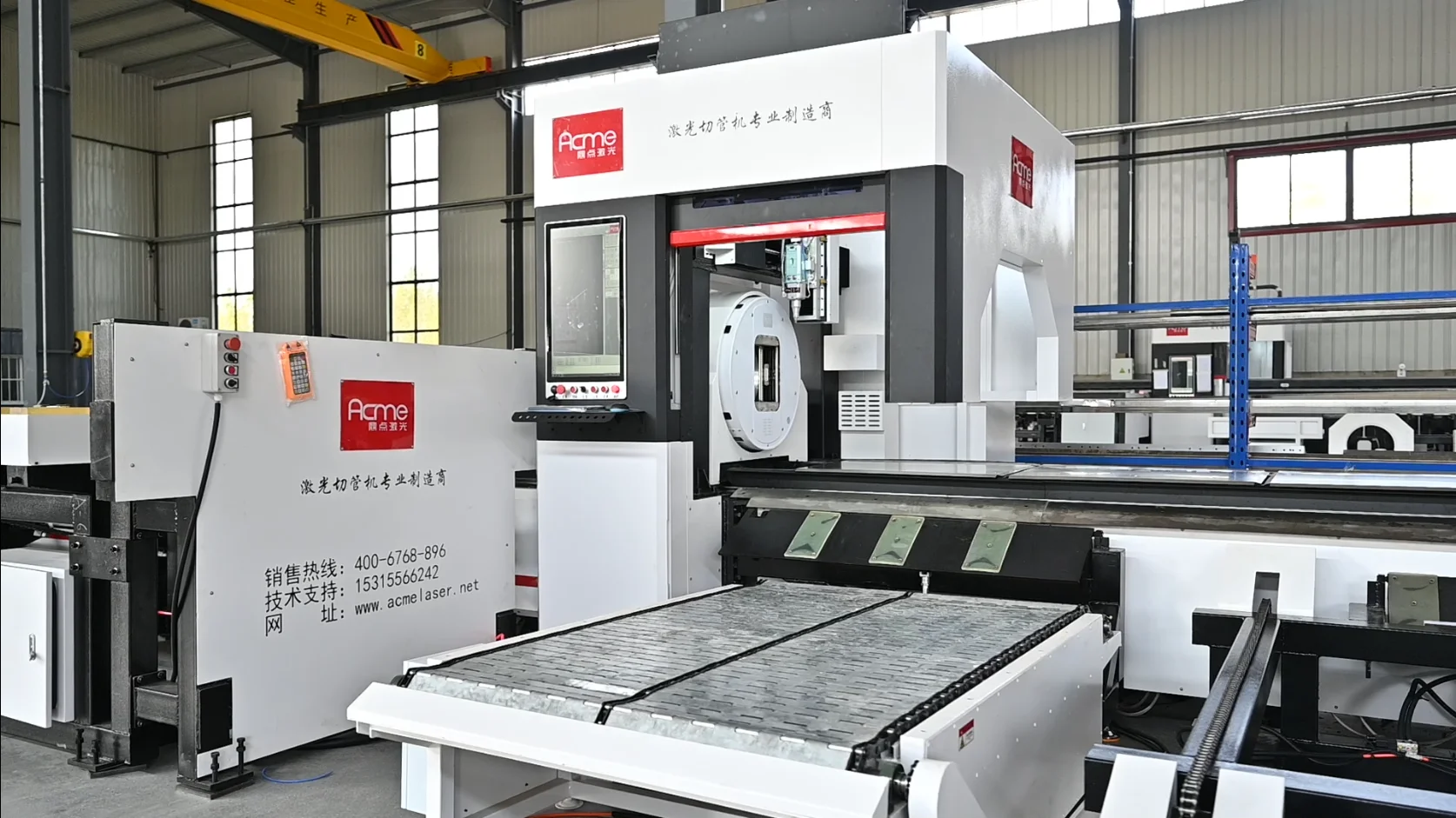

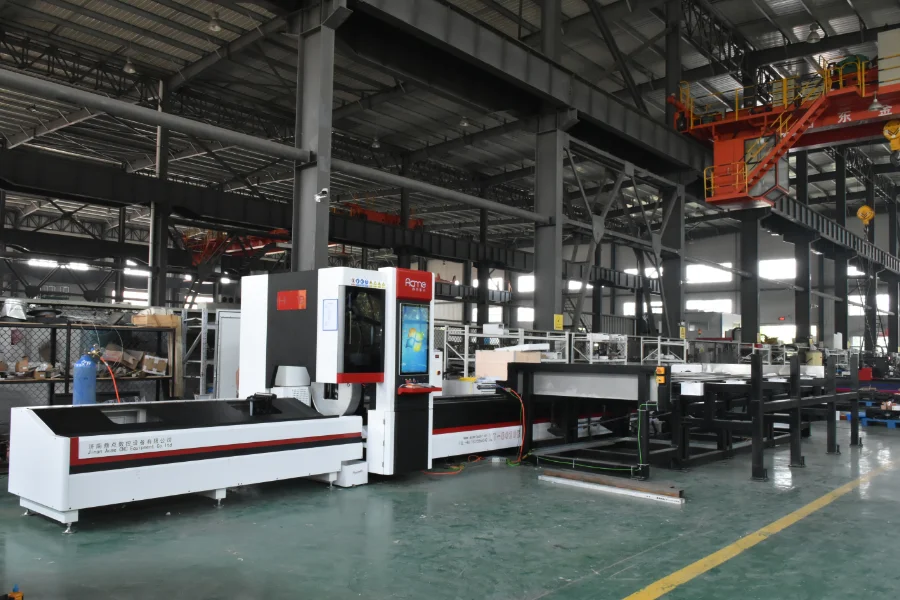

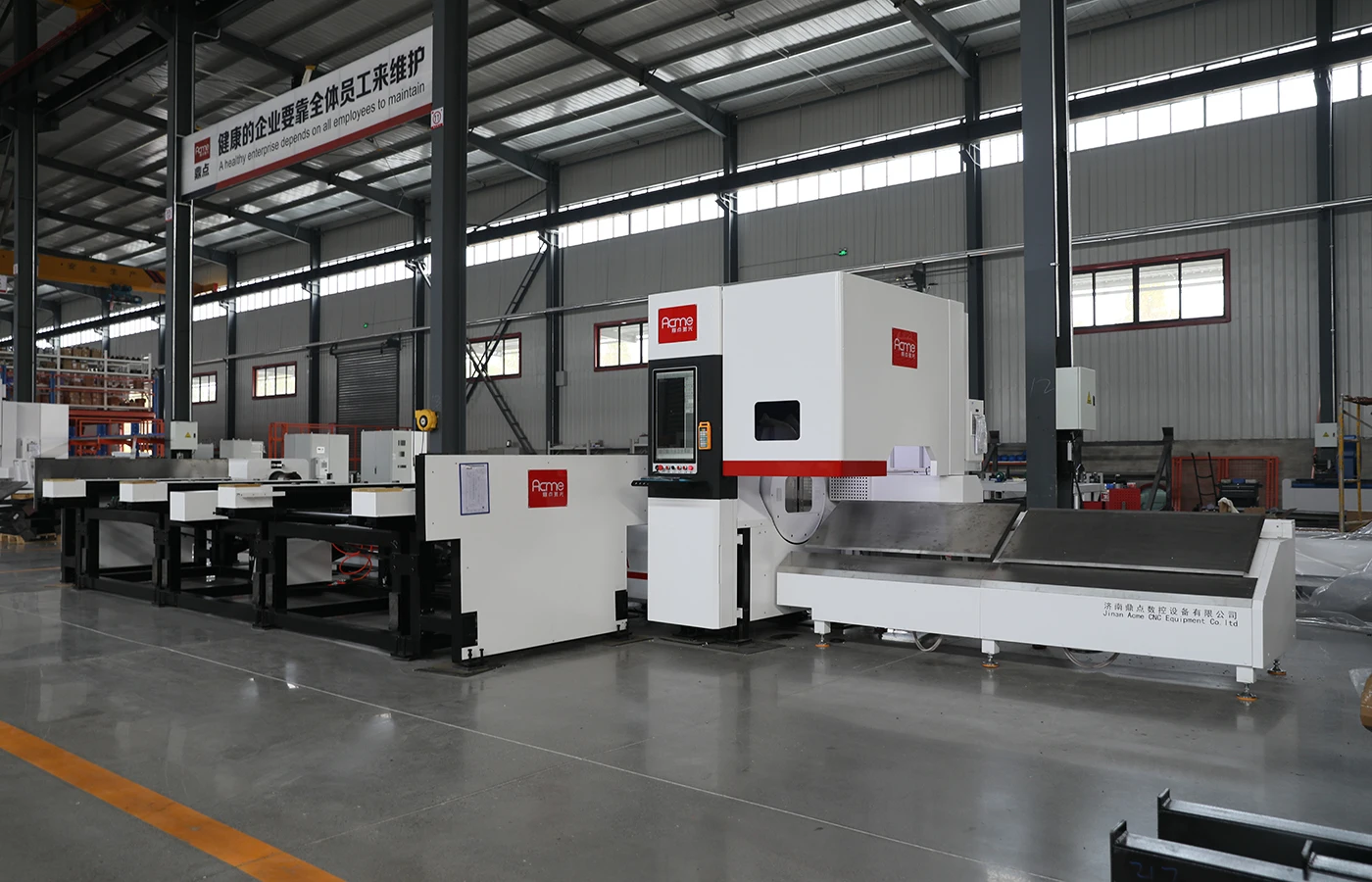

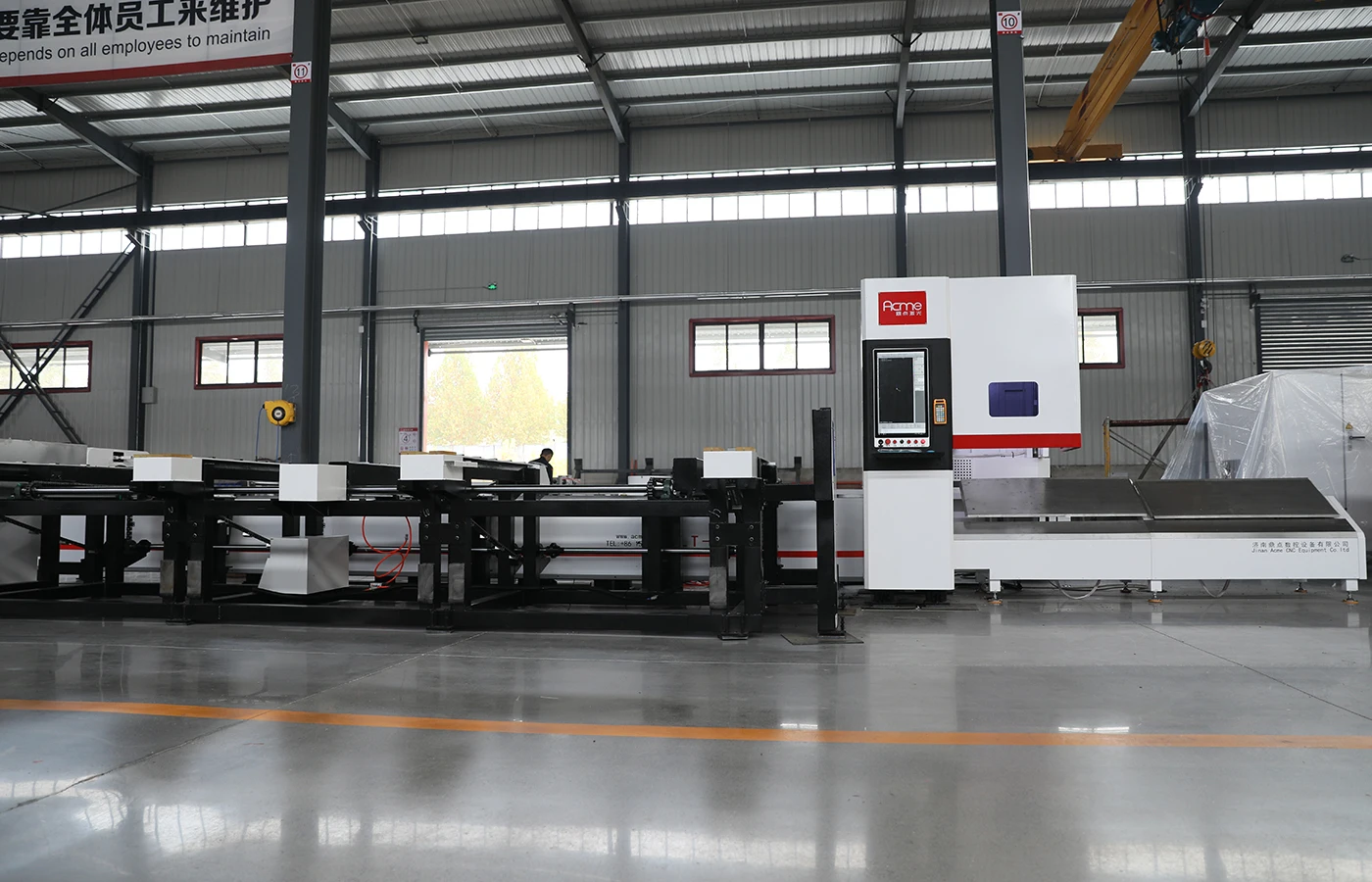

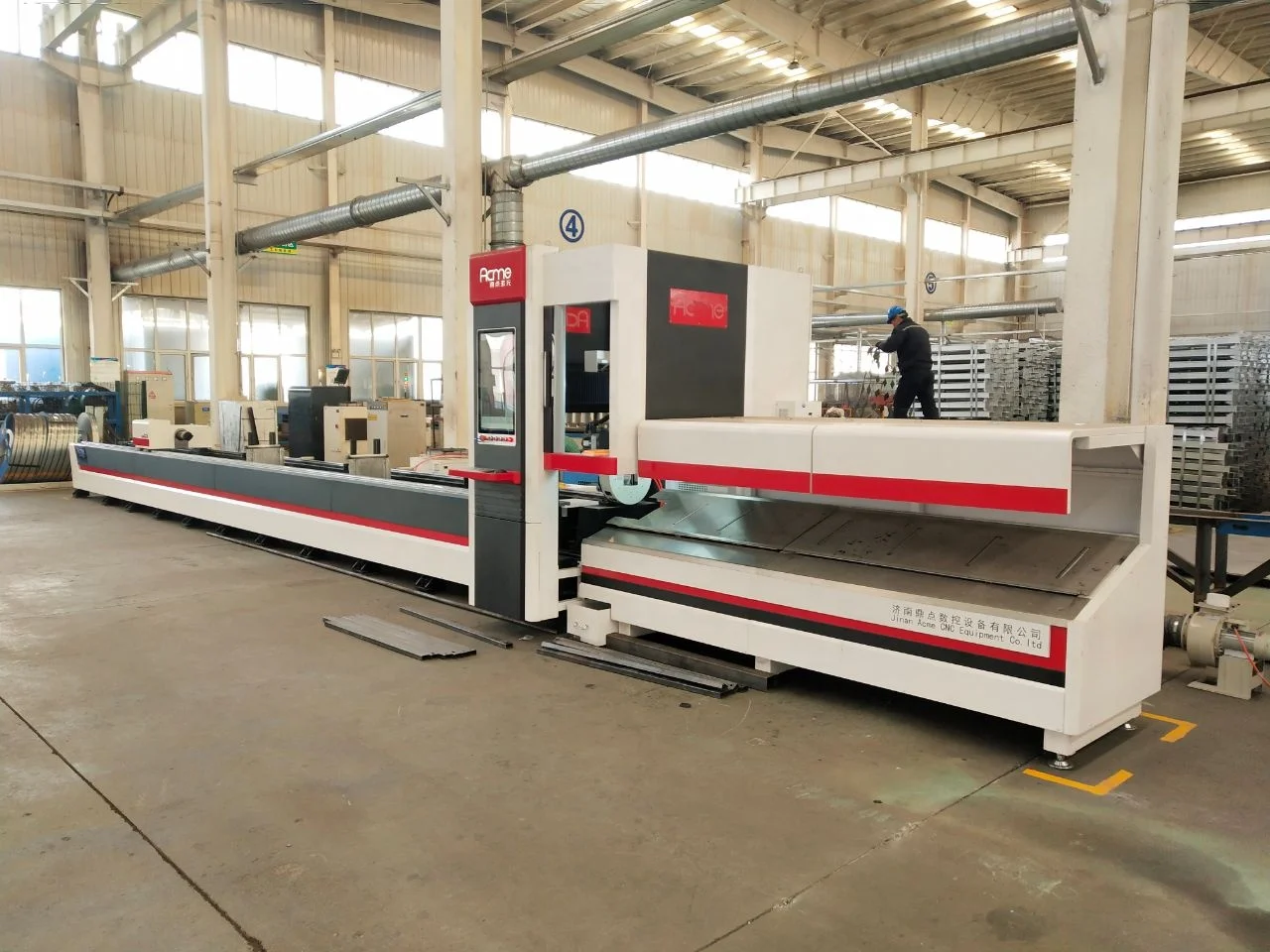

Auto Pipe Feeding Tube Fiber Laser Cutting Machine for Metal Tube

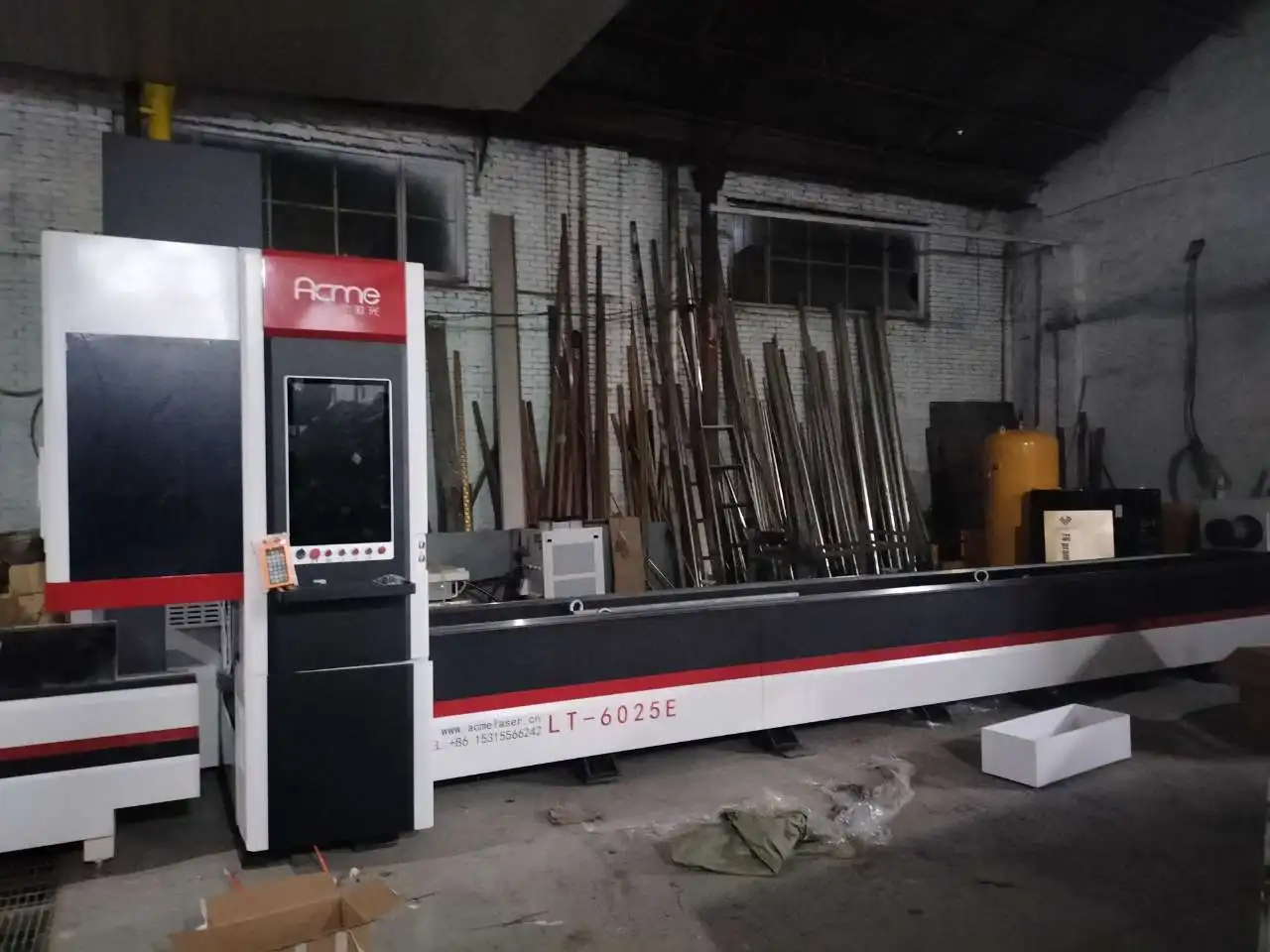

2023 ACME Tube Laser Cutting Machine LT-6025EA is designed for metal tube cutting with the auto feed loading system.
It can be used for cutting/ drilling and shaping the round, rectangular, square, oval, triangle or other shapes of meal tube in
efficiency processing. And different type of the tube can be load on same time, the laser head can auto adjust accordingly when cutting.
The angle steel, channel steel or H steel,etc also can be cut at fast speed using a fiber laser. By using top brand components,the tube fiber laser cutting machine has excellent performance and high reliability in metal tube cutting field.
2023 ACME Tube Laser Cutting Machine LT-6025EA is designed for metal tube cutting with the auto feed loading system.
It can be used for cutting/ drilling and shaping the round, rectangular, square, oval, triangle or other shapes of meal tube in
efficiency processing. And different type of the tube can be load on same time, the laser head can auto adjust accordingly when cutting.
The angle steel, channel steel or H steel,etc also can be cut at fast speed using a fiber laser. By using top brand components,the tube fiber laser cutting machine has excellent performance and high reliability in metal tube cutting field.
Main Advantage
Acme Laser tube/pipe laser cutting machine is specially used for metal tube cutting processing industry,it is applied inprocessing and cutting the tube length 6m-12m, diameter 10-450mm.
1. Perfect combination of software and hardware, precise and stable cutting
2. 6m-12m pipe length and 450mm Max.diameter for metal pipe, and profile diameter is large also
3. Servo floating support, better precision for square and rectangular pipe cutting
4. Germany PRECITEC laser head, stable cutting performance
5. Suitable for different material of metal tubes cutting ( carbon steel, stainless steel, aluminum, alloy, copper,etc) and
various types shape pipe (round, square, rectangle, oval, racetrack, triangle pipe, and channel, angle, H, L, I steel,etc)
Specification & Configurations
Product Name | Metal Tube Pipe Fiber Laser Cutting Machine | ||||||
Cutting Material | Carbon Steel/ Stainless Steel/ Aluminum/ Alloy/ Copper, etc | ||||||
Metal Pipe/ Tube Diameter | 10-120mm/ 170mm/250mm/350mm/450mm diameter optional | ||||||
Metal Pipe/ Tube Length | 200mm-6m / 8m /10m /12m optional | ||||||
Laser Type | Fiber Laser | ||||||
Laser Power | 3000W/4000W/6000W/10000W/12000W/20000W/optional | ||||||
Fiber Laser Source | IPG/Raycus/Maxphotonics/nLight/RECI optional | ||||||
Laser Cutting Head | Precitec/RayTools Auto-focus head | ||||||
Cutting Software/ Control System | TubePro / FSCUT or EtherCAT Bus system | ||||||
Nesting Software | Tubes T 3D Tube Nesting Software | ||||||
Chuck/Rotary Device | Double Pneumatic Chuck Auto Centering | ||||||
Servo Motor and Driver | YASKAWA Sigma-7 series/ Panasonic EtherCAT motor | ||||||
Reducer/Gear box | SHIMPO Reducer | ||||||
Water Chiller | Hanli/Tongfei/S&A | ||||||
Liner Guide Rail | HIWIN | ||||||
Gear and Rack | YYC | ||||||
Lubrication system | Automatic Oil self-lubrication | ||||||
Power Supply | 380V, 50 Hz +/-10% or customized | ||||||
Configurations
Large Visual Screen
24" large visual touch screen with professional Bochu operate system, clearer interface, soft light. Ergonomic operation operation
table with mouse and keyboards, red shortcut button, double operation ensurance, more convenient and humanization.
Sliding Door with Laser Protection Glass
Simple sliding door design is very convenient, and Laser protection glass have been used to protect operator avoiding laser
damage.
table with mouse and keyboards, red shortcut button, double operation ensurance, more convenient and humanization.
Sliding Door with Laser Protection Glass
Simple sliding door design is very convenient, and Laser protection glass have been used to protect operator avoiding laser
damage.

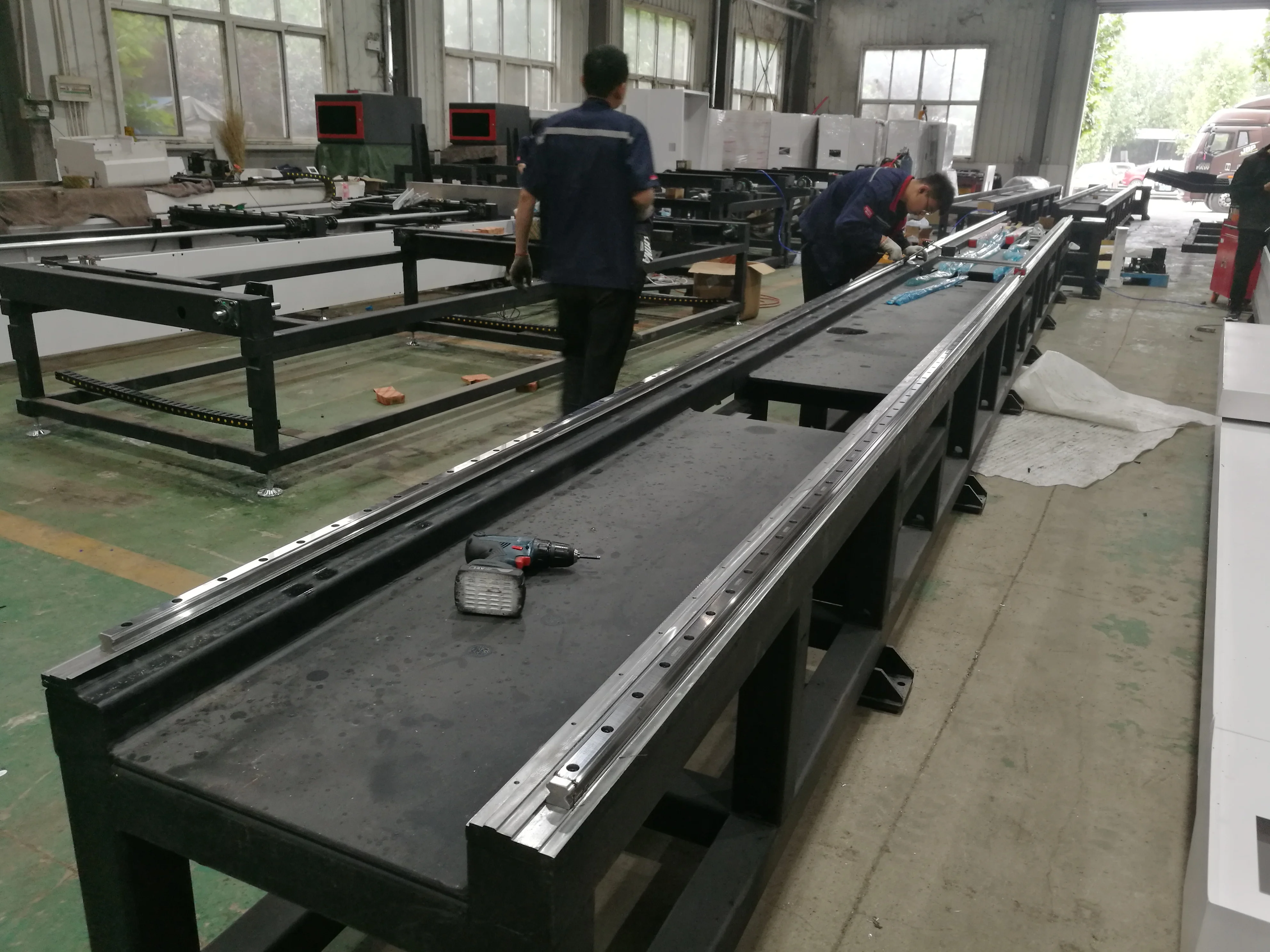

High Quality Carbon Structural Steel Welding Bed
Self-made high quality steel welding bed, milled by Italy COLGAR machining center with high precision, good stability, no
deformation. After annealing treatment, eliminate the stress caused by welding and processing, high strength, good rigidity, long
time operation of the bed without deformation, improve the processing accuracy.Main components self made, ensures the delivery time.
deformation. After annealing treatment, eliminate the stress caused by welding and processing, high strength, good rigidity, long
time operation of the bed without deformation, improve the processing accuracy.Main components self made, ensures the delivery time.

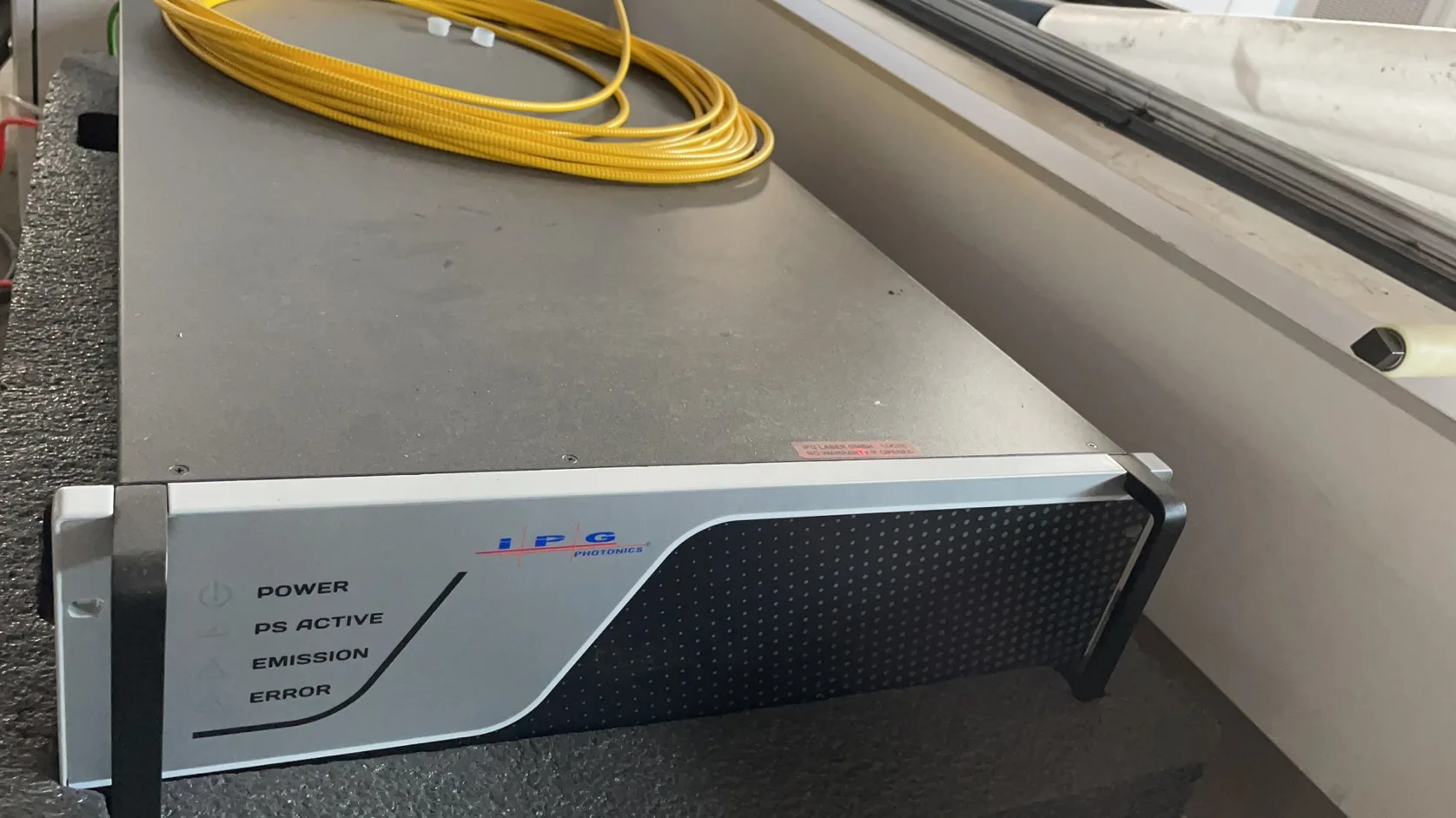

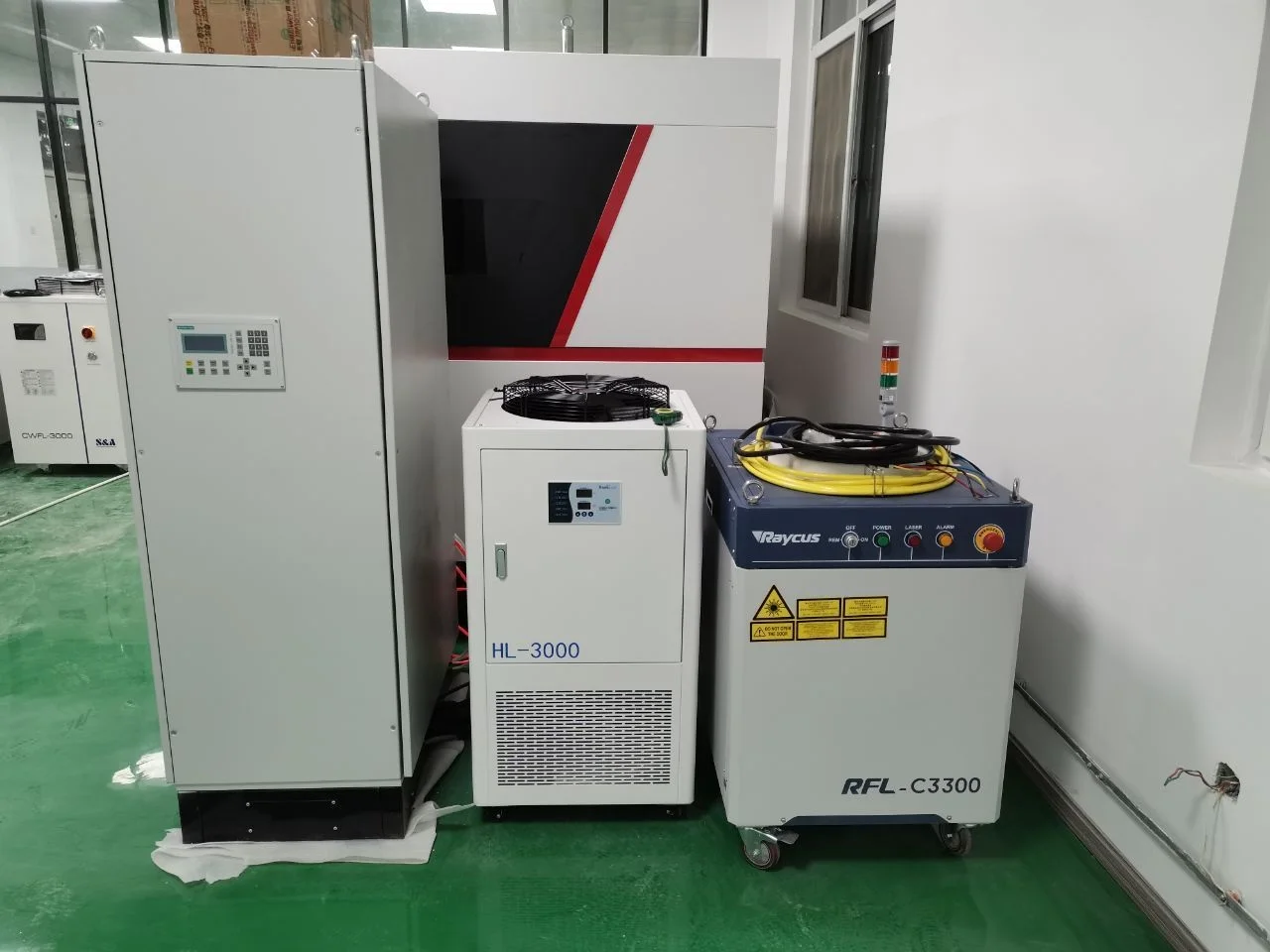

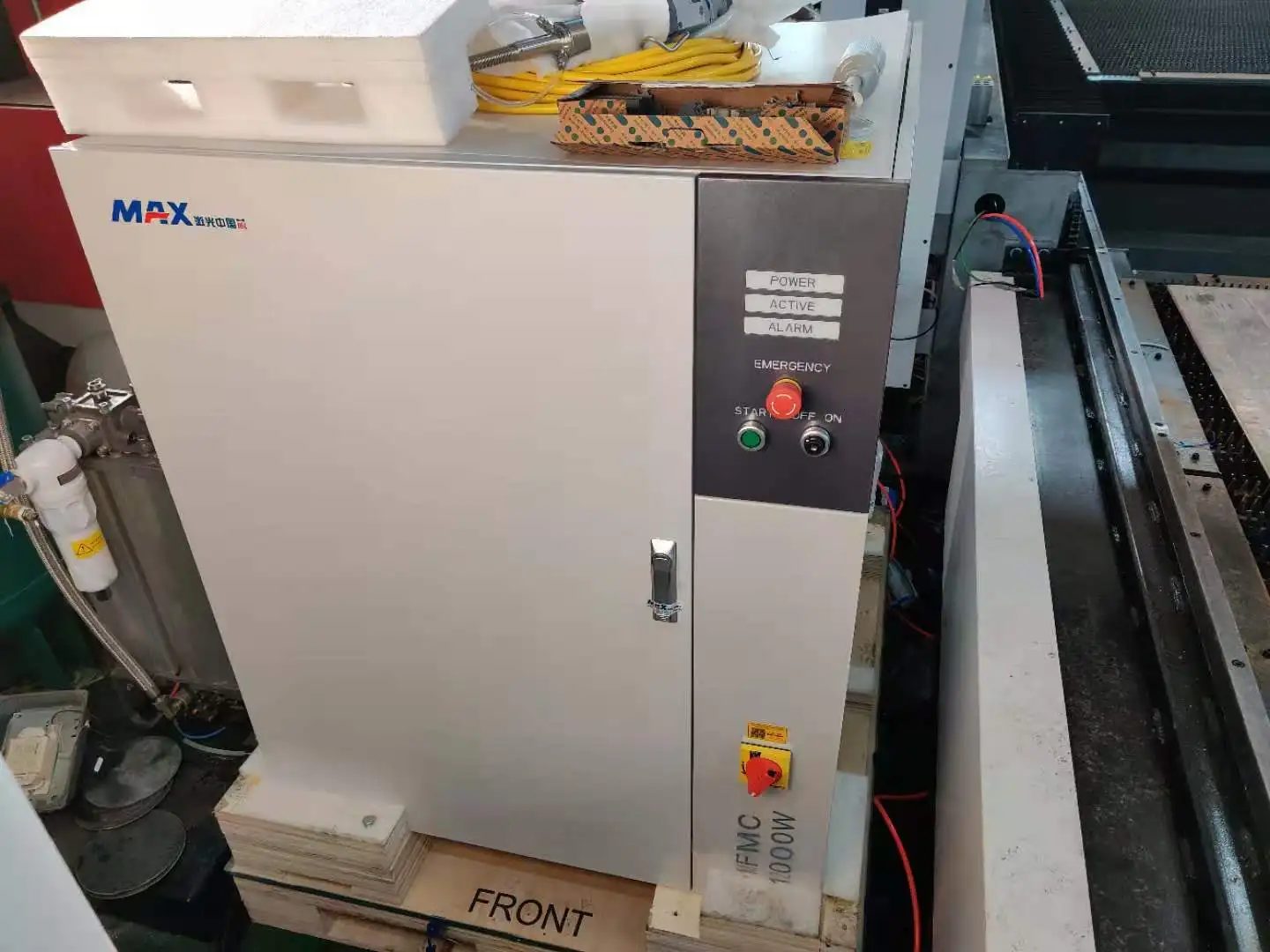

IPG/ RAYCUS/MAXPHOTONICS Laser Source (optional)
Top leader IPG laser source or Chinese famous brand RAYCUS and MAXPHOTONICS can be choosen, stable quality, long life working time and pefect after-sale service.1)Higher electro-optical conversion efficiency, higher and more stable optical quality, strongeraltitude stress-resisting capacity.
2) More stable and more sophisticated cutting effect in metal sheet or tube cutting.
3)This series of lasers apply to many application scenarios: cutting, holing, machine manufacturing, furniture making, medical device processing, etc.

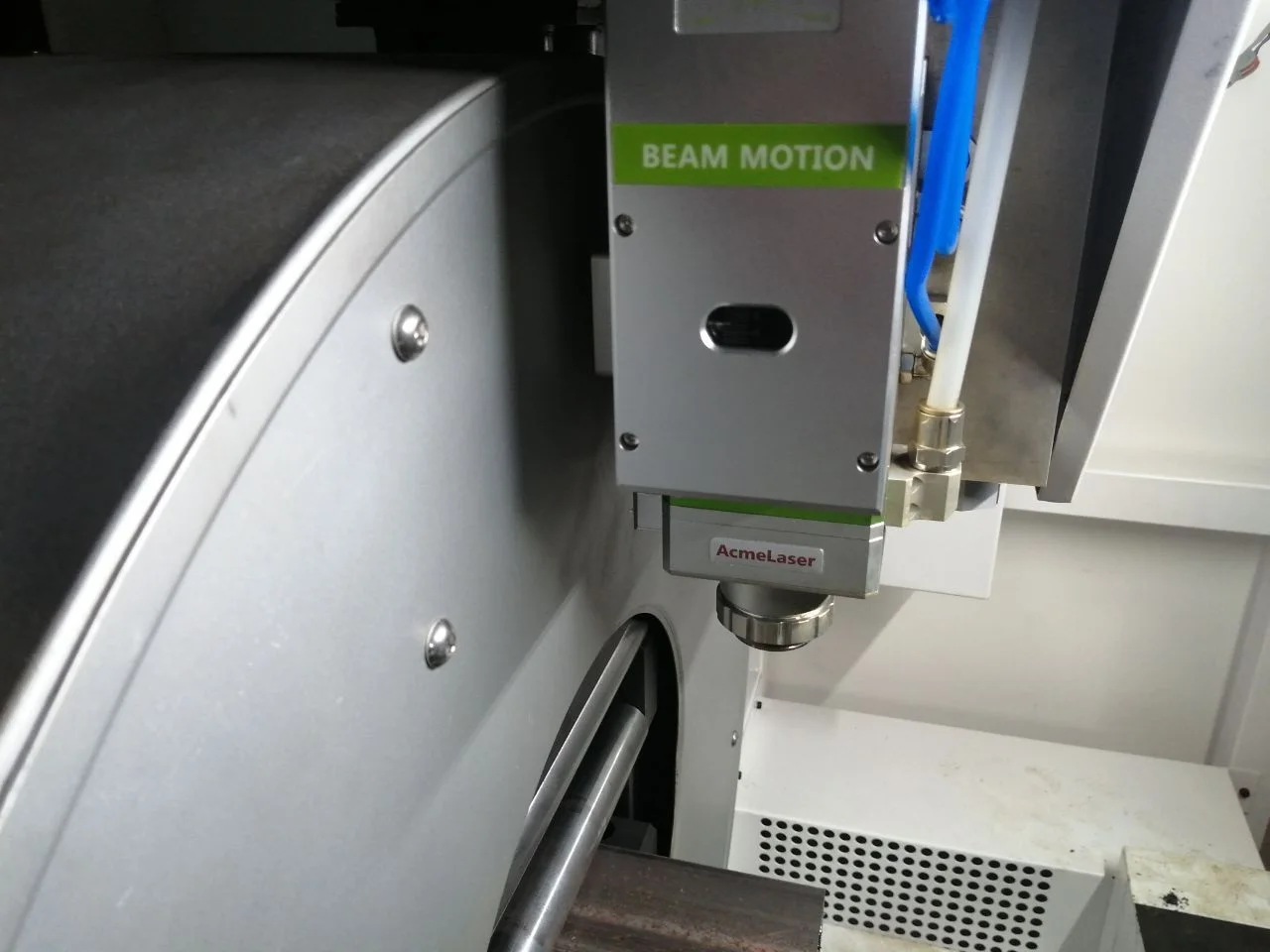

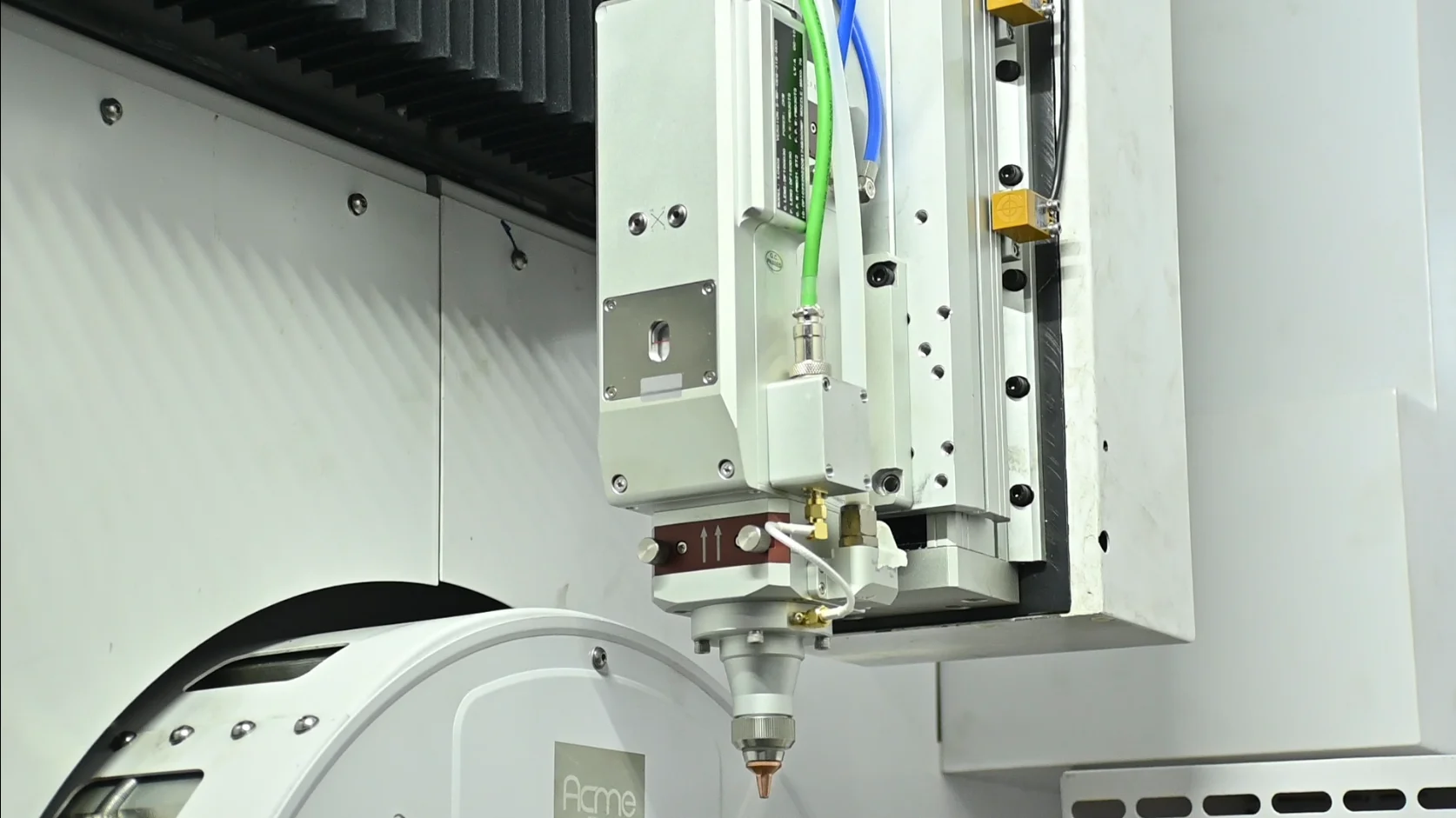

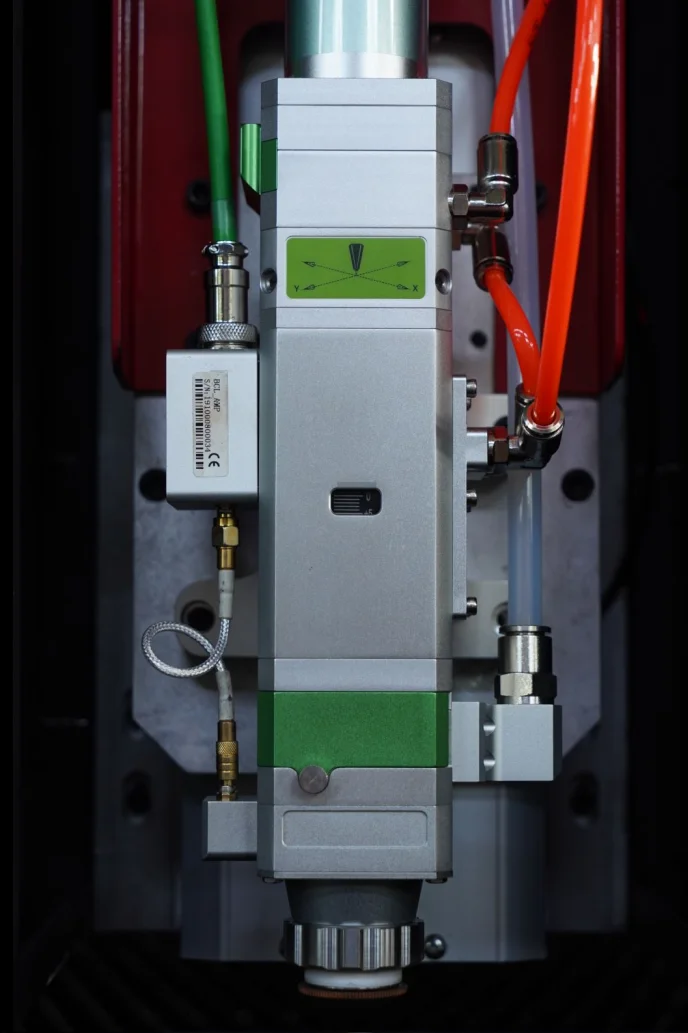

Raytools and Precitec Laser Head can be choosen
Reliable famous brand laser head, auto focus to reduce human intervention,compact design to reduce the payload of Z axis,Clear aperture which effectively reduces stray beam interference and guarantee cutting quality and lifespan.
1)Modular design with easy maintenance.
2)Dual water cooling circuits.
3)Auto focus to reduce human intervention and improve piercing and cutting efficiency.
4)Effectively reduces stray beam interference and guarantee cutting quality and lifespan.
4)Effectively reduces stray beam interference and guarantee cutting quality and lifespan.
Front Chuck-Factory direct design and manufacture
Special square hole design, stronger passing capacity; Clamping force can be intelligently adjusted, suitable for different types of pipe processing requirements; Eight cylinders structure, clamping force twice as common chuck; Pressure indicator on chuck to adjust the clamping force according to the pipe weight, and highest dust proof level.
Rare Chuck-Factory direct design and manufacture
The extension design of the rear chuck can deeply go through the front chuck, which can achieve “0 tailing" cutting under the two chuck conditions.It can effectively clamp various shapes of the profiles, such as round tube, square tube, rectangular tube, oval tube, channel steel, angle steel, H steel,etc.
Related Products

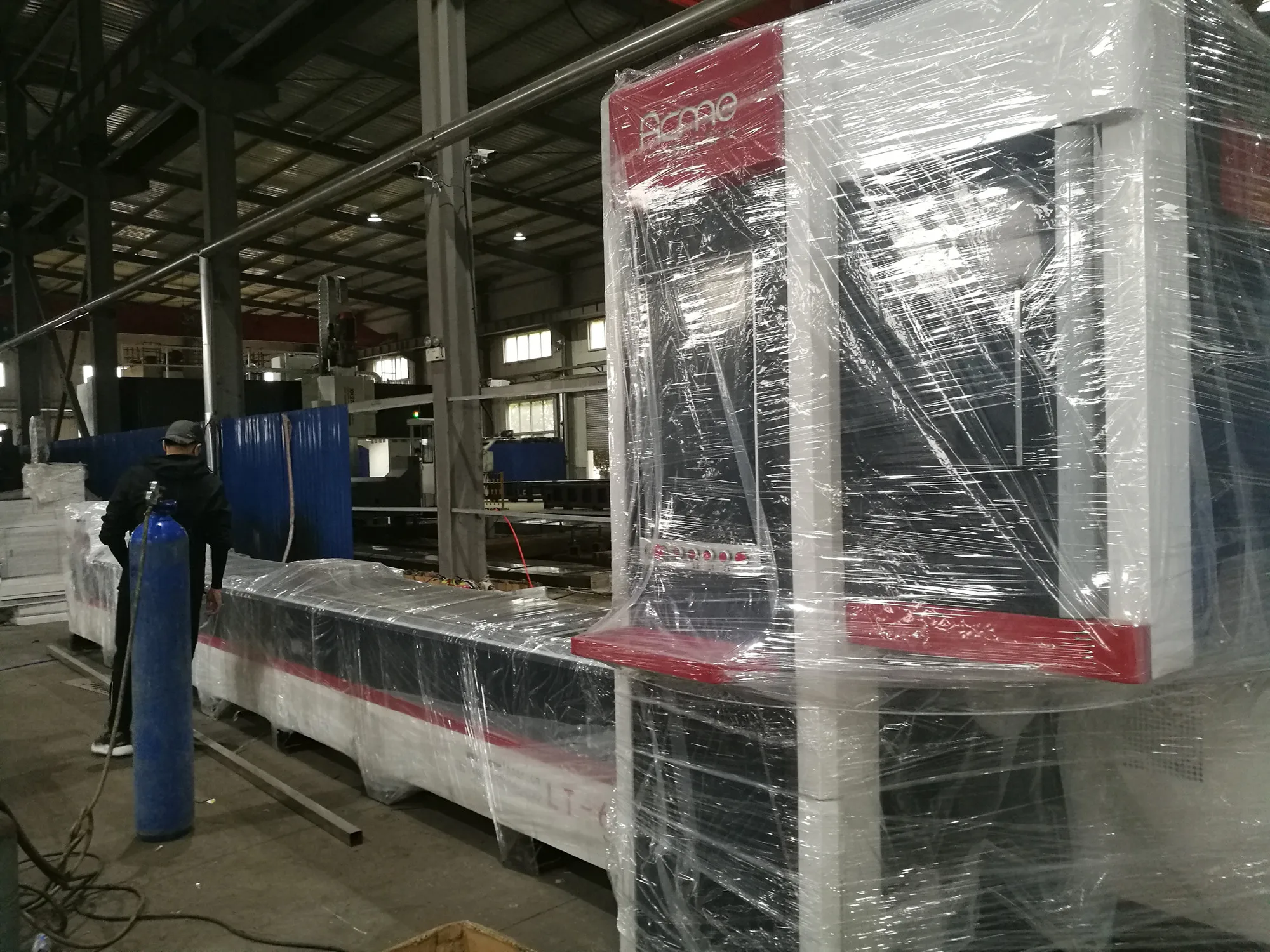

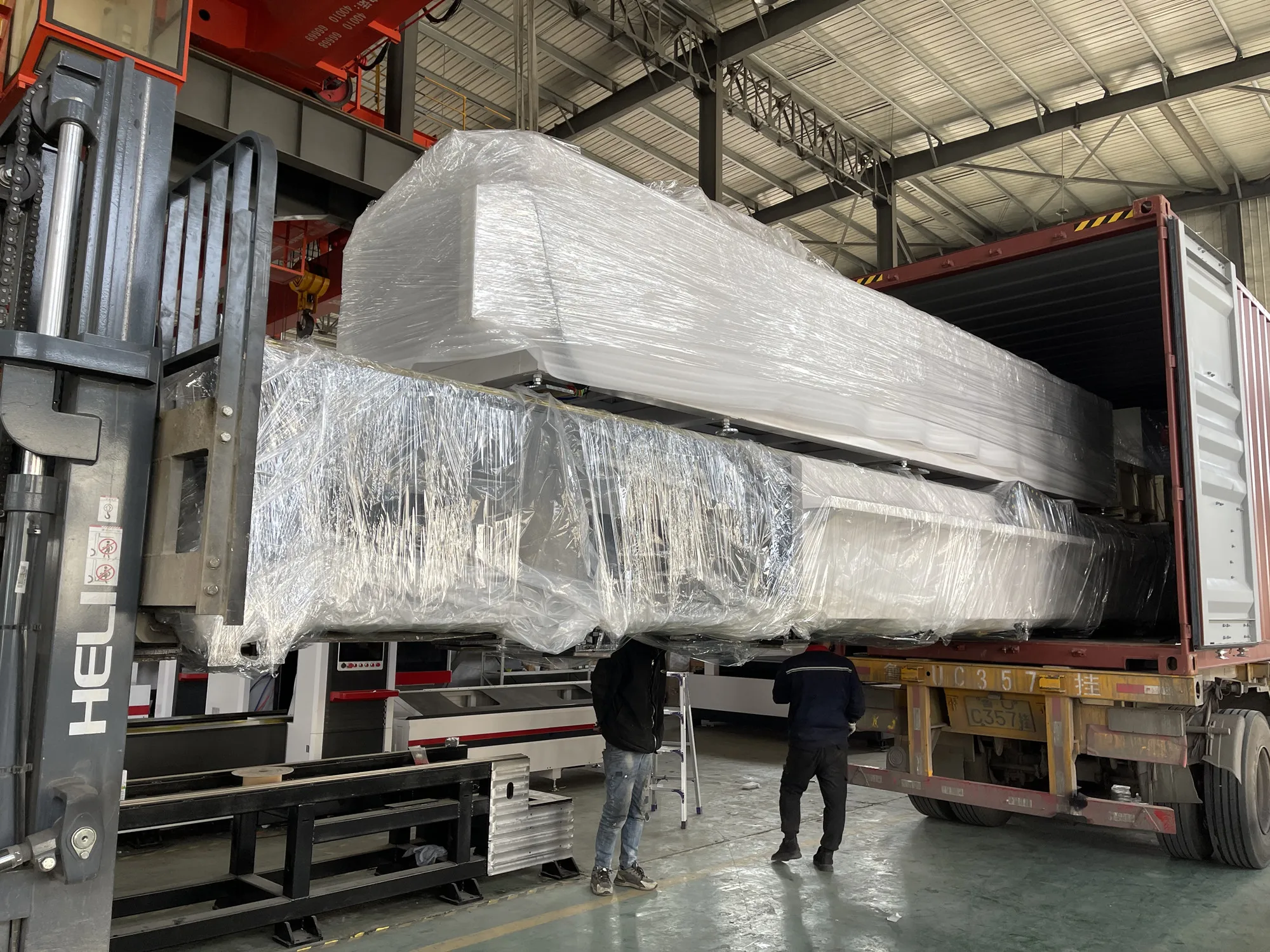

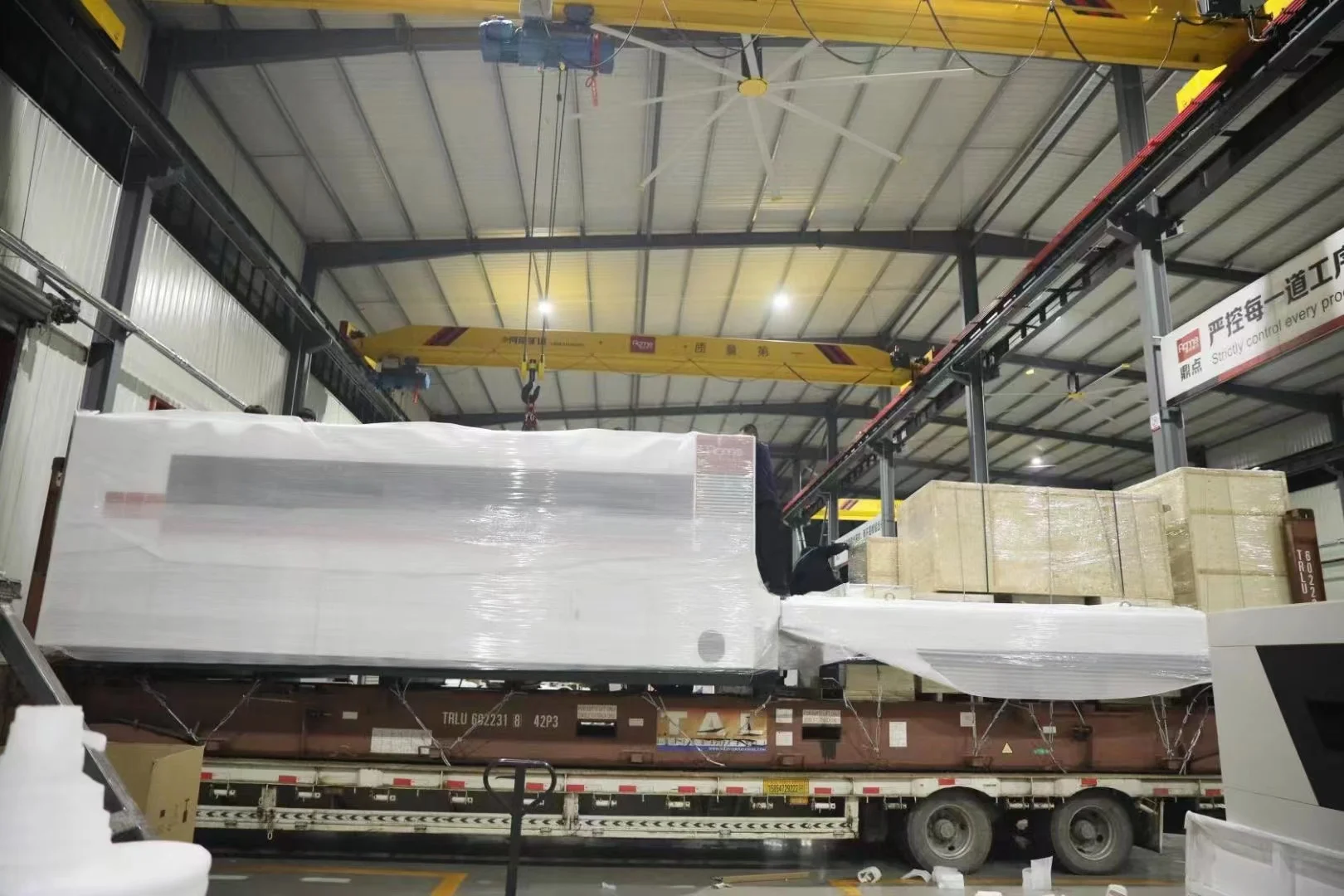

Packing and Shipping
1.Cleaning machine
2.Wrap all the machine and parts with bubble film and plastic film
3.Forklift the packed machine to the container.
4.Choose the optimal routes and transpotation mode according to the distance
2.Wrap all the machine and parts with bubble film and plastic film
3.Forklift the packed machine to the container.
4.Choose the optimal routes and transpotation mode according to the distance
Company Introduction
Jinan ACME CNC Equipment Co.,Ltd (Acme Laser) is a high-tech enterprise integrating R&D, production and
sales of laser cutting equipment located in Jinan, Shandong, China.

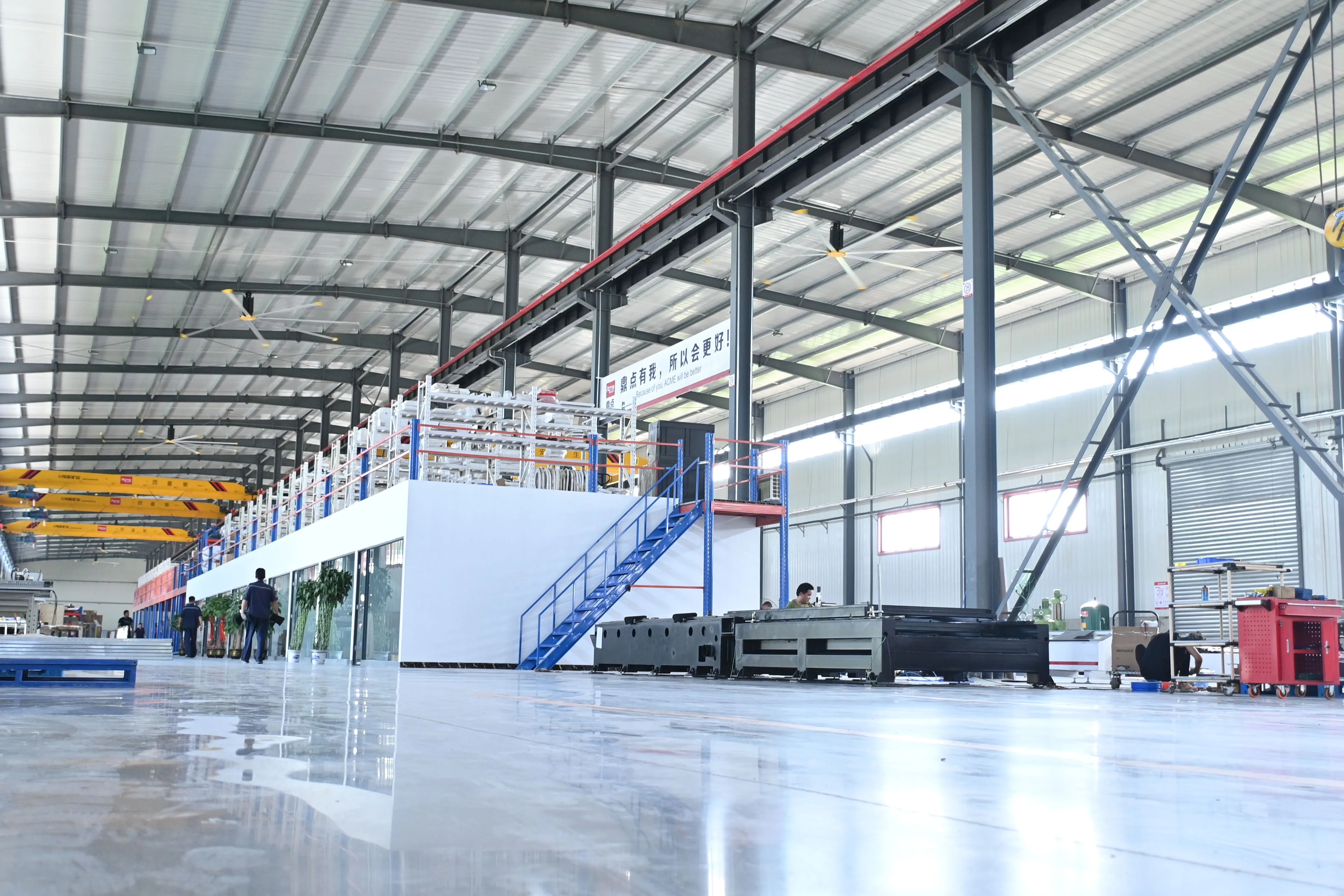

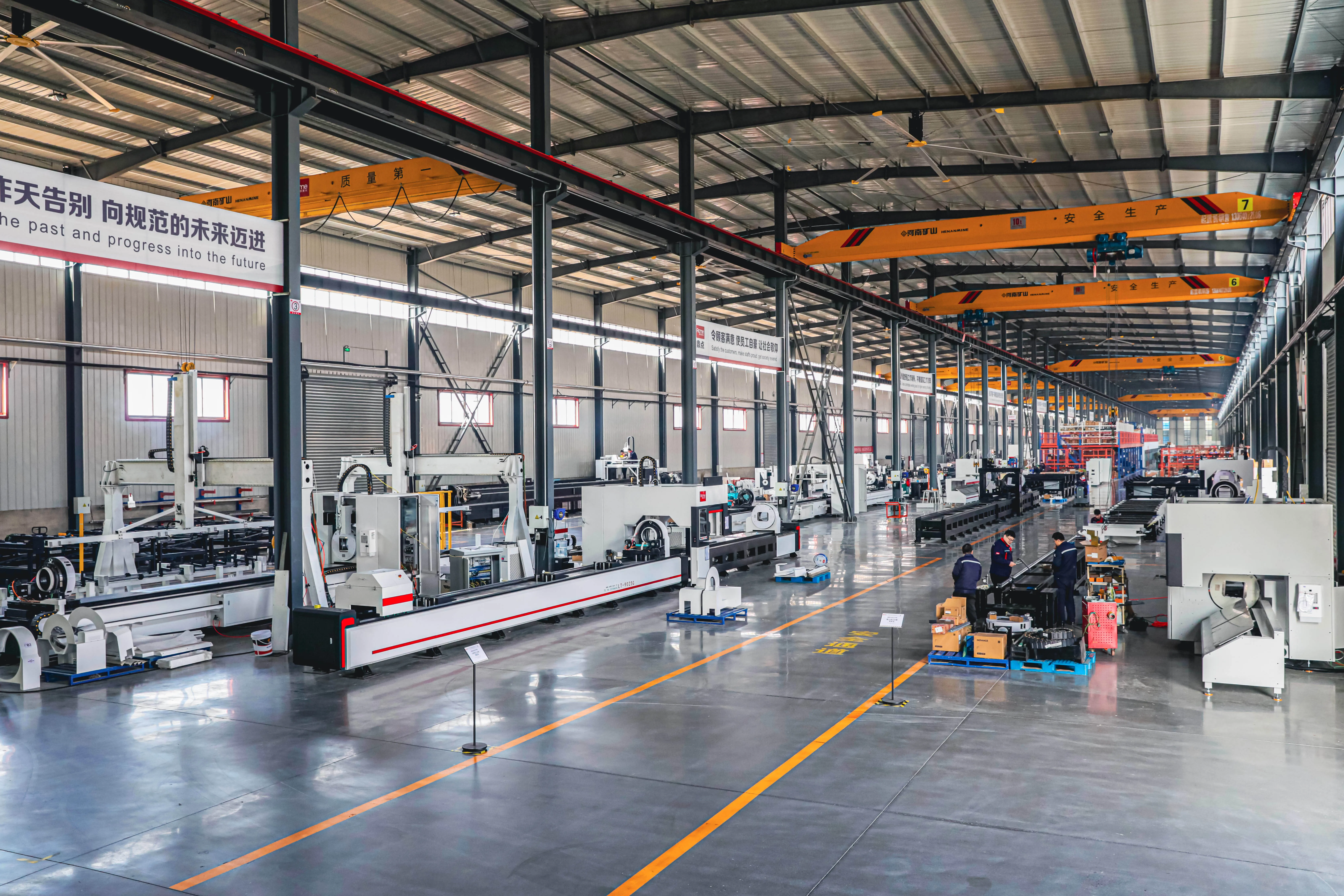

ACME Laser factory covers an area of 50,000 square meters.With dozens of high-precision imported CNC machining centers and large-scale gantry milling machines,all the core components of the machines are independently designed and manufactured with high-precision. Acme Laser focuses on providing integrated solutions for metal sheets and pipes processing with our fiber laser cutting machines.
ACME Laser has more than 200 talents of various types and has an annual production capacity of 1,000 fiber laser cutting machines,our core team has more than 15 years of experience in the field of laser equipment, we have obtained more than 80 technology patents, and more than 40 new patent applications in 2020. The company has passed ISO9001 quality system certification, and its products have obtained EU CE certifications.
We have exported more than 2000 laser pipe cutting machine to more than 60 countries around the world, our laser cutting machines are widely used in fitness equipment, automobile manufacturing, metal art furniture, medical equipment,
building decoration, machinery manufacturing, advertising, electrical equipment and elevator equipment and many other fields. We welcome your visit and cooperation with our factory.
sales of laser cutting equipment located in Jinan, Shandong, China.
ACME Laser factory covers an area of 50,000 square meters.With dozens of high-precision imported CNC machining centers and large-scale gantry milling machines,all the core components of the machines are independently designed and manufactured with high-precision. Acme Laser focuses on providing integrated solutions for metal sheets and pipes processing with our fiber laser cutting machines.
ACME Laser has more than 200 talents of various types and has an annual production capacity of 1,000 fiber laser cutting machines,our core team has more than 15 years of experience in the field of laser equipment, we have obtained more than 80 technology patents, and more than 40 new patent applications in 2020. The company has passed ISO9001 quality system certification, and its products have obtained EU CE certifications.
We have exported more than 2000 laser pipe cutting machine to more than 60 countries around the world, our laser cutting machines are widely used in fitness equipment, automobile manufacturing, metal art furniture, medical equipment,
building decoration, machinery manufacturing, advertising, electrical equipment and elevator equipment and many other fields. We welcome your visit and cooperation with our factory.
Our Service and Strength
Fiber laser cutting machine is suitable for metal sheet and metal tube cutting, holing and shaping,etc with the high efficiency and perfect precision.
Warranty： 2 years
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries: Manufacturing Plant, Machinery, Mechanical hardware,Electronics, Electrical, Packaging, Automotive, Construction works, Fitness Equipment, Elevator manufacturing, Steel Furniture Manufacturer and other industries
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries: Manufacturing Plant, Machinery, Mechanical hardware,Electronics, Electrical, Packaging, Automotive, Construction works, Fitness Equipment, Elevator manufacturing, Steel Furniture Manufacturer and other industries
FAQ
Q: How can I choose the most suitable machine?
A: In order to recommend you the most suitable machine model, just tell us below information:
1) Your materials
2) Tube diamer and length
3) Max cut thickness and mass production cutting thickness
4) What shape will be your tube? Round,square, rectangle, oval or channel steel, L/H steel,etc
Q: What's material can fiber laser cut?
A: All kinds of metal, such as Stainless Steel, Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, Brass, Copper, etc.
Q: How can I get the information and quotation of this product quickly?
A: Please direct send me the inquiry or leave your email , WhatsApp /WeChat etc. we will arrange the sales manager to contact you ASAP.
Q: I can't come to China, but I want to see the machine condition, what should I do?
A: We support the production visualization service. You can contact the sales to check the production progress of the machine and send you the pictures or videos of your machine. We already has the SGS factory check report can provide you to prove we are a really manufacturer of the fiber laser cutting machine in Shandong, China.
Q: This is the first time I use laser cutting machine, is it easy to operate?
A: Yes, it is easy to operate. We will provide operation manual, showing videos and 7*24 hours online service. We also support free training service, engineers can train your workers for free in our factory; and also we can arrange the engineer door to door service to your factory with fees.
Q: How long is the warranty time?
A: Warranty of the whole machine is 2 years (except the consumable parts like Nozzle, Lens, Ceramic ring). Warranty counts from the date marked on the label of the laser source and machine.
A: In order to recommend you the most suitable machine model, just tell us below information:
1) Your materials
2) Tube diamer and length
3) Max cut thickness and mass production cutting thickness
4) What shape will be your tube? Round,square, rectangle, oval or channel steel, L/H steel,etc
Q: What's material can fiber laser cut?
A: All kinds of metal, such as Stainless Steel, Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, Brass, Copper, etc.
Q: How can I get the information and quotation of this product quickly?
A: Please direct send me the inquiry or leave your email , WhatsApp /WeChat etc. we will arrange the sales manager to contact you ASAP.
Q: I can't come to China, but I want to see the machine condition, what should I do?
A: We support the production visualization service. You can contact the sales to check the production progress of the machine and send you the pictures or videos of your machine. We already has the SGS factory check report can provide you to prove we are a really manufacturer of the fiber laser cutting machine in Shandong, China.
Q: This is the first time I use laser cutting machine, is it easy to operate?
A: Yes, it is easy to operate. We will provide operation manual, showing videos and 7*24 hours online service. We also support free training service, engineers can train your workers for free in our factory; and also we can arrange the engineer door to door service to your factory with fees.
Q: How long is the warranty time?
A: Warranty of the whole machine is 2 years (except the consumable parts like Nozzle, Lens, Ceramic ring). Warranty counts from the date marked on the label of the laser source and machine.
